TOYOTA 4RUNNER 2008 N210 / 4.G Owners Manual

269
1101Georgian
1111Kazakh
111 2Greenlandic
111 3Cambodian
111 4Kannada
111 9Kashmiri
1121Kurdish
1125Kirghiz
1201Latin
1214Lingala
1215Laothian
1220Lithuanian
1222Latvian
1307Malagasy
1309Maori
1311Macedonian
1312Malayalam
1314Mongolian
1315Moldavian
1318Marathi
1319Malay
1320Maltese
1325Burmese
1401Nauru
1405Nepali
1415Norwegian
1503Occitan
1513(Afan) Oromo
1518Oriya
1601Punjabi
1612Polish
1619Pashto, Pushto
1721Quechua
1813Rhaeto−Romance
1814Kirundi
1815Romanian
1823Kinyarwanda
1901Sanskrit
1904Sindhi
1907Sangho
1908Serbo−Croatian
1909Sinhalese
1911Slovak
1912Slovenian
1913Samoan
1914Shona
1915Somali
1917Albanian
1918Serbian
1919Siswati
1920Sesotho
1921Sundanese
1923Swahili
2001Ta m i l
2005Telugu
2007Tajik
2008Thai
2009Tigrinya
2011Turkmen
2012Tagalog
2014Setswana
2015Tonga
2018Turkish

270
2019Tsonga
2020Ta t a r
2023Tw i
2 111Ukrainian
2118Urdu
2126Uzbek
2209Vietnamese
2215Volapük
2315Wolof
2408Xhosa
2515Yoruba
2621Zulu

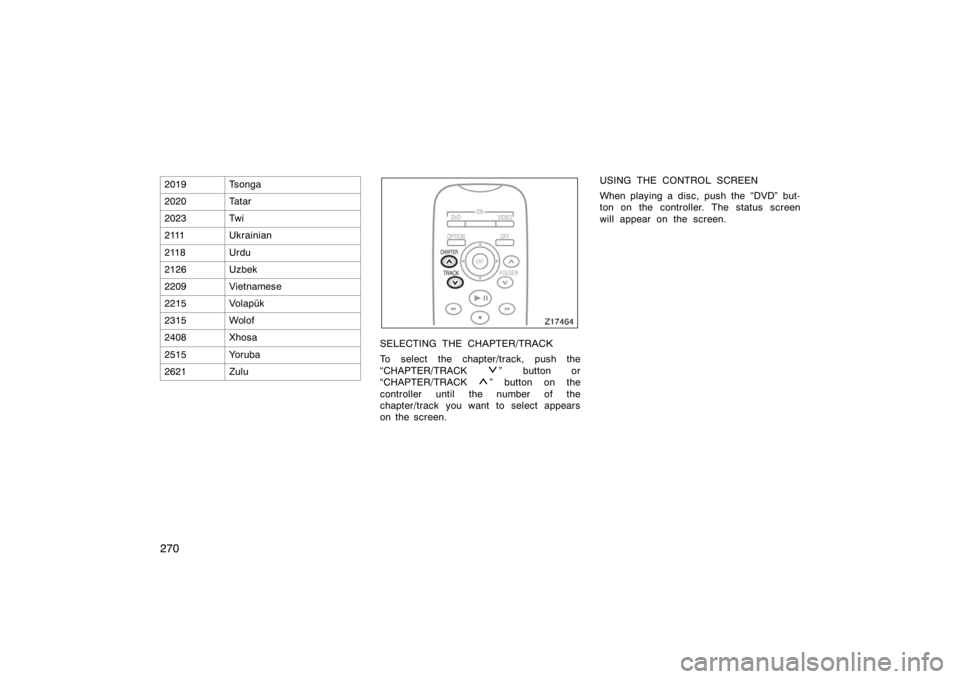

Z17464
SELECTING THE CHAPTER/TRACK
To select the chapter/track, push the
CHAPTER/TRACK
" button or
CHAPTER/TRACK
" button on the
controller until the number of the
chapter/track you want to select appears
on the screen. USING THE CONTROL SCREEN
When playing a disc, push the DVD" but-
ton on the controller. The status screen
will appear on the screen.

271

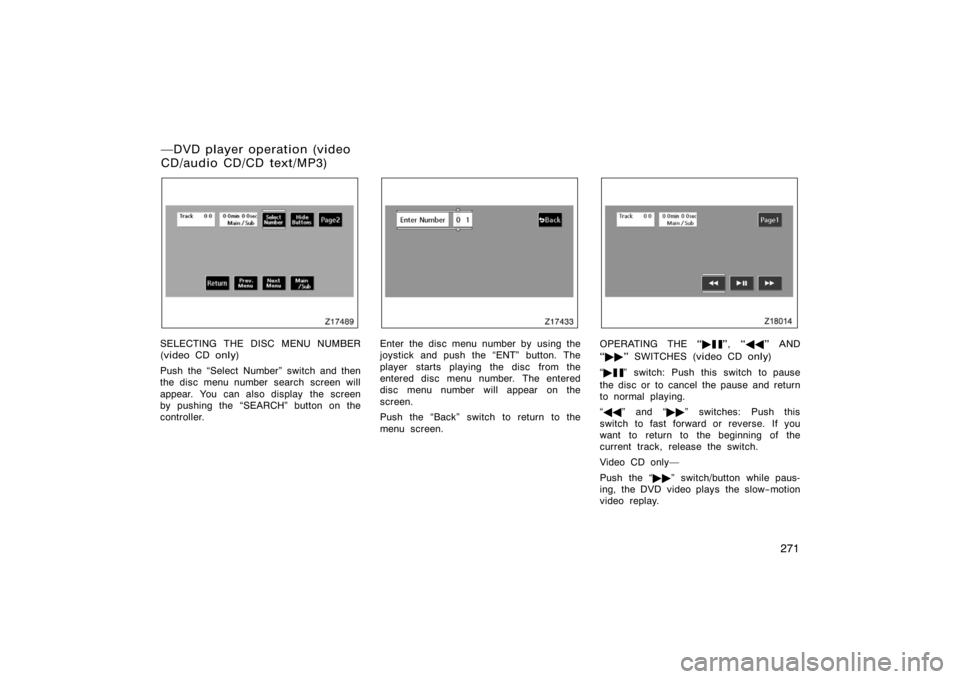

Z17489
SELECTING THE DISC MENU NUMBER
(video CD only)
Push the Select Number" switch and then
the disc menu number search screen will
appear. You can also display the screen
by pushing the SEARCH" button on the
controller.
Z17433
Enter the disc menu number by using the
joystick and push the ENT" button. The
player starts playing the disc from the
entered disc menu number. The entered
disc menu number will appear on the
screen.
Push the Back" switch to return to the
menu screen.
Z18014
OPERATING THE ", " AND
  " SWITCHES (video CD only)

" switch: Push this switch to pause
the disc or to cancel the pause and return
to normal playing.
  " and  " switches: Push this
switch to fast forward or reverse. If you
want to return to the beginning of the
current track, release the switch.
Video CD only
Push the  " switch/button while paus-
ing, the DVD video plays the slow−motion
video replay.
DVD player operation (video
CD/audio CD/CD text/MP3)

272

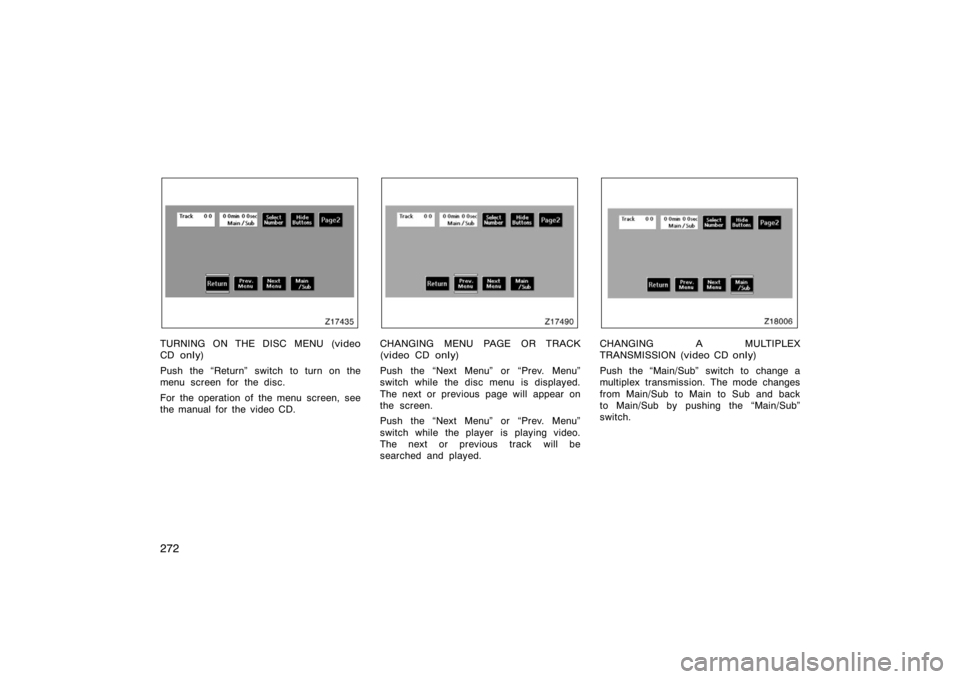

Z17435
TURNING ON THE DISC MENU (video
CD only)
Push the Return" switch to turn on the
menu screen for the disc.
For the operation of the menu screen, see
the manual for the video CD.
Z17490
CHANGING MENU PAGE OR TRACK
(video CD only)
Push the Next Menu" or Prev. Menu"
switch while the disc menu is displayed.
The next or previous page will appear on
the screen.
Push the Next Menu" or Prev. Menu"
switch while the player is playing video.
The next or previous track will be
searched and played.
Z18006
CHANGING A MULTIPLEX
TRANSMISSION (video CD only)
Push the Main/Sub" switch to change a
multiplex transmission. The mode changes
from Main/Sub to Main to Sub and back
to Main/Sub by pushing the Main/Sub"
switch.

273
CHANGING THE INITIAL SETTING (video
CD only)
Push the Set Up" switch on the screen
and then the initial setting screen will ap-
pear. You can also display the screen by
pushing the SET UP" button on the con-
troller. You can change the initial setting.
(See CHANGING THE INITIAL SETTING"
on page 263 in this Section for details.)
After the setting is done, the player plays
from the beginning of the chapter or the
track.

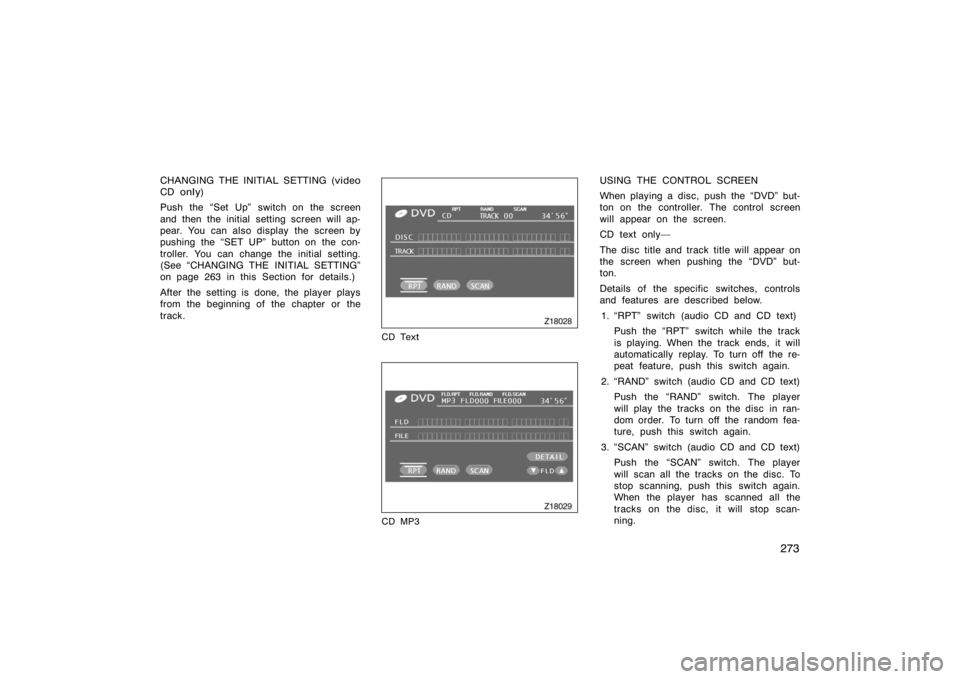

Z18028
CD Text
Z18029
CD MP3
USING THE CONTROL SCREEN
When playing a disc, push the DVD" but-
ton on the controller. The control screen
will appear on the screen.
CD text only
The disc title and track title will appear on
the screen when pushing the DVD" but-
ton.
Details of the specific switches, controls
and features are described below.1. RPT" switch (audio CD and CD text) Push the RPT" switch while the track
is playing. When the track ends, it will
automatically replay. To turn off the re-
peat feature, push this switch again.
2. RAND" switch (audio CD and CD text) Push the RAND" switch. The player
will play the tracks on the disc in ran-
dom order. To turn off the random fea-
ture, push this switch again.
3. SCAN" switch (audio CD and CD text) Push the SCAN" switch. The player
will scan all the tracks on the disc. To
stop scanning, push this switch again.
When the player has scanned all the
tracks on the disc, it will stop scan-
ning.

274
MP3 only
Folder and file names will appear on the
screen when the DVD" button is pushed.
The details of the specific switches, con-
trols, and features are described below.1. RPT" switch When the RPT" switch is pushed while
a track is played, the track file will be
played repeatedly until the switch is
pushed again. When the switch is
pushed for at least 0.8 seconds, all the
files in a folder will be played repeat-
edly. To turn off repeat play mode,
push the switch again.
2. RAND" switch
When the RAND" switch is pushed,
the files in a current folder will be
played in random order. When the
switch is pushed for at least 0.8 sec-
onds, all the files in the disk will be
played in random. To turn off random
play mode, push the switch again. 3. SCAN" switch
When the SCAN" switch is pushed, all
the files in a current folder will be
scanned. Only the first 10 seconds of
each file are played sequentially until
all the files are scanned. When the
switch is pushed for at least 0.8 sec-
onds, the first 10 seconds of each ini-
tial file of all the folders in the disk will
be played sequentially until the entire
initial files are scanned. To stop scan-
ning, push the switch again.
4. FLD
" switch
When the switch is pushed, the initial
file of the next folder will be played.
5.
FLD" switch
When the switch is pushed, the initial
file of the previous folder will be
played.
6. DETAIL" switch
When the switch is pushed while a
track is played, the detailed file infor-
mation of the track will be displayed. You can adjust the color, contrast, tone
and brightness of the screen.
Push the DISPLAY" button on the control-
ler and the Display" screen will appear.
The screen may turn purple to deflect the
sunlight. This is not a malfunction.
Screen adjustment

275

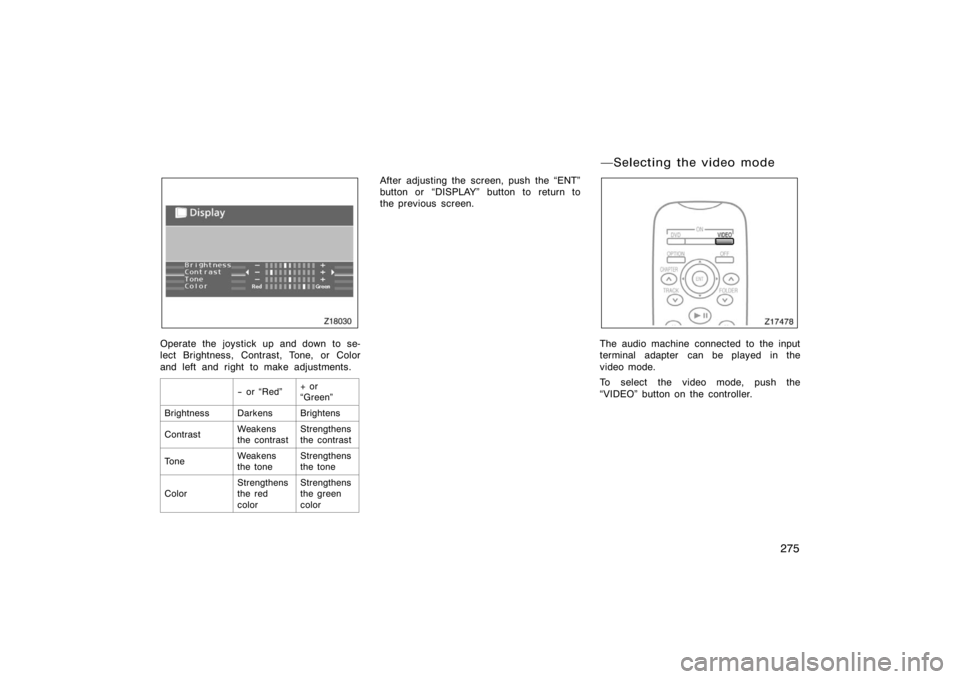

Z18030
Operate the joystick up and down to se-
lect Brightness, Contrast, Tone, or Color
and left and right to make adjustments.
− or Red"+ or
Green"
BrightnessDarkensBrightens
ContrastWeakens
the contrastStrengthens
the contrast
ToneWeakens
the toneStrengthens
the tone
ColorStrengthens
the red
colorStrengthens
the green
color
After adjusting the screen, push the ENT"
button or DISPLAY" button to return to
the previous screen.
Z17478
The audio machine connected to the input
terminal adapter can be played in the
video mode.
To select the video mode, push the
VIDEO" button on the controller.
Selecting the video mode

276
DVD PLAYER AND DVD VIDEO DISCS
This DVD player conforms to NTSC col-
or TV formats. DVD video discs con-
forming to other formats such as PAL
or SECAM cannot be used.
Region codes: Some DVD video discs
have a region code indicating where you
can use. If the DVD video disc is not
labeled ALL" or 1", you cannot use it in
this DVD player. If you attempt to play an
inappropriate DVD video disc in this play-
er, REGION CODE ERROR" appears on
the screen. Even if the DVD video disc
does not have a region code, in some

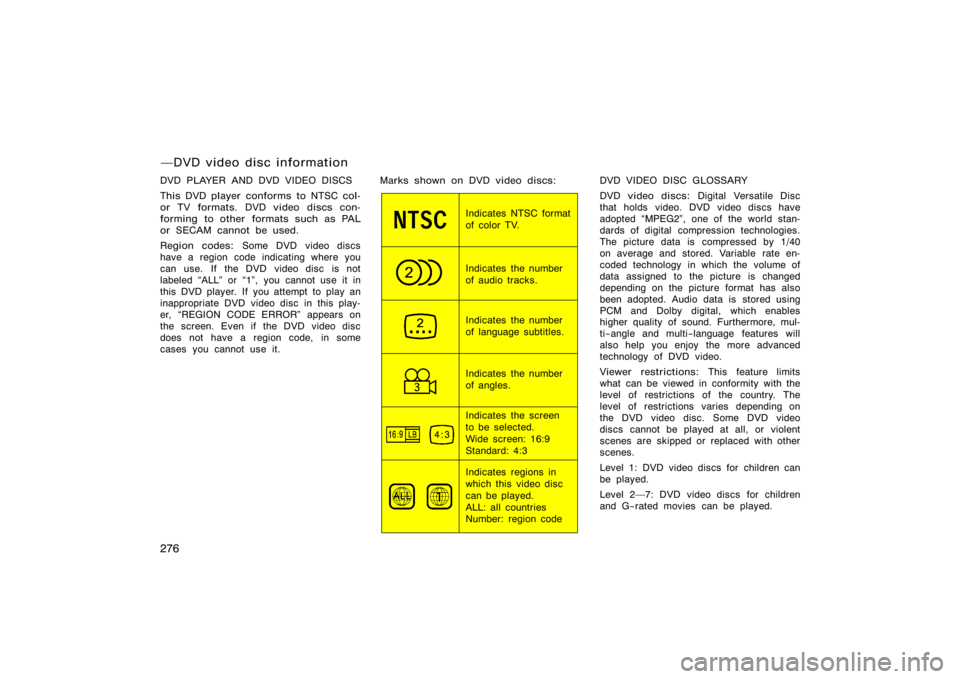

cases you cannot use it. Marks shown on DVD video discs:
Indicates NTSC format
of color TV.
Indicates the number
of audio tracks.
Indicates the number
of language subtitles.
Indicates the number
of angles.
Indicates the screen
to be selected.
Wide screen: 16:9
Standard: 4:3
Indicates regions in
which this video disc
can be played.
ALL: all countries
Number: region codeDVD VIDEO DISC GLOSSARY
DVD video discs:
Digital Versatile Disc
that holds video. DVD video discs have
adopted MPEG2", one of the world stan-
dards of digital compression technologies.
The picture data is compressed by 1/40
on average and stored. Variable rate en-
coded technology in which the volume of
data assigned to the picture is changed
depending on the picture format has also
been adopted. Audio data is stored using
PCM and Dolby digital, which enables
higher quality of sound. Furthermore, mul-
ti−angle and multi−language features will
also help you enjoy the more advanced
technology of DVD video.
Viewer restrictions: This feature limits
what can be viewed in conformity with the
level of restrictions of the country. The
level of restrictions varies depending on
the DVD video disc. Some DVD video
discs cannot be played at all, or violent
scenes are skipped or replaced with other
scenes.
Level 1: DVD video discs for children can
be played.
Level 27: DVD video discs for children
and G−rated movies can be played.
DVD video disc information

277
Level 8: All types of DVD video discs can
be played.
Multi−angle feature: You can enjoy the
same scene at different angles.
Multi−language feature: You can select
the language of the subtitles and audio.
Region codes: Region codes are provided
on DVD players and DVD discs. If the
DVD video disc does not have the same
region code as the DVD player, you can-
not play the disc on the DVD player. For
region codes, see page 276.
Audio: This DVD player can play liner
PCM, Dolby digital, dts and MPEG audio
format DVD. Other decoded type cannot
be played.
Title and chapter: Video and audio pro-
grams stored on DVD video discs are di-
vided in parts by title and chapter.
Title: The largest unit of the video and
audio programs stored on DVD video
discs. Usually, one piece of a movie, one
album, or one audio program is assigned
as a title.
Chapter: A unit smaller than a title. A title
comprises plural chapters. Manufactured under license from Dolby
Laboratories. Dolby", Pro Logic", and
the double−D symbol are trademarks of
Dolby Laboratories. Confidential unpub-
lished works.

1992−1997 Dolby Laboratories. All
rights reserved.
This product incorporates copyright
protection technology that is protected
by method claims of certain U.S. pat-
ents and other intellectual property
rights owned by Macrovision Corpora-
tion and other rights owners. Use of
this copyright protection technology
must be authorized by Macrovision Cor-
poration, and is intended for home and
other limited viewing uses only unless
otherwise authorized by Macrovision
Corporation. Reverse engineering or
disassembly is prohibited.
dts" is a trademark of Digital Theater

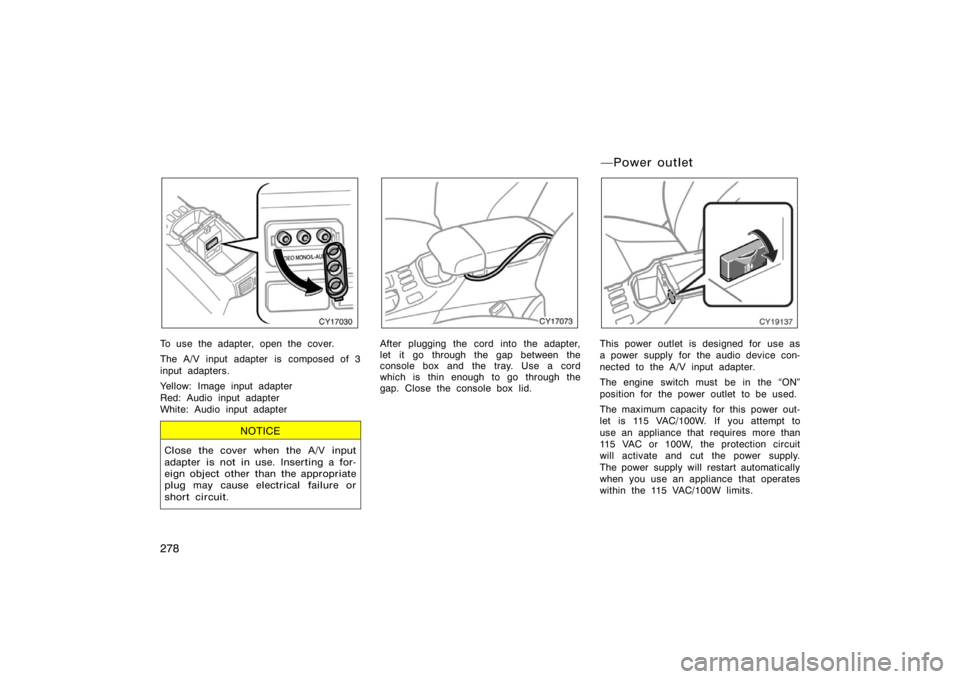

Systems, Inc. The rear entertainment system plays vid-
eos and sound when an audio−video
equipment is connected to the A/V input
adapter. For details, refer to the manufac-
turer’s instructions.
A/V input adapter

278
CY17030
To use the adapter, open the cover.
The A/V input adapter is composed of 3
input adapters.
Yellow: Image input adapter
Red: Audio input adapter
White: Audio input adapter
NOTICE
Close the cover when the A/V input
adapter is not in use. Inserting a for-
eign object other than the appropriate
plug may cause electrical failure or
short circuit.
CY17073
After plugging the cord into the adapter,
let it go through the gap between the
console box and the tray. Use a cord
which is thin enough to go through the
gap. Close the console box lid.
CY19137
This power outlet is designed for use as
a power supply for the audio device con-
nected to the A/V input adapter.
The engine switch must be in the ON"
position for the power outlet to be used.
The maximum capacity for this power out-
let is 115 VAC/100W. If you attempt to
use an appliance that requires more than
115 VAC or 100W, the protection circuit
will activate and cut the power supply.
The power supply will restart automatically
when you use an appliance that operates
within the 115 VAC/100W limits.
Power outlet
