TOYOTA 4RUNNER 2008 N210 / 4.G Owners Manual

279
CY19135
To use the power outlet, push the main
switch on the instrument panel.
An indicator light will illuminate to indicate
that the power outlet is ready for use.
Push the main switch once again to turn
the power outlet off. When the power out-
let is not in use, make sure that the main
switch is turned off.
NOTICE
To prevent the battery from being
discharged, do not use the power
outlet longer than necessary when
the engine is not running.
 Close the power outlet lid when the
power outlet is not in use. Inserting
a foreign object other than the ap-
propriate plug that fits the outlet
may cause electrical failure or short
circuit.
The power outlet is not designed for
the following electric appliances even if
their power consumption is under 115
VAC/100W. These appliances may not
operate properly.
Appliances with high initial peak watt-
age: cathode−ray tube type televisions,
compressor−driven refrigerators, electric
pumps, electric tools, etc.
Measuring devices which process pre-
cise data: medical equipment, measur-
ing instruments, etc.
Other appliances requiring an extremely
stable power supply: microcomputer−
controlled electric blankets, touch sen-
sor lamps, etc.
Certain electrical appliances may cause
radio noise.

280
NOTICE
To ensure correct audio/video system
operation:
Be careful not to spill beverages
over the system.
 Do not put anything other than a
compact disc into the slot.
 Do not put anything other than a
DVD video, video CD, dts−CD or au-
dio CD into the DVD player.
 The use of a cellular phone inside
or near the vehicle may cause a
noise from the speakers of the sys-
tem which you are listening to.
However, this does not indicate a
malfunction.
RADIO RECEPTION
Usually, a problem with radio reception
does not mean there is a problem with
your radioit is just the normal result of
conditions outside the vehicle. For example, nearby buildings and terrain
can interfere with FM reception. Power
lines or telephone wires can interfere with
AM signals. And of course, radio signals
have a limited range. The farther you are
from a station, the weaker its signal will
be. In addition, reception conditions
change constantly as your vehicle moves.
Here are some common reception prob-
lems that probably do not indicate a prob-
lem with your radio:
FM
Fading and drifting stationsGenerally, the
effective range of FM is about 40 km (25
miles). Once outside this range, you may
notice fading and drifting, which increase
with the distance from the radio transmit-
ter. They are often accompanied by distor-
tion.
Multi−pathFM signals are reflective,
making it possible for two signals to reach
your antenna at the same time. If this
happens, the signals will cancel each oth-
er out, causing a momentary flutter or
loss of reception.Static and flutteringThese occur when
signals are blocked by buildings, trees, or
other large objects. Increasing the bass
level may reduce static and fluttering.
Station swappingIf the FM signal you
are listening to is interrupted or weak-
ened, and there is another strong station
nearby on the FM band, your radio may
tune in the second station until the origi-
nal signal can be picked up again.
AM
FadingAM broadcasts are reflected by
the upper atmosphereespecially at night.
These reflected signals can interfere with
those received directly from the radio sta-
tion, causing the radio station to sound
alternately strong and weak.
Station interferenceWhen a reflected sig-
nal and a signal received directly from a
radio station are very nearly the same
frequency, they can interfere with each
other, making it difficult to hear the broad-
cast.
StaticAM is easily affected by external
sources of electrical noise, such as high
tension power lines, lightening, or electri-
cal motors. This results in static.
Audio/video system operating
hints

281
XM∗
Alternation or modifications carried out
without appropriate authorization may in-
validate the user ’s right to operate the
equipment.
∗: Use of satellite radio requires XM
tuner and service. Contact your Toyota
dealer for details.
NOTICE
This equipment has been tested and
found to comply with the limits for a
class B digital device, pursuant to
Part 15 of the FCC Rules. These lim-
its are designed to provide reasonable
protection against harmful interfer-
ence in a residential installation. This
equipment generates, uses and can
radiate radio frequency energy and, if
not installed and used in accordance
with the instructions, may cause
harmful interference to radio commu-
nications. However, there is no guar-
antee that interference will not occur
in a particular installation.
If this equipment does cause harmful
interference to radio or television re-
ception, which can be determined by
turning the equipment off and on, the
user is encouraged to try to correct
the interference by one or more of
the following measures:
Reorient or relocate the receiving
antenna.
Increase the separation between the
equipment and receiver.
Connect the equipment into an out-
let on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experi-
enced radio/TV technician for help.CARING FOR YOUR COMPACT DISC
PLAYER, DVD PLAYER AND DISCS
Extremely high temperatures can keep
your compact disc player and DVD
player from working. On hot days, use
the air conditioning to cool the vehicle
interior before you use the players.
Bumpy roads or other vibrations may
make your compact disc player and
DVD player skip.
If moisture gets into your compact disc
player and DVD player, the players
may not play even though they appear
to be working. Remove the disc from
the player and wait until it dries.
CAUTION
Compact disc players and DVD play-
ers use an invisible laser beam which
could cause hazardous radiation ex-
posure if directed outside the unit. Be
sure to operate the players correctly.

282

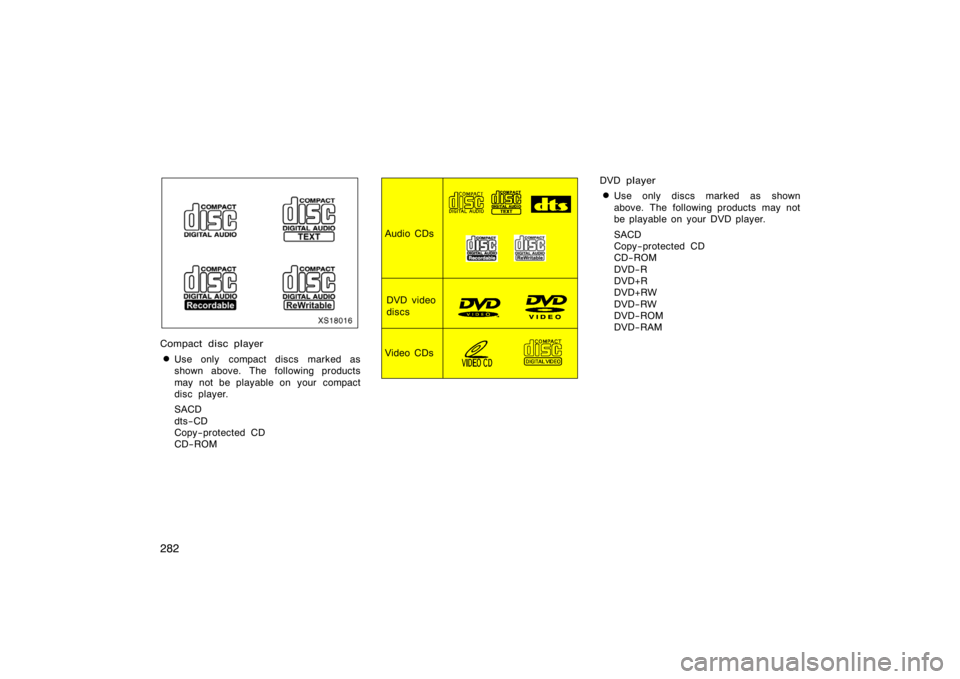

XS18016
Compact disc player
Use only compact discs marked as
shown above. The following products
may not be playable on your compact
disc player.
SACD
dts−CD
Copy−protected CD
CD−ROM
Audio CDsDVD video
discs
Video CDs
DVD player
Use only discs marked as shown
above. The following products may not
be playable on your DVD player.
SACD
Copy−protected CD
CD−ROM
DVD−R
DVD+R
DVD+RW
DVD−RW
DVD−ROM
DVD−RAM

283

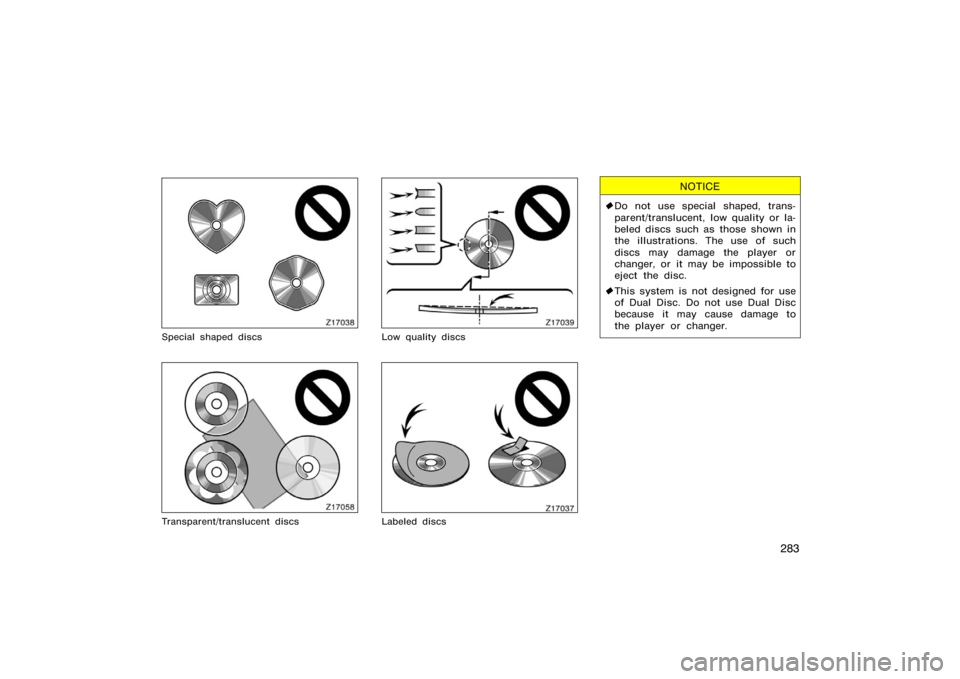

Z17038
Special shaped discs
Z17058
Transparent/translucent discs
Z17039
Low quality discs
Z17037
Labeled discs
NOTICE
Do not use special shaped, trans-
parent/translucent, low quality or la-
beled discs such as those shown in
the illustrations. The use of such
discs may damage the player or
changer, or it may be impossible to
eject the disc.
 This system is not designed for use
of Dual Disc. Do not use Dual Disc
because it may cause damage to
the player or changer.

284

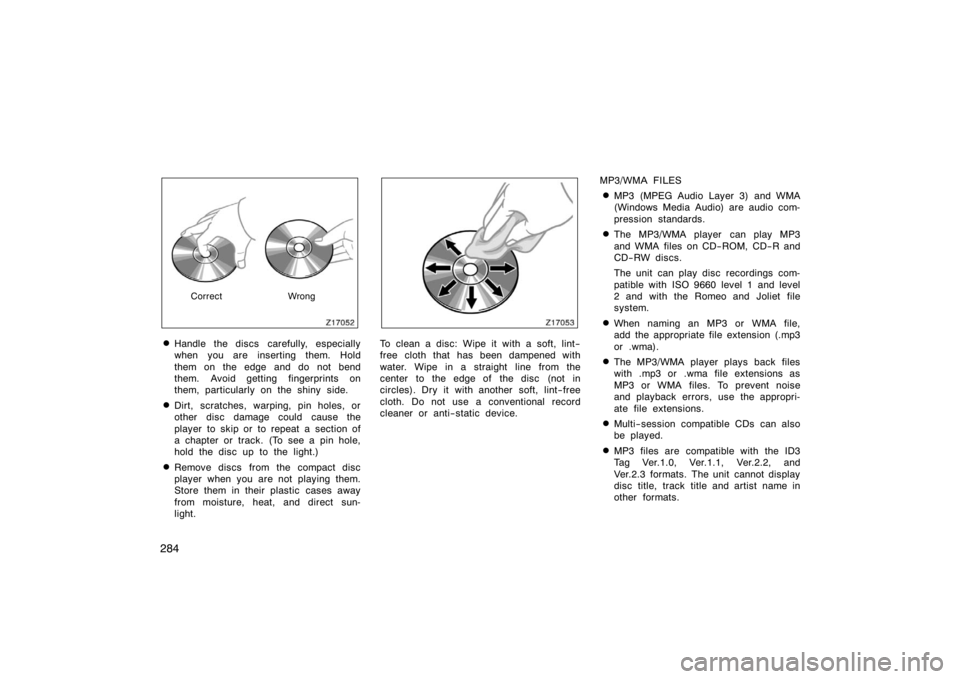

Z17052
CorrectWrong
Handle the discs carefully, especially
when you are inserting them. Hold
them on the edge and do not bend
them. Avoid getting fingerprints on
them, particularly on the shiny side.
Dirt, scratches, warping, pin holes, or
other disc damage could cause the
player to skip or to repeat a section of
a chapter or track. (To see a pin hole,
hold the disc up to the light.)
Remove discs from the compact disc
player when you are not playing them.
Store them in their plastic cases away
from moisture, heat, and direct sun-
light.
Z17053
To clean a disc: Wipe it with a soft, lint−
free cloth that has been dampened with
water. Wipe in a straight line from the
center to the edge of the disc (not in
circles). Dry it with another soft, lint−free
cloth. Do not use a conventional record
cleaner or anti−static device. MP3/WMA FILES
MP3 (MPEG Audio Layer 3) and WMA
(Windows Media Audio) are audio com-
pression standards.
The MP3/WMA player can play MP3
and WMA files on CD−ROM, CD−R and
CD−RW discs.
The unit can play disc recordings com-
patible with ISO 9660 level 1 and level
2 and with the Romeo and Joliet file
system.
When naming an MP3 or WMA file,
add the appropriate file extension (.mp3
or .wma).
The MP3/WMA player plays back files
with .mp3 or .wma file extensions as
MP3 or WMA files. To prevent noise
and playback errors, use the appropri-
ate file extensions.
Multi−session compatible CDs can also
be played.
MP3 files are compatible with the ID3
Tag Ver.1.0, Ver.1.1, Ver.2.2, and
Ver.2.3 formats. The unit cannot display
disc title, track title and artist name in
other formats.

285

WMA files can contain a WMA tag that
is used in the same way as an ID3
tag. WMA tags carry information such
as track title, artist name.
The emphasis function is available only
when playing MP3/WMA files recorded
at 32, 44.1 and 48 kHz. (The system
can play MP3 files with sampling fre-
quencies of 16, 22.05, and 24 kHz.
However, the emphasis function is not
available for files recorded at these fre-
quencies.)
The sound quality of MP3/WMA files
generally improves with higher bit
rates. In order to achieve a reasonable
level of sound quality, discs recorded
with a bit rate of at least 128 kbps are
recommended.
Playable bit rates
MP3 files:
MPEG1 LAYER364 to 320 kbps
MPEG2 LSF LAYER364 to 160 kbps
WMA files:
Ver7, 8 CBR48 to 192 kbps
Ver9 CBR48 to 320 kbps
The MP3/WMA player does not play
back MP3/WMA files from discs record-
er using packet write data transfer
(UDF format). Discs should be re-
corded using pre−mastering" software
rather than packet−write software.
M3u playlists are not compatible with
the audio player.
MP3i (MP3 interactive) and MP3PRO
formats are not compatible with the au-
dio player.
The MP3 player is compatible with
VBR (Variable Bit Rate).
When playing back files recorded as
VBR (Variable Bit Rate) files, the play
time will not be correctly displayed if
fast−forward or reverse operations are
used.
It is not possible to check folders that
do not include MP3/WMA files.
MP3/WMA files in folders up to 8 lev-
els deep can be played. However, the
start of playback may be delayed when
using discs containing numerous levels
of folders. For this reason, we recom-
mend creating discs with no more than
two levels of folders.

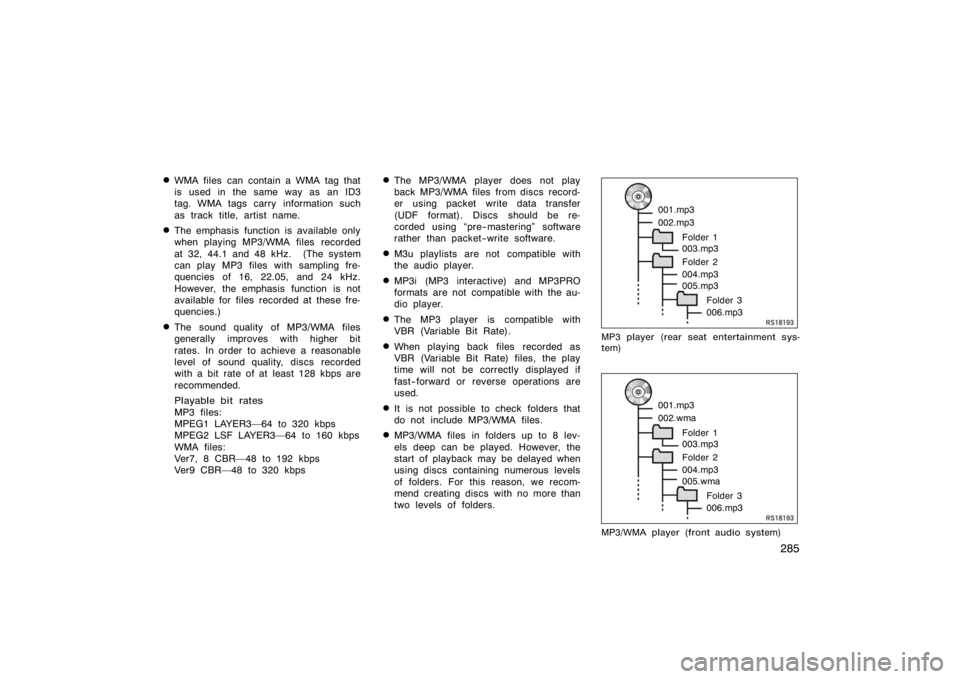

RS18193
001.mp3
002.mp3
Folder 1
003.mp3
Folder 2
004.mp3
005.mp3 Folder 3
006.mp3
MP3 player (rear seat entertainment sys-
tem)
RS18193
001.mp3
002.wma Folder 1
003.mp3
Folder 2
004.mp3
005.wma Folder 3
006.mp3
MP3/WMA player (front audio system)

286
The play order of the compact disc
with the structure shown on the left is
as follows:
MP3 player (rear seat entertainment sys-
tem)
001.mp3 002.mp3 . . . 006.mp3
MP3/WMA player (front audio system)
001.mp3 002.wma . . . 006.mp3
MP3 player (rear seat entertainment
system)It is possible to play up to
253 folders on one disc.
MP3/WMA player (front audio sys-
tem)It is possible to play up to 192
folders or 255 files on one disc.
The order changes depending on the
PC and MP3/WMA encoding software
you use. CD−R and CD−RW discs
CD−R/CD−RW discs that have not been
subject to the finalizing process" (a
process that allows discs to be played
on a conventional CD player) cannot
be played.
It may not be possible to play CD−
R/CD−RW discs recorded on a music
CD recorder or a personal computer
because of disc characteristics,
scratches or dirt on the disc, or dirt,
condensation, etc. on the lens of the
unit.
It may not be possible to play discs
recorded on a personal computer de-
pending on the application settings and
the environment. Record with the cor-
rect format. (For details, contact the
appropriate application manufacturers of
the applications.)
CD−R/CD−RW discs may be damaged
by direct exposure to sunlight, high
temperatures or other storage condi-
tions. The unit may be unable to play
some damaged di
scs.
Titles and other text information re-
corded on CD−R/CD−RW disc may not
be displayed by the MP3/WMA player
(in the case of audio data [CD−DA]).
The MP3/WMA player conforms to the
track skip function of the CD−R/CD−
RW disc.
If you insert a CD−RW disc into the
MP3/WMA player, playback will begin
more slowly than with a conventional
CD or CD−R disc.
Read the precautions accompanying
the CD−R/CD−RW discs before use.
Recordings on CD−R/CD−RW cannot
be played using the DDCD (Double
Density CD) system.

287
TERMS
Packet write
This is a general term that describes the
process of writing data on−demand to
CD−R, etc., in the same way that data is
written to floppy or hard discs.
Bit rate
Bit rate refers to data volume per second,
or bps units (bits per second). The higher
the rate, the more information is available
to reproduce the sound. The higher the
rate, the better the sound.
Multi−session
Multi−session is a recording method that
allows additional data to be recorded later.
When recording data on a CD−ROM,
CD−R or CD−RW, etc., all data from be-
ginning to end is treated as a single unit
or session. Multi−session is a method of
recording more than 2 sessions on one
disc.
CD−DA
CD−DA is an abbreviation for Compact
Disc Digital Audio. It refers to the uncom-
pressed format of regular CDs. ID3 Tag
This is a method of embedding track−re-
lated information in an MP3 file. This em-
bedded information can include the track
title, the artist’s name, the album title, the
music genre, the year of production, com-
ments and other data. The contents can
be freely edited using software with ID3
tag editing functions. Although the tags
are restricted to the number of characters,
the information can be viewed when the
track is played back.
WMA Tag
WMA files can contain a WMA tag that is
used in the same way as an ID3 tag.
WMA tags carry information such as track
title, artist name.
ISO 9660 format
This is the international standard for the
formatting of CD−ROM folders and files.
For the ISO 9660 format, there are two
levels of regulations.
Level 1:
The file name is in 8.3 format (8 charac-
ter file names, with a 3 character file
extension. File names must be composed
of one−byte capital letters and numbers.
The _" symbol may also be included.)Level 2:
The file name can have up to 31 charac-
ters (including the separation mark ." and
file extension). Each folder must contain
fewer than 8 hierarchies.
Extended formats
Joliet:
File names can include up to 64 charac-
ters.
Romeo:
File names can include up to 128 charac-
ters.
m3u
Playlists created using WINAMP" software
have a playlist file extension (.m3u).
MP3
MP3 is an audio compression standard
determined by a working group (MPEG) of
the ISO (International Standard Organiza-
tion). MP3 compresses audio data to
about 1/10 the size of that on convention-
al discs.
WMA
WMA (Windows Media Audio) is an audio
compression format developed by Micro-
soft. It compresses files into a size small-
er than that of MP3 files. The decoding
formats for WMA files are Ver7, 8, and 9.

288
