TOYOTA 4RUNNER 2009 N280 / 5.G Navigation Manual

10

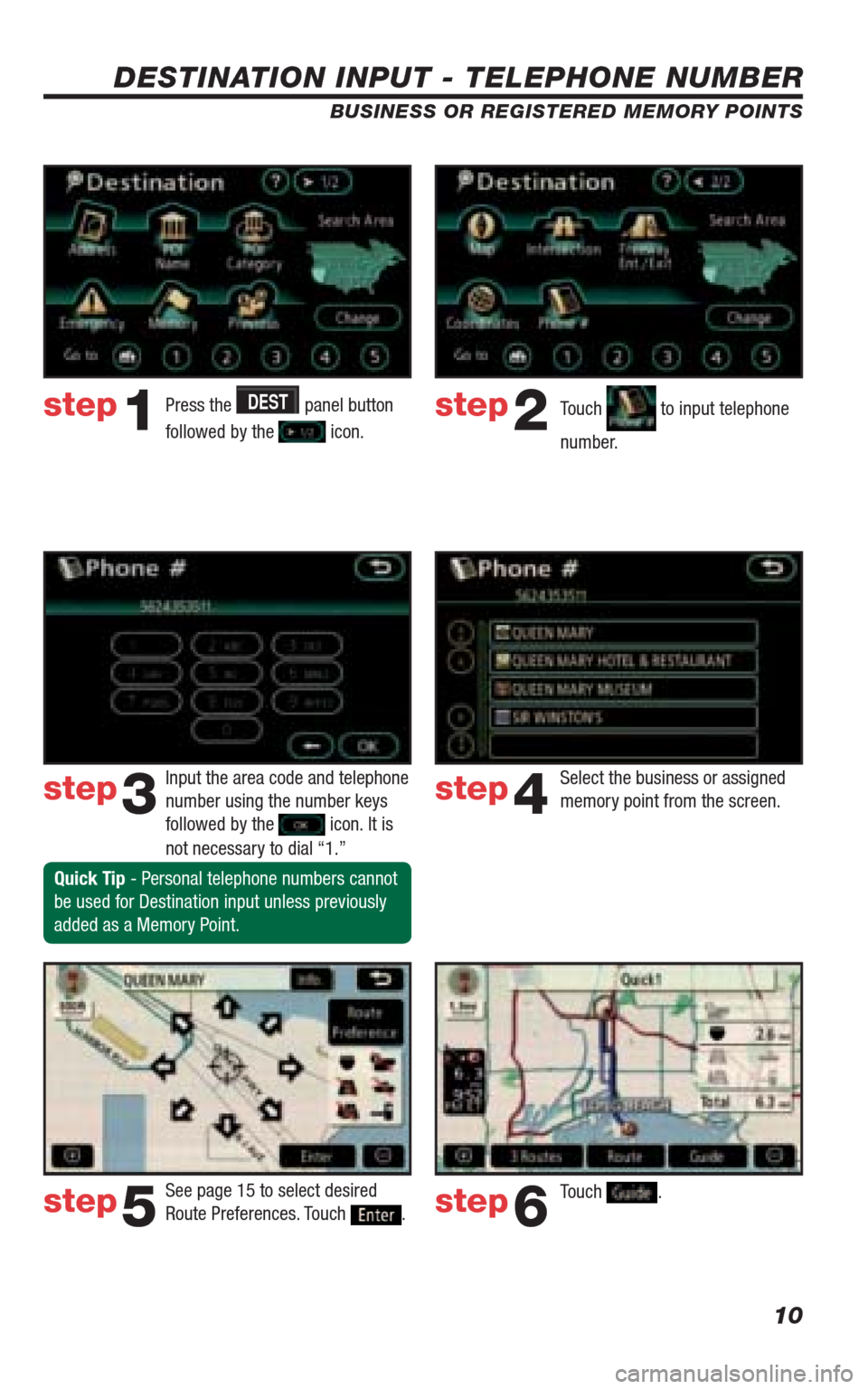

DESTINATION INPUT - TELEPHONE NUMBER
BUSINESS OR REGISTERED MEMORY POINTS
Press the DEST panel button
followed by the
icon.Touch to input telephone
number.
Input the area code and telephone
number using the number keys
followed by the
icon. It is
not necessary to dial “1.”Select the business or assigned
memory point from the screen.
See page 15 to select desired
Route Preferences. Touch
.Touch .
step1step2
step3step4
step5step6
Quick Tip - Personal telephone numbers cannot
be used for Destination input unless previously
added as a Memory Point.
412717M1.indd Sec1:107/22/08 4:15:28 PM

11

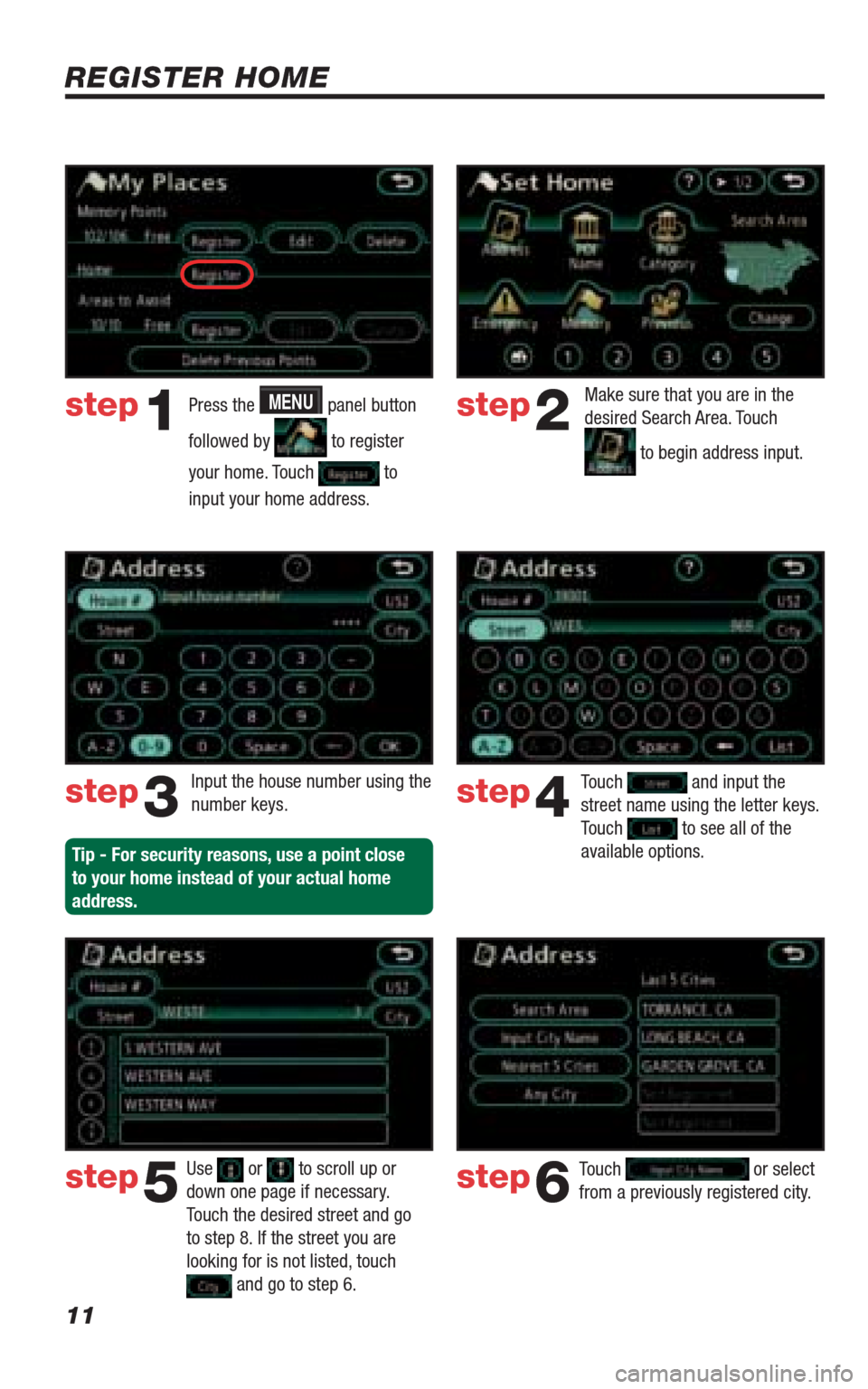

REGISTER HOME
Press the MENU panel button
followed by
to register
your home. Touch
to
input your home address.Make sure that you are in the
desired Search Area. Touch to begin address input.
Input the house number using the
number keys.Touch
and input the
street name using the letter keys.
Touch
to see all of the
available options.
Touch or select
from a previously registered city.
step1step2
step3step4
step6
Tip - For security reasons, use a point close
to your home instead of your actual home
address.
Use or to scroll up or
down one page if necessary.
Touch the desired street and go
to step 8. If the street you are
looking for is not listed, touch
and go to step 6.
step5
412717M1.indd Sec1:117/22/08 4:15:28 PM

12

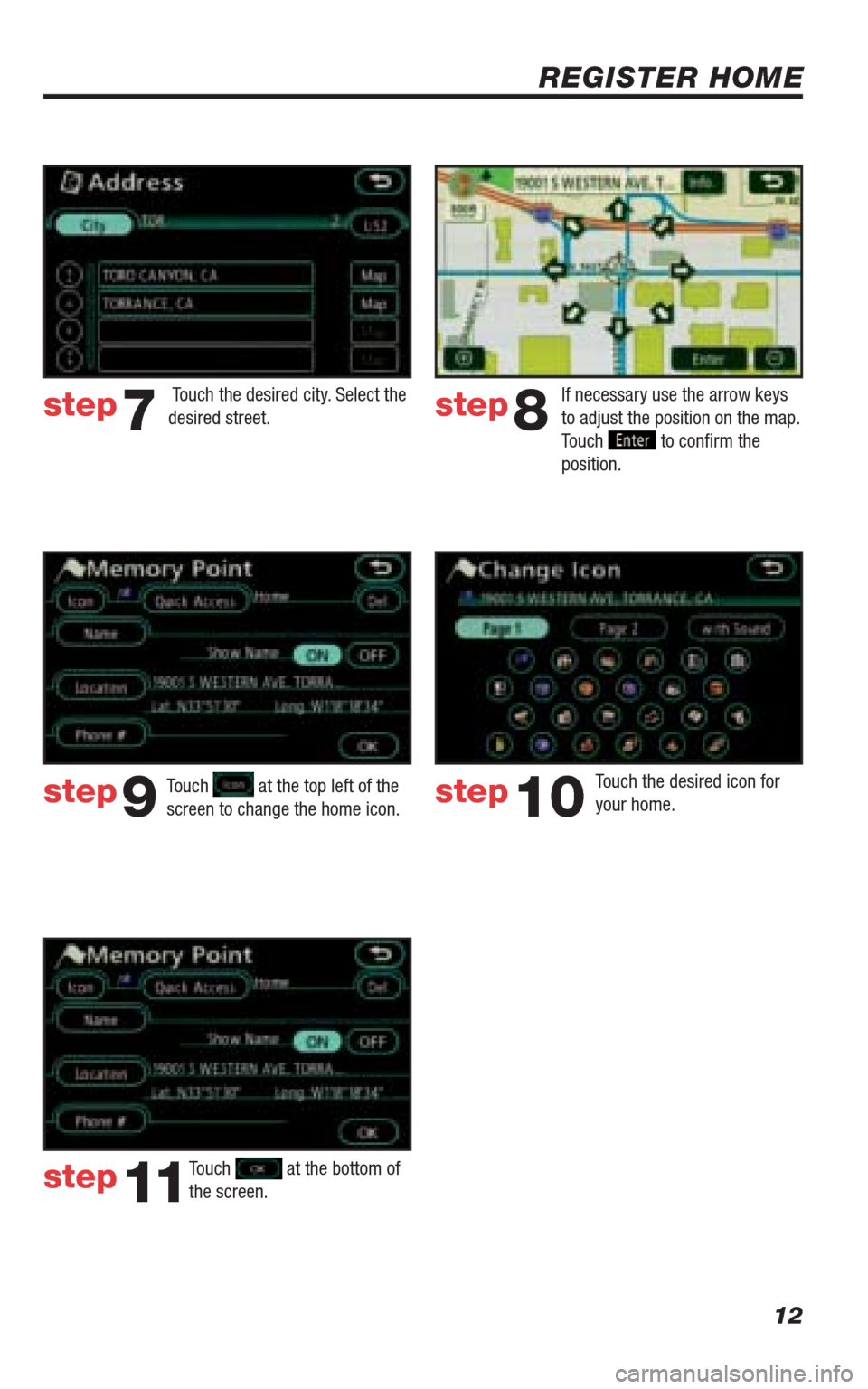

REGISTER HOME
If necessary use the arrow keys
to adjust the position on the map.
Touch
to confi rm the
position.
Touch
at the top left of the
screen to change the home icon.Touch the desired icon for
your home.
Touch at the bottom of
the screen.
step8
step9step10
step11
Touch the desired city. Select the
desired street.step7
412717M1.indd Sec1:127/22/08 4:15:29 PM

13

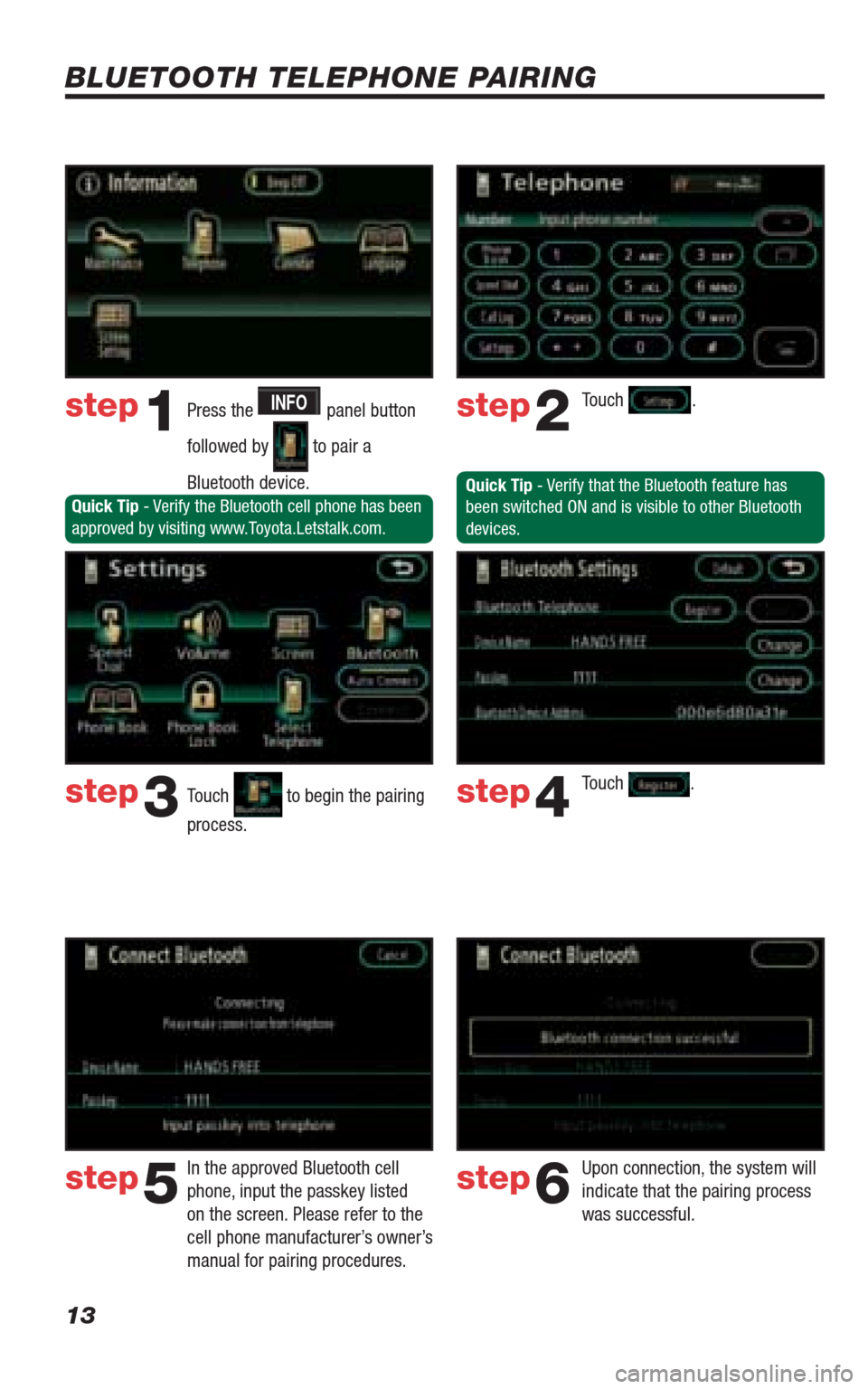

BLUETOOTH TELEPHONE PAIRING
Quick Tip - Verify that the Bluetooth feature has
been switched ON and is visible to other Bluetooth
devices.
Press the INFO panel button
followed by
to pair a
Bluetooth device.Touch
.
Touch
to begin the pairing
process.Touch .
In the approved Bluetooth cell
phone, input the passkey listed
on the screen. Please refer to the
cell phone manufacturer’s owner’s
manual for pairing procedures.Upon connection, the system will
indicate that the pairing process
was successful.
step1step2
step3step4
step5step6
Quick Tip - Verify the Bluetooth cell phone has been
approved by visiting www.Toyota.Letstalk.com.
412717M1.indd Sec1:137/22/08 4:15:29 PM

14

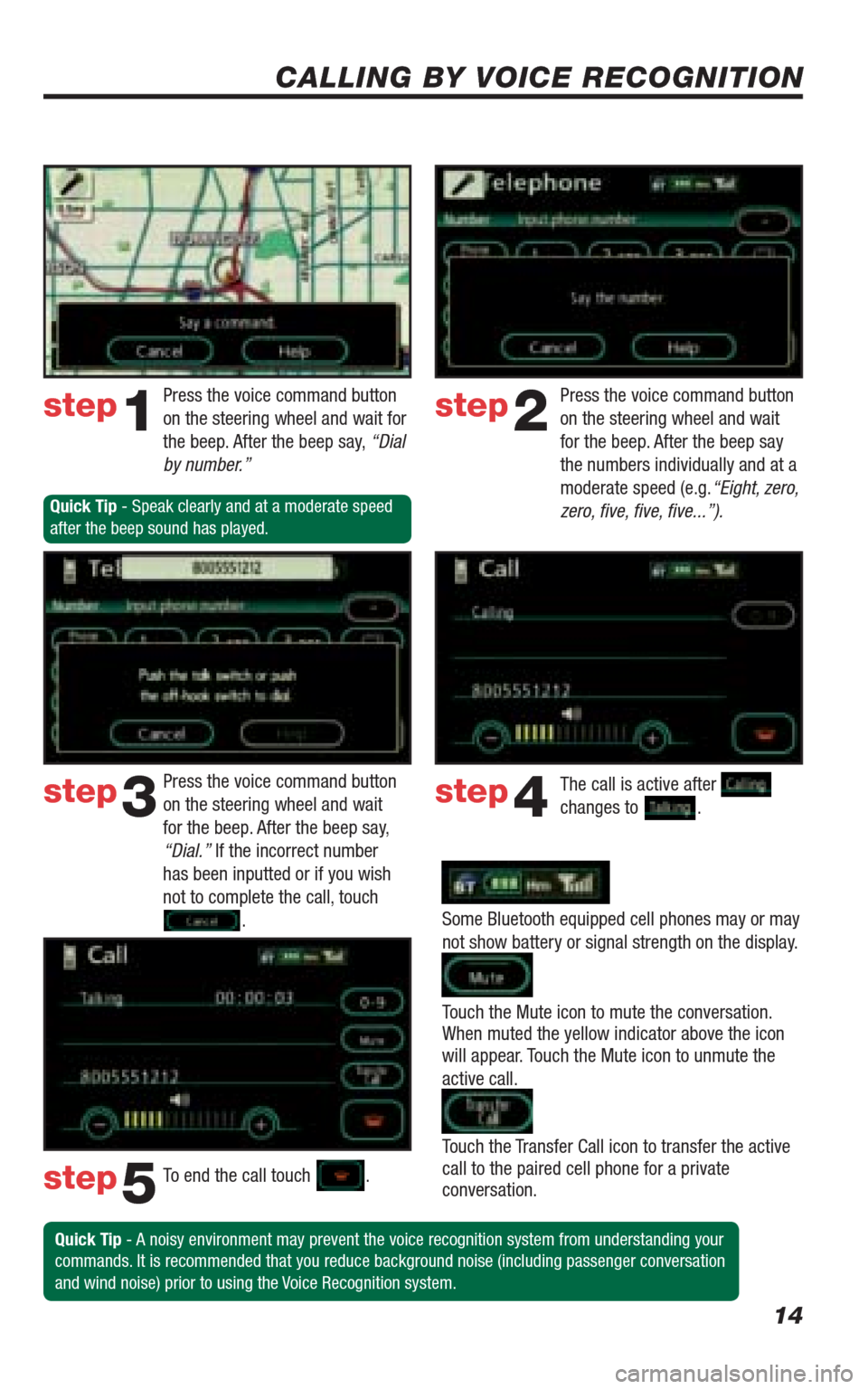

CALLING BY VOICE RECOGNITION
Some Bluetooth equipped cell phones may or may
not show battery or signal strength on the display.
Touch the Mute icon to mute the conversation.
When muted the yellow indicator above the icon
will appear. Touch the Mute icon to unmute the
active call.
Touch the Transfer Call icon to transfer the active
call to the paired cell phone for a private
conversation. Press the voice command button
on the steering wheel and wait for
the beep. After the beep say, “Dial
by number.”Press the voice command button
on the steering wheel and wait
for the beep. After the beep say
the numbers individually and at a
moderate speed (e.g.“Eight, zero,
zero, fi ve, fi ve, fi ve...”).
Press the voice command button
on the steering wheel and wait
for the beep. After the beep say,
“Dial.” If the incorrect number
has been inputted or if you wish
not to complete the call, touch
.The call is active after

changes to .
To end the call touch
.
Quick Tip - A noisy environment may prevent the voice recognition system from understanding your
commands. It is recommended that you reduce background noise (including passenger conversation
and wind noise) prior to using the Voice Recognition system.
step1step2
step3step4
step5
Quick Tip - Speak clearly and at a moderate speed
after the beep sound has played.
412717M1.indd Sec1:147/22/08 4:15:29 PM

15

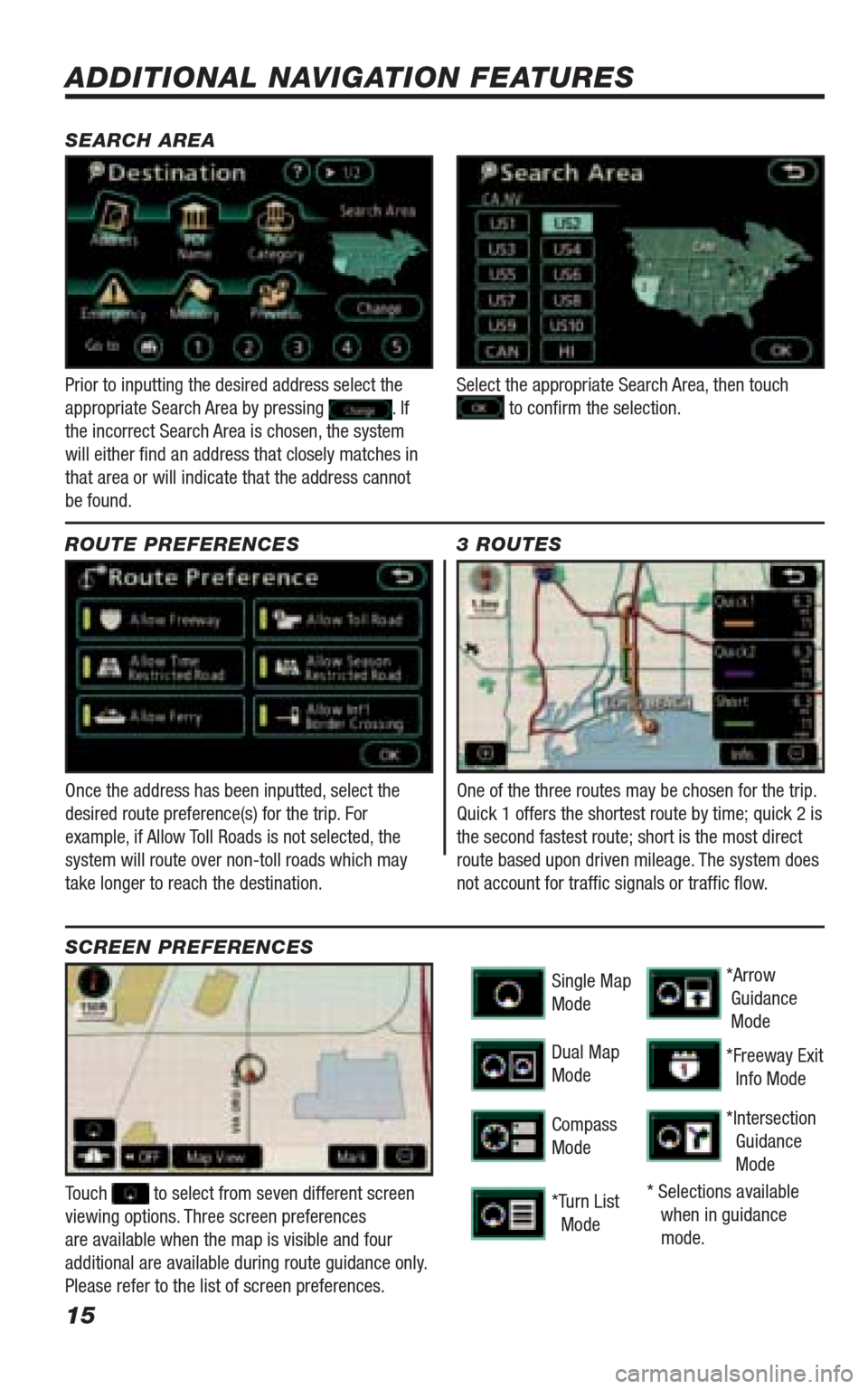

Once the address has been inputted, select the
desired route preference(s) for the trip. For
example, if Allow Toll Roads is not selected, the
system will route over non-toll roads which may
take longer to reach the destination. SEARCH AREA
ROUTE PREFERENCES
Prior to inputting the desired address select the
appropriate Search Area by pressing . If
the incorrect Search Area is chosen, the system
will either fi nd an address that closely matches in
that area or will indicate that the address cannot
be found.
Touch to select from seven different screen
viewing options. Three screen preferences
are available when the map is visible and four
additional are available during route guidance only.
Please refer to the list of screen preferences.
SCREEN PREFERENCES
One of the three routes may be chosen for the trip.
Quick 1 offers the shortest route by time; quick 2 is
the second fastest route; short is the most direct
route based upon driven mileage. The system does
not account for traffi c signals or traffi c fl ow.
ADDITIONAL NAVIGATION FEATURES
Single Map
Mode
Dual Map
Mode
Compass
Mode
*Turn List
Mode*Arrow
Guidance
Mode
*Freeway Exit
Info Mode
*Intersection
Guidance
Mode
* Selections available
when in guidance
mode.
3 ROUTES
Select the appropriate Search Area, then touch to confi rm the selection.
412717M1.indd Sec1:157/22/08 4:15:30 PM

16

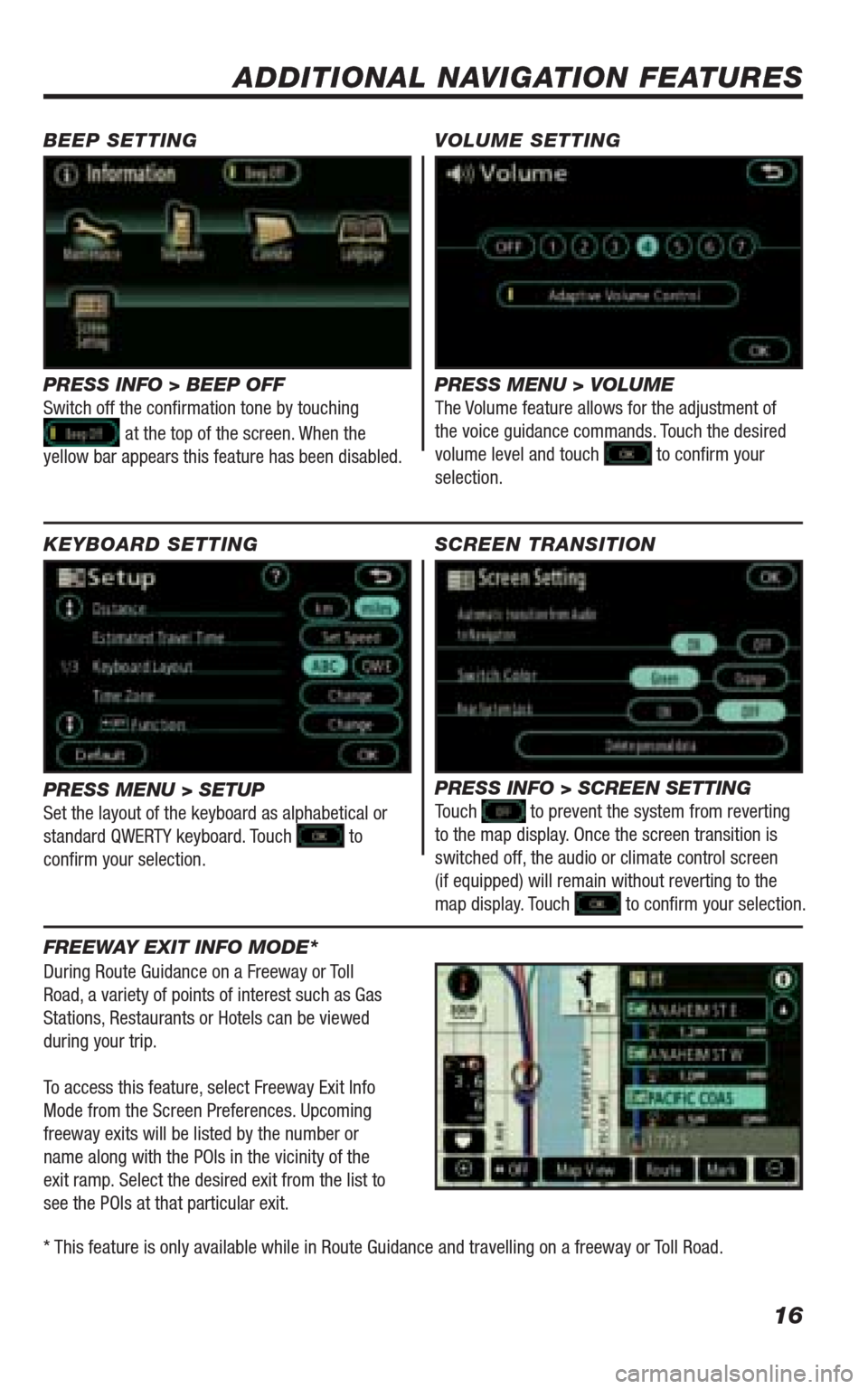

ADDITIONAL NAVIGATION FEATURES
KEYBOARD SETTING
PRESS MENU > SETUP
Set the layout of the keyboard as alphabetical or
standard QWERTY keyboard. Touch
to
confi rm your selection.PRESS MENU > VOLUME
The Volume feature allows for the adjustment of
the voice guidance commands. Touch the desired
volume level and touch
to confi rm your
selection. BEEP SETTING VOLUME SETTING
PRESS INFO > BEEP OFF
Switch off the confi rmation tone by touching at the top of the screen. When the
yellow bar appears this feature has been disabled.
FREEWAY EXIT INFO MODE*
During Route Guidance on a Freeway or Toll
Road, a variety of points of interest such as Gas
Stations, Restaurants or Hotels can be viewed
during your trip.

To access this feature, select Freeway Exit Info
Mode from the Screen Preferences. Upcoming
freeway exits will be listed by the number or
name along with the POIs in the vicinity of the
exit ramp. Select the desired exit from the list to
see the POIs at that particular exit.
* This feature is only available while in Route Guidance and travelling on a freeway or Toll Road.
SCREEN TRANSITION
PRESS INFO > SCREEN SETTING
Touch to prevent the system from reverting
to the map display. Once the screen transition is
switched off, the audio or climate control screen
(if equipped) will remain without reverting to the
map display. Touch
to confi rm your selection.
412717M1.indd Sec1:167/22/08 4:15:31 PM

17

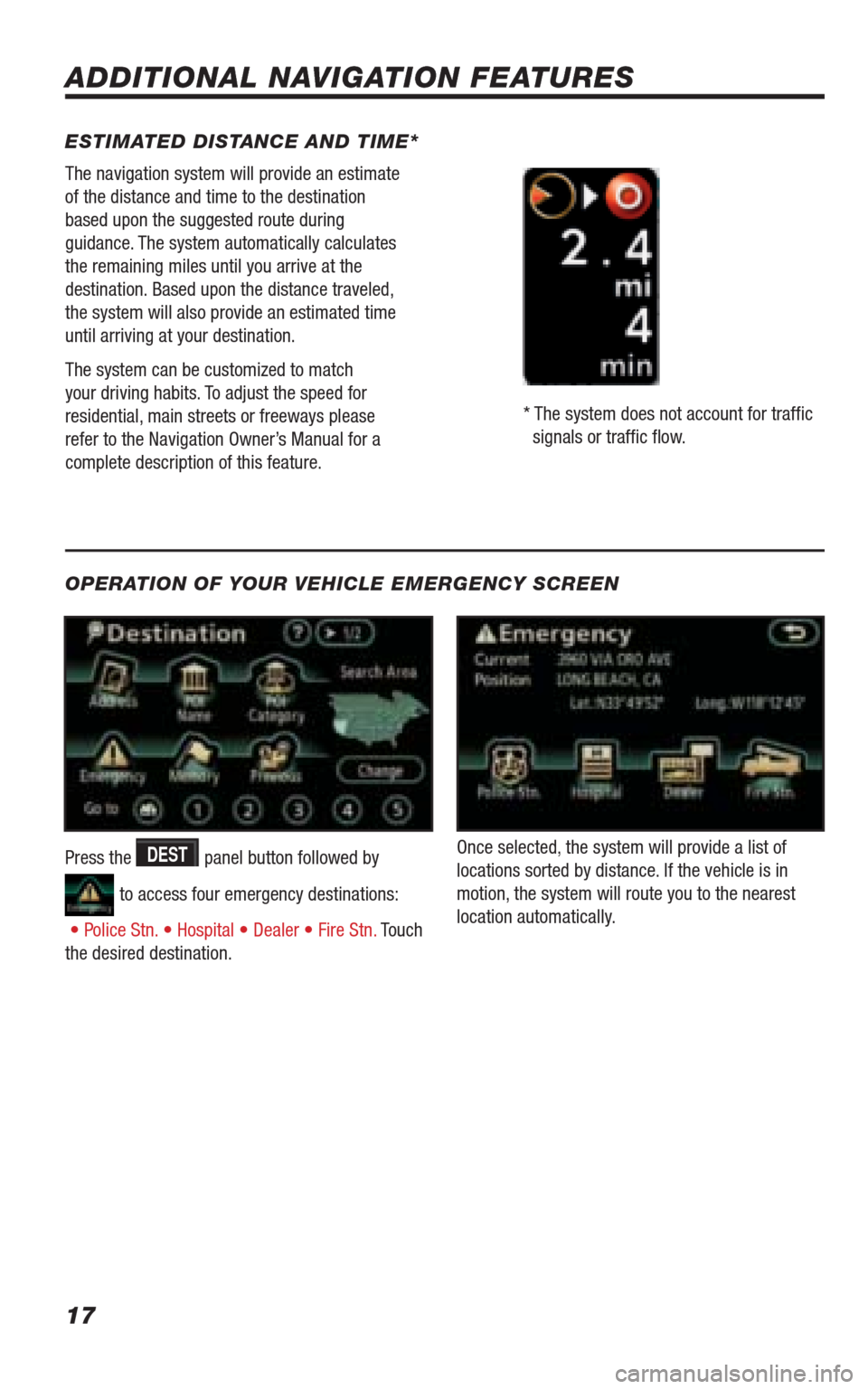

ADDITIONAL NAVIGATION FEATURES
OPERATION OF YOUR VEHICLE EMERGENCY SCREEN
ESTIMATED DISTANCE AND TIME*
The navigation system will provide an estimate
of the distance and time to the destination
based upon the suggested route during
guidance. The system automatically calculates
the remaining miles until you arrive at the
destination. Based upon the distance traveled,
the system will also provide an estimated time
until arriving at your destination.
The system can be customized to match
your driving habits. To adjust the speed for
residential, main streets or freeways please
refer to the Navigation Owner’s Manual for a
complete description of this feature.* The system does not account for traffi c
signals or traffi c fl ow.
Once selected, the system will provide a list of
locations sorted by distance. If the vehicle is in
motion, the system will route you to the nearest
location automatically. Press the DEST panel button followed by
to access four emergency destinations:

• Police Stn. • Hospital • Dealer • Fire Stn. Touch
the desired destination.
