470

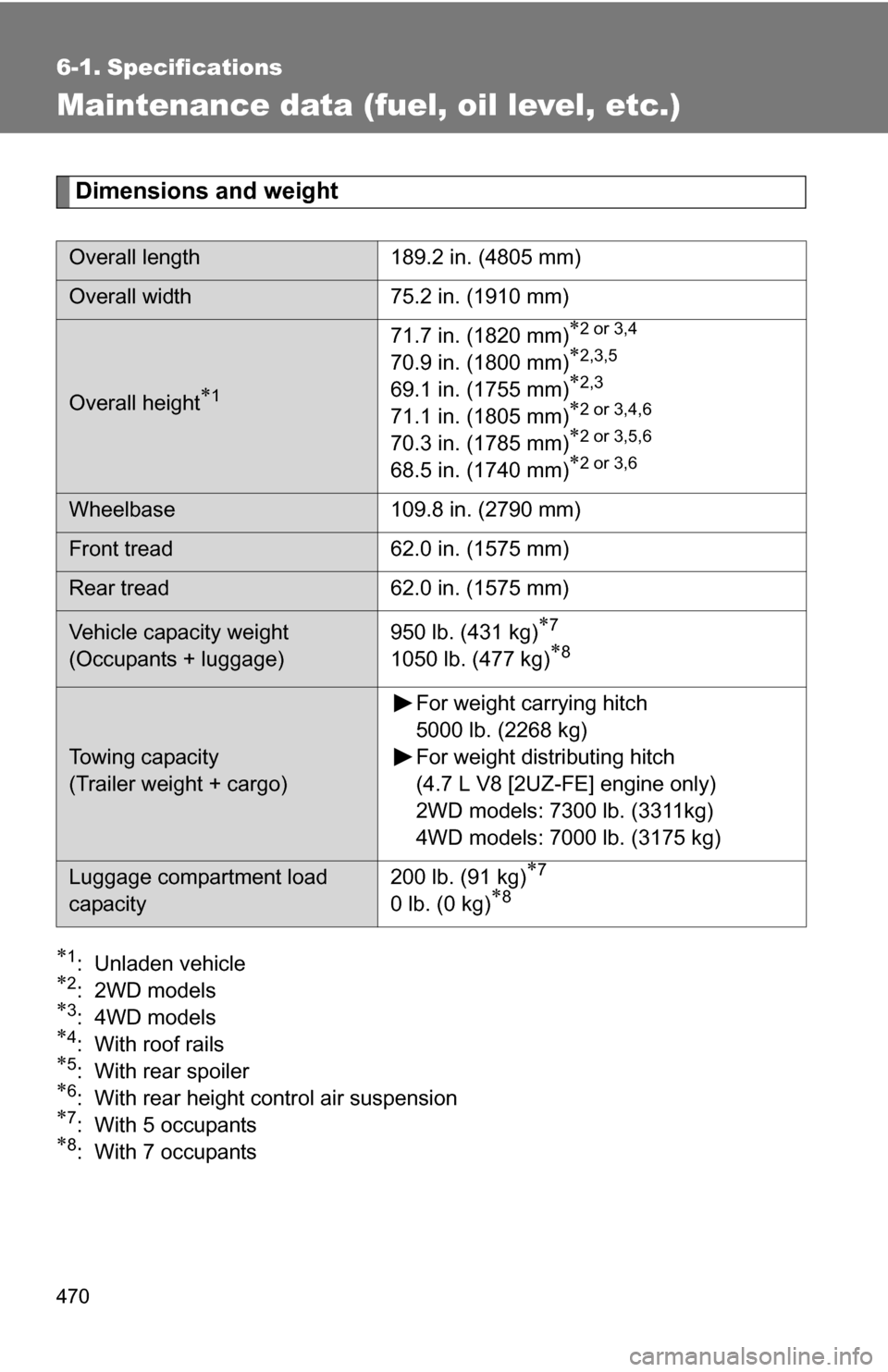

6-1. Specifications
Maintenance data (fuel, oil level, etc.)
Dimensions and weight
1: Unladen vehicle2: 2WD models3: 4WD models4: With roof rails5: With rear spoiler6: With rear height control air suspension7: With 5 occupants8: With 7 occupants
Overall length189.2 in. (4805 mm)
Overall width75.2 in. (1910 mm)
Overall height1
71.7 in. (1820 mm)2 or 3,4
70.9 in. (1800 mm)2,3,5
69.1 in. (1755 mm)2,3
71.1 in. (1805 mm)2 or 3,4,6
70.3 in. (1785 mm)2 or 3,5,6
68.5 in. (1740 mm)2 or 3,6
Wheelbase109.8 in. (2790 mm)
Front tread 62.0 in. (1575 mm)
Rear tread62.0 in. (1575 mm)
Vehicle capacity weight
(Occupants + luggage) 950 lb. (431 kg)7
1050 lb. (477 kg)8
Towing capacity
(Trailer weight + cargo) For weight carrying hitch
5000 lb. (2268 kg)
For weight distributing hitch
(4.7 L V8 [2UZ-FE] engine only)
2WD models: 7300 lb. (3311kg)
4WD models: 7000 lb. (3175 kg)
Luggage compartment load
capacity
200 lb. (91 kg)7
0 lb. (0 kg)8

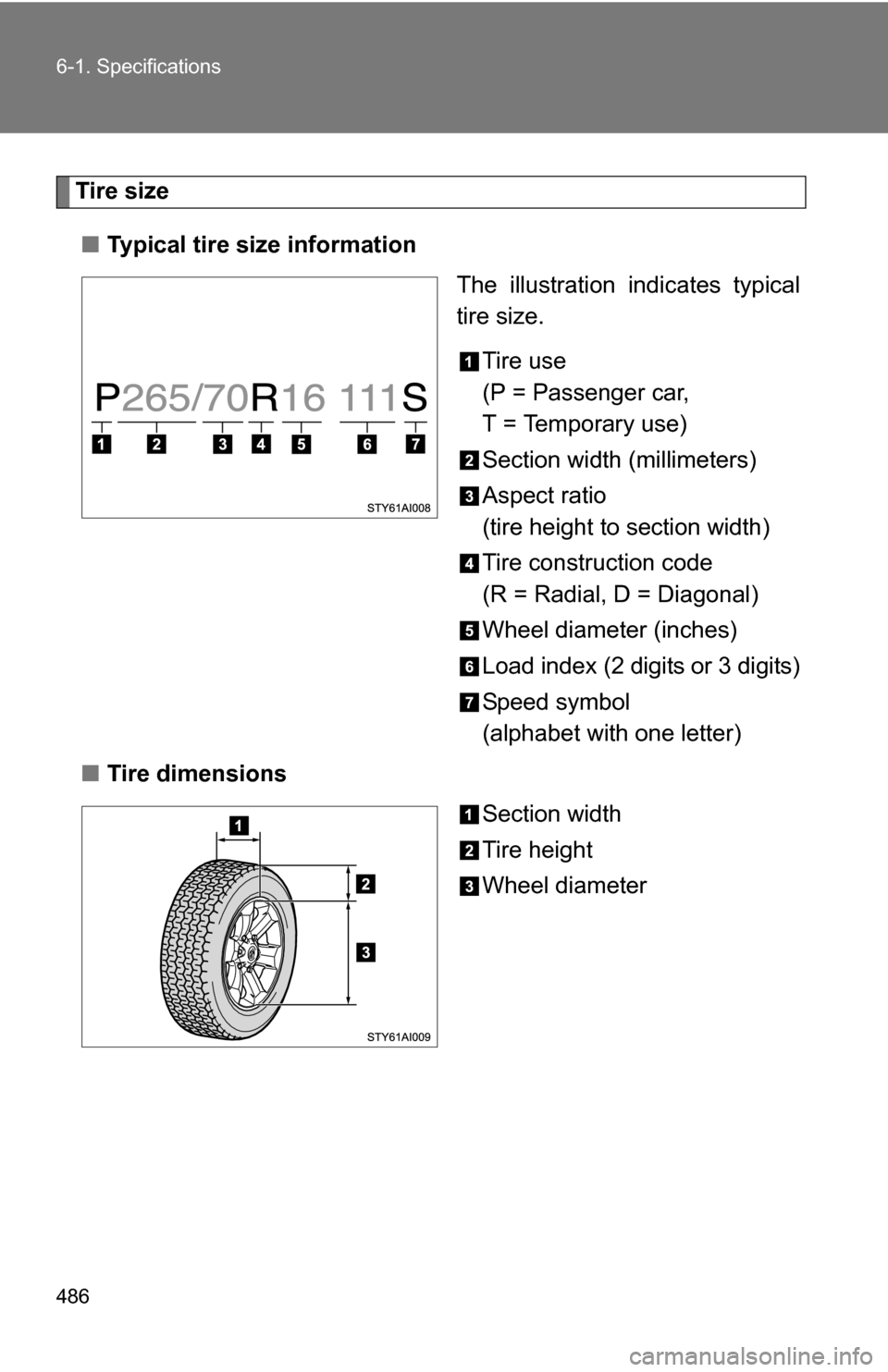

486 6-1. Specifications
Tire size■ Typical tire size information
The illustration indicates typical
tire size.
Tire use
(P = Passenger car,
T = Temporary use)
Section width (millimeters)
Aspect ratio
(tire height to section width)
Tire construction code
(R = Radial, D = Diagonal)
Wheel diameter (inches)
Load index (2 digits or 3 digits)
Speed symbol
(alphabet with one letter)
■ Tire dimensions
Section width
Tire height
Wheel diameter
