530 4-3. Do-it-yourself maintenance
4RUNNER_U
■Use a CR2016 (vehicles without a smart key system) or CR1632 (vehi-
cles with a smart key system) lithium battery
● Batteries can be purchased at your Toyota dealer, local electrical appli-
ance shops or camera stores.
● Replace only with the same or equivalent type recommended by the
manufacturer.
● Dispose of used batteries according to local laws.
■ If the key battery is depleted
The following symptoms may occur:
● The smart key system and wireless remote control will not function prop-
erly.
● The operational range will be reduced.
CAUTION
■Removed battery and other parts
Keep away from children.
These parts are small and if swallowed by a child, they can cause choking.
NOTICE
■For normal operation after replacing the battery
Observe the following precautions to prevent accidents:
● Always work with dry hands.
Moisture may cause the battery to rust.
● Do not touch or move any other component inside the remote control.
● Do not bend either of the battery terminals.
531
4-3. Do-it-yourself maintenance
4
Maintenance and care
4RUNNER_U

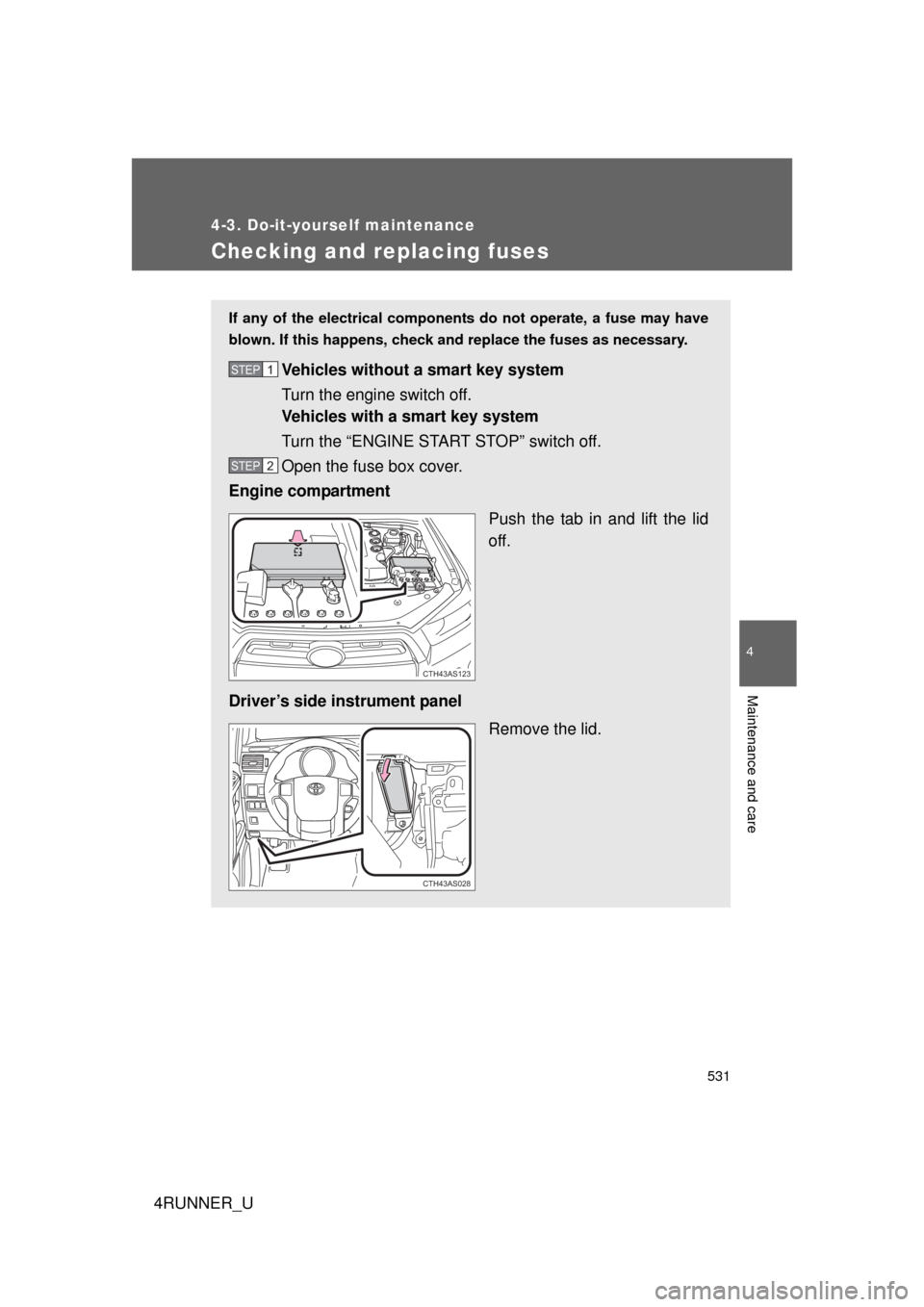

Checking and replacing fuses
If any of the electrical components do not operate, a fuse may have
blown. If this happens, check and replace the fuses as necessary.
Vehicles without a smart key system
Turn the engine switch off.
Vehicles with a smart key system
Turn the “ENGINE START STOP” switch off.
Open the fuse box cover.
Engine compartment
Push the tab in and lift the lid
off.
Driver’s side instrument panel Remove the lid.STEP 1
STEP 2
CTH43AS123
CTH43AS028
532 4-3. Do-it-yourself maintenance
4RUNNER_U
After a system failure, see “Fuse layout and amperage rat-
ings” (P. 535) for details about which fuse to check.
Remove the fuse.
Only type A fuse can be
removed using the pull-out
tool.
Check if the fuse is blown.
Ty p e A
Normal fuse
Blown fuse
Replace the blown fuse with a
new fuse of an appropriate
amperage rating. The amper-
age rating can be found on the
fuse box lid.
Ty p e BNormal fuse
Blown fuse
Replace the blown fuse with a
new fuse of an appropriate
amperage rating. The amper-
age rating can be found on the
fuse box lid.
STEP 3
STEP 4
CTH43AS029
STEP 5
CTH43AS030
CTH43AS031

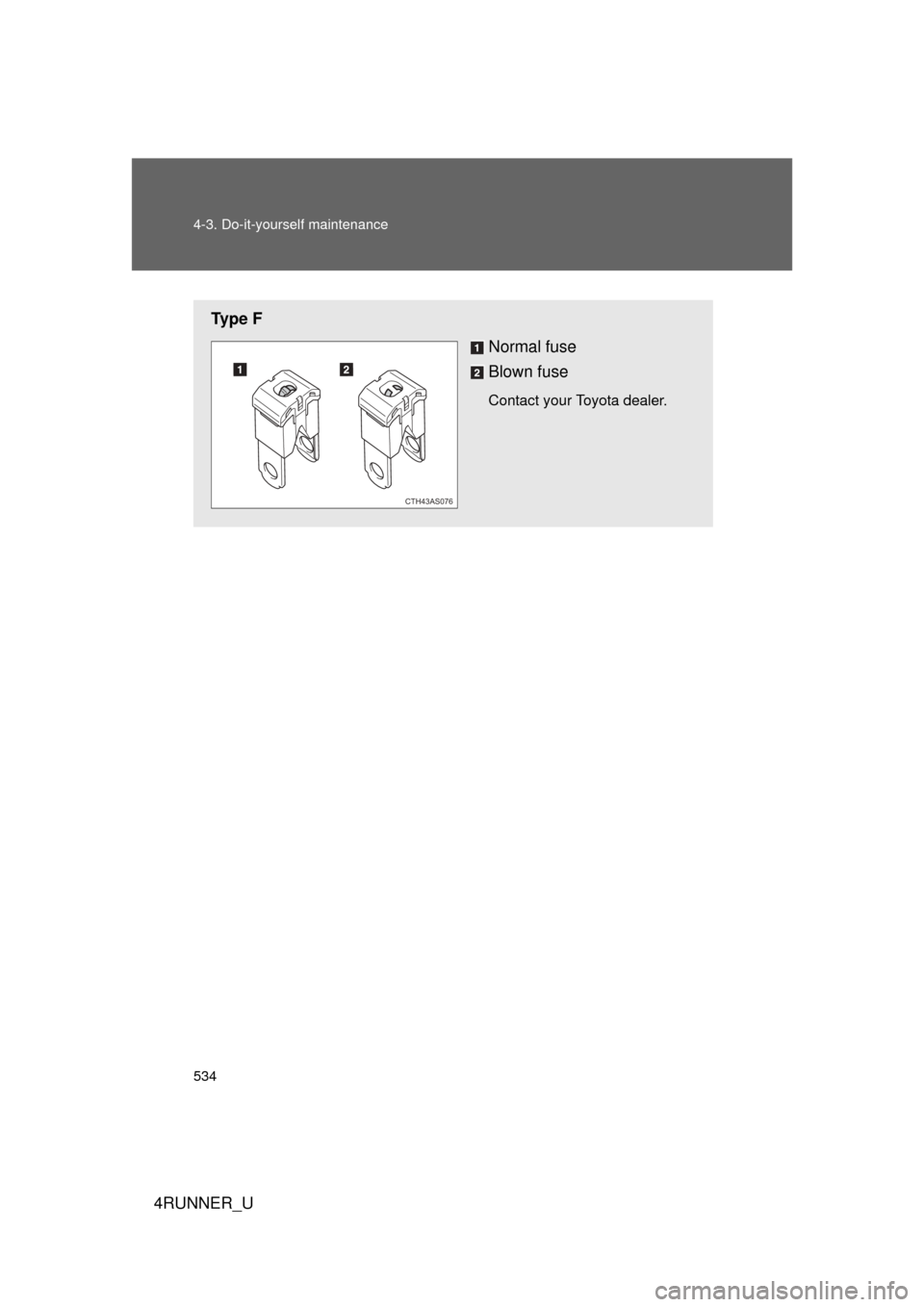

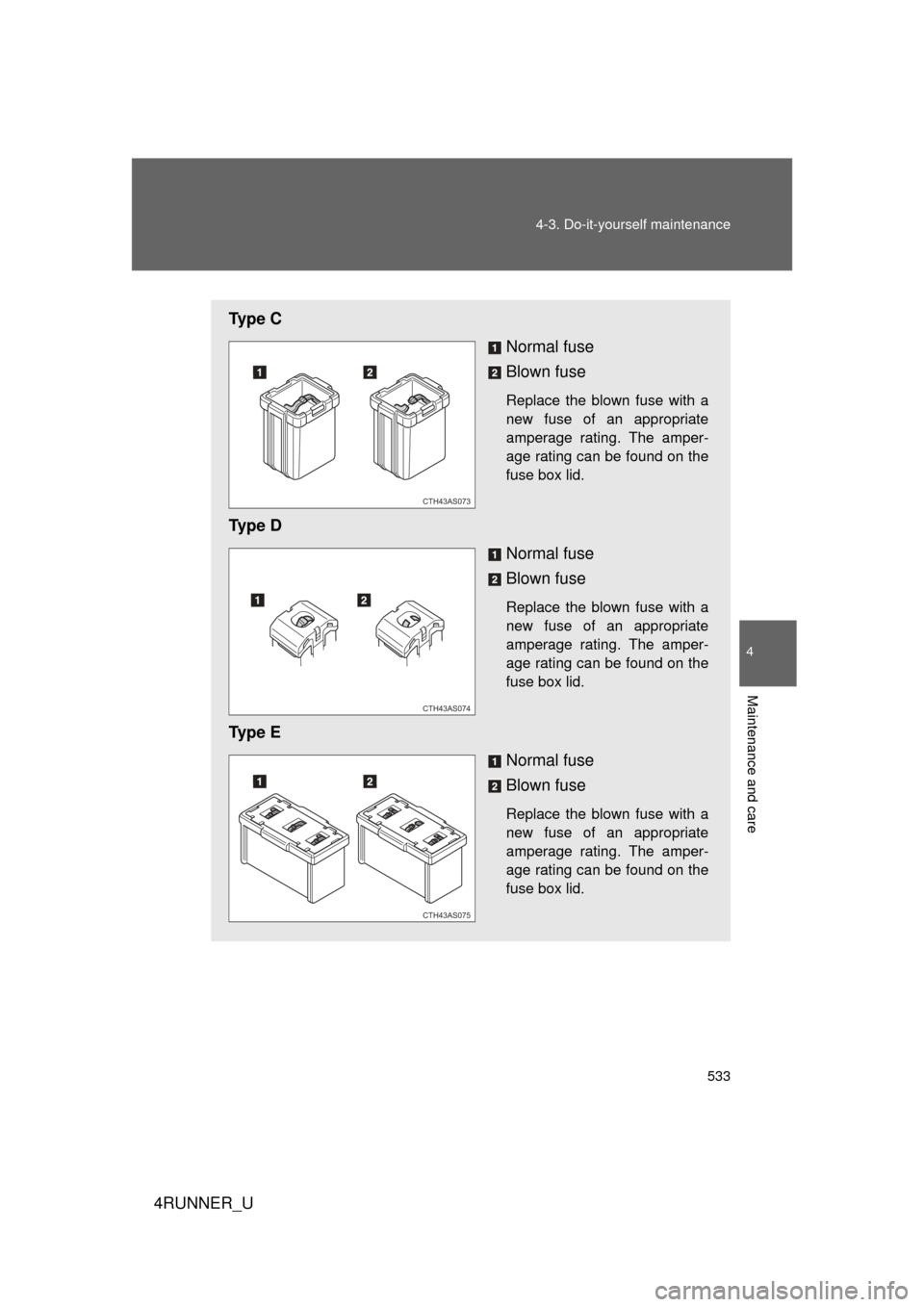

535
4-3. Do-it-yourself maintenance
4
Maintenance and care
4RUNNER_U
Fuse layout and amperage ratings
■ Engine compartment
FuseAmpereCircuit
1PTC HTR NO.330 A
PTC heater
2DEF30 ARear window defogger
3DEICER 20 A
Windshield wiper de-icer
4PTC HTR NO.230 APTC heater
5SUB BATT30 ATrailer sub battery
6PTC HTR NO.150 A
PTC heater
7MIR HTR10 AOutside rear view mirror defog-
gers
8TOWING TAIL30 A
Trailer tail light
9A/C COMP10 AAir conditioning system
10STOP10 A
Stop/tail lights
11IG220 AINJ, IGN, GAUGE fuses
12HORN10 AHorn(s)
13EFI 25 AMultiport fuel injection system/
sequential multiport fuel injec-
tion system
14A/F20 A
A/F sensor
CTH43AS079
536 4-3. Do-it-yourself maintenance
4RUNNER_U

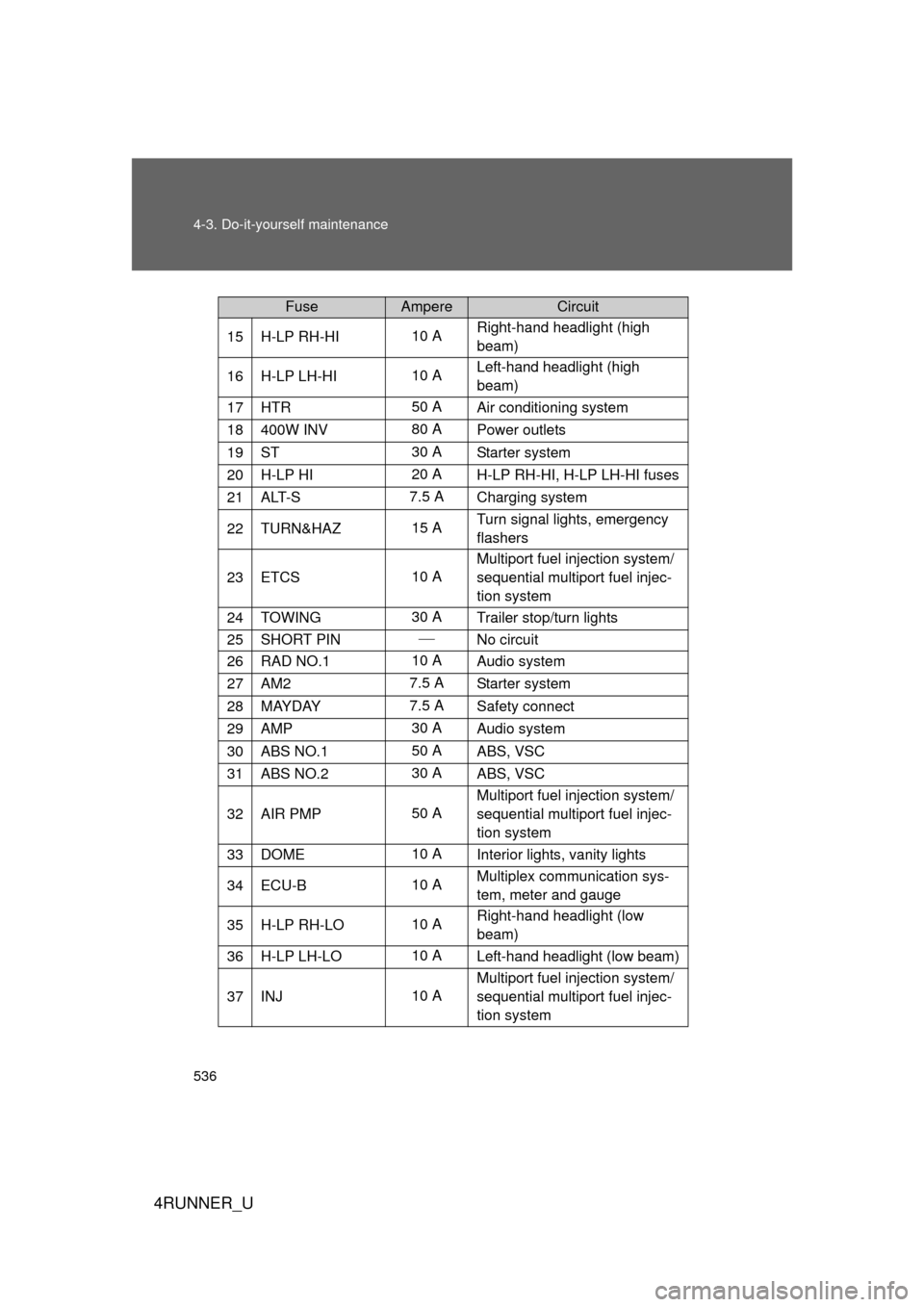

15H-LP RH-HI10 ARight-hand headlight (high
beam)
16H-LP LH-HI10 ALeft-hand headlight (high
beam)
17HTR50 A
Air conditioning system
18400W INV 80 APower outlets
19ST30 AStarter system
20H-LP HI20 A
H-LP RH-HI, H-LP LH-HI fuses
21ALT-S7.5 A Charging system
22TURN&HAZ15 ATurn signal lights, emergency
flashers
23ETCS10 AMultiport fuel injection system/
sequential multiport fuel injec-
tion system
24TOWING30 A
Trailer stop/turn lights
25SHORT PIN
No circuit
26RAD NO.1 10 A Audio system
27AM27.5 A Starter system
28MAYDAY 7.5 ASafety connect
29AMP30 A
Audio system
30ABS NO.150 AABS, VSC
31ABS NO.230 AABS, VSC
32AIR PMP50 AMultiport fuel injection system/
sequential multiport fuel injec-
tion system
33DOME10 A
Interior lights, vanity lights
34ECU-B10 AMultiplex communication sys-
tem, meter and gauge
35H-LP RH-LO10 ARight-hand headlight (low
beam)
36H-LP LH-LO10 A
Left-hand headlight (low beam)
37INJ10 AMultiport fuel injection system/
sequential multiport fuel injec-
tion system
FuseAmpereCircuit
537
4-3. Do-it-yourself maintenance
4
Maintenance and care
4RUNNER_U

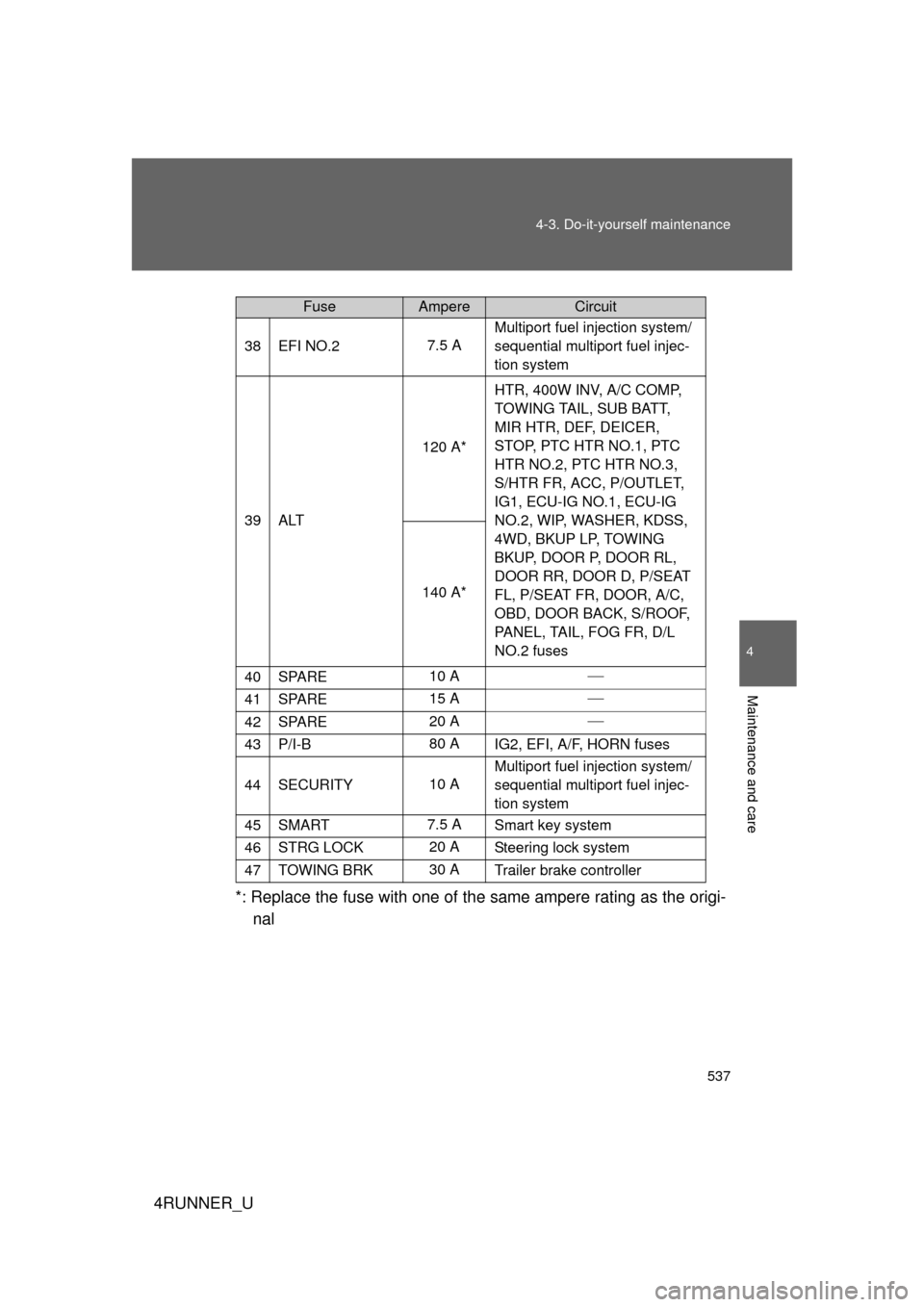

*: Replace the fuse with one of th
e same ampere rating as the origi-
nal
38EFI NO.27.5 A Multiport fuel injection system/
sequential multiport fuel injec-
tion system
39ALT
120 A* HTR, 400W INV, A/C COMP,
TOWING TAIL, SUB BATT,
MIR HTR, DEF, DEICER,
STOP, PTC HTR NO.1, PTC
HTR NO.2, PTC HTR NO.3,
S/HTR FR, ACC, P/OUTLET,
IG1, ECU-IG NO.1, ECU-IG
NO.2, WIP, WASHER, KDSS,
4WD, BKUP LP, TOWING
BKUP, DOOR P, DOOR RL,
DOOR RR, DOOR D, P/SEAT
FL, P/SEAT FR, DOOR, A/C,
OBD, DOOR BACK, S/ROOF,
PANEL, TAIL, FOG FR, D/L
NO.2 fuses
140 A*
40SPARE10 A
41SPARE15 A
42SPARE20 A
43P/I-B80 A
IG2, EFI, A/F, HORN fuses
44SECURITY10 AMultiport fuel injection system/
sequential multiport fuel injec-
tion system
45SMART 7.5 A
Smart key system
46STRG LOCK 20 ASteering lock system
47TOWING BRK30 A
Trailer brake controller
FuseAmpereCircuit
538 4-3. Do-it-yourself maintenance
4RUNNER_U■

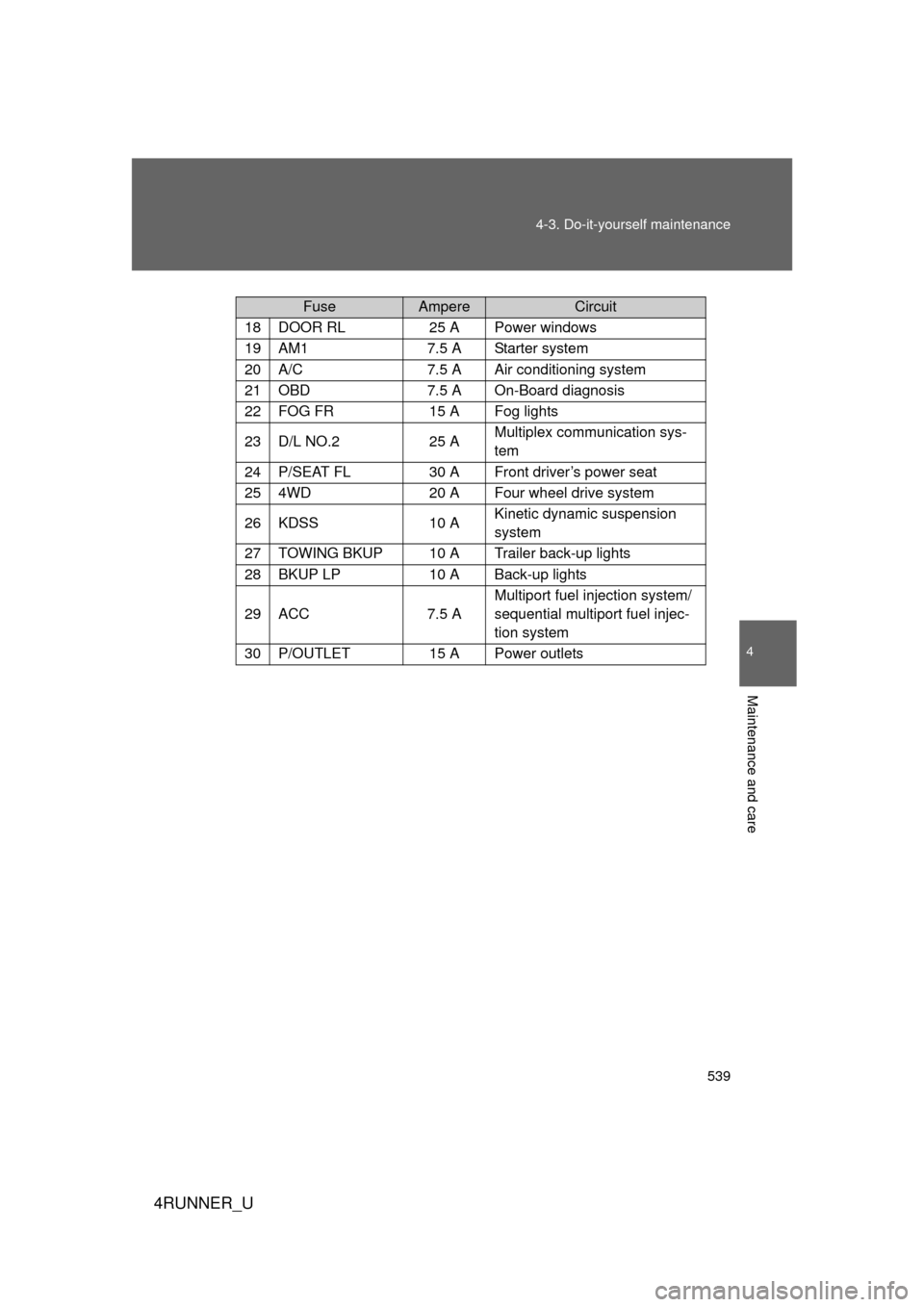

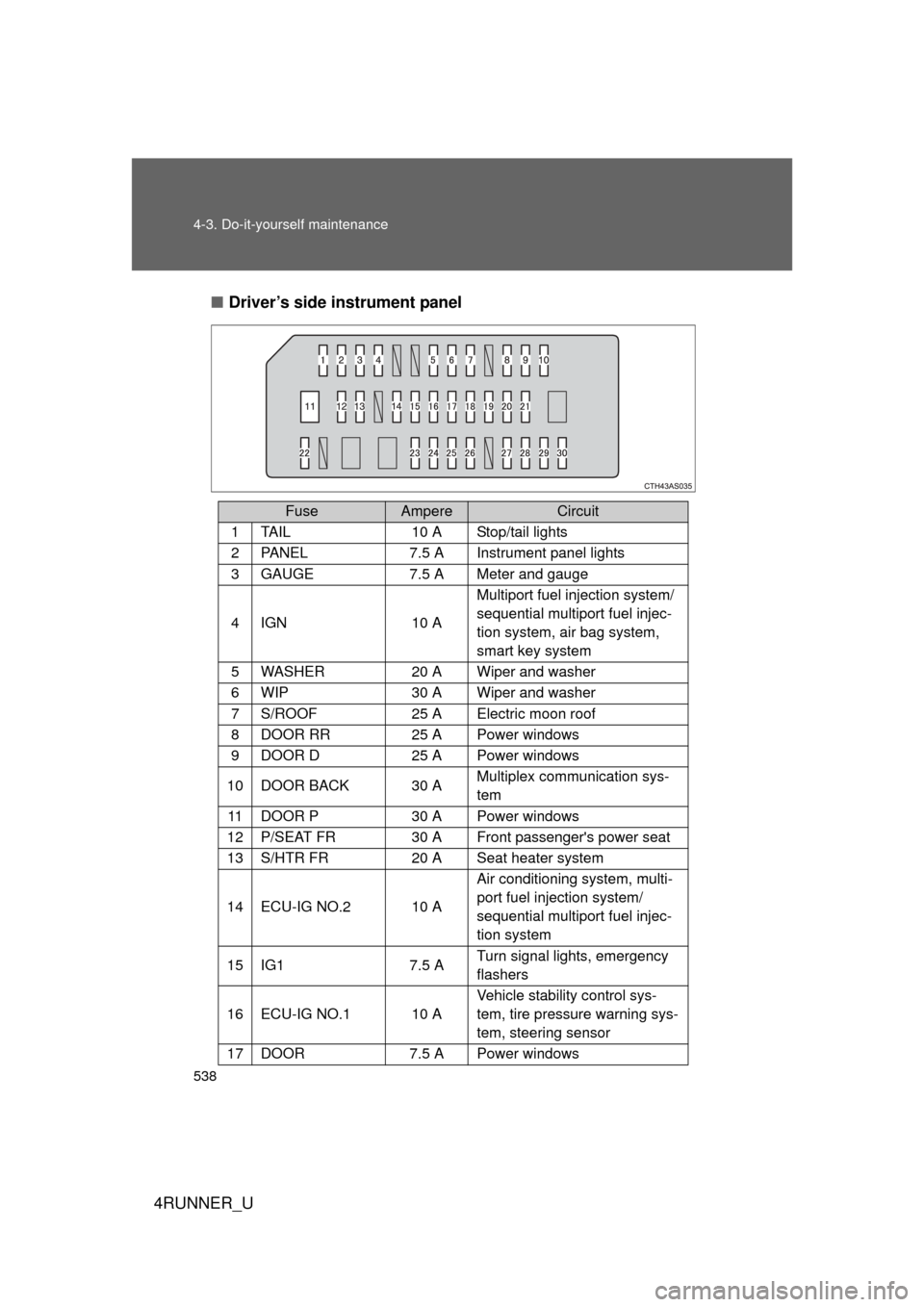

Driver’s side instrument panel
FuseAmpereCircuit
1TA I L10 A Stop/tail lights
2PA N E L7.5 A Instrument panel lights
3GAUGE7.5 A Meter and gauge
4IGN10 A Multiport fuel injection system/
sequential multiport fuel injec-
tion system, air bag system,
smart key system
5WASHER20 A Wiper and washer
6WIP30 A Wiper and washer
7S/ROOF 25 A Electric moon roof
8DOOR RR25 A Power windows
9DOOR D25 A Power windows
10DOOR BACK30 A
Multiplex communication sys-
tem
11DOOR P30 A Power windows
12P/SEAT FR 30 A Front passenger's power seat
13S/HTR FR 20 A Seat heater system
14ECU-IG NO.210 AAir conditioning system, multi-
port fuel injection system/
sequential multiport fuel injec-
tion system
15IG17.5 A
Turn signal lights, emergency
flashers
16ECU-IG NO.110 AVehicle stability control sys-
tem, tire pressure warning sys-
tem, steering sensor
17DOOR7.5 A Power windows
