TOYOTA 4RUNNER 2011 N280 / 5.G Owners Manual

491
4
Maintenance and care
4RUNNER_U
4-3. Do-it-yourself maintenance

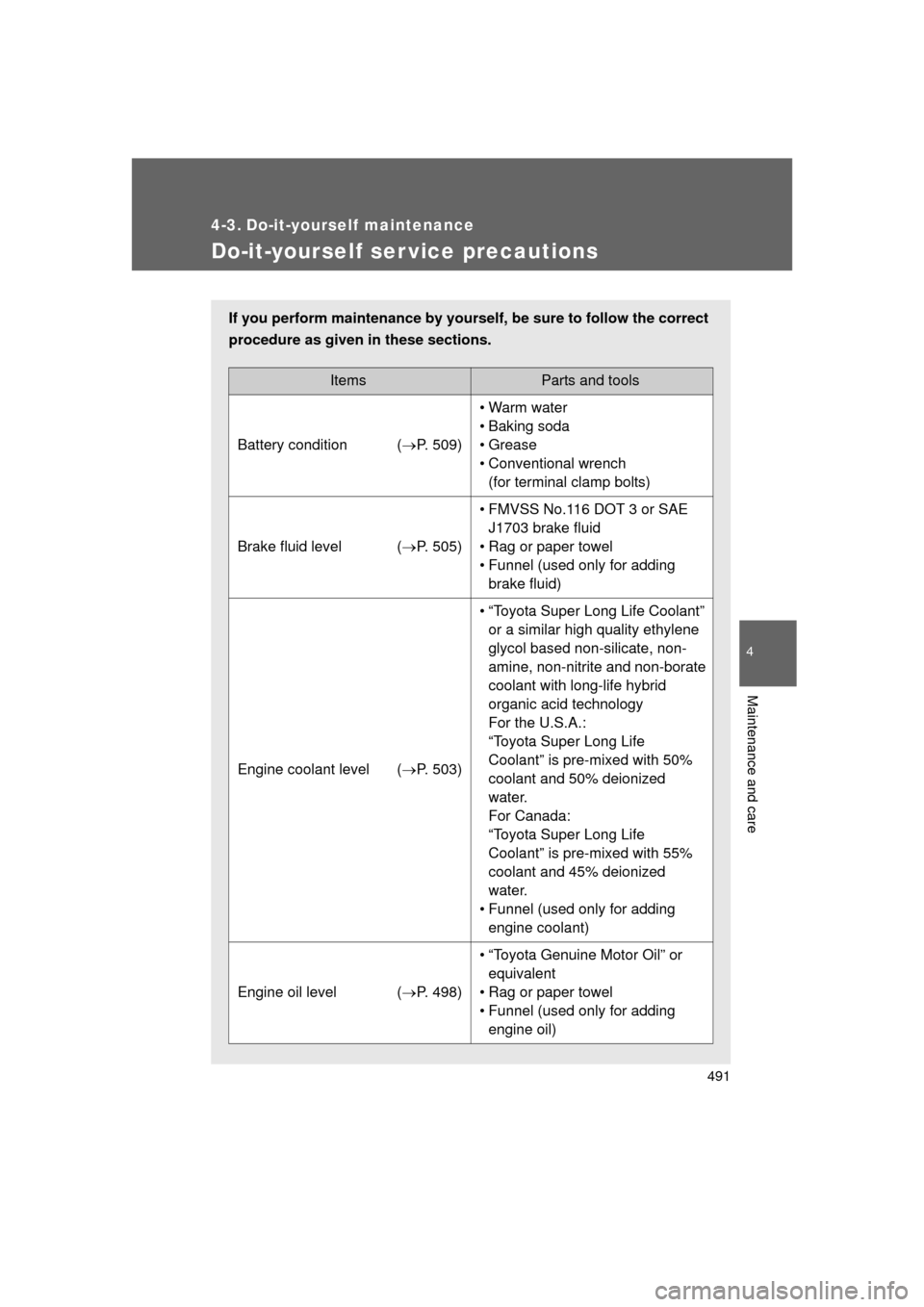

Do-it-yourself ser vice precautions
If you perform maintenance by yourself, be sure to follow the correct
procedure as given in these sections.
ItemsParts and tools
Battery condition ( P. 509)
•Warm water
• Baking soda
• Grease
• Conventional wrench
(for terminal clamp bolts)
Brake fluid level ( P. 505)
• FMVSS No.116 DOT 3 or SAE
J1703 brake fluid
• Rag or paper towel
• Funnel (used only for adding brake fluid)
Engine coolant level ( P. 503)
• “Toyota Super Long Life Coolant”
or a similar high quality ethylene
glycol based non-silicate, non-
amine, non-nitrite and non-borate
coolant with long-life hybrid
organic acid technology
For the U.S.A.:
“Toyota Super Long Life
Coolant” is pre-mixed with 50%
coolant and 50% deionized
water.
For Canada:
“Toyota Super Long Life
Coolant” is pre-mixed with 55%
coolant and 45% deionized
water.
• Funnel (used only for adding engine coolant)
Engine oil level ( P. 498)
• “Toyota Genuine Motor Oil” or
equivalent
• Rag or paper towel
• Funnel (used only for adding engine oil)

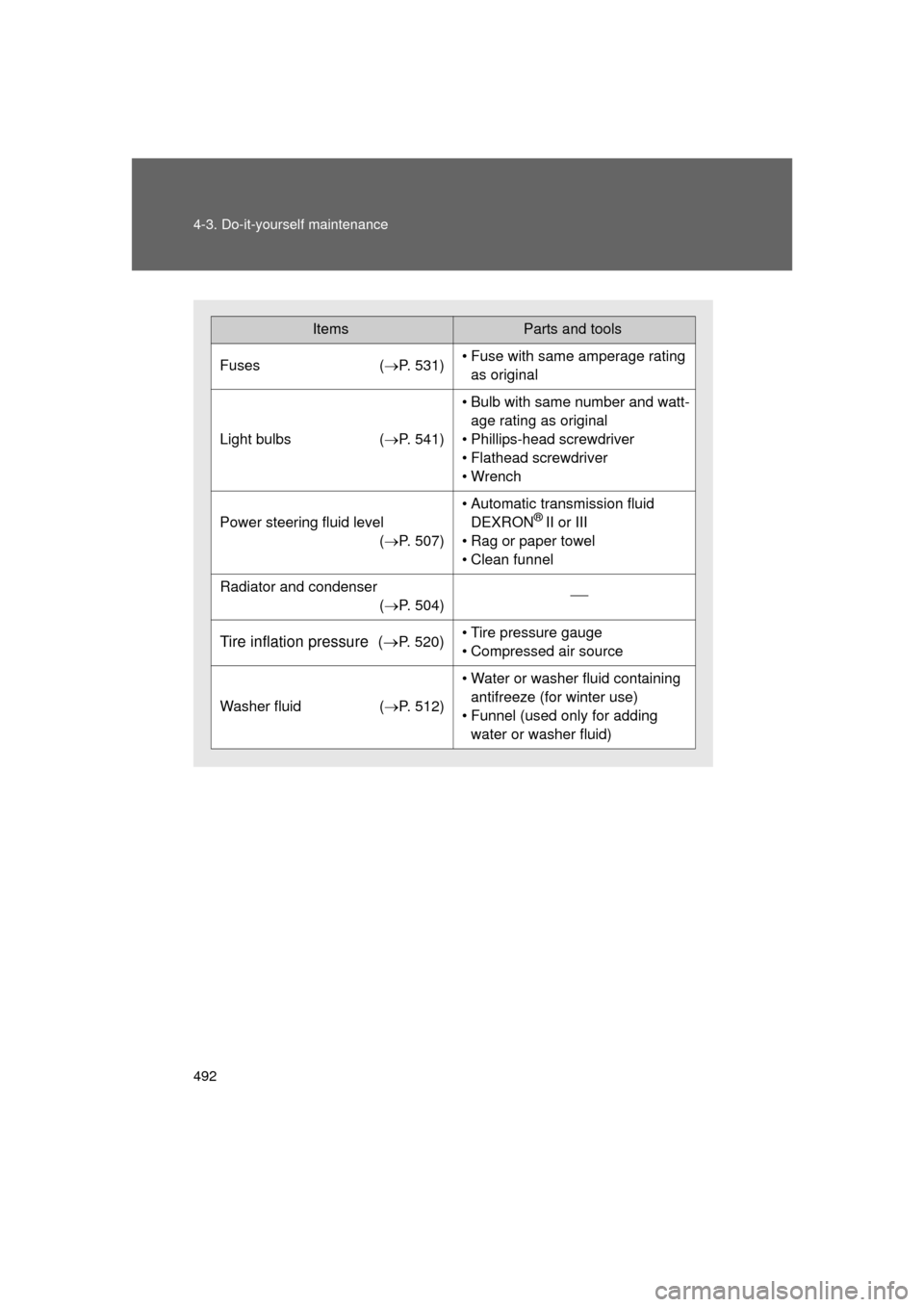

492 4-3. Do-it-yourself maintenance
4RUNNER_U
ItemsParts and tools
Fuses(P. 531)• Fuse with same amperage rating
as original
Light bulbs (P. 541)
• Bulb with same number and watt-
age rating as original
• Phillips-head screwdriver
• Flathead screwdriver
• Wrench
Power steering fluid level (P. 507)
• Automatic transmission fluid
DEXRON® II or III
• Rag or paper towel
• Clean funnel
Radiator and condenser (P. 504)
Tire inflation pressure ( P. 520)• Tire pressure gauge
• Compressed air source
Washer fluid (P. 512)
• Water or washer fluid containing
antifreeze (for winter use)
• Funnel (used only for adding water or washer fluid)

493
4-3. Do-it-yourself maintenance
4
Maintenance and care
4RUNNER_U
CAUTION
The engine compartment contains many mechanisms and fluids that may
move suddenly, become hot, or become electrically energized. To avoid death
or serious injury, observe the following precautions:
■
When working on the engine compartment:
● Keep hands, clothing and tools away from the moving fan and engine
drive belt.
● Be careful not to touch the engine, radiator, exhaust manifold, etc. right
after driving as they may be hot. Oil and other fluids may also be hot.
● Do not leave anything that may burn easily, such as paper and rags, in the
engine compartment.
● Do not smoke, cause sparks or expose an open flame to fuel or the bat-
tery. Fuel and battery fumes are flammable.
● Be extremely cautious when working on the battery. It contains poisonous
and corrosive sulfuric acid.
■ Safety glasses
Wear safety glasses to prevent flying or falling material, fluid spray, etc. from
getting in your eyes.
NOTICE
■If you remove the air cleaner filter
Driving with the air cleaner filter removed may cause excessive engine wear
due to dirt in the air. Also, a backfire could cause a fire in the engine com-
partment.

494
4-3. Do-it-yourself maintenance
4RUNNER_U

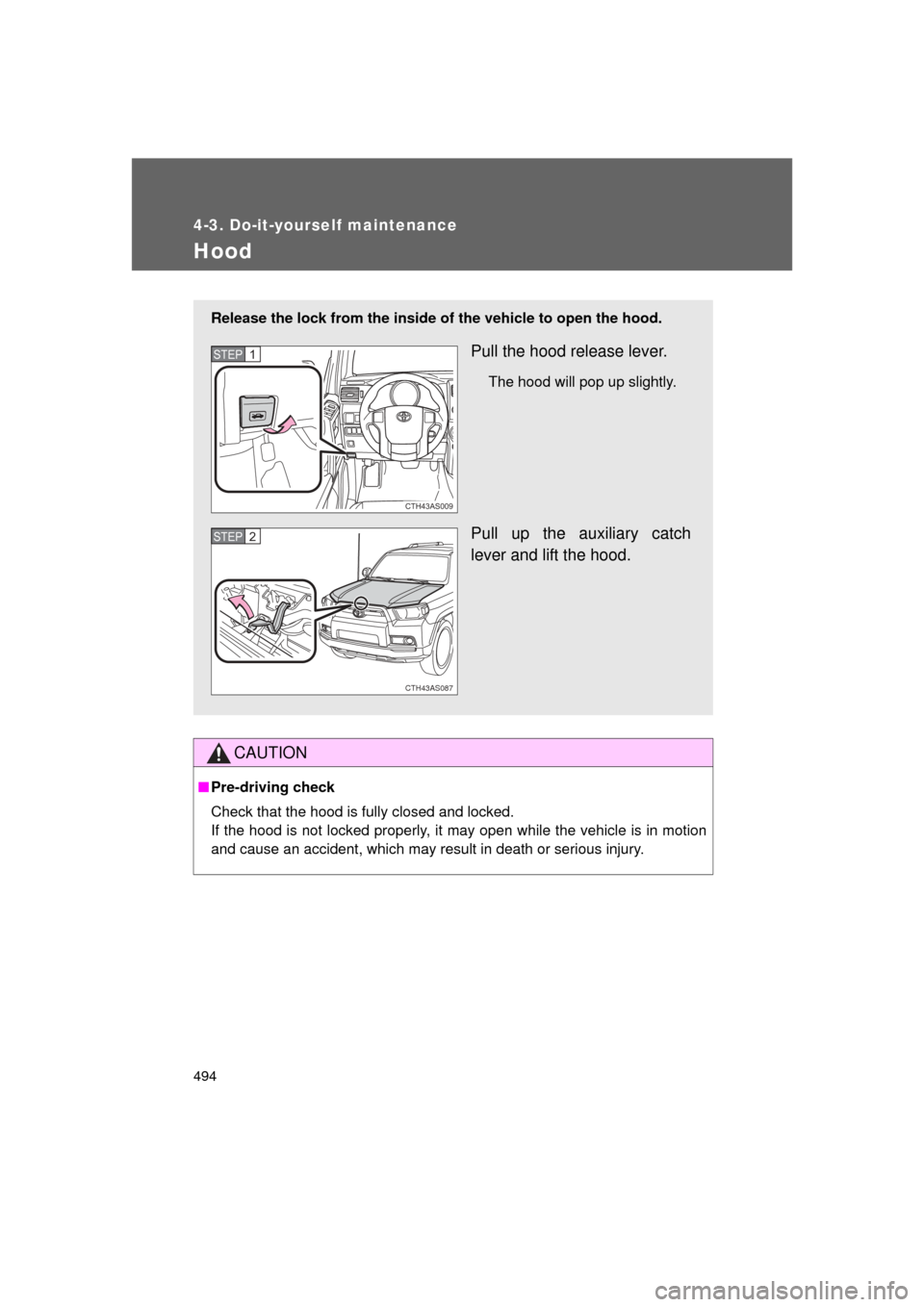

Hood
CAUTION
■Pre-driving check
Check that the hood is fully closed and locked.
If the hood is not locked properly, it may open while the vehicle is in motion
and cause an accident, which may result in death or serious injury.
Release the lock from the inside of the vehicle to open the hood.
Pull the hood release lever.
The hood will pop up slightly.
Pull up the auxiliary catch
lever and lift the hood.
CTH43AS009
STEP 1
CTH43AS087
STEP 2

495
4-3. Do-it-yourself maintenance
4
Maintenance and care
4RUNNER_U

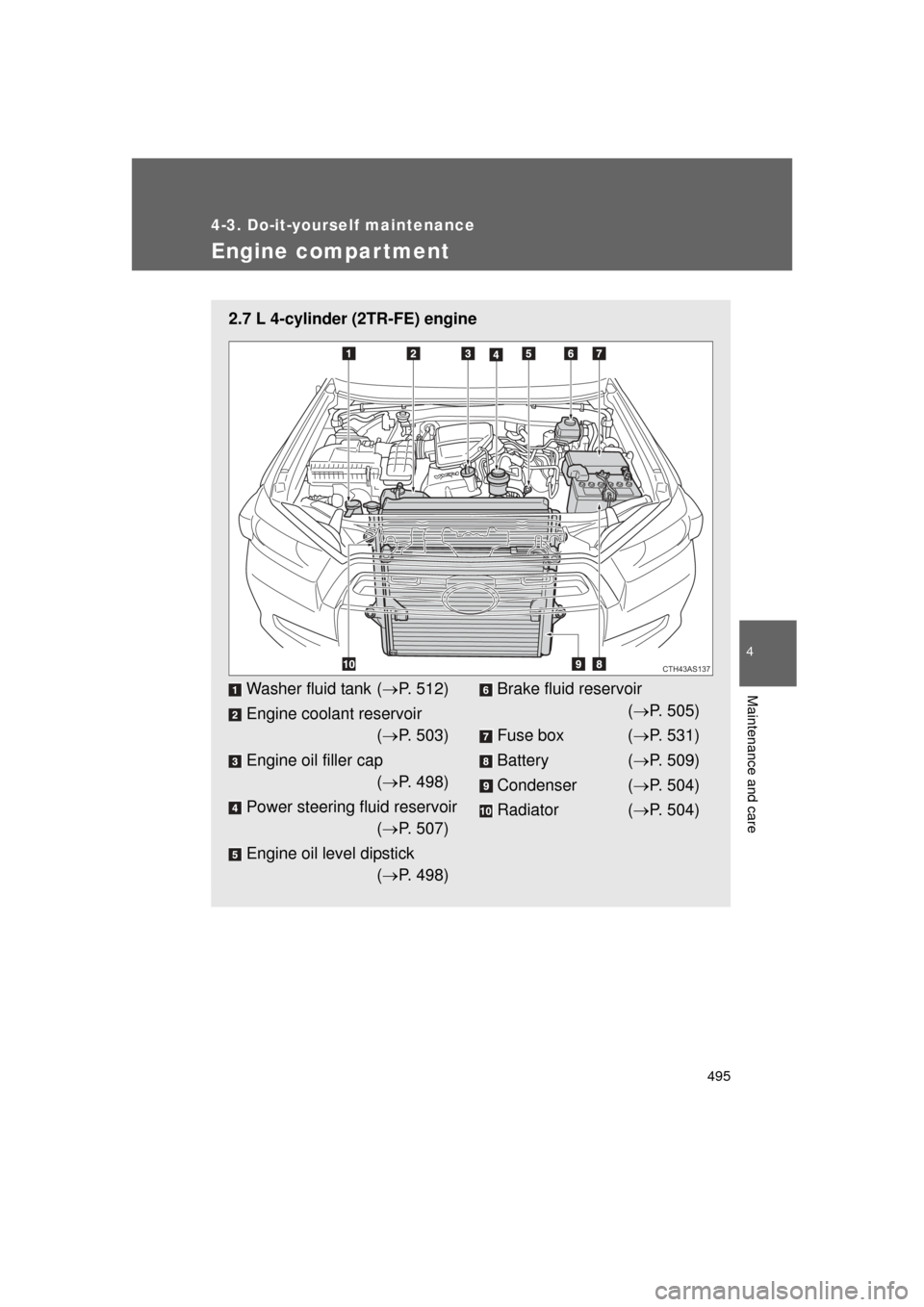

Engine compar tment
2.7 L 4-cylinder (2TR-FE) engine
Washer fluid tank (P. 512)
Engine coolant reservoir ( P. 503)
Engine oil filler cap ( P. 498)
Power steering fluid reservoir ( P. 507)
Engine oil level dipstick ( P. 498)Brake fluid reservoir
( P. 505)
Fuse box ( P. 531)
Battery ( P. 509)
Condenser ( P. 504)
Radiator ( P. 504)
CTH43AS137

496 4-3. Do-it-yourself maintenance
4RUNNER_U

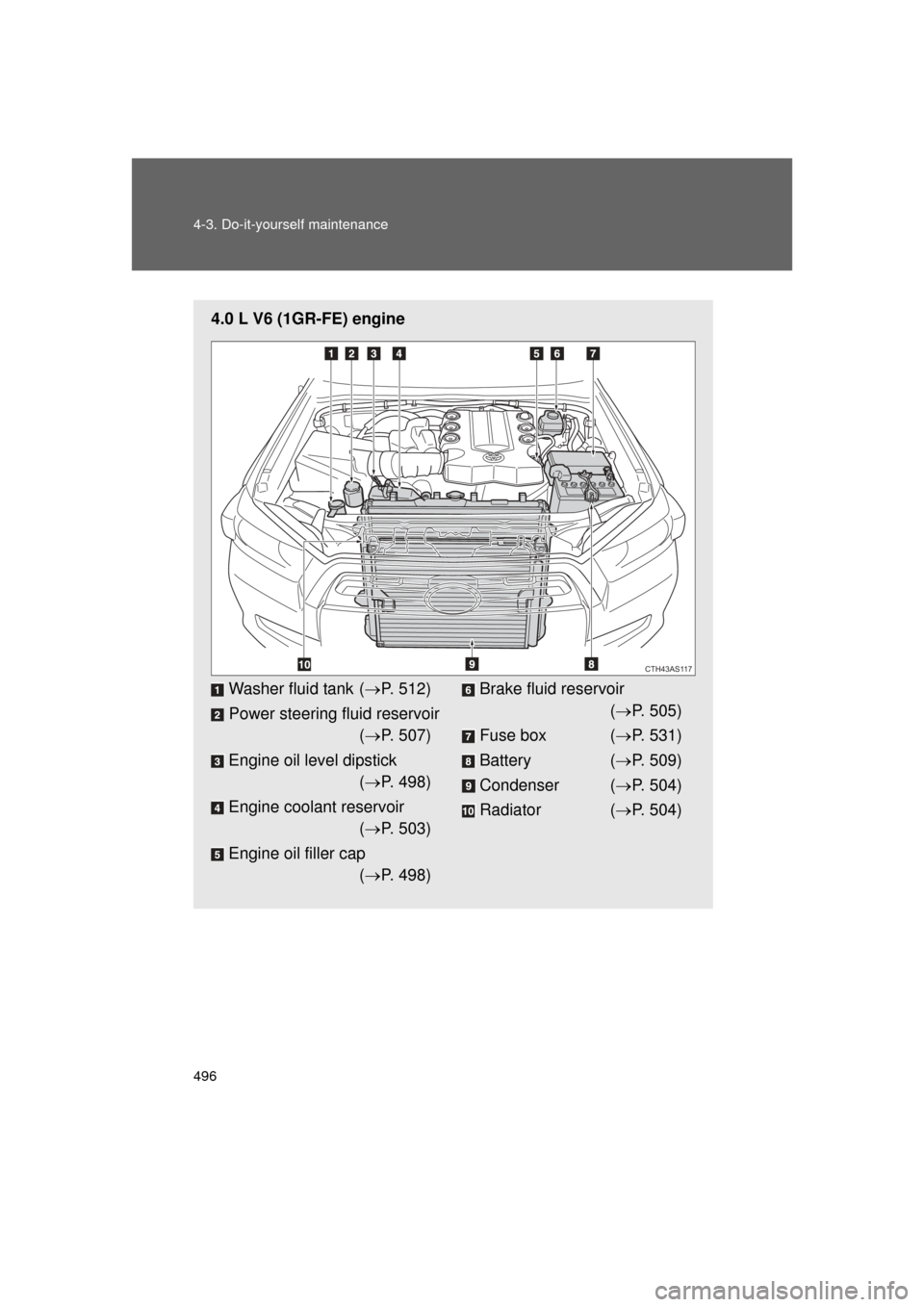

4.0 L V6 (1GR-FE) engine
Washer fluid tank (P. 512)
Power steering fluid reservoir ( P. 507)
Engine oil level dipstick ( P. 498)
Engine coolant reservoir ( P. 503)
Engine oil filler cap ( P. 498)Brake fluid reservoir
( P. 505)
Fuse box ( P. 531)
Battery ( P. 509)
Condenser ( P. 504)
Radiator ( P. 504)
CTH43AS117

497
4-3. Do-it-yourself maintenance
4
Maintenance and care
4RUNNER_U

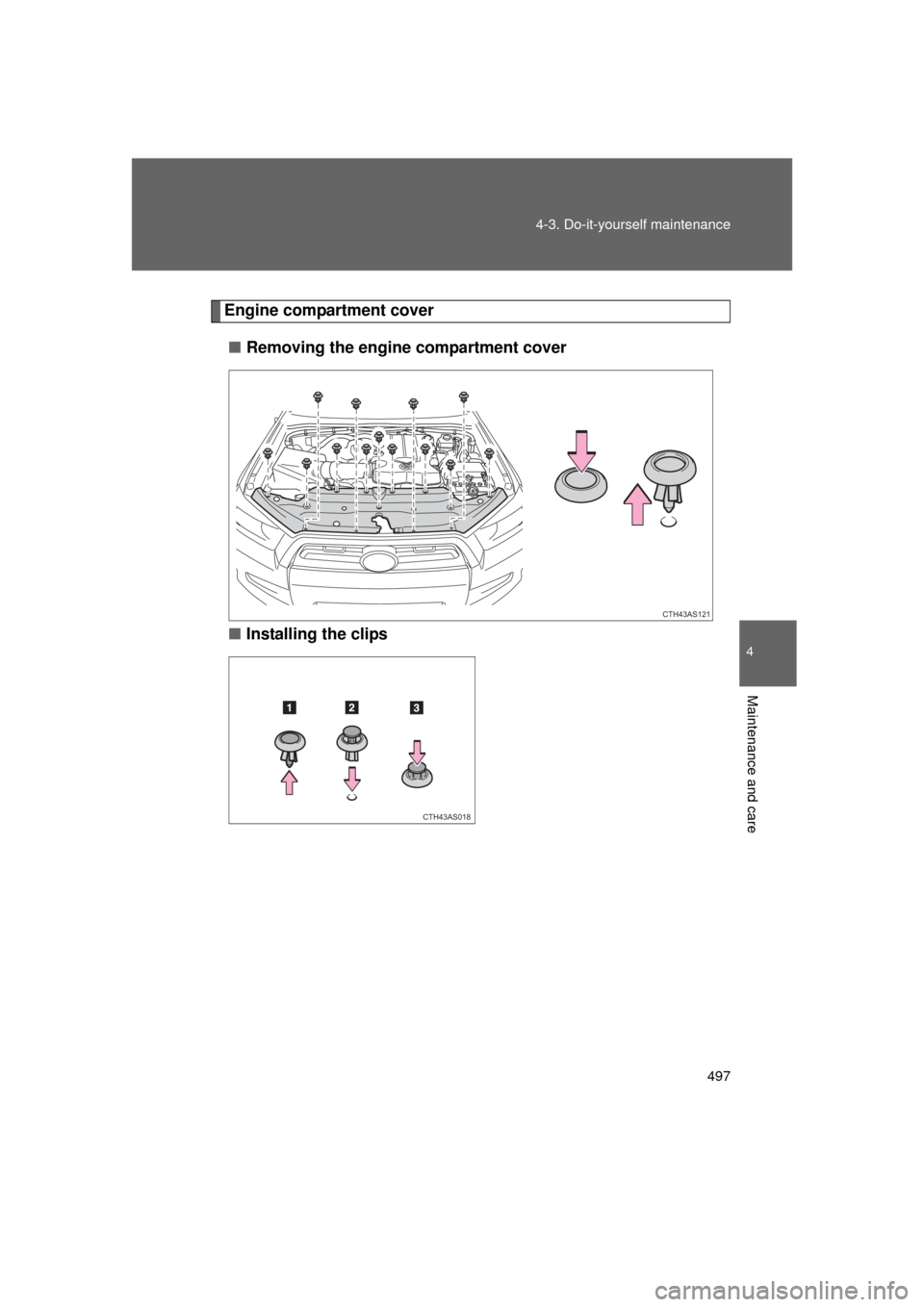

Engine compartment cover
■ Removing the engine compartment cover
■ Installing the clips
CTH43AS121
CTH43AS018

498 4-3. Do-it-yourself maintenance
4RUNNER_U

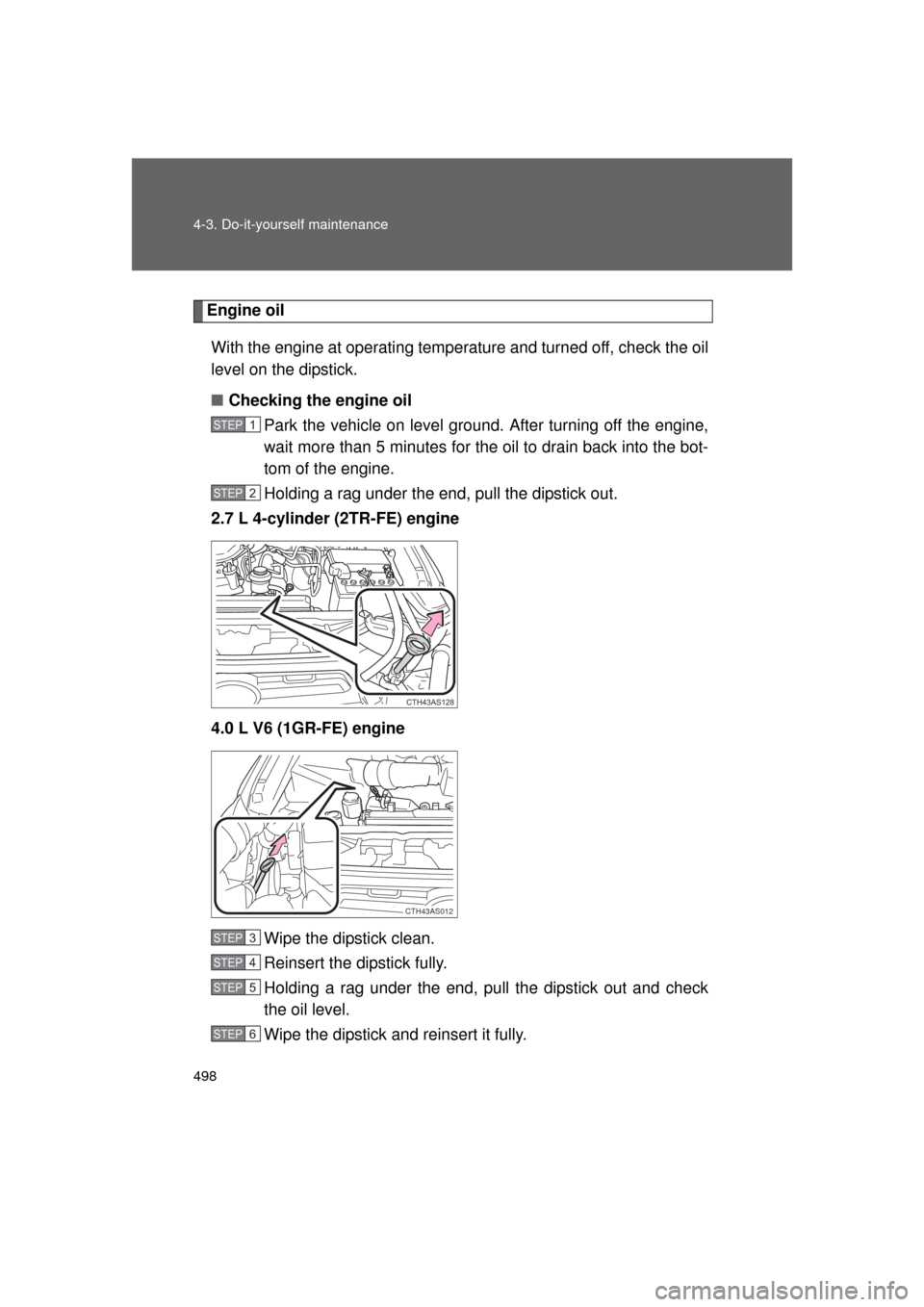

Engine oilWith the engine at operating temperature and turned off, check the oil
level on the dipstick.
■ Checking the engine oil
Park the vehicle on level gro und. After turning off the engine,
wait more than 5 minutes for the oil to drain back into the bot-
tom of the engine.
Holding a rag under the end, pull the dipstick out.
2.7 L 4-cylinder (2TR-FE) engine
4.0 L V6 (1GR-FE) engine
Wipe the dipstick clean.
Reinsert the dipstick fully.
Holding a rag under the end, pull the dipstick out and check
the oil level.
Wipe the dipstick and reinsert it fully.
STEP 1
STEP 2
CTH43AS128
CTH43AS012
STEP 3
STEP 4
STEP 5
STEP 6

499
4-3. Do-it-yourself maintenance
4
Maintenance and care
4RUNNER_U
2.7 L 4-cylinder (2TR-FE) engine
Low
Full
4.0 L V6 (1GR-FE) engine Low
Full

500 4-3. Do-it-yourself maintenance
4RUNNER_U■

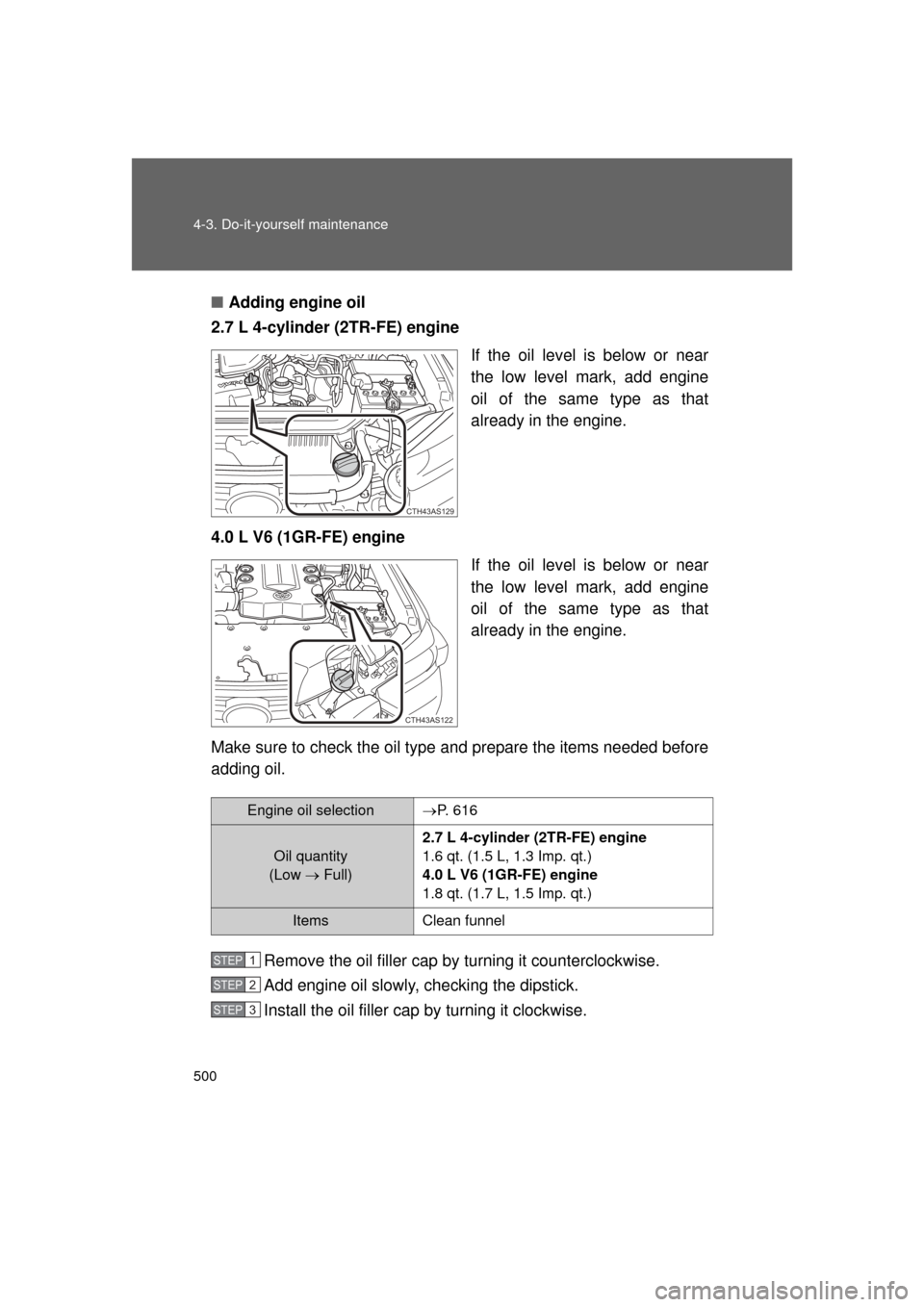

Adding engine oil
2.7 L 4-cylinder (2TR-FE) engine
If the oil level is below or near
the low level mark, add engine
oil of the same type as that
already in the engine.
4.0 L V6 (1GR-FE) engine If the oil level is below or near
the low level mark, add engine
oil of the same type as that
already in the engine.
Make sure to check the oil type and prepare the items needed before
adding oil.
Remove the oil filler cap by turning it counterclockwise.
Add engine oil slowly, checking the dipstick.
Install the oil filler cap by turning it clockwise.
CTH43AS129
CTH43AS122
Engine oil selectionP. 616
Oil quantity
(Low  Full)
2.7 L 4-cylinder (2TR-FE) engine
1.6 qt. (1.5 L, 1.3 Imp. qt.)
4.0 L V6 (1GR-FE) engine
1.8 qt. (1.7 L, 1.5 Imp. qt.)
ItemsClean funnel
STEP 1
STEP 2
STEP 3
