TOYOTA 4RUNNER 2011 N280 / 5.G Owners Manual

Vehicle specifications6
611
4RUNNER_U
6-1. SpecificationsMaintenance data (fuel, oil level, etc.) ......... 612
Fuel information ............... 625
Tire information ................ 628
6-2. Customization Customizable features ..... 640
6-3. Initialization Items to initialize .............. 646

612
4RUNNER_U

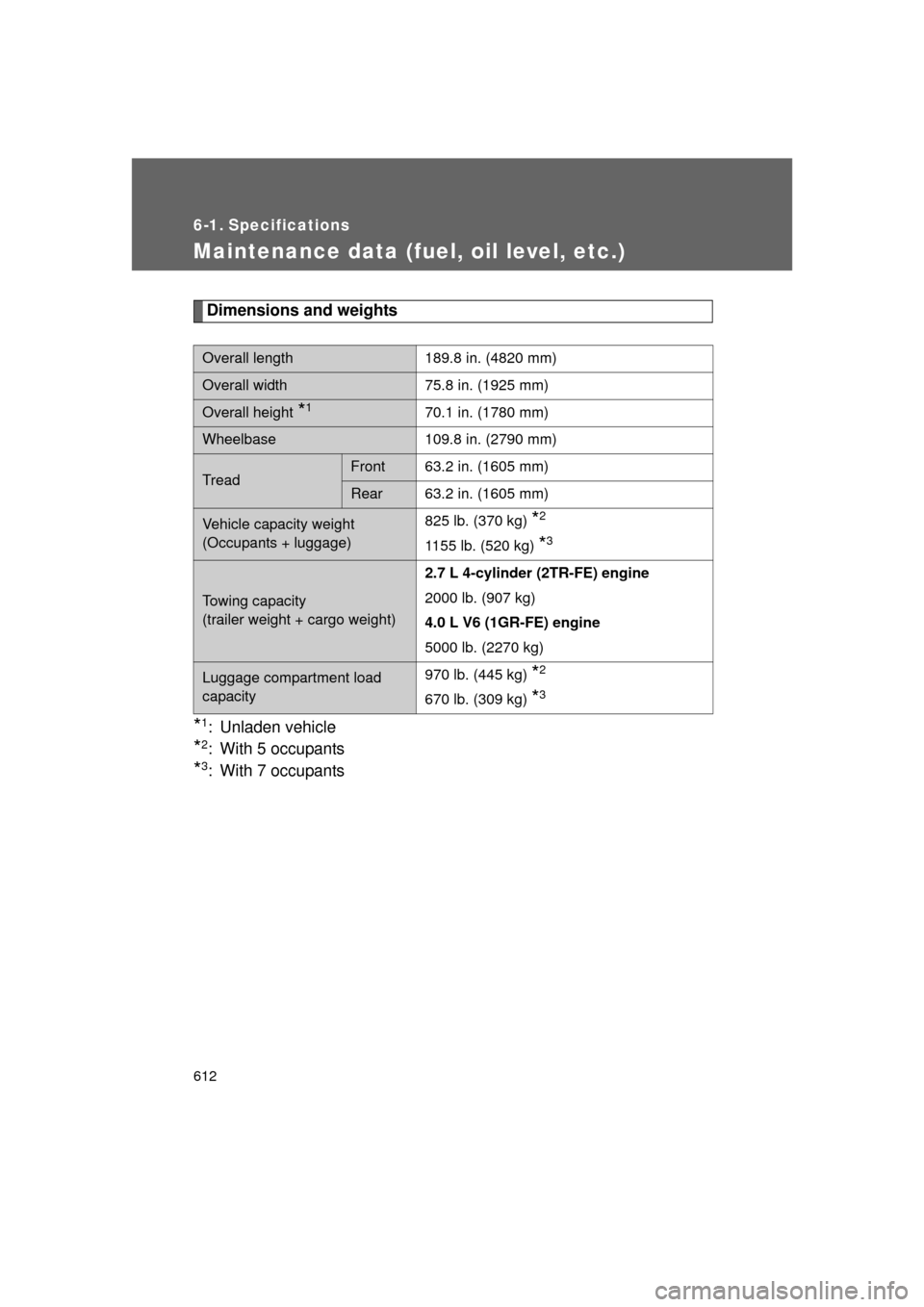

6-1. Specifications
Maintenance data (fuel, oil level, etc.)
Dimensions and weights
*1: Unladen vehicle
*2: With 5 occupants
*3: With 7 occupants
Overall length189.8 in. (4820 mm)
Overall width75.8 in. (1925 mm)
Overall height *170.1 in. (1780 mm)
Wheelbase109.8 in. (2790 mm)
TreadFront63.2 in. (1605 mm)
Rear63.2 in. (1605 mm)
Vehicle capacity weight
(Occupants + luggage)825 lb. (370 kg) *2
1155 lb. (520 kg) *3
Towing capacity
(trailer weight + cargo weight)
2.7 L 4-cylinder (2TR-FE) engine
2000 lb. (907 kg)
4.0 L V6 (1GR-FE) engine
5000 lb. (2270 kg)
Luggage compartment load
capacity970 lb. (445 kg) *2
670 lb. (309 kg) *3

613
6-1. Specifications
6
Vehicle specifications
4RUNNER_U
Vehicle identification
■ Vehicle identification number
The vehicle identificati on number (VIN) is the legal identifier for your
vehicle. This is the primary identification number for your Toyota. It is
used in registering the ownership of your vehicle.
This number is stamped on the
top left of the instrument panel.
This number is also on the Certi-
fication Label.
CTH61AS001
CTH61AS020

614 6-1. Specifications
4RUNNER_U■
Engine number
2.7 L 4-cylinder (2TR-FE) engine
The engine number is stamped
on the engine block as shown.
4.0 L V6 (1GR-FE) engine The engine number is stamped
on the engine block as shown.
CTH61AS003
CTH61AS026

615
6-1. Specifications
6
Vehicle specifications
4RUNNER_U
Engine
2.7 L 4-cylinder (2TR-FE) engine
4.0 L V6 (1GR-FE) engine
Fuel
Model2TR-FE
Ty p e4-cylinder in line, 4-cycle, gasoline
Bore and stroke3.74  3.74 in. (95.0  95.0 mm)
Displacement164.4 cu.in. (2694 cm3)
Drive belt tensionAutomatic adjustment
Valve clearance
(engine cold)Automatic adjustment
Model1GR-FE
Ty p e6-cylinder V type, 4-cycle, gasoline
Bore and stroke3.70  3.74 in. (94.0  95.0 mm)
Displacement241.4 cu.in. (3956 cm3)
Valve clearance
(engine cold)Automatic adjustment
Drive belt tensionAutomatic adjustment
Fuel typeUnleaded gasoline only
Octane rating87 (Research octane number 91) or higher
Fuel tank capacity
(Reference)23.0 gal. (87.0 L, 19.1 Imp. gal.)

616 6-1. Specifications
4RUNNER_U
Lubrication system■ Engine oil selection
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Use
Toyota approved “Toyota Genuine Motor Oil” or equivalent to satisfy
the following grade and viscosity.
Oil grade: ILSAC multigrade engine oil
Recommended viscosity: SAE 0W-20
SAE 0W-20 is the best choice for
good fuel economy and good
starting in cold weather.
If SAE 0W-20 is not available,
SAE 5W-20 oil may be used.
However, it must be replaced
with SAE 0W-20 at the next oil
change.
The 0W portion of the oil viscosity rating indicates the characteristic of the
oil which allows cold startability. Oils with a lower value before the W allow
for easier starting of the engine in cold weather.
The 20 in 0W-20 indicates the oil viscosity when the oil is at its operating
temperature. An oil with a higher viscosity may be better suited if the vehi-
cle is operated at high speeds, or under extreme load conditions.

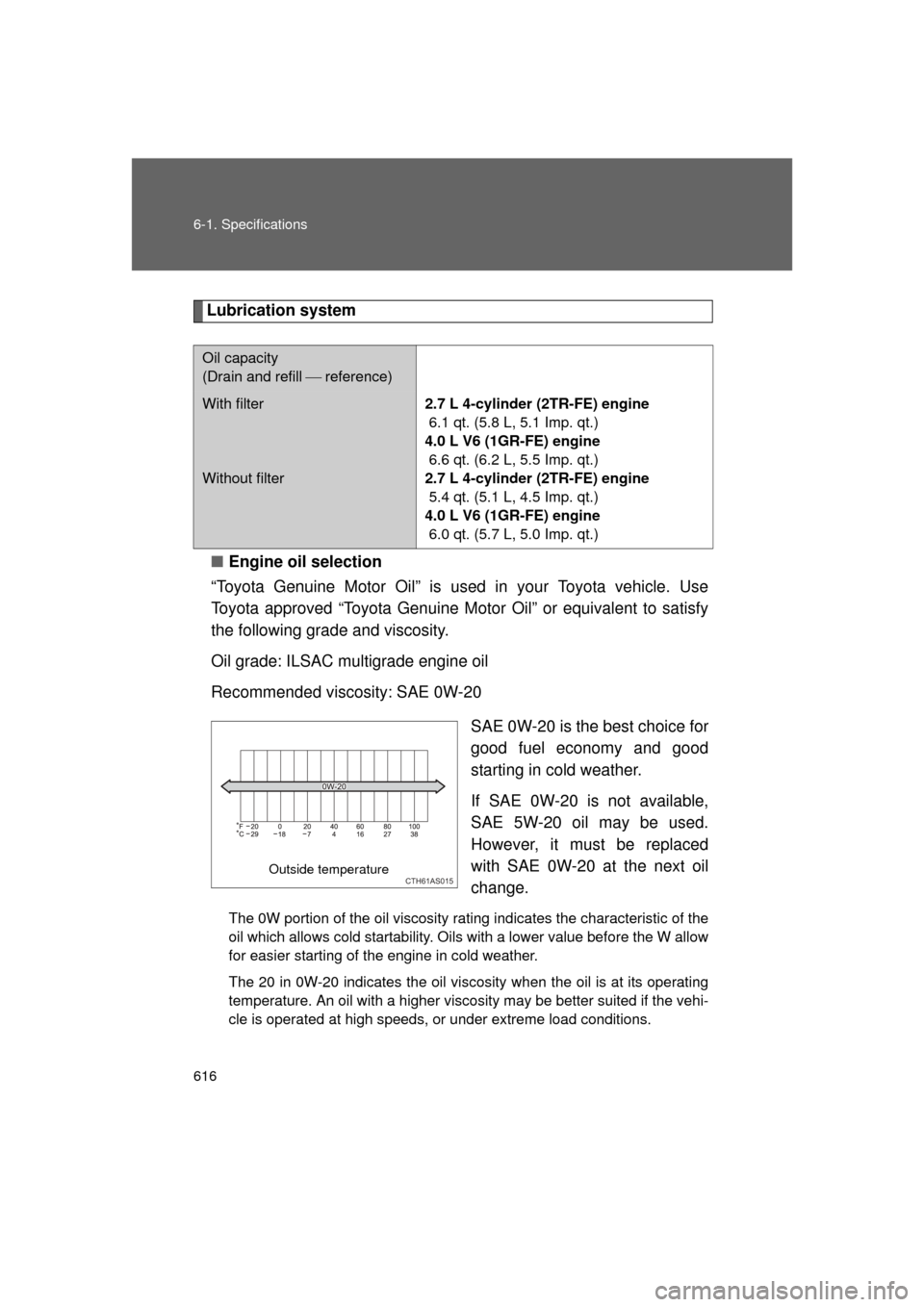

Oil capacity
(Drain and refill  reference)
With filter
Without filter2.7 L 4-cylinder (2TR-FE) engine
6.1 qt. (5.8 L, 5.1 Imp. qt.)
4.0 L V6 (1GR-FE) engine
6.6 qt. (6.2 L, 5.5 Imp. qt.)
2.7 L 4-cylinder (2TR-FE) engine
5.4 qt. (5.1 L, 4.5 Imp. qt.)
4.0 L V6 (1GR-FE) engine
6.0 qt. (5.7 L, 5.0 Imp. qt.)
CTH61AS015Outside temperature

617
6-1. Specifications
6
Vehicle specifications
4RUNNER_U
How to read oil container label:
The ILSAC (International Lubric
ant Standardization and Approval
Committee) Certification Mark is added to some oil containers to help
you select the oil you should use.
CTH61AS018

618 6-1. Specifications
4RUNNER_U

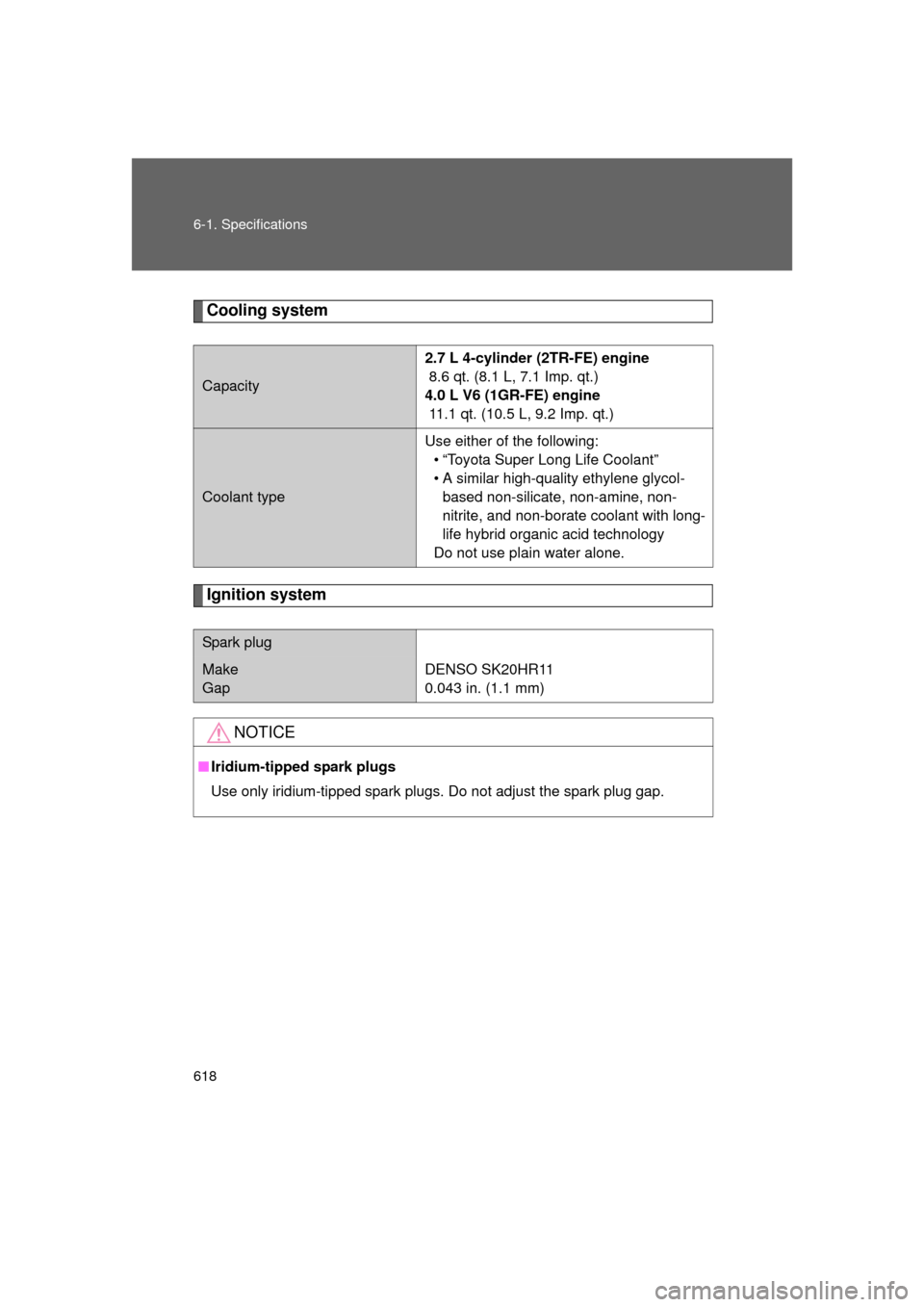

Cooling system
Ignition system
Capacity
2.7 L 4-cylinder (2TR-FE) engine
8.6 qt. (8.1 L, 7.1 Imp. qt.)
4.0 L V6 (1GR-FE) engine
11.1 qt. (10.5 L, 9.2 Imp. qt.)
Coolant type
Use either of the following:• “Toyota Super Long Life Coolant”
• A similar high-quality ethylene glycol-based non-silicate, non-amine, non-
nitrite, and non-borate coolant with long-
life hybrid organic acid technology
Do not use plain water alone.
Spark plug
Make
GapDENSO SK20HR11
0.043 in. (1.1 mm)
NOTICE
■ Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.

619
6-1. Specifications
6
Vehicle specifications
4RUNNER_U

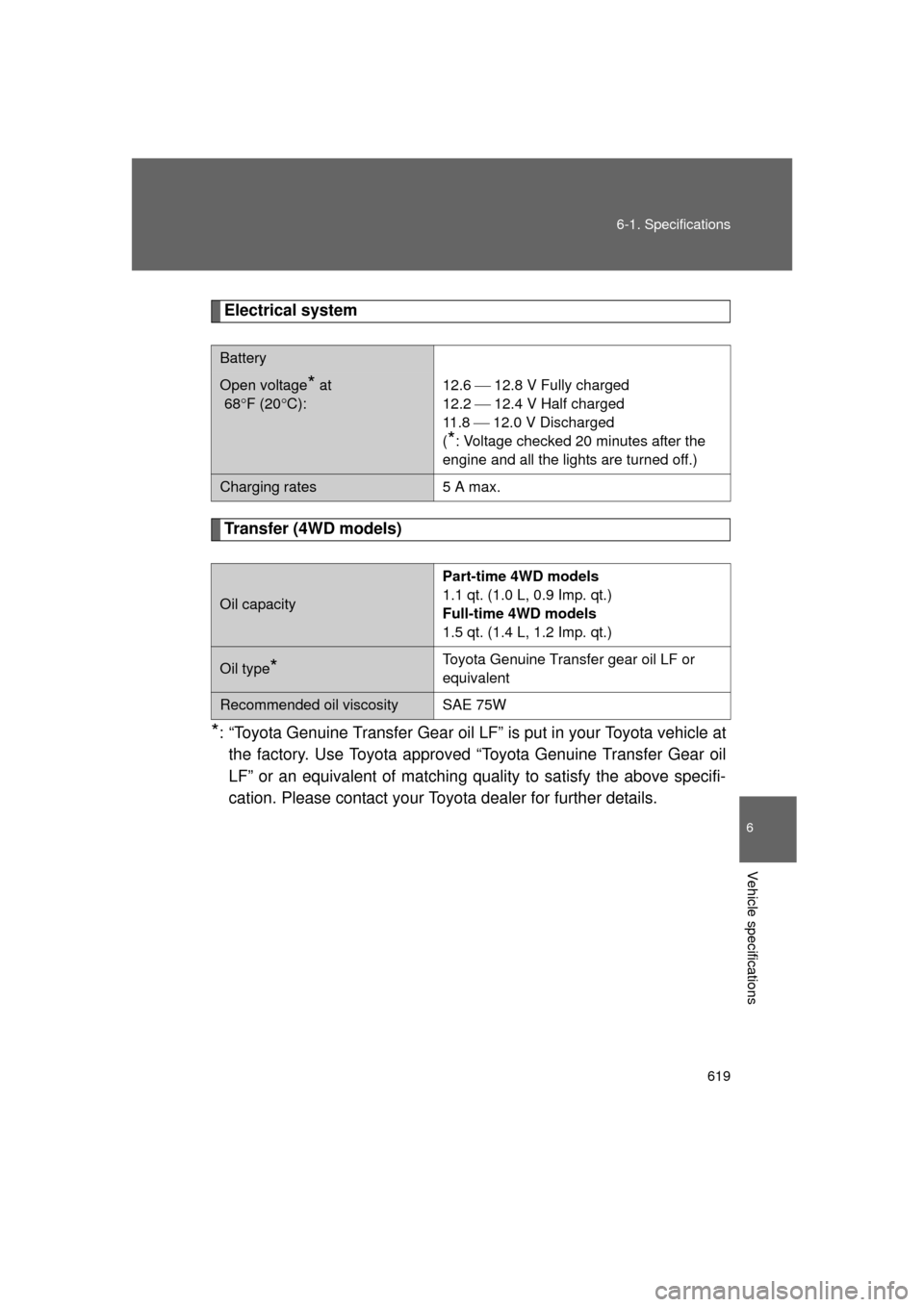

Electrical system
Transfer (4WD models)
*: “Toyota Genuine Transfer Gear oil LF” is put in your Toyota vehicle at
the factory. Use Toyota approved “Toyota Genuine Transfer Gear oil
LF” or an equivalent of matching quality to satisfy the above specifi-
cation. Please contact your Toyo ta dealer for further details.
Battery
Open voltage* at
68 F (20 C):12.6  12.8 V Fully charged
12.2  12.4 V Half charged
11 . 8  12.0 V Discharged
(
*: Voltage checked 20 minutes after the
engine and all the lights are turned off.)
Charging rates5 A max.
Oil capacity
Part-time 4WD models
1.1 qt. (1.0 L, 0.9 Imp. qt.)
Full-time 4WD models
1.5 qt. (1.4 L, 1.2 Imp. qt.)
Oil type*Toyota Genuine Transfer gear oil LF or
equivalent
Recommended oil viscositySAE 75W

620 6-1. Specifications
4RUNNER_U

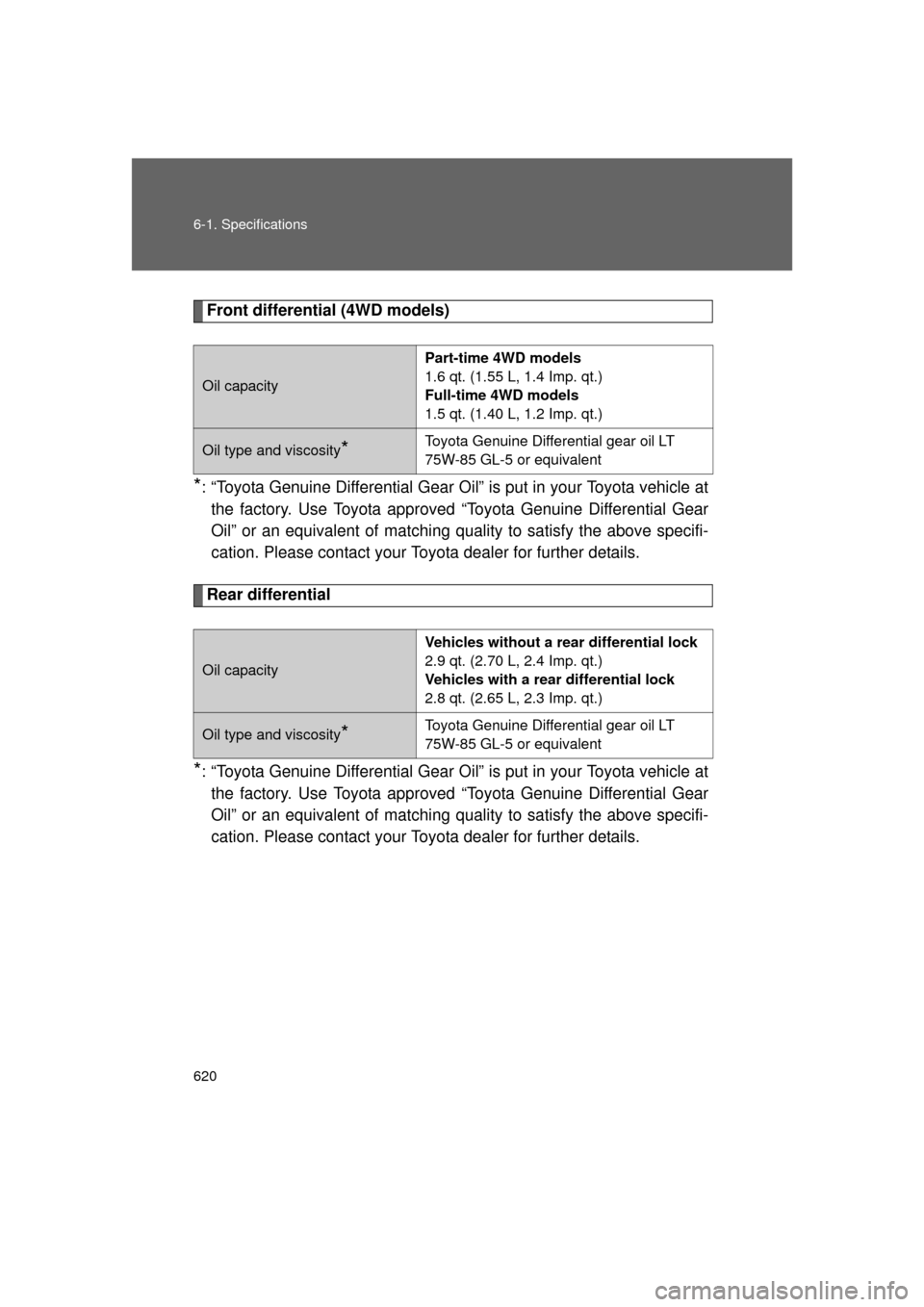

Front differential (4WD models)
*: “Toyota Genuine Differential Gear Oil” is put in your Toyota vehicle atthe factory. Use Toyota approved “Toyota Genuine Differential Gear
Oil” or an equivalent of matchi ng quality to satisfy the above specifi-
cation. Please contact your Toyo ta dealer for further details.
Rear differential
*: “Toyota Genuine Differential Gear Oil” is put in your Toyota vehicle at
the factory. Use Toyota approved “Toyota Genuine Differential Gear
Oil” or an equivalent of matchi ng quality to satisfy the above specifi-
cation. Please contact your Toyo ta dealer for further details.
Oil capacity
Part-time 4WD models
1.6 qt. (1.55 L, 1.4 Imp. qt.)
Full-time 4WD models
1.5 qt. (1.40 L, 1.2 Imp. qt.)
Oil type and viscosity*Toyota Genuine Differential gear oil LT
75W-85 GL-5 or equivalent
Oil capacity
Vehicles without a rear differential lock
2.9 qt. (2.70 L, 2.4 Imp. qt.)
Vehicles with a rear differential lock
2.8 qt. (2.65 L, 2.3 Imp. qt.)
Oil type and viscosity*Toyota Genuine Differential gear oil LT
75W-85 GL-5 or equivalent
