TOYOTA 4RUNNER 2013 N280 / 5.G Owners Manual

181
2-1. Driving procedures
2
When driving
4RUNNER_U
Changing shift ranges in S mode
When the shift lever is in the S position, the shift lever can be oper-
ated as follows:
Non-Optitron type meter For upshifting
For downshifting
Optitron type meter For upshifting
For downshifting
The initial shift range in S mode is set automatically to “4” according
to vehicle speed. However, the initial shift range may be set to “3” if
AI-SHIFT has operated while the shift lever was in the D position.
(  P. 182)
■ Shift ranges and their functions
●You can choose from 5 levels of engine braking force.
● A lower shift range will provide greater engine braking force than
a higher shift range, and the engine speed will also increase.
CTH21AS025
CTH21AS015

182 2-1. Driving procedures
4RUNNER_U
■S mode
When the shift range is “3” or lower, holding the shift lever toward “+” sets
the shift range to “5”.
■ AI-SHIFT
AI-SHIFT automatically selects the optimal gear according to driver perfor-
mance and driving conditions.
AI-SHIFT automatically operates when the shift lever is in the D position.
(Shifting the shift lever to the S position cancels the function.)
The engine speed may remain high after releasing the accelerator pedal.
This does not indicate a malfunction.
■ When driving with the cruise control system
Engine braking will not occur in S mode, even when downshifting to “4”.
(P. 217)
■ If the shift lever cannot be shifted from P
 P. 622
■ If the “S” indicator does not come on even after shifting the shift lever
to S
This may indicate a malfunction in the automatic transmission system. Have
the vehicle inspected by your Toyota dealer immediately.
(In this situation, the transmission will operate in the same manner as when
the shift lever is in D.)
■ Downshift restriction warning buzzer (S mode)
To help ensure safety and driving performance, downshifting operation may
sometimes be restricted. In some circumstances, downshifting may not be
possible even when the shift lever is operated. (A buzzer will sound twice.)
CAUTION
■When driving on slippery road surfaces
Do not accelerate or shift gears suddenly.
Sudden changes in engine braking may cause the vehicle to spin or skid,
resulting in an accident.

183
2-1. Driving procedures
2
When driving
4RUNNER_U
Tur n signal lever
■Turn signals can be operated when
Vehicles without a smart key system: The engine switch is in the “ON” posi-
tion.
Vehicles with a smart key system: The “ENGINE START STOP” switch is in
IGNITION ON mode.
■ If the indicator flashes faster than usual
Check that a light bulb in the front or rear turn signal lights has not burned
out.
The turn signal lever can be used to show the following intentions
of the driver:
Right turn
Left turn
Lane change to the right
(push and hold the lever
partway)
The right hand signals will
flash until you release the
lever.
Lane change to the left
(push and hold the lever
partway)
The left hand signals will flash
until you release the lever.
CTH21AS032

184
2-1. Driving procedures
4RUNNER_U
Parking brake
■Usage in winter time
See “Winter driving tips” for parking brake usage in winter time. ( P. 290)
NOTICE
■Before driving
Fully release the parking brake.
Driving the vehicle with the parking brake set will lead to brake components
overheating, which may affect braking performance and increase brake
wear.
To set the parking brake, fully
depress the parking brake
pedal with your left foot while
depressing the brake pedal
with your right foot.
(Depressing the pedal again
releases the parking brake.)
CTH21AS031
U.S.A. Canada

185
2-1. Driving procedures
2
When driving
4RUNNER_U

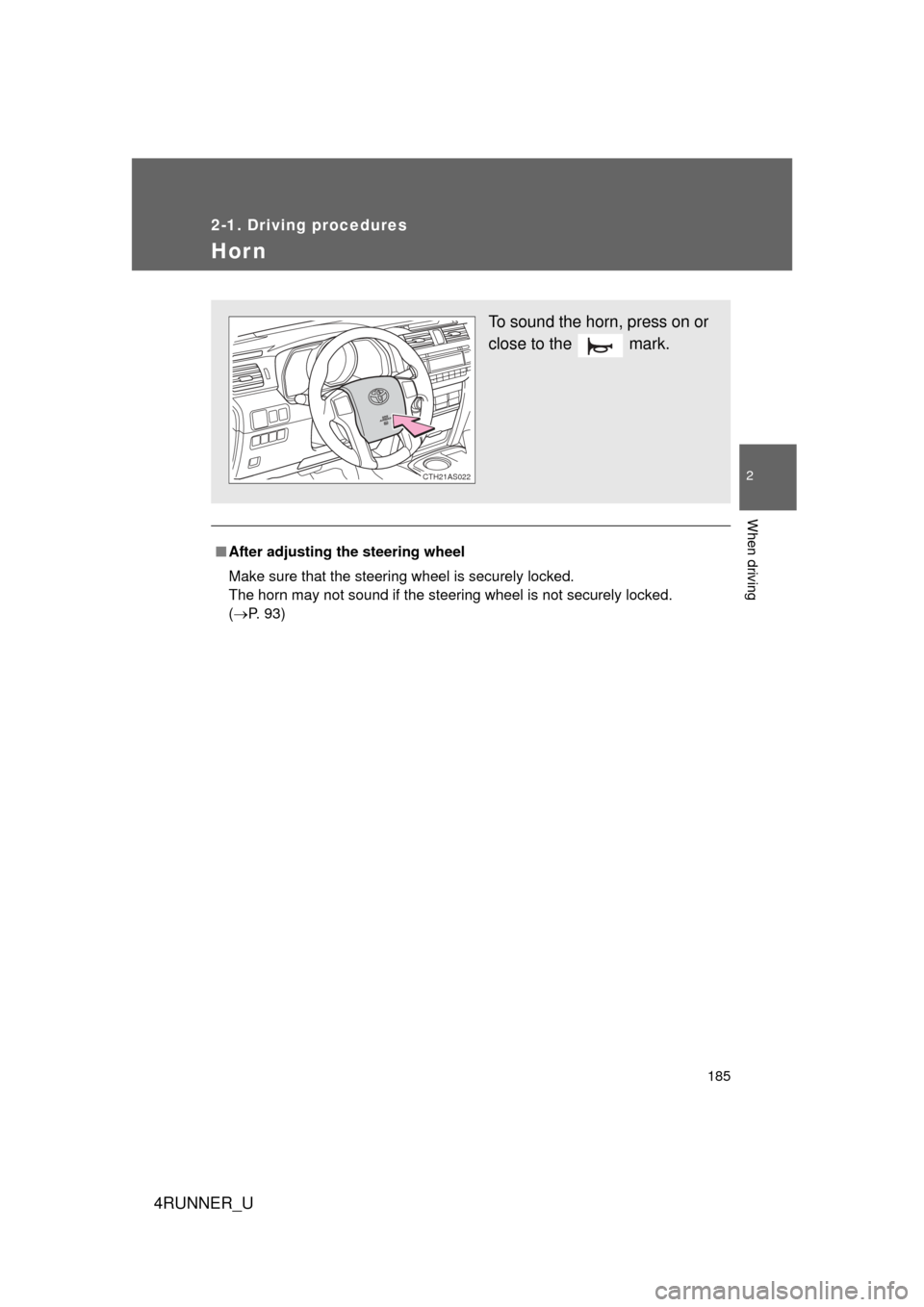

Hor n
■After adjusting the steering wheel
Make sure that the steering wheel is securely locked.
The horn may not sound if the steering wheel is not securely locked.
(P. 93)
To sound the horn, press on or
close to the mark.
CTH21AS022

186
4RUNNER_U
2-2. Instrument cluster
Gauges and meters
Non-Optitron type meters
Optitron type meters

187
2-2. Instrument cluster
2
When driving
4RUNNER_U

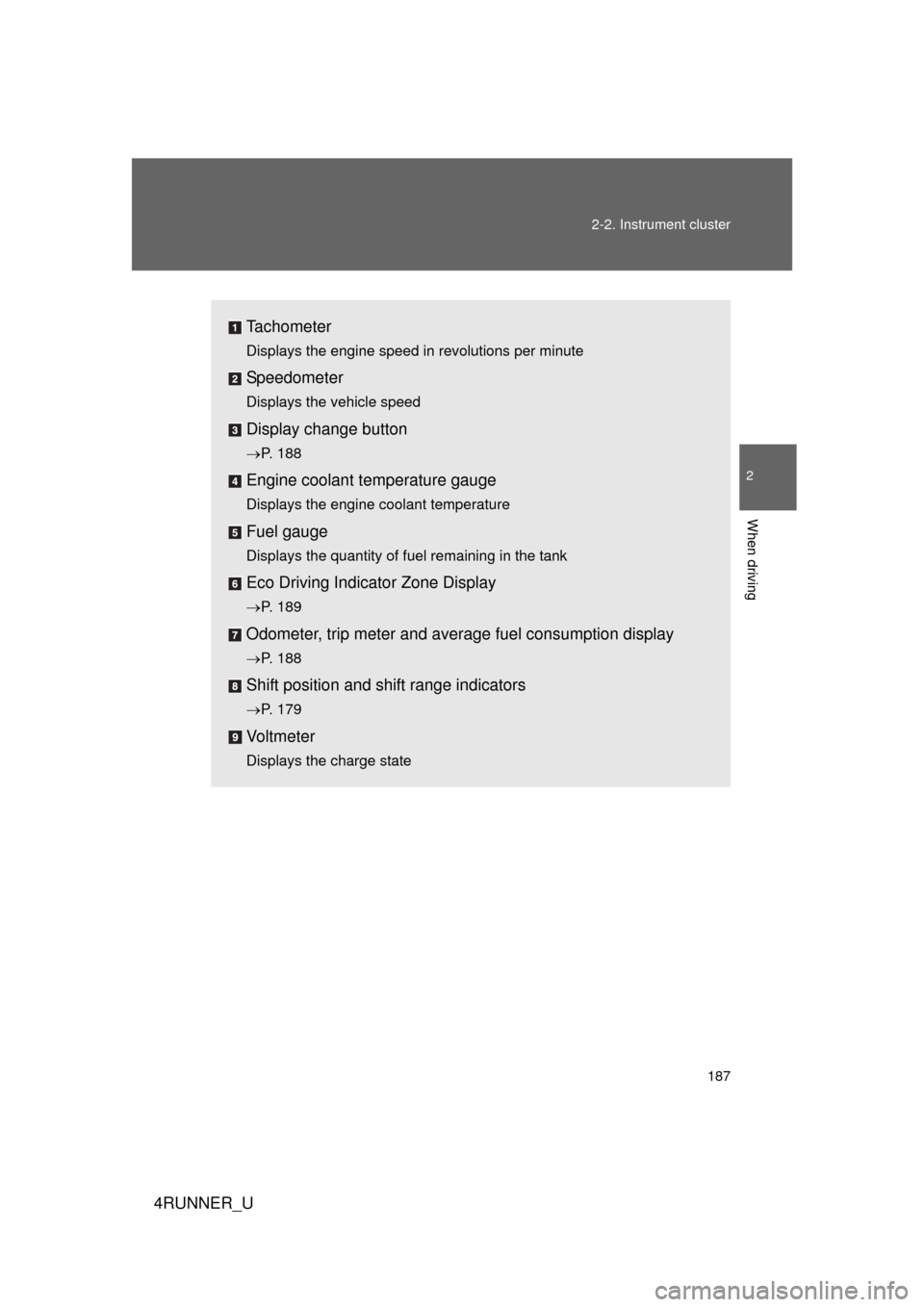

Tachometer
Displays the engine speed in revolutions per minute
Speedometer
Displays the vehicle speed
Display change button

P. 188
Engine coolant temperature gauge
Displays the engine coolant temperature
Fuel gauge
Displays the quantity of fuel remaining in the tank
Eco Driving Indicator Zone Display
P. 189
Odometer, trip meter and average fuel consumption display
P. 188
Shift position and shift range indicators
P. 179
Vo l t m e t e r
Displays the charge state

188 2-2. Instrument cluster
4RUNNER_U
Switching the displayItems displayed can be switched
by pressing the display change
button.
■ Odometer
Displays the total distance the vehicle has been driven.
■ Tr i p m e t e r
Displays the distance the vehicl e has been driven since the meter
was last reset. Trip meters “A” and “B” can be used to record and
display different distances independently.
Pressing and holding the display change button will reset the trip meter
that is currently displayed.

189
2-2. Instrument cluster
2
When driving
4RUNNER_U
■
Eco Driving Indicator and average fuel consumption
Non-Optitron type meter
Eco Driving Indicator Light
During Eco-friendly acceleration
(Eco driving), Eco Driving Indica-
tor Light will turn on.
Eco Driving Indicator Zone
Display
Suggests Zone of Eco driving
with current Eco driving ratio
based on acceleration.
Zone of Eco driving
Eco driving ratio based on
acceleration
In case over-use of the accelera-
tor causes the vehicle to exceed
Zone of Eco driving, the right of
Eco Driving Indicator Zone Dis-
play will blink and Eco Driving
Indicator Light will turn off.
Average fuel consumption
Displays the average fuel con-
sumption since the function was
reset.
Pressing and holding the display
change button will reset the aver-
age fuel consumption.
Use the displayed average fuel
consumption as a reference.
CTH22AS054

190 2-2. Instrument cluster
4RUNNER_UOptitron type meter
Eco Driving Indicator Light
During Eco-friendly acceleration
(Eco driving), Eco Driving Indica-
tor Light will turn on.
Eco Driving Indicator Zone
Display
Suggests Zone of Eco driving
with current Eco driving ratio
based on acceleration.
Zone of Eco driving
Eco driving ratio based on
acceleration
In case over-use of the accelera-
tor causes the vehicle to exceed
Zone of Eco driving, the right of
Eco Driving Indicator Zone Dis-
play will blink and Eco Driving
Indicator Light will turn off.
Average fuel consumption
Displays the average fuel con-
sumption since the function was
reset.
Pressing and holding the display
change button will reset the aver-
age fuel consumption.
Use the displayed average fuel
consumption as a reference.
CTH22AS055
