TOYOTA 4RUNNER 2019 Owners Manual (in English)

4918-2. Customization
8
Vehicle specifications
4RUNNER (U)■
Automatic light control system* (
 P. 2 0 8 )
*: If equipped
FunctionDefault settingCustomized
setting
Light sensor sensitivityLevel 3Levels 1 to 5
Time elapsed before head-
lights automatically turn off
after doors are closed
30 seconds
Off
60 seconds
90 seconds
Ambient light level at which
instrument illumination begins
to dim (meter lights etc.)
Standard-2 (darker) to
2 (brighter)
Ambient light level at which
instrument illumination begins
to brighten (meter lights etc.)
Standard-2 (darker) to 2 (brighter)

4928-2. Customization
4RUNNER (U)■
Illumination (
P. 2 9 7 )
*: If equipped
FunctionDefault settingCustomized
setting
Time period before lights turn
off15 seconds7.5 seconds
30 seconds
Vehicles without a smart key
system: Operation after the
engine switch is turned to the
“LOCK” position
Vehicles with a smart key sys-
tem: Operation after the
engine switch is turned OFF
OnOff
Operation when the doors are
unlockedOnOff
Vehicles with a smart key sys-
tem: Operation when you
approach the vehicle with the
electronic key on your person
(When the interior light switch
[ON/DOOR/OFF] is DOOR)
OnOff
Footwell lights*OnOff
Interior light controlOnOff
Interior light dimmer control
while drivingOnOff

4938-2. Customization
8
Vehicle specifications
4RUNNER (U)■
Outer foot lights* (
 P. 297)
*: If equipped
■
Moon roof* (  P. 154)
*: If equipped
FunctionDefault settingCustomized
setting
Vehicles with a smart key sys-
tem: Operation when you
approach the vehicle with the
electronic key on your person
OnOff
Operation when the doors are
unlocked using the wireless
remote control, key or entry
function
OnOff
Operation when the doors are
unlocked using the door lock
switch
OnOff
Time period before lights turn
off15 seconds7.5 seconds
30 seconds
Lighting controlOnOff
FunctionDefault settingCustomized
setting
Mechanical key linked opera-
tionOffOn
Mechanical key linked opera-
tionOpen and closeOpen only
Close only
Linked operation of compo-
nents when door key is usedSlide onlyTilt only
Wireless remote control linked
operation (open only)OffOn
Linked operation of compo-
nents when wireless remote
control is used (open only)
Slide onlyTilt only

4948-2. Customization
4RUNNER (U)■

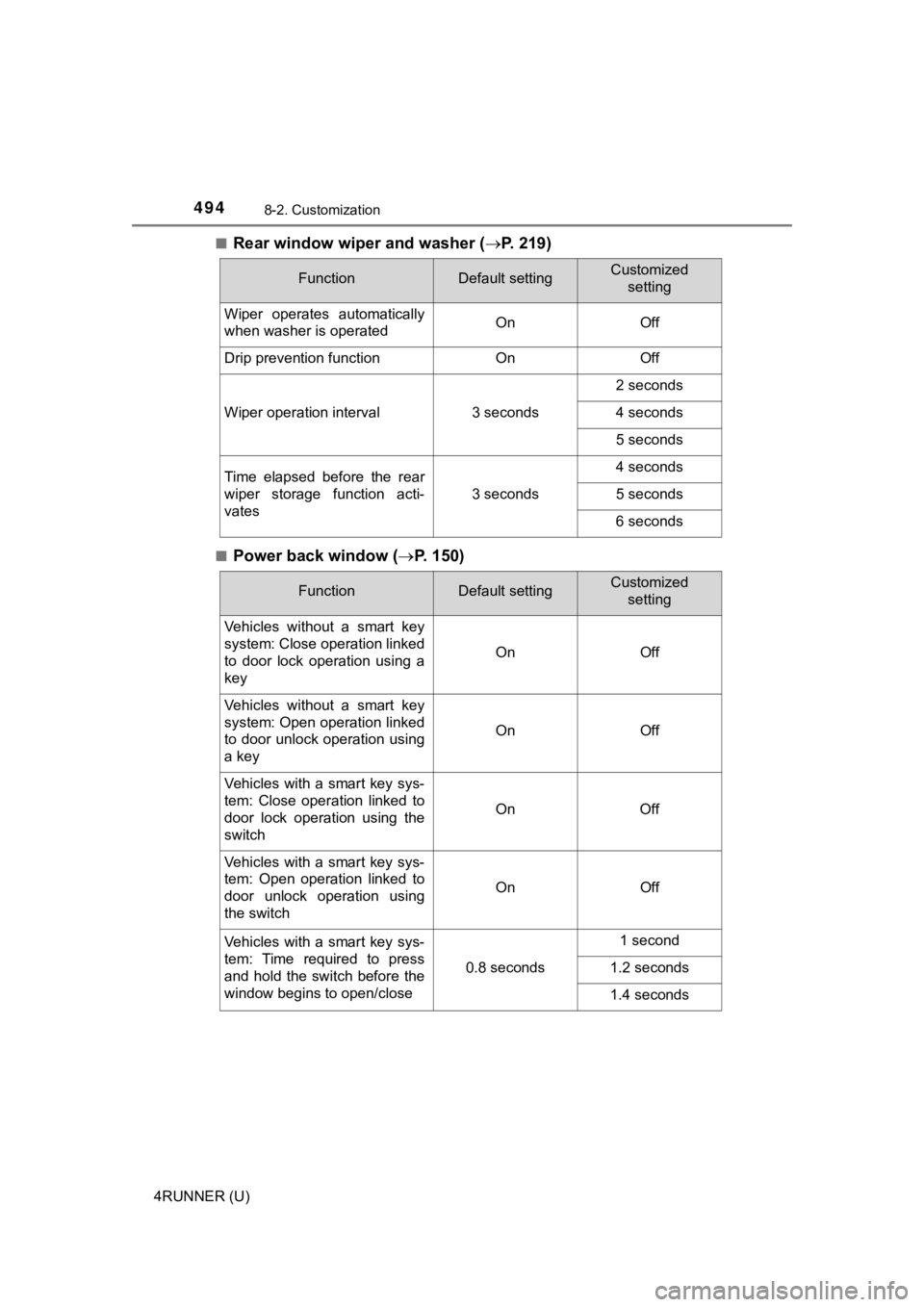

Rear window wiper and washer (
P. 219)
■Power back window ( P. 1 5 0 )
FunctionDefault settingCustomized
setting
Wiper operates automatically
when washer is operatedOnOff
Drip prevention functionOnOff
Wiper operation interval3 seconds
2 seconds
4 seconds
5 seconds
Time elapsed before the rear
wiper storage function acti-
vates
3 seconds
4 seconds
5 seconds
6 seconds
FunctionDefault settingCustomized
setting
Vehicles without a smart key
system: Close operation linked
to door lock operation using a
key
OnOff
Vehicles without a smart key
system: Open operation linked
to door unlock operation using
a key
OnOff
Vehicles with a smart key sys-
tem: Close operation linked to
door lock operation using the
switch On Off
Vehicles with a smart key sys-
tem: Open operation linked to
door unlock operation using
the switch
OnOff
Vehicles with a smart key sys-
tem: Time required to press
and hold the switch before the
window begins to open/close
0.8 seconds
1 second
1.2 seconds
1.4 seconds

4958-2. Customization
8
Vehicle specifications
4RUNNER (U)■

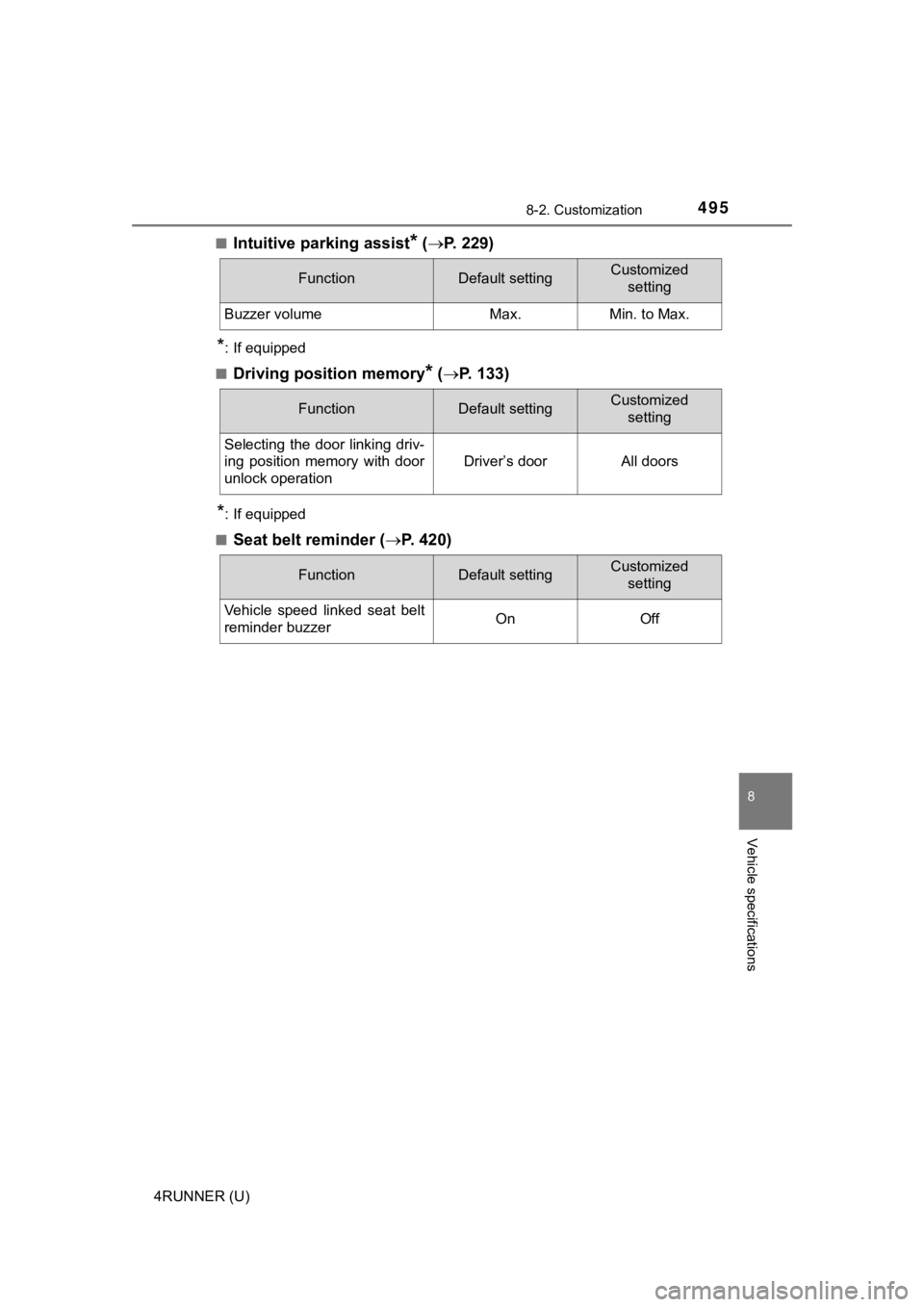

Intuitive parking assist* (
 P. 229)
*: If equipped
■
Driving position memory* (  P. 133)
*: If equipped
■
Seat belt reminder ( P. 420)
FunctionDefault settingCustomized
setting
Buzzer volumeMax.Min. to Max.
FunctionDefault settingCustomizedsetting
Selecting the door linking driv-
ing position memory with door
unlock operation
Driver’s doorAll doors
FunctionDefault settingCustomized
setting
Vehicle speed linked seat belt
reminder buzzerOnOff

496
4RUNNER (U)

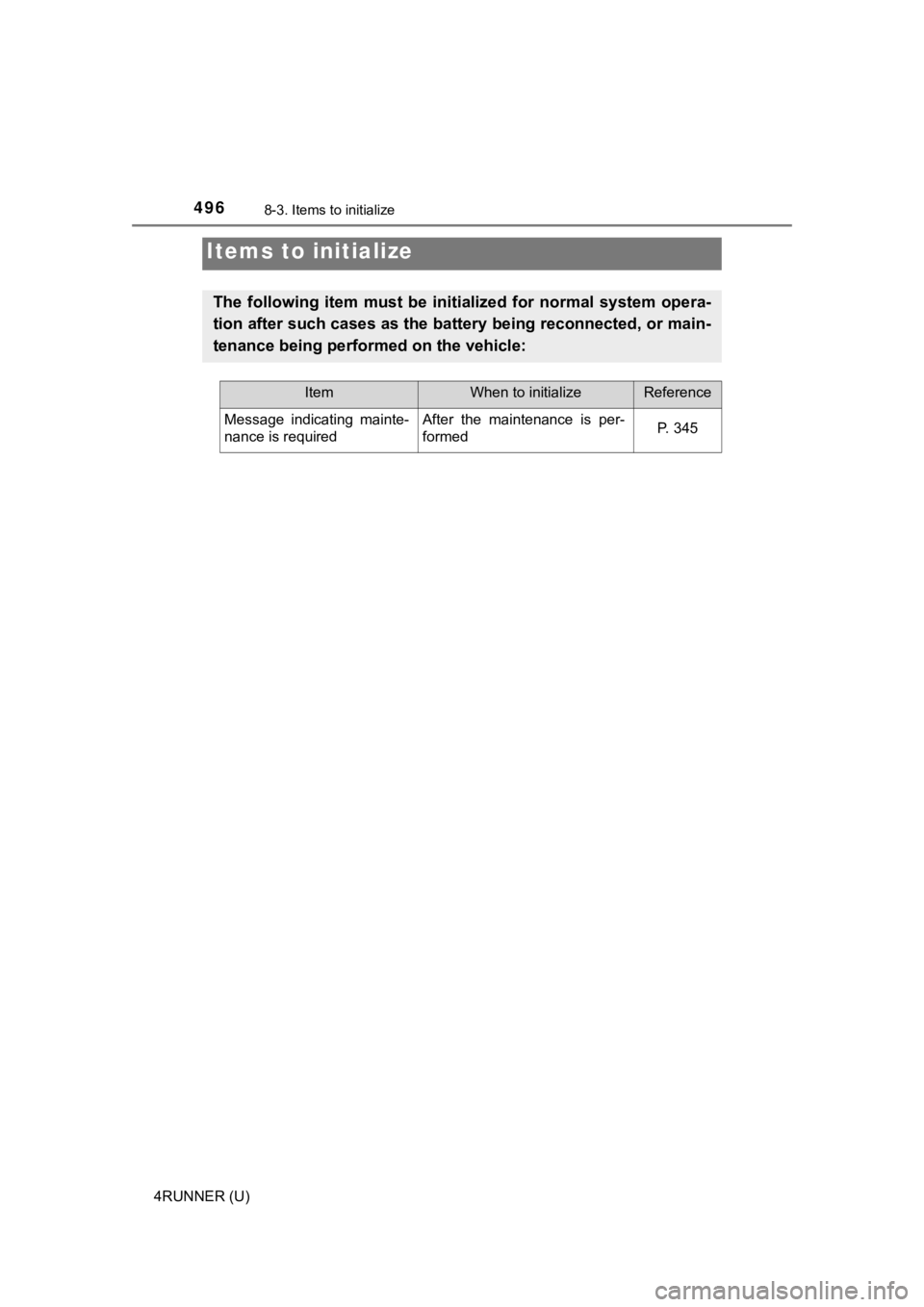

8-3. Items to initialize
Items to initialize
The following item must be initialized for normal system opera-
tion after such cases as the battery being reconnected, or main -
tenance being performed on the vehicle:
ItemWhen to initializeReference
Message indicating mainte-
nance is requiredAfter the maintenance is per-
formedP. 345

497
For owners9
4RUNNER (U)Reporting safety defects
for U.S. owners........................ 498
Seat belt instructions for Canadian owners
(in French) ............................... 499
SRS airbag instructions for Canadian owners
(in French) ............................... 501

498
4RUNNER (U)

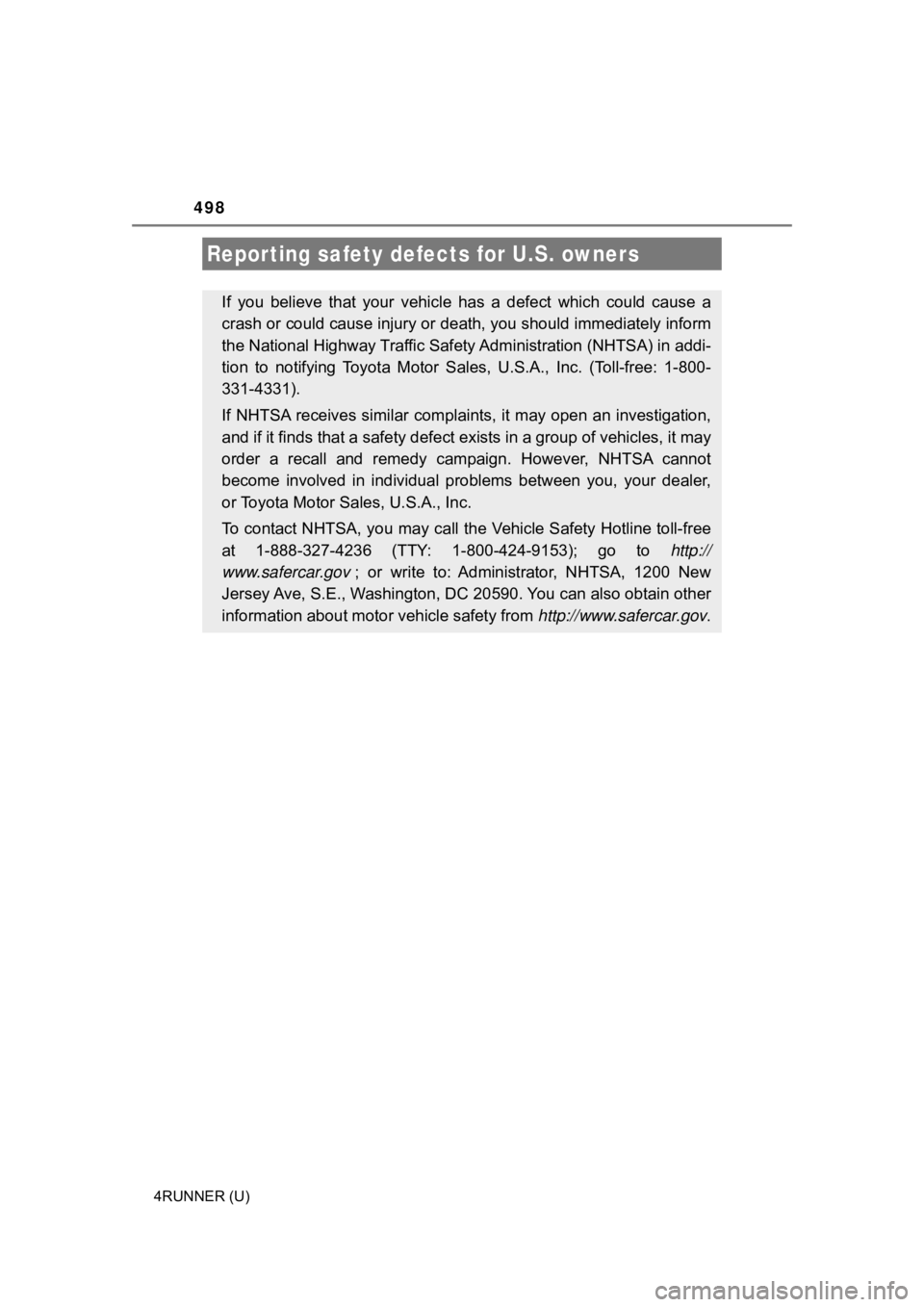

Reporting safety defects for U.S. owners
If you believe that your vehicle has a defect which could cause a
crash or could cause injury or death, you should immediately in form
the National Highway Traffic Saf ety Administration (NHTSA) in addi-
tion to notifying Toyota Motor Sales, U.S.A., Inc. (Toll-free: 1-800-
331-4331).
If NHTSA receives similar complaints, it may open an investigat ion,
and if it finds that a safety de fect exists in a group of vehic les, it may
order a recall and remedy campaign. However, NHTSA cannot
become involved in individual problems between you, your dealer ,
or Toyota Motor Sales, U.S.A., Inc.
To contact NHTSA, you may call the Vehicle Safety Hotline toll- free
at 1-888-327-4236 (TTY: 1-800-424-9153); go to http://
www.safercar.gov
; or write to: Administrator, NHTSA, 1200 New
Jersey Ave, S.E., Washington, D C 20590. You can also obtain oth er
information about motor vehicle safety from http://www.safercar.gov.

499
9
For owners
4RUNNER (U)
●Déroulez la sangle diagonale
de telle sorte qu’elle passe bien
sur l’épaule, sans pour autant
être en contact avec le cou ou
glisser de l’épaule.
● Placez la sangle abdominale le
plus bas possible sur les
hanches.
● Réglez la position du dossier de s iège. Asseyez-vous le dos le plus
droit possible et calez- vous bien dans le siège.
● Ne vrillez pas la cei nture de sécurité.
■Ceintures de sécurité
Nettoyez avec un chiffon ou une éponge humectée d’eau savon-
neuse tiède. Vérifiez régulièrement que les ceintures ne sont p as
effilochées, entaillées ou exagérément usées.
Seat belt instructions for Canadian owners
(in French)
The following is a French explan ation of seat belt instructions
extracted from the seat bel t section in this manual.
See the seat belt section for mo re detailed seat belt instructions in
English.
Utilisation correcte d es ceintures de sécurité
Entretien et soin

500
4RUNNER (U)
CAUTION
■Détérioration et usure des ceintures de sécurité
Inspectez les ceintures de sécurité périodiquement. Contrôlez q u’elles ne
sont pas entaillées, effilochées et que leurs ancrages ne sont pas desser-
rés. N’utilisez pas une ceinture de sécurité défectueuse avant qu’elle ne soit
remplacée. Une ceinture de sécurité défectueuse n’apporte aucun e garan-
tie de protection de l’occupant en cas d’accident.
