1
INDEX
1 Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and more information.3 HomeLink® is a registered trademark of Gentex Corporation.
Engine maintenance 8
Fuel tank door release & cap 7
Hood release 8
Indicator symbols 4-5
Instrument cluster 4
Instrument panel 2-3
Instrument panel light control 8
Keyless entry
1 6
Smart Key system1 7
OVERVIEW FEATURES & OPERATIONS (Continued)
FEATURES & OPERATIONS
SAFETY & EMERGENCY FEATURES
Active traction control system 25
Air conditioning/heating 17
Audio 22
Auto lock/unlock
1,2 9
Automatic running boards 12
Automatic transmission 9
Clock 11
Crawl control 27
Cup holders 11
Door locks 10
Downhill assist control system 26
Four-wheel drive 10
Garage door opener (HomeLink
®)3 24
Lights1 & turn signals 18-19
Moonroof1 24
Multi-Information Display (MID) 20
Multi-terrain select 27
Parking brake 11
Power outlets-12V DC 23
Power outlets-120V AC 22
Rear differential lock system 26
Rear seats-Folding 15
Seat adjustments-Front 14
Seat adjustments-Rear 14
Seat heaters/ventilators 16
Seats-Head restraints 14
Seats-Returning 3rd row 16
Seats-Stowing 3rd row 16Steering lock release
12
Steering wheel switches &
telephone controls (Bluetooth
®) 21
Tilt & telescopic steering wheel 12
USB charge-ports 20
USB media port 21
Vehicle Stability Control (VSC)
OFF button 25
Window-Back window
1 13
Windows-Power1 13
Windshield wipers & washers 19
BLUETOOTH® DEVICE
PAIRING SECTION 46-48
Floor mat installation
44
Rear door child safety locks 39
Safety Connect 42
Seat belts 40
Seat belts-Shoulder belt anchor 40
Spare tire & tools 41
Star Safety System
TM 43-44
Tire Pressure Monitoring
(warning) System (TPMS) 39
TOYOTA SAFETY SENSE™ P (TSS-P)
Automatic High Beams (AHB) 38
Dynamic Radar Cruise Control
(DRCC) 35-37
Lane Departure Alert (LDA) 31-34
Pre-Collision System with
Pedestrian Detection (PCS w/PD) 29-31
Quick overview-
Toyota Safety Sense
™ P (TSS-P) 28
Sensors 28
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
62444_4Runner_Text.indd 17/19/19 8:54 PM

3
OVERHEAD CONSOLE INSTRUMENT PANELOVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
1
If equipped2 For details, refer to the “Navigation and Multimedia System Owner’s Manual” or visit
www.toyota.com/audio-multimedia for additional resources.
VSC off switch VSC off switch
Active traction control switch1 Active traction
control switch
1
Downhill Assist Control system (DAC) switch
1 Rear differential
lock switch
1
Multi-terrain Select switch
1
Crawl Control switch1
Windshield wiper and washer control
Multi-Information Display (MID)
Emergency flasher switch Clock
Audio/navigation system
2
USB media port2
USB media port2Seat heater1/ventilator switches1
Air conditioning/heating controls1
Front-wheel drive control lever1
Front-wheel drive control switch1/
Four-wheel drive control switch1
“ENGINE START STOP” button1
Ignition switch1
Power outlet-12V DC
Power outlet-
12V DC
Part-time 4WD
Type A Type B
Part-time 4WD/
full-time

4WD
62444_4Runner_Text.indd 37/19/19 8:54 PM

4
For details, refer to “Warning lights and indicators” Section 2, 2020 Owner’s Manual.
Brake system warning1
Downhill Assist Control indicator1,5
Brake Overrride System/Drive-Start
Control warning
Automatic High Beam (AHB)
indicator
Charging system warning1
Crawl Control indicator5
Center differential lock indicator3,5
Constant speed cruise control
indicator/Constant speed
cruise control SET indicator
Dynamic Radar Cruise
Control (DRCC) indicator/
DRCC SET indicator
Air bag SRS warning1
AIR BAG ON/OFF indicator1
Arrow direction indicates
fuel tank door position
Anti-lock Brake System (ABS)
warning1
Active traction control indicator5
AUTO Limited Slip
Differential indicator1,5
Automatic running boards
indicator1,2,5
Driver’s and/or front passenger’s seat
belt reminder (alarm will sound if
speed is over 12 mph)
Engine coolant temperature gaugeFuel gauge
Multi-Information Display (MID)
Tachometer Speedometer
Odometer/trip meter/
display change button
Odometer/trip meter display
Shift position and shift range
Service indicators and reminders
OVERVIEW
Instrument cluster
Indicator symbols
62444_4Runner_Text.indd 47/19/19 8:54 PM

12

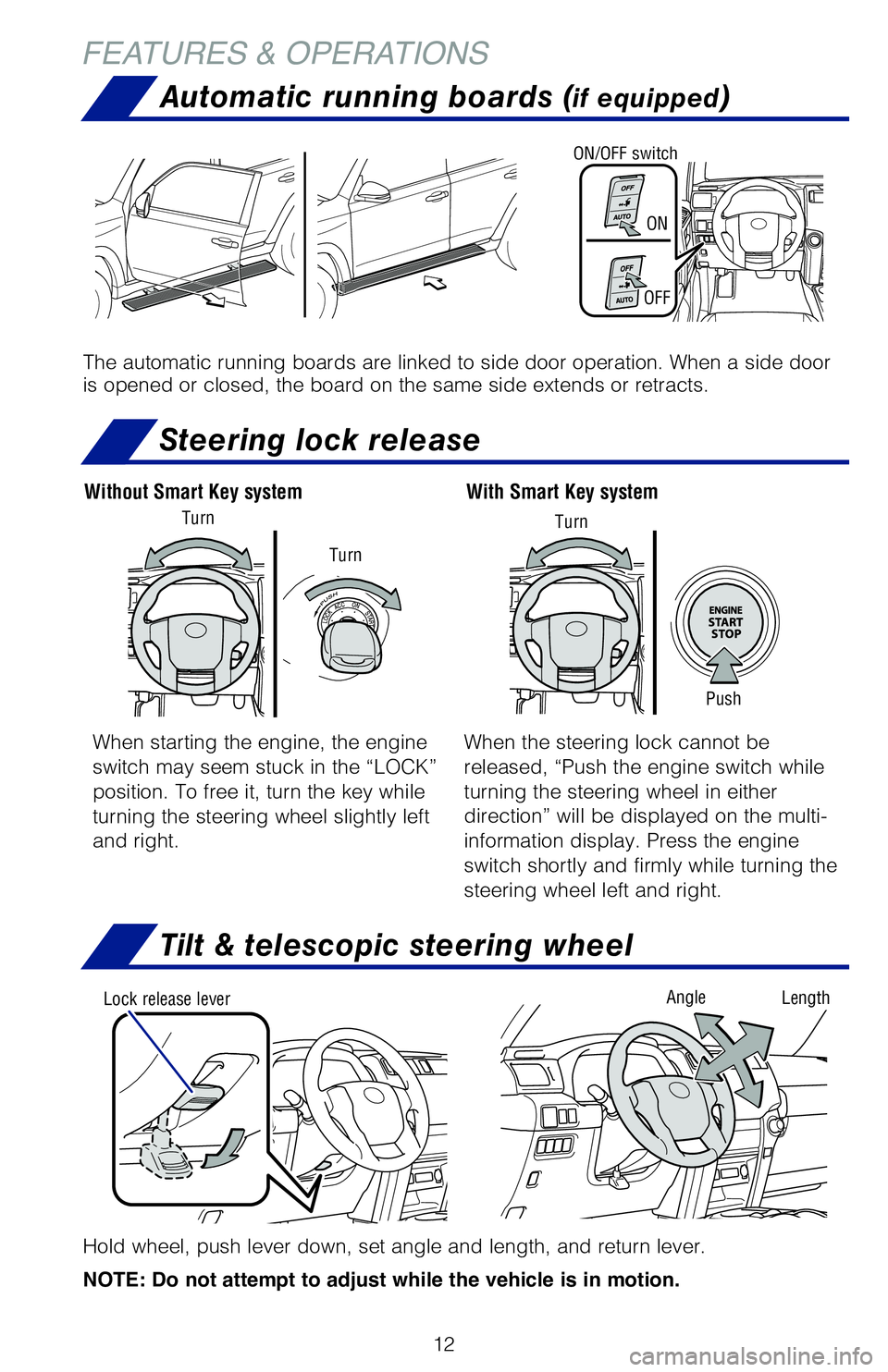

Hold wheel, push lever down, set angle and length, and return lever.
NOTE: Do not attempt to adjust while the vehicle is in motion.
AngleLock release leverLength
Steering lock release
When starting the engine, the engine
switch may seem stuck in the “LOCK”
position. To free it, turn the key while
turning the steering wheel slightly left
and right. When the steering lock cannot be
released, “Push the engine switch while
turning the steering wheel in either
direction” will be displayed on the multi-
information display. Press the engine
switch shortly and firmly while turning the
steering wheel left and right.
With Smart Key system
Without Smart Key system
Push
Turn
Turn
Turn
Automatic running boards (if equipped)
The automatic running boards are linked to side door operation. When a side door
is opened or closed, the board on the same side extends or retracts.
ON/OFF switch
ON
OFF
Tilt & telescopic steering wheel
FEATURES & OPERATIONS
62444_4Runner_Text.indd 127/19/19 8:54 PM

20
FEATURES & OPERATIONS

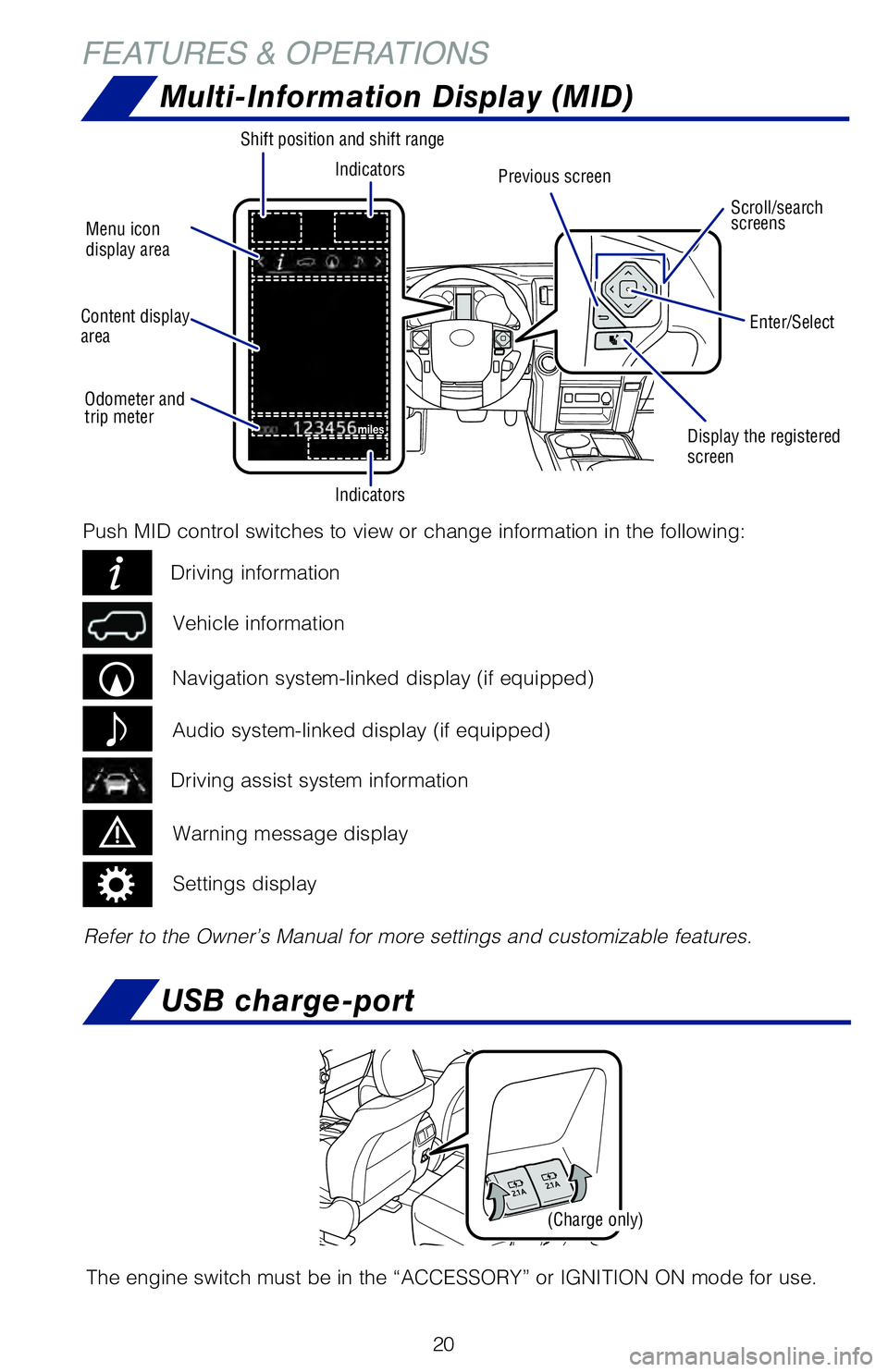

Multi-Information Display (MID)
Refer to the Owner’s Manual for more settings and customizable features.
Previous screen
Display the registered
screen
Indicators
Indicators
Enter/Select
Scroll/search
screens
Shift position and shift range
Menu icon
display area
Content display
area Odometer and
trip meter
Push MID control switches to view or change information in the following:
Driving assist system information
Audio system-linked display (if equipped)
Navigation system-linked display (if equipped)
Vehicle information
Warning message display
Settings display
Driving information
USB charge-port
(Charge only)
The engine switch must be in the “ACCESSORY” or IGNITION ON mode for use.
62444_4Runner_Text.indd 207/19/19 8:55 PM

22
FEATURES & OPERATIONS
Refer to the “Navigation and Multimedia System Owner’s Manual” or visit
www.toyota.com/audio-multimedia for additional resources.

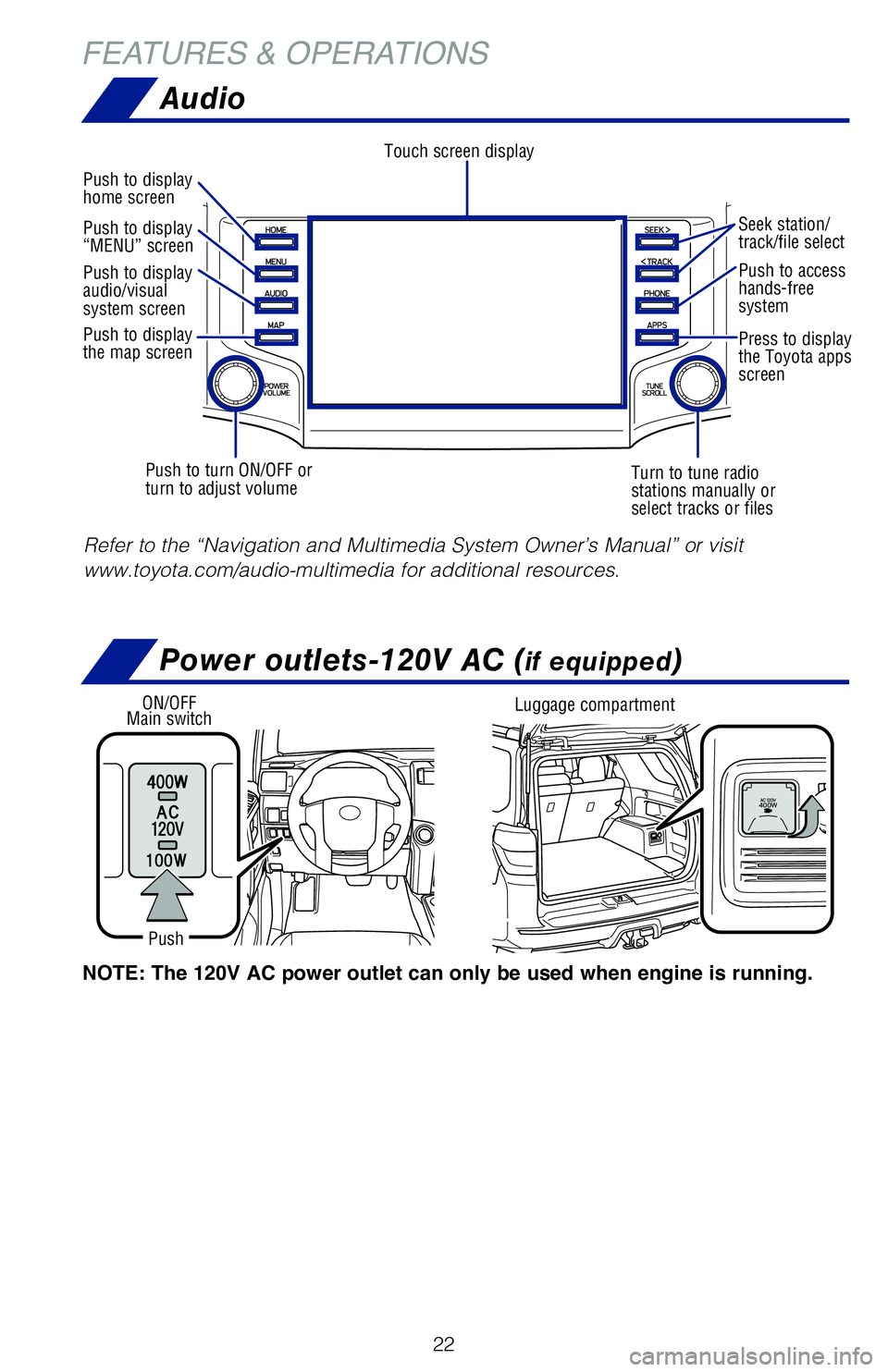

Touch screen display
Audio
Turn to tune radio
stations manually or
select tracks or files
Push to turn ON/OFF or
turn to adjust volume
Push to display
home screen
Push to display
“MENU” screen
Push to display
audio/visual
system screen
Push to display
the map screen
Seek station/
track/file select
Push to access
hands-free
system
Press to display
the Toyota apps
screen
NOTE: The 120V AC power outlet can only be used when engine is running.
ON/OFF
Main switch
Push
Luggage compartment
Power outlets-120V AC (if equipped)
62444_4Runner_Text.indd 227/19/19 8:55 PM

27

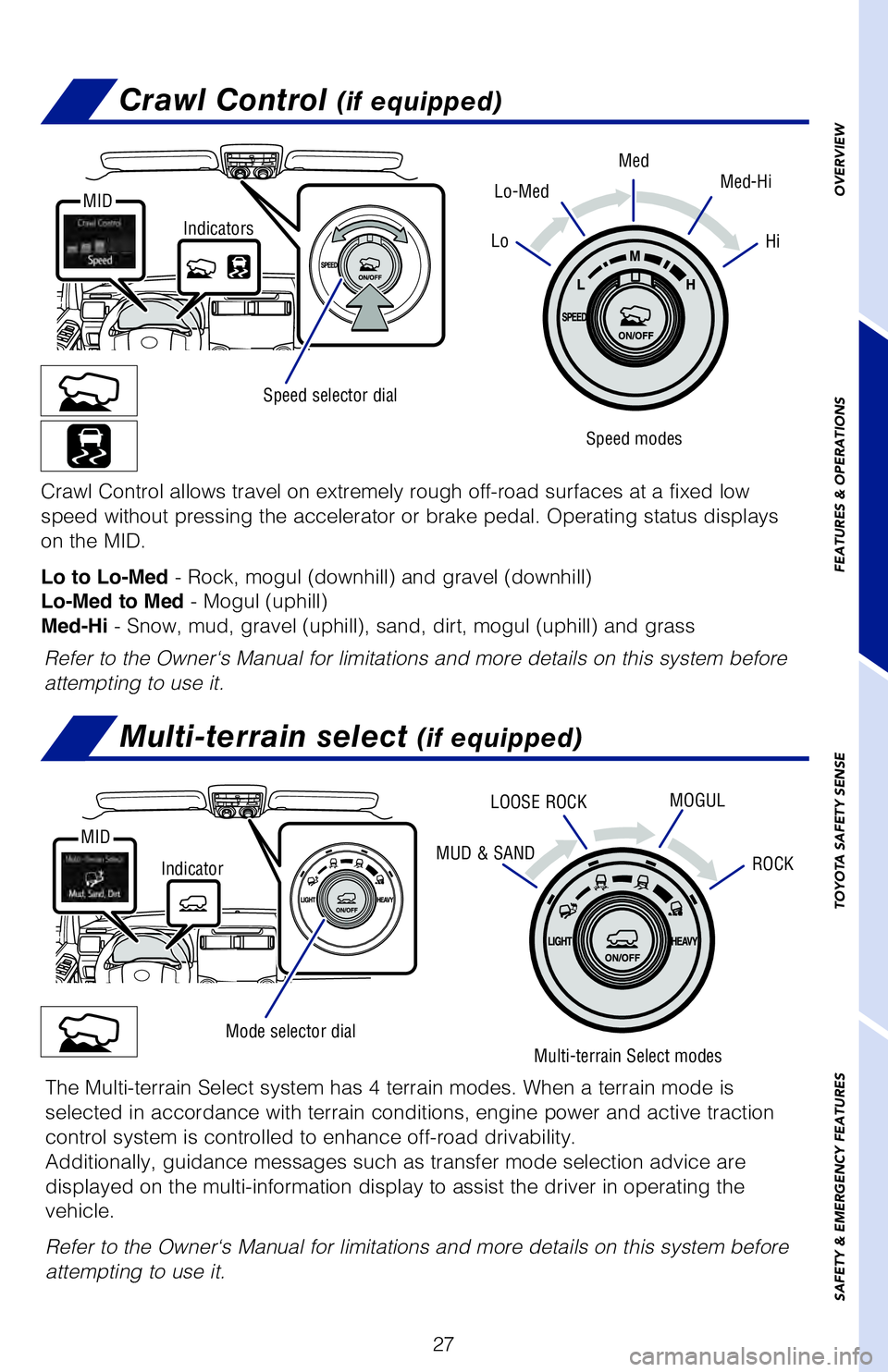

Multi-terrain select (if equipped)
Mode selector dial
Multi-terrain Select modes
The Multi-terrain Select system has 4 terrain modes. When a terrain mode is
selected in accordance with terrain conditions, engine power and active traction
control system is controlled to enhance off-road drivability.
Additionally, guidance messages such as transfer mode selection advice are
displayed on the multi-information display to assist the driver in operating the
vehicle.
Refer to the Owner‘s Manual for limitations and more details on this system before
attempting to use it.
Refer to the Owner‘s Manual for limitations and more details on this system before
attempting to use it.
Crawl Control (if equipped)
Speed selector dial
Indicators
Indicator
MID
MID
LoHi
ROCK
Med
Lo-Med
MUD & SAND
LOOSE ROCK
Med-Hi
MOGUL
Speed modes
Crawl Control allows travel on extremely rough off-road surfaces at a fixed low
speed without pressing the accelerator or brake pedal. Operating status displays
on the MID.
Lo to Lo-Med - Rock, mogul (downhill) and gravel (downhill)
Lo-Med to Med - Mogul (uphill)
Med-Hi - Snow, mud, gravel (uphill), sand, dirt, mogul (uphill) and grass
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
62444_4Runner_Text.indd 277/19/19 8:55 PM

29

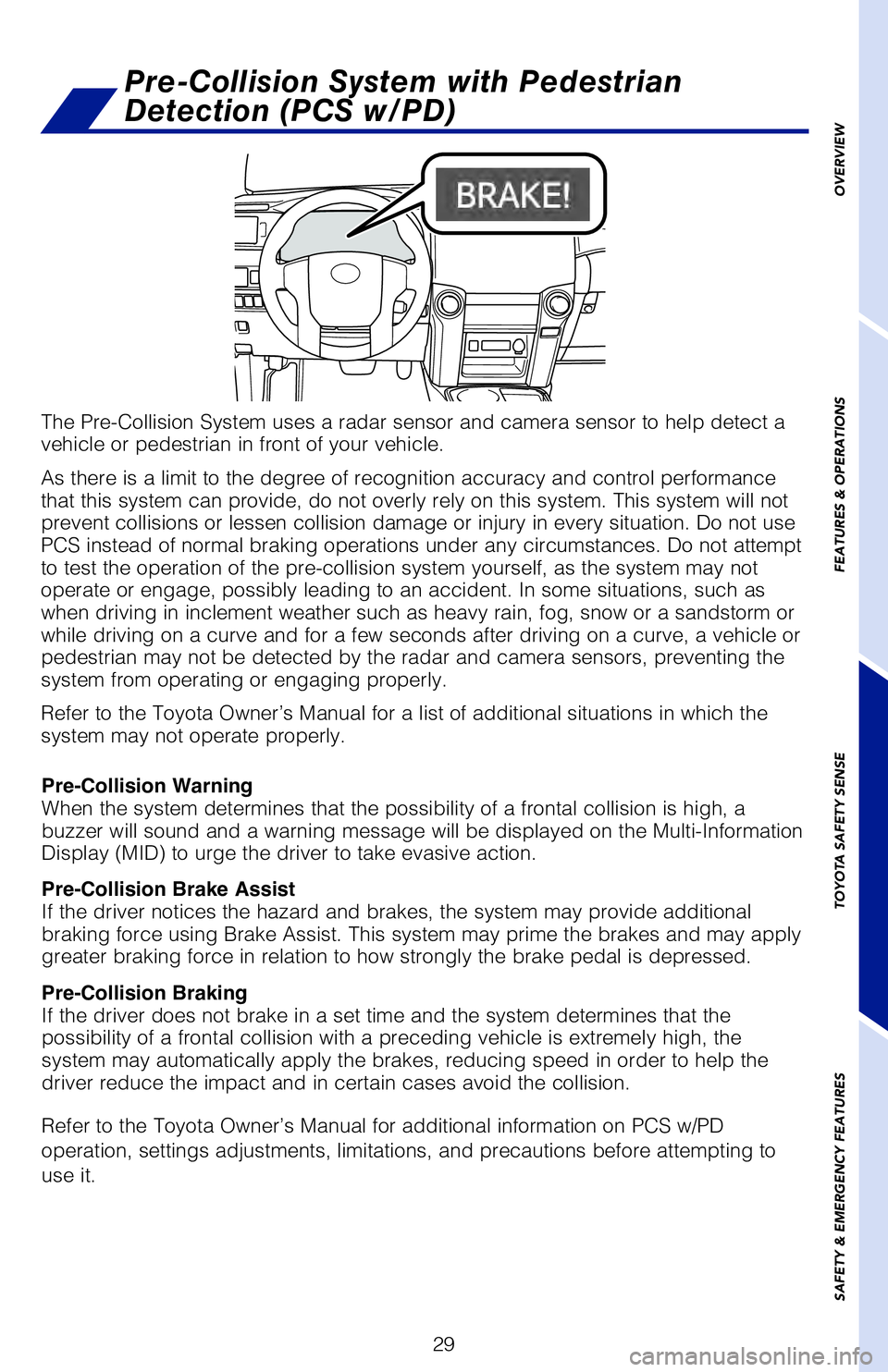

The Pre-Collision System uses a radar sensor and camera sensor to help detect a
vehicle or pedestrian in front of your vehicle.
As there is a limit to the degree of recognition accuracy and control performance
that this system can provide, do not overly rely on this system. This system will not
prevent collisions or lessen collision damage or injury in every situation. Do not use
PCS instead of normal braking operations under any circumstances. Do not attempt
to test the operation of the pre-collision system yourself, as the system may not
operate or engage, possibly leading to an accident. In some situations, such as
when driving in inclement weather such as heavy rain, fog, snow or a sandstorm or
while driving on a curve and for a few seconds after driving on a curve, a vehicle or
pedestrian may not be detected by the radar and camera sensors, preventing the
system from operating or engaging properly.
Refer to the Toyota Owner’s Manual for a list of additional situations in which the
system may not operate properly.Refer to the Toyota Owner’s Manual for additional information on PCS w/PD
operation, settings adjustments, limitations, and precautions before attempting to
use it. Pre-Collision Warning
When the system determines that the possibility of a frontal collision is high, a
buzzer will sound and a warning message will be displayed on the Multi-Information
Display (MID) to urge the driver to take evasive action.
Pre-Collision Brake Assist
If the driver notices the hazard and brakes, the system may provide additional
braking force using Brake Assist. This system may prime the brakes and may apply
greater braking force in relation to how strongly the brake pedal is depressed.
Pre-Collision Braking
If the driver does not brake in a set time and the system determines that the
possibility of a frontal collision with a preceding vehicle is extremely high, the
system may automatically apply the brakes, reducing speed in order to help the
driver reduce the impact and in certain cases avoid the collision.
Pre-Collision System with Pedestrian
Detection (PCS w/PD)
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
62444_4Runner_Text.indd 297/19/19 8:55 PM

30
TOYOTA SAFETY SENSE™

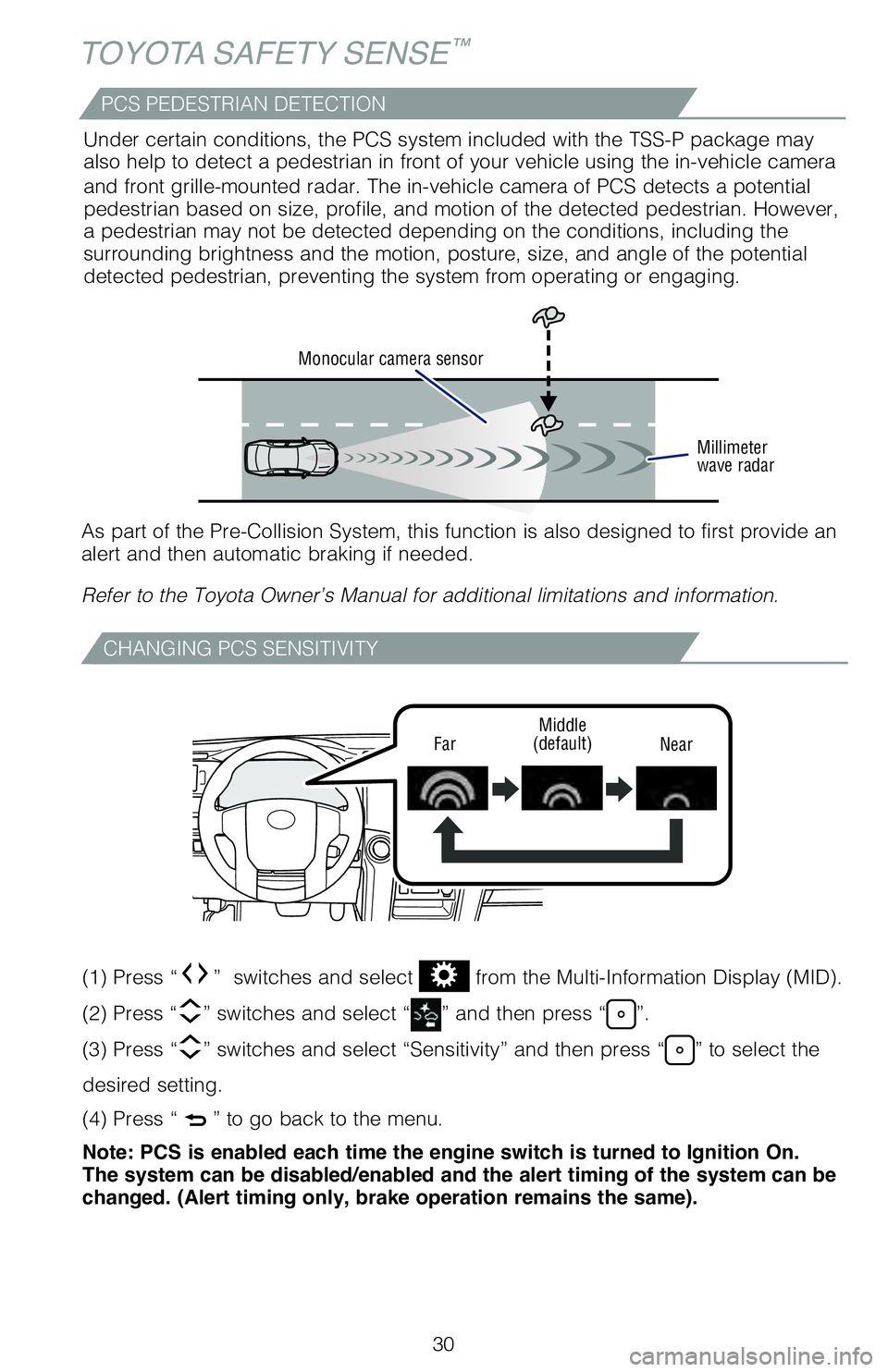

CHANGING PCS SENSITIVITY
FarMiddle
(default) Near
(1) Press “” switches and select from the Multi-Information Display (MID).
(2) Press “
” switches and select “” and then press “”.
(3) Press “
” switches and select “Sensitivity” and then press “” to select the
desired setting.
(4) Press “
” to go back to the menu.
Note: PCS is enabled each time the engine switch is turned to Ignition On.
The system can be disabled/enabled and the alert timing of the system can be
changed. (Alert timing only, brake operation remains the same).
Monocular camera sensor
Millimeter
wave radar
As part of the Pre-Collision System, this function is also designed to first provide an
alert and then automatic braking if needed.
Refer to the Toyota Owner’s Manual for additional limitations and information.Under certain conditions, the PCS system included with the TSS-P package may
also help to detect a pedestrian in front of your vehicle using the in-vehicle camera
and
front grille-mounted radar. The in-vehicle camera of PCS detects a potential
pedestrian based on size, profile, and motion of the detected pedestrian. However,
a pedestrian may not be detected depending on the conditions, including the
surrounding brightness and the motion, posture, size, and angle of the potential
detected pedestrian, preventing the system from operating or engaging.
PCS PEDESTRIAN DETECTION
62444_4Runner_Text.indd 307/19/19 8:55 PM

31

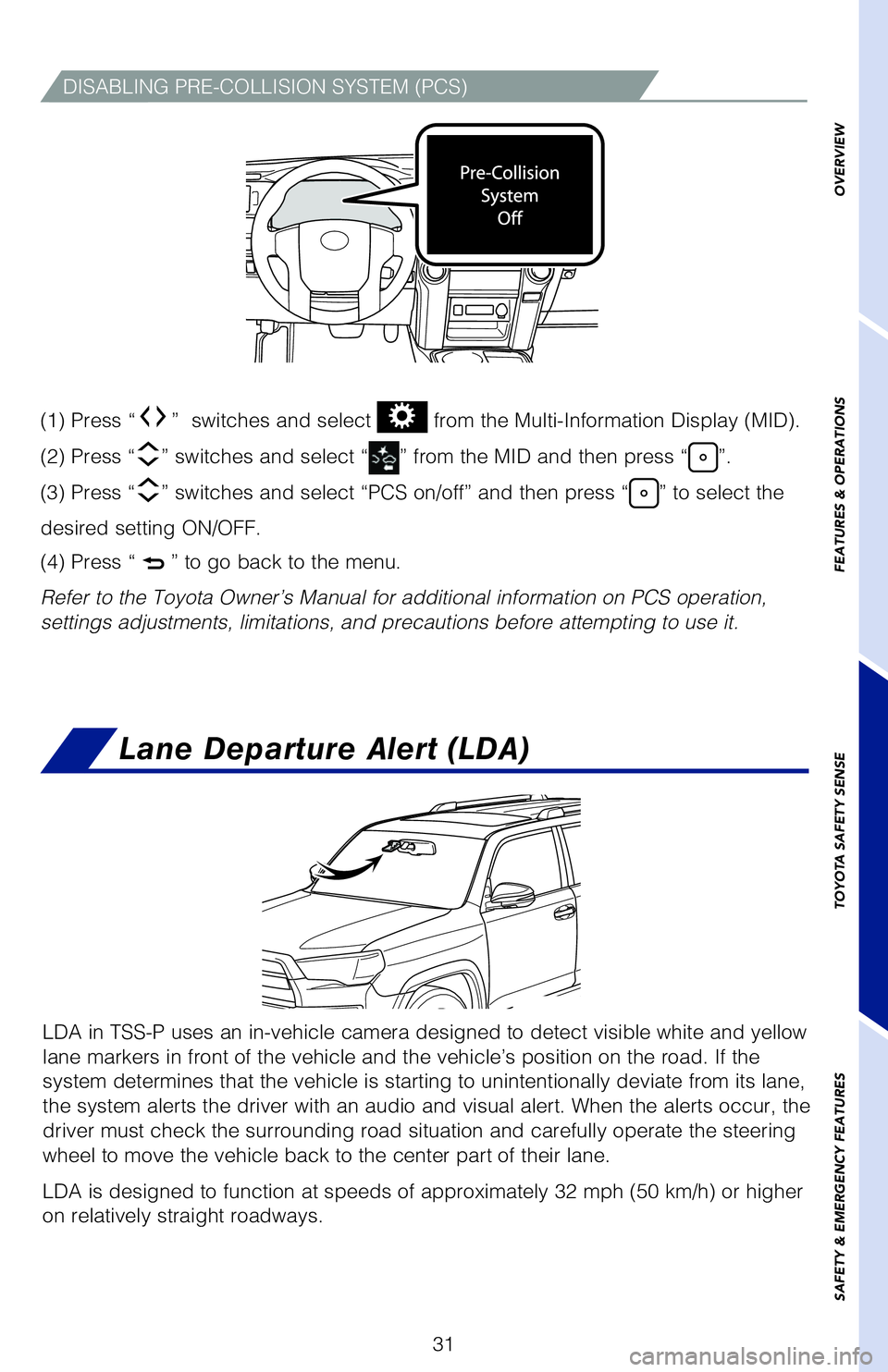

DISABLING PRE-COLLISION SYSTEM (PCS)
(1) Press “” switches and select from the Multi-Information Display (MID).
(2) Press “
” switches and select “” from the MID and then press “”.
(3) Press “
” switches and select “PCS on/off” and then press “” to select the
desired setting ON/OFF.
(4) Press “
” to go back to the menu.
Refer to the Toyota Owner’s Manual for additional information on PCS operation,
settings adjustments, limitations, and precautions before attempting to use it.
Lane Departure Alert (LDA)
LDA in TSS-P uses an in-vehicle camera designed to detect visible white and yellow
lane markers in front of the vehicle and the vehicle’s position on the road. If the
system determines that the vehicle is starting to unintentionally deviate from its lane,
the system alerts the driver with an audio and visual alert. When the alerts occur, the
driver must check the surrounding road situation and carefully operate the steering
wheel to move the vehicle back to the center part of their lane.
LDA is designed to function at speeds of approximately 32 mph (50 km/h) or higher
on relatively straight roadways.
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
62444_4Runner_Text.indd 317/19/19 8:55 PM
