3515-2. Using the audio system
Auris Touring Sports_EE (OM12G98E)
5
Interior features
Open the cover and connect
the portable audio device.
Press repeatedly until “AUX” is displayed.
Operating portable audio devices connected to the audio system
The volume can be adjusted using the vehicle's audio controls. All other
adjustments must be made on the portable audio device itself.
When using a portable audio device connected to the power outlet
Noise may occur during playback. Use the power source of the portable
audio device.

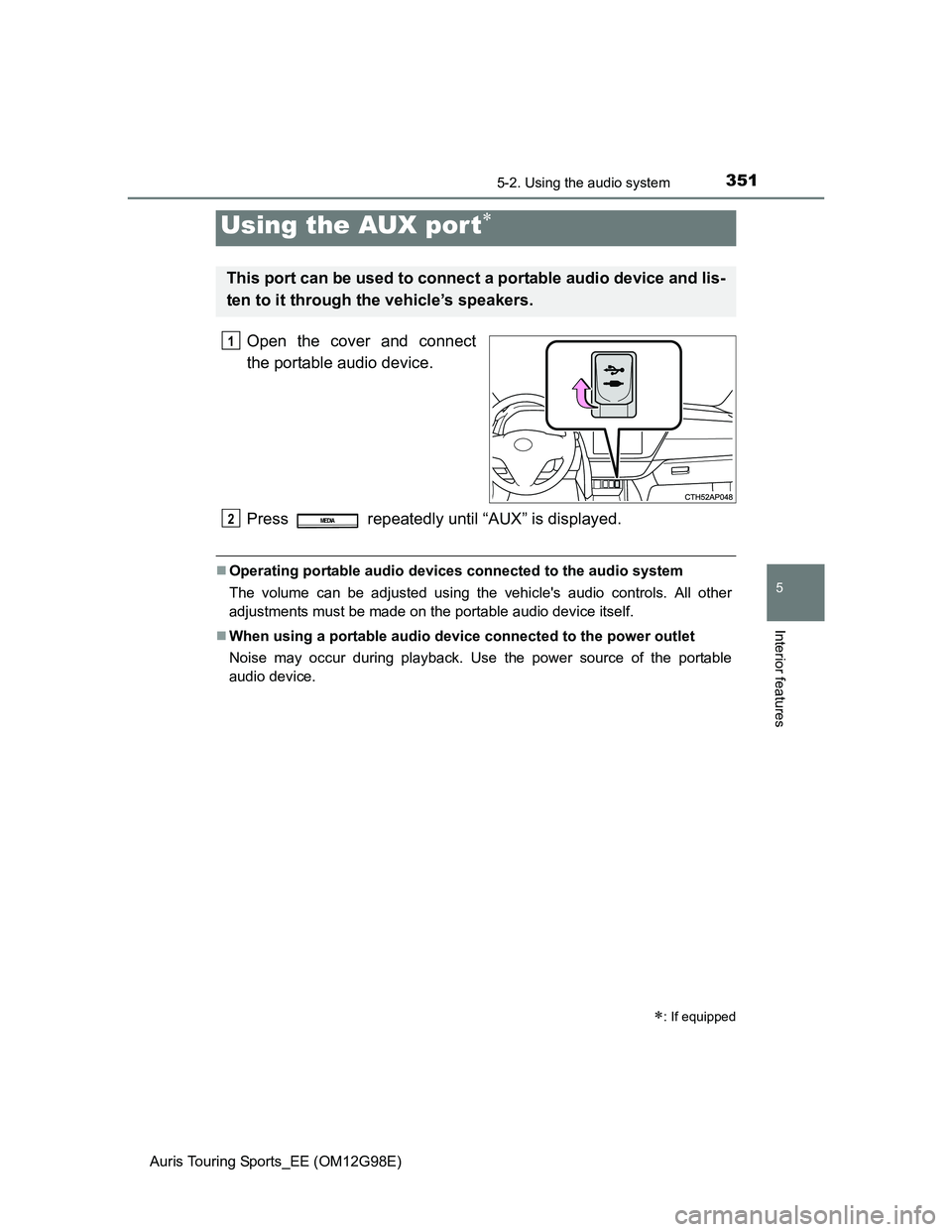

Using the AUX por t
: If equipped
This port can be used to connect a portable audio device and lis-
ten to it through the vehicle’s speakers.
1
2MEDIA

3525-2. Using the audio system
Auris Touring Sports_EE (OM12G98E)
Vo l u m e
Radio mode: Selects a radio
station
CD mode: Selects a track and
file (MP3 and WMA)
iPod mode: Selects a song
USB memory mode: Selects a
file and folder
Press: Power on, selects an
audio source
Press and hold: Mute
Press when the audio system is turned off.
Press when the audio system is turned on. The audio source
changes as follows each time is pressed.
AM FMCD mode iPod or USB memory mode AUX

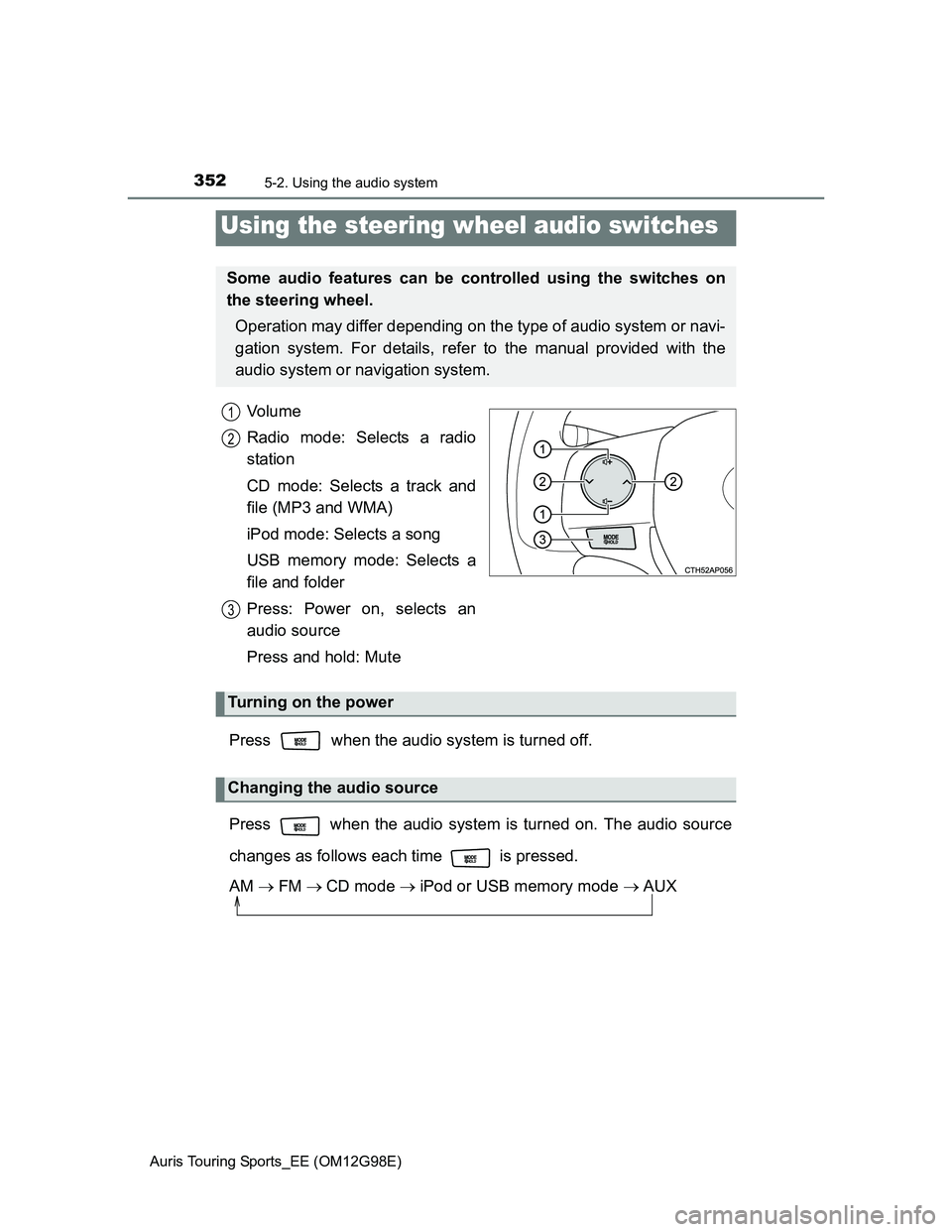

Using the steering wheel audio switches
Some audio features can be controlled using the switches on
the steering wheel.
Operation may differ depending on the type of audio system or navi-
gation system. For details, refer to the manual provided with the
audio system or navigation system.
1
2
3
Turning on the power
Changing the audio source

3535-2. Using the audio system
Auris Touring Sports_EE (OM12G98E)
5
Interior features
Press “+” on to increase the volume and “-” to decrease the vol-
ume.
Hold down “+” or “-” on to continue increasing or decreasing the vol-
ume.
Press and hold .
To cancel, press and hold again.
Press to select the radio mode.
Press to select a preset station.
To scan for receivable stations, press and hold until you hear a
beep.
Press to select CD, iPod or USB memory mode.
Press to select the desired track/file or song.

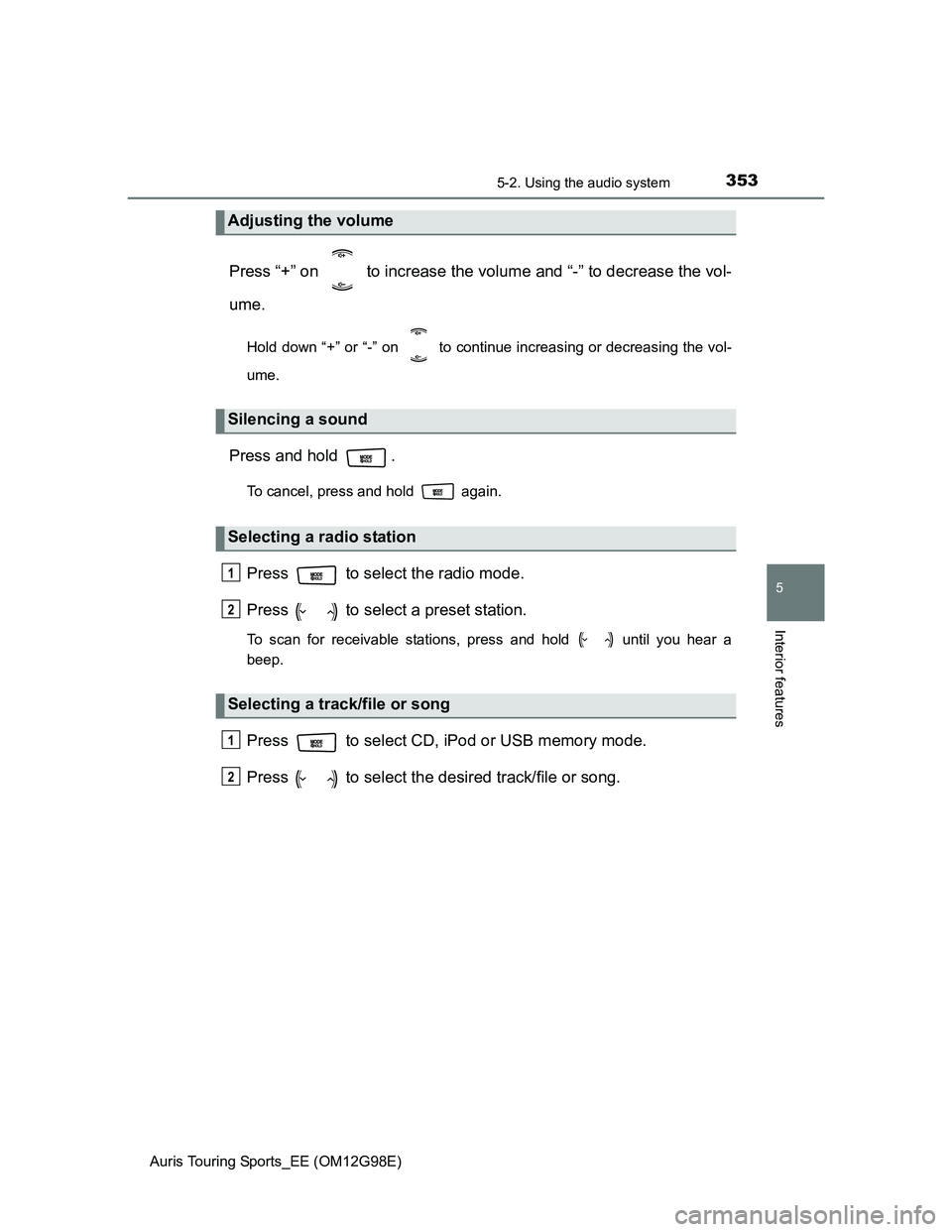

Adjusting the volume
Silencing a sound
Selecting a radio station
Selecting a track/file or song
1
2
1
2

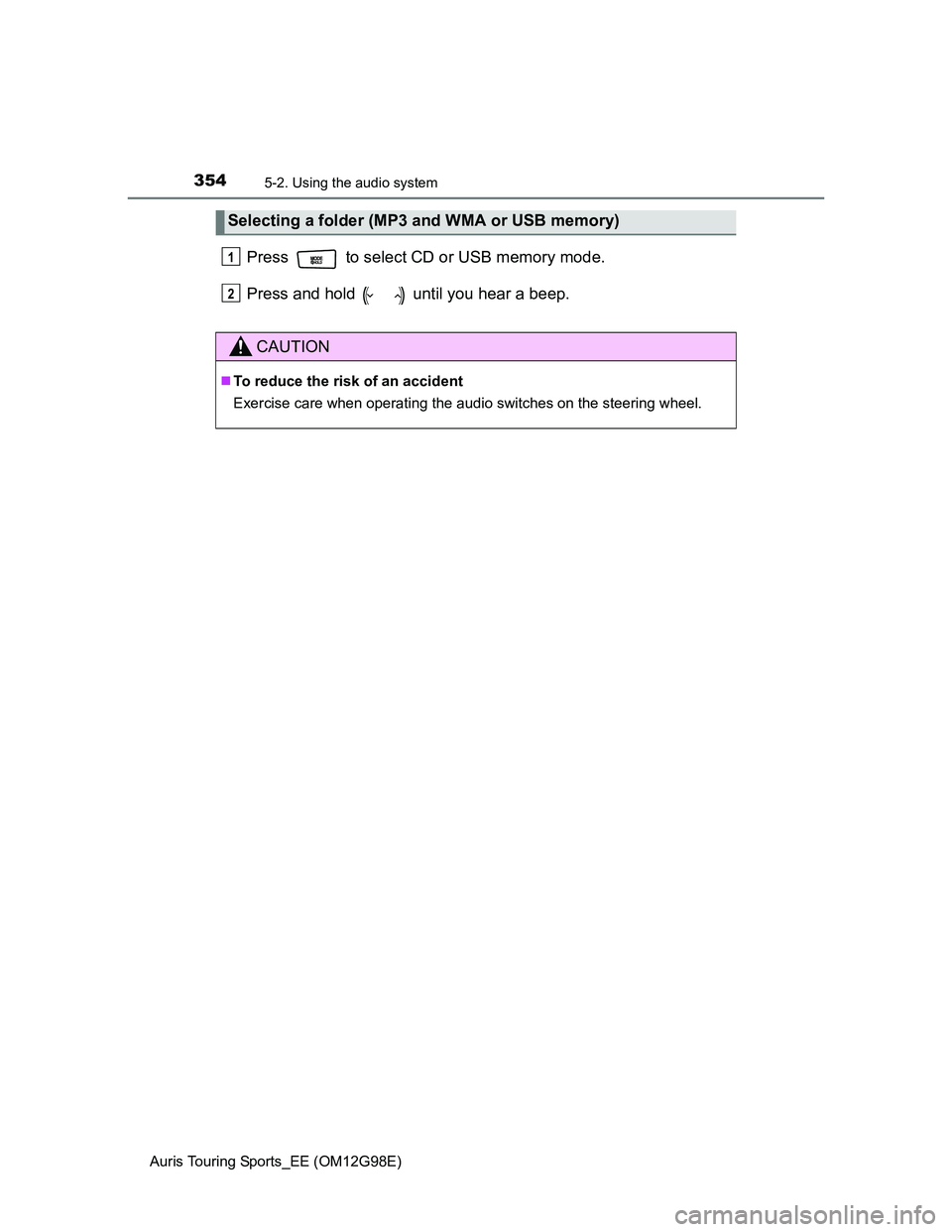

3545-2. Using the audio system
Auris Touring Sports_EE (OM12G98E)
Press to select CD or USB memory mode.
Press and hold until you hear a beep.
Selecting a folder (MP3 and WMA or USB memory)
CAUTION
To reduce the risk of an accident
Exercise care when operating the audio switches on the steering wheel.
1
2

355
Auris Touring Sports_EE (OM12G98E)
5
Interior features

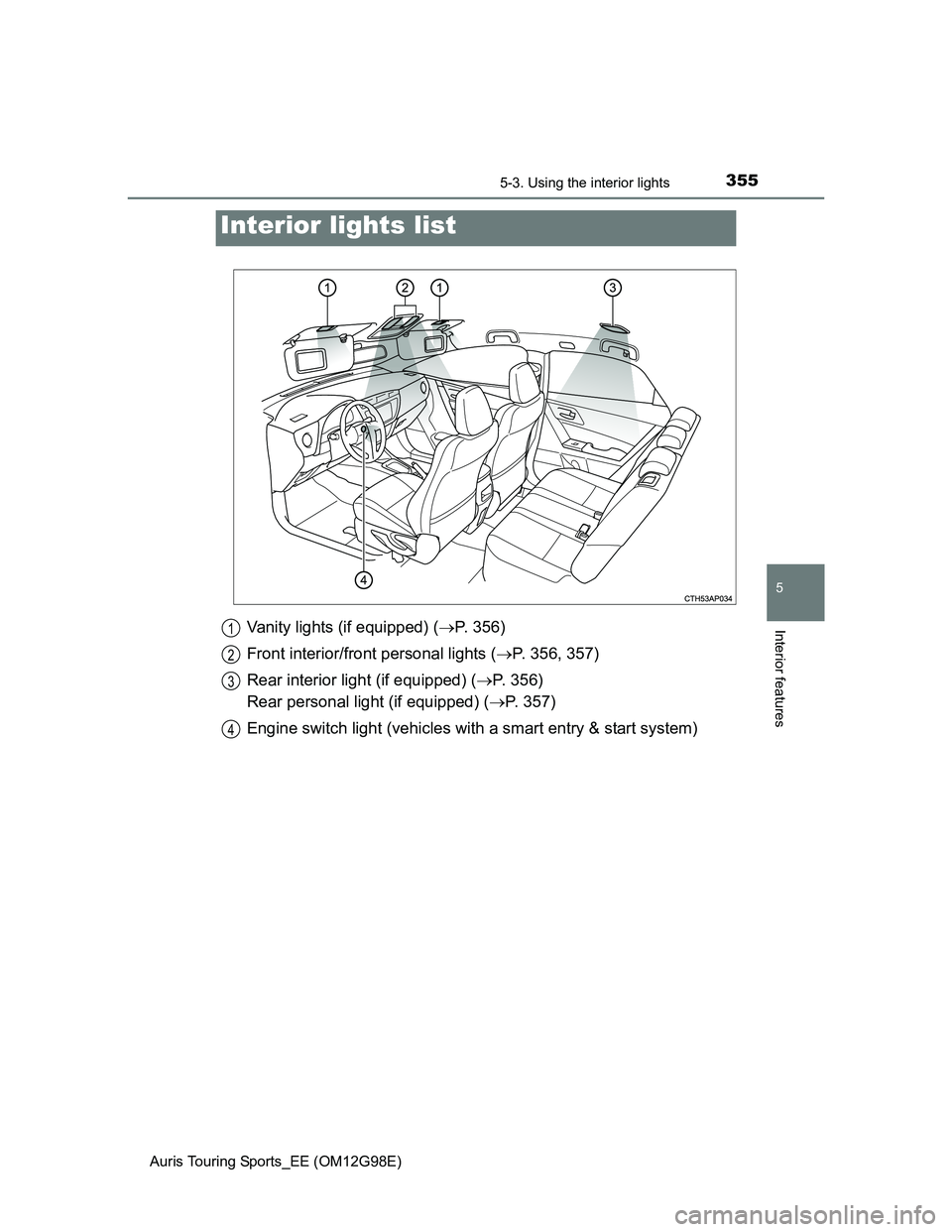

5-3. Using the interior lights
Vanity lights (if equipped) (P. 356)
Front interior/front personal lights (P. 356, 357)
Rear interior light (if equipped) (P. 356)
Rear personal light (if equipped) (P. 357)
Engine switch light (vehicles with a smart entry & start system)
Interior lights list
1
2
3
4

3565-3. Using the interior lights
Auris Touring Sports_EE (OM12G98E)
Front
Door position
Off
Rear (if equipped)
On
Door position
Off
On
Off

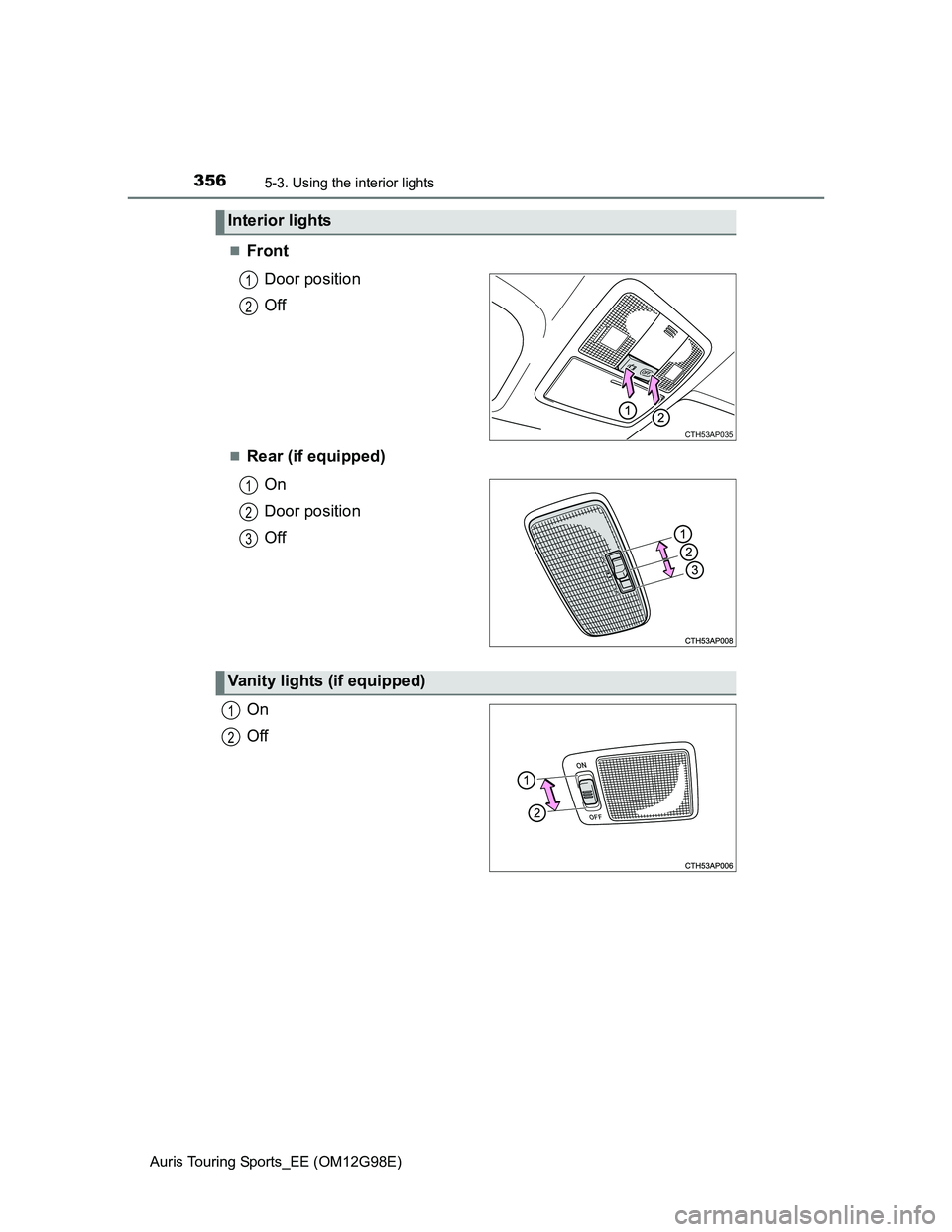

Interior lights
CTH53AP035
1
2
1
2
3
Vanity lights (if equipped)
1
2

3575-3. Using the interior lights
Auris Touring Sports_EE (OM12G98E)
5
Interior features
Front
On/off
When a light is on due to its door
link switch, the light will not turn
off even if the lens is pressed.

Rear (if equipped)
On/off
When a front interior light is on
due to its door link switch, the
light will not turn off even if the
lens is pressed.

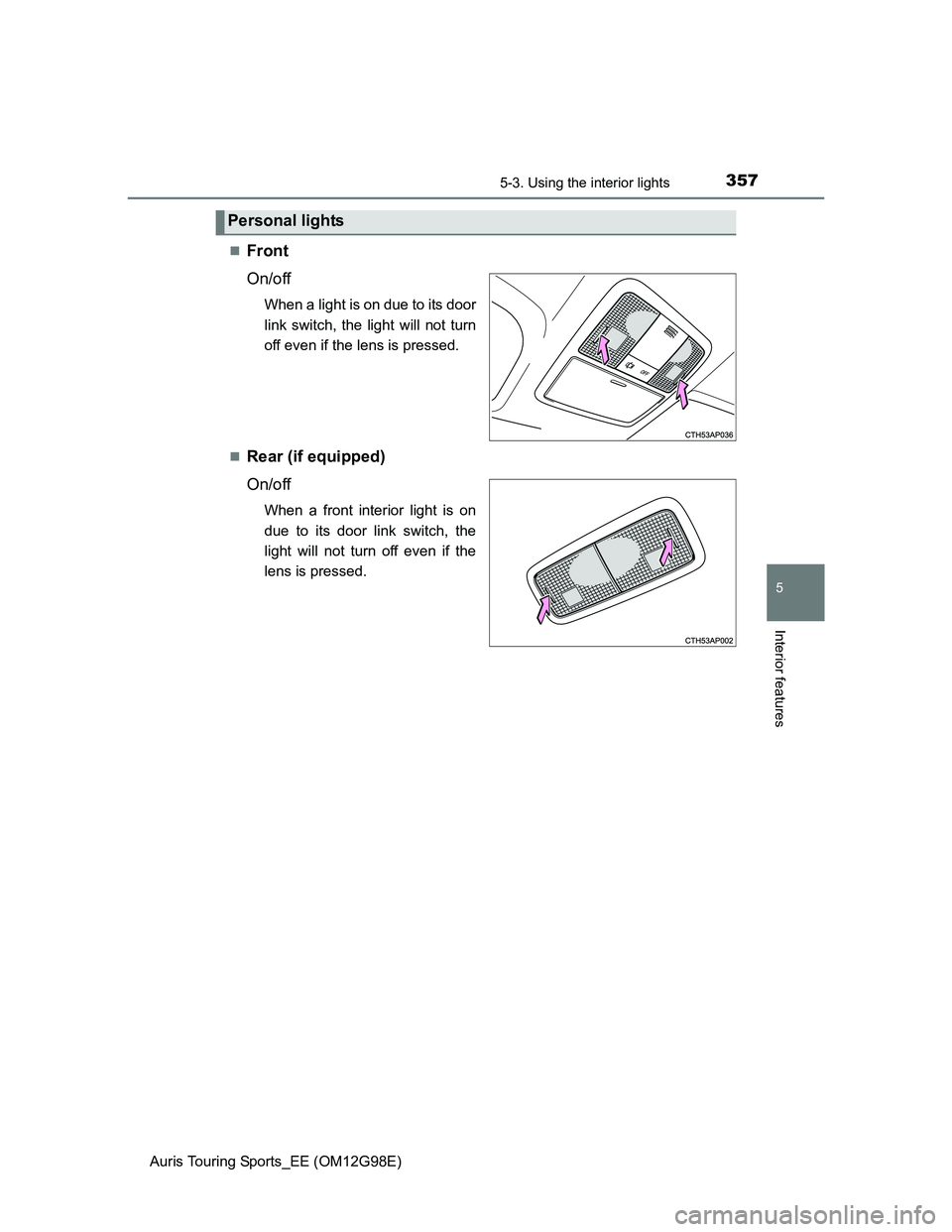

Personal lights

3585-3. Using the interior lights
Auris Touring Sports_EE (OM12G98E)

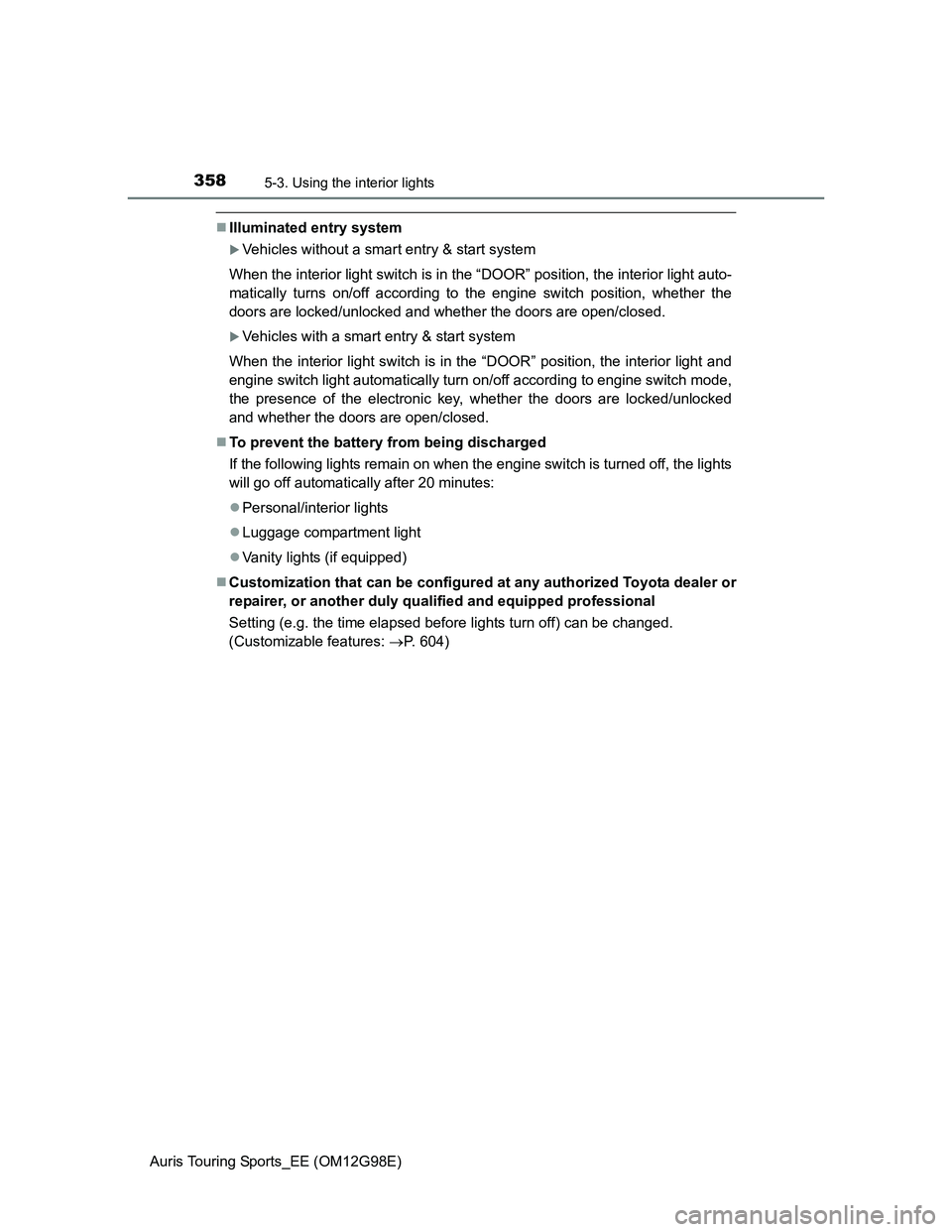

Illuminated entry system
Vehicles without a smart entry & start system
When the interior light switch is in the “DOOR” position, the interior light auto-
matically turns on/off according to the engine switch position, whether the
doors are locked/unlocked and whether the doors are open/closed.
Vehicles with a smart entry & start system
When the interior light switch is in the “DOOR” position, the interior light and
engine switch light automatically turn on/off according to engine switch mode,
the presence of the electronic key, whether the doors are locked/unlocked
and whether the doors are open/closed.
To prevent the battery from being discharged
If the following lights remain on when the engine switch is turned off, the lights
will go off automatically after 20 minutes:
Personal/interior lights
Luggage compartment light
Vanity lights (if equipped)
Customization that can be configured at any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional
Setting (e.g. the time elapsed before lights turn off) can be changed.
(Customizable features: P. 604)

359
Auris Touring Sports_EE (OM12G98E)
5
Interior features

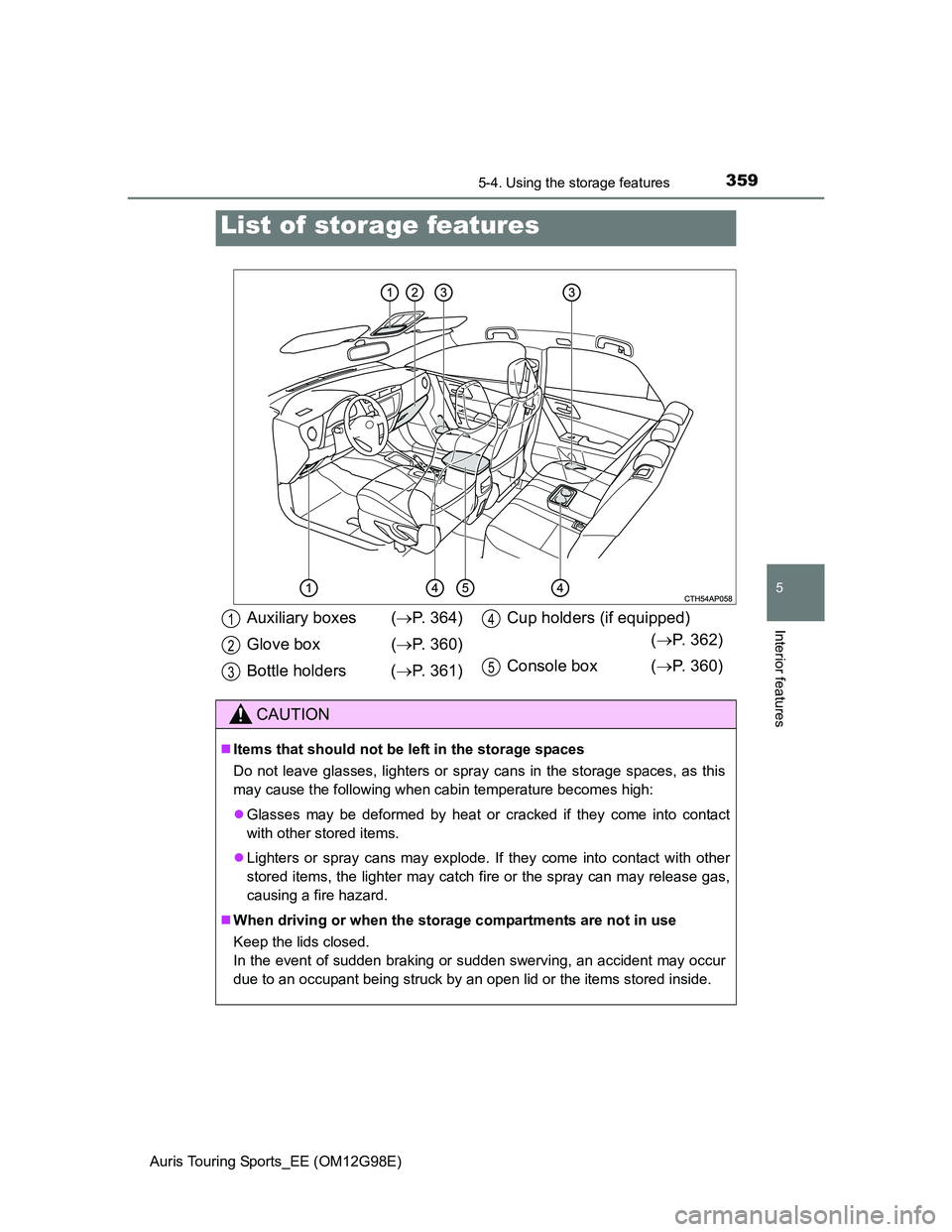

5-4. Using the storage features
List of storage features
Auxiliary boxes (P. 364)
Glove box (P. 360)
Bottle holders (P. 361)Cup holders (if equipped)
(P. 362)
Console box (P. 360)
CAUTION
Items that should not be left in the storage spaces
Do not leave glasses, lighters or spray cans in the storage spaces, as this
may cause the following when cabin temperature becomes high:
Glasses may be deformed by heat or cracked if they come into contact
with other stored items.
Lighters or spray cans may explode. If they come into contact with other
stored items, the lighter may catch fire or the spray can may release gas,
causing a fire hazard.
When driving or when the storage compartments are not in use
Keep the lids closed.
In the event of sudden braking or sudden swerving, an accident may occur
due to an occupant being struck by an open lid or the items stored inside.
1
2
3
4
5

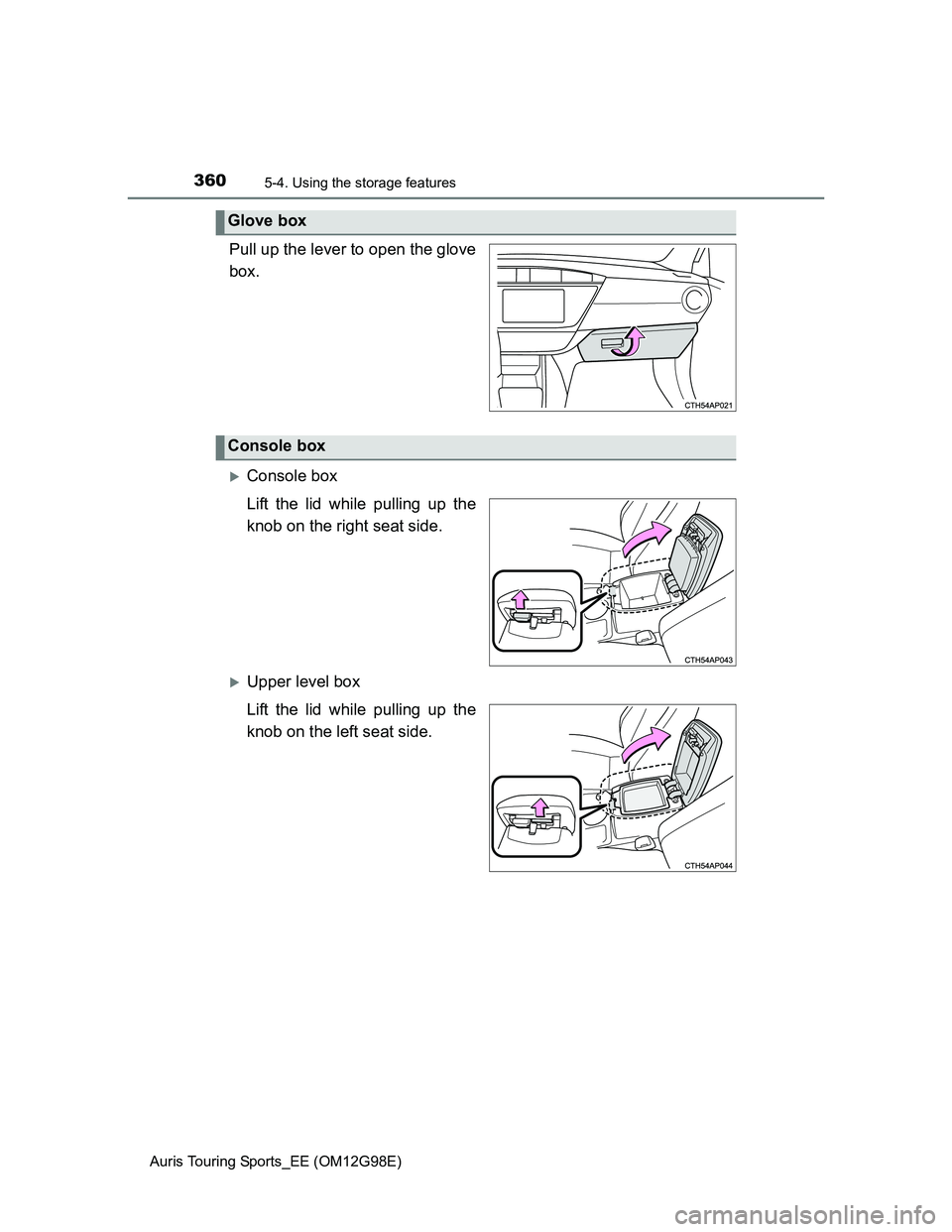

3605-4. Using the storage features
Auris Touring Sports_EE (OM12G98E)
Pull up the lever to open the glove
box.
Console box
Lift the lid while pulling up the
knob on the right seat side.
Upper level box
Lift the lid while pulling up the
knob on the left seat side.
Glove box
Console box
