TOYOTA AURIS 2015 Owners Manual (in English)

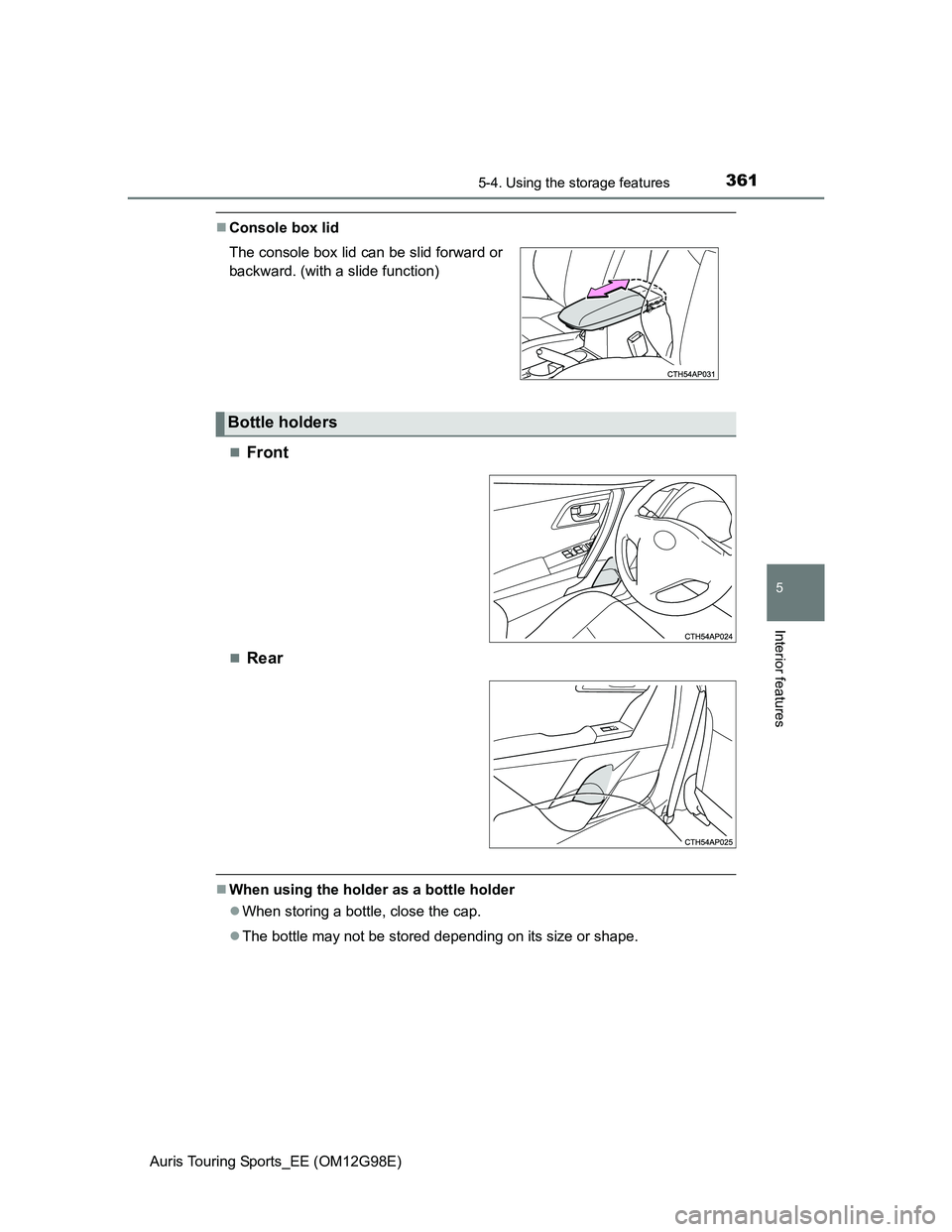

3615-4. Using the storage features
Auris Touring Sports_EE (OM12G98E)
5
Interior features
Console box lid

Front
Rear
When using the holder as a bottle holder
When storing a bottle, close the cap.
The bottle may not be stored depending on its size or shape. The console box lid can be slid forward or
backward. (with a slide function)
Bottle holders

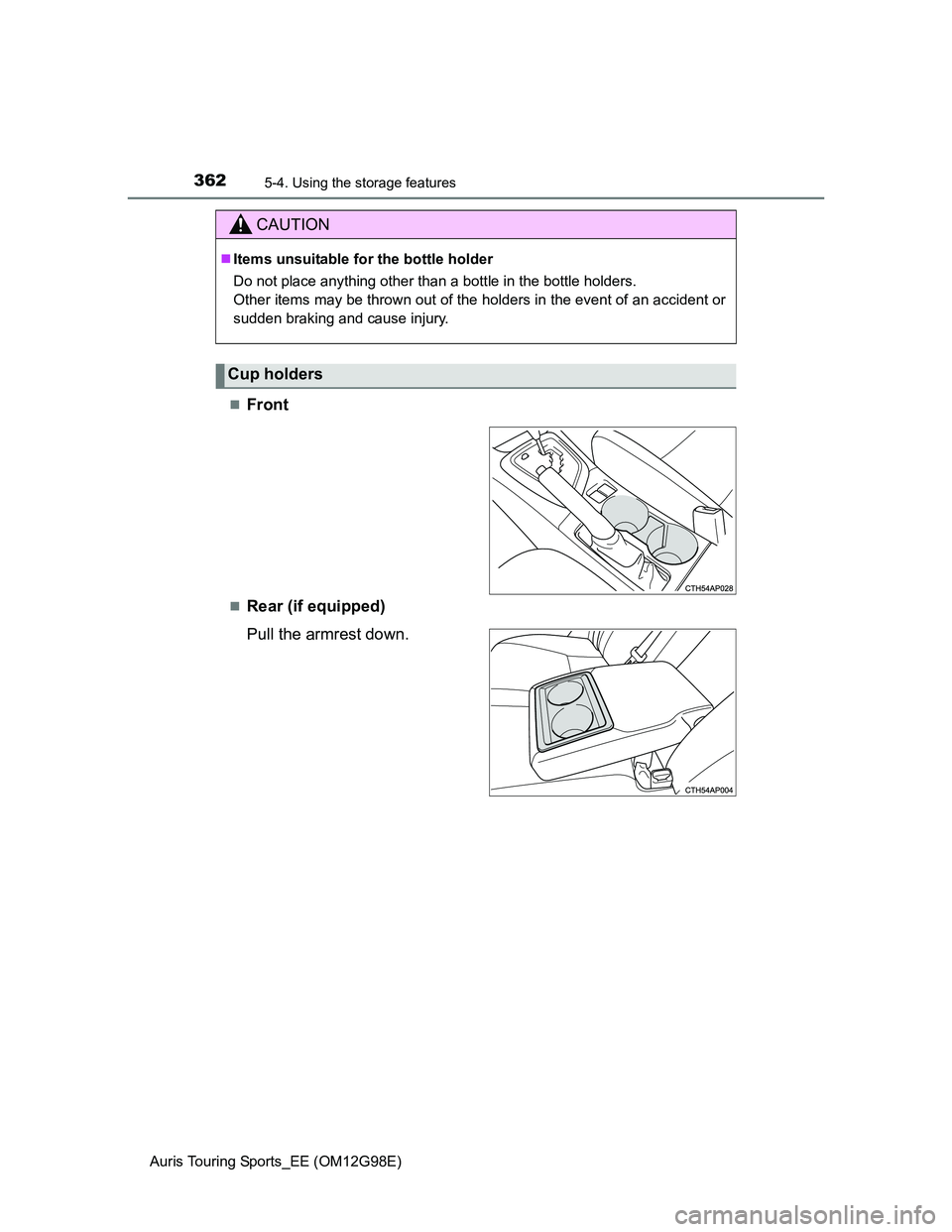

3625-4. Using the storage features
Auris Touring Sports_EE (OM12G98E)
Front
Rear (if equipped)
Pull the armrest down.
CAUTION
Items unsuitable for the bottle holder
Do not place anything other than a bottle in the bottle holders.
Other items may be thrown out of the holders in the event of an accident or
sudden braking and cause injury.
Cup holders

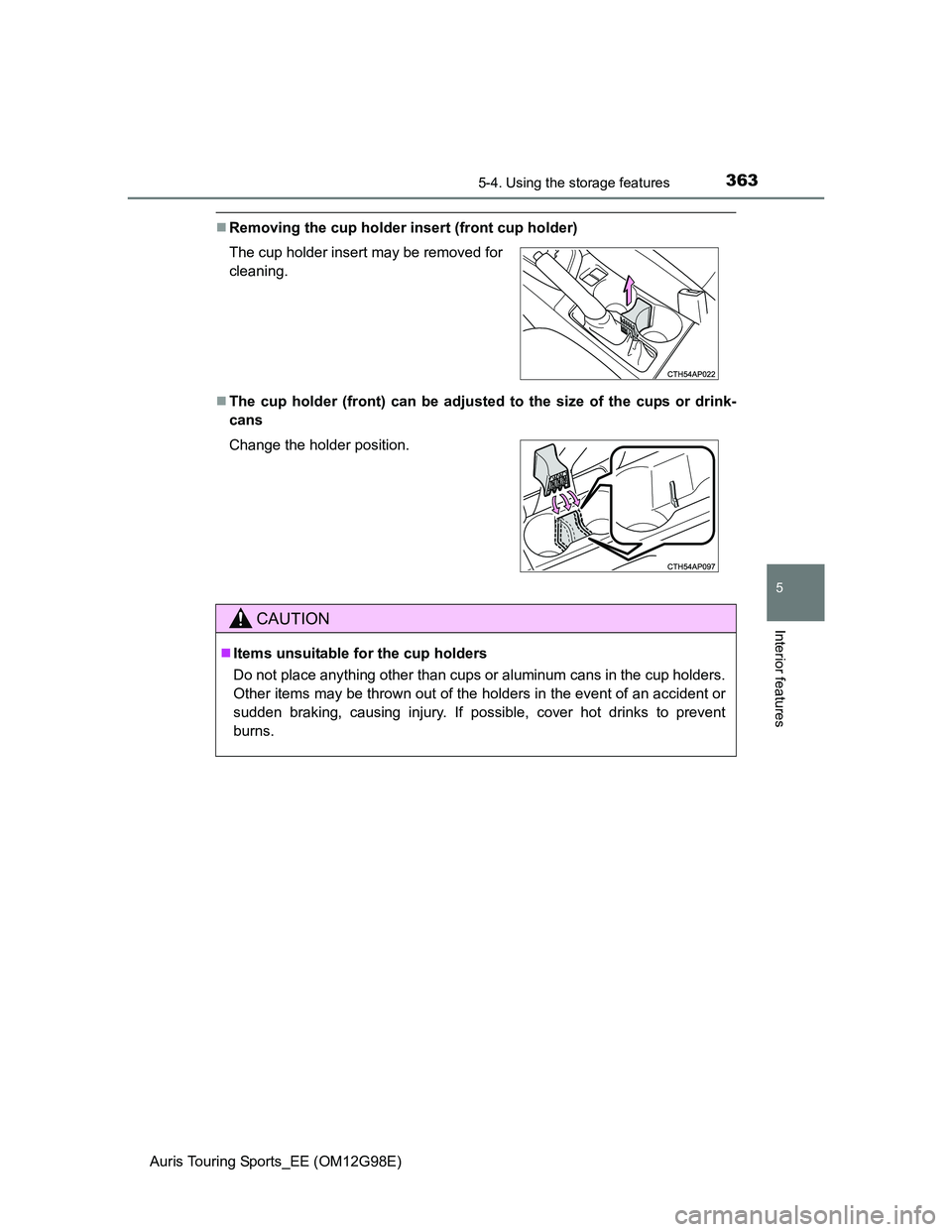

3635-4. Using the storage features
Auris Touring Sports_EE (OM12G98E)
5
Interior features
Removing the cup holder insert (front cup holder)
The cup holder (front) can be adjusted to the size of the cups or drink-
cans The cup holder insert may be removed for
cleaning.
Change the holder position.
CAUTION
Items unsuitable for the cup holders
Do not place anything other than cups or aluminum cans in the cup holders.
Other items may be thrown out of the holders in the event of an accident or
sudden braking, causing injury. If possible, cover hot drinks to prevent
burns.

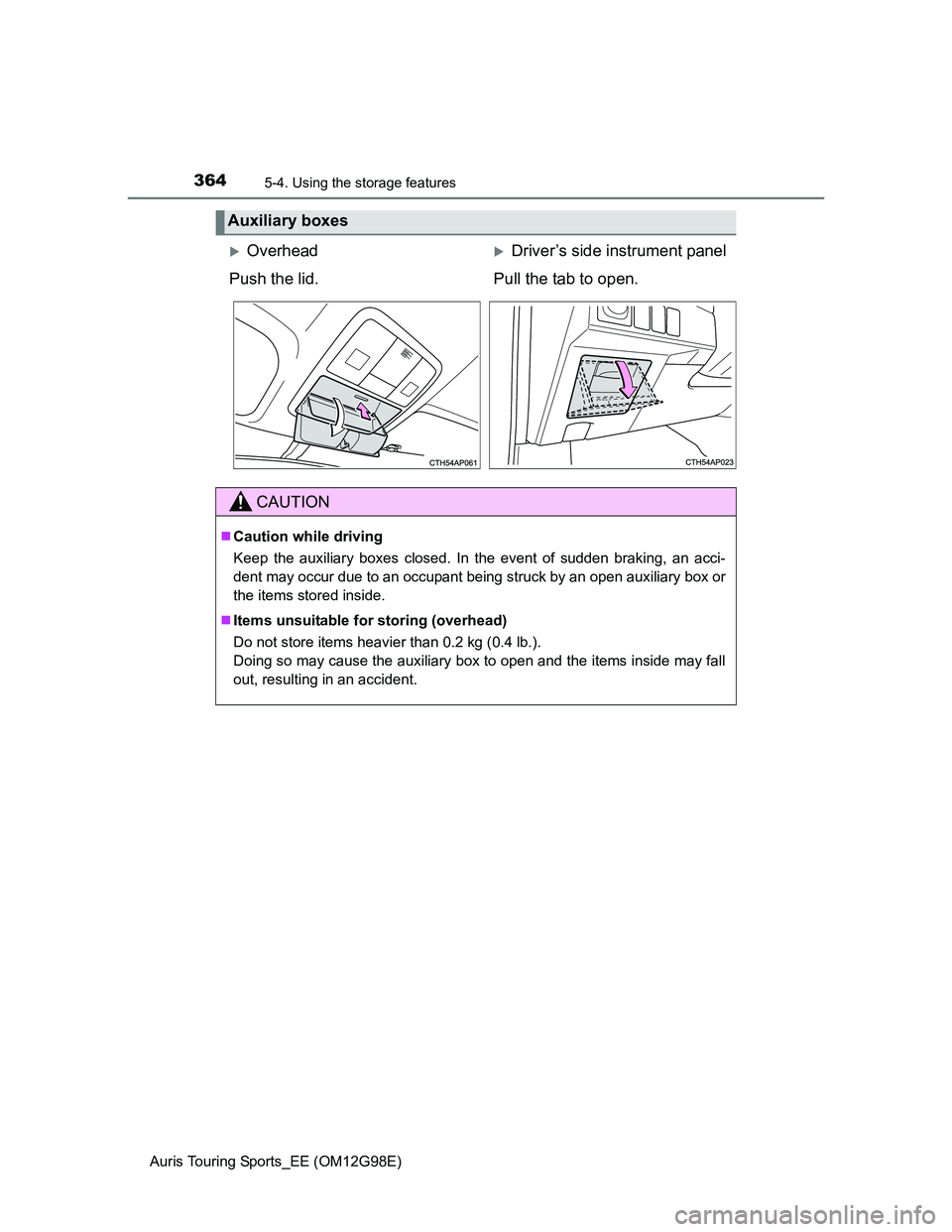

3645-4. Using the storage features
Auris Touring Sports_EE (OM12G98E)
Auxiliary boxes
OverheadDriver’s side instrument panel
Push the lid. Pull the tab to open.
CAUTION
Caution while driving
Keep the auxiliary boxes closed. In the event of sudden braking, an acci-
dent may occur due to an occupant being struck by an open auxiliary box or
the items stored inside.
Items unsuitable for storing (overhead)
Do not store items heavier than 0.2 kg (0.4 lb.).
Doing so may cause the auxiliary box to open and the items inside may fall
out, resulting in an accident.

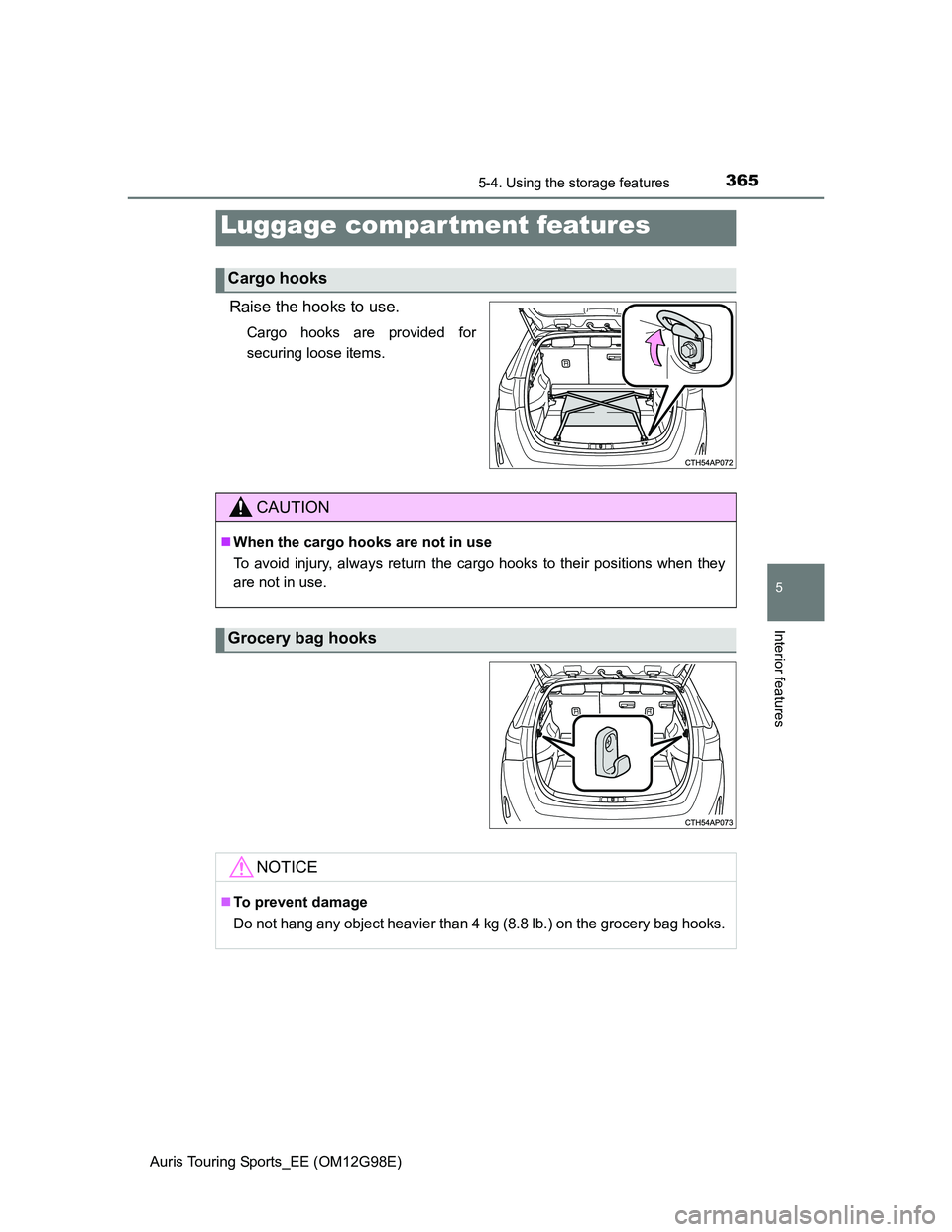

3655-4. Using the storage features
Auris Touring Sports_EE (OM12G98E)
5
Interior features
Raise the hooks to use.
Cargo hooks are provided for
securing loose items.
Luggage compar tment features
Cargo hooks
CAUTION
When the cargo hooks are not in use
To avoid injury, always return the cargo hooks to their positions when they
are not in use.
Grocery bag hooks
NOTICE
To prevent damage
Do not hang any object heavier than 4 kg (8.8 lb.) on the grocery bag hooks.

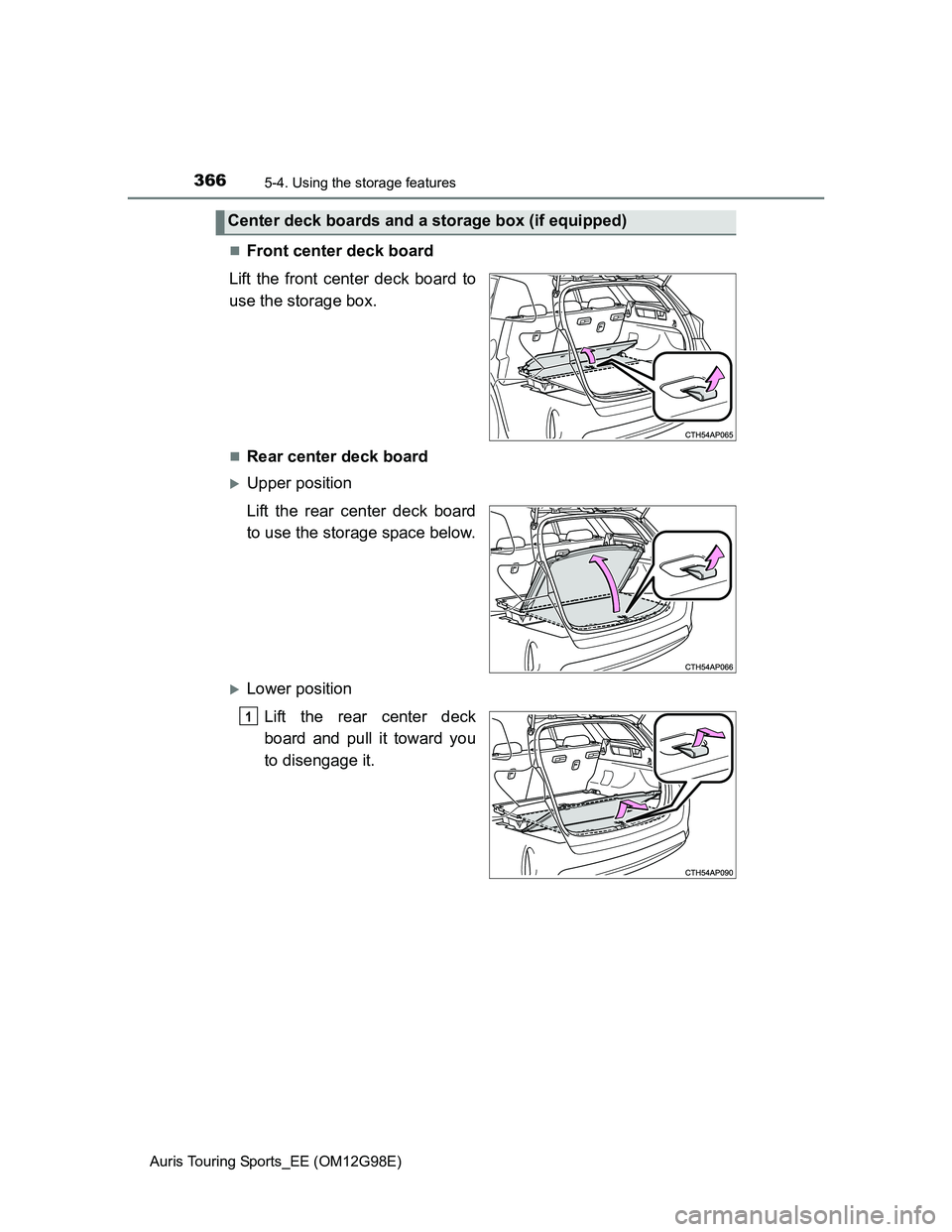

3665-4. Using the storage features
Auris Touring Sports_EE (OM12G98E)
Front center deck board
Lift the front center deck board to
use the storage box.
Rear center deck board
Upper position
Lift the rear center deck board
to use the storage space below.
Lower position
Lift the rear center deck
board and pull it toward you
to disengage it.
Center deck boards and a storage box (if equipped)
1

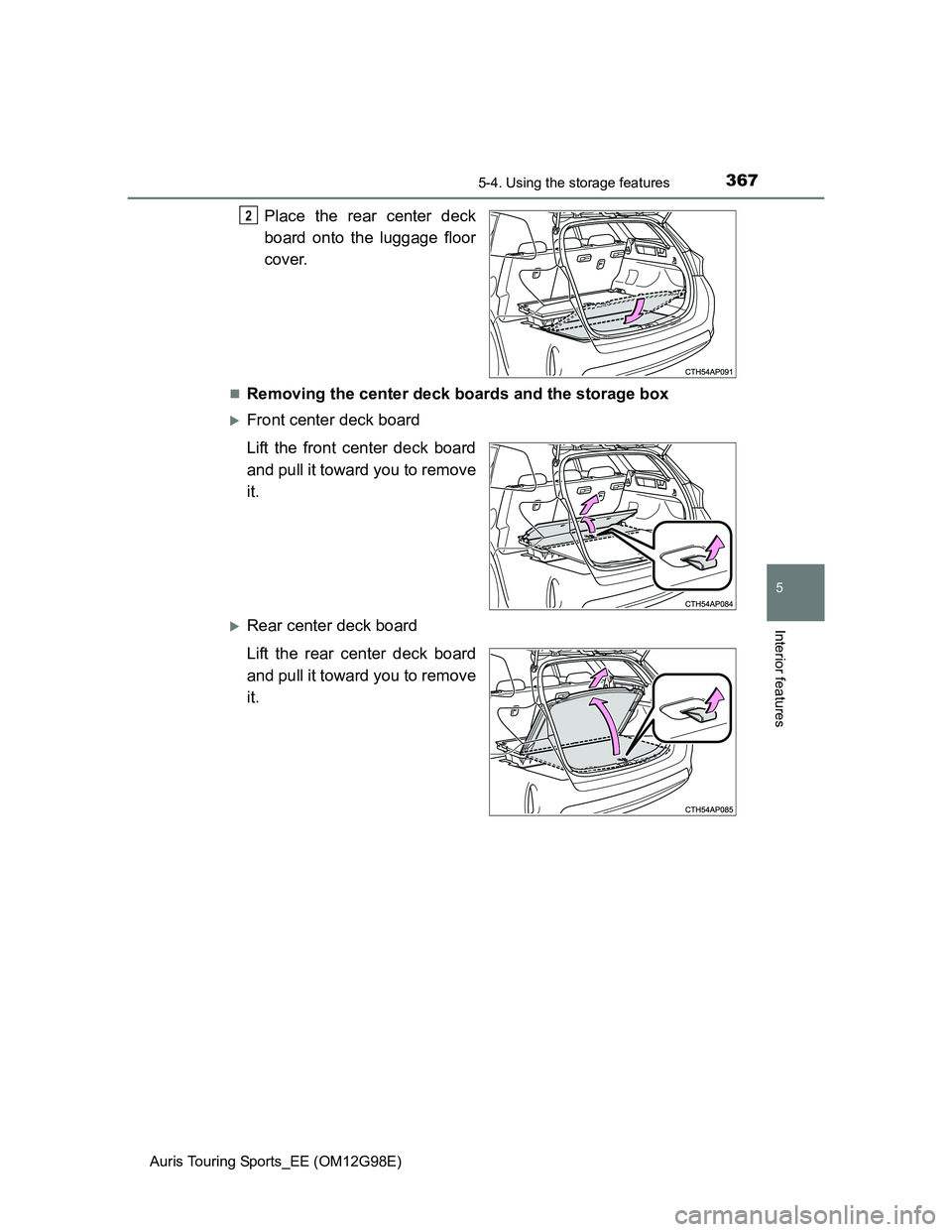

3675-4. Using the storage features
Auris Touring Sports_EE (OM12G98E)
5
Interior features
Place the rear center deck
board onto the luggage floor
cover.
Removing the center deck boards and the storage box
Front center deck board
Lift the front center deck board
and pull it toward you to remove
it.
Rear center deck board
Lift the rear center deck board
and pull it toward you to remove
it.
2

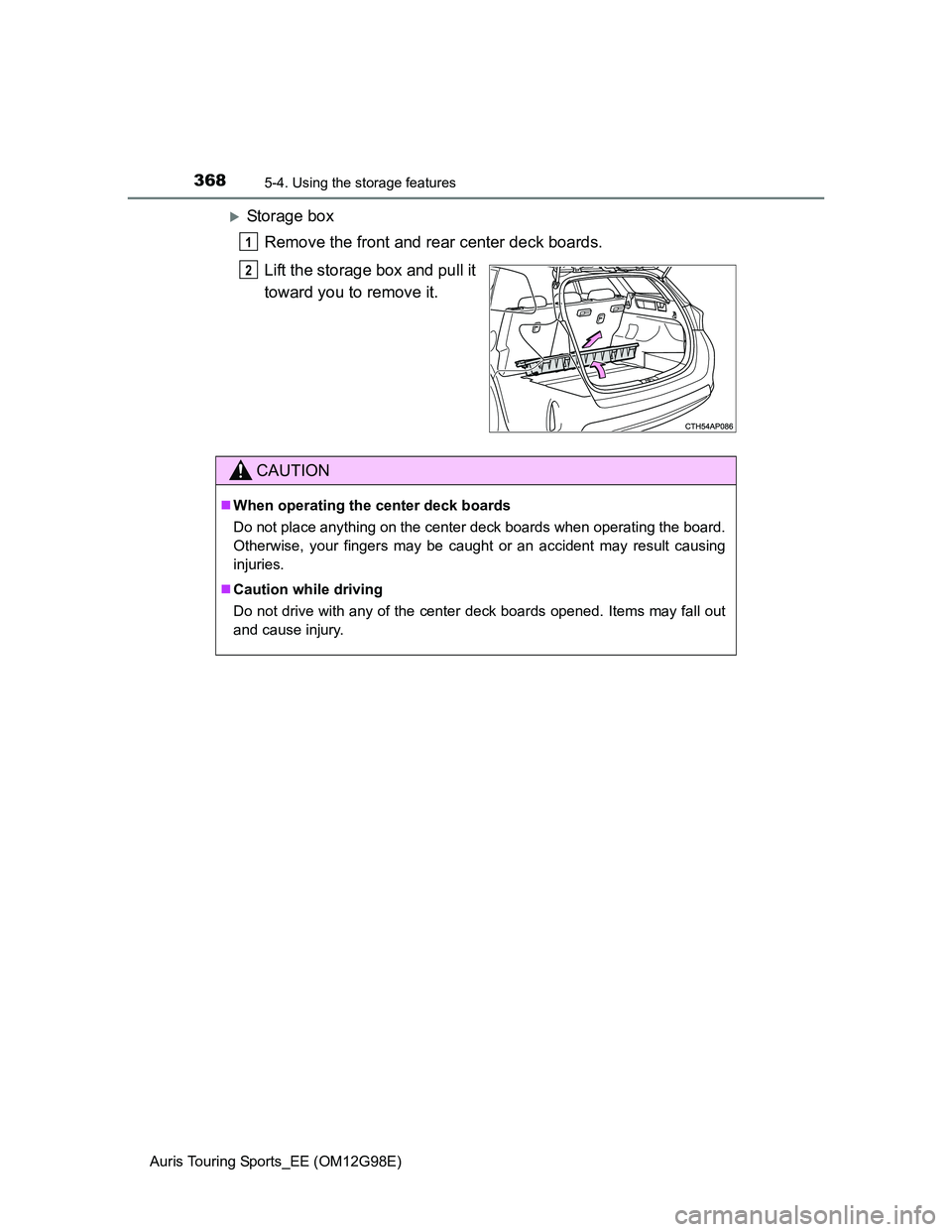

3685-4. Using the storage features
Auris Touring Sports_EE (OM12G98E)
Storage box
Remove the front and rear center deck boards.
Lift the storage box and pull it
toward you to remove it.
1
2
CAUTION
When operating the center deck boards
Do not place anything on the center deck boards when operating the board.
Otherwise, your fingers may be caught or an accident may result causing
injuries.
Caution while driving
Do not drive with any of the center deck boards opened. Items may fall out
and cause injury.

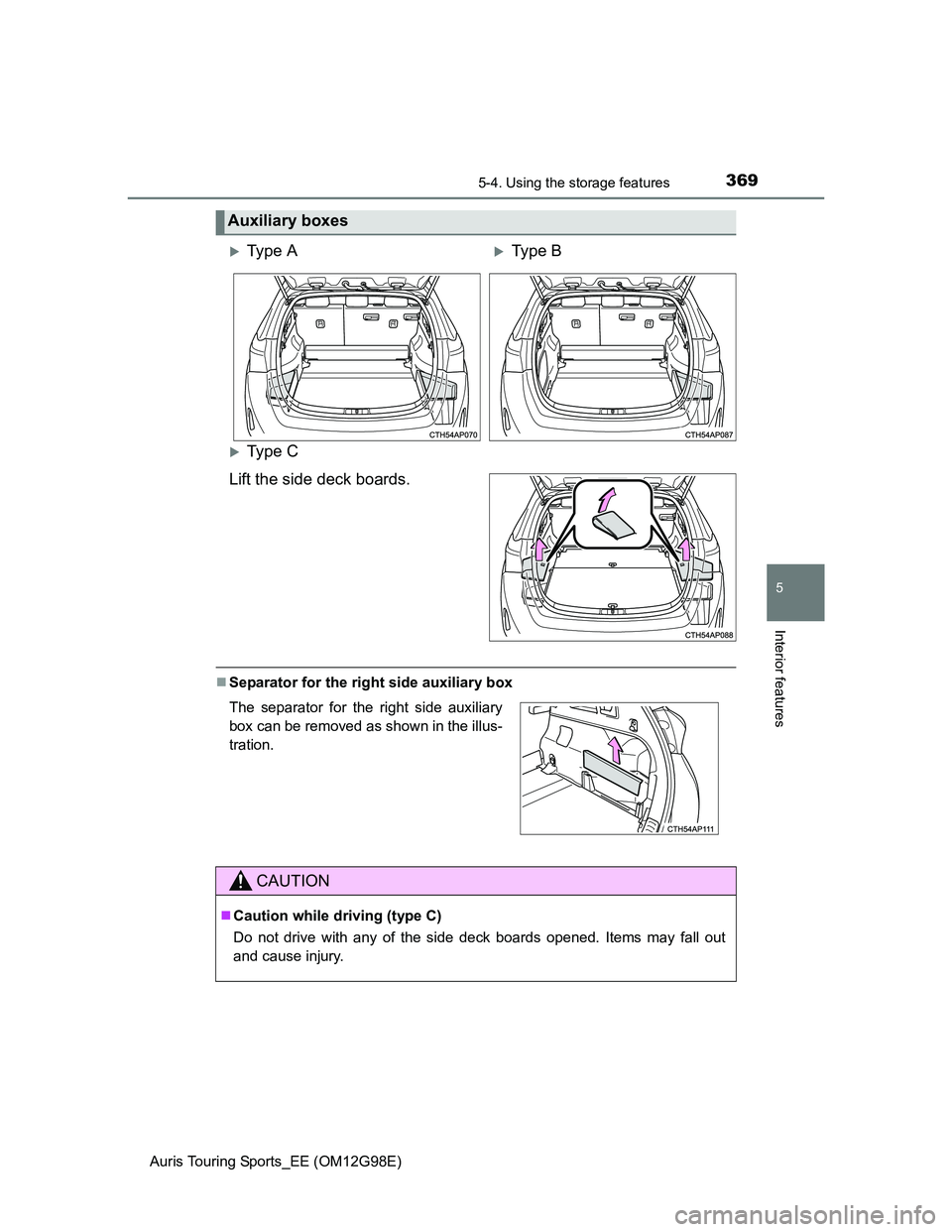

3695-4. Using the storage features
Auris Touring Sports_EE (OM12G98E)
5
Interior features
Ty p e C
Lift the side deck boards.
Separator for the right side auxiliary box
Auxiliary boxes
Ty p e AType B
The separator for the right side auxiliary
box can be removed as shown in the illus-
tration.
CAUTION
Caution while driving (type C)
Do not drive with any of the side deck boards opened. Items may fall out
and cause injury.

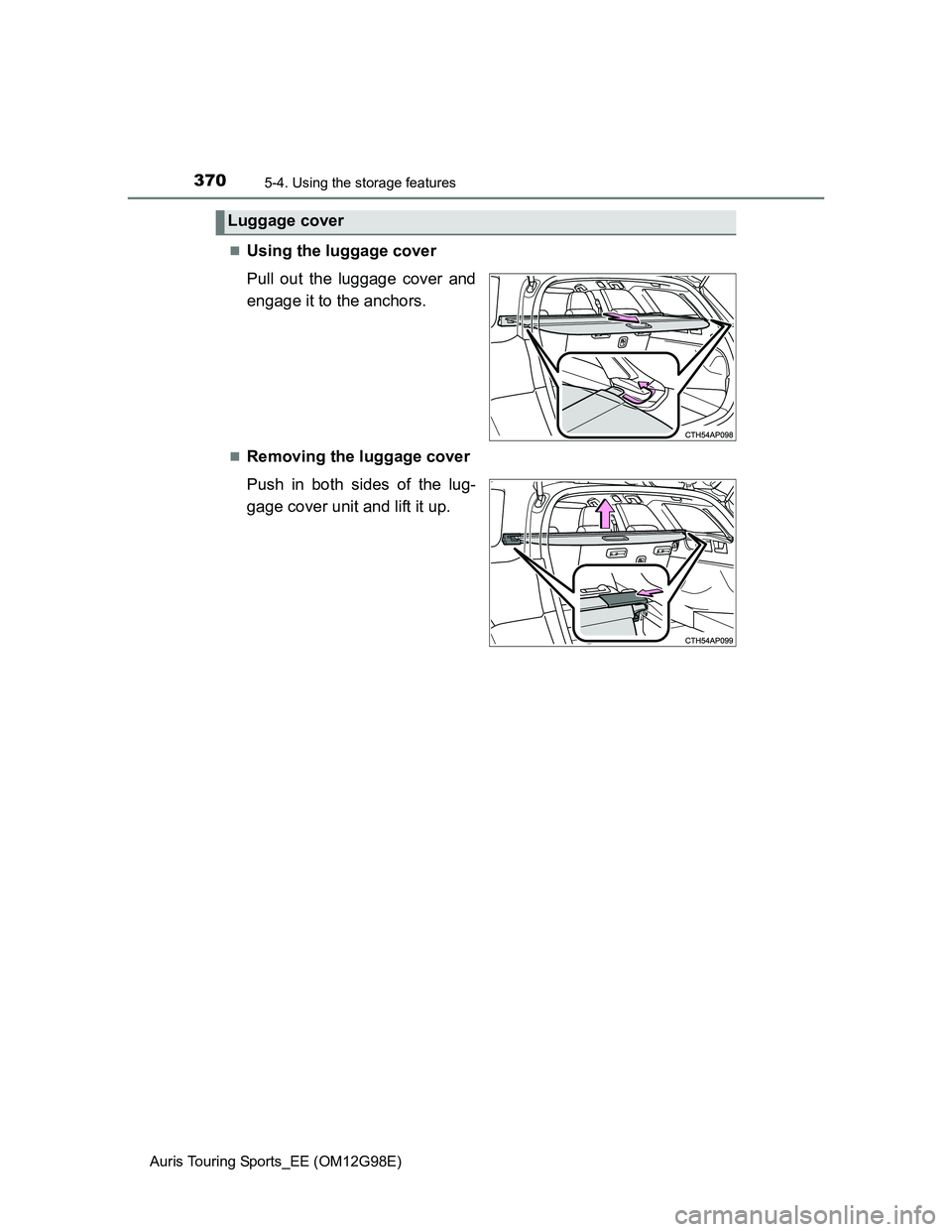

3705-4. Using the storage features
Auris Touring Sports_EE (OM12G98E)
Using the luggage cover
Pull out the luggage cover and
engage it to the anchors.
Removing the luggage cover
Push in both sides of the lug-
gage cover unit and lift it up.
Luggage cover
