4116-3. Do-it-yourself maintenance
Auris Touring Sports_EE (OM12G98E)
6
Maintenance and care
1ND-TV engine
Washer fluid tank (P. 423)
Engine coolant reservoir
(P. 418)
Engine oil filler cap
(P. 415)
Engine oil level dipstick
(P. 413)Fuel filter (P. 424)
Battery (P. 420)
Fuse box (P. 446)
Radiator (P. 419)
Electric cooling fan
Condenser (P. 419)
Intercooler (P. 419)1
2
3
4
5
6
7
8
9
10
11

4126-3. Do-it-yourself maintenance
Auris Touring Sports_EE (OM12G98E)

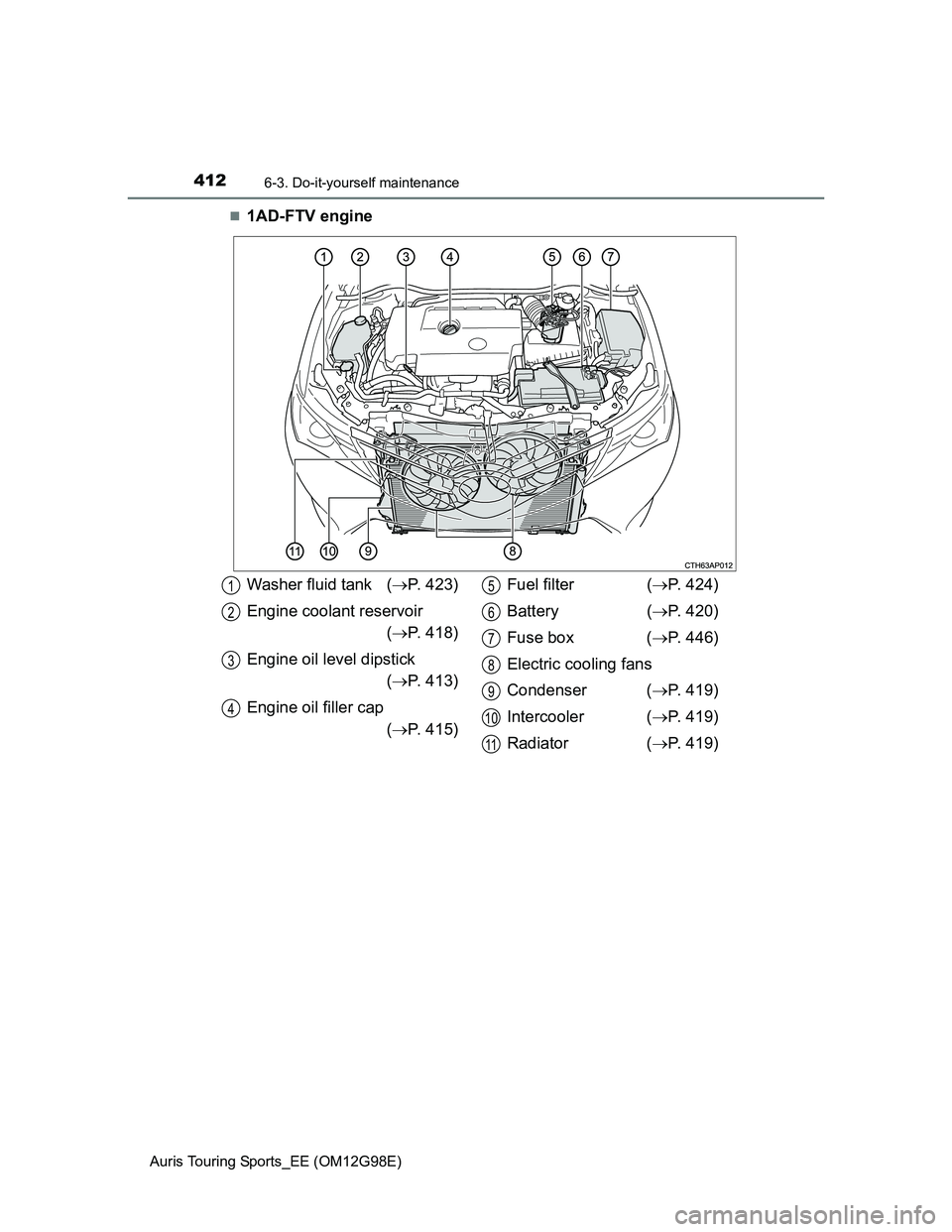

1AD-FTV engine
Washer fluid tank (P. 423)
Engine coolant reservoir
(P. 418)
Engine oil level dipstick
(P. 413)
Engine oil filler cap
(P. 415)Fuel filter (P. 424)
Battery (P. 420)
Fuse box (P. 446)
Electric cooling fans
Condenser (P. 419)
Intercooler (P. 419)
Radiator (P. 419)1
2
3
4
5
6
7
8
9
10
11

4136-3. Do-it-yourself maintenance
Auris Touring Sports_EE (OM12G98E)
6
Maintenance and care

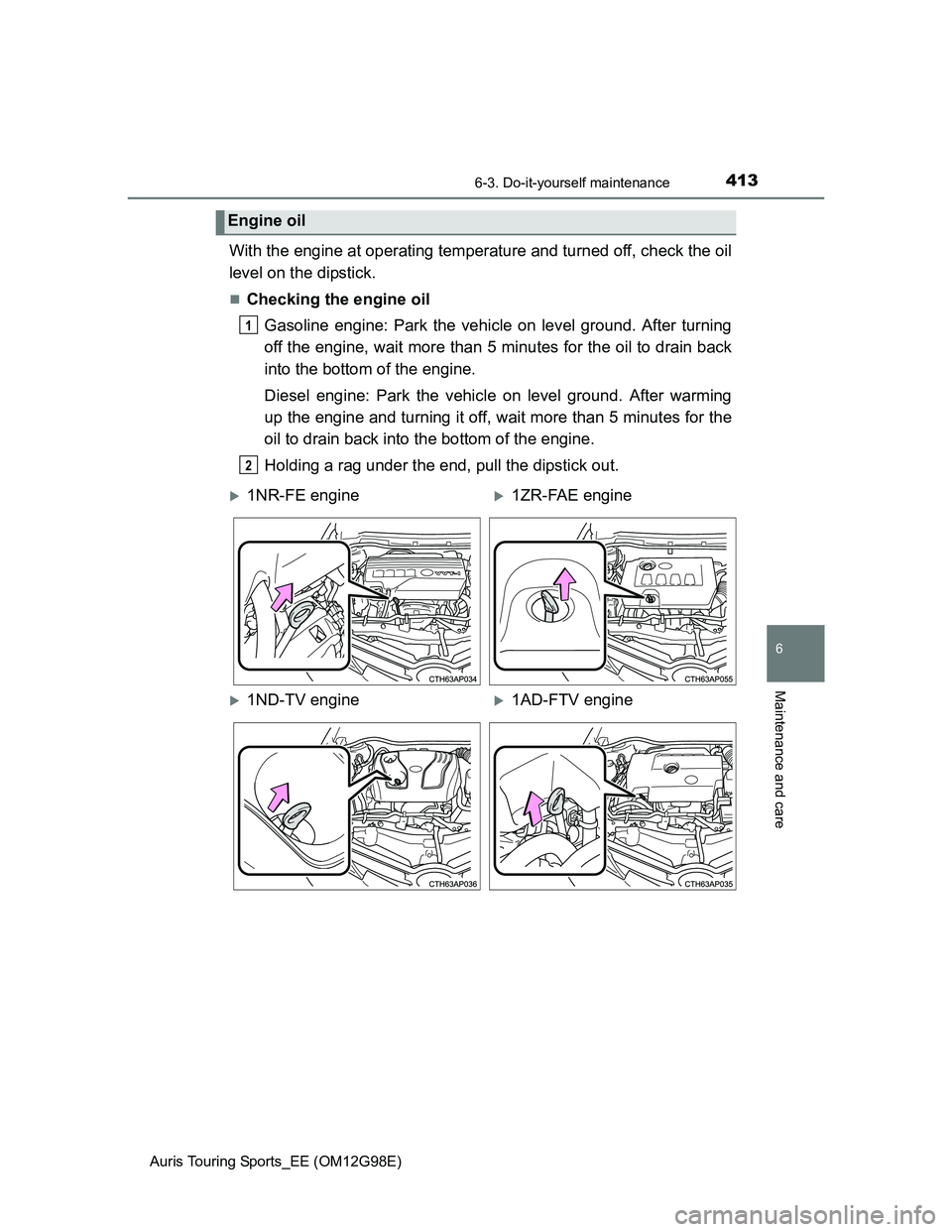

With the engine at operating temperature and turned off, check the oil
level on the dipstick.
Checking the engine oil
Gasoline engine: Park the vehicle on level ground. After turning
off the engine, wait more than 5 minutes for the oil to drain back
into the bottom of the engine.
Diesel engine: Park the vehicle on level ground. After warming
up the engine and turning it off, wait more than 5 minutes for the
oil to drain back into the bottom of the engine.
Holding a rag under the end, pull the dipstick out.
Engine oil
1
2
1NR-FE engine1ZR-FAE engine
1ND-TV engine1AD-FTV engine

4146-3. Do-it-yourself maintenance
Auris Touring Sports_EE (OM12G98E)
Wipe the dipstick clean.
1ZR-FAE engine with flat dipstick and 1NR-FE, 1ND-TV and
1AD-FTV engine: Reinsert the dipstick fully.
1ZR-FAE engine with non-
flat dipstick: Reinsert the
non-flat dipstick fully with its
protruding areas ( in the
illustration) pointing towards
the engine.
Holding a rag under the end, pull the dipstick out and check the
oil level.
Low
Normal
Excessive
The shape of the dipstick may differ depending on the type of
vehicle or engine.
Wipe the dipstick and reinsert it fully.3
4
4
1
5
1
2
3
Flat dipstickNon-flat dipstick
6

4156-3. Do-it-yourself maintenance
Auris Touring Sports_EE (OM12G98E)
6
Maintenance and care

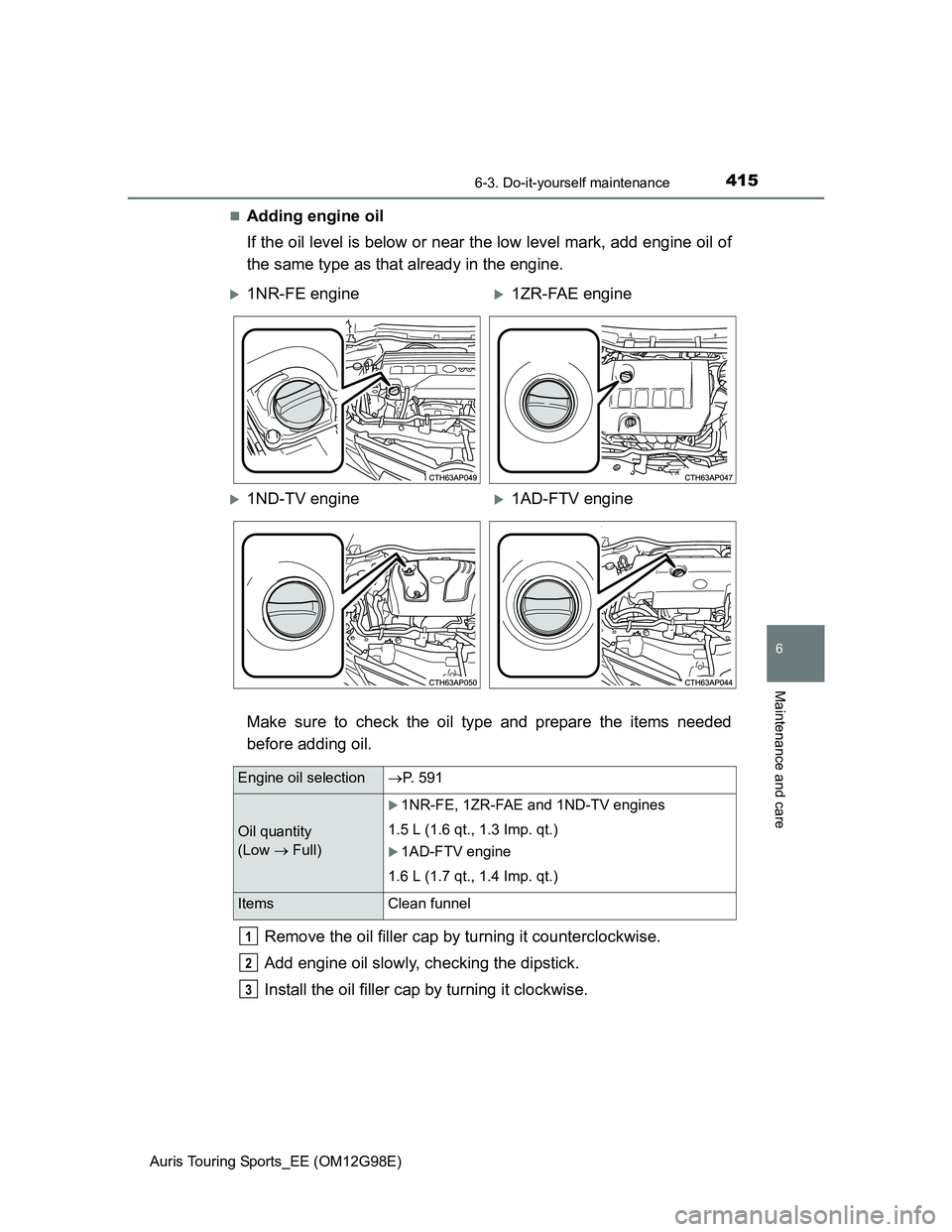

Adding engine oil
If the oil level is below or near the low level mark, add engine oil of
the same type as that already in the engine.
Make sure to check the oil type and prepare the items needed
before adding oil.
Remove the oil filler cap by turning it counterclockwise.
Add engine oil slowly, checking the dipstick.
Install the oil filler cap by turning it clockwise.
1NR-FE engine1ZR-FAE engine
1ND-TV engine1AD-FTV engine
Engine oil selectionP. 591
Oil quantity
(Low  Full)
1NR-FE, 1ZR-FAE and 1ND-TV engines
1.5 L (1.6 qt., 1.3 Imp. qt.)
1AD-FTV engine
1.6 L (1.7 qt., 1.4 Imp. qt.)
Items Clean funnel
1
2
3

4166-3. Do-it-yourself maintenance
Auris Touring Sports_EE (OM12G98E)
When adding engine oil (1ND-TV engine only)
Do not overfill the engine. Use the dipstick to ensure that the oil level does not
exceed the full mark. If exceeded, the oil level will have to be adjusted to
below the full mark.
Engine oil consumption
A certain amount of engine oil will be consumed while driving. In the following
situations, oil consumption may increase, and engine oil may need to be
refilled in between oil maintenance intervals.
When the engine is new, for example directly after purchasing the vehicle or
after replacing the engine
If low quality oil or oil of an inappropriate viscosity is used
When driving at high engine speeds or with a heavy load, when towing, or
when driving while accelerating or decelerating frequently
When leaving the engine idling for a long time, or when driving frequently
through heavy traffic
After changing the engine oil (diesel engine only)
The engine oil maintenance data should be reset. Perform the following pro-
cedures:
Switch the display to the trip meter “A” when the engine is running.
(P. 90, 95)
Turn the engine switch off.
Vehicles without a smart entry & start system:
While pressing the display change button (P. 90, 95), turn the engine
switch to the “ON” position (do not start the engine because reset mode will
be canceled). Continue to press and hold the button until the trip meter dis-
plays “000000”.
Vehicles with a smart entry & start system:
While pressing the display change button (P. 90, 95), turn the engine
switch to the IGNITION ON mode (do not start the engine because other-
wise the reset mode will be canceled). Continue to press and hold the but-
ton until the trip meter displays “000000”.
1
2
3

4176-3. Do-it-yourself maintenance
Auris Touring Sports_EE (OM12G98E)
6
Maintenance and care
CAUTION
Used engine oil
Used engine oil contains potentially harmful contaminants which may
cause skin disorders such as inflammation and skin cancer, so care
should be taken to avoid prolonged and repeated contact. To remove used
engine oil from your skin, wash thoroughly with soap and water.
Dispose of used oil and filters only in a safe and acceptable manner. Do
not dispose of used oil and filters in household trash, in sewers or onto the
ground.
Call any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional, service station or auto parts store for information
concerning recycling or disposal.
Do not leave used engine oil within the reach of children.
NOTICE
To prevent serious engine damage
Check the oil level on a regular basis.
When replacing the engine oil
Be careful not to spill engine oil on the vehicle components.
Avoid overfilling, or the engine could be damaged.
Check the oil level on the dipstick every time you refill the vehicle.
Be sure the engine oil filler cap is properly tightened.
Engine oil (diesel engine only)
Using an engine oil other than ACEA C2 may damage the catalytic con-
verter.

4186-3. Do-it-yourself maintenance
Auris Touring Sports_EE (OM12G98E)
The coolant level is satisfactory if it is between the “FULL” and “LOW”
lines on the reservoir when the engine is cold.
Except 1AD-FTV engine
Reservoir cap
“FULL” line
“LOW” line
If the level is on or below the
“LOW” line, add coolant up to
the “FULL” line.
1AD-FTV engine
Reservoir cap
“FULL” line
“LOW” line
If the level is on or below the
“LOW” line, add coolant up to
the “FULL” line.
Coolant selection
Only use “Toyota Super Long Life Coolant” or a similar high quality ethylene
glycol based non-silicate, non-amine, non-nitrite, and non-borate coolant with
long-life hybrid organic acid technology.
“Toyota Super Long Life Coolant” is a mixture of 50% coolant and 50% deion-
ized water. (Minimum temperature: -35C [-31F])
For more details about engine coolant, contact any authorized Toyota dealer
or repairer, or another duly qualified and equipped professional.
If the coolant level drops within a short time of replenishing
Visually check the radiator, hoses, engine coolant reservoir caps, drain cock
and water pump.
If you cannot find a leak, have any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional, test the cap and check for
leaks in the cooling system.
Engine coolant
1
2
3
1
2
3

4196-3. Do-it-yourself maintenance
Auris Touring Sports_EE (OM12G98E)
6
Maintenance and care
Check the radiator, condenser and intercooler and clear away any for-
eign objects.
If any of the above parts are extremely dirty or you are not sure of
their condition, have your vehicle inspected by any authorized Toyota
dealer or repairer, or another duly qualified and equipped profes-
sional.
CAUTION
When the engine is hot
Do not remove the engine coolant reservoir cap.
The cooling system may be under pressure and may spray hot coolant if the
cap is removed, causing serious injuries, such as burns.
NOTICE
When adding coolant
Coolant is neither plain water nor straight antifreeze. The correct mixture of
water and antifreeze must be used to provide proper lubrication, corrosion
protection and cooling. Be sure to read the antifreeze or coolant label.
If you spill coolant
Be sure to wash it off with water to prevent it from damaging parts or paint.
Radiator, condenser and intercooler
CAUTION
When the engine is hot
Do not touch the radiator, condenser or intercooler as they may be hot and
cause serious injuries, such as burns.

4206-3. Do-it-yourself maintenance
Auris Touring Sports_EE (OM12G98E)
Check the battery as follows.
Caution symbols
The meanings of each caution symbol on the top of the battery are
as follows:
Battery exterior
Make sure that the battery terminals are not corroded and that
there are no loose connections, cracks, or loose clamps.
Terminals
Hold-down clamp
Before recharging
When recharging, the battery produces hydrogen gas which is flammable and
explosive. Therefore, observe the following before recharging:
If recharging with the battery installed on the vehicle, be sure to disconnect
the ground cable.
Make sure the power switch on the charger is off when connecting and dis-
connecting the charger cables to the battery.
Battery
No smoking, no naked
flames, no sparksBattery acid
Shield eyesNote operating
instructions
Keep away from chil-
drenExplosive gas
1
2
