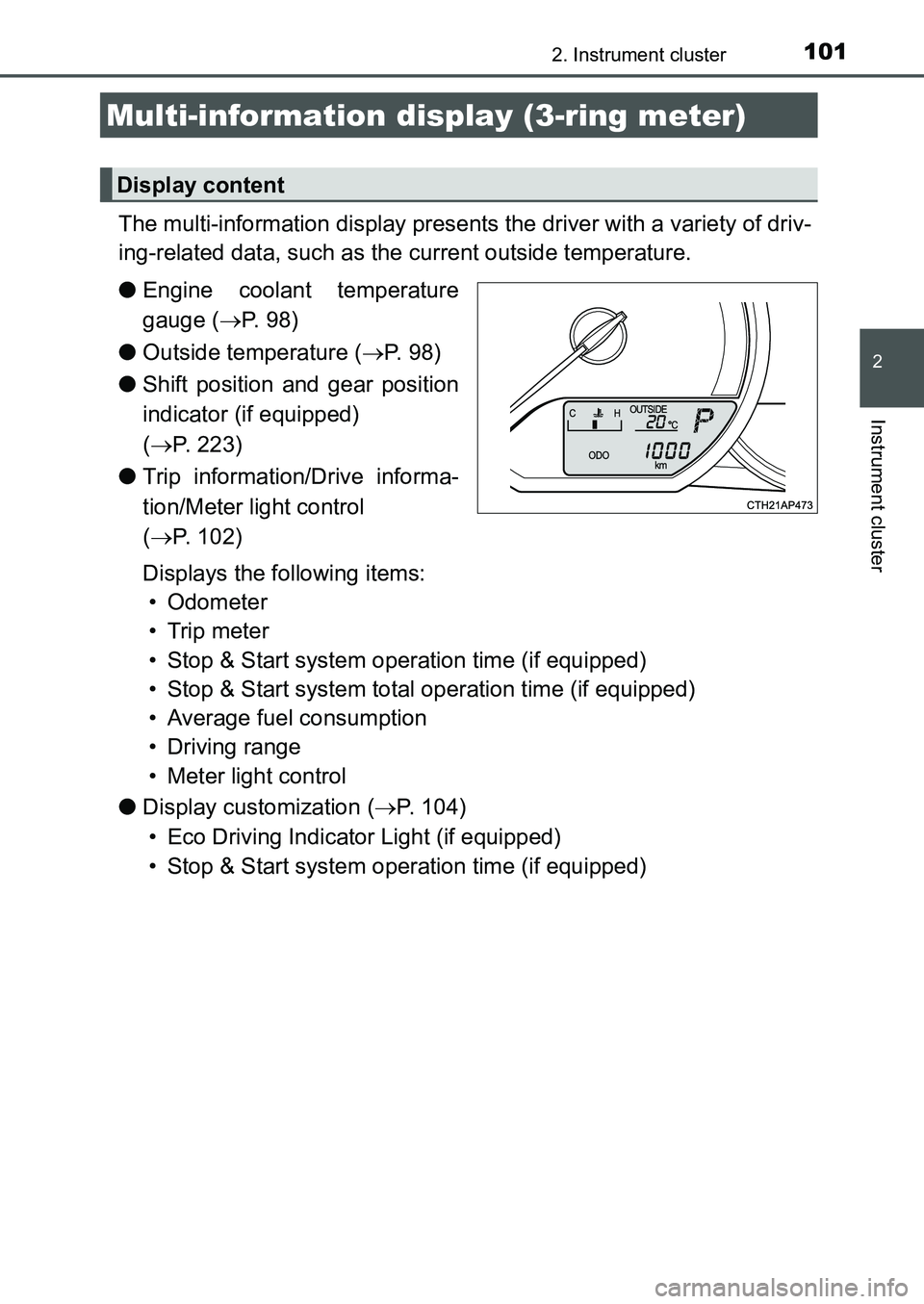

TOYOTA AURIS 2017 Owners Manual (in English)

1012. Instrument cluster
UK AURIS_HB_EE (OM12K97E)
2
Instrument cluster
The multi-information display presents the driver with a variety of driv-
ing-related data, such as the current outside temperature.
●Engine coolant temperature
gauge (P. 98)
●Outside temperature (P. 9 8 )
●Shift position and gear position
indicator (if equipped)
(P. 223)
●Trip information/Drive informa-
tion/Meter light control
(P. 102)
Displays the following items:
•Odometer
•Trip meter
• Stop & Start system operation time (if equipped)
• Stop & Start system total operation time (if equipped)
• Average fuel consumption
• Driving range
• Meter light control
●Display customization (P. 104)
• Eco Driving Indicator Light (if equipped)
• Stop & Start system operation time (if equipped)
Multi-information display (3-ring meter)
Display content
UK AURIS_HB_OM_Europe_OM12K97E.book 101 ページ ２０１６年６月２７日　月曜日　午後５時４２分

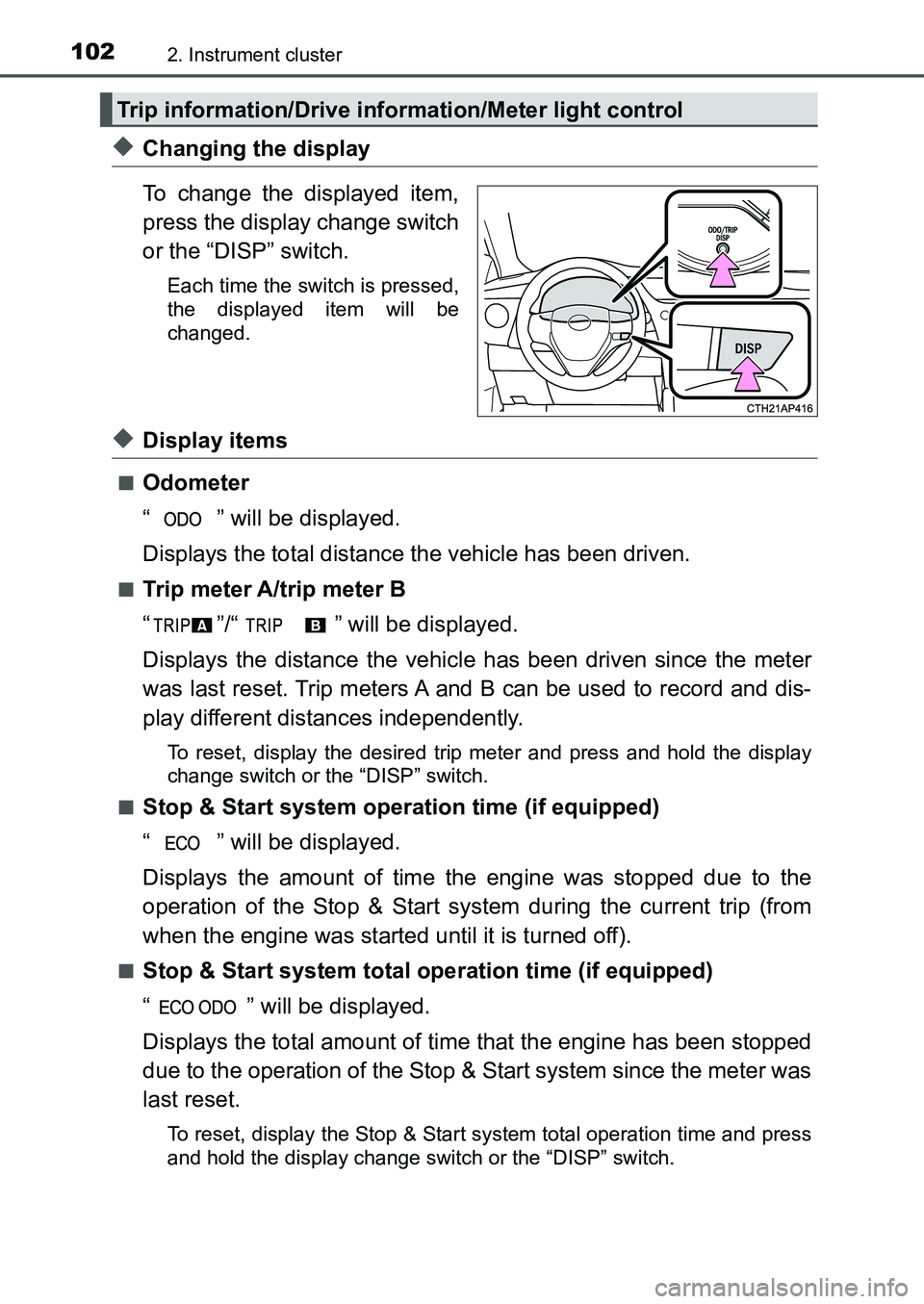

1022. Instrument cluster
UK AURIS_HB_EE (OM12K97E)
◆Changing the display
To change the displayed item,
press the display change switch
or the “DISP” switch.
Each time the switch is pressed,
the displayed item will be
changed.
◆Display items
■Odometer
“ ” will be displayed.
Displays the total distance the vehicle has been driven.
■Trip meter A/trip meter B
“ ”/“ ” will be displayed.
Displays the distance the vehicle has been driven since the meter
was last reset. Trip meters A and B can be used to record and dis-
play different distances independently.
To reset, display the desired trip meter and press and hold the display
change switch or the “DISP” switch.
■
Stop & Start system operation time (if equipped)
“ ” will be displayed.
Displays the amount of time the engine was stopped due to the
operation of the Stop & Start system during the current trip (from
when the engine was started until it is turned off).
■Stop & Start system total operation time (if equipped)
“ ” will be displayed.
Displays the total amount of time that the engine has been stopped
due to the operation of the Stop & Start system since the meter was
last reset.
To reset, display the Stop & Start system total operation time and press
and hold the display change switch or the “DISP” switch.
Trip information/Drive information/Meter light control
UK AURIS_HB_OM_Europe_OM12K97E.book 102 ページ ２０１６年６月２７日　月曜日　午後５時４２分

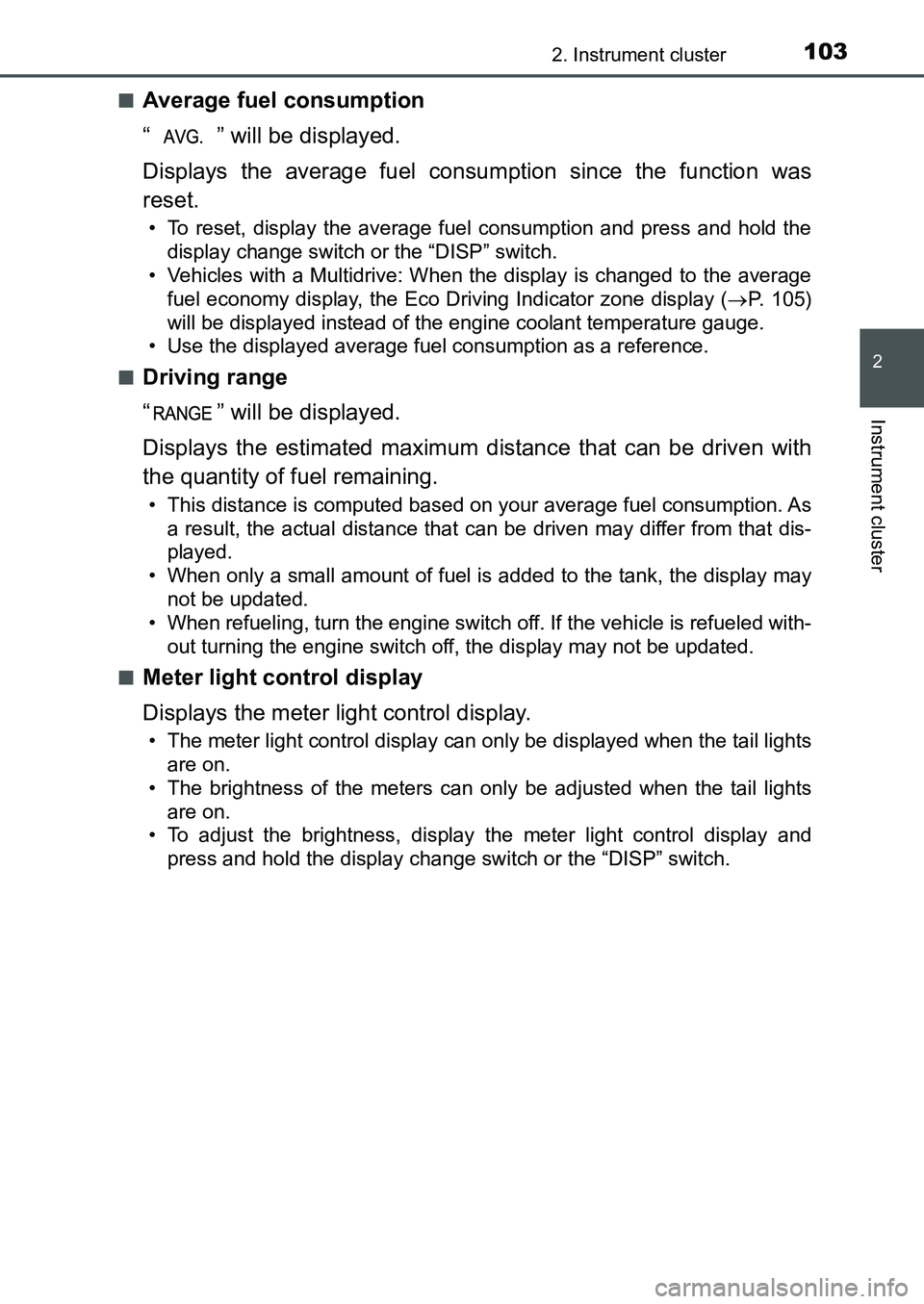

1032. Instrument cluster
UK AURIS_HB_EE (OM12K97E)
2
Instrument cluster
■Average fuel consumption
“ ” will be displayed.
Displays the average fuel consumption since the function was
reset.
• To reset, display the average fuel consumption and press and hold the
display change switch or the “DISP” switch.
• Vehicles with a Multidrive: When the display is changed to the average
fuel economy display, the Eco Driving Indicator zone display (P. 105)
will be displayed instead of the engine coolant temperature gauge.
• Use the displayed average fuel consumption as a reference.
■
Driving range
“ ” will be displayed.
Displays the estimated maximum distance that can be driven with
the quantity of fuel remaining.
• This distance is computed based on your average fuel consumption. As
a result, the actual distance that can be driven may differ from that dis-
played.
• When only a small amount of fuel is added to the tank, the display may
not be updated.
• When refueling, turn the engine switch off. If the vehicle is refueled with-
out turning the engine switch off, the display may not be updated.
■
Meter light control display
Displays the meter light control display.
• The meter light control display can only be displayed when the tail lights
are on.
• The brightness of the meters can only be adjusted when the tail lights
are on.
• To adjust the brightness, display the meter light control display and
press and hold the display change switch or the “DISP” switch.
UK AURIS_HB_OM_Europe_OM12K97E.book 103 ページ ２０１６年６月２７日　月曜日　午後５時４２分

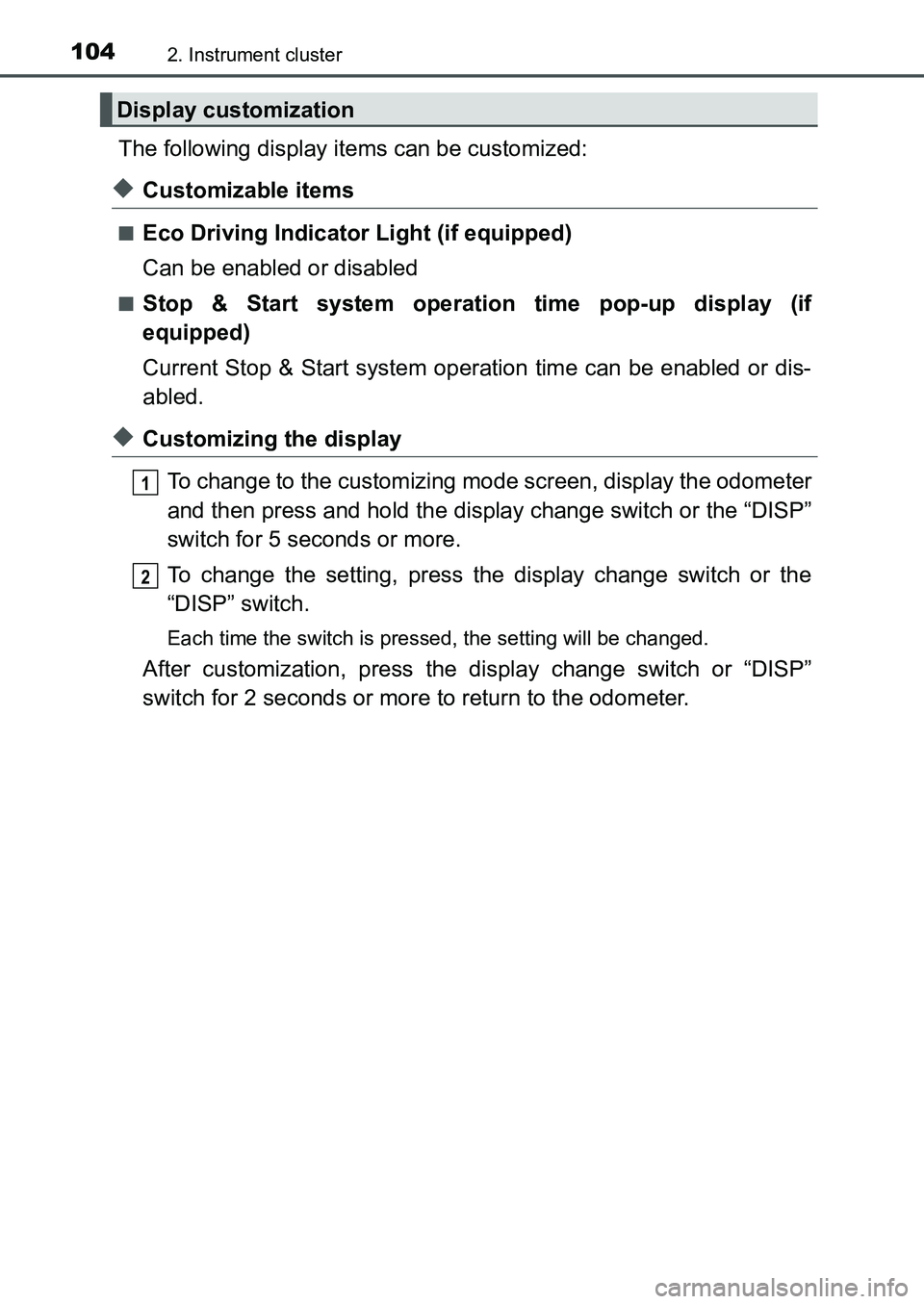

1042. Instrument cluster
UK AURIS_HB_EE (OM12K97E)
The following display items can be customized:
◆Customizable items
■Eco Driving Indicator Light (if equipped)
Can be enabled or disabled
■Stop & Start system operation time pop-up display (if
equipped)
Current Stop & Start system operation time can be enabled or dis-
abled.
◆Customizing the display
To change to the customizing mode screen, display the odometer
and then press and hold the display change switch or the “DISP”
switch for 5 seconds or more.
To change the setting, press the display change switch or the
“DISP” switch.
Each time the switch is pressed, the setting will be changed.
After customization, press the display change switch or “DISP”
switch for 2 seconds or more to return to the odometer.
Display customization
1
2
UK AURIS_HB_OM_Europe_OM12K97E.book 104 ページ ２０１６年６月２７日　月曜日　午後５時４２分

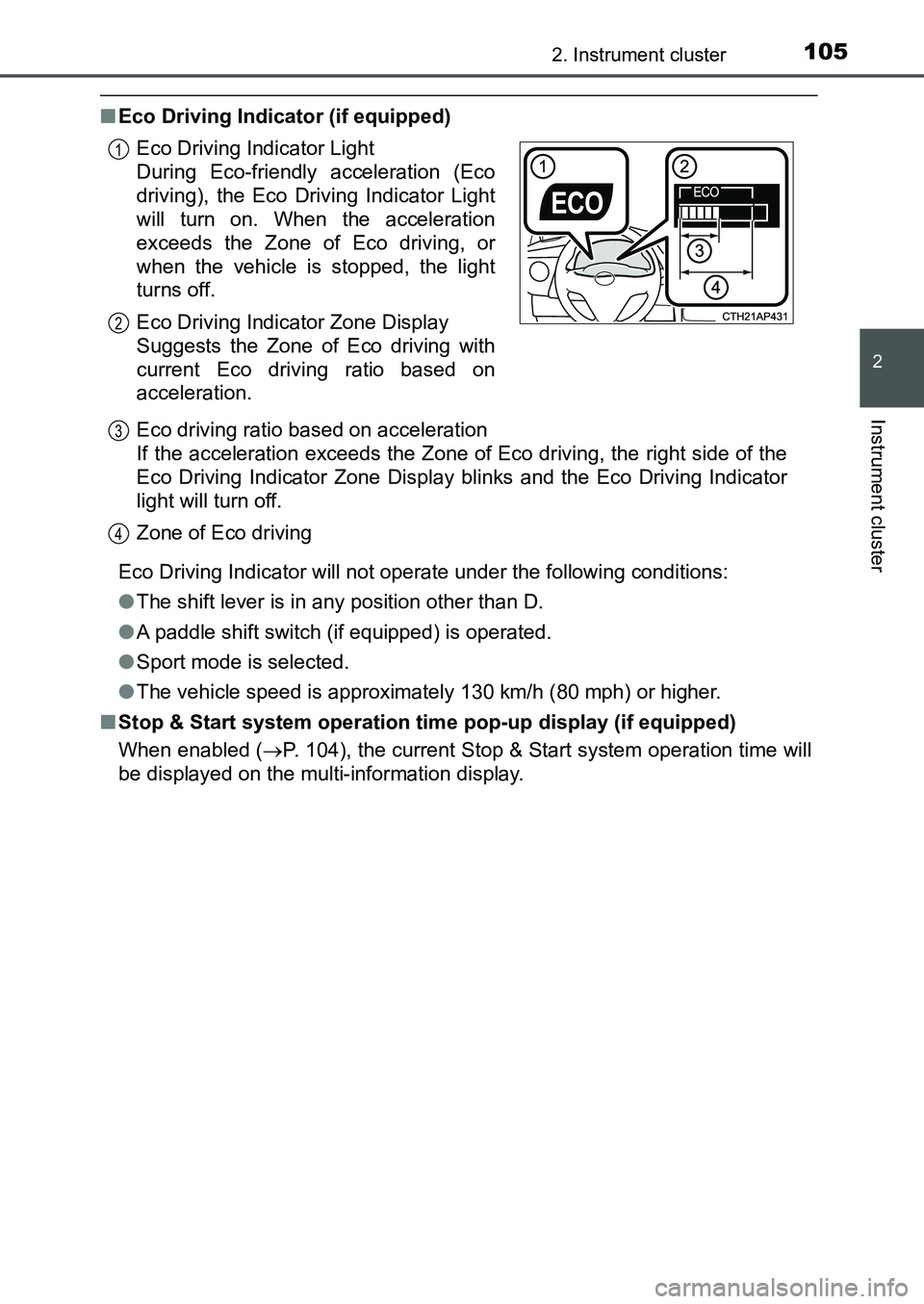

1052. Instrument cluster
UK AURIS_HB_EE (OM12K97E)
2
Instrument cluster
■Eco Driving Indicator (if equipped)
Eco Driving Indicator will not operate under the following conditions:
●The shift lever is in any position other than D.
●A paddle shift switch (if equipped) is operated.
●Sport mode is selected.
●The vehicle speed is approximately 130 km/h (80 mph) or higher.
■Stop & Start system operation time pop-up display (if equipped)
When enabled (P. 104), the current Stop & Start system operation time will
be displayed on the multi-information display.Eco Driving Indicator Light
During Eco-friendly acceleration (Eco
driving), the Eco Driving Indicator Light
will turn on. When the acceleration
exceeds the Zone of Eco driving, or
when the vehicle is stopped, the light
turns off.
Eco Driving Indicator Zone Display
Suggests the Zone of Eco driving with
current Eco driving ratio based on
acceleration.
Eco driving ratio based on acceleration
If the acceleration exceeds the Zone of Eco driving, the right side of the
Eco Driving Indicator Zone Display blinks and the Eco Driving Indicator
light will turn off.
Zone of Eco driving
1
2
3
4
UK AURIS_HB_OM_Europe_OM12K97E.book 105 ページ ２０１６年６月２７日　月曜日　午後５時４２分

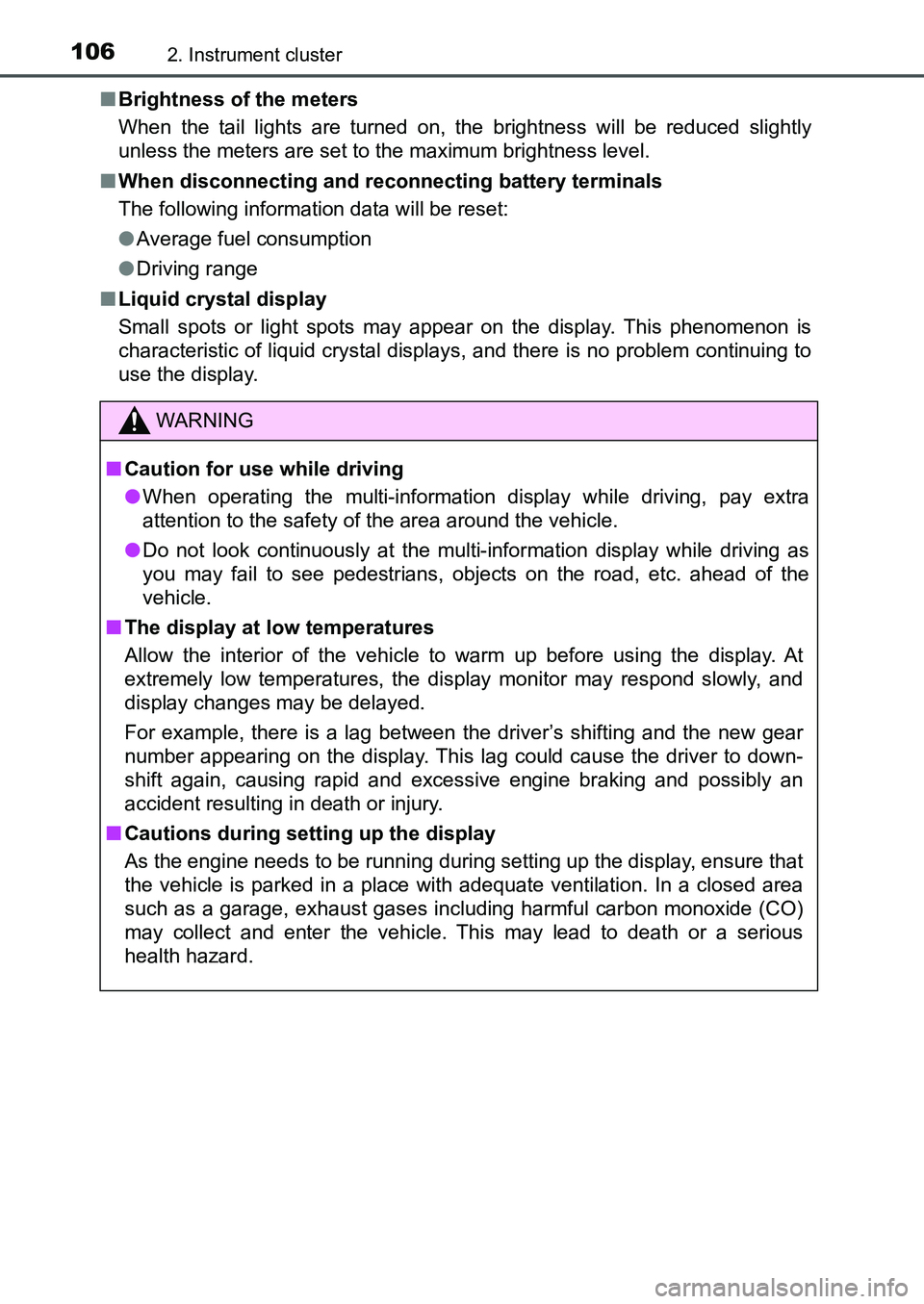

1062. Instrument cluster
UK AURIS_HB_EE (OM12K97E)■Brightness of the meters
When the tail lights are turned on, the brightness will be reduced slightly
unless the meters are set to the maximum brightness level.
■When disconnecting and reconnecting battery terminals
The following information data will be reset:
●Average fuel consumption
●Driving range
■Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is
characteristic of liquid crystal displays, and there is no problem continuing to
use the display.
WARNING
■Caution for use while driving
●When operating the multi-information display while driving, pay extra
attention to the safety of the area around the vehicle.
●Do not look continuously at the multi-information display while driving as
you may fail to see pedestrians, objects on the road, etc. ahead of the
vehicle.
■The display at low temperatures
Allow the interior of the vehicle to warm up before using the display. At
extremely low temperatures, the display monitor may respond slowly, and
display changes may be delayed.
For example, there is a lag between the driver’s shifting and the new gear
number appearing on the display. This lag could cause the driver to down-
shift again, causing rapid and excessive engine braking and possibly an
accident resulting in death or injury.
■Cautions during setting up the display
As the engine needs to be running during setting up the display, ensure that
the vehicle is parked in a place with adequate ventilation. In a closed area
such as a garage, exhaust gases including harmful carbon monoxide (CO)
may collect and enter the vehicle. This may lead to death or a serious
health hazard.
UK AURIS_HB_OM_Europe_OM12K97E.book 106 ページ ２０１６年６月２７日　月曜日　午後５時４２分

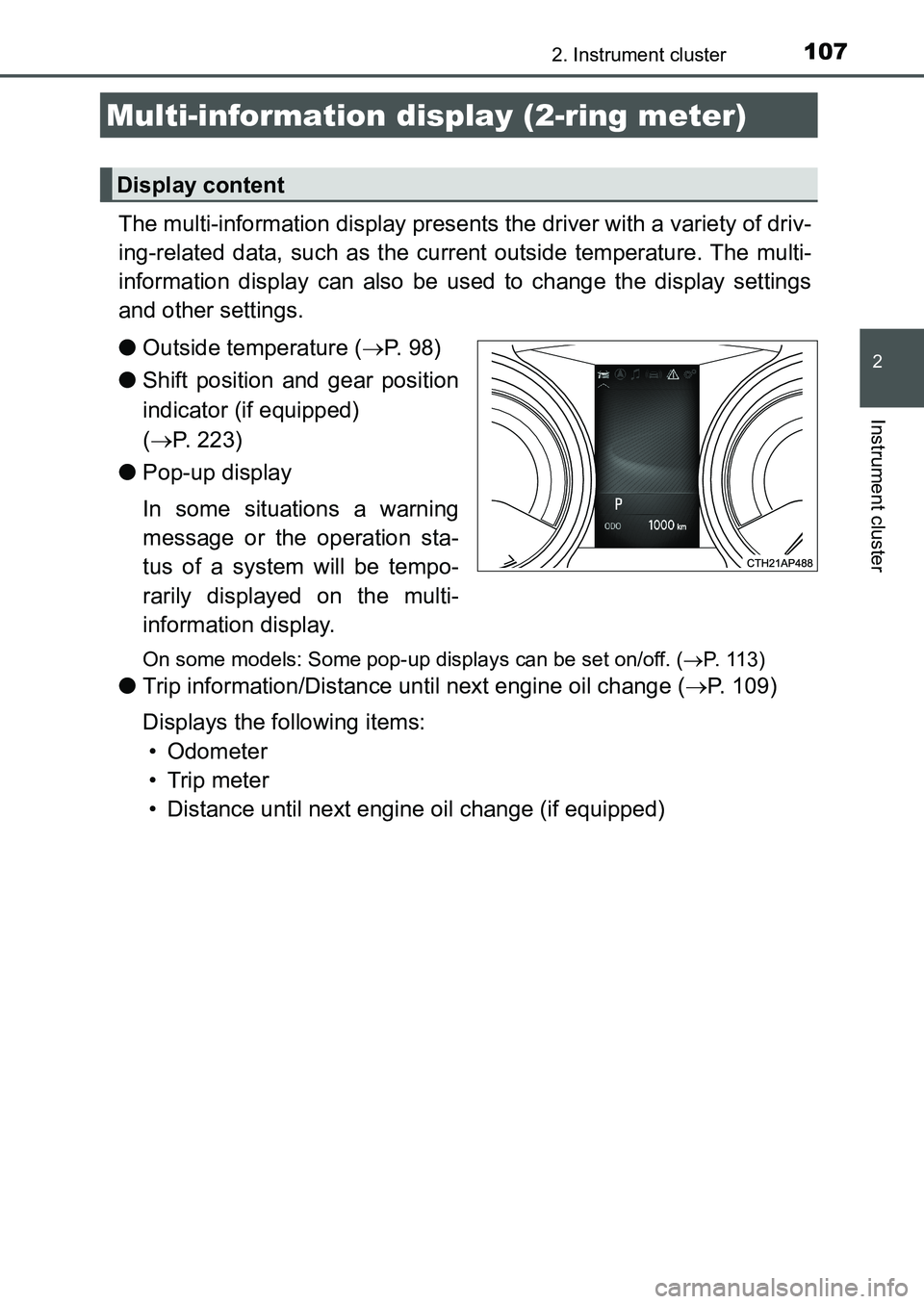

1072. Instrument cluster
UK AURIS_HB_EE (OM12K97E)
2
Instrument cluster
The multi-information display presents the driver with a variety of driv-
ing-related data, such as the current outside temperature. The multi-
information display can also be used to change the display settings
and other settings.
●Outside temperature (P. 9 8 )
●Shift position and gear position
indicator (if equipped)
(P. 223)
●Pop-up display
In some situations a warning
message or the operation sta-
tus of a system will be tempo-
rarily displayed on the multi-
information display.
On some models: Some pop-up displays can be set on/off. (P. 113)
●Trip information/Distance until next engine oil change (P. 109)
Displays the following items:
•Odometer
•Trip meter
• Distance until next engine oil change (if equipped)
Multi-information display (2-ring meter)
Display content
UK AURIS_HB_OM_Europe_OM12K97E.book 107 ページ ２０１６年６月２７日　月曜日　午後５時４２分

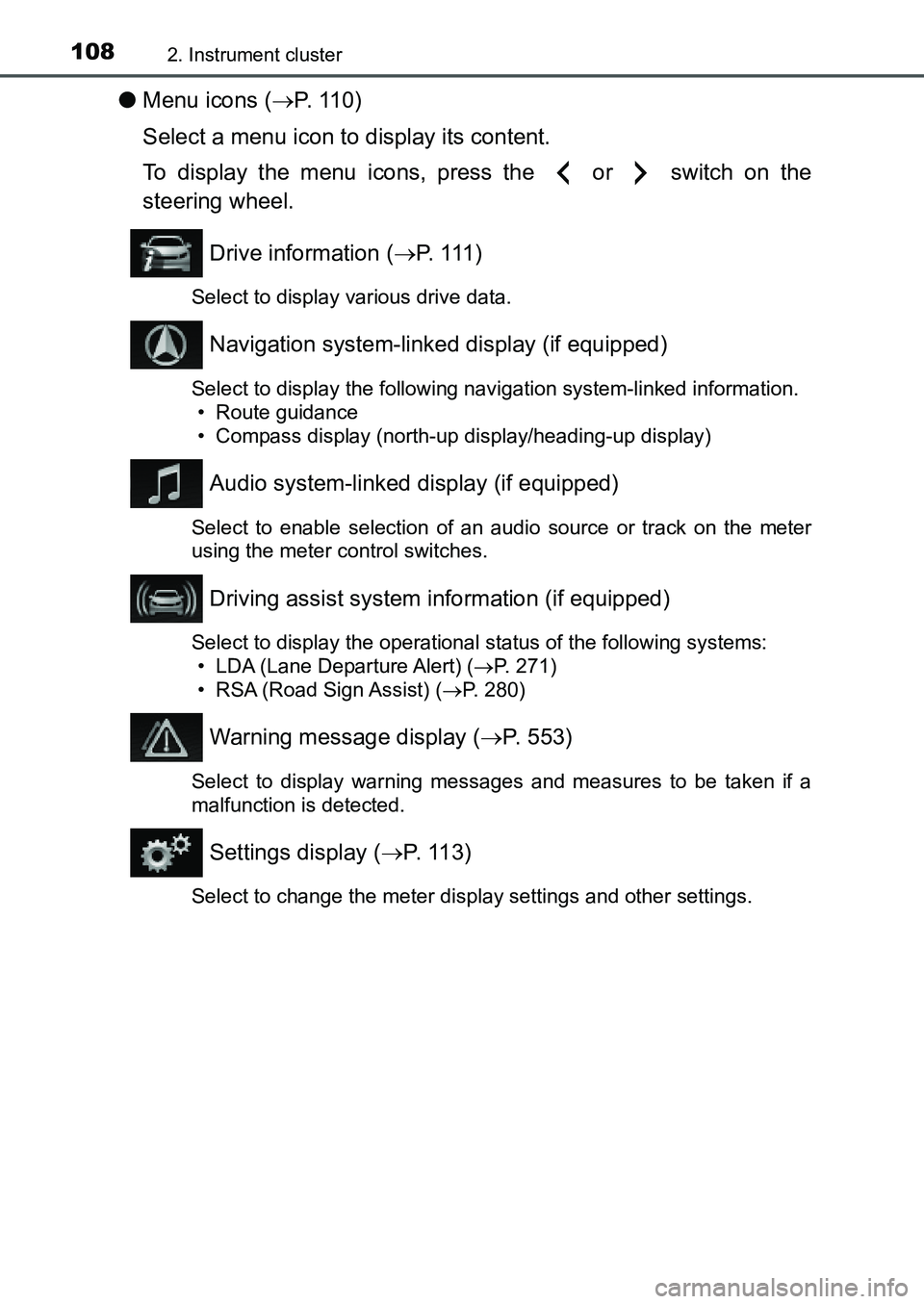

1082. Instrument cluster
UK AURIS_HB_EE (OM12K97E)
●Menu icons (P. 110)
Select a menu icon to display its content.
To display the menu icons, press the or switch on the
steering wheel.
Drive information (P. 1 1 1 )
Select to display various drive data.
Navigation system-linked display (if equipped)
Select to display the following navigation system-linked information.
• Route guidance
• Compass display (north-up display/heading-up display)
Audio system-linked display (if equipped)
Select to enable selection of an audio source or track on the meter
using the meter control switches.
Driving assist system information (if equipped)
Select to display the operational status of the following systems:
• LDA (Lane Departure Alert) (P. 271)
• RSA (Road Sign Assist) (P. 280)
Warning message display (P. 553)
Select to display warning messages and measures to be taken if a
malfunction is detected.
Settings display (P. 1 1 3 )
Select to change the meter display settings and other settings.
UK AURIS_HB_OM_Europe_OM12K97E.book 108 ページ ２０１６年６月２７日　月曜日　午後５時４２分

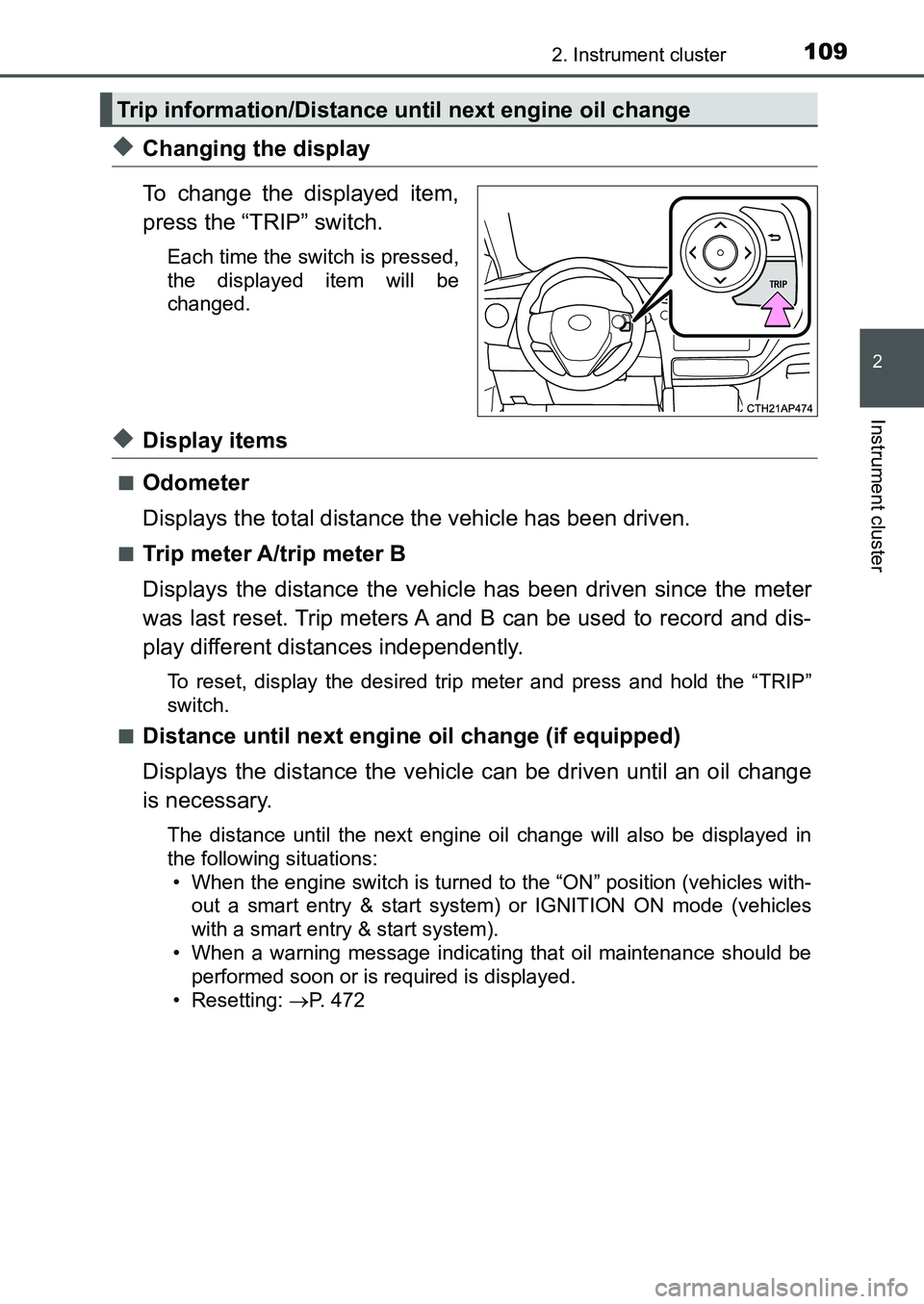

1092. Instrument cluster
UK AURIS_HB_EE (OM12K97E)
2
Instrument cluster
◆Changing the display
To change the displayed item,
press the “TRIP” switch.
Each time the switch is pressed,
the displayed item will be
changed.
◆Display items
■Odometer
Displays the total distance the vehicle has been driven.
■Trip meter A/trip meter B
Displays the distance the vehicle has been driven since the meter
was last reset. Trip meters A and B can be used to record and dis-
play different distances independently.
To reset, display the desired trip meter and press and hold the “TRIP”
switch.
■
Distance until next engine oil change (if equipped)
Displays the distance the vehicle can be driven until an oil change
is necessary.
The distance until the next engine oil change will also be displayed in
the following situations:
• When the engine switch is turned to the “ON” position (vehicles with-
out a smart entry & start system) or IGNITION ON mode (vehicles
with a smart entry & start system).
• When a warning message indicating that oil maintenance should be
performed soon or is required is displayed.
• Resetting: P. 472
Trip information/Distance until next engine oil change
UK AURIS_HB_OM_Europe_OM12K97E.book 109 ページ ２０１６年６月２７日　月曜日　午後５時４２分

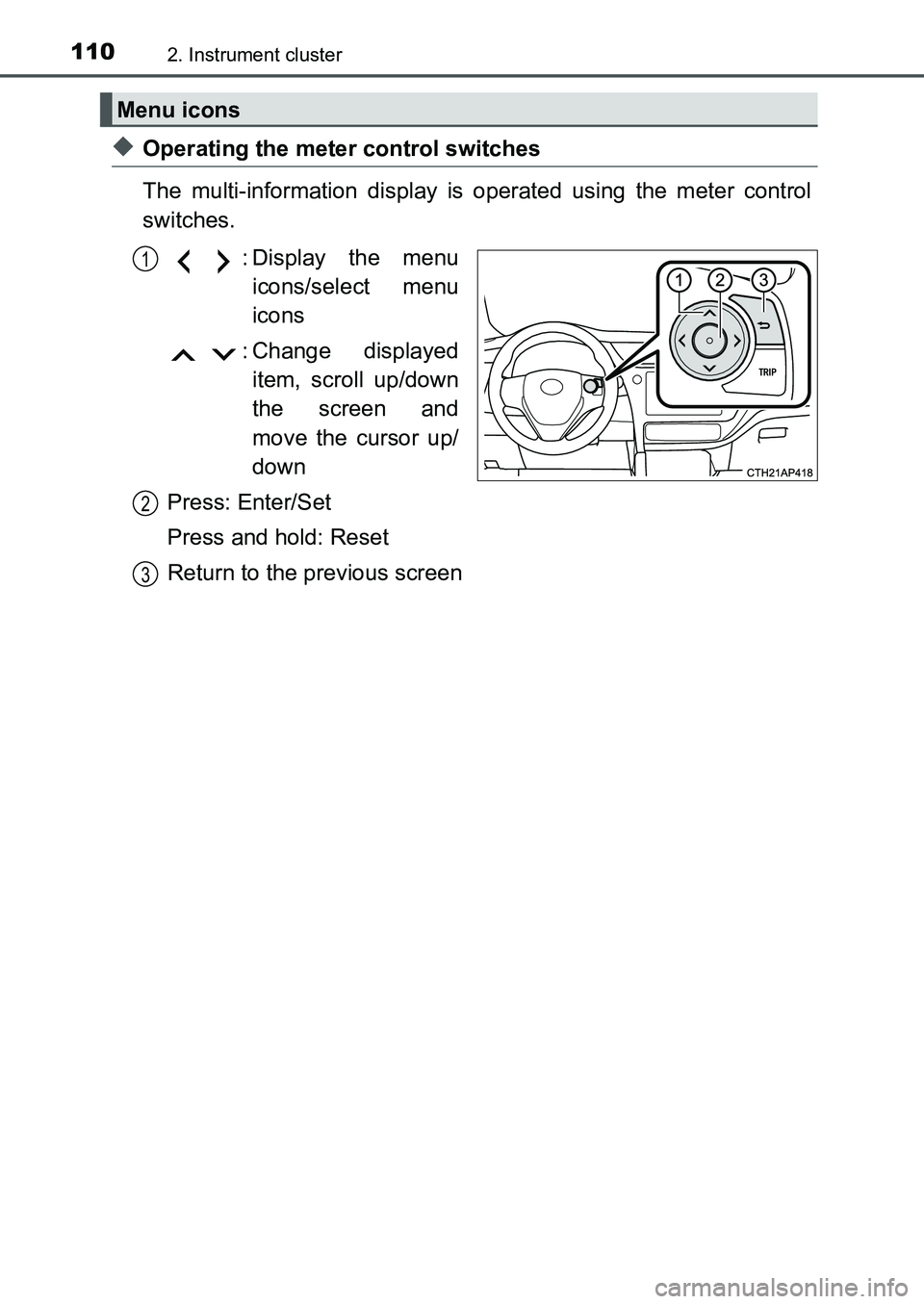

1102. Instrument cluster
UK AURIS_HB_EE (OM12K97E)
◆Operating the meter control switches
The multi-information display is operated using the meter control
switches.
: Display the menu
icons/select menu
icons
: Change displayed
item, scroll up/down
the screen and
move the cursor up/
down
Press: Enter/Set
Press and hold: Reset
Return to the previous screen
Menu icons
1
2
3
UK AURIS_HB_OM_Europe_OM12K97E.book 110 ページ ２０１６年６月２７日　月曜日　午後５時４２分
