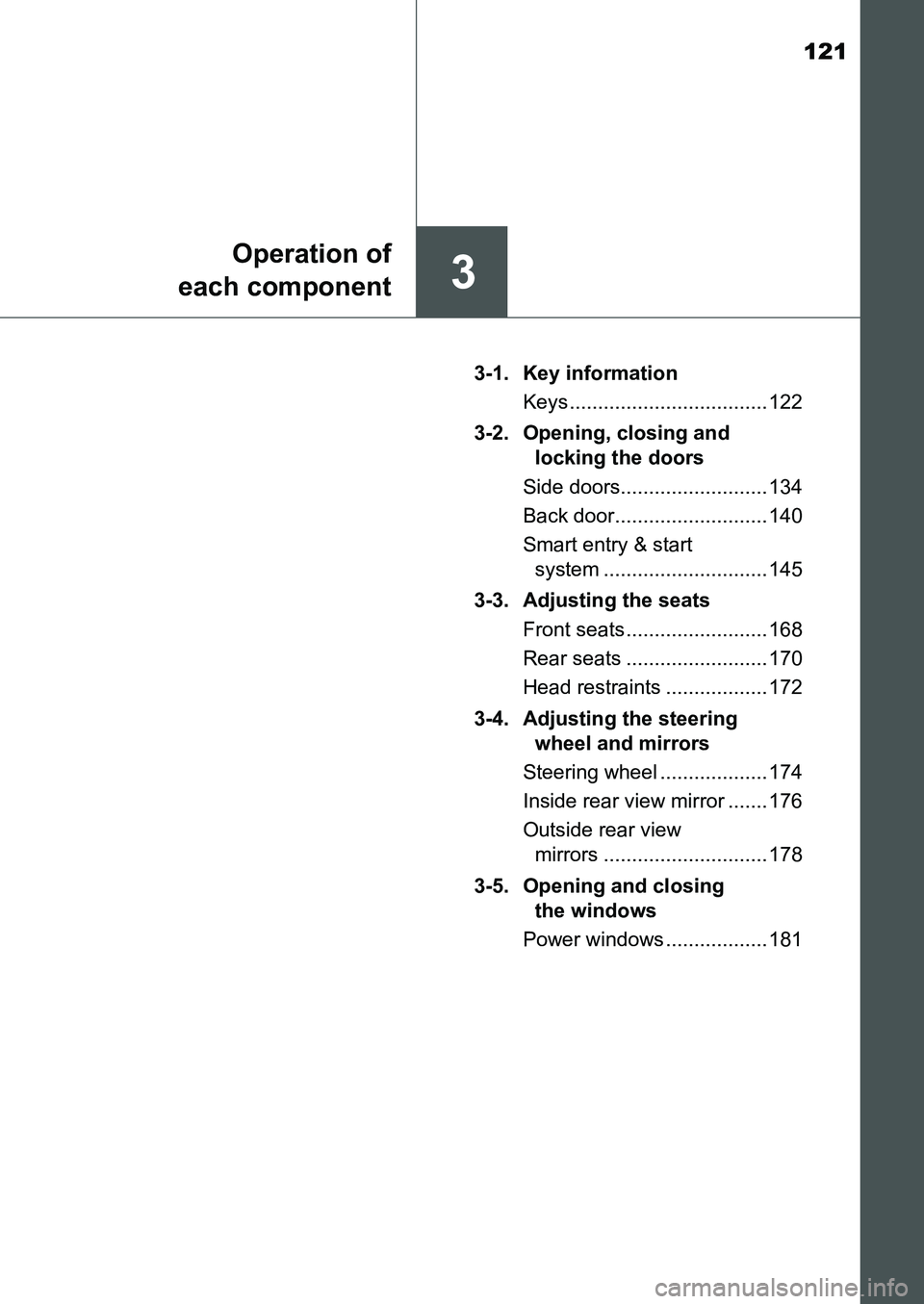

TOYOTA AURIS 2017 Owners Manual (in English)

121
3
Operation of
each component
UK AURIS_HB_EE (OM12K97E)3-1. Key information
Keys ................................... 122
3-2. Opening, closing and
locking the doors
Side doors.......................... 134
Back door........................... 140
Smart entry & start
system ............................. 145
3-3. Adjusting the seats
Front seats ......................... 168
Rear seats ......................... 170
Head restraints .................. 172
3-4. Adjusting the steering
wheel and mirrors
Steering wheel ................... 174
Inside rear view mirror ....... 176
Outside rear view
mirrors ............................. 178
3-5. Opening and closing
the windows
Power windows .................. 181
UK AURIS_HB_OM_Europe_OM12K97E.book 121 ページ ２０１６年６月２７日　月曜日　午後５時４２分

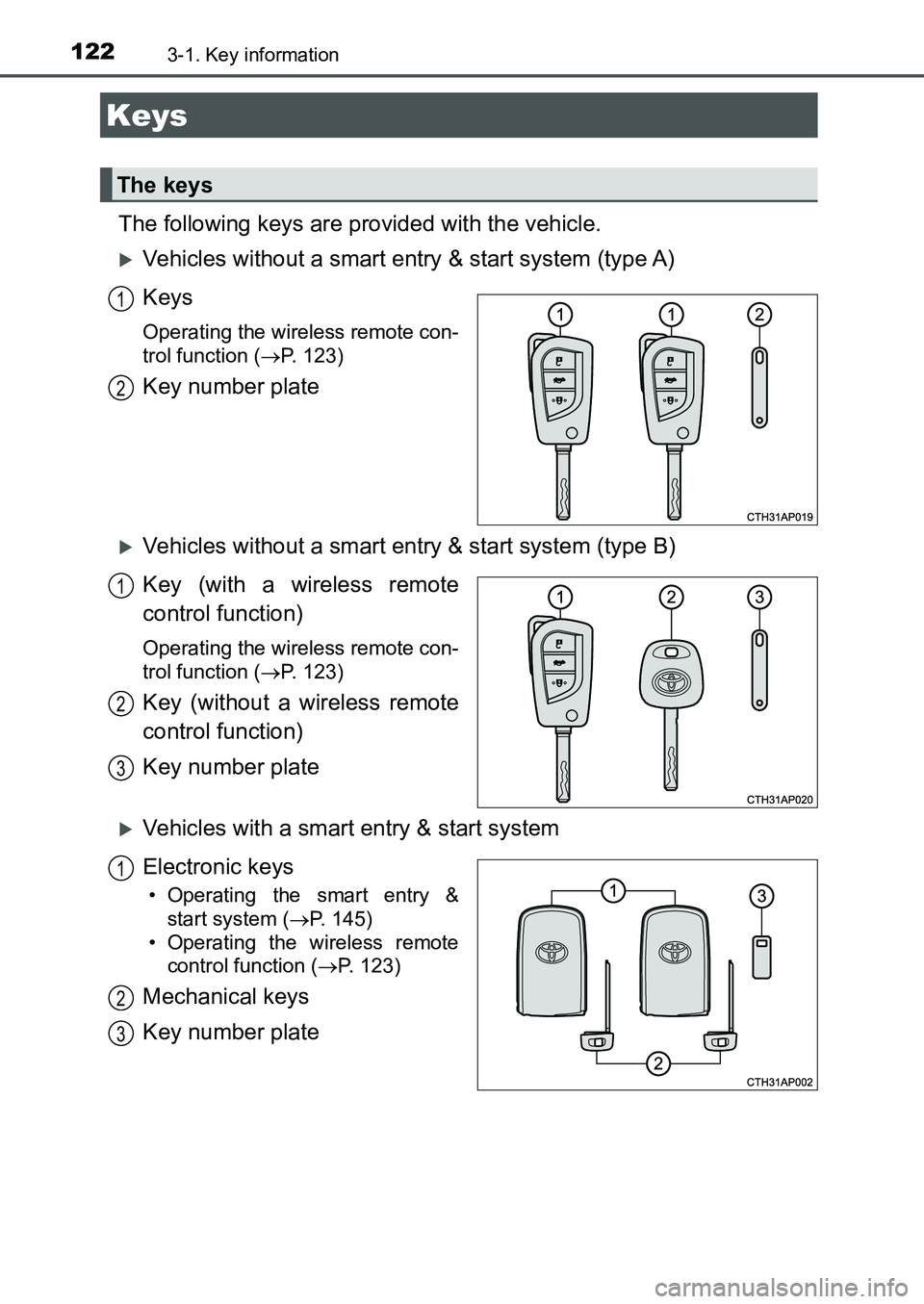

122
UK AURIS_HB_EE (OM12K97E)
3-1. Key information
The following keys are provided with the vehicle.
Vehicles without a smart entry & start system (type A)
Keys
Operating the wireless remote con-
trol function (P. 123)
Key number plate
Vehicles without a smart entry & start system (type B)
Key (with a wireless remote
control function)
Operating the wireless remote con-
trol function (P. 123)
Key (without a wireless remote
control function)
Key number plate
Vehicles with a smart entry & start system
Electronic keys
• Operating the smart entry &
start system (P. 145)
• Operating the wireless remote
control function (P. 123)
Mechanical keys
Key number plate
Keys
The keys
1
2
1
2
3
1
2
3
UK AURIS_HB_OM_Europe_OM12K97E.book 122 ページ ２０１６年６月２７日　月曜日　午後５時４２分

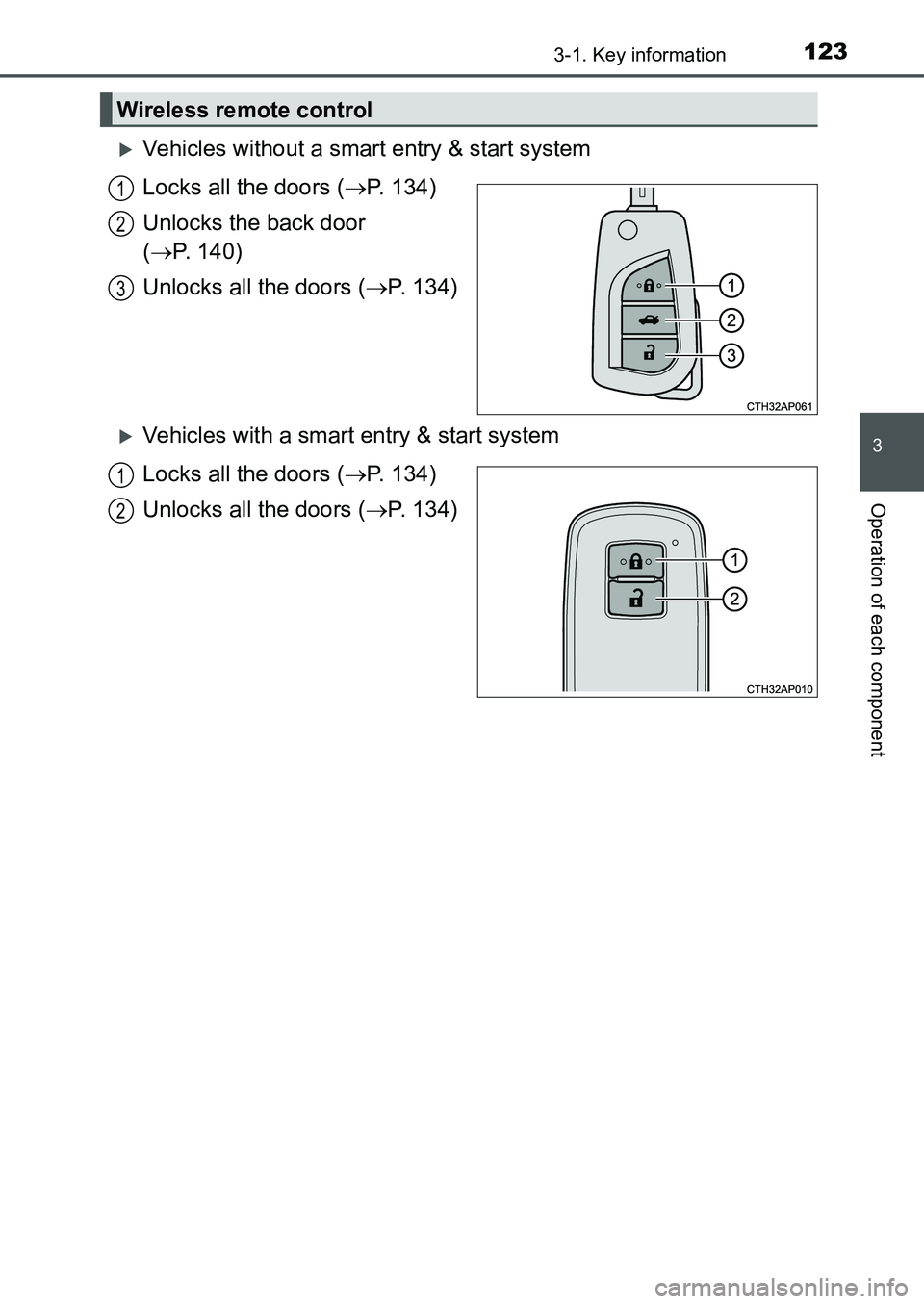

1233-1. Key information
UK AURIS_HB_EE (OM12K97E)
3
Operation of each component
Vehicles without a smart entry & start system
Locks all the doors (P. 134)
Unlocks the back door
(P. 140)
Unlocks all the doors (P. 134)
Vehicles with a smart entry & start system
Locks all the doors (P. 134)
Unlocks all the doors (P. 134)
Wireless remote control
1
2
3
1
2
UK AURIS_HB_OM_Europe_OM12K97E.book 123 ページ ２０１６年６月２７日　月曜日　午後５時４２分

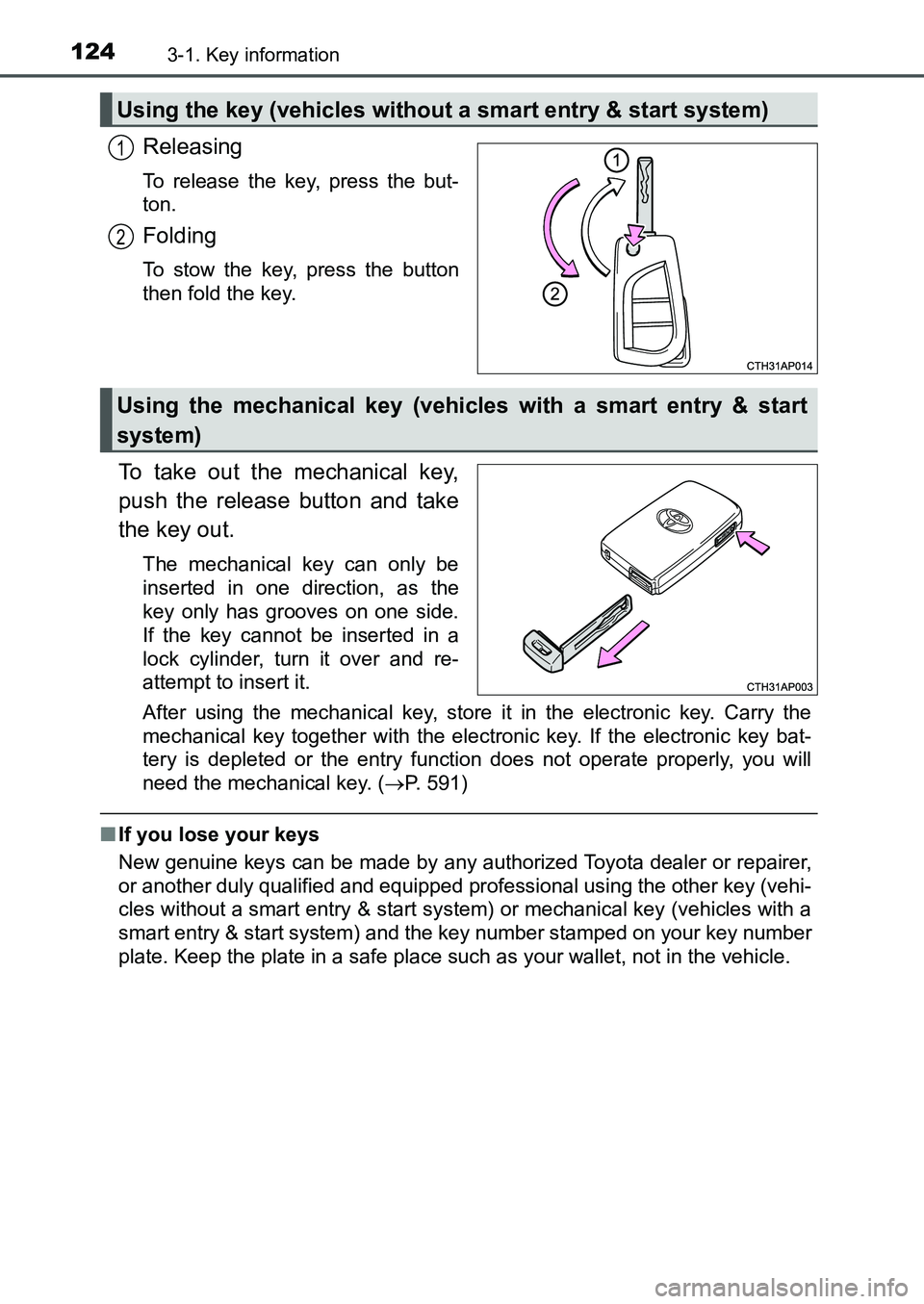

1243-1. Key information
UK AURIS_HB_EE (OM12K97E)
Releasing
To release the key, press the but-
ton.
Folding
To stow the key, press the button
then fold the key.
To take out the mechanical key,
push the release button and take
the key out.
The mechanical key can only be
inserted in one direction, as the
key only has grooves on one side.
If the key cannot be inserted in a
lock cylinder, turn it over and re-
attempt to insert it.
After using the mechanical key, store it in the electronic key. Carry the
mechanical key together with the electronic key. If the electronic key bat-
tery is depleted or the entry function does not operate properly, you will
need the mechanical key. (P. 591)
■If you lose your keys
New genuine keys can be made by any authorized Toyota dealer or repairer,
or another duly qualified and equipped professional using the other key (vehi-
cles without a smart entry & start system) or mechanical key (vehicles with a
smart entry & start system) and the key number stamped on your key number
plate. Keep the plate in a safe place such as your wallet, not in the vehicle.
Using the key (vehicles without a smart entry & start system)
1
2
Using the mechanical key (vehicles with a smart entry & start
system)
UK AURIS_HB_OM_Europe_OM12K97E.book 124 ページ ２０１６年６月２７日　月曜日　午後５時４２分

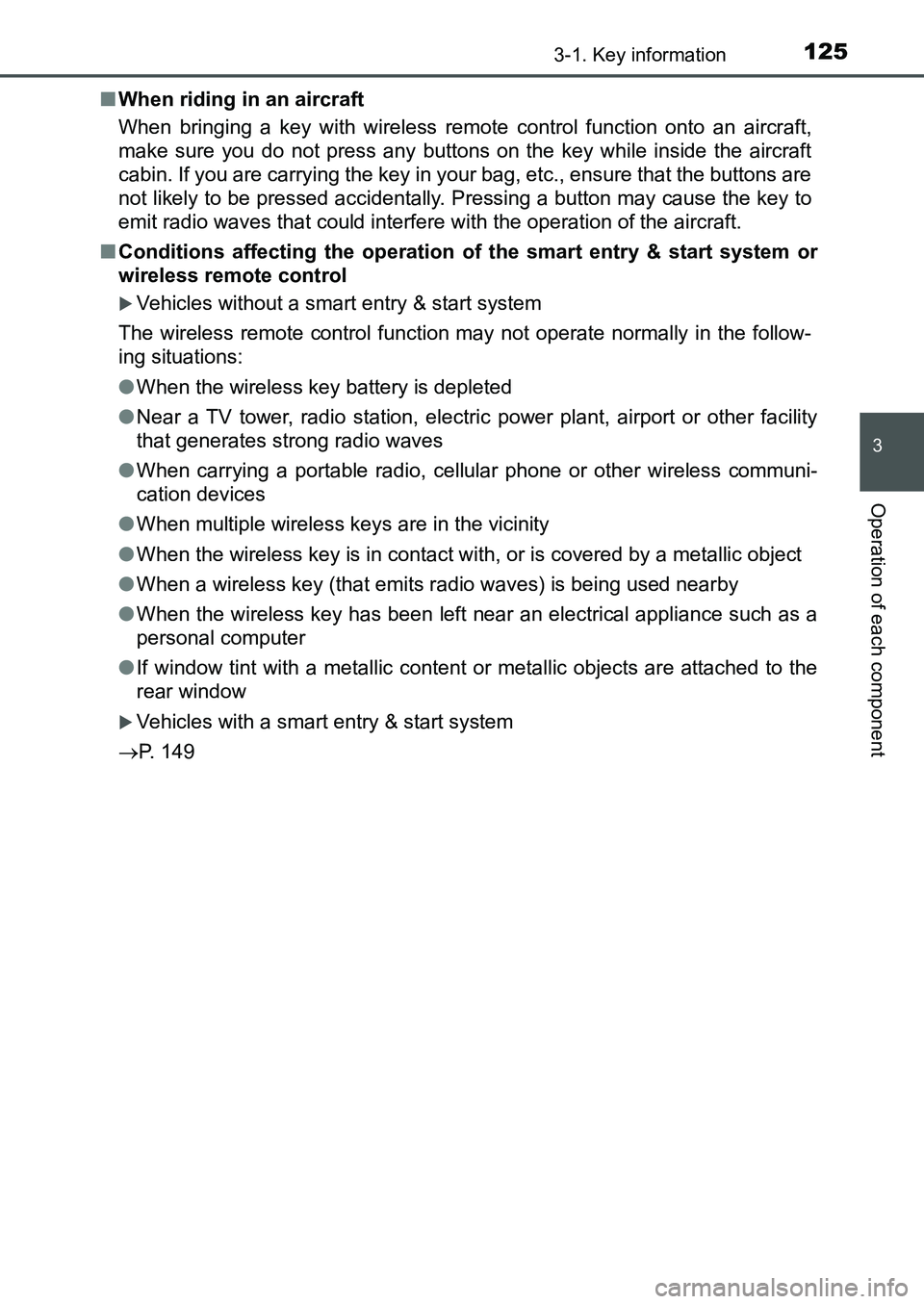

1253-1. Key information
UK AURIS_HB_EE (OM12K97E)
3
Operation of each component
■When riding in an aircraft
When bringing a key with wireless remote control function onto an aircraft,
make sure you do not press any buttons on the key while inside the aircraft
cabin. If you are carrying the key in your bag, etc., ensure that the buttons are
not likely to be pressed accidentally. Pressing a button may cause the key to
emit radio waves that could interfere with the operation of the aircraft.
■Conditions affecting the operation of the smart entry & start system or
wireless remote control
Vehicles without a smart entry & start system
The wireless remote control function may not operate normally in the follow-
ing situations:
●When the wireless key battery is depleted
●Near a TV tower, radio station, electric power plant, airport or other facility
that generates strong radio waves
●When carrying a portable radio, cellular phone or other wireless communi-
cation devices
●When multiple wireless keys are in the vicinity
●When the wireless key is in contact with, or is covered by a metallic object
●When a wireless key (that emits radio waves) is being used nearby
●When the wireless key has been left near an electrical appliance such as a
personal computer
●If window tint with a metallic content or metallic objects are attached to the
rear window
Vehicles with a smart entry & start system
P. 149
UK AURIS_HB_OM_Europe_OM12K97E.book 125 ページ ２０１６年６月２７日　月曜日　午後５時４２分

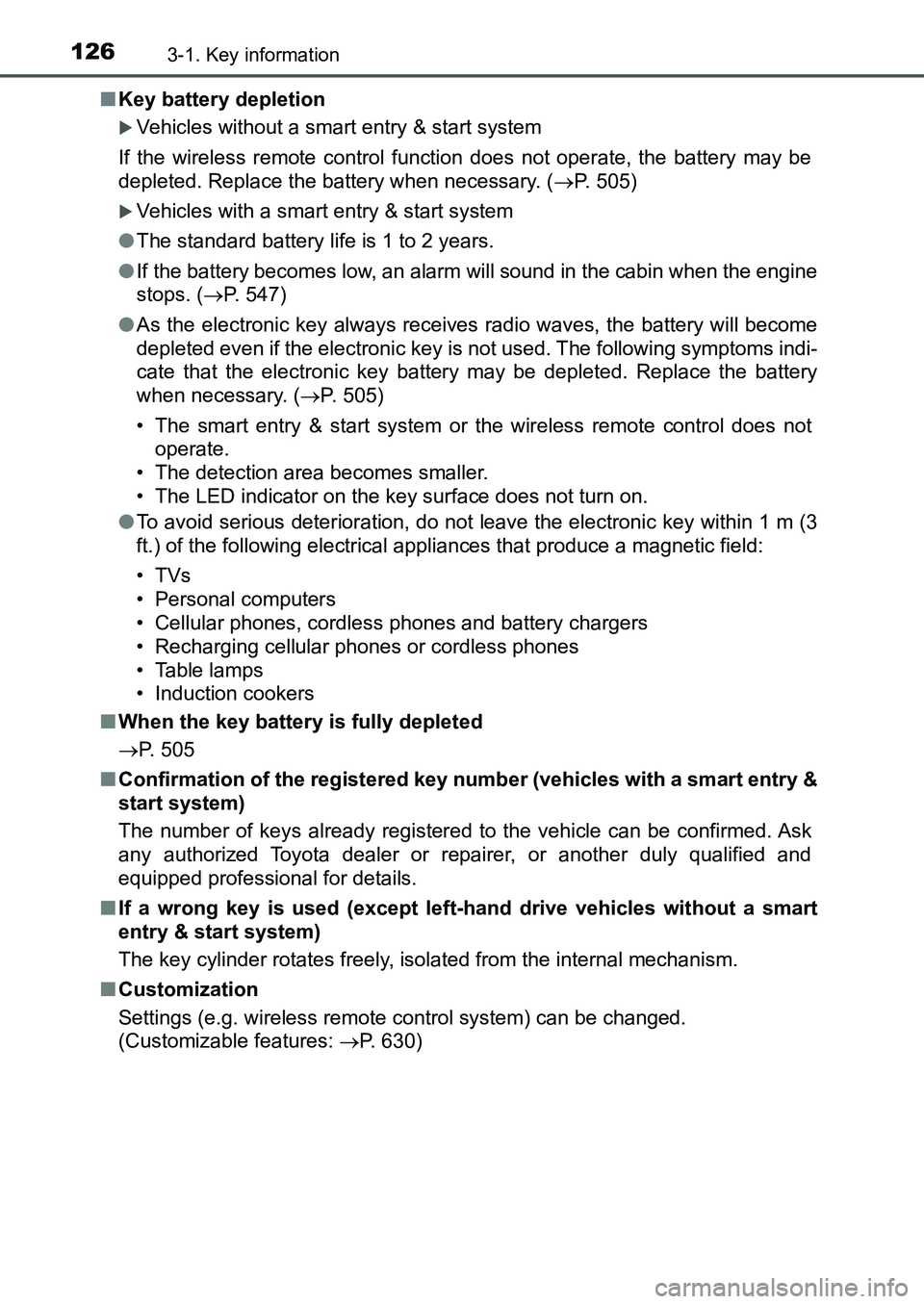

1263-1. Key information
UK AURIS_HB_EE (OM12K97E)■Key battery depletion
Vehicles without a smart entry & start system
If the wireless remote control function does not operate, the battery may be
depleted. Replace the battery when necessary. (P. 505)
Vehicles with a smart entry & start system
●The standard battery life is 1 to 2 years.
●If the battery becomes low, an alarm will sound in the cabin when the engine
stops. (P. 547)
●As the electronic key always receives radio waves, the battery will become
depleted even if the electronic key is not used. The following symptoms indi-
cate that the electronic key battery may be depleted. Replace the battery
when necessary. (P. 505)
• The smart entry & start system or the wireless remote control does not
operate.
• The detection area becomes smaller.
• The LED indicator on the key surface does not turn on.
●To avoid serious deterioration, do not leave the electronic key within 1 m (3
ft.) of the following electrical appliances that produce a magnetic field:
•TVs
• Personal computers
• Cellular phones, cordless phones and battery chargers
• Recharging cellular phones or cordless phones
• Table lamps
• Induction cookers
■When the key battery is fully depleted
P. 505
■Confirmation of the registered key number (vehicles with a smart entry &
start system)
The number of keys already registered to the vehicle can be confirmed. Ask
any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional for details.
■If a wrong key is used (except left-hand drive vehicles without a smart
entry & start system)
The key cylinder rotates freely, isolated from the internal mechanism.
■Customization
Settings (e.g. wireless remote control system) can be changed.
(Customizable features: P. 630)
UK AURIS_HB_OM_Europe_OM12K97E.book 126 ページ ２０１６年６月２７日　月曜日　午後５時４２分

1273-1. Key information
UK AURIS_HB_EE (OM12K97E)
3
Operation of each component

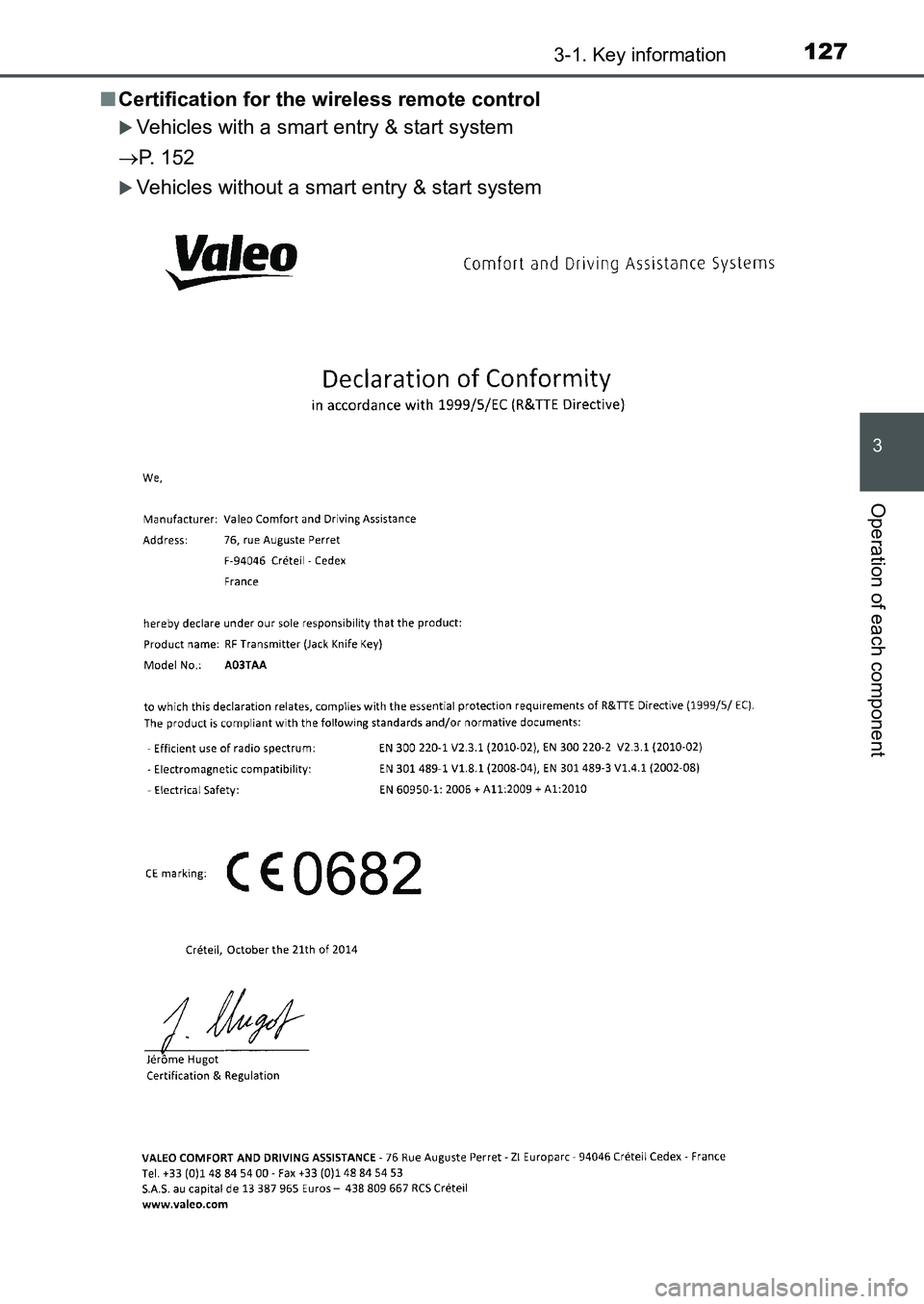

■Certification for the wireless remote control
Vehicles with a smart entry & start system
P. 152
Vehicles without a smart entry & start system
UK AURIS_HB_OM_Europe_OM12K97E.book 127 ページ ２０１６年６月２７日　月曜日　午後５時４２分

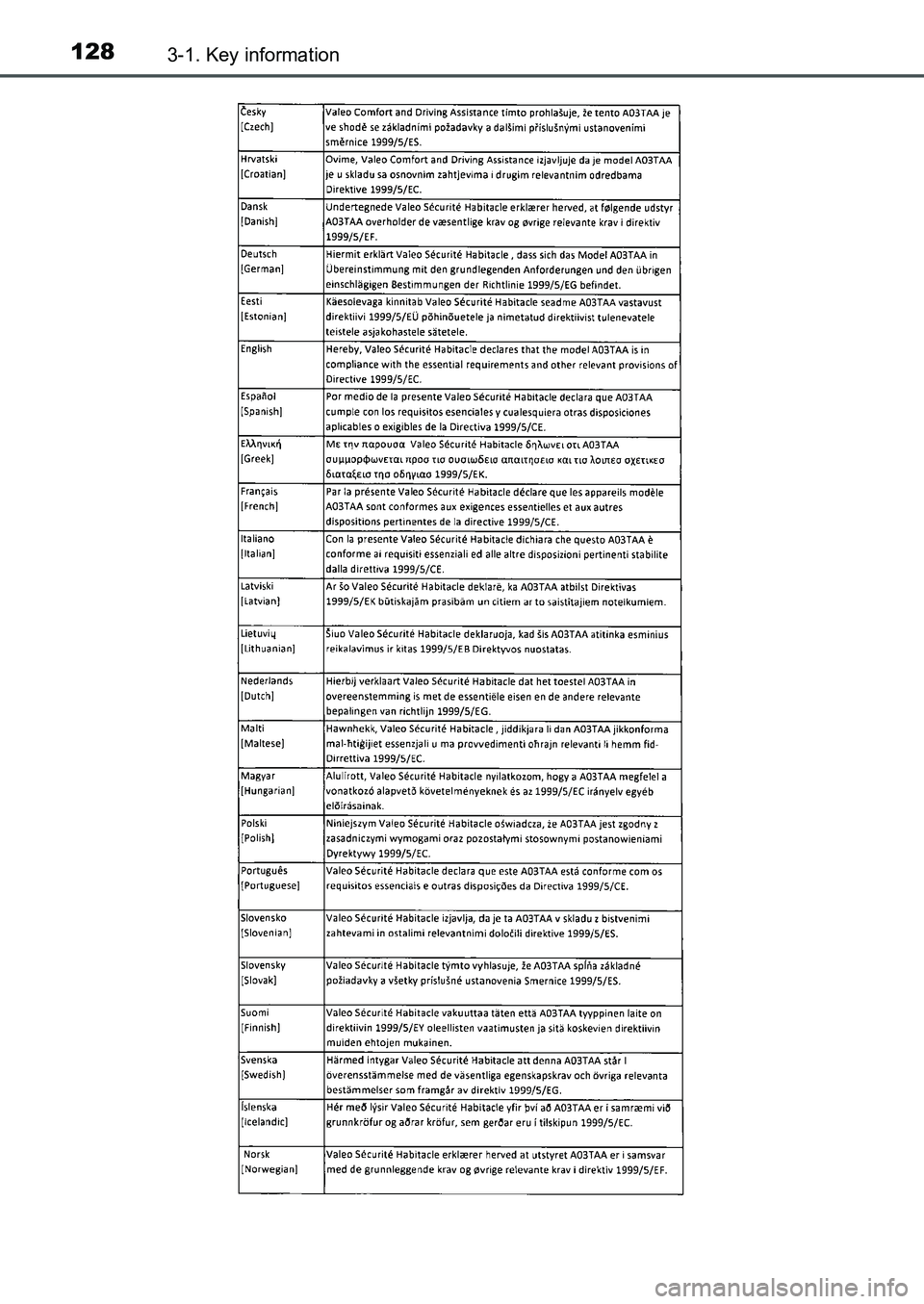

1283-1. Key information
UK AURIS_HB_EE (OM12K97E)
UK AURIS_HB_OM_Europe_OM12K97E.book 128 ページ ２０１６年６月２７日　月曜日　午後５時４２分

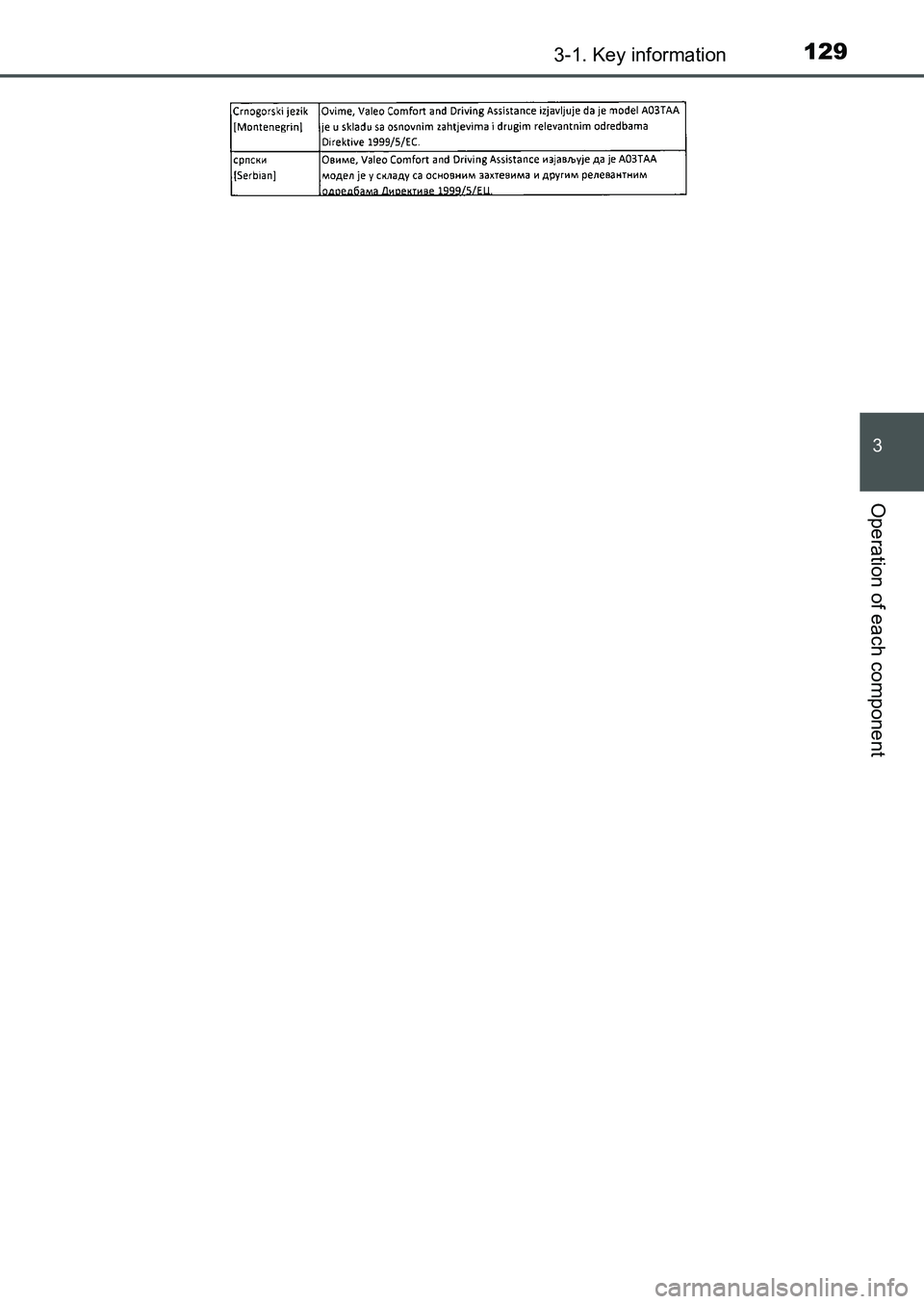

1293-1. Key information
UK AURIS_HB_EE (OM12K97E)
3
Operation of each component
UK AURIS_HB_OM_Europe_OM12K97E.book 129 ページ ２０１６年６月２７日　月曜日　午後５時４２分

1303-1. Key information
UK AURIS_HB_EE (OM12K97E)
UK AURIS_HB_OM_Europe_OM12K97E.book 130 ページ ２０１６年６月２７日　月曜日　午後５時４２分
