TOYOTA AURIS 2017 Owners Manual (in English)

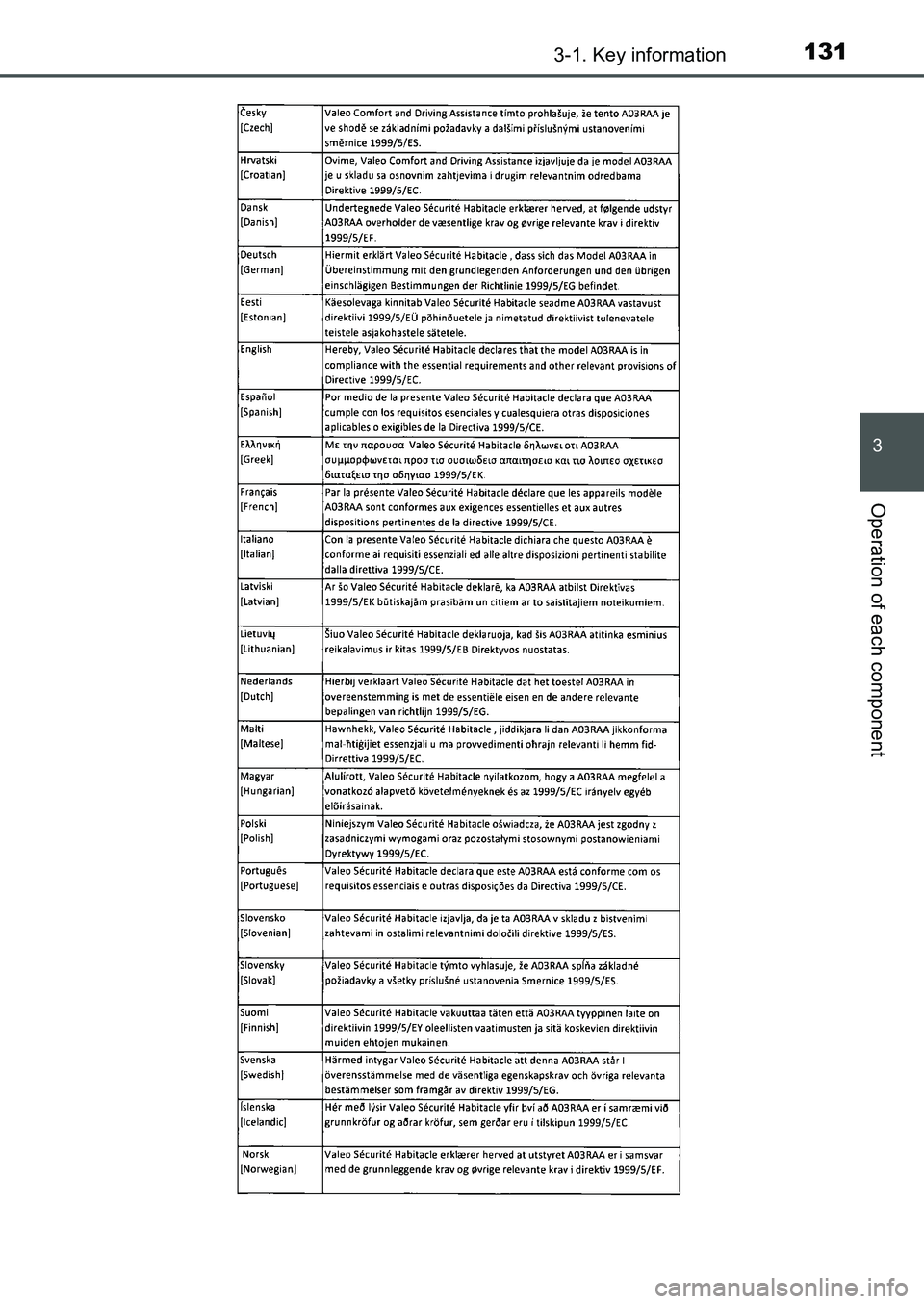

1313-1. Key information
UK AURIS_HB_EE (OM12K97E)
3
Operation of each component
UK AURIS_HB_OM_Europe_OM12K97E.book 131 ページ ２０１６年６月２７日　月曜日　午後５時４２分

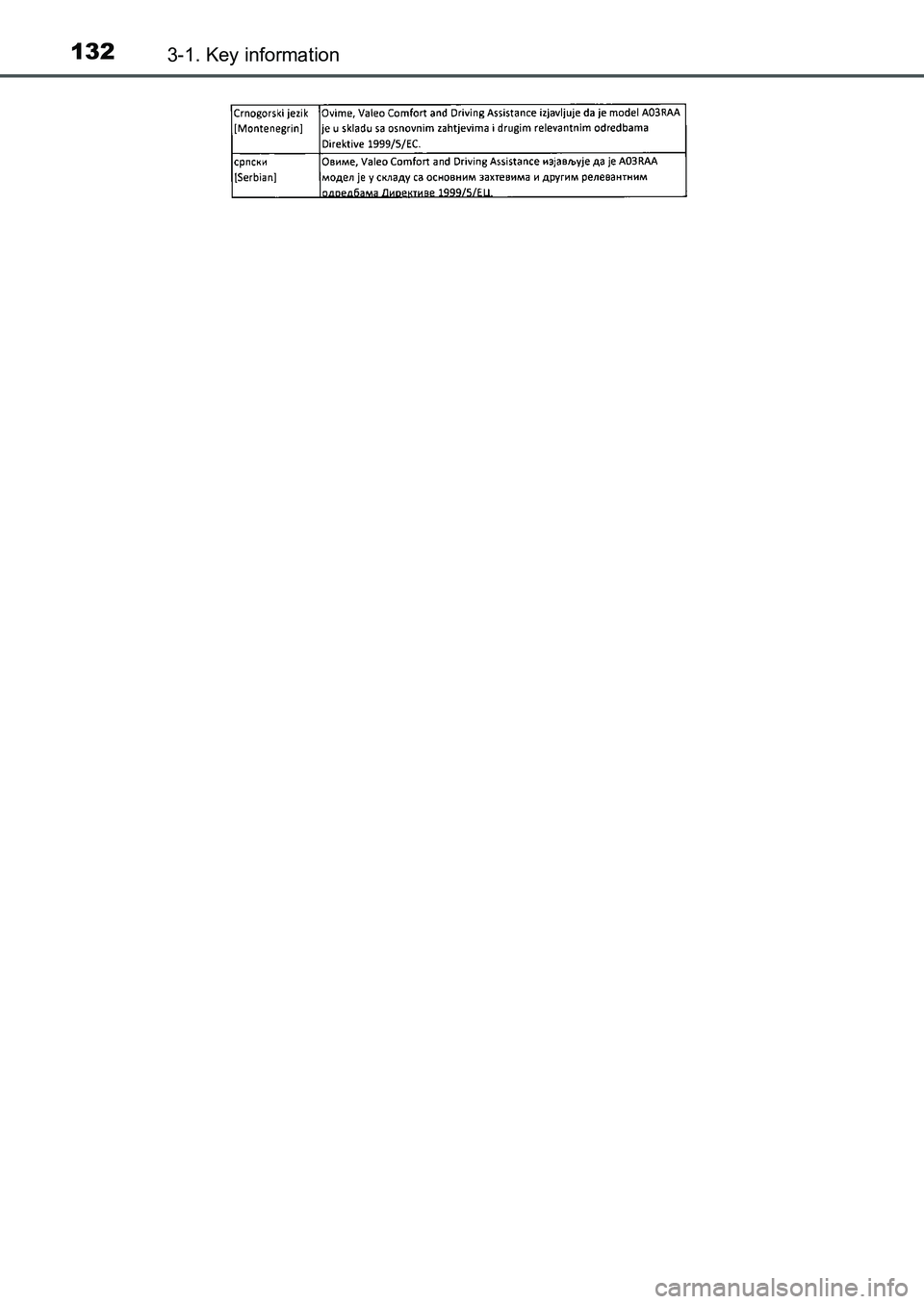

1323-1. Key information
UK AURIS_HB_EE (OM12K97E)
UK AURIS_HB_OM_Europe_OM12K97E.book 132 ページ ２０１６年６月２７日　月曜日　午後５時４２分

1333-1. Key information
UK AURIS_HB_EE (OM12K97E)
3
Operation of each component

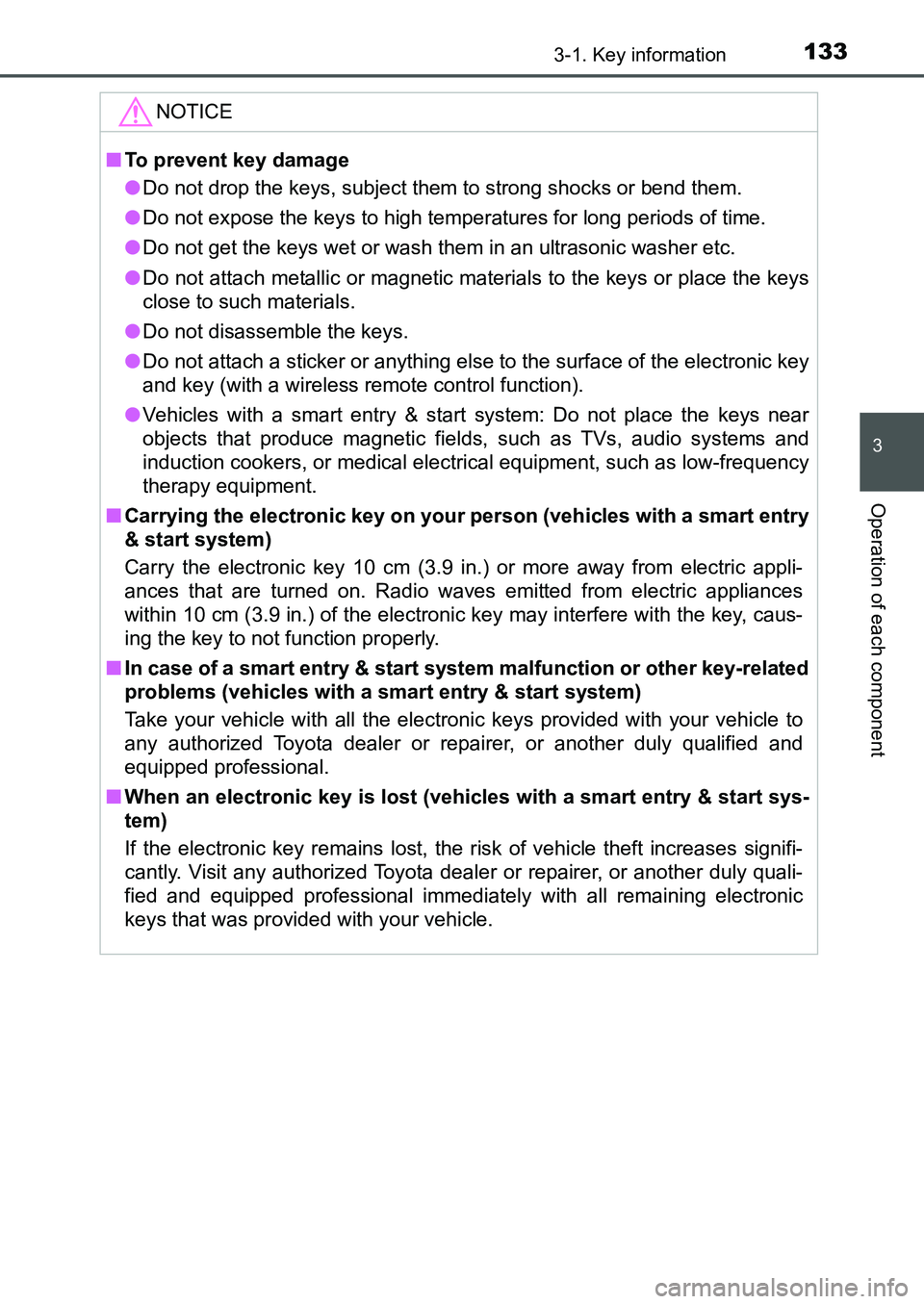

NOTICE
■To prevent key damage
●Do not drop the keys, subject them to strong shocks or bend them.
●Do not expose the keys to high temperatures for long periods of time.
●Do not get the keys wet or wash them in an ultrasonic washer etc.
●Do not attach metallic or magnetic materials to the keys or place the keys
close to such materials.
●Do not disassemble the keys.
●Do not attach a sticker or anything else to the surface of the electronic key
and key (with a wireless remote control function).
●Vehicles with a smart entry & start system: Do not place the keys near
objects that produce magnetic fields, such as TVs, audio systems and
induction cookers, or medical electrical equipment, such as low-frequency
therapy equipment.
■Carrying the electronic key on your person (vehicles with a smart entry
& start system)
Carry the electronic key 10 cm (3.9 in.) or more away from electric appli-
ances that are turned on. Radio waves emitted from electric appliances
within 10 cm (3.9 in.) of the electronic key may interfere with the key, caus-
ing the key to not function properly.
■In case of a smart entry & start system malfunction or other key-related
problems (vehicles with a smart entry & start system)
Take your vehicle with all the electronic keys provided with your vehicle to
any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional.
■When an electronic key is lost (vehicles with a smart entry & start sys-
tem)
If the electronic key remains lost, the risk of vehicle theft increases signifi-
cantly. Visit any authorized Toyota dealer or repairer, or another duly quali-
fied and equipped professional immediately with all remaining electronic
keys that was provided with your vehicle.
UK AURIS_HB_OM_Europe_OM12K97E.book 133 ページ ２０１６年６月２７日　月曜日　午後５時４２分

134
UK AURIS_HB_EE (OM12K97E)

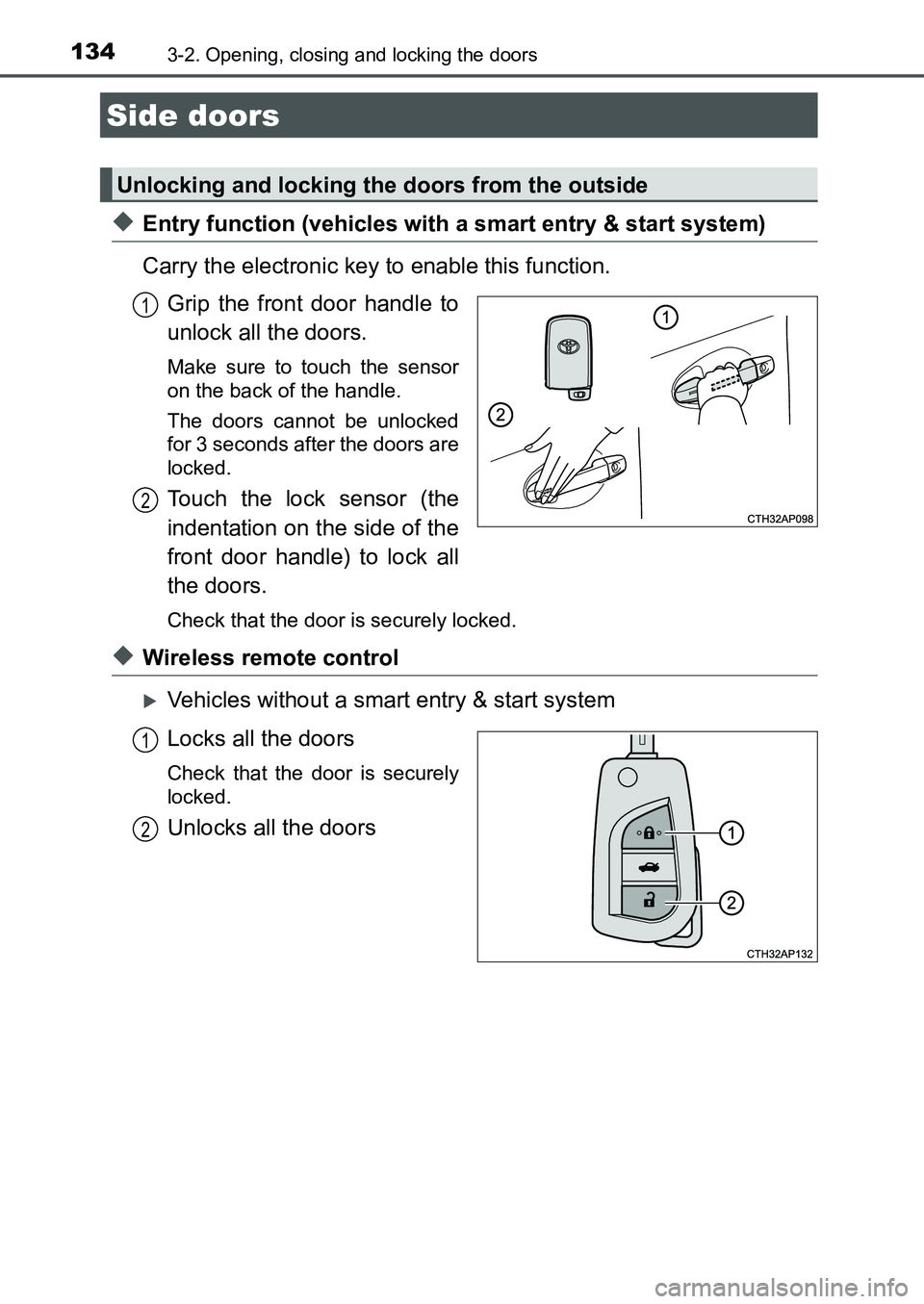

3-2. Opening, closing and locking the doors
◆Entry function (vehicles with a smart entry & start system)
Carry the electronic key to enable this function.
Grip the front door handle to
unlock all the doors.
Make sure to touch the sensor
on the back of the handle.
The doors cannot be unlocked
for 3 seconds after the doors are
locked.
Touch the lock sensor (the
indentation on the side of the
front door handle) to lock all
the doors.
Check that the door is securely locked.
◆Wireless remote control
Vehicles without a smart entry & start system
Locks all the doors
Check that the door is securely
locked.
Unlocks all the doors
Side doors
Unlocking and locking the doors from the outside
1
2
1
2
UK AURIS_HB_OM_Europe_OM12K97E.book 134 ページ ２０１６年６月２７日　月曜日　午後５時４２分

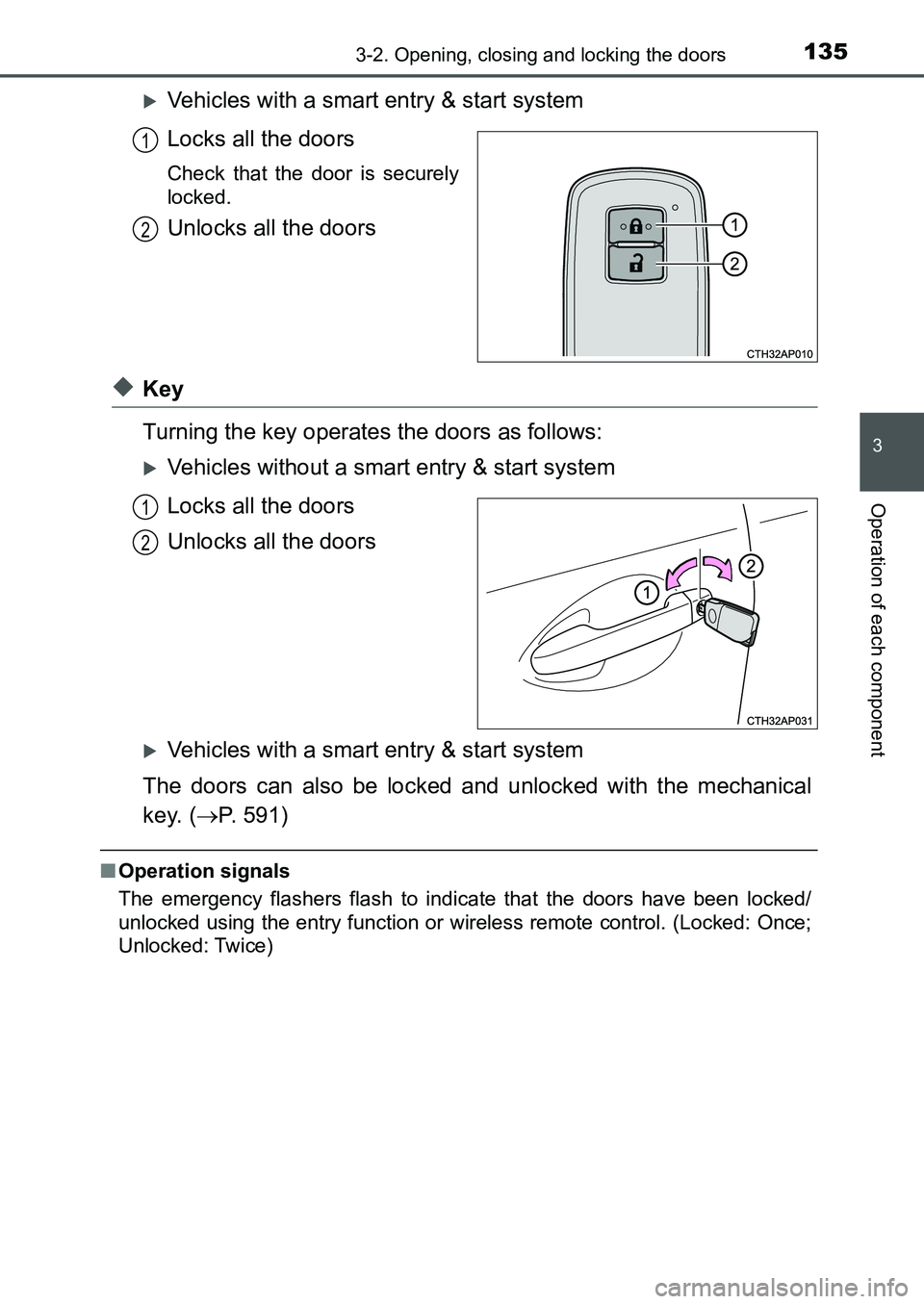

1353-2. Opening, closing and locking the doors
UK AURIS_HB_EE (OM12K97E)
3
Operation of each component
Vehicles with a smart entry & start system
Locks all the doors
Check that the door is securely
locked.
Unlocks all the doors
◆Key
Turning the key operates the doors as follows:
Vehicles without a smart entry & start system
Locks all the doors
Unlocks all the doors
Vehicles with a smart entry & start system
The doors can also be locked and unlocked with the mechanical
key. (P. 591)
■Operation signals
The emergency flashers flash to indicate that the doors have been locked/
unlocked using the entry function or wireless remote control. (Locked: Once;
Unlocked: Twice)
1
2
1
2
UK AURIS_HB_OM_Europe_OM12K97E.book 135 ページ ２０１６年６月２７日　月曜日　午後５時４２分

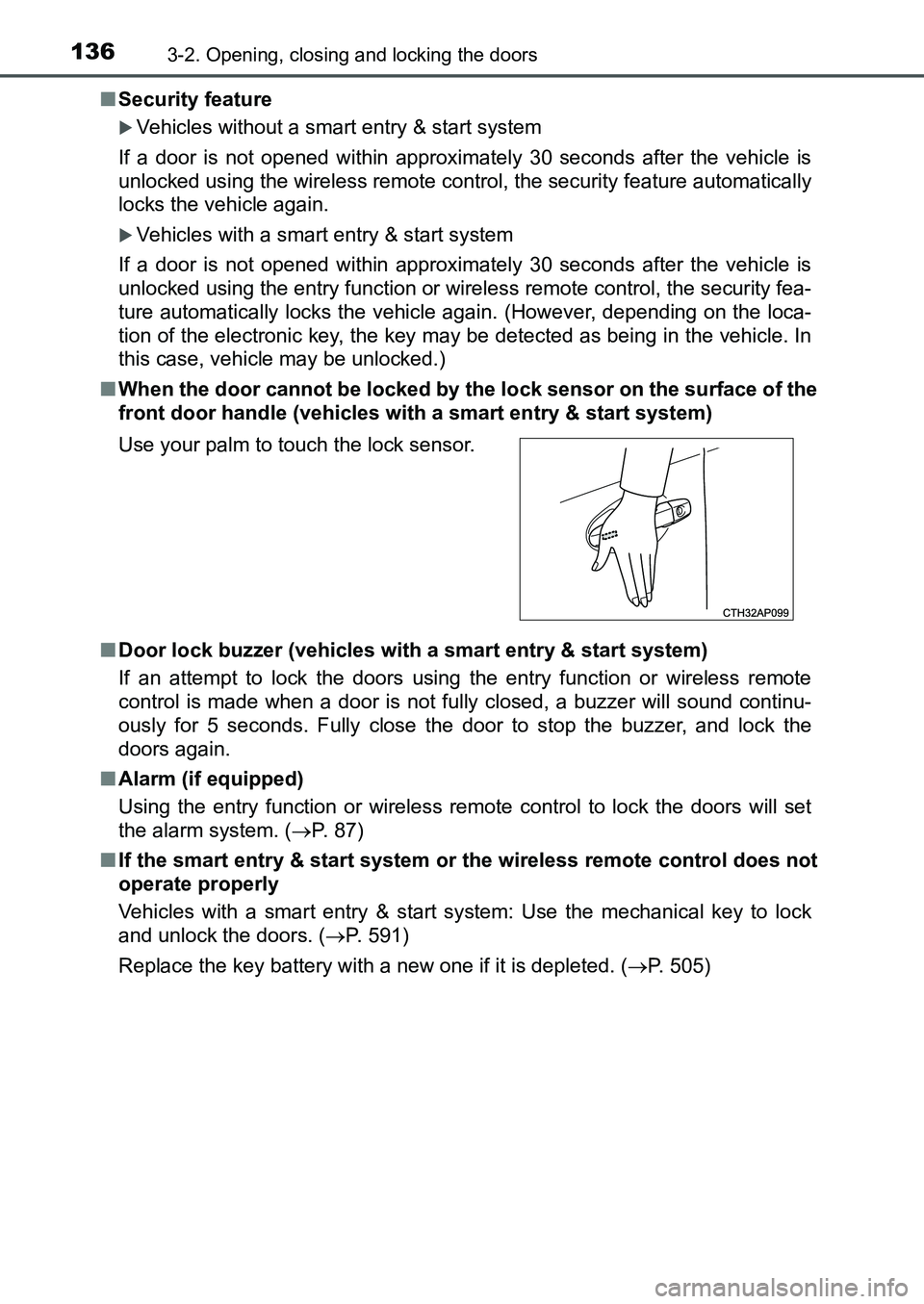

1363-2. Opening, closing and locking the doors
UK AURIS_HB_EE (OM12K97E)■Security feature
Vehicles without a smart entry & start system
If a door is not opened within approximately 30 seconds after the vehicle is
unlocked using the wireless remote control, the security feature automatically
locks the vehicle again.
Vehicles with a smart entry & start system
If a door is not opened within approximately 30 seconds after the vehicle is
unlocked using the entry function or wireless remote control, the security fea-
ture automatically locks the vehicle again. (However, depending on the loca-
tion of the electronic key, the key may be detected as being in the vehicle. In
this case, vehicle may be unlocked.)
■When the door cannot be locked by the lock sensor on the surface of the
front door handle (vehicles with a smart entry & start system)
■Door lock buzzer (vehicles with a smart entry & start system)
If an attempt to lock the doors using the entry function or wireless remote
control is made when a door is not fully closed, a buzzer will sound continu-
ously for 5 seconds. Fully close the door to stop the buzzer, and lock the
doors again.
■Alarm (if equipped)
Using the entry function or wireless remote control to lock the doors will set
the alarm system. (P. 87)
■If the smart entry & start system or the wireless remote control does not
operate properly
Vehicles with a smart entry & start system: Use the mechanical key to lock
and unlock the doors. (P. 591)
Replace the key battery with a new one if it is depleted. (P. 505) Use your palm to touch the lock sensor.
UK AURIS_HB_OM_Europe_OM12K97E.book 136 ページ ２０１６年６月２７日　月曜日　午後５時４２分

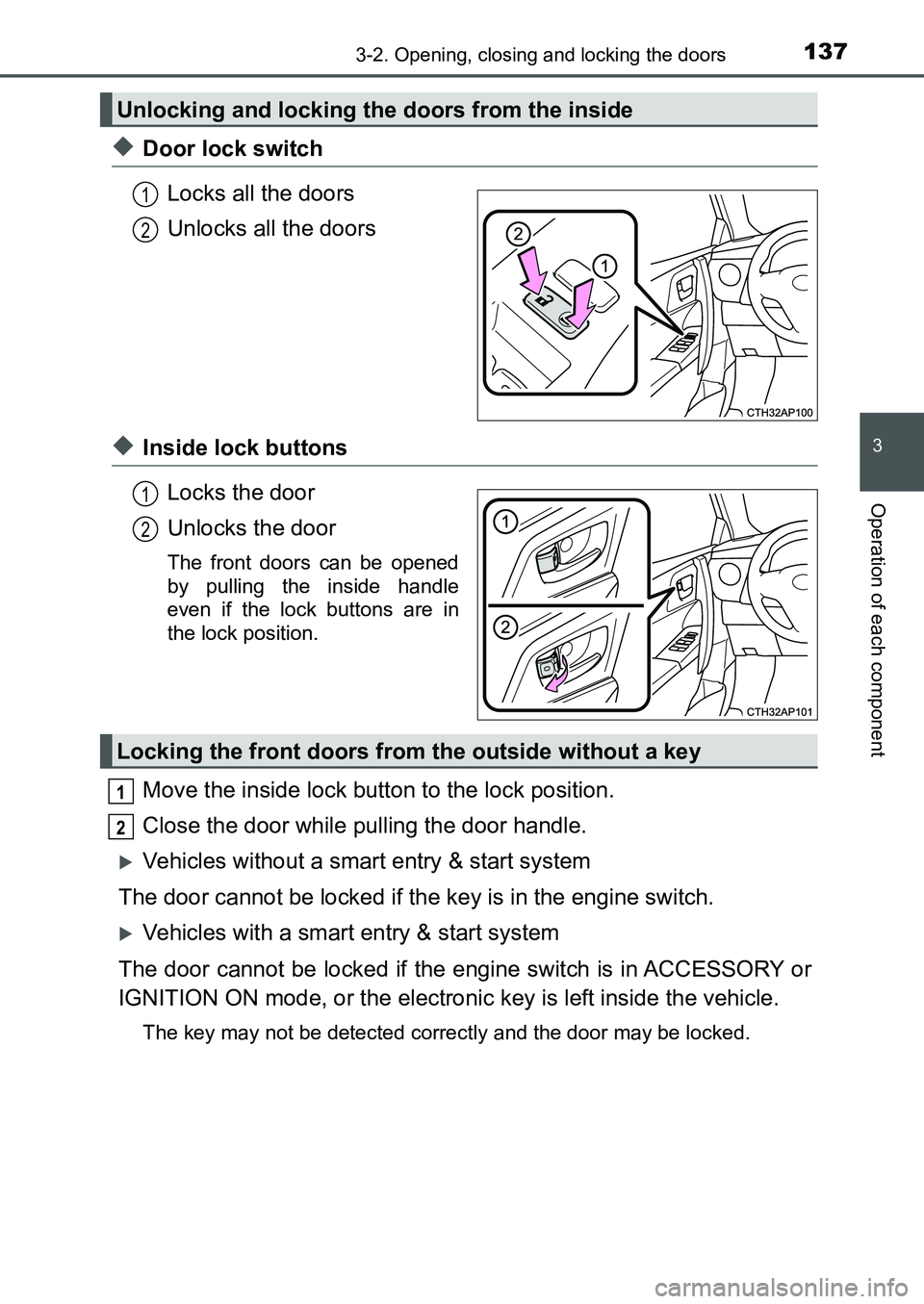

1373-2. Opening, closing and locking the doors
UK AURIS_HB_EE (OM12K97E)
3
Operation of each component
◆Door lock switch
Locks all the doors
Unlocks all the doors
◆Inside lock buttons
Locks the door
Unlocks the door
The front doors can be opened
by pulling the inside handle
even if the lock buttons are in
the lock position.
Move the inside lock button to the lock position.
Close the door while pulling the door handle.
Vehicles without a smart entry & start system
The door cannot be locked if the key is in the engine switch.
Vehicles with a smart entry & start system
The door cannot be locked if the engine switch is in ACCESSORY or
IGNITION ON mode, or the electronic key is left inside the vehicle.
The key may not be detected correctly and the door may be locked.
Unlocking and locking the doors from the inside
1
2
1
2
Locking the front doors from the outside without a key
1
2
UK AURIS_HB_OM_Europe_OM12K97E.book 137 ページ ２０１６年６月２７日　月曜日　午後５時４２分

1383-2. Opening, closing and locking the doors
UK AURIS_HB_EE (OM12K97E)

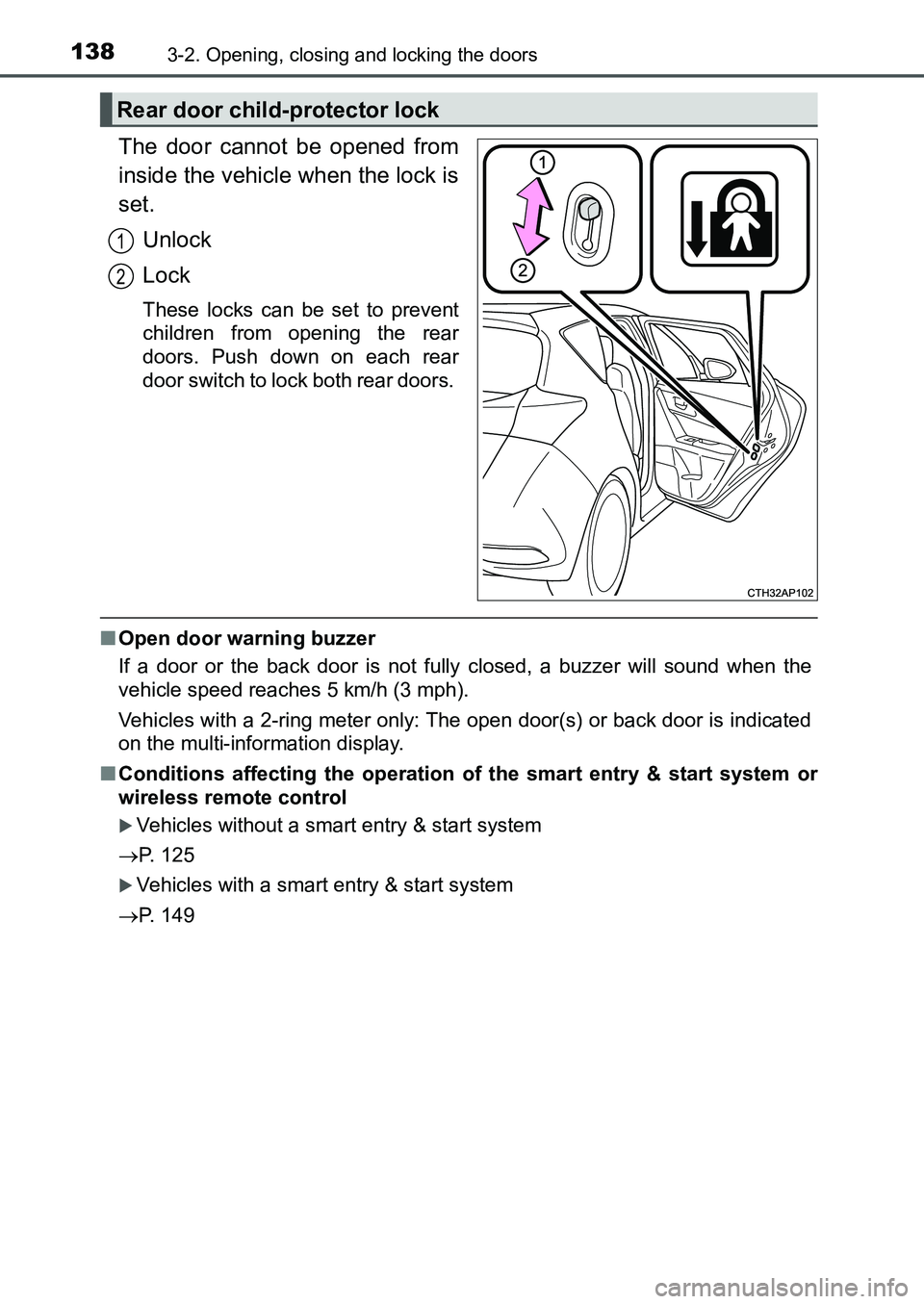

The door cannot be opened from
inside the vehicle when the lock is
set.
Unlock
Lock
These locks can be set to prevent
children from opening the rear
doors. Push down on each rear
door switch to lock both rear doors.
■Open door warning buzzer
If a door or the back door is not fully closed, a buzzer will sound when the
vehicle speed reaches 5 km/h (3 mph).
Vehicles with a 2-ring meter only: The open door(s) or back door is indicated
on the multi-information display.
■Conditions affecting the operation of the smart entry & start system or
wireless remote control
Vehicles without a smart entry & start system
P. 125
Vehicles with a smart entry & start system
P. 149
Rear door child-protector lock
1
2
UK AURIS_HB_OM_Europe_OM12K97E.book 138 ページ ２０１６年６月２７日　月曜日　午後５時４２分

1393-2. Opening, closing and locking the doors
UK AURIS_HB_EE (OM12K97E)
3
Operation of each component

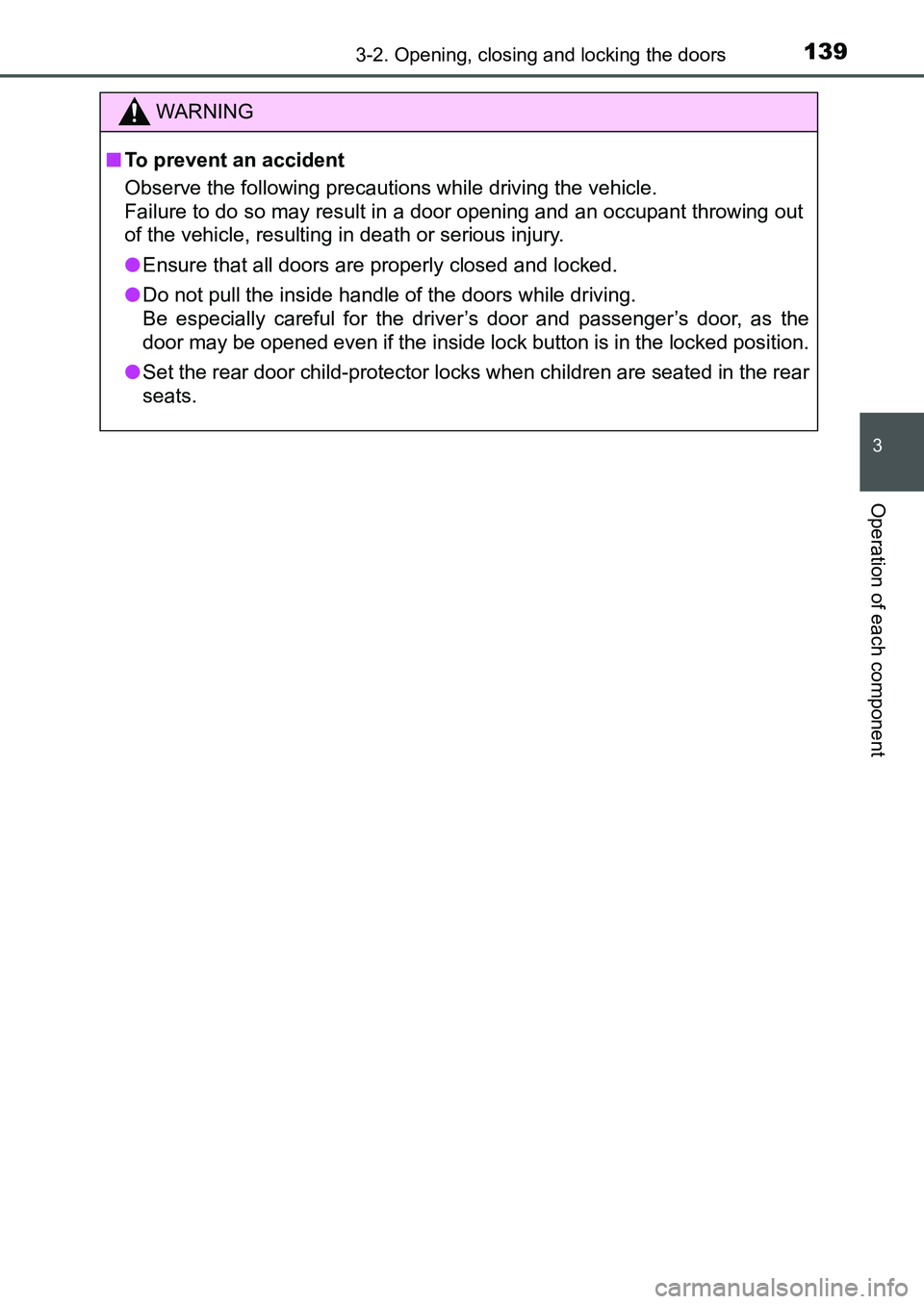

WARNING
■To prevent an accident
Observe the following precautions while driving the vehicle.
Failure to do so may result in a door opening and an occupant throwing out
of the vehicle, resulting in death or serious injury.
●Ensure that all doors are properly closed and locked.
●Do not pull the inside handle of the doors while driving.
Be especially careful for the driver’s door and passenger’s door, as the
door may be opened even if the inside lock button is in the locked position.
●Set the rear door child-protector locks when children are seated in the rear
seats.
UK AURIS_HB_OM_Europe_OM12K97E.book 139 ページ ２０１６年６月２７日　月曜日　午後５時４２分

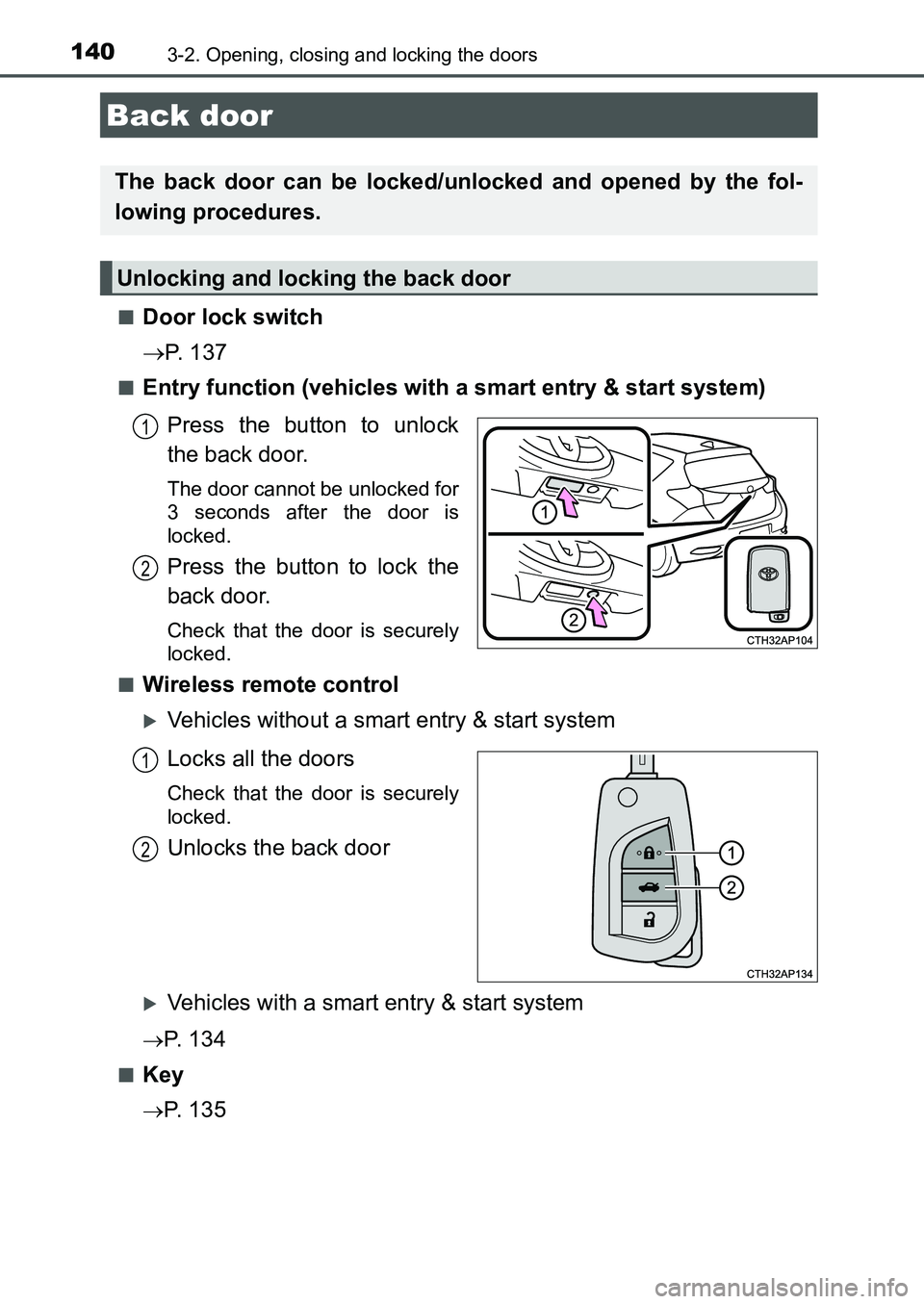

1403-2. Opening, closing and locking the doors
UK AURIS_HB_EE (OM12K97E)■
Door lock switch
P. 1 3 7
■Entry function (vehicles with a smart entry & start system)
Press the button to unlock
the back door.
The door cannot be unlocked for
3 seconds after the door is
locked.
Press the button to lock the
back door.
Check that the door is securely
locked.
■
Wireless remote control
Vehicles without a smart entry & start system
Locks all the doors
Check that the door is securely
locked.
Unlocks the back door
Vehicles with a smart entry & start system
P. 1 3 4
■Key
P. 1 3 5
Back door
The back door can be locked/unlocked and opened by the fol-
lowing procedures.
Unlocking and locking the back door
1
2
1
2
