TOYOTA AURIS 2017 Owners Manual (in English)

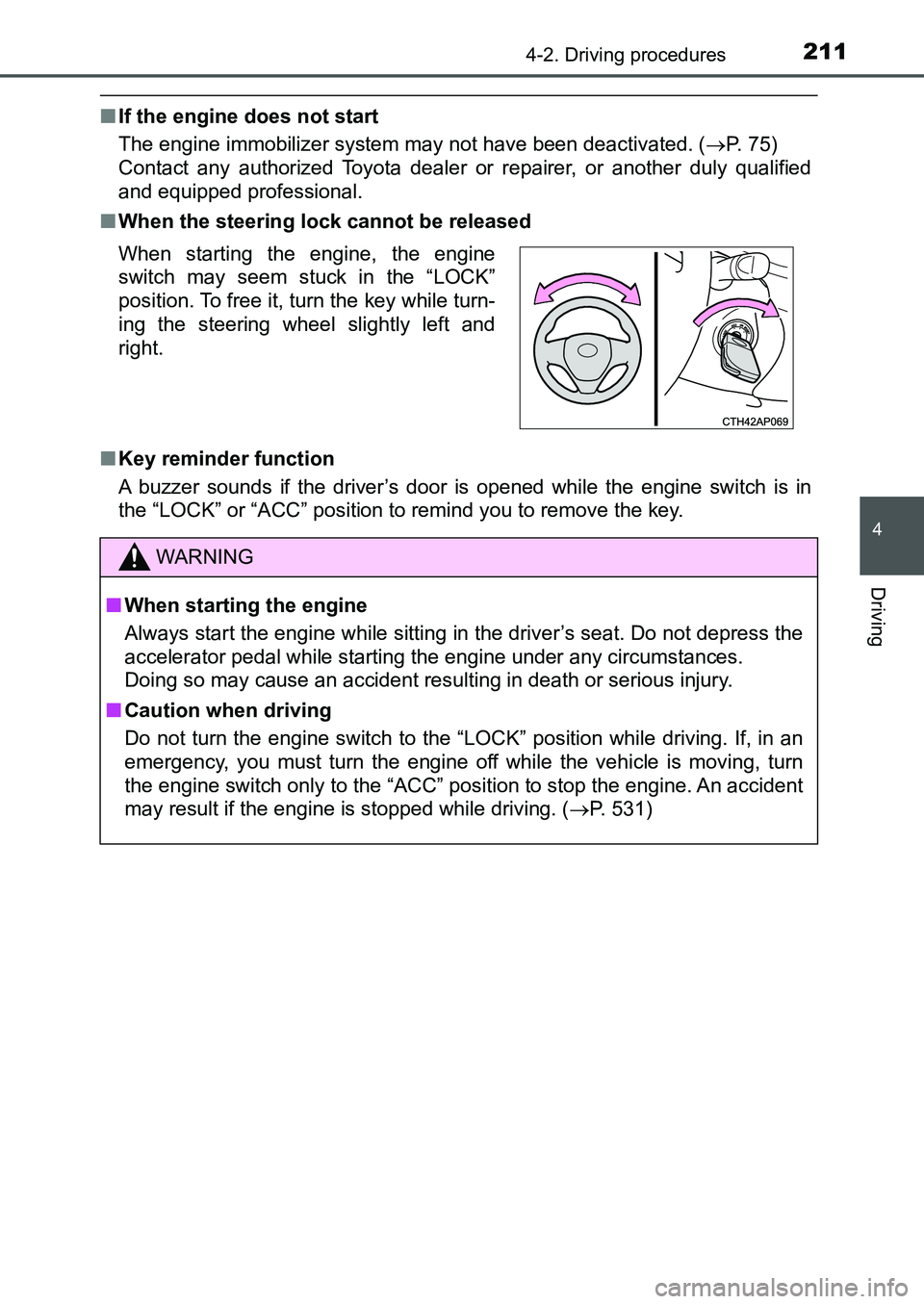

2114-2. Driving procedures
UK AURIS_HB_EE (OM12K97E)
4
Driving
■If the engine does not start
The engine immobilizer system may not have been deactivated. (P. 75)
Contact any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional.
■When the steering lock cannot be released
■Key reminder function
A buzzer sounds if the driver’s door is opened while the engine switch is in
the “LOCK” or “ACC” position to remind you to remove the key. When starting the engine, the engine
switch may seem stuck in the “LOCK”
position. To free it, turn the key while turn-
ing the steering wheel slightly left and
right.
WARNING
■When starting the engine
Always start the engine while sitting in the driver’s seat. Do not depress the
accelerator pedal while starting the engine under any circumstances.
Doing so may cause an accident resulting in death or serious injury.
■Caution when driving
Do not turn the engine switch to the “LOCK” position while driving. If, in an
emergency, you must turn the engine off while the vehicle is moving, turn
the engine switch only to the “ACC” position to stop the engine. An accident
may result if the engine is stopped while driving. (P. 531)
UK AURIS_HB_OM_Europe_OM12K97E.book 211 ページ ２０１６年６月２７日　月曜日　午後５時４２分

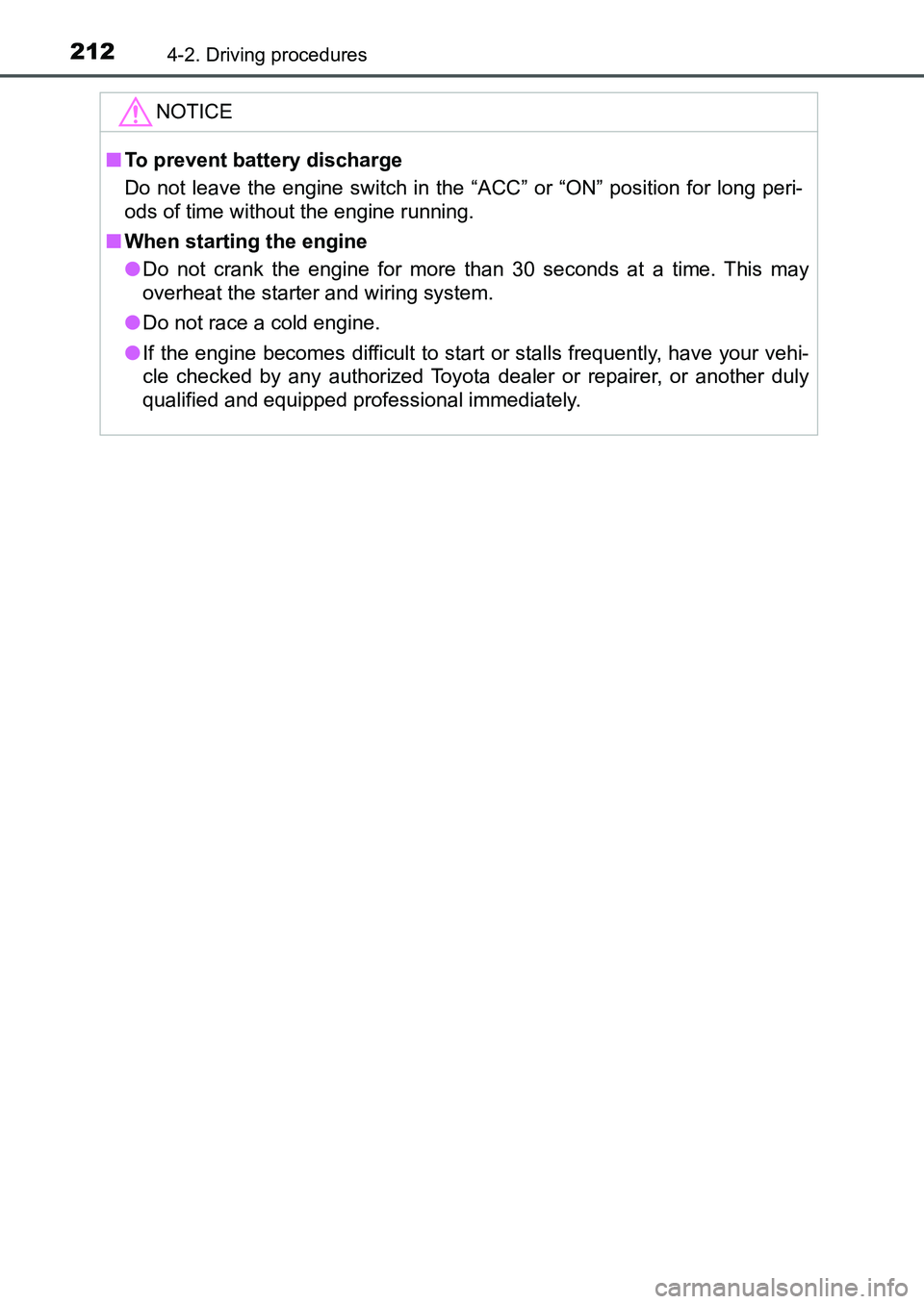

2124-2. Driving procedures
UK AURIS_HB_EE (OM12K97E)
NOTICE
■To prevent battery discharge
Do not leave the engine switch in the “ACC” or “ON” position for long peri-
ods of time without the engine running.
■When starting the engine
●Do not crank the engine for more than 30 seconds at a time. This may
overheat the starter and wiring system.
●Do not race a cold engine.
●If the engine becomes difficult to start or stalls frequently, have your vehi-
cle checked by any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional immediately.
UK AURIS_HB_OM_Europe_OM12K97E.book 212 ページ ２０１６年６月２７日　月曜日　午後５時４２分

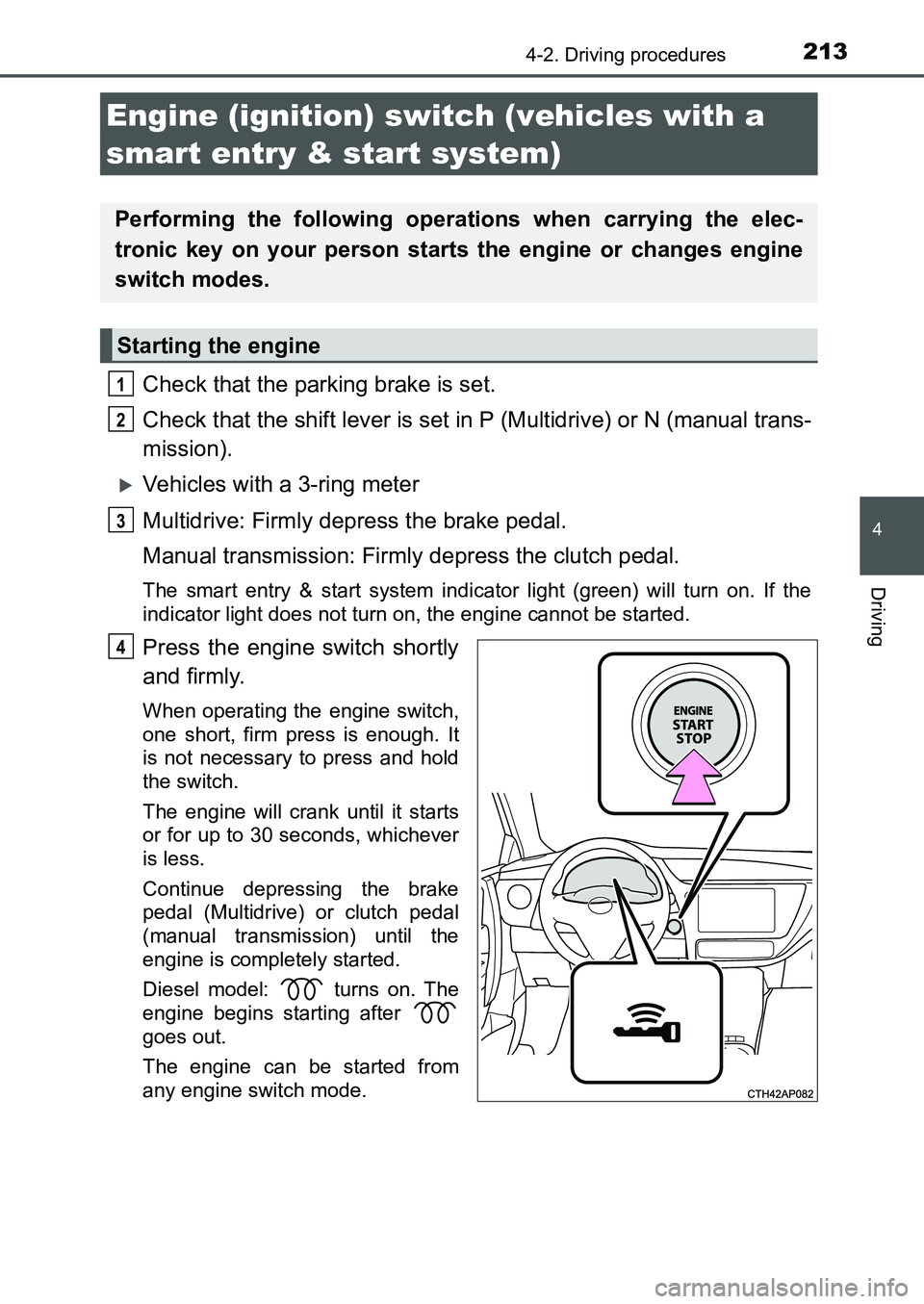

2134-2. Driving procedures
UK AURIS_HB_EE (OM12K97E)
4
Driving
Check that the parking brake is set.
Check that the shift lever is set in P (Multidrive) or N (manual trans-
mission).
Vehicles with a 3-ring meter
Multidrive: Firmly depress the brake pedal.
Manual transmission: Firmly depress the clutch pedal.
The smart entry & start system indicator light (green) will turn on. If the
indicator light does not turn on, the engine cannot be started.
Press the engine switch shortly
and firmly.
When operating the engine switch,
one short, firm press is enough. It
is not necessary to press and hold
the switch.
The engine will crank until it starts
or for up to 30 seconds, whichever
is less.
Continue depressing the brake
pedal (Multidrive) or clutch pedal
(manual transmission) until the
engine is completely started.
Diesel model: turns on. The
engine begins starting after
goes out.
The engine can be started from
any engine switch mode.
Engine (ignition) switch (vehicles with a
smart entry & start system)
Performing the following operations when carrying the elec-
tronic key on your person starts the engine or changes engine
switch modes.
Starting the engine
1
2
3
4
UK AURIS_HB_OM_Europe_OM12K97E.book 213 ページ ２０１６年６月２７日　月曜日　午後５時４２分

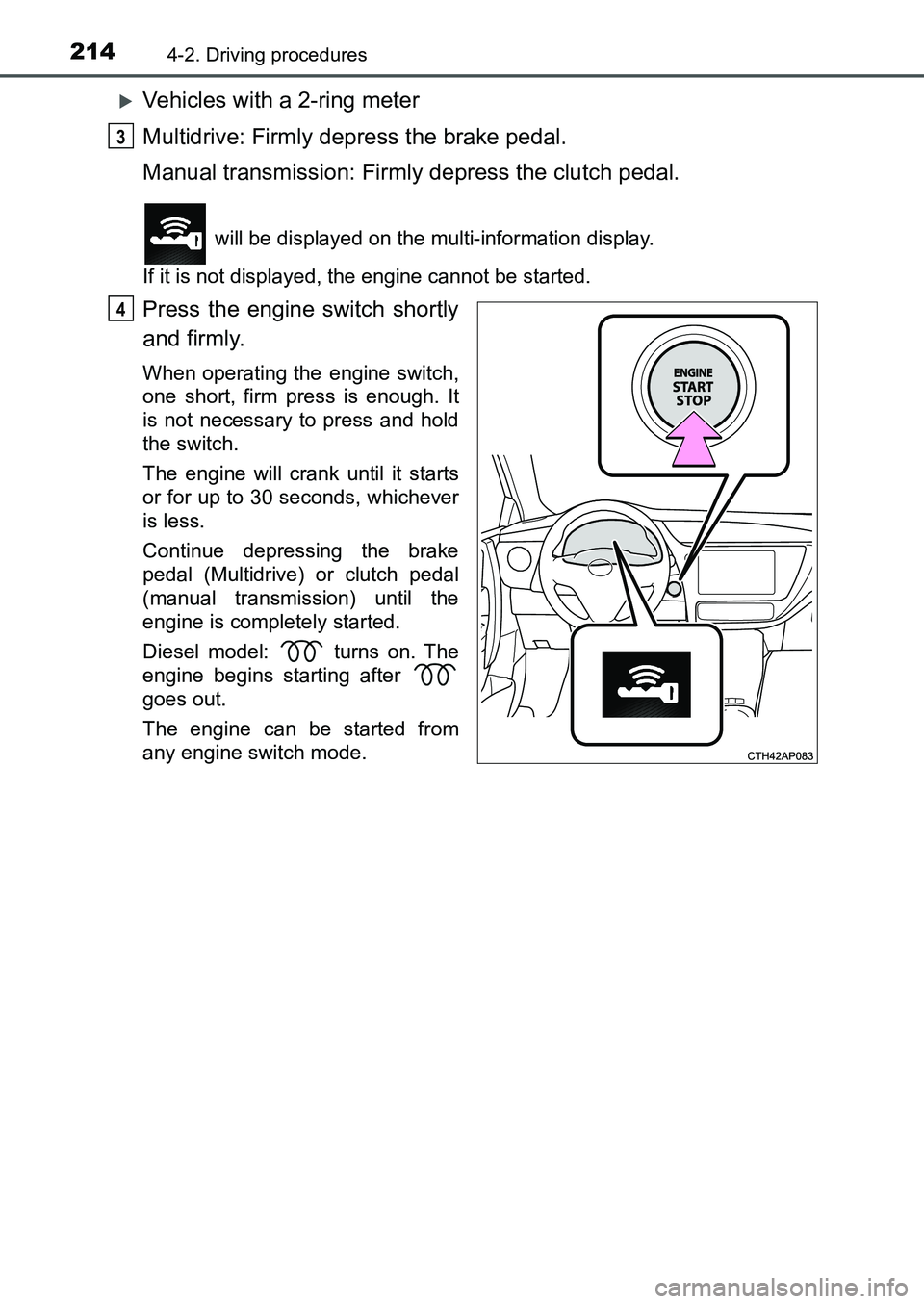

2144-2. Driving procedures
UK AURIS_HB_EE (OM12K97E)
Vehicles with a 2-ring meter
Multidrive: Firmly depress the brake pedal.
Manual transmission: Firmly depress the clutch pedal.
will be displayed on the multi-information display.
If it is not displayed, the engine cannot be started.
Press the engine switch shortly
and firmly.
When operating the engine switch,
one short, firm press is enough. It
is not necessary to press and hold
the switch.
The engine will crank until it starts
or for up to 30 seconds, whichever
is less.
Continue depressing the brake
pedal (Multidrive) or clutch pedal
(manual transmission) until the
engine is completely started.
Diesel model: turns on. The
engine begins starting after
goes out.
The engine can be started from
any engine switch mode.
3
4
UK AURIS_HB_OM_Europe_OM12K97E.book 214 ページ ２０１６年６月２７日　月曜日　午後５時４２分

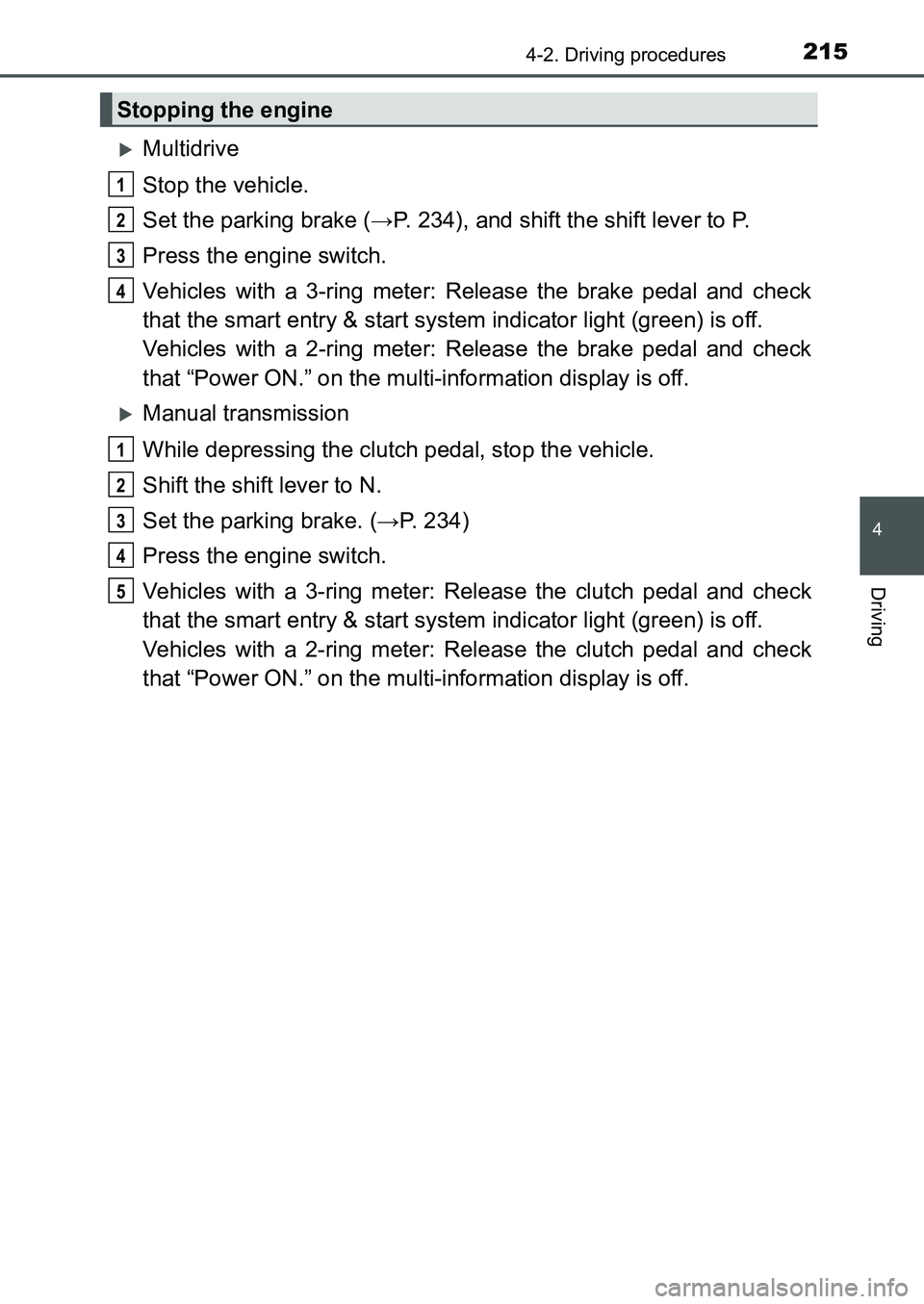

2154-2. Driving procedures
UK AURIS_HB_EE (OM12K97E)
4
Driving
Multidrive
Stop the vehicle.
Set the parking brake (→P. 234), and shift the shift lever to P.
Press the engine switch.
Vehicles with a 3-ring meter: Release the brake pedal and check
that the smart entry & start system indicator light (green) is off.
Vehicles with a 2-ring meter: Release the brake pedal and check
that “Power ON.” on the multi-information display is off.
Manual transmission
While depressing the clutch pedal, stop the vehicle.
Shift the shift lever to N.
Set the parking brake. (→P. 234)
Press the engine switch.
Vehicles with a 3-ring meter: Release the clutch pedal and check
that the smart entry & start system indicator light (green) is off.
Vehicles with a 2-ring meter: Release the clutch pedal and check
that “Power ON.” on the multi-information display is off.
Stopping the engine
1
2
3
4
1
2
3
4
5
UK AURIS_HB_OM_Europe_OM12K97E.book 215 ページ ２０１６年６月２７日　月曜日　午後５時４２分

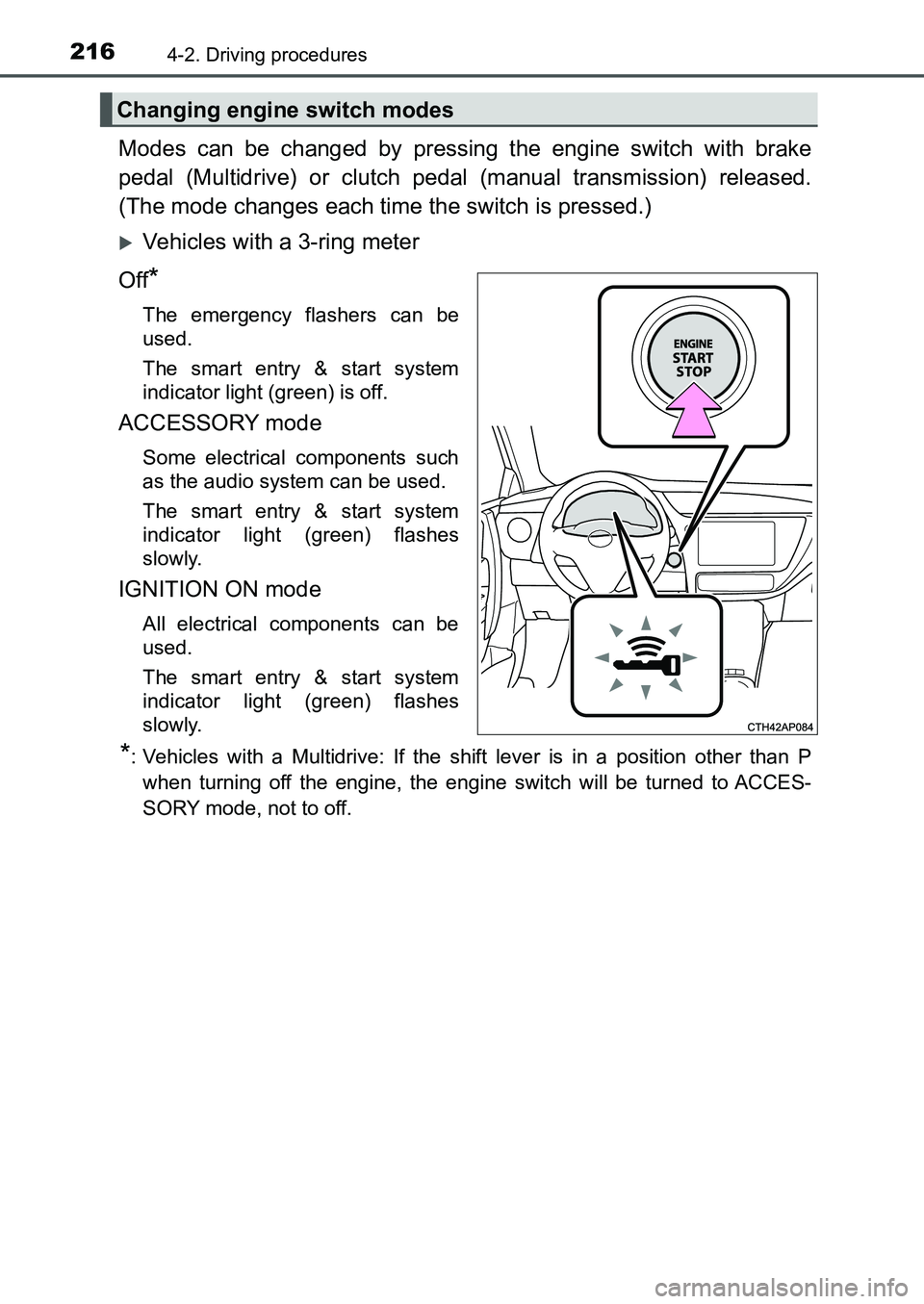

2164-2. Driving procedures
UK AURIS_HB_EE (OM12K97E)
Modes can be changed by pressing the engine switch with brake
pedal (Multidrive) or clutch pedal (manual transmission) released.
(The mode changes each time the switch is pressed.)
Vehicles with a 3-ring meter
Off
*
The emergency flashers can be
used.
The smart entry & start system
indicator light (green) is off.
ACCESSORY mode
Some electrical components such
as the audio system can be used.
The smart entry & start system
indicator light (green) flashes
slowly.
IGNITION ON mode
All electrical components can be
used.
The smart entry & start system
indicator light (green) flashes
slowly.
*: Vehicles with a Multidrive: If the shift lever is in a position other than P
when turning off the engine, the engine switch will be turned to ACCES-
SORY mode, not to off.
Changing engine switch modes
UK AURIS_HB_OM_Europe_OM12K97E.book 216 ページ ２０１６年６月２７日　月曜日　午後５時４２分

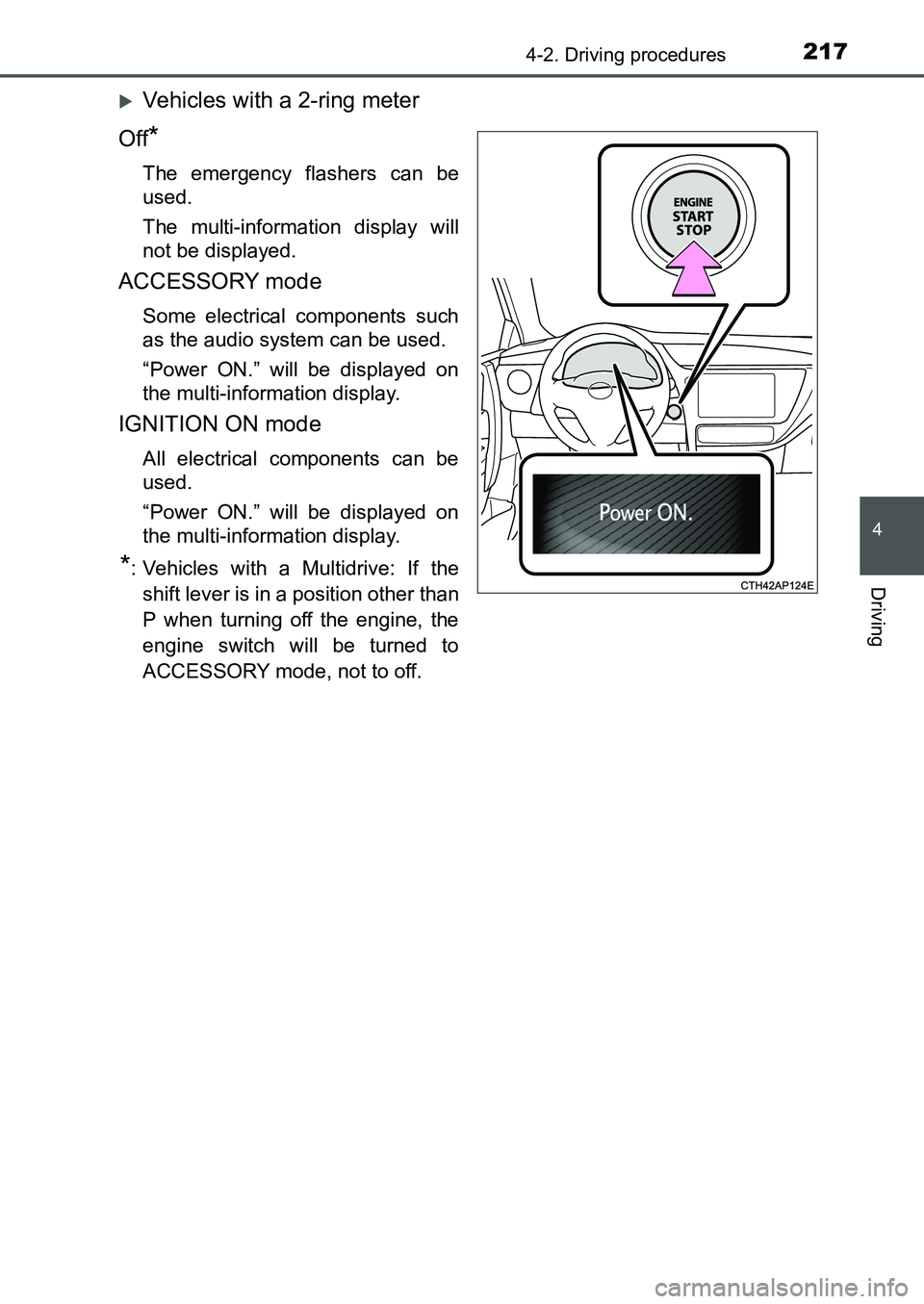

2174-2. Driving procedures
UK AURIS_HB_EE (OM12K97E)
4
Driving
Vehicles with a 2-ring meter
Off
*
The emergency flashers can be
used.
The multi-information display will
not be displayed.
ACCESSORY mode
Some electrical components such
as the audio system can be used.
“Power ON.” will be displayed on
the multi-information display.
IGNITION ON mode
All electrical components can be
used.
“Power ON.” will be displayed on
the multi-information display.
*: Vehicles with a Multidrive: If the
shift lever is in a position other than
P when turning off the engine, the
engine switch will be turned to
ACCESSORY mode, not to off.
UK AURIS_HB_OM_Europe_OM12K97E.book 217 ページ ２０１６年６月２７日　月曜日　午後５時４２分

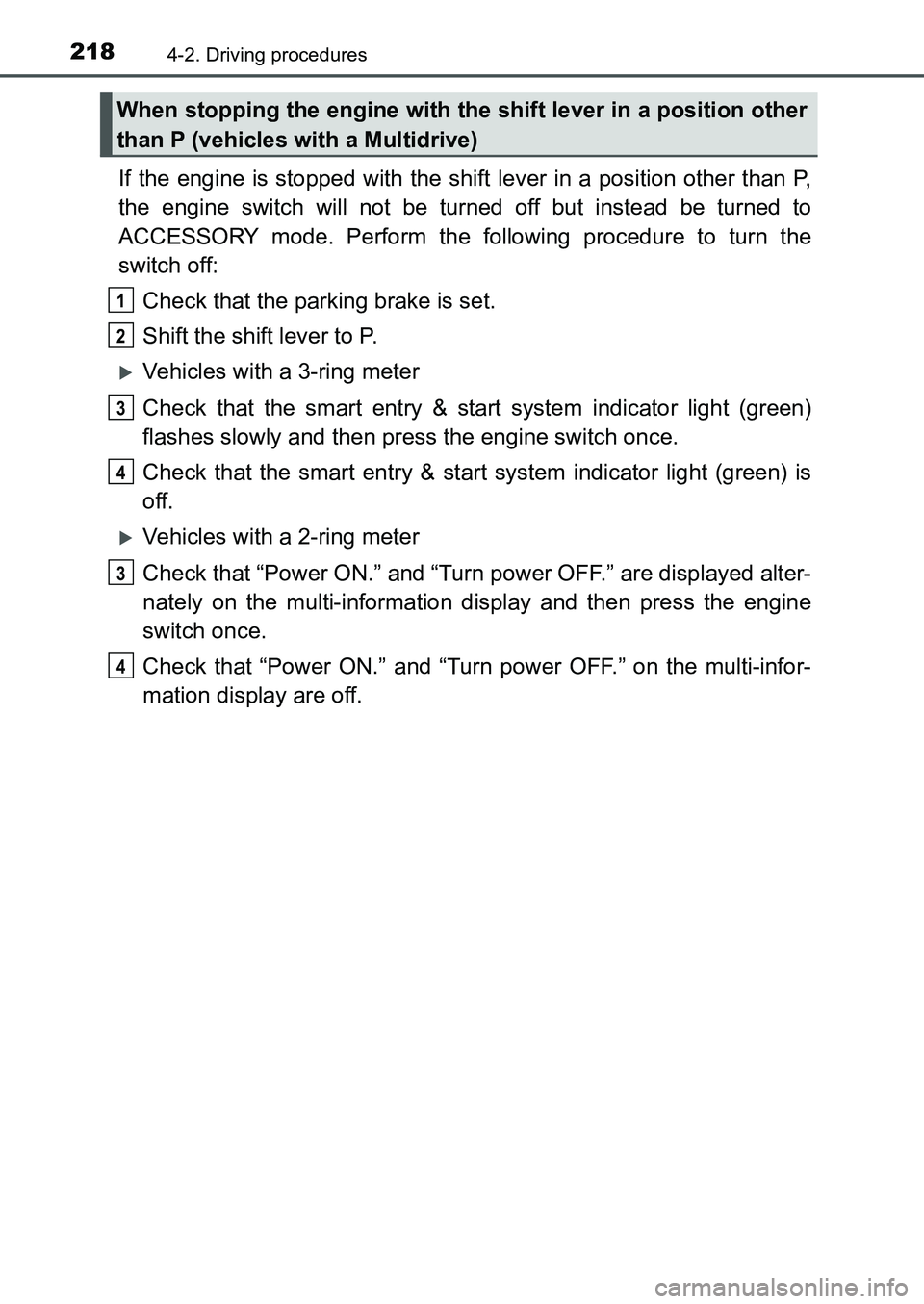

2184-2. Driving procedures
UK AURIS_HB_EE (OM12K97E)
If the engine is stopped with the shift lever in a position other than P,
the engine switch will not be turned off but instead be turned to
ACCESSORY mode. Perform the following procedure to turn the
switch off:
Check that the parking brake is set.
Shift the shift lever to P.
Vehicles with a 3-ring meter
Check that the smart entry & start system indicator light (green)
flashes slowly and then press the engine switch once.
Check that the smart entry & start system indicator light (green) is
off.
Vehicles with a 2-ring meter
Check that “Power ON.” and “Turn power OFF.” are displayed alter-
nately on the multi-information display and then press the engine
switch once.
Check that “Power ON.” and “Turn power OFF.” on the multi-infor-
mation display are off.
When stopping the engine with the shift lever in a position other
than P (vehicles with a Multidrive)
1
2
3
4
3
4
UK AURIS_HB_OM_Europe_OM12K97E.book 218 ページ ２０１６年６月２７日　月曜日　午後５時４２分

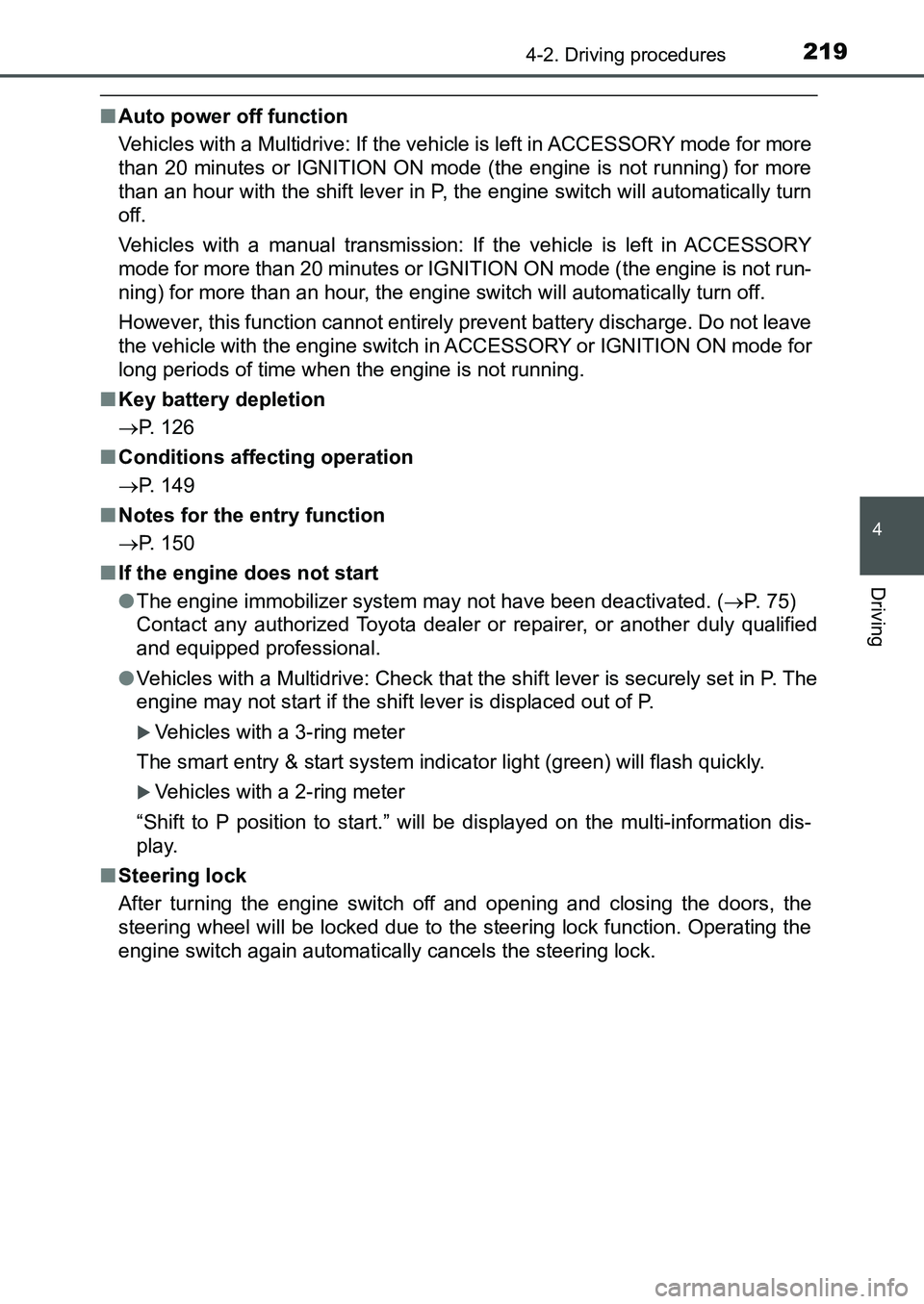

2194-2. Driving procedures
UK AURIS_HB_EE (OM12K97E)
4
Driving
■Auto power off function
Vehicles with a Multidrive: If the vehicle is left in ACCESSORY mode for more
than 20 minutes or IGNITION ON mode (the engine is not running) for more
than an hour with the shift lever in P, the engine switch will automatically turn
off.
Vehicles with a
manual transmission: If the vehicle is left in ACCESSORY
mode for more than 20 minutes or IGNITION ON mode (the engine is not run-
ning) for more than an hour, the engine switch will automatically turn off.
However, this function cannot entirely prevent battery discharge. Do not leave
the vehicle with the engine switch in ACCESSORY or IGNITION ON mode for
long periods of time when the engine is not running.
■Key battery depletion
P. 126
■Conditions affecting operation
P. 149
■Notes for the entry function
P. 150
■If the engine does not start
●The engine immobilizer system may not have been deactivated. (P. 75)
Contact any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional.
●Vehicles with a Multidrive: Check that the shift lever is securely set in P. The
engine may not start if the shift lever is displaced out of P.
Vehicles with a 3-ring meter
The smart entry & start system indicator light (green) will flash quickly.
Vehicles with a 2-ring meter
“Shift to P position to start.” will be displayed on the multi-information dis-
play.
■Steering lock
After turning the engine switch off and opening and closing the doors, the
steering wheel will be locked due to the steering lock function. Operating the
engine switch again automatically cancels the steering lock.
UK AURIS_HB_OM_Europe_OM12K97E.book 219 ページ ２０１６年６月２７日　月曜日　午後５時４２分

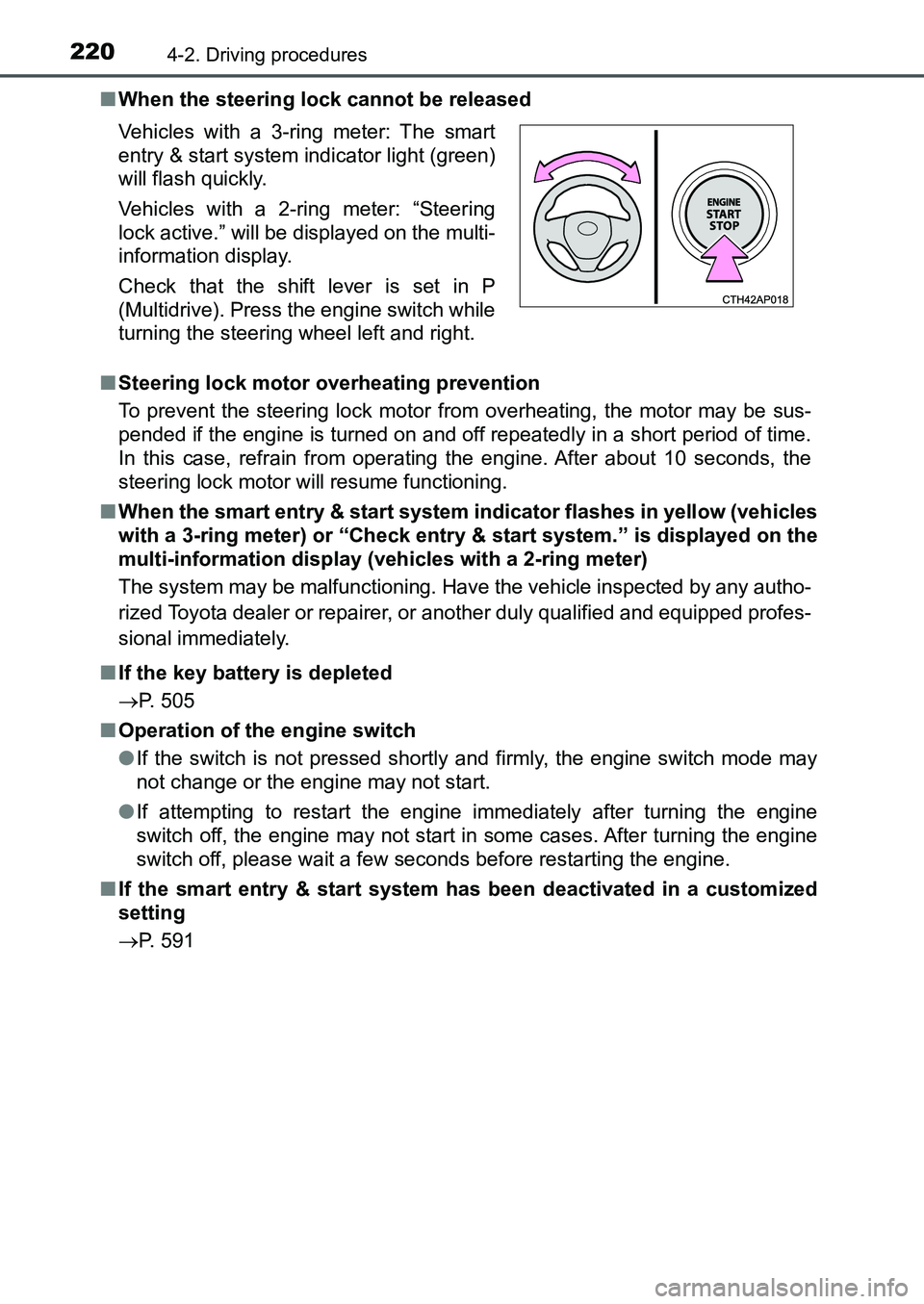

2204-2. Driving procedures
UK AURIS_HB_EE (OM12K97E)■When the steering lock cannot be released
■Steering lock motor overheating prevention
To prevent the steering lock motor from overheating, the motor may be sus-
pended if the engine is turned on and off repeatedly in a short period of time.
In this case, refrain from operating the engine. After about 10 seconds, the
steering lock motor will resume functioning.
■When the smart entry & start system indicator flashes in yellow (vehicles
with a 3-ring meter) or “Check entry & start system.” is displayed on the
multi-information display (vehicles with a 2-ring meter)
The system may be malfunctioning. Have the vehicle inspected by any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped profes-
sional immediately.
■If the key battery is depleted
P. 505
■Operation of the engine switch
●If the switch is not pressed shortly and firmly, the engine switch mode may
not change or the engine may not start.
●If attempting to restart the engine immediately after turning the engine
switch off, the engine may not start in some cases. After turning the engine
switch off, please wait a few seconds before restarting the engine.
■If the smart entry & start system has been deactivated in a customized
setting
P. 591 Vehicles with a 3-ring meter: The smart
entry & start system indicator light (green)
will flash quickly.
Vehicles with a 2-ring meter: “Steering
lock active.” will be displayed on the multi-
information display.
Check that the shift lever is set in P
(Multidrive). Press the engine switch while
turning the steering wheel left and right.
