TOYOTA AURIS 2017 Owners Manual (in English)

1713-3. Adjusting the seats
UK AURIS_HB_EE (OM12K97E)
3
Operation of each component

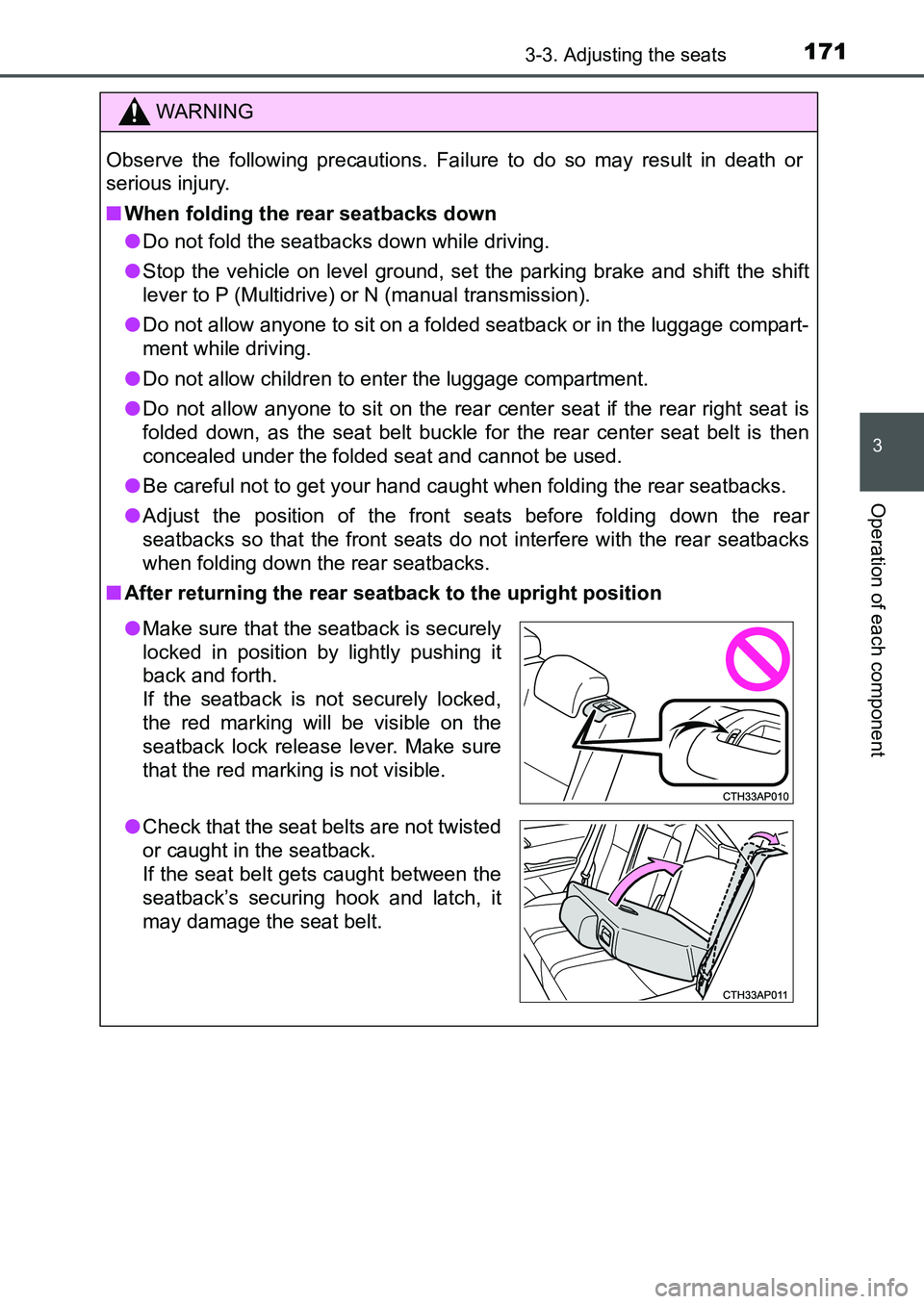

WARNING
Observe the following precautions. Failure to do so may result in death or
serious injury.
■When folding the rear seatbacks down
●Do not fold the seatbacks down while driving.
●Stop the vehicle on level ground, set the parking brake and shift the shift
lever to P (Multidrive) or N (manual transmission).
●Do not allow anyone to sit on a folded seatback or in the luggage compart-
ment while driving.
●Do not allow children to enter the luggage compartment.
●Do not allow anyone to sit on the rear center seat if the rear right seat is
folded down, as the seat belt buckle for the rear center seat belt is then
concealed under the folded seat and cannot be used.
●Be careful not to get your hand caught when folding the rear seatbacks.
●Adjust the position of the front seats before folding down the rear
seatbacks so that the front seats do not interfere with the rear seatbacks
when folding down the rear seatbacks.
■After returning the rear seatback to the upright position
●Make sure that the seatback is securely
locked in position by lightly pushing it
back and forth.
If the seatback is not securely locked,
the red marking will be visible on the
seatback lock release lever. Make sure
that the red marking is not visible.
●Check that the seat belts are not twisted
or caught in the seatback.
If the seat belt gets caught between the
seatback’s securing hook and latch, it
may damage the seat belt.
UK AURIS_HB_OM_Europe_OM12K97E.book 171 ページ ２０１６年６月２７日　月曜日　午後５時４２分

1723-3. Adjusting the seats
UK AURIS_HB_EE (OM12K97E)

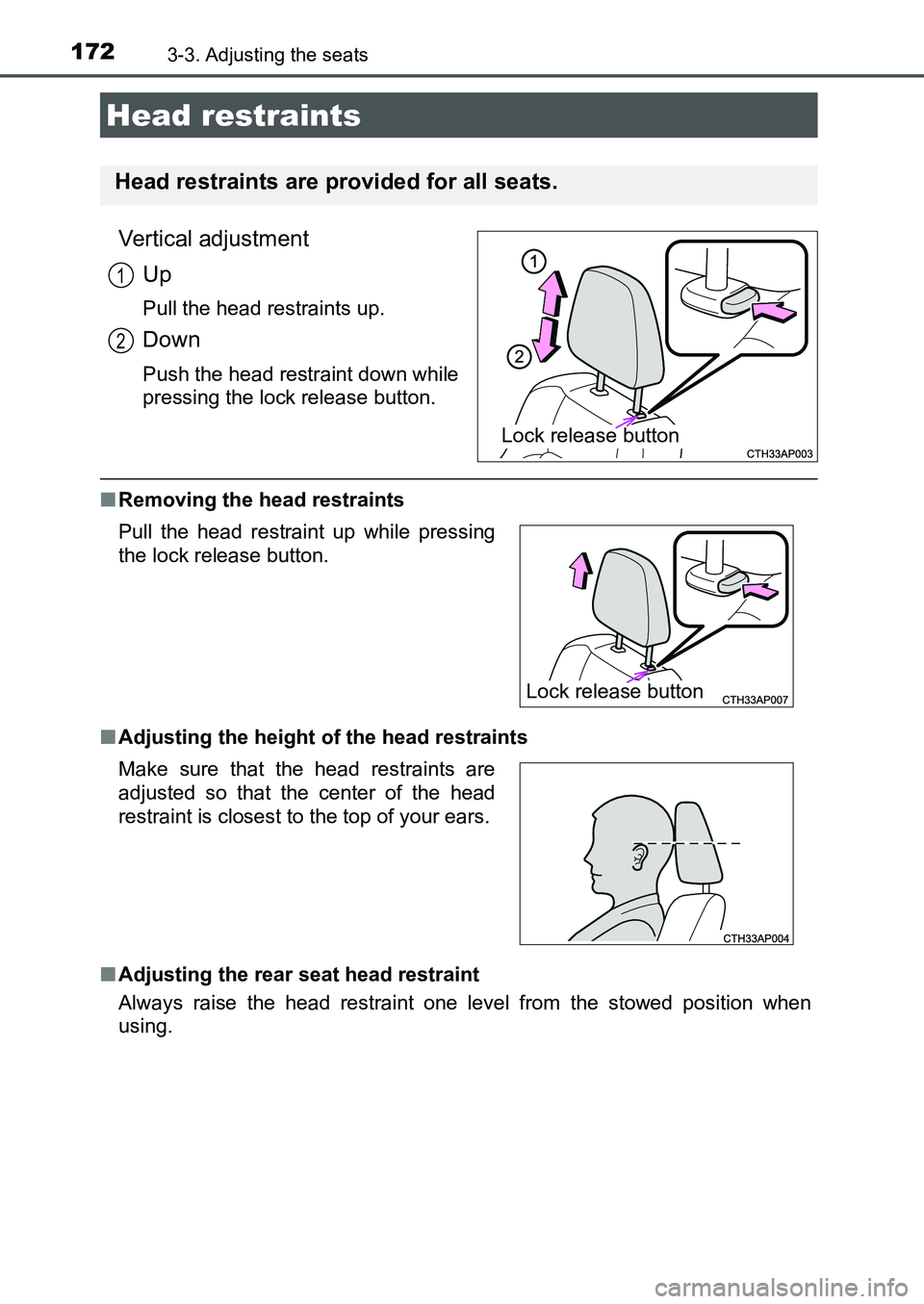

Vertical adjustment
Up
Pull the head restraints up.
Down
Push the head restraint down while
pressing the lock release button.
■Removing the head restraints
■Adjusting the height of the head restraints
■Adjusting the rear seat head restraint
Always raise the head restraint one level from the stowed position when
using.
Head restraints
Head restraints are provided for all seats.
Lock release button
1
2
Pull the head restraint up while pressing
the lock release button.
Make sure that the head restraints are
adjusted so that the center of the head
restraint is closest to the top of your ears.
Lock release button
UK AURIS_HB_OM_Europe_OM12K97E.book 172 ページ ２０１６年６月２７日　月曜日　午後５時４２分

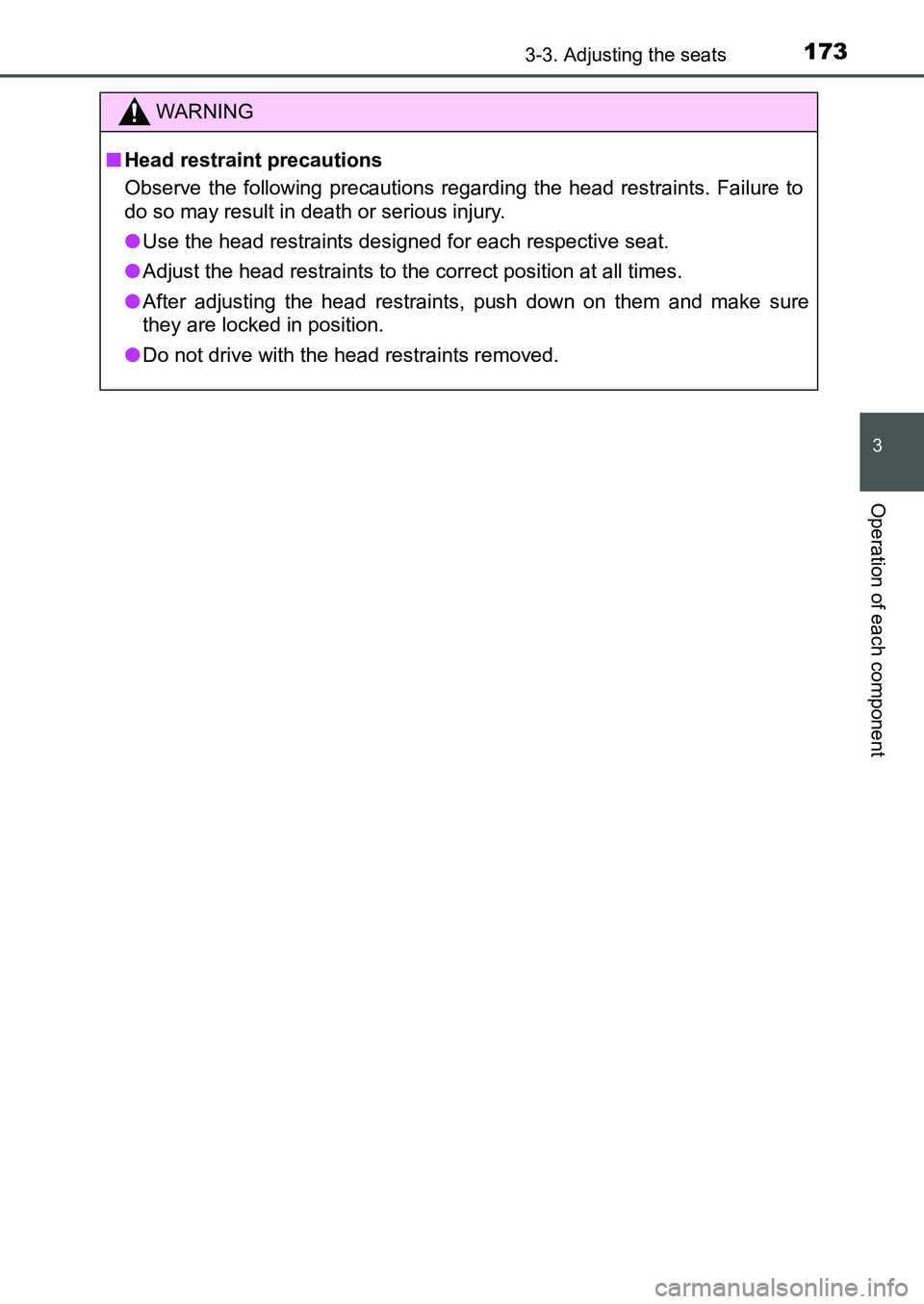

1733-3. Adjusting the seats
UK AURIS_HB_EE (OM12K97E)
3
Operation of each component
WARNING
■Head restraint precautions
Observe the following precautions regarding the head restraints. Failure to
do so may result in death or serious injury.
●Use the head restraints designed for each respective seat.
●Adjust the head restraints to the correct position at all times.
●After adjusting the head restraints, push down on them and make sure
they are locked in position.
●Do not drive with the head restraints removed.
UK AURIS_HB_OM_Europe_OM12K97E.book 173 ページ ２０１６年６月２７日　月曜日　午後５時４２分

174
UK AURIS_HB_EE (OM12K97E)
3-4. Adjusting the steering wheel and mirrors

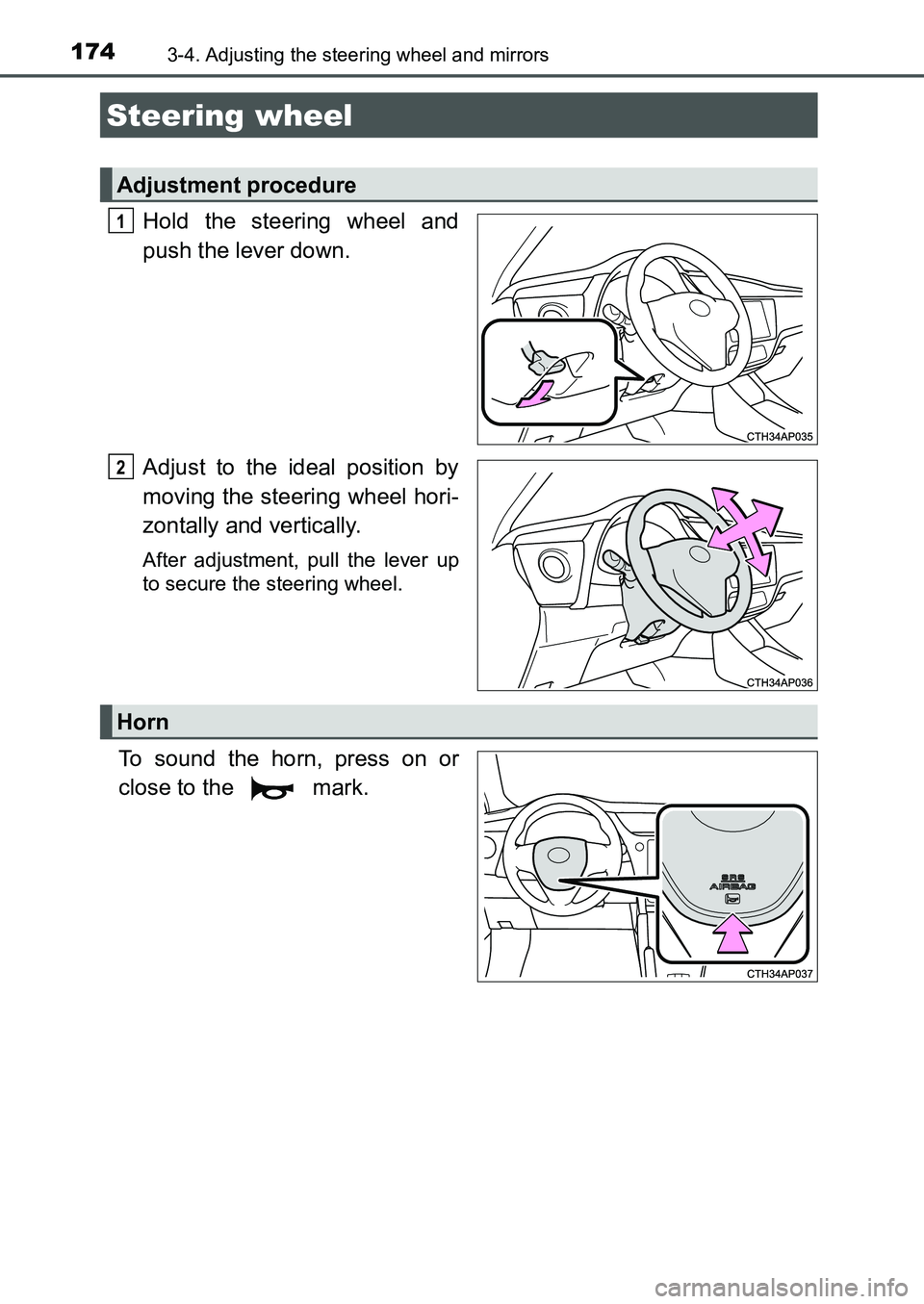

Hold the steering wheel and
push the lever down.
Adjust to the ideal position by
moving the steering wheel hori-
zontally and vertically.
After adjustment, pull the lever up
to secure the steering wheel.
To sound the horn, press on or
close to the mark.
Steering wheel
Adjustment procedure
1
2
Horn
UK AURIS_HB_OM_Europe_OM12K97E.book 174 ページ ２０１６年６月２７日　月曜日　午後５時４２分

1753-4. Adjusting the steering wheel and mirrors
UK AURIS_HB_EE (OM12K97E)
3
Operation of each component

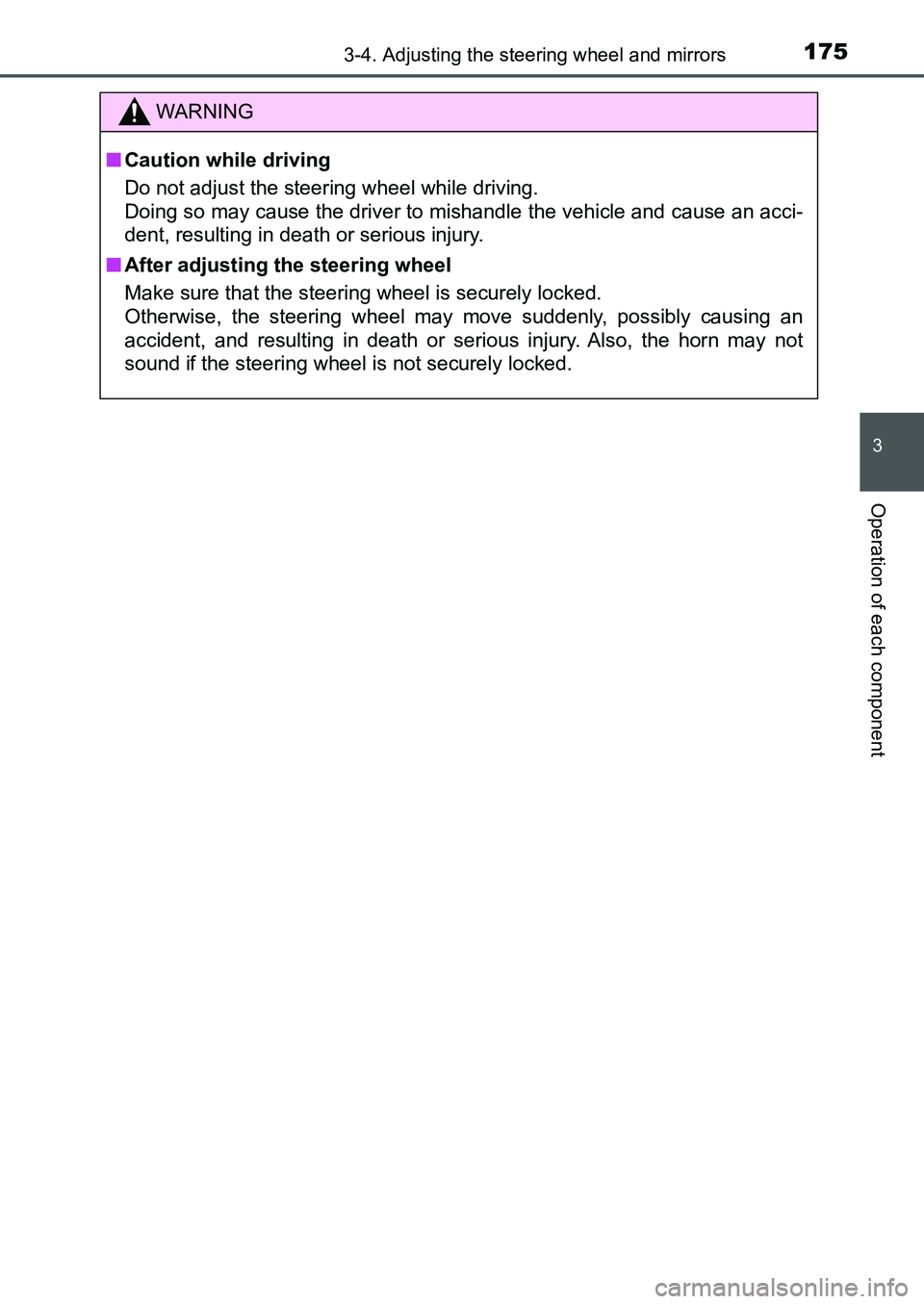

WARNING
■Caution while driving
Do not adjust the steering wheel while driving.
Doing so may cause the driver to mishandle the vehicle and cause an acci-
dent, resulting in death or serious injury.
■After adjusting the steering wheel
Make sure that the steering wheel is securely locked.
Otherwise, the steering wheel may move suddenly, possibly causing an
accident, and resulting in death or serious injury. Also, the horn may not
sound if the steering wheel is not securely locked.
UK AURIS_HB_OM_Europe_OM12K97E.book 175 ページ ２０１６年６月２７日　月曜日　午後５時４２分

1763-4. Adjusting the steering wheel and mirrors
UK AURIS_HB_EE (OM12K97E)

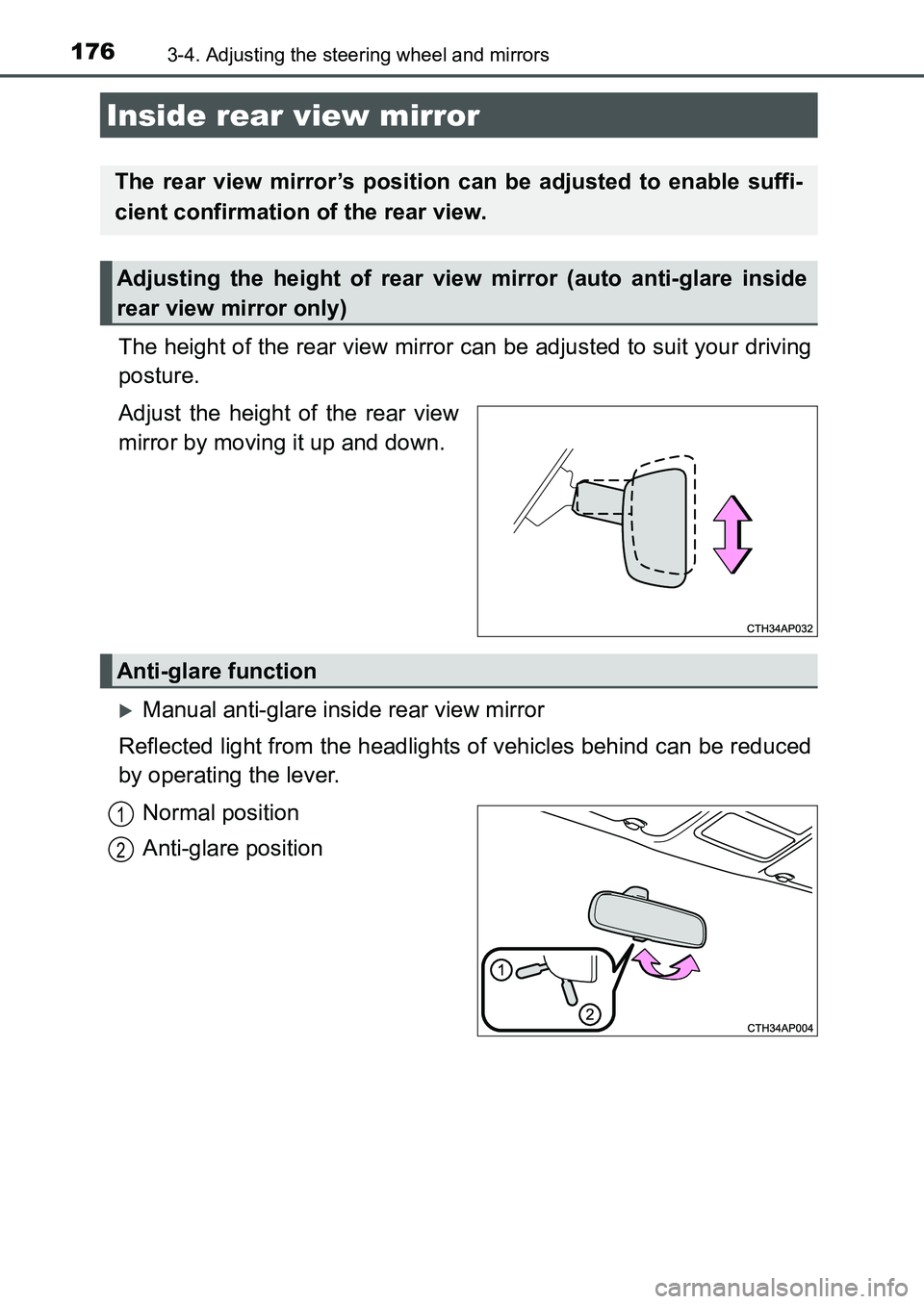

The height of the rear view mirror can be adjusted to suit your driving
posture.
Adjust the height of the rear view
mirror by moving it up and down.
Manual anti-glare inside rear view mirror
Reflected light from the headlights of vehicles behind can be reduced
by operating the lever.
Normal position
Anti-glare position
Inside rear view mirror
The rear view mirror’s position can be adjusted to enable suffi-
cient confirmation of the rear view.
Adjusting the height of rear view mirror (auto anti-glare inside
rear view mirror only)
Anti-glare function
1
2
UK AURIS_HB_OM_Europe_OM12K97E.book 176 ページ ２０１６年６月２７日　月曜日　午後５時４２分

1773-4. Adjusting the steering wheel and mirrors
UK AURIS_HB_EE (OM12K97E)
3
Operation of each component

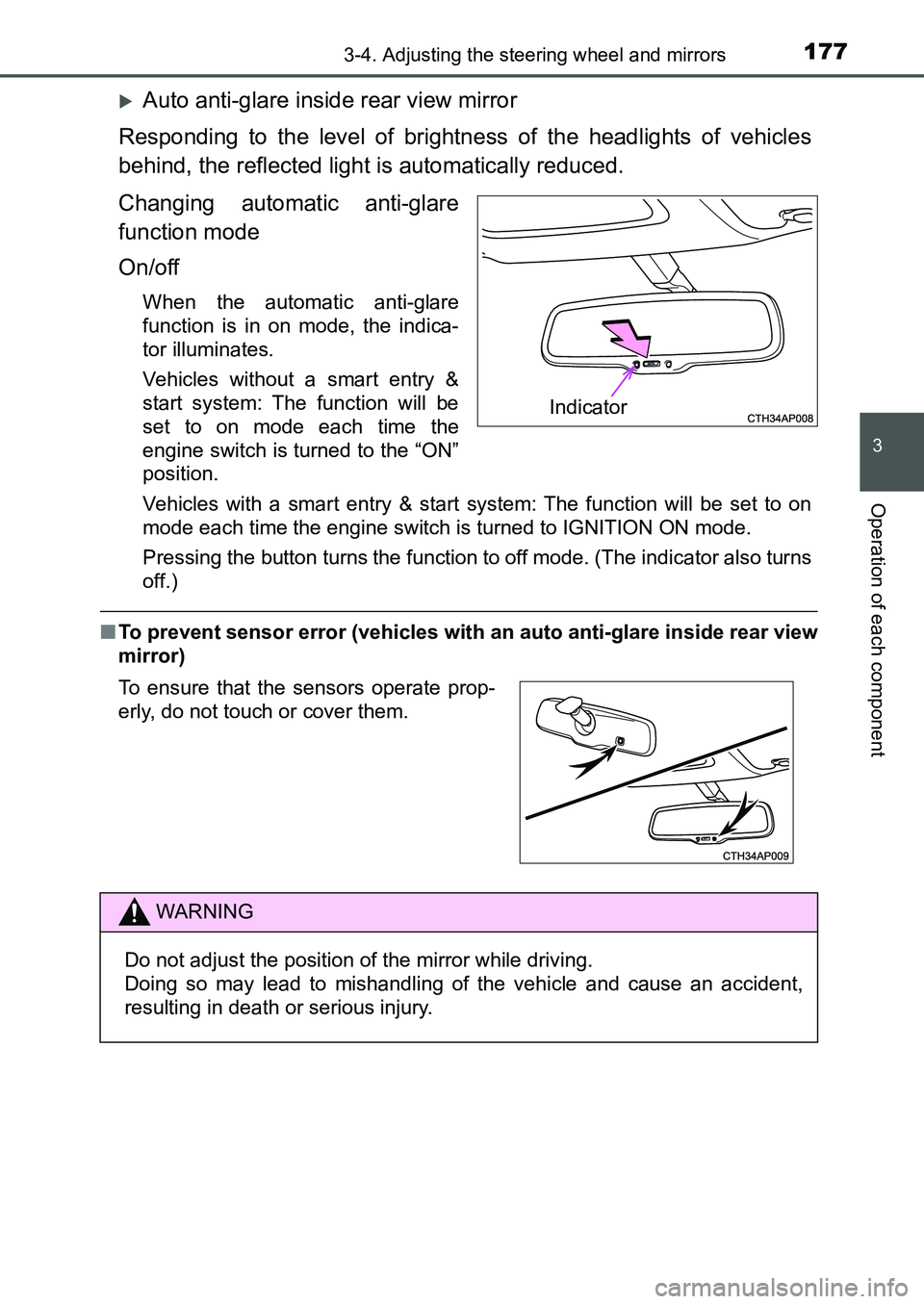

Auto anti-glare inside rear view mirror
Responding to the level of brightness of the headlights of vehicles
behind, the reflected light is automatically reduced.
Changing automatic anti-glare
function mode
On/off
When the automatic anti-glare
function is in on mode, the indica-
tor illuminates.
Vehicles without a smart entry &
start system: The function will be
set to on mode each time the
engine switch is turned to the “ON”
position.
Vehicles with a smart entry & start system: The function will be set to on
mode each time the engine switch is turned to IGNITION ON mode.
Pressing the button turns the function to off mode. (The indicator also turns
off.)
■To prevent sensor error (vehicles with an auto anti-glare inside rear view
mirror)
Indicator
To ensure that the sensors operate prop-
erly, do not touch or cover them.
WARNING
Do not adjust the position of the mirror while driving.
Doing so may lead to mishandling of the vehicle and cause an accident,
resulting in death or serious injury.
UK AURIS_HB_OM_Europe_OM12K97E.book 177 ページ ２０１６年６月２７日　月曜日　午後５時４２分

1783-4. Adjusting the steering wheel and mirrors
UK AURIS_HB_EE (OM12K97E)

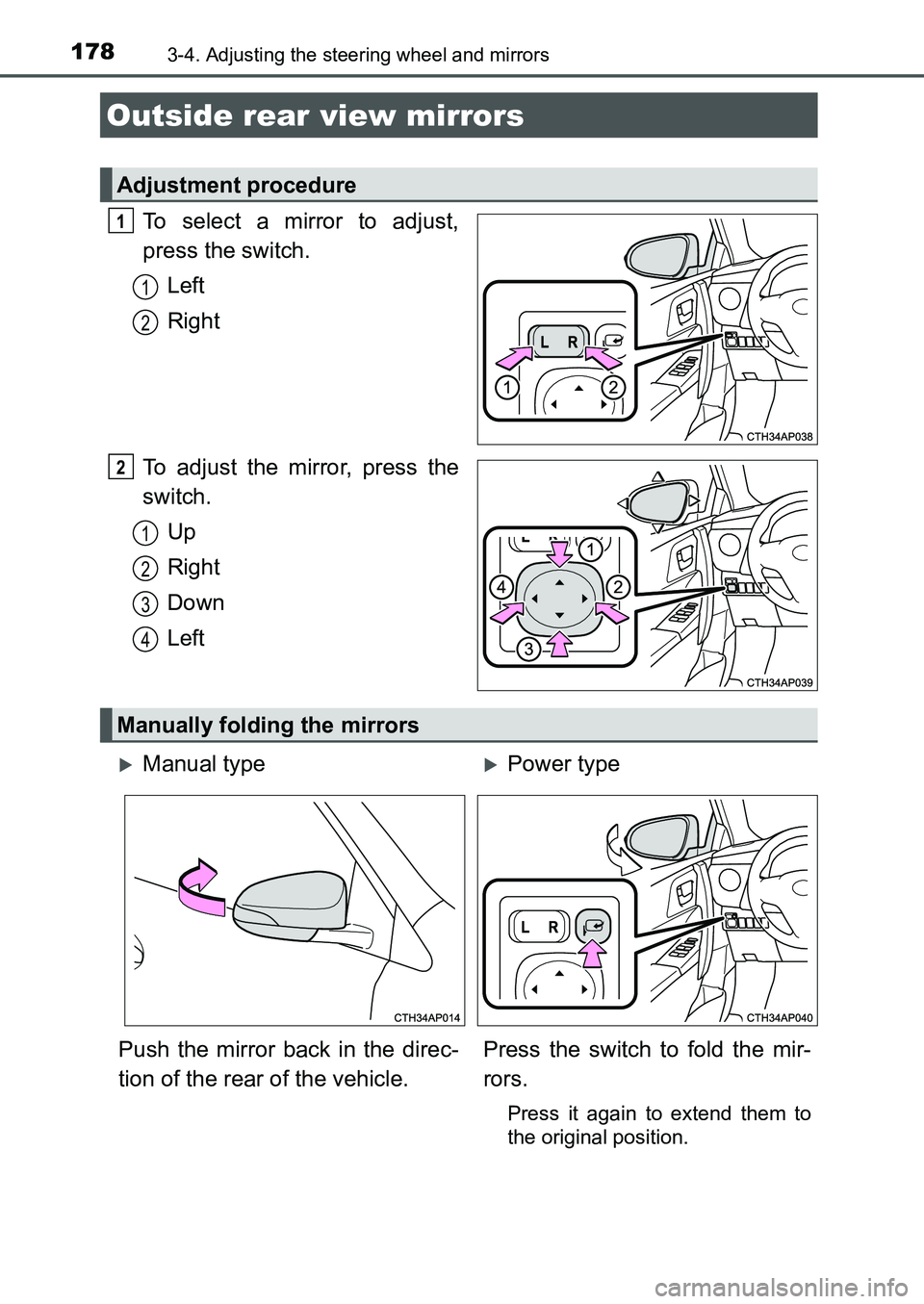

To select a mirror to adjust,
press the switch.
Left
Right
To adjust the mirror, press the
switch.
Up
Right
Down
Left
Outside rear view mirrors
Adjustment procedure
1
1
2
2
1
2
3
4
Manually folding the mirrors
Manual typePower type
Push the mirror back in the direc-
tion of the rear of the vehicle.Press the switch to fold the mir-
rors.
Press it again to extend them to
the original position.
UK AURIS_HB_OM_Europe_OM12K97E.book 178 ページ ２０１６年６月２７日　月曜日　午後５時４２分

1793-4. Adjusting the steering wheel and mirrors
UK AURIS_HB_EE (OM12K97E)
3
Operation of each component

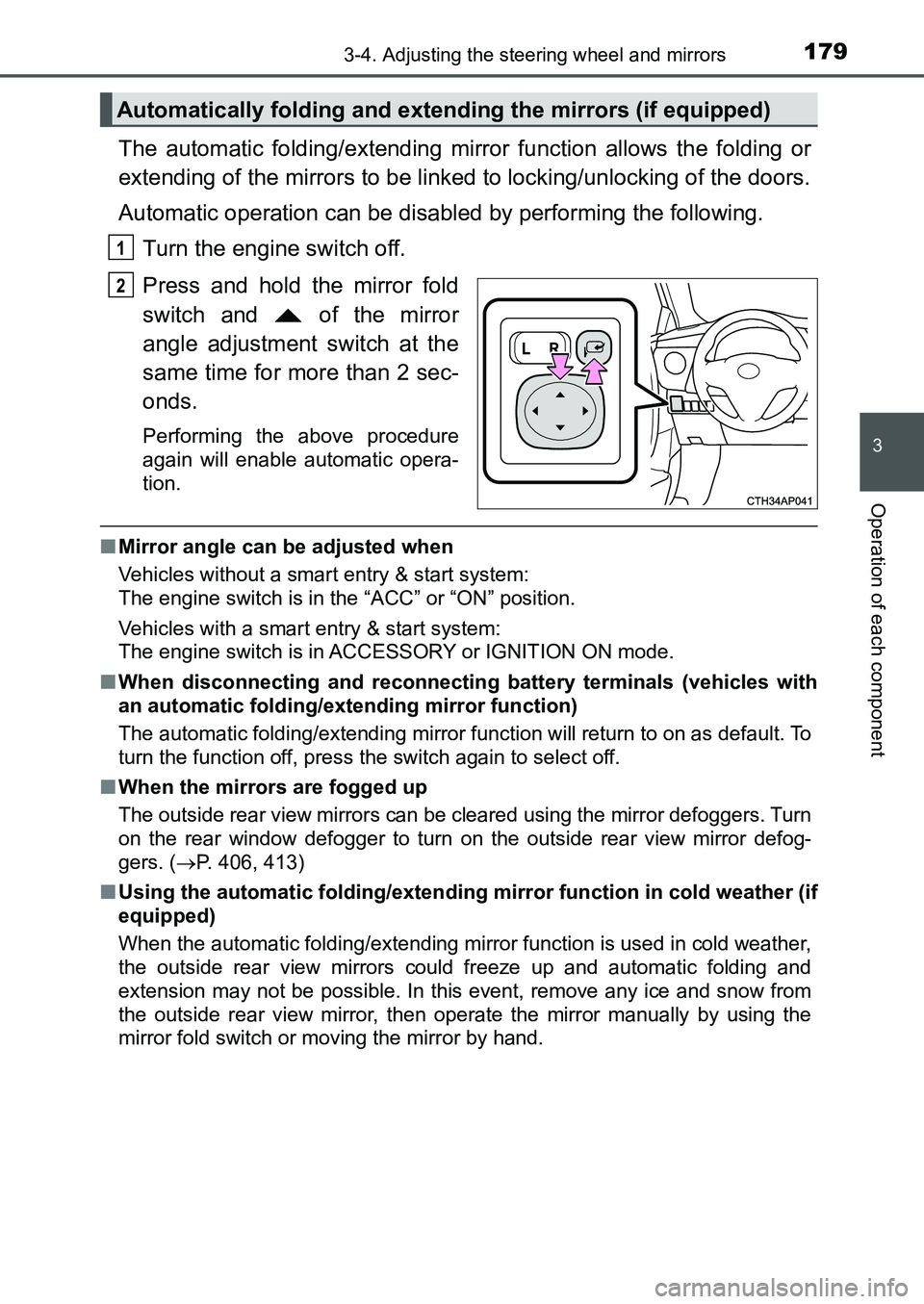

The automatic folding/extending mirror function allows the folding or
extending of the mirrors to be linked to locking/unlocking of the doors.
Automatic operation can be disabled by performing the following.
Turn the engine switch off.
Press and hold the mirror fold
switch and of the mirror
angle adjustment switch at the
same time for more than 2 sec-
onds.
Performing the above procedure
again will enable automatic opera-
tion.
■Mirror angle can be adjusted when
Vehicles without a smart entry & start system:
The engine switch is in the “ACC” or “ON” position.
Vehicles with a smart entry & start system:
The engine switch is in ACCESSORY or IGNITION ON mode.
■When disconnecting and reconnecting battery terminals (vehicles with
an automatic folding/extending mirror function)
The automatic folding/extending mirror function will return to on as default. To
turn the function off, press the switch again to select off.
■When the mirrors are fogged up
The outside rear view mirrors can be cleared using the mirror defoggers. Turn
on the rear window defogger to turn on the outside rear view mirror defog-
gers. (P. 406, 413)
■Using the automatic folding/extending mirror function in cold weather (if
equipped)
When the automatic folding/extending mirror function is used in cold weather,
the outside rear view mirrors could freeze up and automatic folding and
extension may not be possible. In this event, remove any ice and snow from
the outside rear view mirror, then operate the mirror manually by using the
mirror fold switch or moving the mirror by hand.
Automatically folding and extending the mirrors (if equipped)
1
2
UK AURIS_HB_OM_Europe_OM12K97E.book 179 ページ ２０１６年６月２７日　月曜日　午後５時４２分

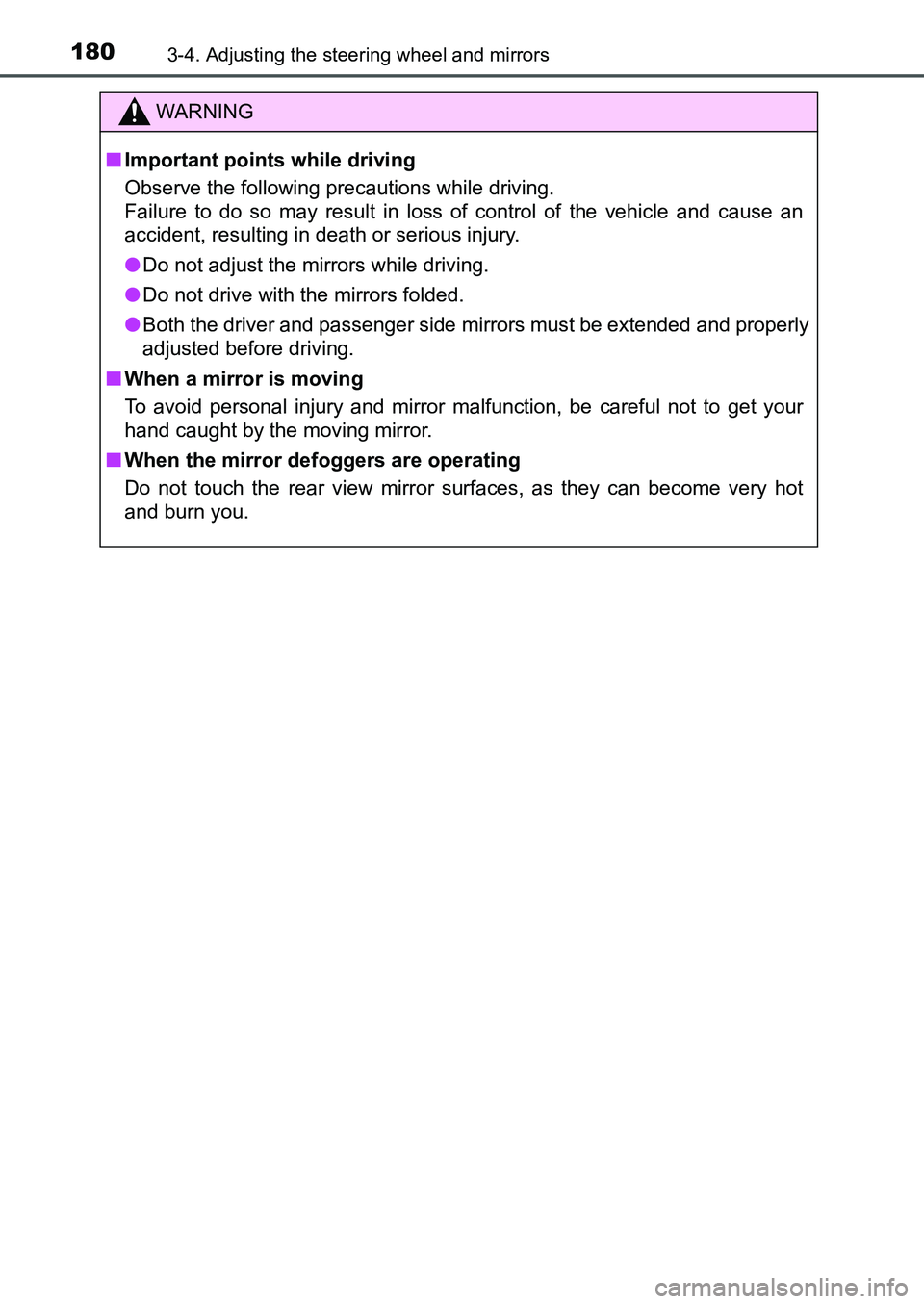

1803-4. Adjusting the steering wheel and mirrors
UK AURIS_HB_EE (OM12K97E)
WARNING
■Important points while driving
Observe the following precautions while driving.
Failure to do so may result in loss of control of the vehicle and cause an
accident, resulting in death or serious injury.
●Do not adjust the mirrors while driving.
●Do not drive with the mirrors folded.
●Both the driver and passenger side mirrors must be extended and properly
adjusted before driving.
■When a mirror is moving
To avoid personal injury and mirror malfunction, be careful not to get your
hand caught by the moving mirror.
■When the mirror defoggers are operating
Do not touch the rear view mirror surfaces, as they can become very hot
and burn you.
