TOYOTA AURIS 2017 Owners Manual (in English)

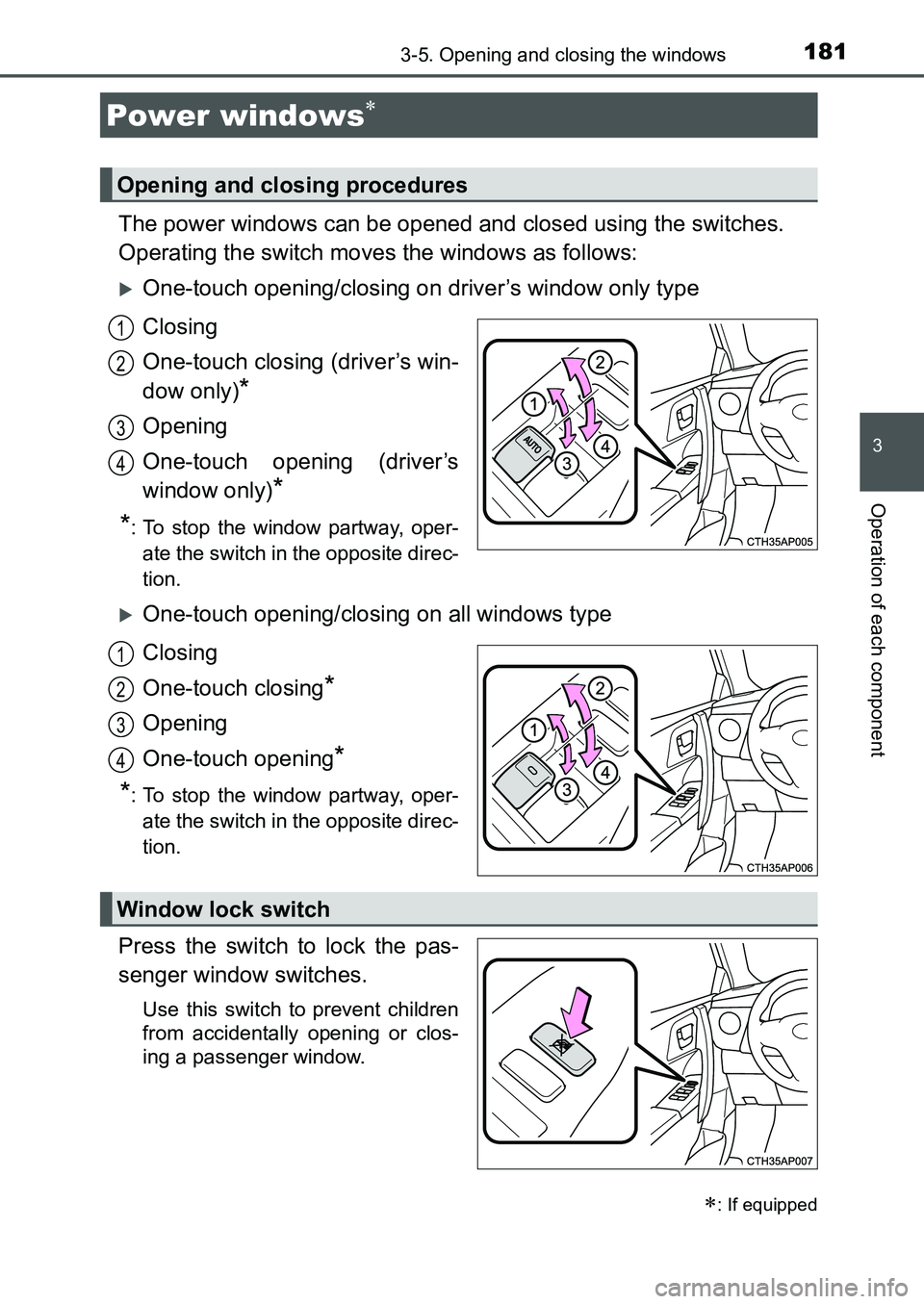

181
UK AURIS_HB_EE (OM12K97E)
3
Operation of each component
3-5. Opening and closing the windows
The power windows can be opened and closed using the switches.
Operating the switch moves the windows as follows:
One-touch opening/closing on driver’s window only type
Closing
One-touch closing (driver’s win-
dow only)
*
Opening
One-touch opening (driver’s
window only)
*
*
: To stop the window partway, oper-
ate the switch in the opposite direc-
tion.
One-touch opening/closing on all windows type
Closing
One-touch closing
*
Opening
One-touch opening
*
*
: To stop the window partway, oper-
ate the switch in the opposite direc-
tion.
Press the switch to lock the pas-
senger window switches.
Use this switch to prevent children
from accidentally opening or clos-
ing a passenger window.
Power windows
: If equipped
Opening and closing procedures
1
2
3
4
1
2
3
4
Window lock switch
UK AURIS_HB_OM_Europe_OM12K97E.book 181 ページ ２０１６年６月２７日　月曜日　午後５時４２分

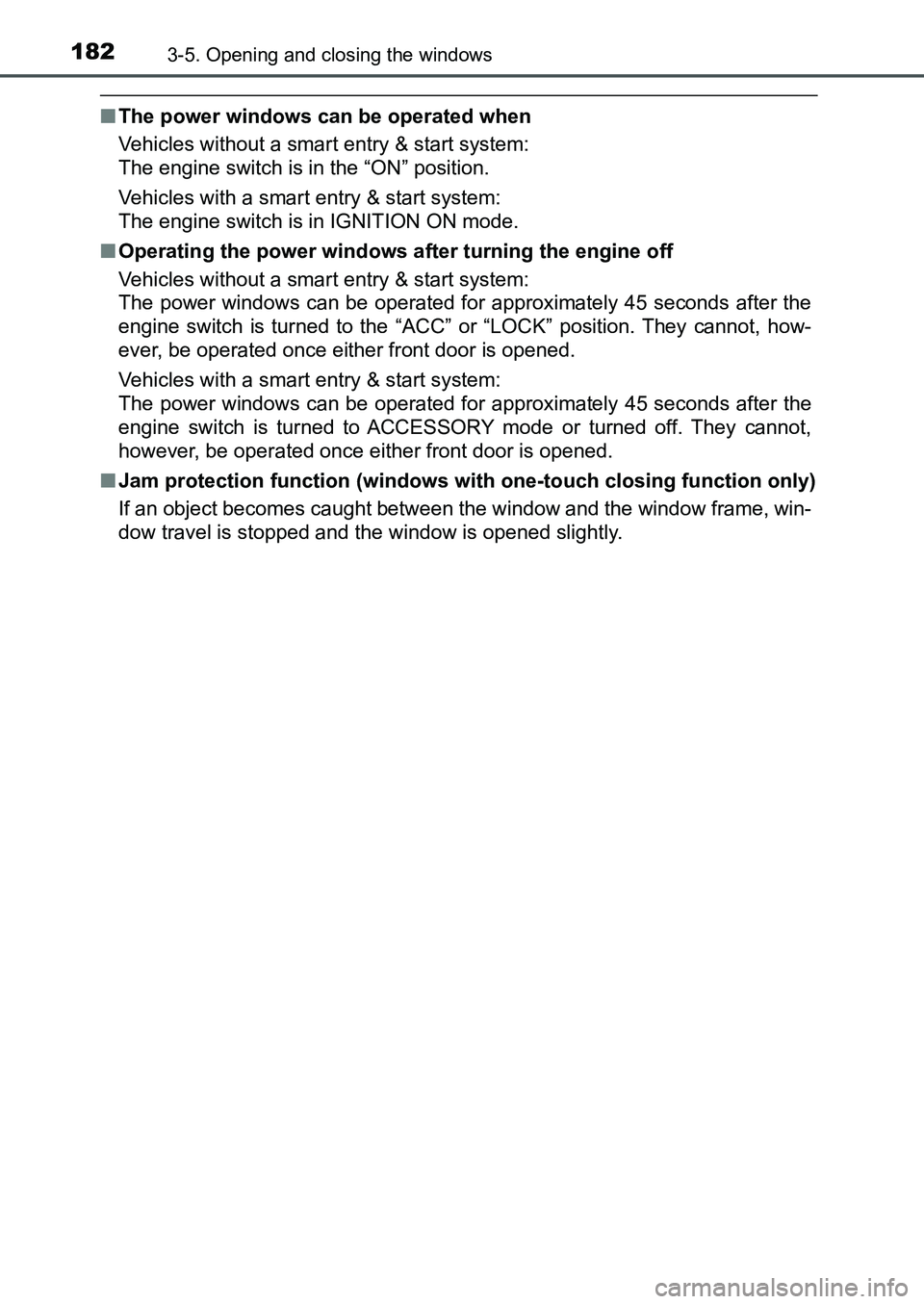

1823-5. Opening and closing the windows
UK AURIS_HB_EE (OM12K97E)
■The power windows can be operated when
Vehicles without a smart entry & start system:
The engine switch is in the “ON” position.
Vehicles with a smart entry & start system:
The engine switch is in IGNITION ON mode.
■Operating the power windows after turning the engine off
Vehicles without a smart entry & start system:
The power windows can be operated for approximately 45 seconds after the
engine switch is turned to the “ACC” or “LOCK” position. They cannot, how-
ever, be operated once either front door is opened.
Vehicles with a smart entry & start system:
The power windows can be operated for approximately 45 seconds after the
engine switch is turned to ACCESSORY mode or turned off. They cannot,
however, be operated once either front door is opened.
■Jam protection function (windows with one-touch closing function only)
If an object becomes caught between the window and the window frame, win-
dow travel is stopped and the window is opened slightly.
UK AURIS_HB_OM_Europe_OM12K97E.book 182 ページ ２０１６年６月２７日　月曜日　午後５時４２分

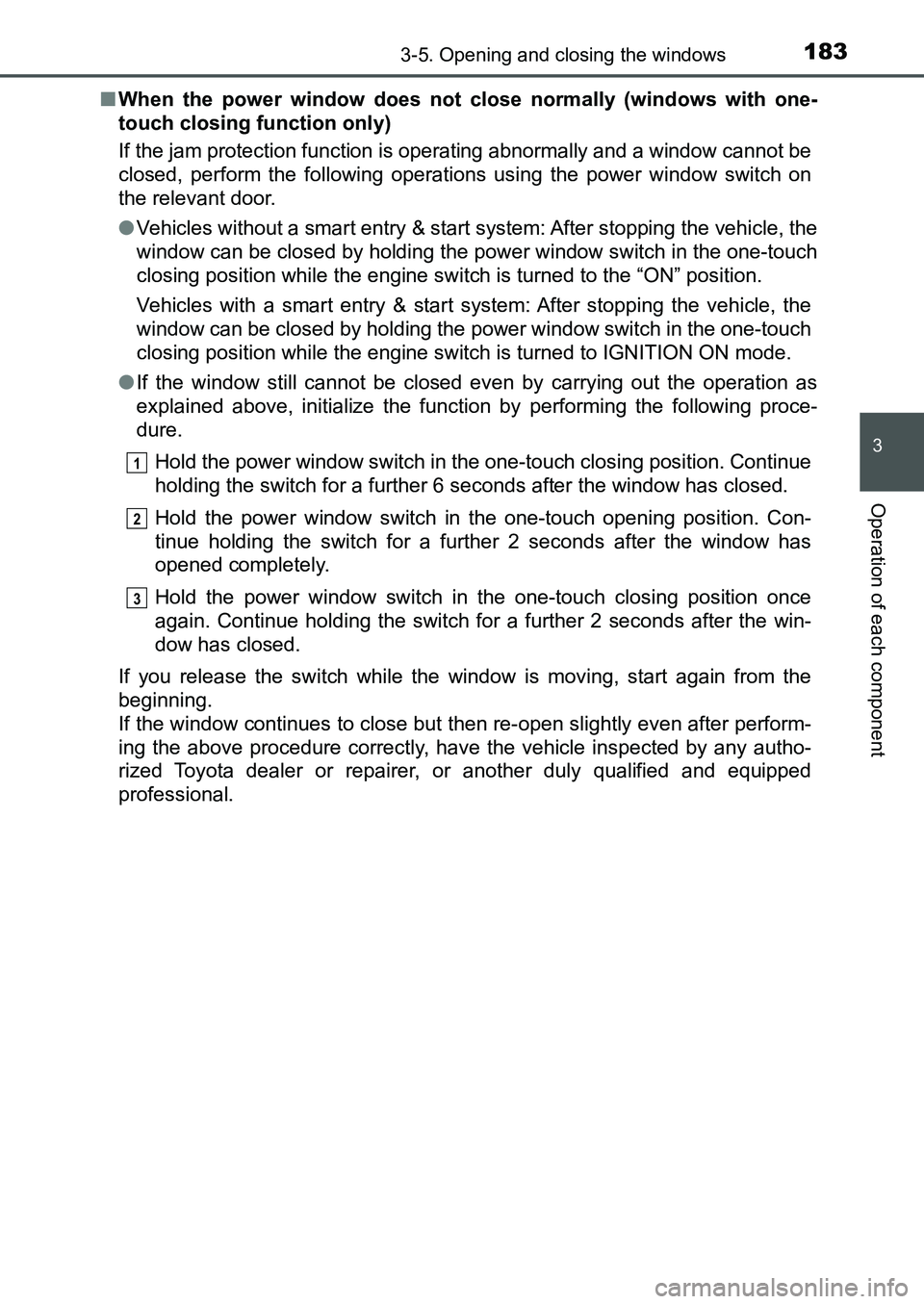

1833-5. Opening and closing the windows
UK AURIS_HB_EE (OM12K97E)
3
Operation of each component
■When the power window does not close normally (windows with one-
touch closing function only)
If the jam protection function is operating abnormally and a window cannot be
closed, perform the following operations using the power window switch on
the relevant door.
●Vehicles without a smart entry & start system: After stopping the vehicle, the
window can be closed by holding the power window switch in the one-touch
closing position while the engine switch is turned to the “ON” position.
Vehicles with a smart entry & start system: After stopping the vehicle, the
window can be closed by holding the power window switch in the one-touch
closing position while the engine switch is turned to IGNITION ON mode.
●If the window still cannot be closed even by carrying out the operation as
explained above, initialize the function by performing the following proce-
dure.
Hold the power window switch in the one-touch closing position. Continue
holding the switch for a further 6 seconds after the window has closed.
Hold the power window switch in the one-touch opening position. Con-
tinue holding the switch for a further 2 seconds after the window has
opened completely.
Hold the power window switch in the one-touch closing position once
again. Continue holding the switch for a further 2 seconds after the win-
dow has closed.
If you release the switch while the window is moving, start again from the
beginning.
If the window continues to close but then re-open slightly even after perform-
ing the above procedure correctly, have the vehicle inspected by any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped
professional.
1
2
3
UK AURIS_HB_OM_Europe_OM12K97E.book 183 ページ ２０１６年６月２７日　月曜日　午後５時４２分

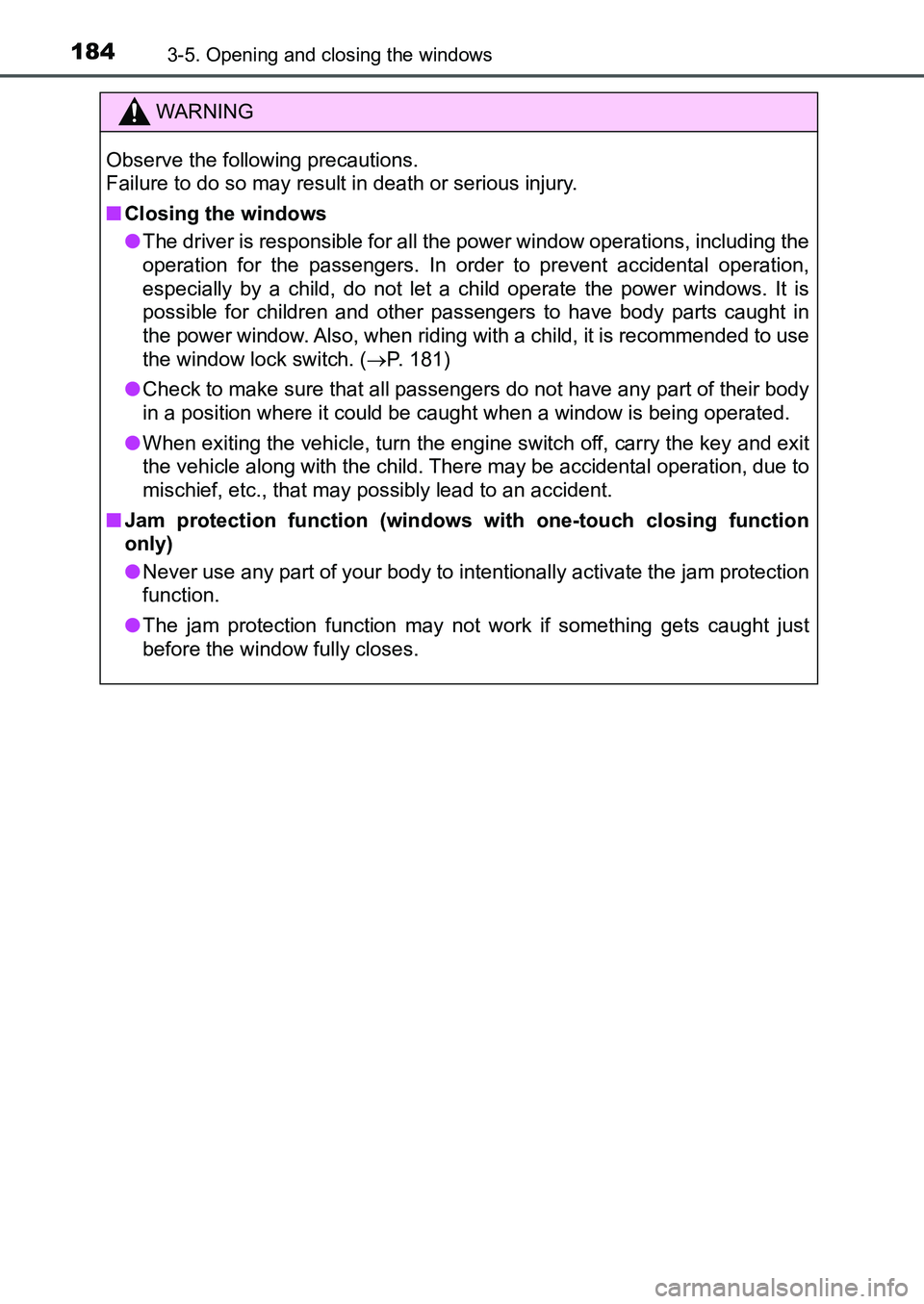

1843-5. Opening and closing the windows
UK AURIS_HB_EE (OM12K97E)
WARNING
Observe the following precautions.
Failure to do so may result in death or serious injury.
■Closing the windows
●The driver is responsible for all the power window operations, including the
operation for the passengers. In order to prevent accidental operation,
especially by a child, do not let a child operate the power windows. It is
possible for children and other passengers to have body parts caught in
the power window. Also, when riding with a child, it is recommended to use
the window lock switch. (P. 181)
●Check to make sure that all passengers do not have any part of their body
in a position where it could be caught when a window is being operated.
●When exiting the vehicle, turn the engine switch off, carry the key and exit
the vehicle along with the child. There may be accidental operation, due to
mischief, etc., that may possibly lead to an accident.
■Jam protection function (windows with one-touch closing function
only)
●Never use any part of your body to intentionally activate the jam protection
function.
●The jam protection function may not work if something gets caught just
before the window fully closes.
UK AURIS_HB_OM_Europe_OM12K97E.book 184 ページ ２０１６年６月２７日　月曜日　午後５時４２分

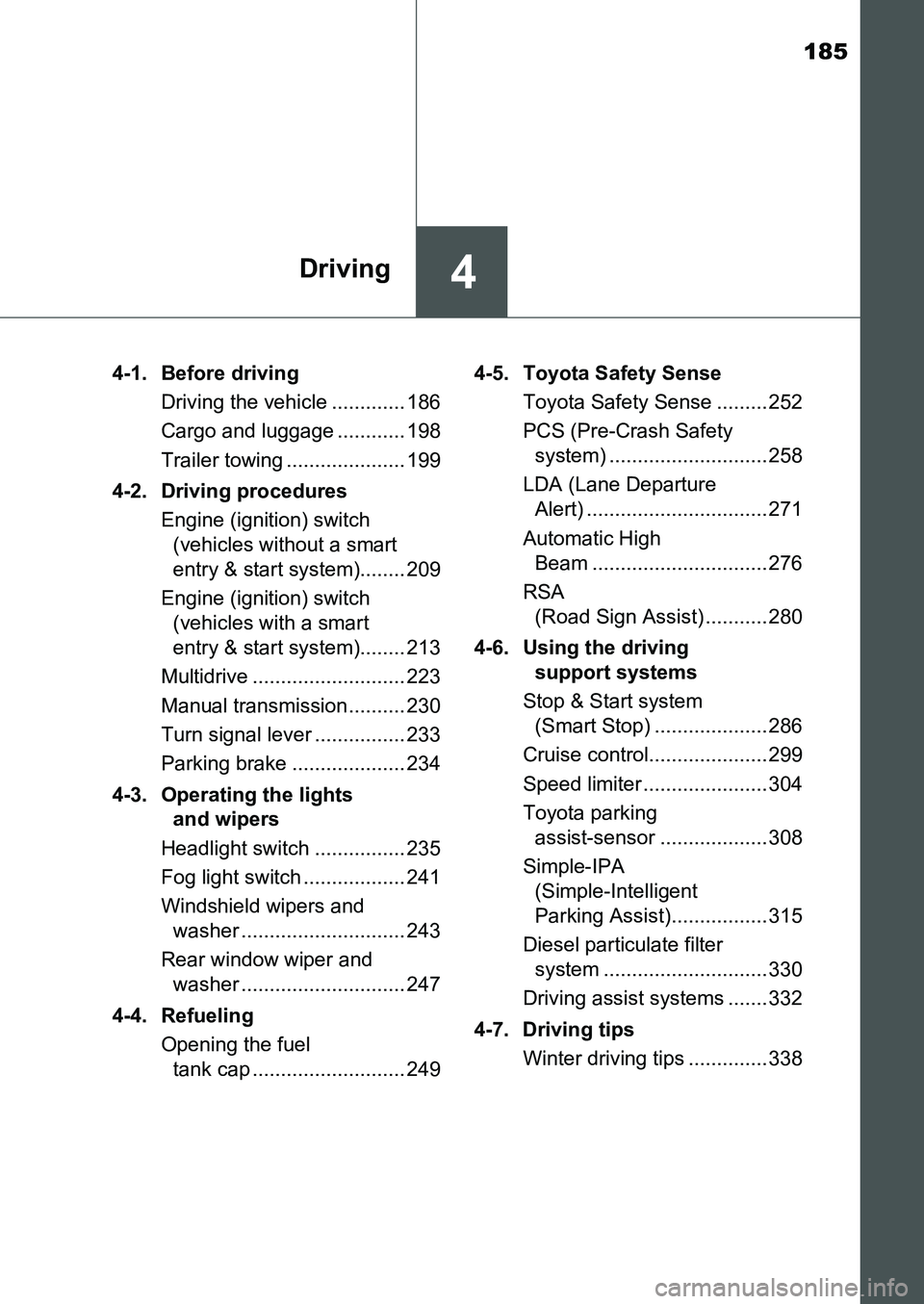

185
4Driving
UK AURIS_HB_EE (OM12K97E)4-1. Before driving
Driving the vehicle ............. 186
Cargo and luggage ............ 198
Trailer towing ..................... 199
4-2. Driving procedures
Engine (ignition) switch
(vehicles without a smart
entry & start system)........ 209
Engine (ignition) switch
(vehicles with a smart
entry & start system)........ 213
Multidrive ........................... 223
Manual transmission .......... 230
Turn signal lever ................ 233
Parking brake .................... 234
4-3. Operating the lights
and wipers
Headlight switch ................ 235
Fog light switch .................. 241
Windshield wipers and
washer ............................. 243
Rear window wiper and
washer ............................. 247
4-4. Refueling
Opening the fuel
tank cap ........................... 2494-5. Toyota Safety Sense
Toyota Safety Sense ......... 252
PCS (Pre-Crash Safety
system) ............................ 258
LDA (Lane Departure
Alert) ................................ 271
Automatic High
Beam ............................... 276
RSA
(Road Sign Assist) ........... 280
4-6. Using the driving
support systems
Stop & Start system
(Smart Stop) .................... 286
Cruise control..................... 299
Speed limiter ...................... 304
Toyota parking
assist-sensor ................... 308
Simple-IPA
(Simple-Intelligent
Parking Assist)................. 315
Diesel particulate filter
system ............................. 330
Driving assist systems ....... 332
4-7. Driving tips
Winter driving tips .............. 338
UK AURIS_HB_OM_Europe_OM12K97E.book 185 ページ ２０１６年６月２７日　月曜日　午後５時４２分

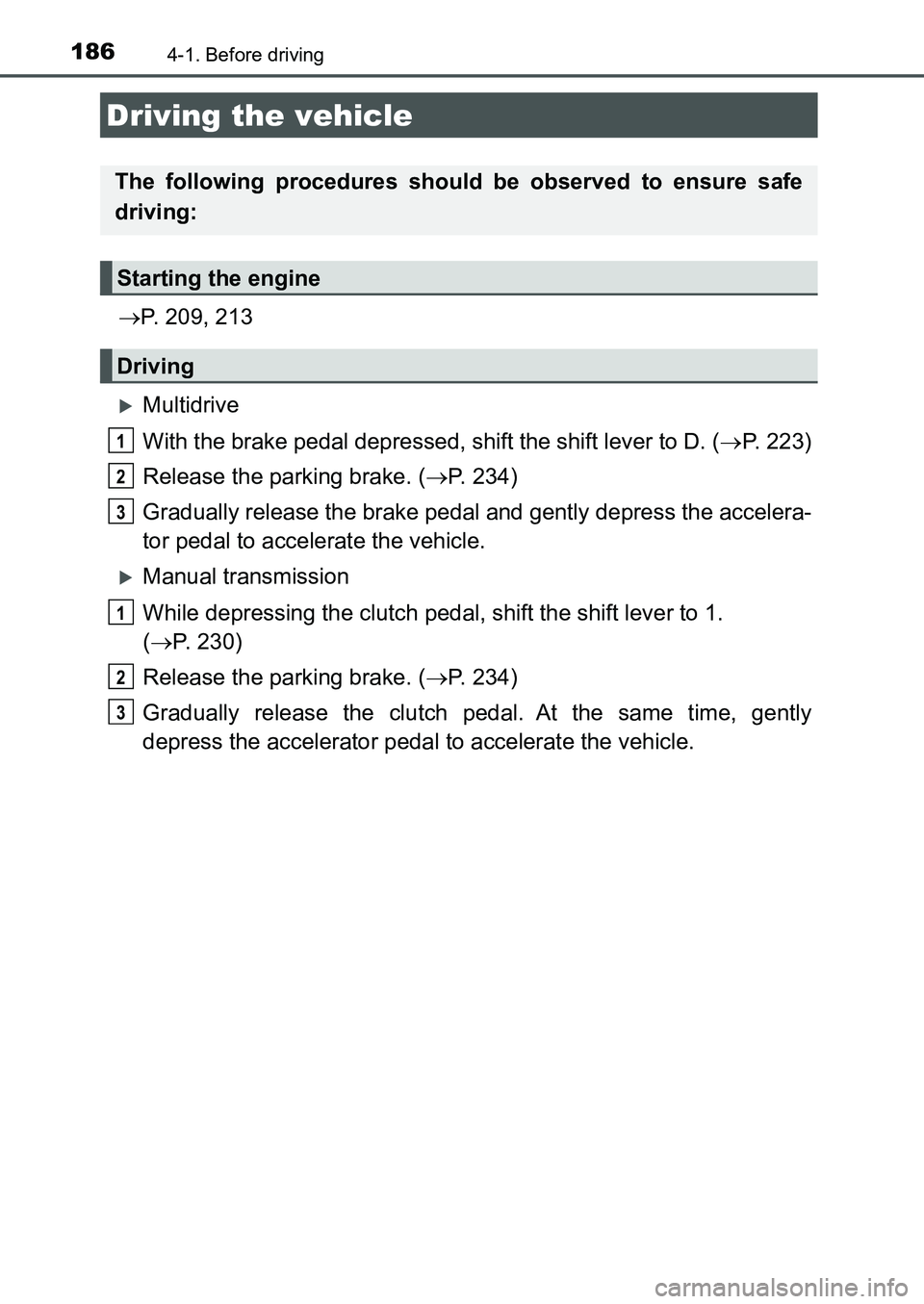

186
UK AURIS_HB_EE (OM12K97E)
4-1. Before driving
P. 209, 213
Multidrive
With the brake pedal depressed, shift the shift lever to D. (P. 2 2 3 )
Release the parking brake. (P. 234)
Gradually release the brake pedal and gently depress the accelera-
tor pedal to accelerate the vehicle.
Manual transmission
While depressing the clutch pedal, shift the shift lever to 1.
(P. 230)
Release the parking brake. (P. 234)
Gradually release the clutch pedal. At the same time, gently
depress the accelerator pedal to accelerate the vehicle.
Driving the vehicle
The following procedures should be observed to ensure safe
driving:
Starting the engine
Driving
1
2
3
1
2
3
UK AURIS_HB_OM_Europe_OM12K97E.book 186 ページ ２０１６年６月２７日　月曜日　午後５時４２分

1874-1. Before driving
UK AURIS_HB_EE (OM12K97E)
4
Driving
Multidrive
With the shift lever in D, depress the brake pedal.
Vehicles with a Stop & Start system: If the Stop & Start system is enabled,
depressing the brake pedal will stop the engine.
If necessary, set the parking brake.
If the vehicle is to be stopped for an extended period of time, shift the shift
lever to P or N. (P. 223)
Manual transmission
While depressing the clutch pedal, depress the brake pedal.
If necessary, set the parking brake.
If the vehicle is to be stopped for an extended period of time, shift the shift
lever to N. (P. 230)
Vehicles with a Stop & Start system: If the Stop & Start system is enabled,
shifting the shift lever to N and releasing the clutch pedal will stop the
engine. (P. 230)

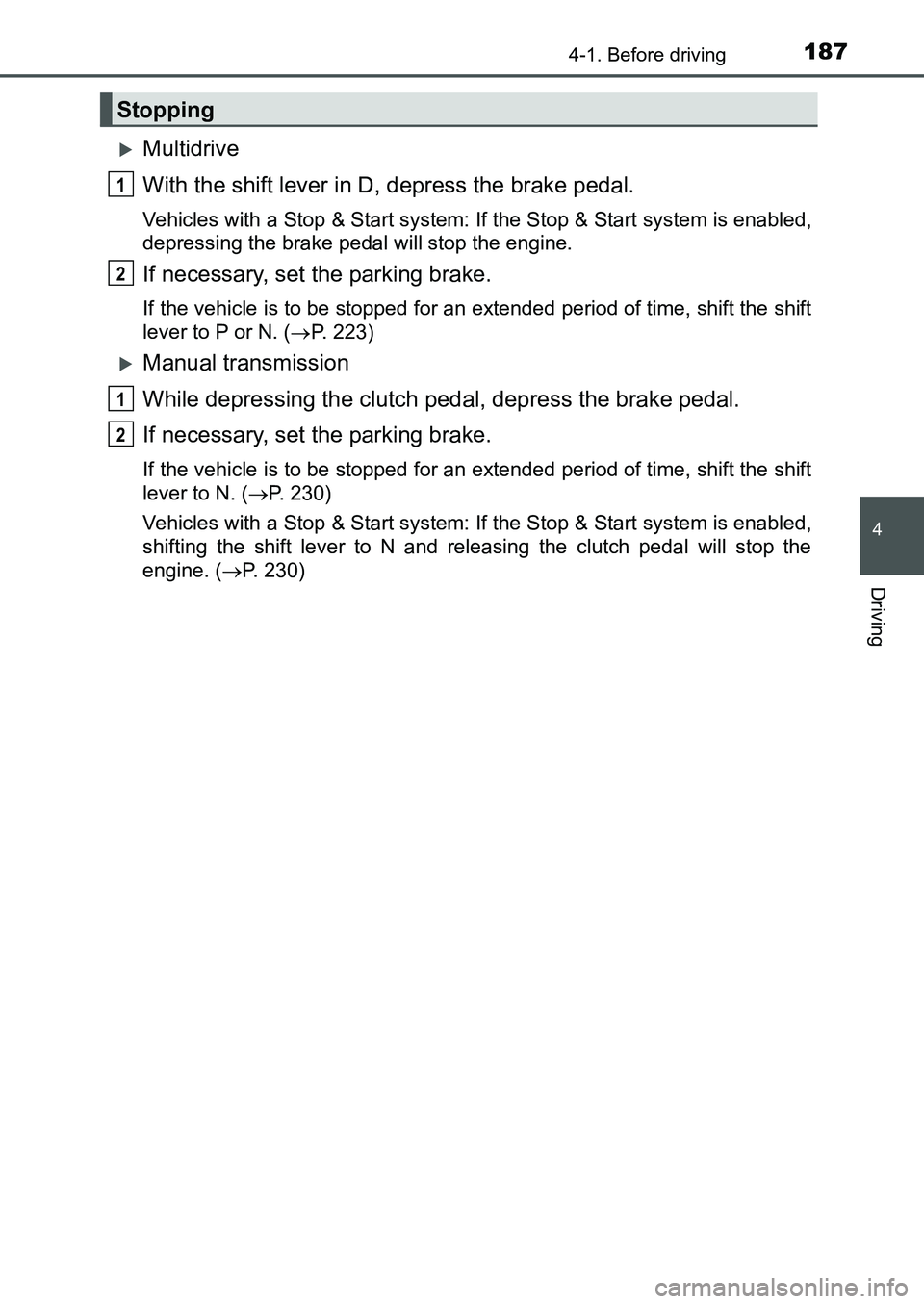

Stopping
1
2
1
2
UK AURIS_HB_OM_Europe_OM12K97E.book 187 ページ ２０１６年６月２７日　月曜日　午後５時４２分

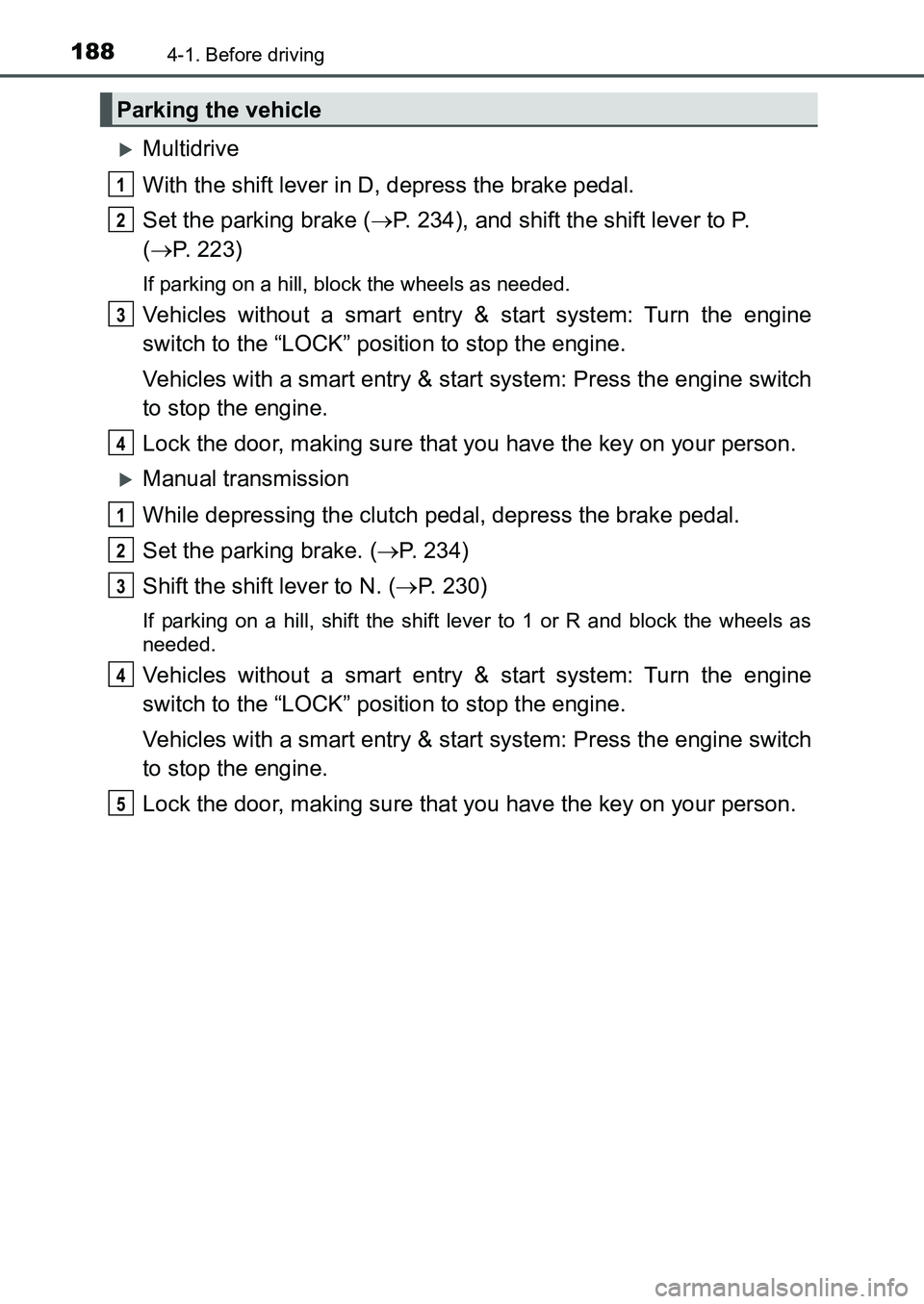

1884-1. Before driving
UK AURIS_HB_EE (OM12K97E)
Multidrive
With the shift lever in D, depress the brake pedal.
Set the parking brake (P. 234), and shift the shift lever to P.
(P. 223)
If parking on a hill, block the wheels as needed.
Vehicles without a smart entry & start system: Turn the engine
switch to the “LOCK” position to stop the engine.
Vehicles with a smart entry & start system: Press the engine switch
to stop the engine.
Lock the door, making sure that you have the key on your person.
Manual transmission
While depressing the clutch pedal, depress the brake pedal.
Set the parking brake. (P. 234)
Shift the shift lever to N. (P. 230)
If parking on a hill, shift the shift lever to 1 or R and block the wheels as
needed.
Vehicles without a smart entry & start system: Turn the engine
switch to the “LOCK” position to stop the engine.
Vehicles with a smart entry & start system: Press the engine switch
to stop the engine.
Lock the door, making sure that you have the key on your person.
Parking the vehicle
1
2
3
4
1
2
3
4
5
UK AURIS_HB_OM_Europe_OM12K97E.book 188 ページ ２０１６年６月２７日　月曜日　午後５時４２分

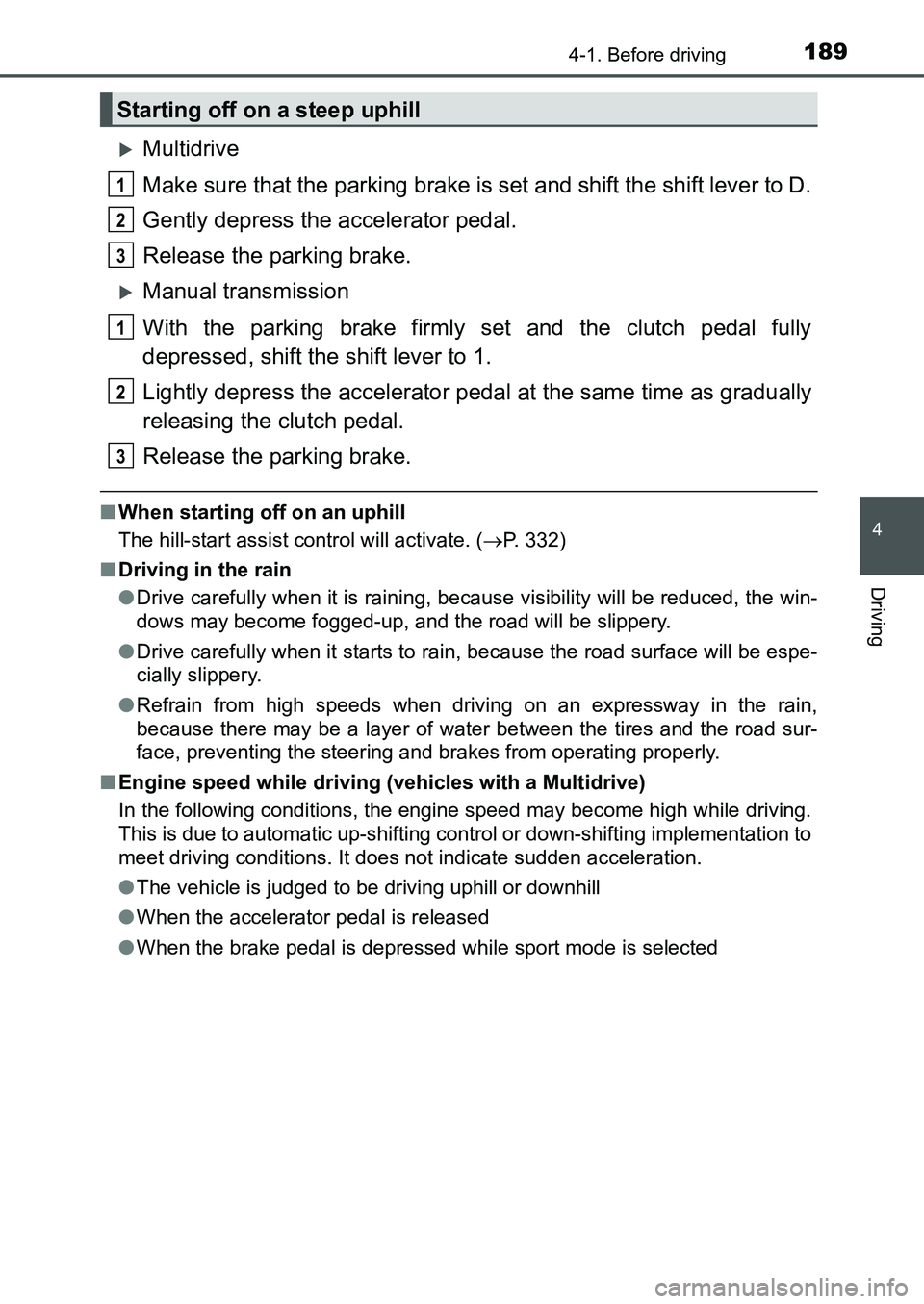

1894-1. Before driving
UK AURIS_HB_EE (OM12K97E)
4
Driving
Multidrive
Make sure that the parking brake is set and shift the shift lever to D.
Gently depress the accelerator pedal.
Release the parking brake.
Manual transmission
With the parking brake firmly set and the clutch pedal fully
depressed, shift the shift lever to 1.
Lightly depress the accelerator pedal at the same time as gradually
releasing the clutch pedal.
Release the parking brake.
■When starting off on an uphill
The hill-start assist control will activate. (P. 332)
■Driving in the rain
●Drive carefully when it is raining, because visibility will be reduced, the win-
dows may become fogged-up, and the road will be slippery.
●Drive carefully when it starts to rain, because the road surface will be espe-
cially slippery.
●Refrain from high speeds when driving on an expressway in the rain,
because there may be a layer of water between the tires and the road sur-
face, preventing the steering and brakes from operating properly.
■Engine speed while driving (vehicles with a Multidrive)
In the following conditions, the engine speed may become high while driving.
This is due to automatic up-shifting control or down-shifting implementation to
meet driving conditions. It does not indicate sudden acceleration.
●The vehicle is judged to be driving uphill or downhill
●When the accelerator pedal is released
●When the brake pedal is depressed while sport mode is selected
Starting off on a steep uphill
1
2
3
1
2
3
UK AURIS_HB_OM_Europe_OM12K97E.book 189 ページ ２０１６年６月２７日　月曜日　午後５時４２分

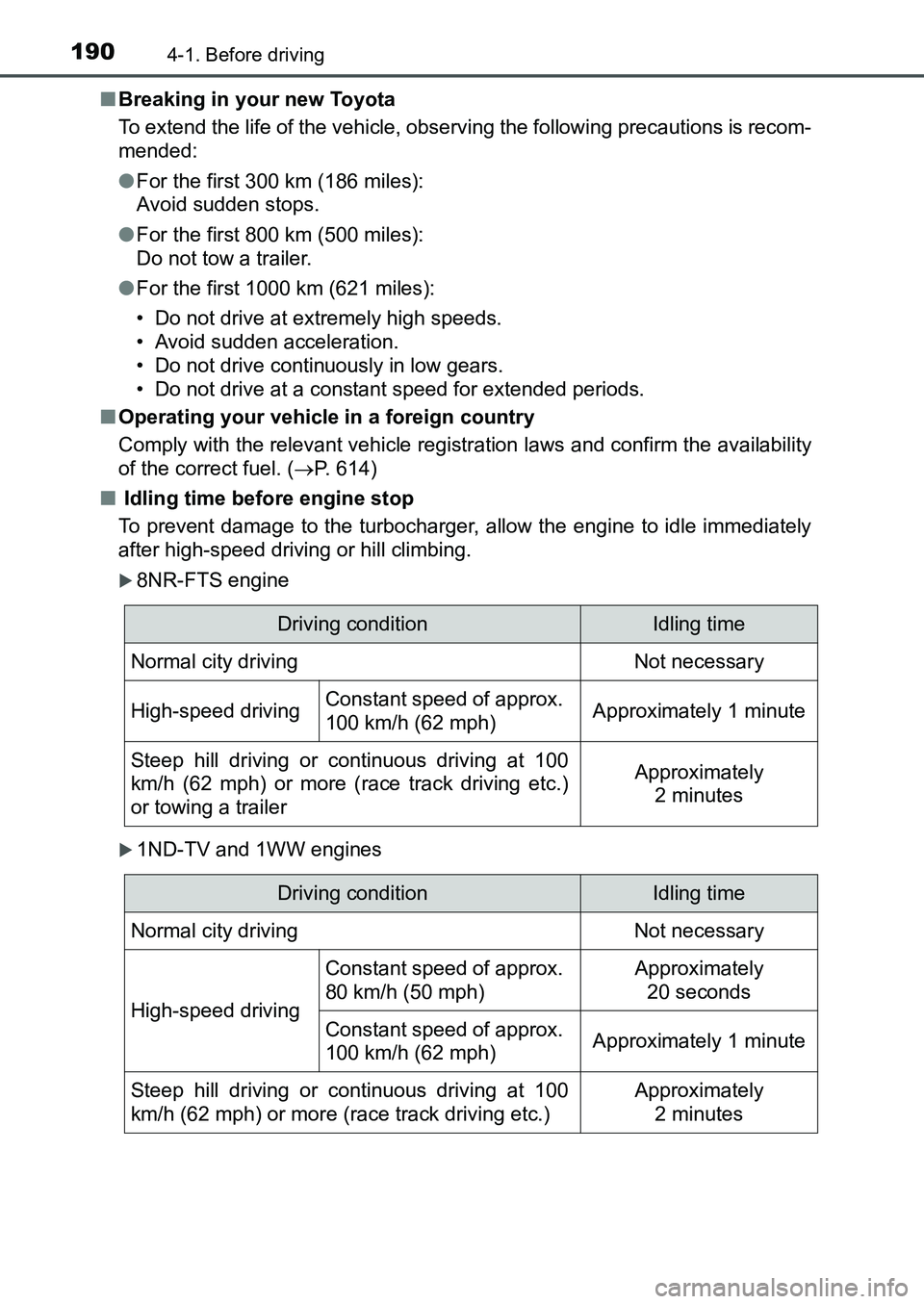

1904-1. Before driving
UK AURIS_HB_EE (OM12K97E)■Breaking in your new Toyota
To extend the life of the vehicle, observing the following precautions is recom-
mended:
●For the first 300 km (186 miles):
Avoid sudden stops.
●For the first 800 km (500 miles):
Do not tow a trailer.
●For the first 1000 km (621 miles):
• Do not drive at extremely high speeds.
• Avoid sudden acceleration.
• Do not drive continuously in low gears.
• Do not drive at a constant speed for extended periods.
■Operating your vehicle in a foreign country
Comply with the relevant vehicle registration laws and confirm the availability
of the correct fuel. (P. 614)
■ Idling time before engine stop
To prevent damage to the turbocharger, allow the engine to idle immediately
after high-speed driving or hill climbing.
8NR-FTS engine
1ND-TV and 1WW engines
Driving conditionIdling time
Normal city driving Not necessary
High-speed drivingConstant speed of approx.
100 km/h (62 mph)Approximately 1 minute
Steep hill driving or continuous driving at 100
km/h (62 mph) or more (race track driving etc.)
or towing a trailerApproximately
2 minutes
Driving conditionIdling time
Normal city driving Not necessary
High-speed drivingConstant speed of approx.
80 km/h (50 mph)Approximately
20 seconds
Constant speed of approx.
100 km/h (62 mph)Approximately 1 minute
Steep hill driving or continuous driving at 100
km/h (62 mph) or more (race track driving etc.)Approximately
2 minutes
UK AURIS_HB_OM_Europe_OM12K97E.book 190 ページ ２０１６年６月２７日　月曜日　午後５時４２分
