TOYOTA AURIS 2018 Owners Manual (in English)

1012. Instrument cluster
UK AURIS_HV_HB_EE (OM12M49E)
2
Instrument cluster
The indicators inform the driver of the operating state of the vehicle’s
various systems.
Indicators
Turn signal indicator
( P. 227)(if equipped)
Simple-IPA indicator
( P. 291)
Tail light indicator
( P. 229)
*1, 2Slip indicator
( P. 306)
Headlight high beam
indicator ( P. 229)
*1VSC OFF indicator
( P. 306)
*1
(if equipped)
Automatic High Beam
indicator ( P. 270)
*1
(if equipped)
PCS warning light
( P. 255)
(if equipped)
Front fog light indicator
( P. 235) EV indicator ( P. 217)
Rear fog light indicator
( P. 235)
*3Security indicator
( P. 82, 89)
(if equipped)
Cruise control indicator
( P. 280)
Power mode indicator
( P. 222)
(if equipped)
Cruise control “SET”
indicator ( P. 280)
“ECO MODE” indicator
( P. 222)
(if equipped)
LDA (Lane Departure
Alert) indicator
( P. 265)
EV drive mode indicator
( P. 217)
(if equipped)
Toyota parking
assist-sensor indicator
( P. 284)
“READY” indicator
( P. 211)

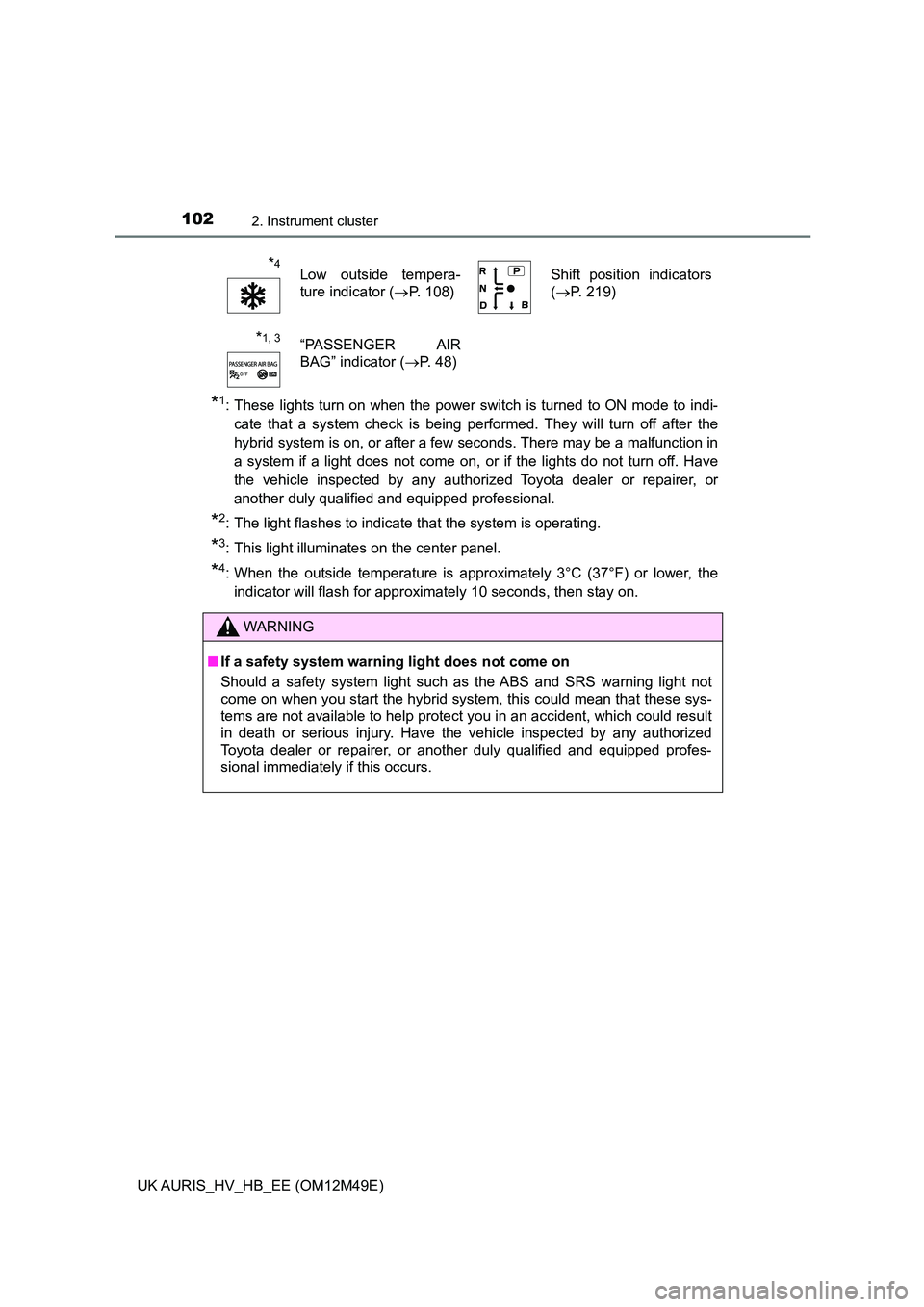

1022. Instrument cluster
UK AURIS_HV_HB_EE (OM12M49E)
*1: These lights turn on when the power switch is turned to ON mode to indi-
cate that a system check is being per formed. They will turn off after the
hybrid system is on, or after a few seconds. There may be a malfunction in
a system if a light does not come on, or if the lights do not turn off. Have
the vehicle inspected by any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional.
*2: The light flashes to indicate that the system is operating.
*3: This light illuminates on the center panel.
*4: When the outside temperature is approximately 3°C (37°F) or lower, the
indicator will flash for approximately 10 seconds, then stay on.
*4Low outside tempera-
ture indicator ( P. 108)
Shift position indicators
( P. 219)
*1, 3“PASSENGER AIR
BAG” indicator ( P. 48)
WARNING
■If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning light not
come on when you start the hybrid system, this could mean that these sys-
tems are not available to help protect you in an accident, which could result
in death or serious injury. Have the vehicle inspected by any authorized
Toyota dealer or repairer, or another duly qualified and equipped profes-
sional immediately if this occurs.

1032. Instrument cluster
UK AURIS_HV_HB_EE (OM12M49E)
2
Instrument cluster
Hybrid System Indicator
Displays hybrid system output or regeneration level (P. 104)
Speedometer
Displays the vehicle speed.
Outside temperature
Displays the outside temperature within the range of -40°C (-40°F) to 50°C
(122°F). Low outside temperature indicator comes on when the ambient
temperature is 3°C (37°F) or lower.
Shift position indicators
Displays the shift position. ( P. 219)
Fuel gauge
Displays the quantity of fuel remaining in the tank.
Multi-information display
P. 106
Gauges and meters
1
2
3
4
5
6

1042. Instrument cluster
UK AURIS_HV_HB_EE (OM12M49E)
■The meters and display illuminate when
The power switch is in ON mode.
■ Outside temperature display
● In the following situations, the correct outside temperature may not be dis-
played, or the display may take longer than normal to change.
• When stopped, or driving at low speeds (less than 15 km/h [9 mph])
• When the outside temperature has changed suddenly (at the entrance/
exit of a garage, tunnel, etc.)
● If “ ” is displayed continuously, the system may be malfunctioning. Take
your vehicle to any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional.
■ Hybrid System Indicator
● By keeping the indicator needle within Eco area, more Eco-friendly driving
can be achieved.
● Charge area indicates regeneration* status. Regenerated energy will be
used to charge the hybrid battery (traction battery).
*: When used in this manual, “regeneration” refers to the conversion of
energy created by the movement of the vehicle into electrical energy.
■ Engine speed
On hybrid vehicles, engine speed is precisely controlled in order to help
improve fuel efficiency and reduce exhaust emissions etc.
There are times when the engine speed that is displayed may differ even
when vehicle operation and driving conditions are the same.
Charge area
Shows regenerative charging.
Hybrid Eco area
Shows that gasoline engine power is
not being used very often.
The gasoline engine will automatically
stop and restart under various condi-
tions.
Eco area
Shows that the vehicle is being driven in
an Eco-friendly manner.
Power area
Shows that an Eco-friendly driving
range is being exceeded (during full
power driving etc.)
1
2
3
4

1052. Instrument cluster
UK AURIS_HV_HB_EE (OM12M49E)
2
Instrument cluster
NOTICE
■To prevent damage to the engine and its components
If the high engine coolant temperature warning light is shown, the engine
may be overheating. In this case, immediately stop the vehicle in a safe
place, and check the hybrid system after it has cooled completely.
( P. 544)

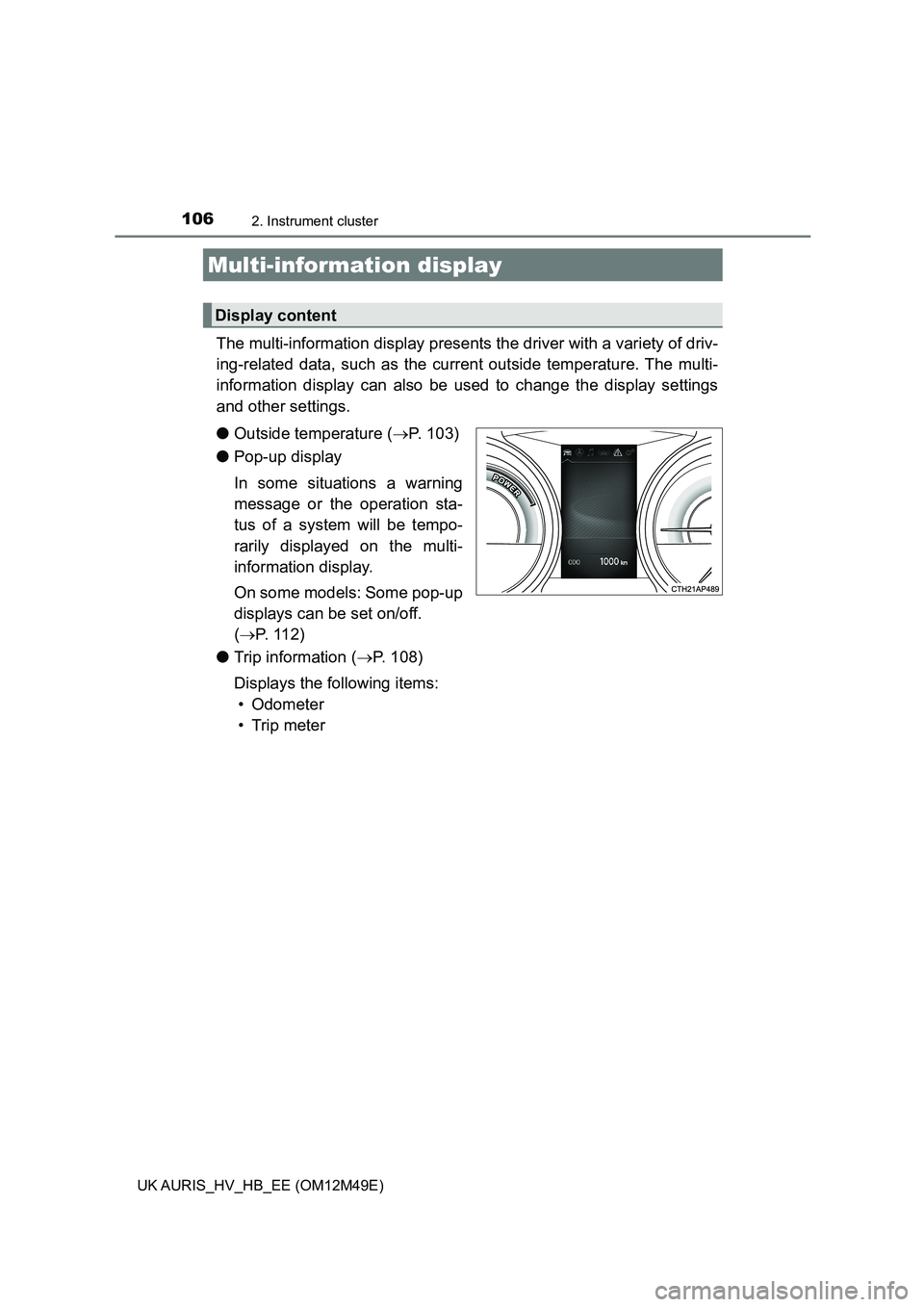

1062. Instrument cluster
UK AURIS_HV_HB_EE (OM12M49E)
The multi-information display presents the driver with a variety of driv-
ing-related data, such as the curr ent outside temperature. The multi-
information display can also be used to change the display settings
and other settings.
● Outside temperature (P. 103)
● Pop-up display
In some situations a warning
message or the operation sta-
tus of a system will be tempo-
rarily displayed on the multi-
information display.
On some models: Some pop-up
displays can be set on/off.
( P. 112)
● Trip information (P. 108)
Displays the following items:
•Odometer
•Trip meter
Multi-information display
Display content

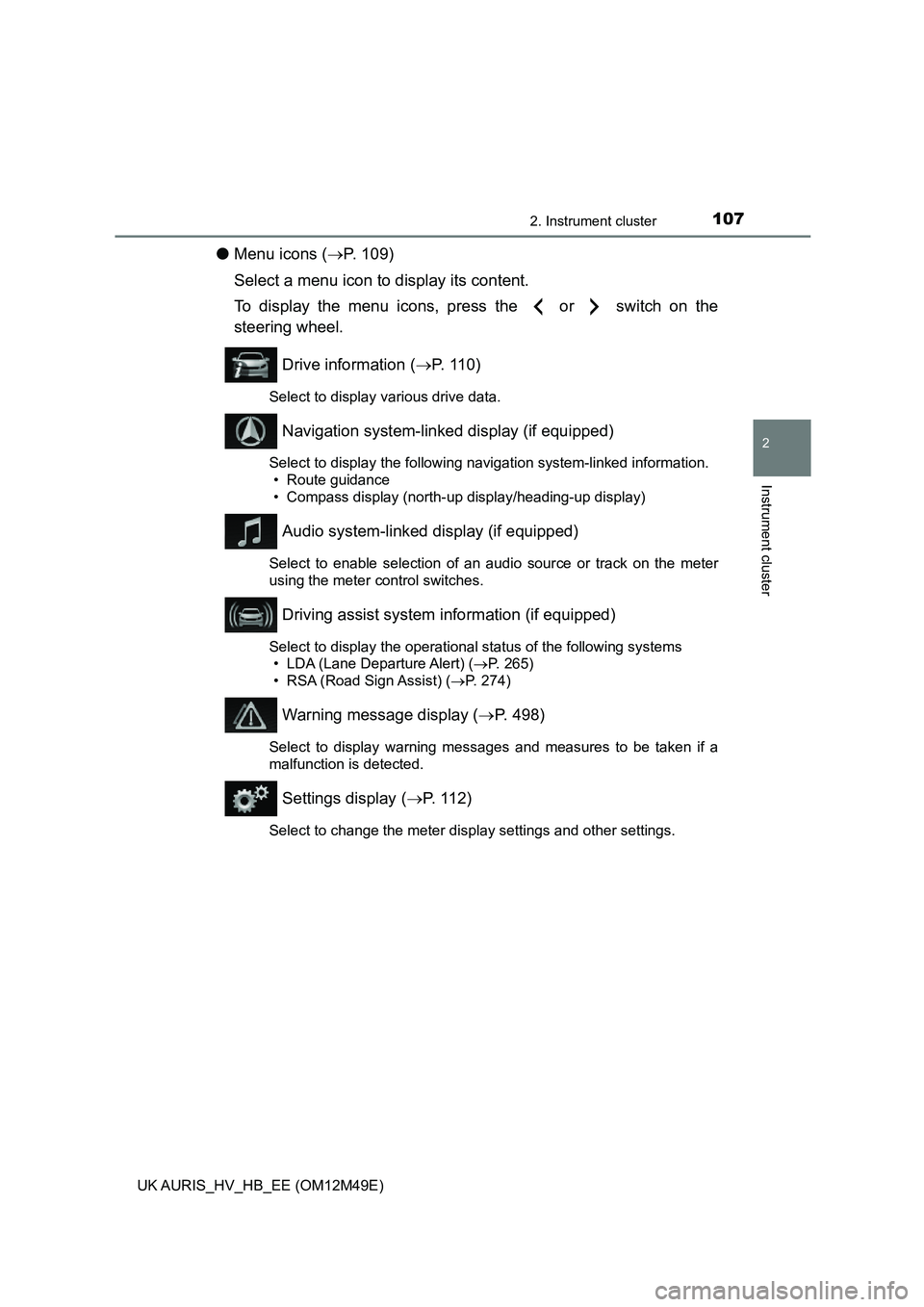

1072. Instrument cluster
UK AURIS_HV_HB_EE (OM12M49E)
2
Instrument cluster
●Menu icons (P. 109)
Select a menu icon to display its content.
To display the menu icons, press the or switch on the
steering wheel.
Drive information ( P. 1 1 0 )
Select to display various drive data.
Navigation system-linked display (if equipped)
Select to display the following navigation system-linked information.
• Route guidance
• Compass display (north-up display/heading-up display)
Audio system-linked display (if equipped)
Select to enable selection of an audio source or track on the meter
using the meter control switches.
Driving assist system information (if equipped)
Select to display the operational status of the following systems
• LDA (Lane Departure Alert) ( P. 265)
• RSA (Road Sign Assist) ( P. 274)
Warning message display (P. 498)
Select to display warning messages and measures to be taken if a
malfunction is detected.
Settings display ( P. 1 1 2 )
Select to change the meter display settings and other settings.

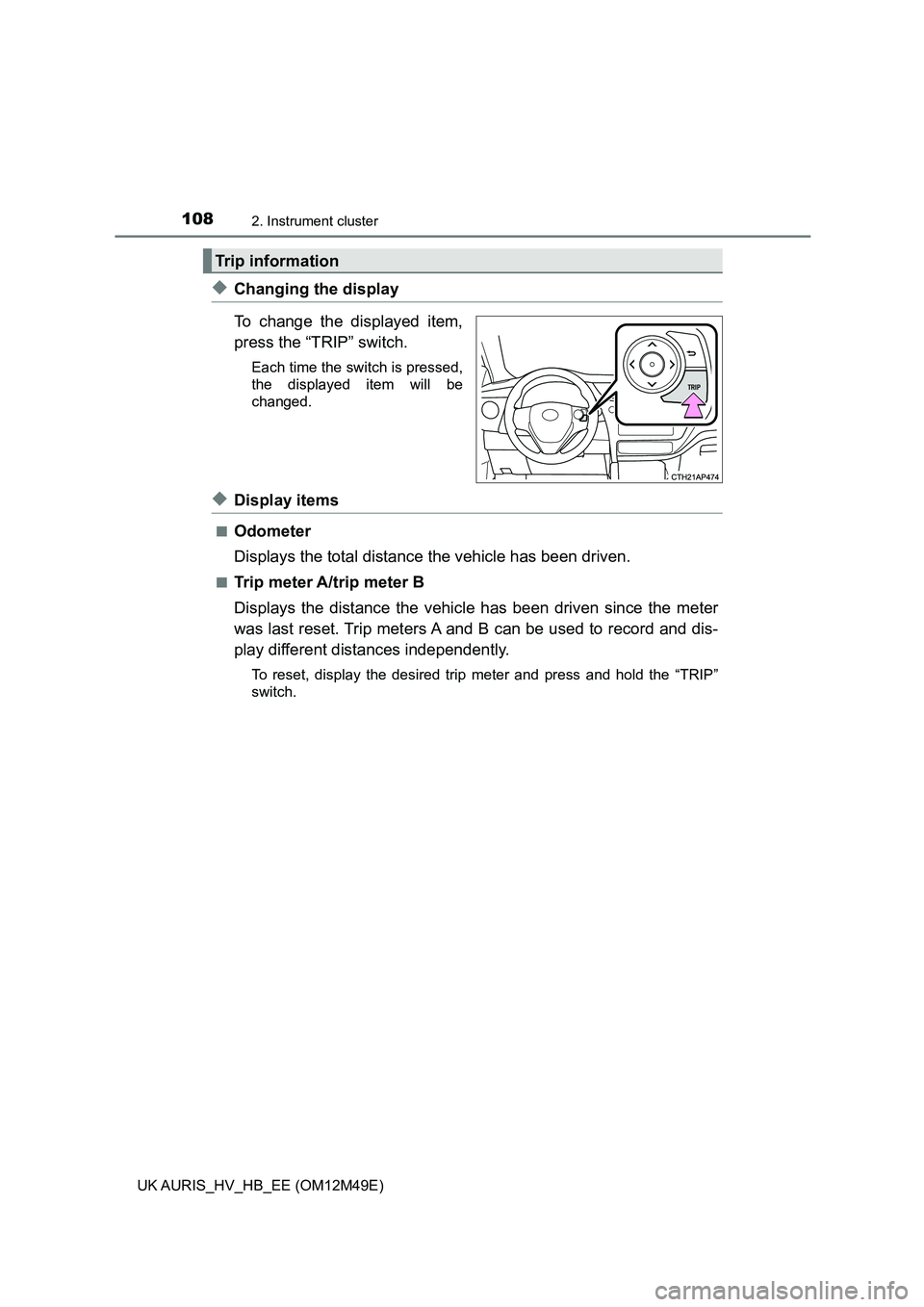

1082. Instrument cluster
UK AURIS_HV_HB_EE (OM12M49E)
◆Changing the display
To change the displayed item,
press the “TRIP” switch.
Each time the switch is pressed,
the displayed item will be
changed.
◆Display items
■Odometer
Displays the total distance the vehicle has been driven.
■Trip meter A/trip meter B
Displays the distance the vehicl e has been driven since the meter
was last reset. Trip meters A and B can be used to record and dis-
play different distances independently.
To reset, display the desired trip meter and press and hold the “TRIP”
switch.
Trip information

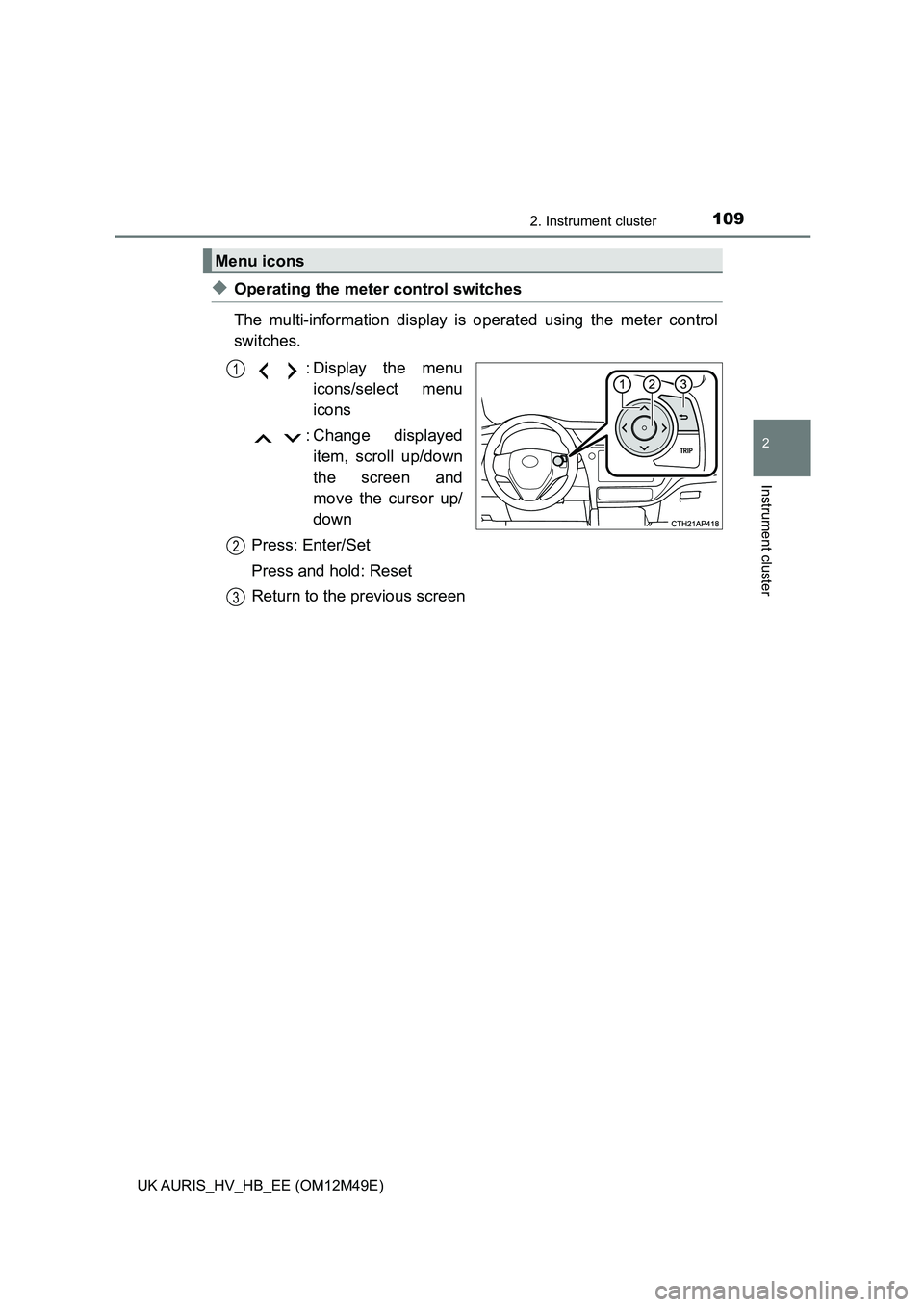

1092. Instrument cluster
UK AURIS_HV_HB_EE (OM12M49E)
2
Instrument cluster
◆Operating the meter control switches
The multi-information display is operated using the meter control
switches.
: Display the menu
icons/select menu
icons
: Change displayed
item, scroll up/down
the screen and
move the cursor up/
down
Press: Enter/Set
Press and hold: Reset
Return to the previous screen
Menu icons
1
2
3

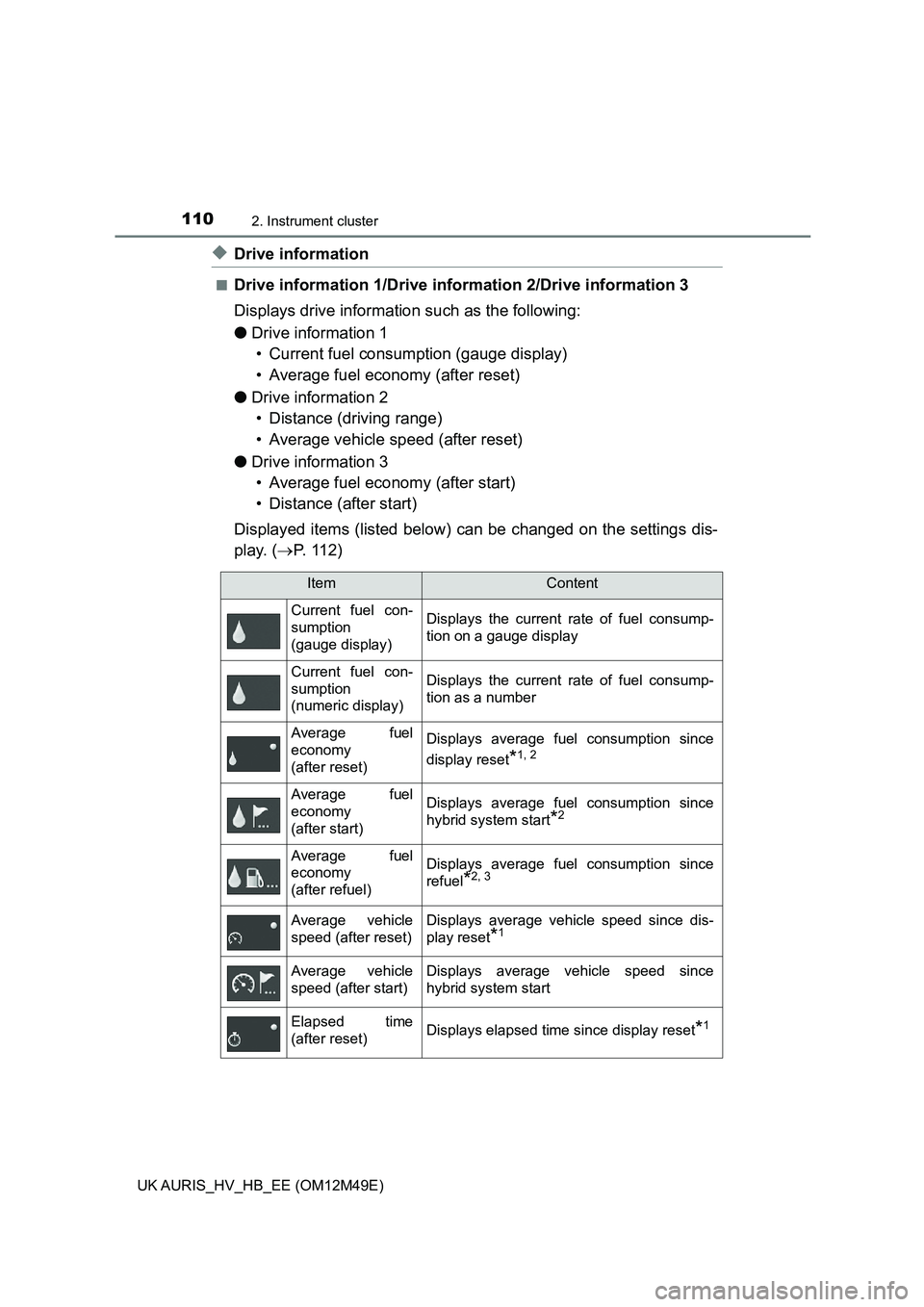

1102. Instrument cluster
UK AURIS_HV_HB_EE (OM12M49E)
◆Drive information
■Drive information 1/Drive information 2/Drive information 3
Displays drive information such as the following:
● Drive information 1
• Current fuel consumption (gauge display)
• Average fuel economy (after reset)
● Drive information 2
• Distance (driving range)
• Average vehicle speed (after reset)
● Drive information 3
• Average fuel economy (after start)
• Distance (after start)
Displayed items (listed below) can be changed on the settings dis-
play. ( P. 112)
ItemContent
Current fuel con-
sumption
(gauge display)
Displays the current rate of fuel consump-
tion on a gauge display
Current fuel con-
sumption
(numeric display)
Displays the current rate of fuel consump-
tion as a number
Average fuel
economy
(after reset)
Displays average fuel consumption since
display reset*1, 2
Average fuel
economy
(after start)
Displays average fuel consumption since
hybrid system start*2
Average fuel
economy
(after refuel)
Displays average fuel consumption since
refuel*2, 3
Average vehicle
speed (after reset)
Displays average vehicle speed since dis-
play reset*1
Average vehicle
speed (after start)
Displays average vehicle speed since
hybrid system start
Elapsed time
(after reset)Displays elapsed time since display reset*1
