TOYOTA AURIS 2018 Owners Manual (in English)
Manufacturer: TOYOTA, Model Year: 2018, Model line: AURIS, Model: TOYOTA AURIS 2018Pages: 592, PDF Size: 28.6 MB
Page 151 of 592
1513-2. Opening, closing and locking the doors
UK AURIS_HV_HB_EE (OM12M49E)
3
Operation of each component
Page 152 of 592

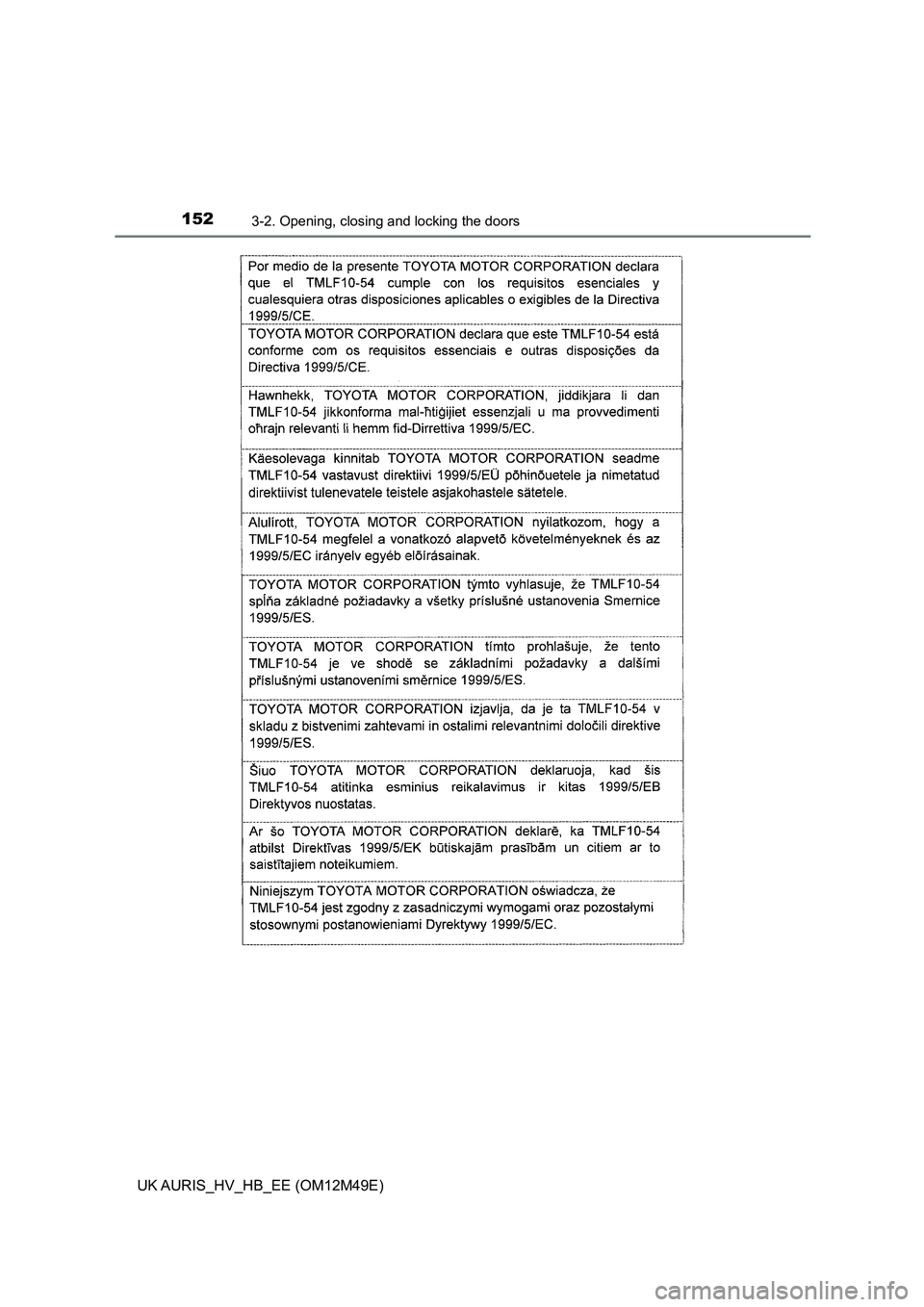

1523-2. Opening, closing and locking the doors
UK AURIS_HV_HB_EE (OM12M49E)
Page 153 of 592
1533-2. Opening, closing and locking the doors
UK AURIS_HV_HB_EE (OM12M49E)
3
Operation of each component
Page 154 of 592
1543-2. Opening, closing and locking the doors
UK AURIS_HV_HB_EE (OM12M49E)

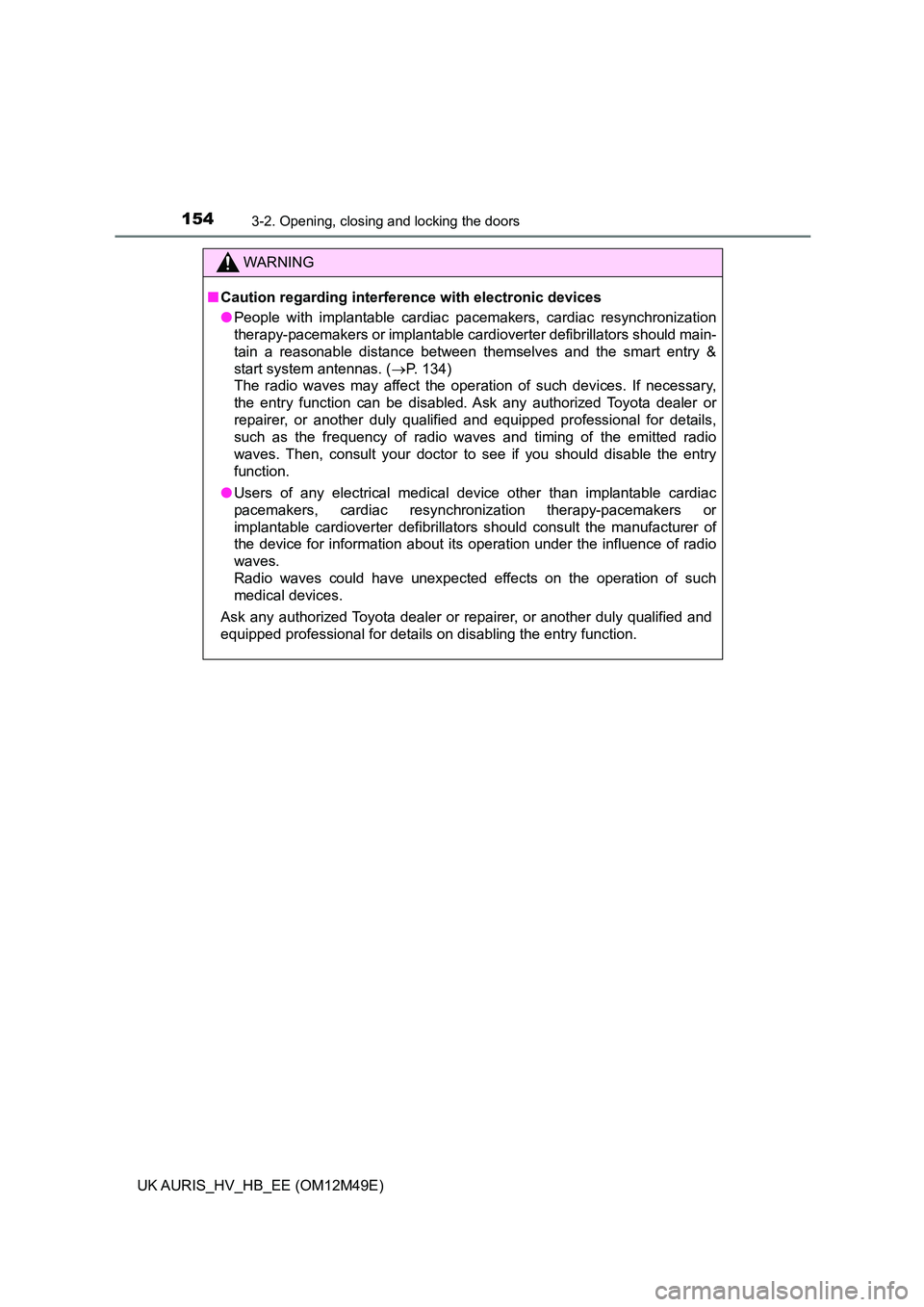

WARNING
■Caution regarding interference with electronic devices
● People with implantable cardiac pacemakers, cardiac resynchronization
therapy-pacemakers or implantable cardio verter defibrillators should main-
tain a reasonable distance between themselves and the smart entry &
start system antennas. ( P. 134)
The radio waves may affect the operation of such devices. If necessary,
the entry function can be disabled. Ask any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional for details,
such as the frequency of radio waves and timing of the emitted radio
waves. Then, consult your doctor to see if you should disable the entry
function.
● Users of any electrical medical device other than implantable cardiac
pacemakers, cardiac resynchronization therapy-pacemakers or
implantable cardioverter defibrillators should consult the manufacturer of
the device for information about its operation under the influence of radio
waves.
Radio waves could have unexpected effects on the operation of such
medical devices.
Ask any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional for details on disabling the entry function.
Page 155 of 592
1553-2. Opening, closing and locking the doors
UK AURIS_HV_HB_EE (OM12M49E)
3
Operation of each component

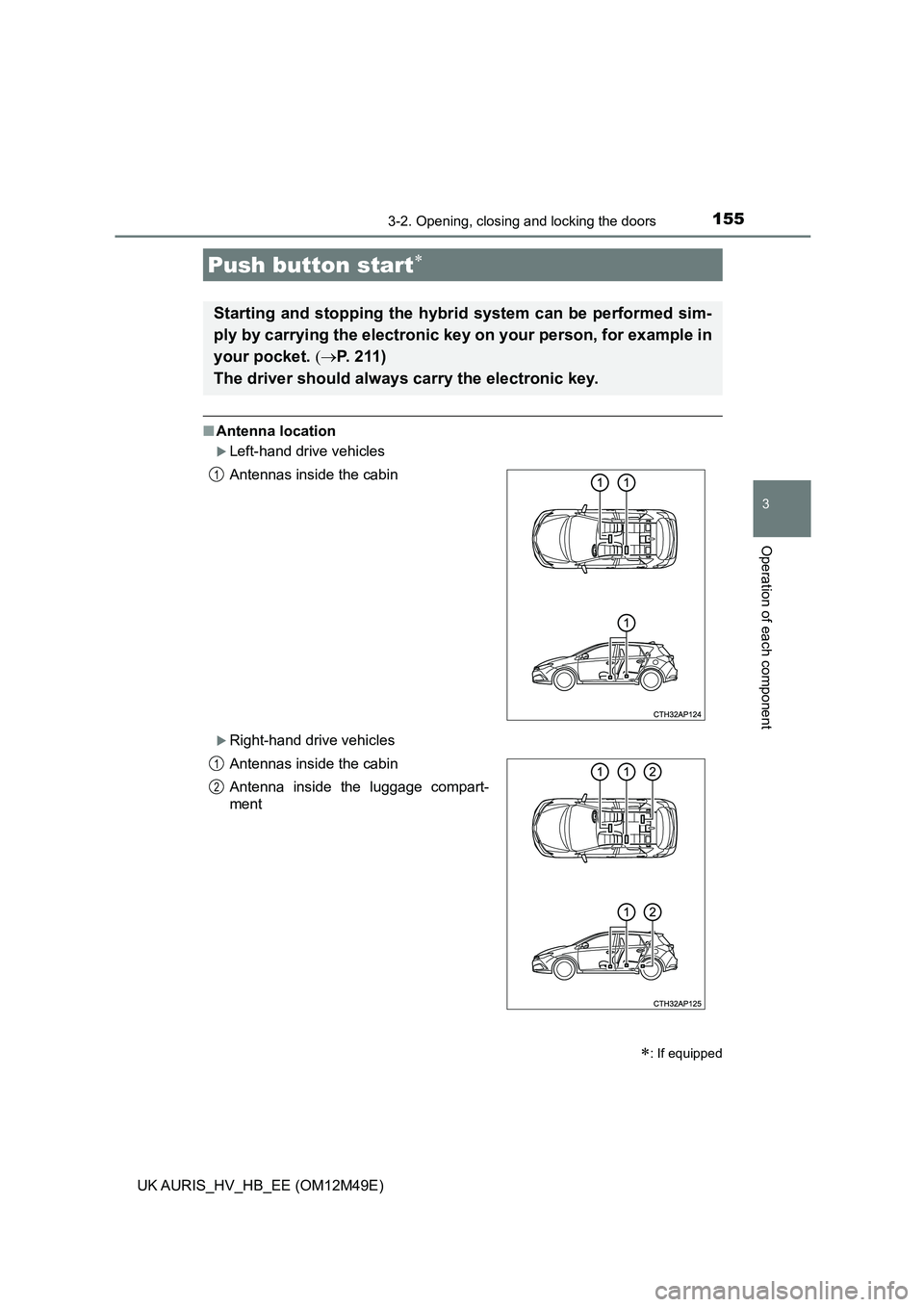

■Antenna location
Left-hand drive vehicles
Right-hand drive vehicles
Push button start
: If equipped
Starting and stopping the hybrid system can be performed sim-
ply by carrying the electronic k ey on your person, for example in
your pocket. P. 211)
The driver should always carry the electronic key.
Antennas inside the cabin
Antennas inside the cabin
Antenna inside the luggage compart-
ment
1
1
2
Page 156 of 592
1563-2. Opening, closing and locking the doors
UK AURIS_HV_HB_EE (OM12M49E)

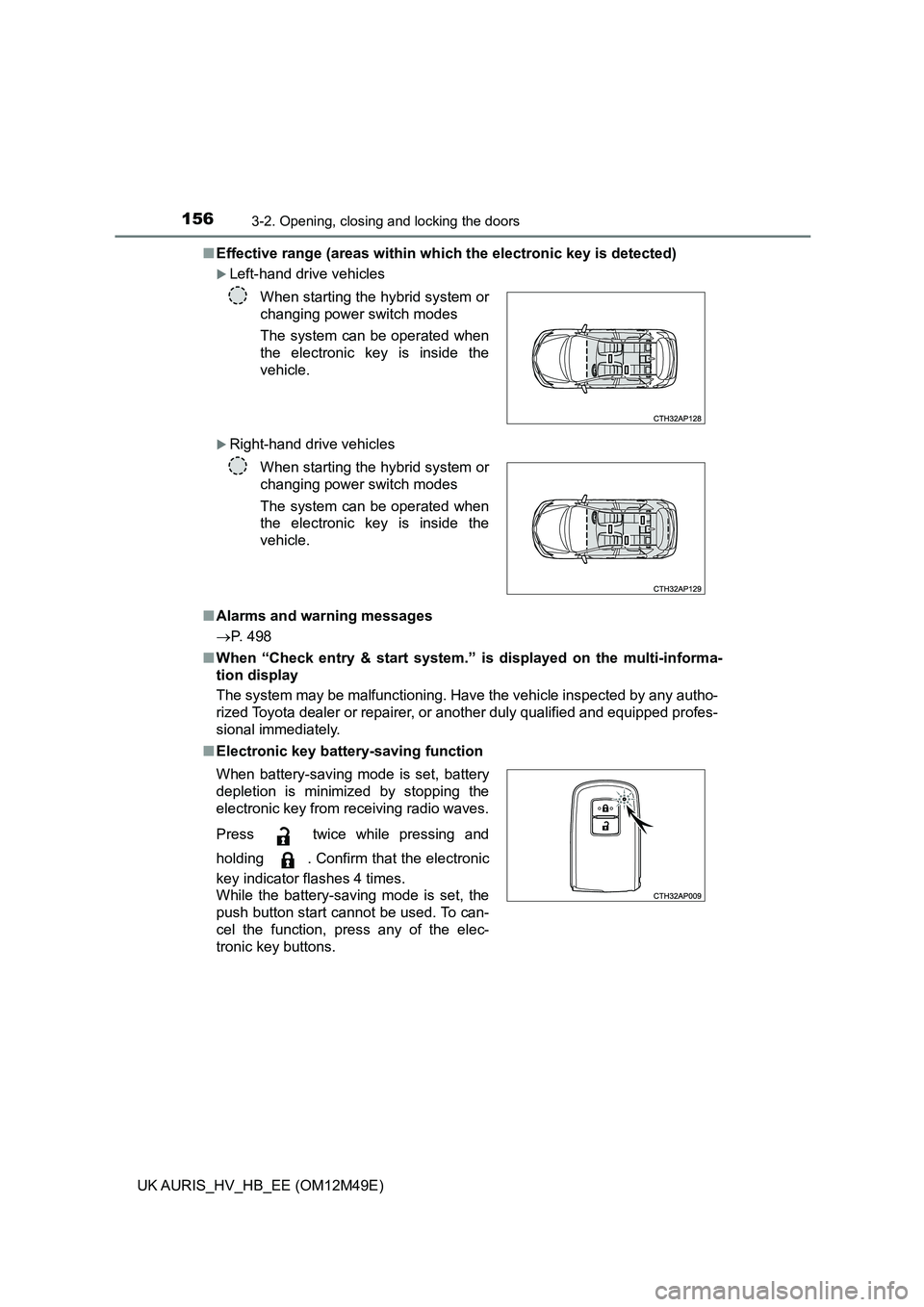

■ Effective range (areas within which the electronic key is detected)
Left-hand drive vehicles
Right-hand drive vehicles
■ Alarms and warning messages
P. 498
■ When “Check entry & start system.” is displayed on the multi-informa-
tion display
The system may be malfunctioning. Have the vehicle inspected by any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped profes-
sional immediately.
■ Electronic key battery-saving function
When starting the hybrid system or
changing power switch modes
The system can be operated when
the electronic key is inside the
vehicle.
When starting the hybrid system or
changing power switch modes
The system can be operated when
the electronic key is inside the
vehicle.
When battery-saving mode is set, battery
depletion is minimized by stopping the
electronic key from receiving radio waves.
Press twice while pressing and
holding . Confirm that the electronic
key indicator flashes 4 times.
While the battery-saving mode is set, the
push button start cannot be used. To can-
cel the function, press any of the elec-
tronic key buttons.
Page 157 of 592
1573-2. Opening, closing and locking the doors
UK AURIS_HV_HB_EE (OM12M49E)
3
Operation of each component

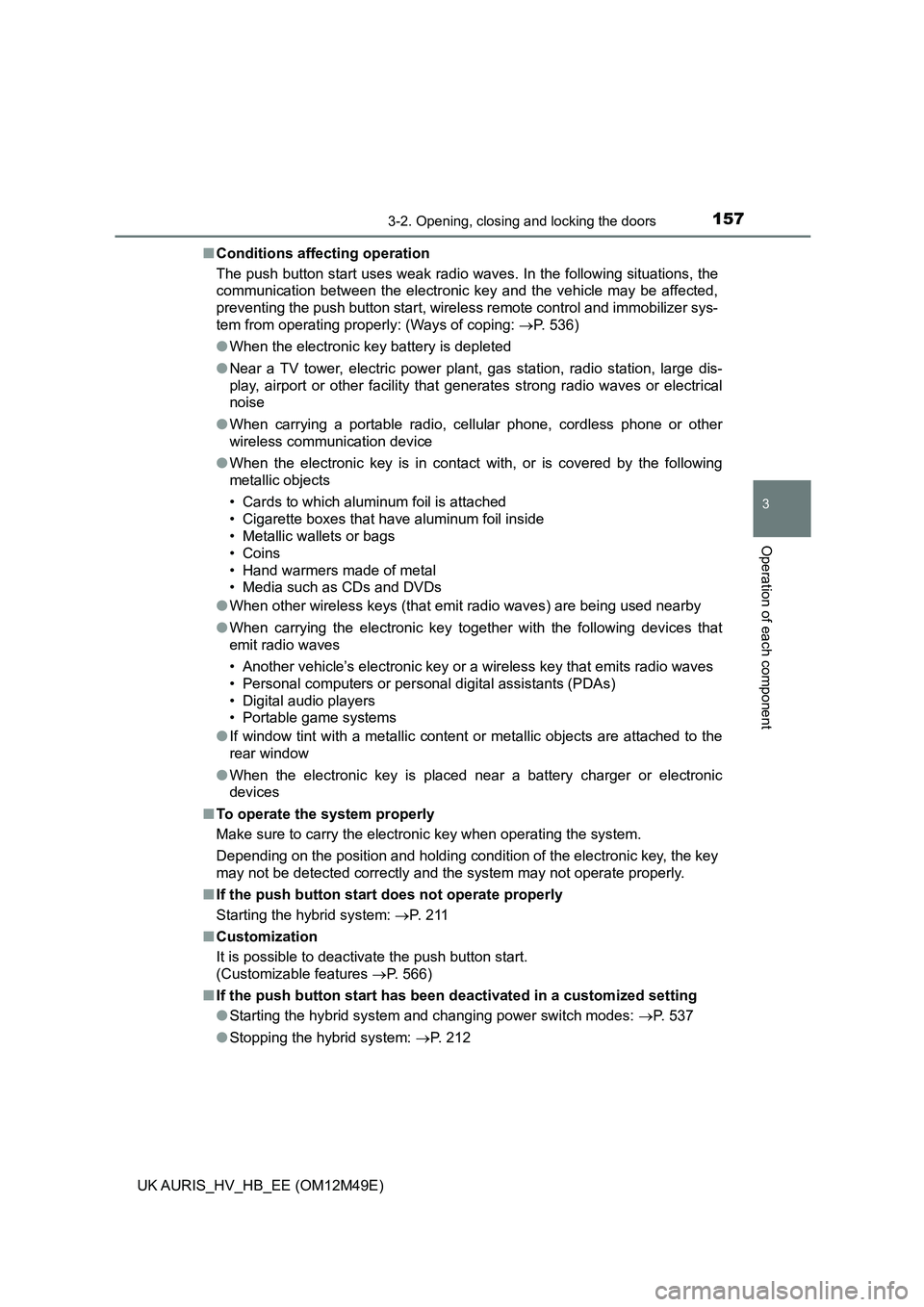

■Conditions affecting operation
The push button start uses weak radio waves. In the following situations, the
communication between the electronic key and the vehicle may be affected,
preventing the push button start, wireless remote control and immobilizer sys-
tem from operating properly: (Ways of coping: P. 536)
● When the electronic key battery is depleted
● Near a TV tower, electric power plant, gas station, radio station, large dis-
play, airport or other facility that generates strong radio waves or electrical
noise
● When carrying a portable radio, cellular phone, cordless phone or other
wireless communication device
● When the electronic key is in contact with, or is covered by the following
metallic objects
• Cards to which aluminum foil is attached
• Cigarette boxes that have aluminum foil inside
• Metallic wallets or bags
• Coins
• Hand warmers made of metal
• Media such as CDs and DVDs
● When other wireless keys (that emit radio waves) are being used nearby
● When carrying the electronic key together with the following devices that
emit radio waves
• Another vehicle’s electronic key or a wireless key that emits radio waves
• Personal computers or personal digital assistants (PDAs)
• Digital audio players
• Portable game systems
● If window tint with a metallic content or metallic objects are attached to the
rear window
● When the electronic key is placed near a battery charger or electronic
devices
■ To operate the system properly
Make sure to carry the electronic key when operating the system.
Depending on the position and holding condition of the electronic key, the key
may not be detected correctly and the system may not operate properly.
■ If the push button start does not operate properly
Starting the hybrid system: P. 211
■ Customization
It is possible to deactivate the push button start.
(Customizable features P. 566)
■ If the push button start has been deactivated in a customized setting
● Starting the hybrid system and changing power switch modes: P. 537
● Stopping the hybrid system: P. 212
Page 158 of 592
1583-2. Opening, closing and locking the doors
UK AURIS_HV_HB_EE (OM12M49E)

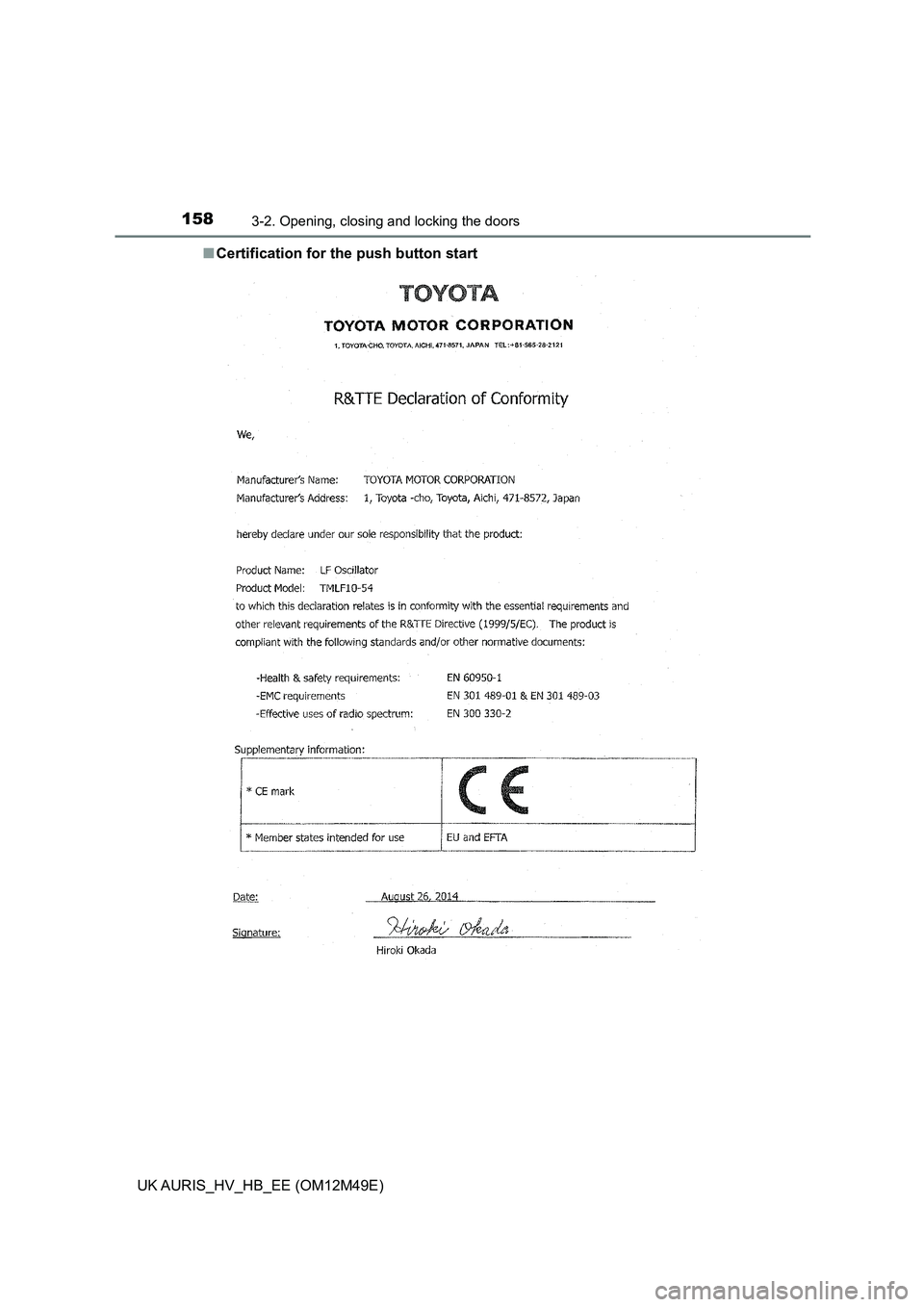

■ Certification for the push button start
Page 159 of 592
1593-2. Opening, closing and locking the doors
UK AURIS_HV_HB_EE (OM12M49E)
3
Operation of each component

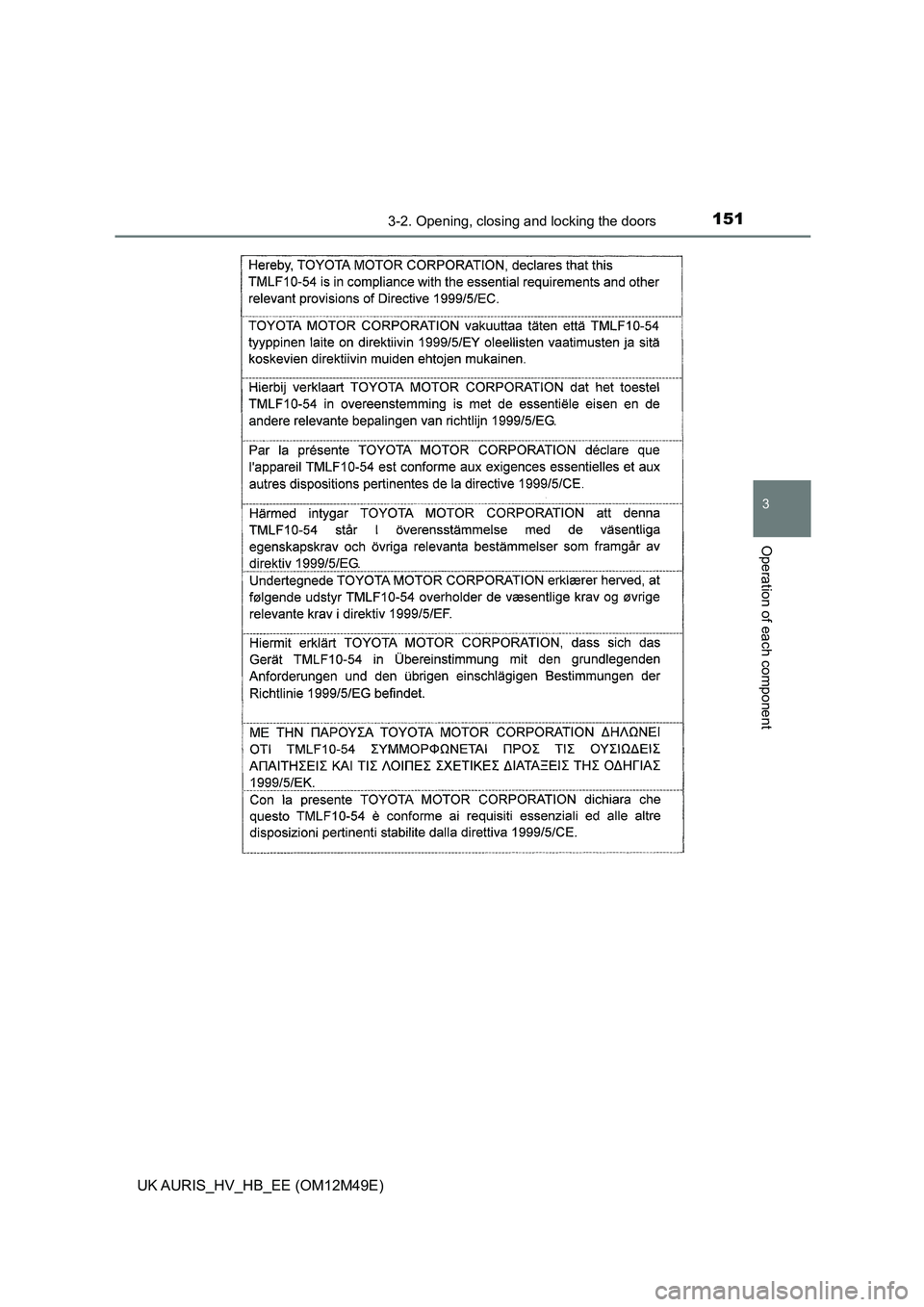

Hereby, Toyota Motor Corporation, declares that this TMLF10-54 is in compliance with
the essential requirements and other relevant provisions of Directive 1999/5/EC. :w
Toyota Motor Corporation vakuuttaa täten että TMLF10-54 tyyppinen laite on direktiivin
1999/5/EY oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen
mukainen. :w
Hierbij verklaart Toyota Motor Corporation dat het toestel TMLF10-54 in
overeenstemming is met de essentiële eisen en de andere relevante bepalingen van
richtlijn 1999/5/EG. :w
Par la présente Toyota Motor Corporation déclare que l'appareil TMLF10-54 est
conforme aux exigences essentielles et aux autres dispositions pertinentes de la
directive 1999/5/CE. :w
Härmed intygar Toyota Motor Corporation att denna TMLF10-54 står I
överensstämmelse med de väsentliga egenskapskrav och övriga relevanta
bestämmelser som framgår av direktiv 1999/5/EG.
Undertegnede Toyota Motor Corporation erklærer herved, at følgende udstyr
TMLF10-54 overholder de væsentlige krav og øvrige relevante krav i direktiv
1999/5/EF.
Hiermit erklärt Toyota Motor Corporation, dass sich das Gerät TMLF10-54 in
Übereinstimmung mit den grundlegenden Anforderungen und den übrigen
einschlägigen Bestimmungen der Richtlinie 1999/5/EG befindet. :w
ü þ ù
ù Toyota Motor Corporation ûþ
üÿ ÿ TMLF10-54
-
ü ùÿ ÿ
ÿ
ûüÿ ùùÿ þüÿ ùÿ ÿ ÿü ü ÿ ü
ûÿù ùüÿ þ ûþ+ÿù 1999/5/EK.
Con la presente Toyota Motor Corporation dichiara che questo TMLF10-54 è conforme
ai requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva
1999/5/CE.
Por medio de la presente Toyota Motor Corporation declara que el TMLF10-54 cumple
con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles
de la Directiva 1999/5/CE.
Toyota Motor Corporation declara que este TMLF10-54 está conforme com os
requisitos essenciais e outras disposições da Directiva 1999/5/CE. :w
Hawnhekk, Toyota Motor Corporation, jiddikjara li dan TMLF10-54 jikkonforma
mal- «ti¥ijiet essenzjali u ma provvedimenti o«rajn relevanti li hemm fid-Dirrettiva
1999/5/EC.
Page 160 of 592
1603-2. Opening, closing and locking the doors
UK AURIS_HV_HB_EE (OM12M49E)

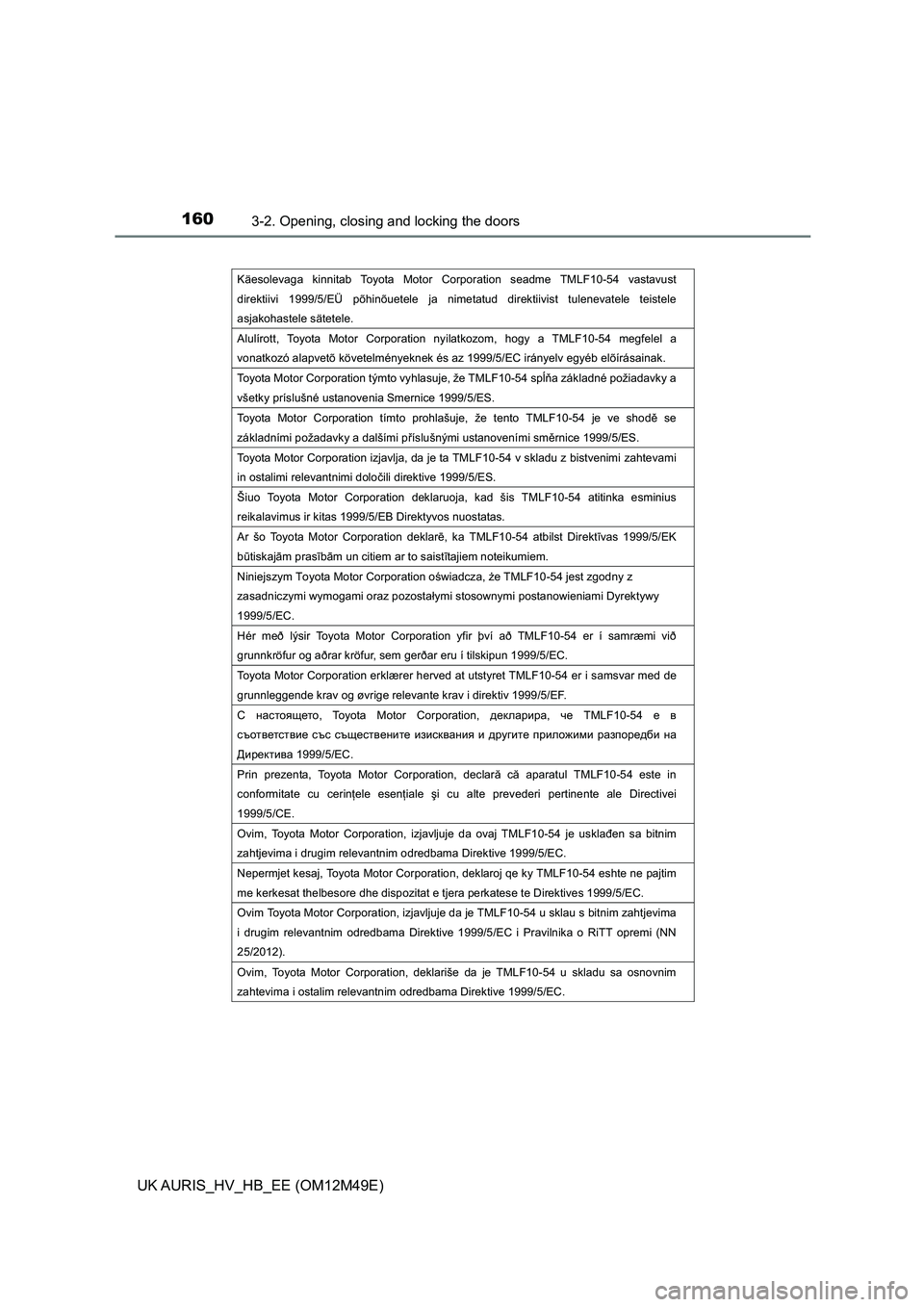

Käesolevaga kinnitab Toyota Motor Corporation seadme TMLF10-54 vastavust
direktiivi 1999/5/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele teistele
asjakohastele sätetele.
Alulírott, Toyota Motor Corporation nyilatkozom, hogy a TMLF10-54 megfelel a
vonatkozó alapvetõ követelményeknek és az 1999/5/EC irányelv egyéb elõírásainak.
Toyota Motor Corporation týmto vyhlasuje, že TMLF10-54 spa základné požiadavky a
všetky príslušné ustanovenia Smernice 1999/5/ES.
Toyota Motor Corporation tímto prohlašuje, že tento TMLF10-54 je ve shod se
základními požadavky a dalšími p íslušnými ustanoveními sm rnice 1999/5/ES.
Toyota Motor Corporation izjavlja, da je ta TMLF10-54 v skladu z bistvenimi zahtevami
in ostalimi relevantnimi dolo þili direktive 1999/5/ES.
Šiuo Toyota Motor Corporation deklaruoja, kad šis TMLF10-54 atitinka esminius
reikalavimus ir kitas 1999/5/EB Direktyvos nuostatas.
Ar šo Toyota Motor Corporation deklar, ka TMLF10-54 atbilst Direkt¯vas 1999/5/EK
b Ìtiskaj—m pras¯b—m un citiem ar to saist¯tajiem noteikumiem.
Niniejszym Toyota Motor Corporation o wiadcza, *e TMLF10-54 jest zgodny z
zasadniczymi wymogami oraz pozosta áymi stosownymi postanowieniami Dyrektywy
1999/5/EC.
Hér með lýsir Toyota Motor Corporation yfir því að TMLF10-54 er í samræmi við
grunnkröfur og aðrar kröfur, sem gerðar eru í tilskipun 1999/5/EC.
Toyota Motor Corporation erklærer herved at utstyret TMLF10-54 er i samsvar med de
grunnleggende krav og øvrige relevante krav i direktiv 1999/5/EF.
C gZklhys_lh, Toyota Motor Corporation, ^_deZjbjZ, q_ TMLF10-54 _ \
kthl\_lkl\b_ ktk kts_kl\_gbl_ babkd\Zgby b ^jm]bl_ ijbeh`bfb jZaihj_^[b gZ
>bj_dlb\Z 1999/5/?K.
Prin prezenta, Toyota Motor Corporation, declar c aparatul TMLF10-54 este in
conformitate cu cerin ele esen iale úi cu alte prevederi pertinente ale Directivei
1999/5/CE.
Ovim, Toyota Motor Corporation, izjavljuje da ovaj TMLF10-54 je uskla ÿen sa bitnim
zahtjevima i drugim relevantnim odredbama Direktive 1999/5/EC.
Nepermjet kesaj, Toyota Motor Corporation, deklaroj qe ky TMLF10-54 eshte ne pajtim
me kerkesat thelbesore dhe dispozitat e tjera perkatese te Direktives 1999/5/EC.
Ovim Toyota Motor Corporation, izjavljuje da je TMLF10-54 u sklau s bitnim zahtjevima
i drugim relevantnim odredbama Direktive 1999/5/EC i Pravilnika o RiTT opremi (NN
25/2012).
Ovim, Toyota Motor Corporation, deklariše da je TMLF10-54 u skladu sa osnovnim
zahtevima i ostalim relevantnim odredbama Direktive 1999/5/EC.
