TOYOTA AURIS HYBRID 2012 Owners Manual

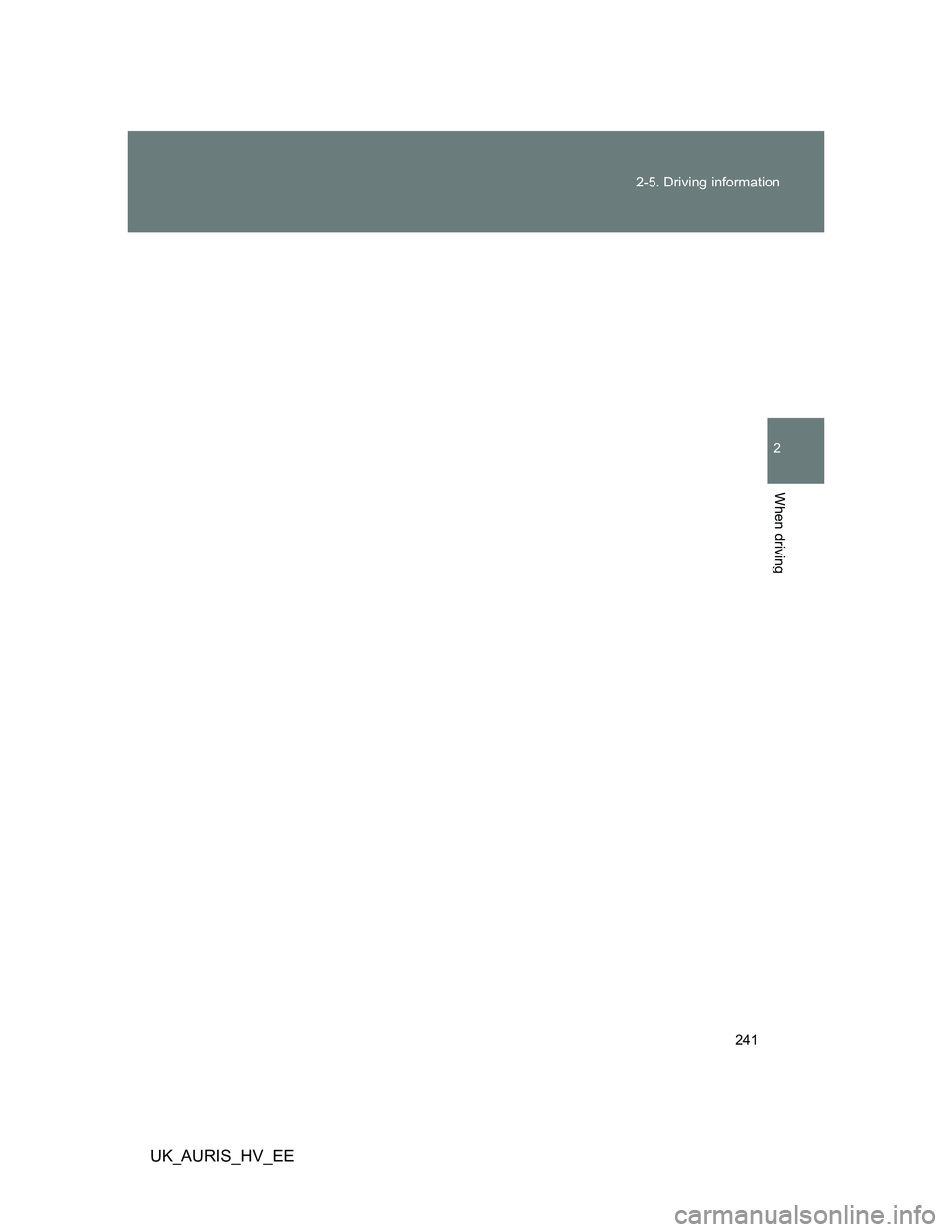

241 2-5. Driving information
2
When driving
UK_AURIS_HV_EE

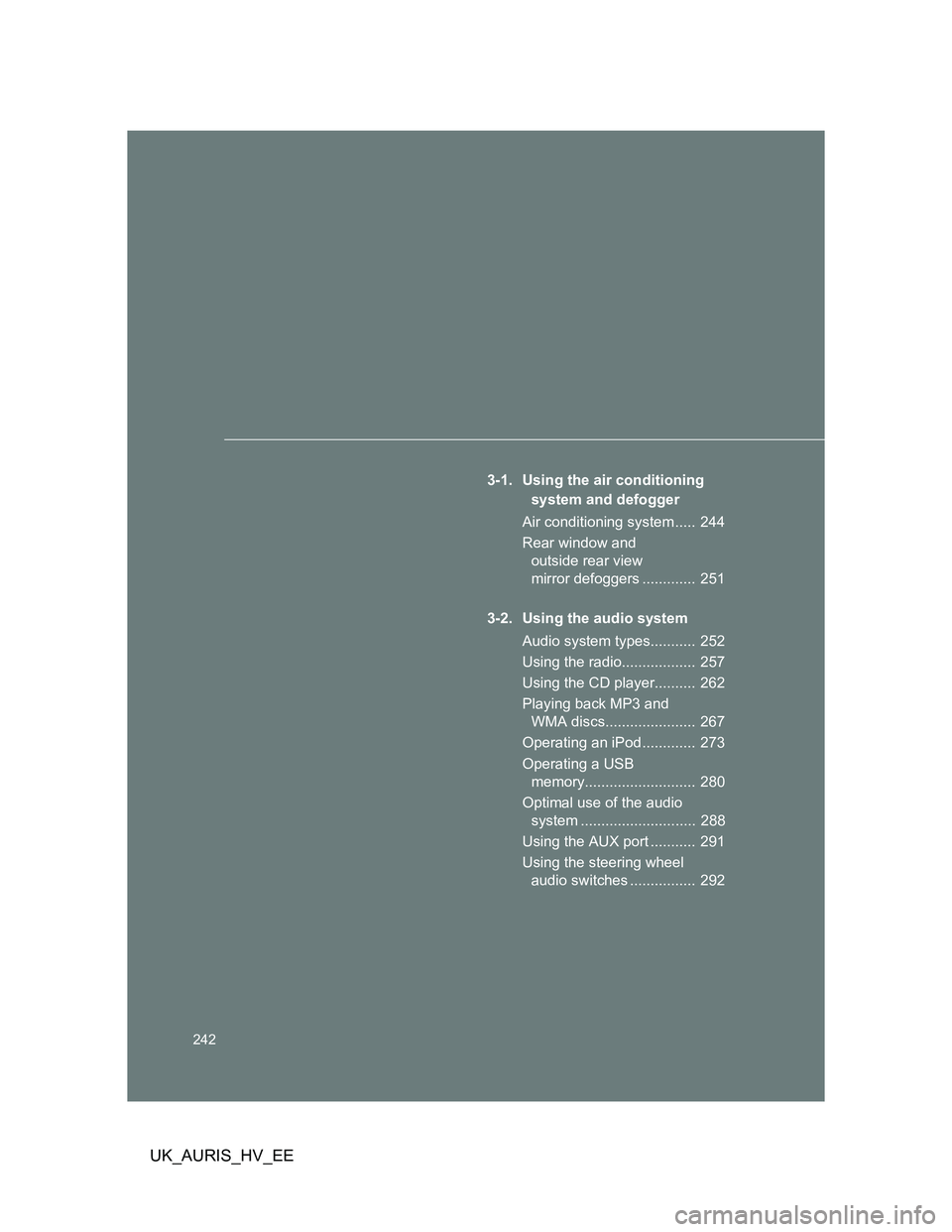

242
UK_AURIS_HV_EE
3-1. Using the air conditioning
system and defogger
Air conditioning system ..... 244
Rear window and
outside rear view
mirror defoggers ............. 251
3-2. Using the audio system
Audio system types........... 252
Using the radio.................. 257
Using the CD player.......... 262
Playing back MP3 and
WMA discs...................... 267
Operating an iPod ............. 273
Operating a USB
memory........................... 280
Optimal use of the audio
system ............................ 288
Using the AUX port ........... 291
Using the steering wheel
audio switches ................ 292

3Interior features
243
UK_AURIS_HV_EE

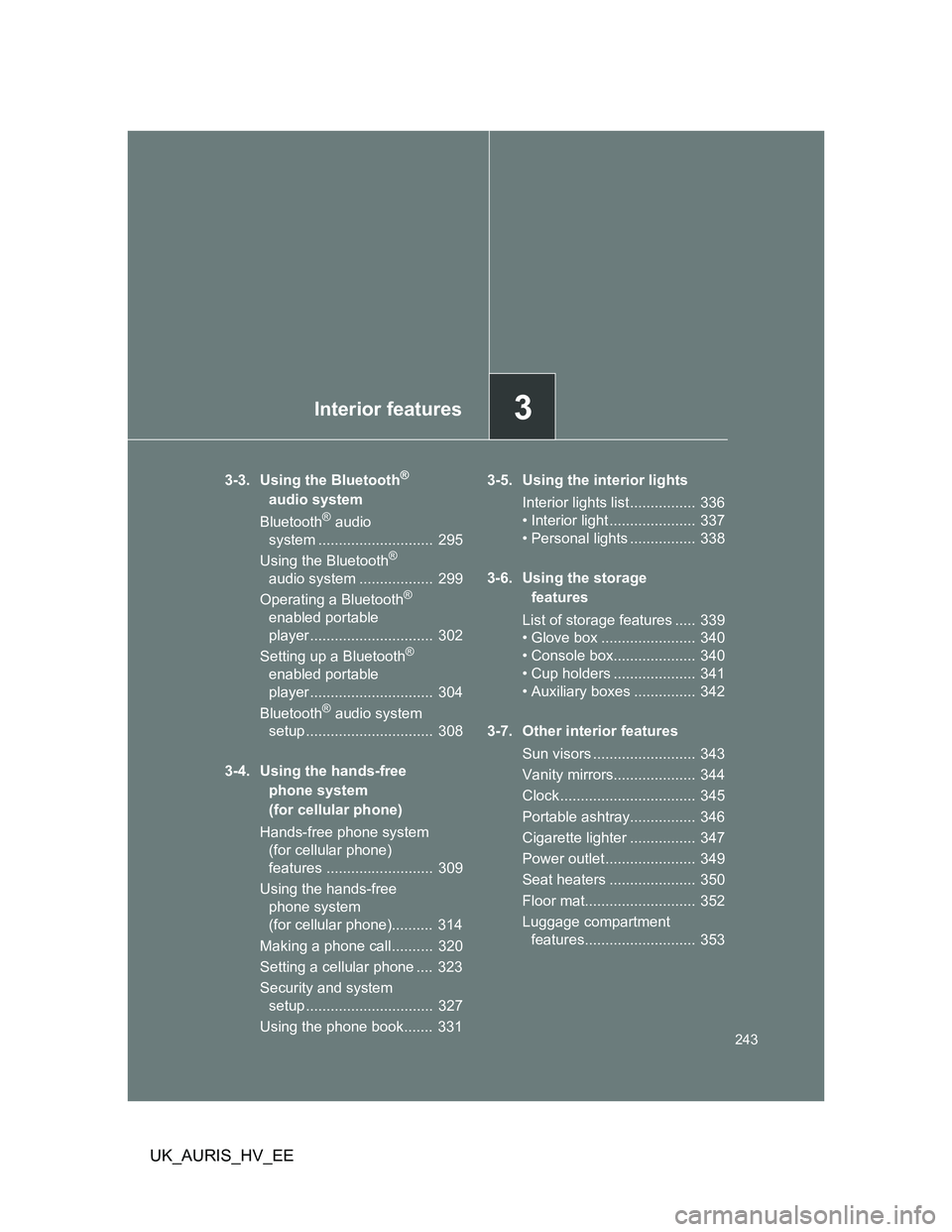

3-3. Using the Bluetooth®
audio system
Bluetooth
® audio
system ............................ 295
Using the Bluetooth
®
audio system .................. 299
Operating a Bluetooth
®
enabled portable
player .............................. 302
Setting up a Bluetooth
®
enabled portable
player .............................. 304
Bluetooth
® audio system
setup ............................... 308
3-4. Using the hands-free
phone system
(for cellular phone)
Hands-free phone system
(for cellular phone)
features .......................... 309
Using the hands-free
phone system
(for cellular phone).......... 314
Making a phone call.......... 320
Setting a cellular phone .... 323
Security and system
setup ............................... 327
Using the phone book....... 3313-5. Using the interior lights
Interior lights list ................ 336
• Interior light ..................... 337
• Personal lights ................ 338
3-6. Using the storage
features
List of storage features ..... 339
• Glove box ....................... 340
• Console box.................... 340
• Cup holders .................... 341
• Auxiliary boxes ............... 342
3-7. Other interior features
Sun visors ......................... 343
Vanity mirrors.................... 344
Clock ................................. 345
Portable ashtray................ 346
Cigarette lighter ................ 347
Power outlet ...................... 349
Seat heaters ..................... 350
Floor mat........................... 352
Luggage compartment
features........................... 353

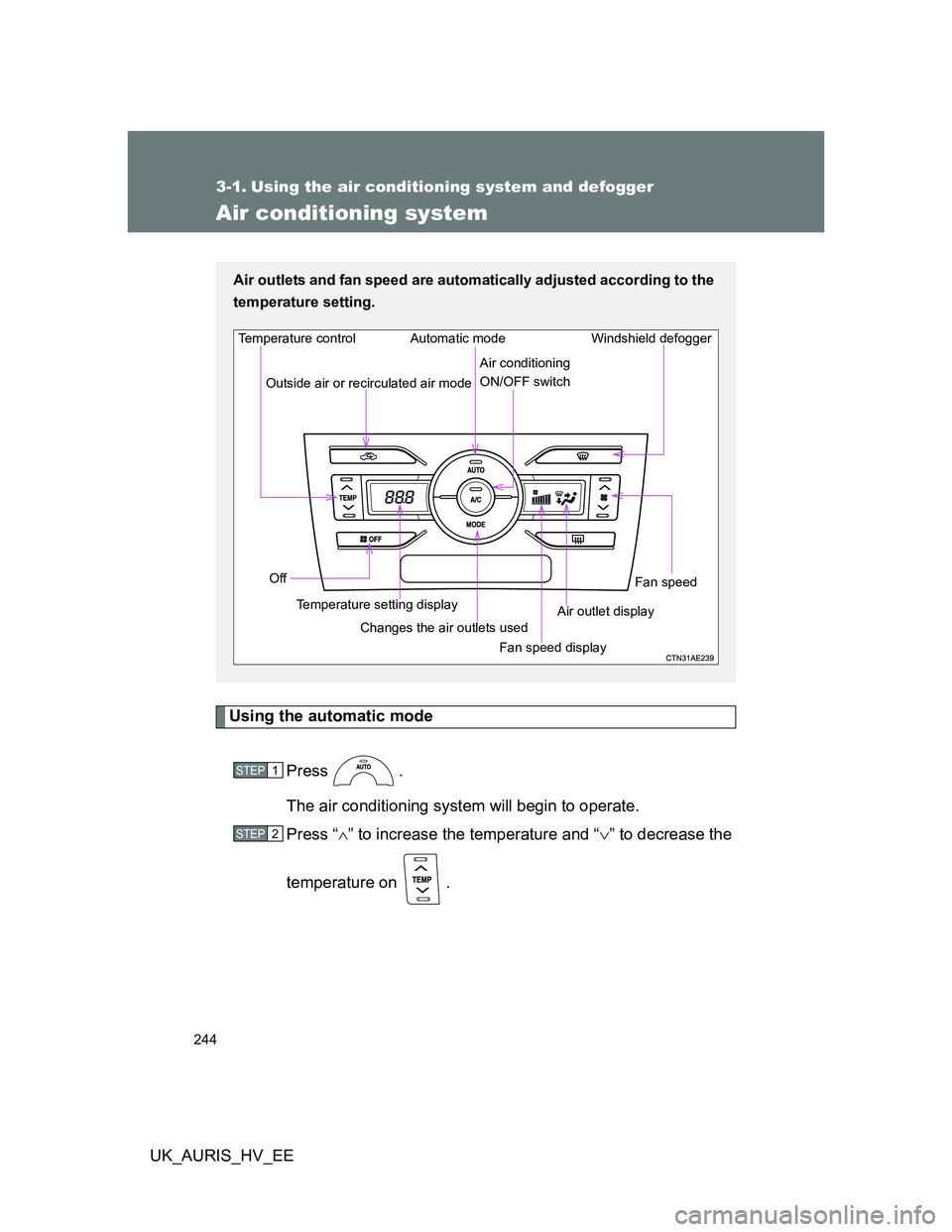

244
UK_AURIS_HV_EE
3-1. Using the air conditioning system and defogger
Air conditioning system
Using the automatic mode
Press .
The air conditioning system will begin to operate.
Press “” to increase the temperature and “” to decrease the
temperature on .
Air outlets and fan speed are automatically adjusted according to the
temperature setting.
Air outlet displayWindshield defogger Temperature control
Outside air or recirculated air mode
Fan speed
Temperature setting display OffAutomatic mode
Changes the air outlets used
Fan speed display Air conditioning
ON/OFF switch
STEP1
STEP2

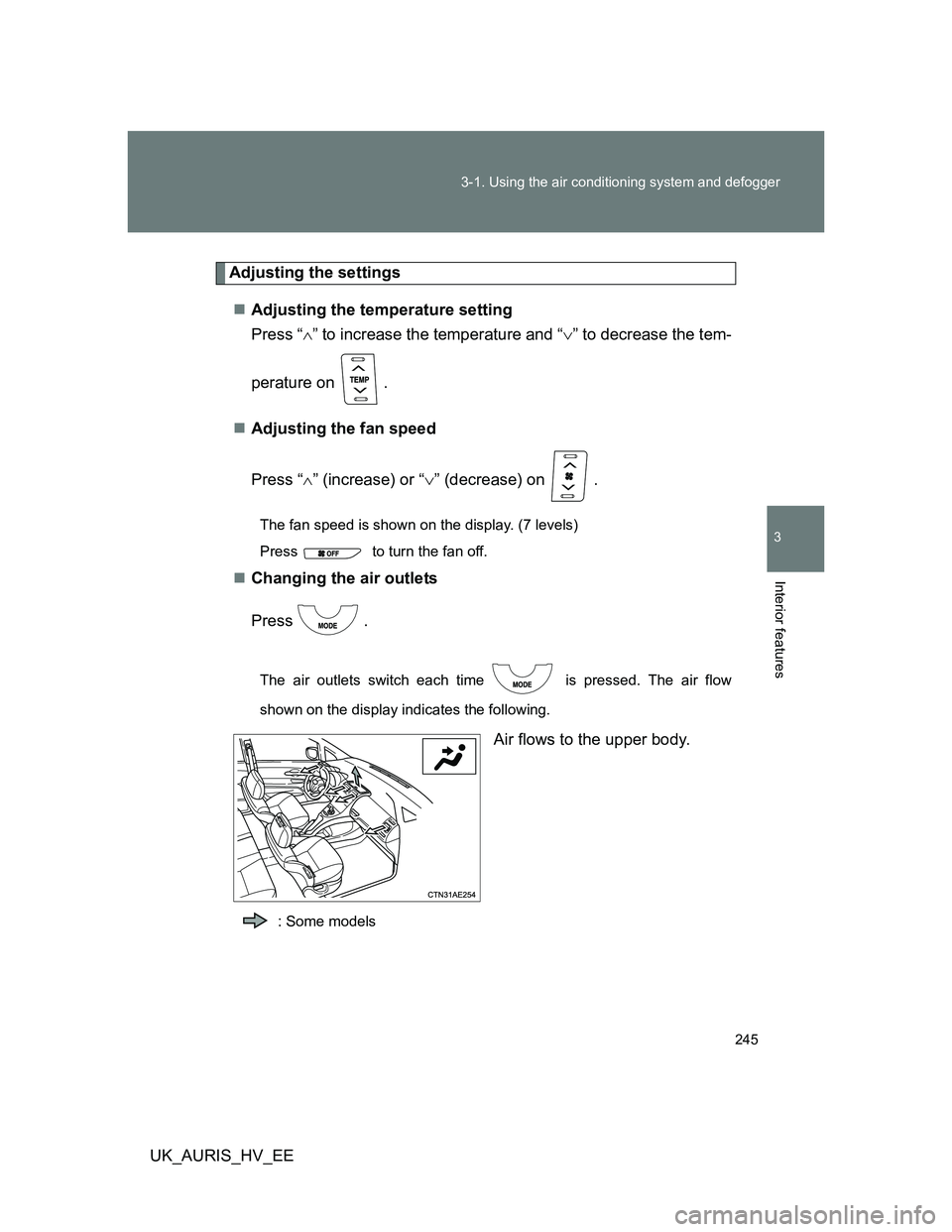

245 3-1. Using the air conditioning system and defogger
3
Interior features
UK_AURIS_HV_EE
Adjusting the settings
Adjusting the temperature setting
Press “” to increase the temperature and “” to decrease the tem-
perature on .
Adjusting the fan speed
Press “” (increase) or “” (decrease) on .
The fan speed is shown on the display. (7 levels)
Press to turn the fan off.
Changing the air outlets
Press .
The air outlets switch each time is pressed. The air flow
shown on the display indicates the following.
Air flows to the upper body.
: Some models

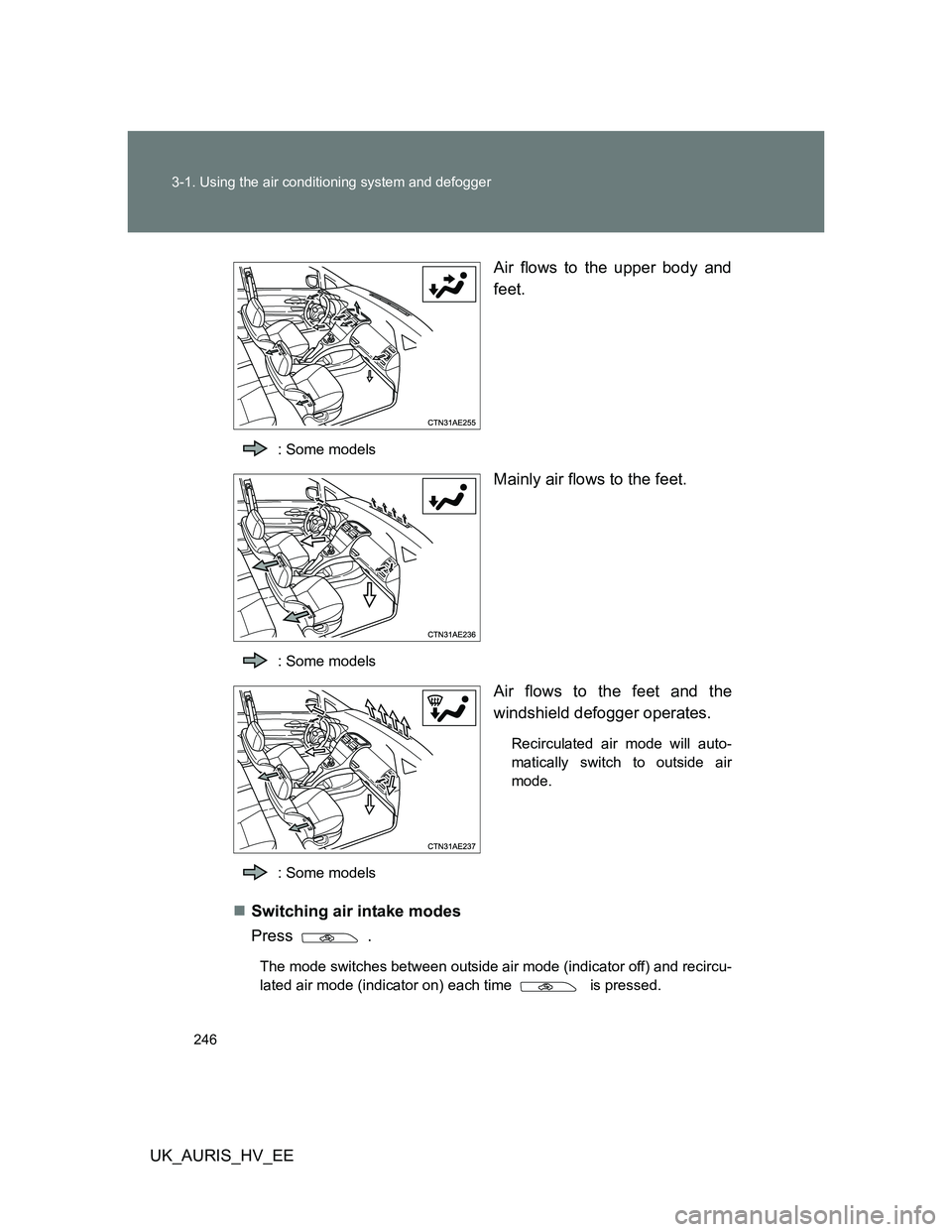

246 3-1. Using the air conditioning system and defogger
UK_AURIS_HV_EEAir flows to the upper body and
feet.
: Some models
Mainly air flows to the feet.
: Some models
Air flows to the feet and the
windshield defogger operates.
Recirculated air mode will auto-
matically switch to outside air
mode.
: Some models
Switching air intake modes
Press .
The mode switches between outside air mode (indicator off) and recircu-
lated air mode (indicator on) each time is pressed.

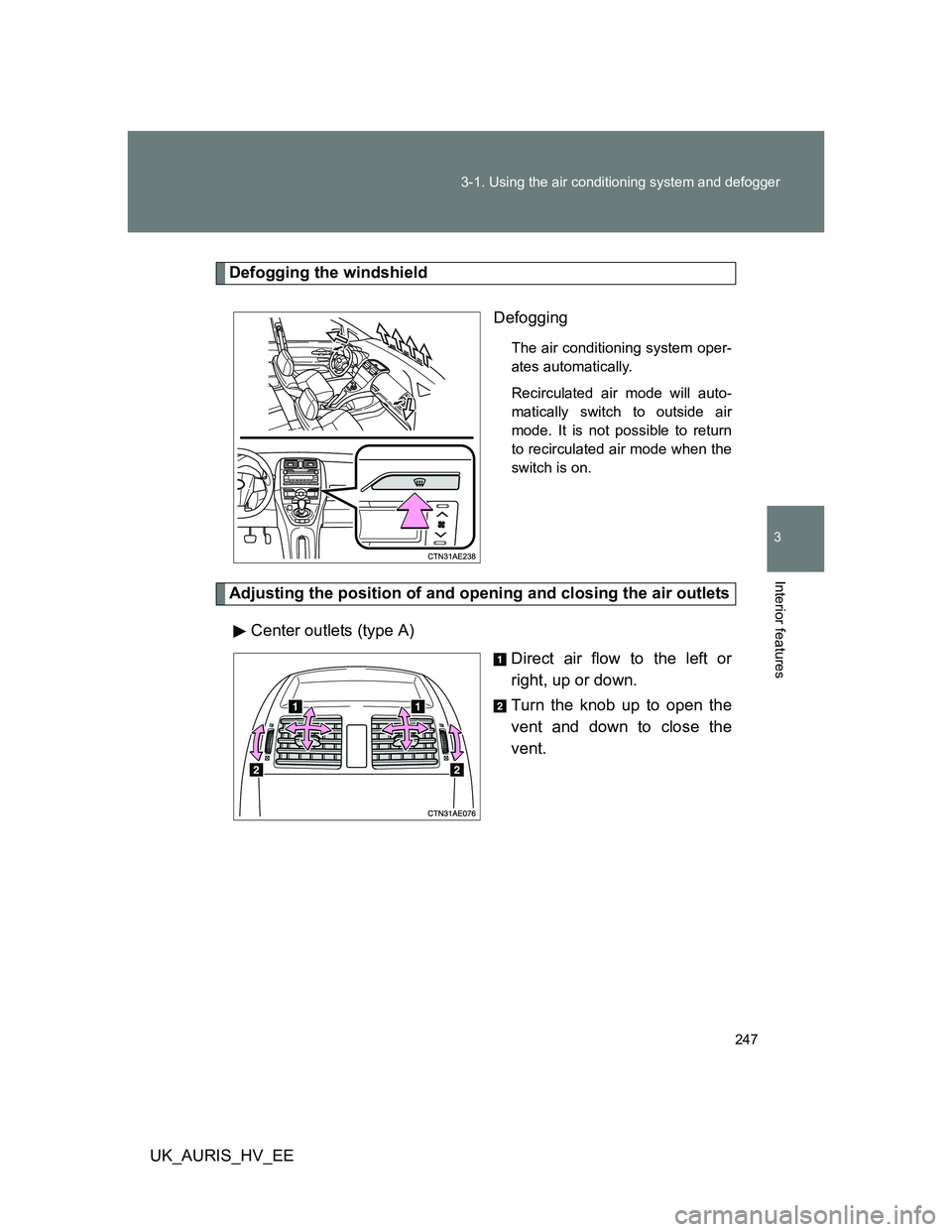

247 3-1. Using the air conditioning system and defogger
3
Interior features
UK_AURIS_HV_EE
Defogging the windshield
Defogging
The air conditioning system oper-
ates automatically.
Recirculated air mode will auto-
matically switch to outside air
mode. It is not possible to return
to recirculated air mode when the
switch is on.
Adjusting the position of and opening and closing the air outlets
Center outlets (type A)
Direct air flow to the left or
right, up or down.
Turn the knob up to open the
vent and down to close the
vent.

248 3-1. Using the air conditioning system and defogger

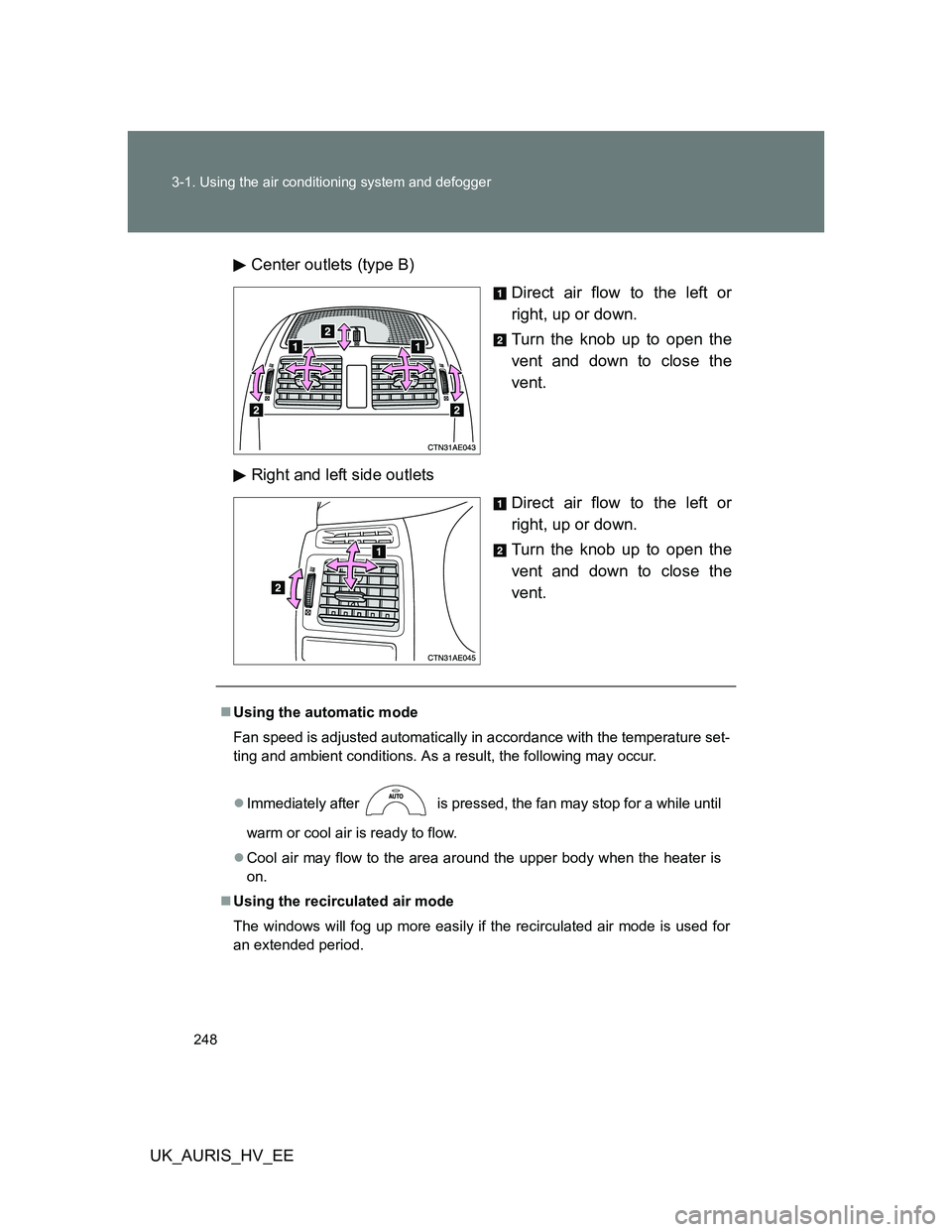

UK_AURIS_HV_EECenter outlets (type B)
Direct air flow to the left or
right, up or down.
Turn the knob up to open the
vent and down to close the
vent.
Right and left side outlets
Direct air flow to the left or
right, up or down.
Turn the knob up to open the
vent and down to close the
vent.
Using the automatic mode
Fan speed is adjusted automatically in accordance with the temperature set-
ting and ambient conditions. As a result, the following may occur.
Immediately after
is pressed, the fan may stop for a while until
warm or cool air is ready to flow.
Cool air may flow to the area around the upper body when the heater is
on.
Using the recirculated air mode
The windows will fog up more easily if the recirculated air mode is used for
an extended period.

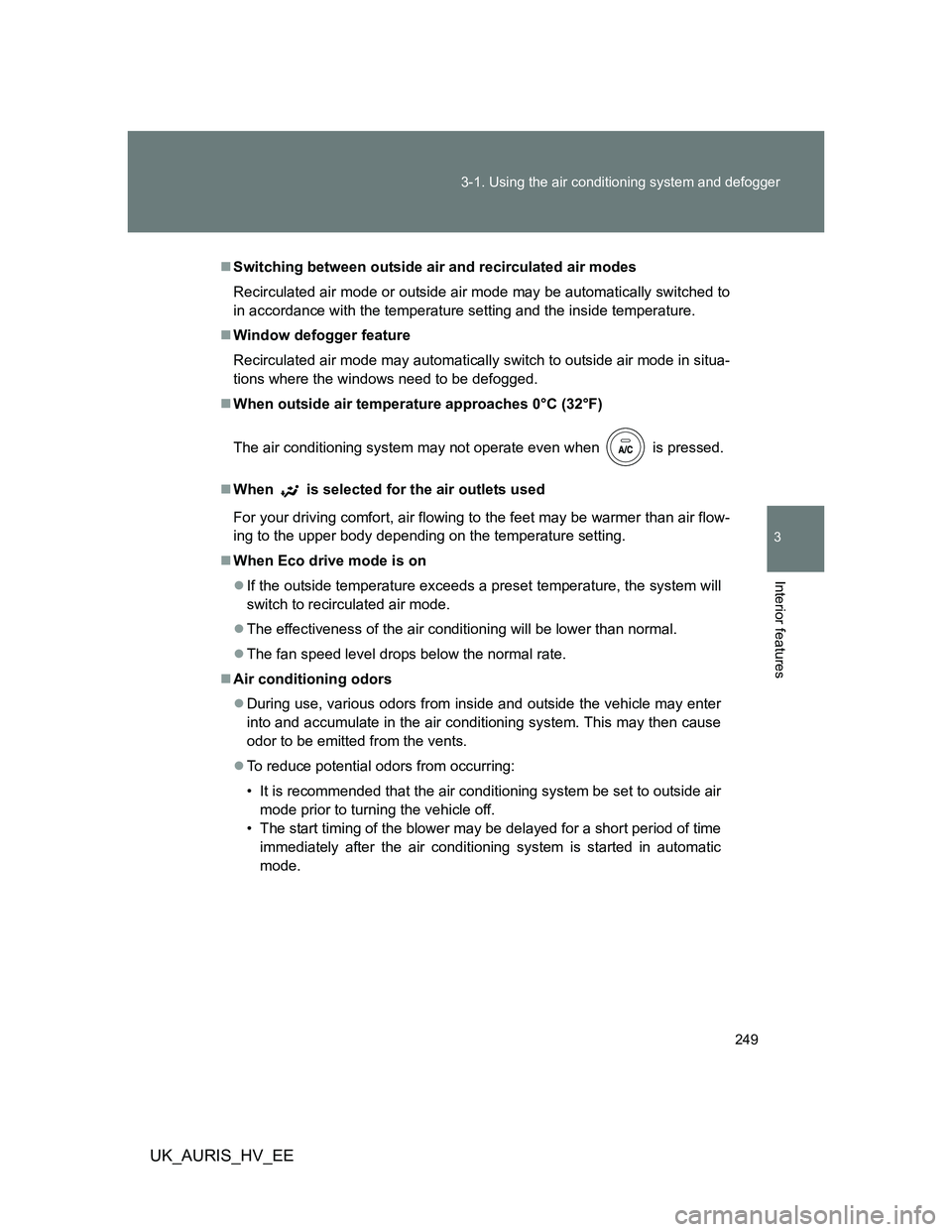

249 3-1. Using the air conditioning system and defogger
3
Interior features
UK_AURIS_HV_EE
Switching between outside air and recirculated air modes
Recirculated air mode or outside air mode may be automatically switched to
in accordance with the temperature setting and the inside temperature.
Window defogger feature
Recirculated air mode may automatically switch to outside air mode in situa-
tions where the windows need to be defogged.
When outside air temperature approaches 0°C (32°F)
The air conditioning system may not operate even when
is pressed.
When
is selected for the air outlets used
For your driving comfort, air flowing to the feet may be warmer than air flow-
ing to the upper body depending on the temperature setting.
When Eco drive mode is on
If the outside temperature exceeds a preset temperature, the system will
switch to recirculated air mode.
The effectiveness of the air conditioning will be lower than normal.
The fan speed level drops below the normal rate.
Air conditioning odors
During use, various odors from inside and outside the vehicle may enter
into and accumulate in the air conditioning system. This may then cause
odor to be emitted from the vents.
To reduce potential odors from occurring:
• It is recommended that the air conditioning system be set to outside air
mode prior to turning the vehicle off.
• The start timing of the blower may be delayed for a short period of time
immediately after the air conditioning system is started in automatic
mode.

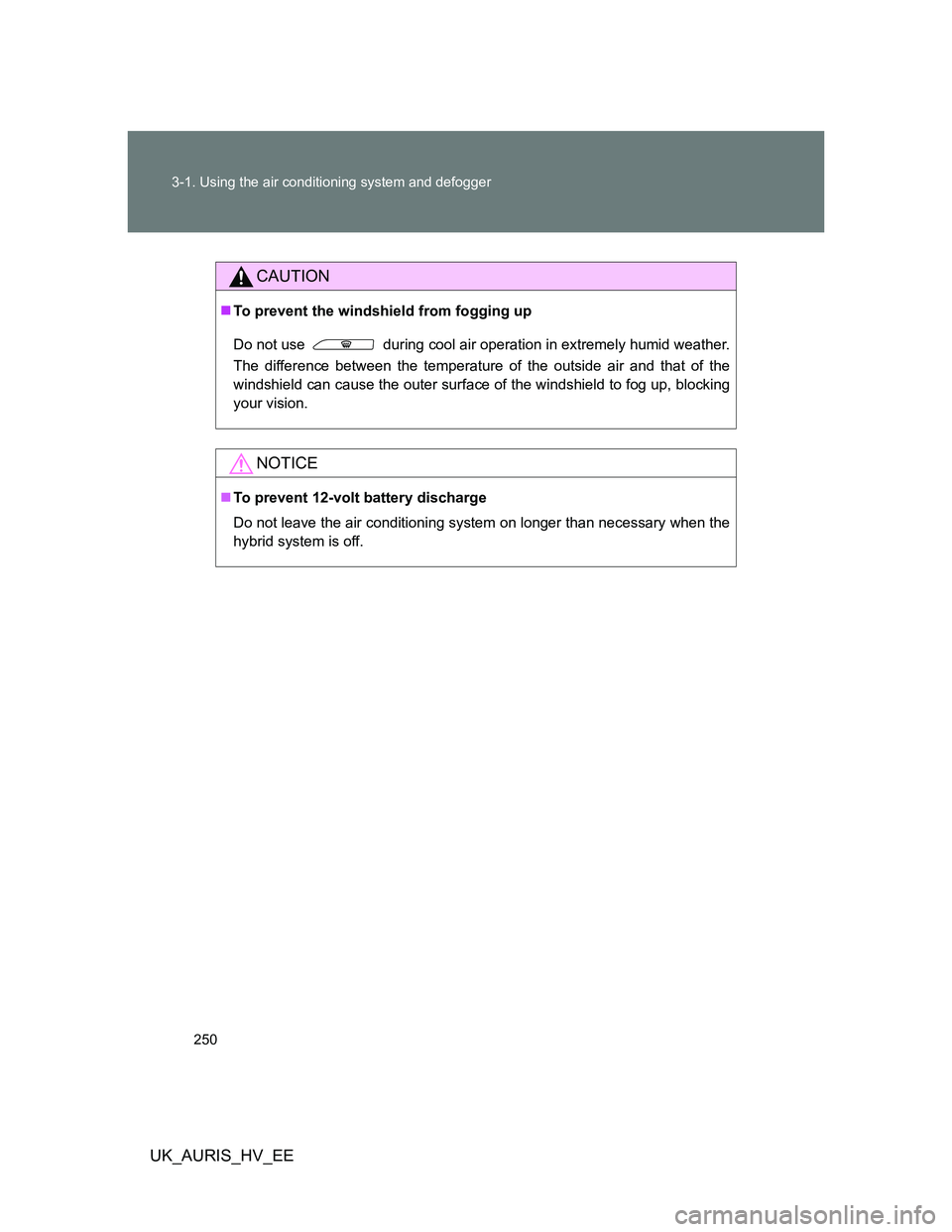

250 3-1. Using the air conditioning system and defogger
UK_AURIS_HV_EE
CAUTION
To prevent the windshield from fogging up
Do not use during cool air operation in extremely humid weather.
The difference between the temperature of the outside air and that of the
windshield can cause the outer surface of the windshield to fog up, blocking
your vision.
NOTICE
To prevent 12-volt battery discharge
Do not leave the air conditioning system on longer than necessary when the
hybrid system is off.
