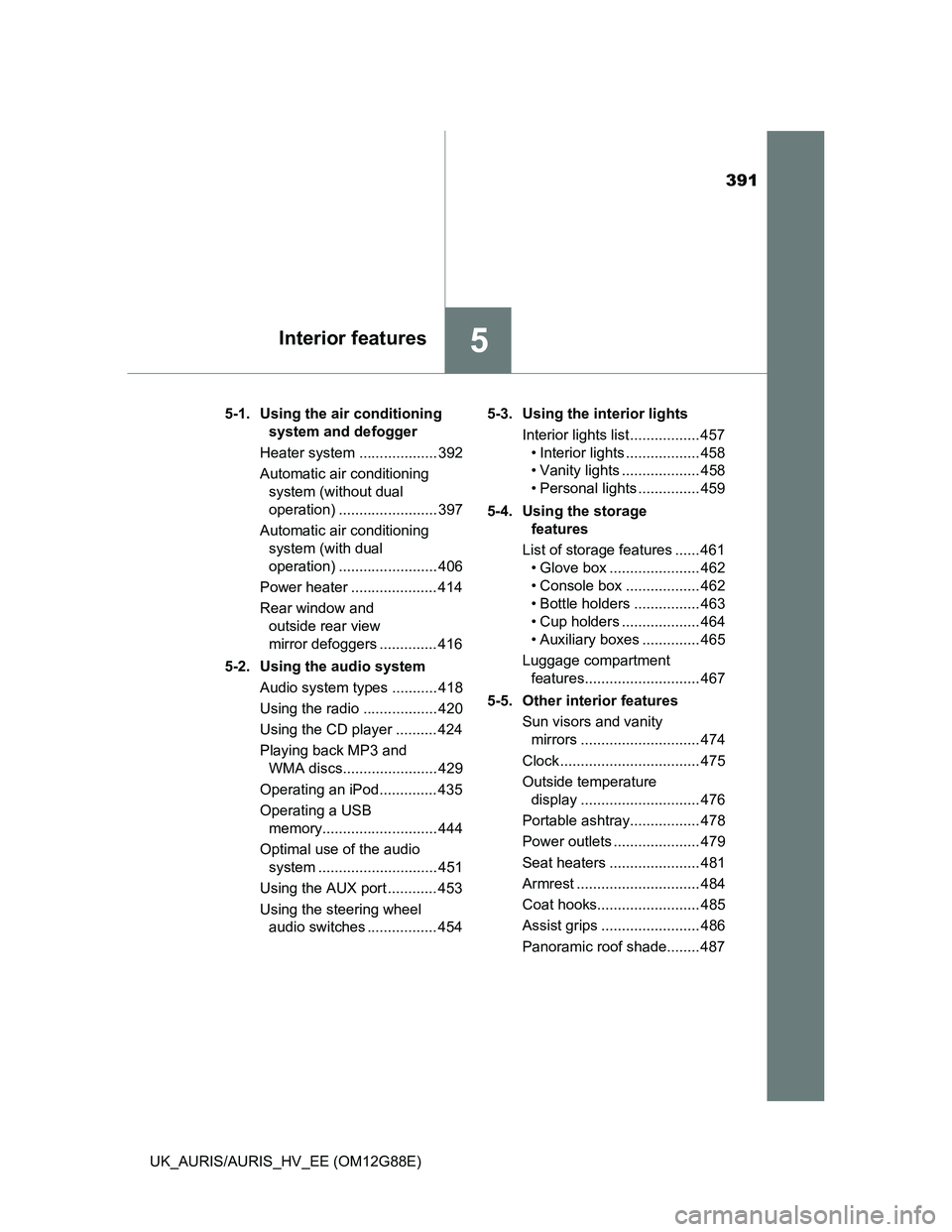

TOYOTA AURIS HYBRID 2014 Owners Manual

391
5Interior features
UK_AURIS/AURIS_HV_EE (OM12G88E)5-1. Using the air conditioning
system and defogger
Heater system ................... 392
Automatic air conditioning
system (without dual
operation) ........................ 397
Automatic air conditioning
system (with dual
operation) ........................ 406
Power heater ..................... 414
Rear window and
outside rear view
mirror defoggers .............. 416
5-2. Using the audio system
Audio system types ........... 418
Using the radio .................. 420
Using the CD player .......... 424
Playing back MP3 and
WMA discs....................... 429
Operating an iPod.............. 435
Operating a USB
memory............................ 444
Optimal use of the audio
system ............................. 451
Using the AUX port ............ 453
Using the steering wheel
audio switches ................. 4545-3. Using the interior lights
Interior lights list ................. 457
• Interior lights .................. 458
• Vanity lights ................... 458
• Personal lights ............... 459
5-4. Using the storage
features
List of storage features ...... 461
• Glove box ...................... 462
• Console box .................. 462
• Bottle holders ................ 463
• Cup holders ................... 464
• Auxiliary boxes .............. 465
Luggage compartment
features............................ 467
5-5. Other interior features
Sun visors and vanity
mirrors ............................. 474
Clock .................................. 475
Outside temperature
display ............................. 476
Portable ashtray................. 478
Power outlets ..................... 479
Seat heaters ...................... 481
Armrest .............................. 484
Coat hooks......................... 485
Assist grips ........................ 486
Panoramic roof shade........ 487

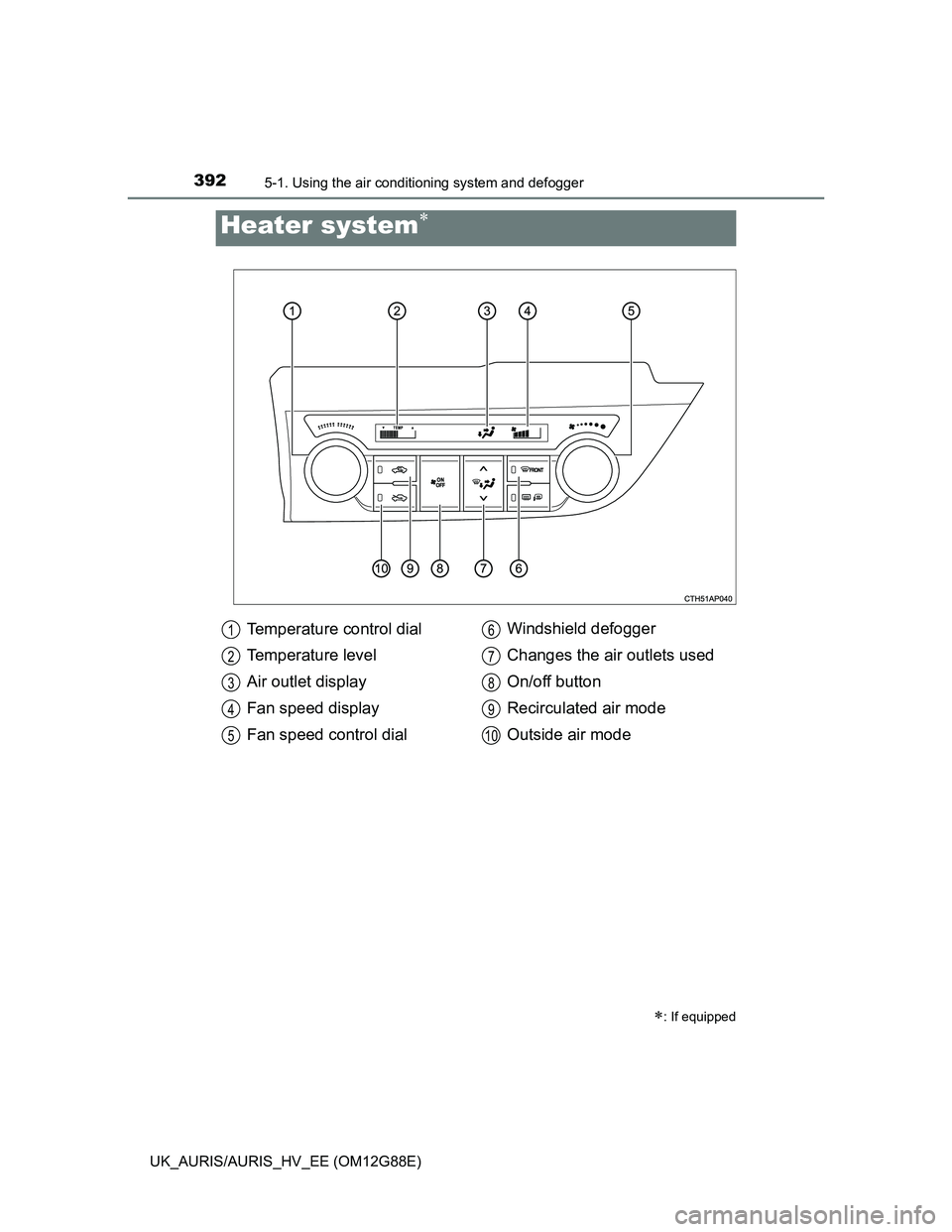

392
UK_AURIS/AURIS_HV_EE (OM12G88E)
5-1. Using the air conditioning system and defogger
Heater system
: If equipped
Temperature control dial
Temperature level
Air outlet display
Fan speed display
Fan speed control dialWindshield defogger
Changes the air outlets used
On/off button
Recirculated air mode
Outside air mode1
2
3
4
5
6
7
8
9
10

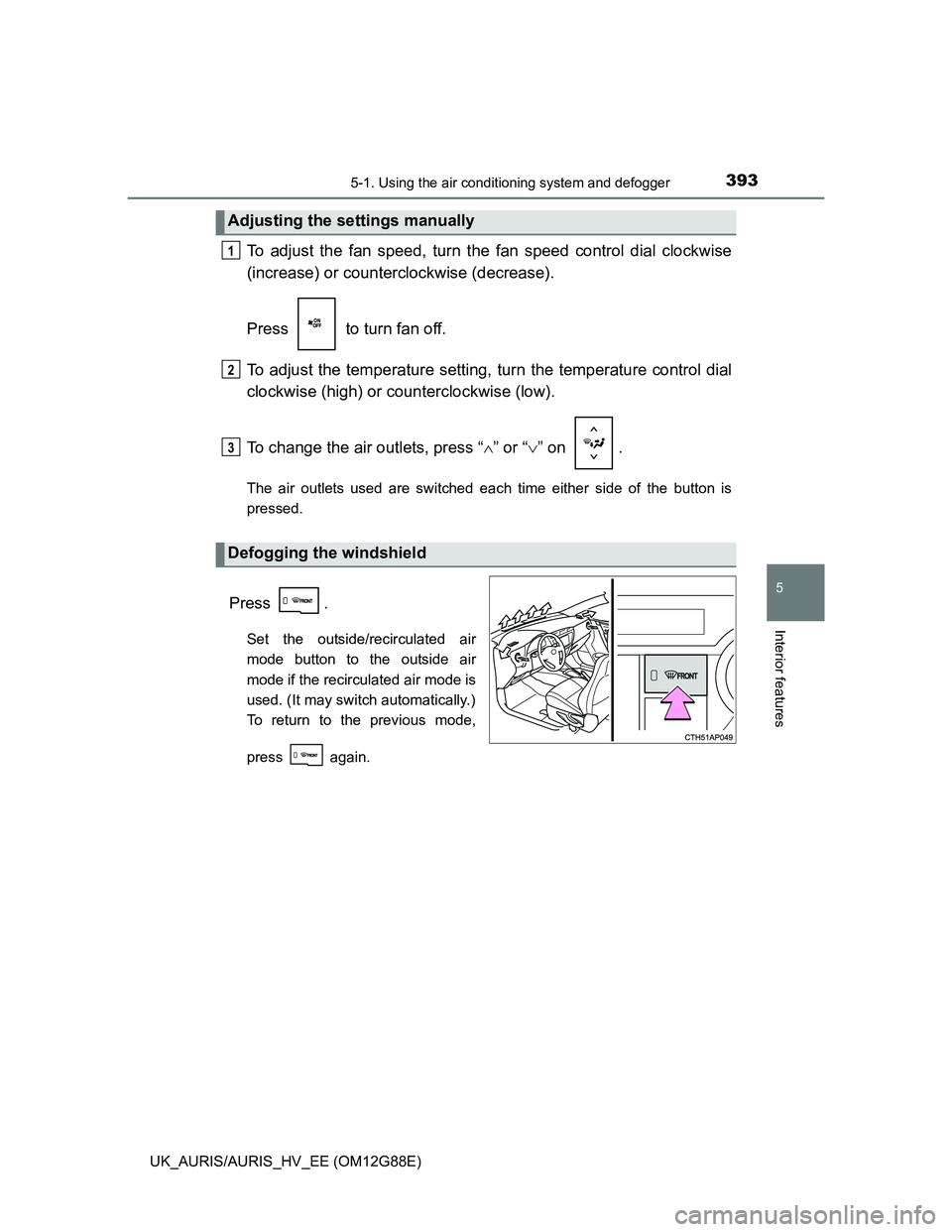

3935-1. Using the air conditioning system and defogger
UK_AURIS/AURIS_HV_EE (OM12G88E)
5
Interior features
To adjust the fan speed, turn the fan speed control dial clockwise
(increase) or counterclockwise (decrease).
Press to turn fan off.
To adjust the temperature setting, turn the temperature control dial
clockwise (high) or counterclockwise (low).
To change the air outlets, press “” or “” on .
The air outlets used are switched each time either side of the button is
pressed.
Press .
Set the outside/recirculated air
mode button to the outside air
mode if the recirculated air mode is
used. (It may switch automatically.)
To return to the previous mode,
press again.
Adjusting the settings manually
Defogging the windshield
1
2
3

3945-1. Using the air conditioning system and defogger
UK_AURIS/AURIS_HV_EE (OM12G88E)
Air flows to the upper body.
Air flows to the upper body and
feet.
: Some models
Air flows to the feet.
: Some models
Air flows to the feet and the wind-
shield defogger operates.
: Some models
Air outlets and air flow

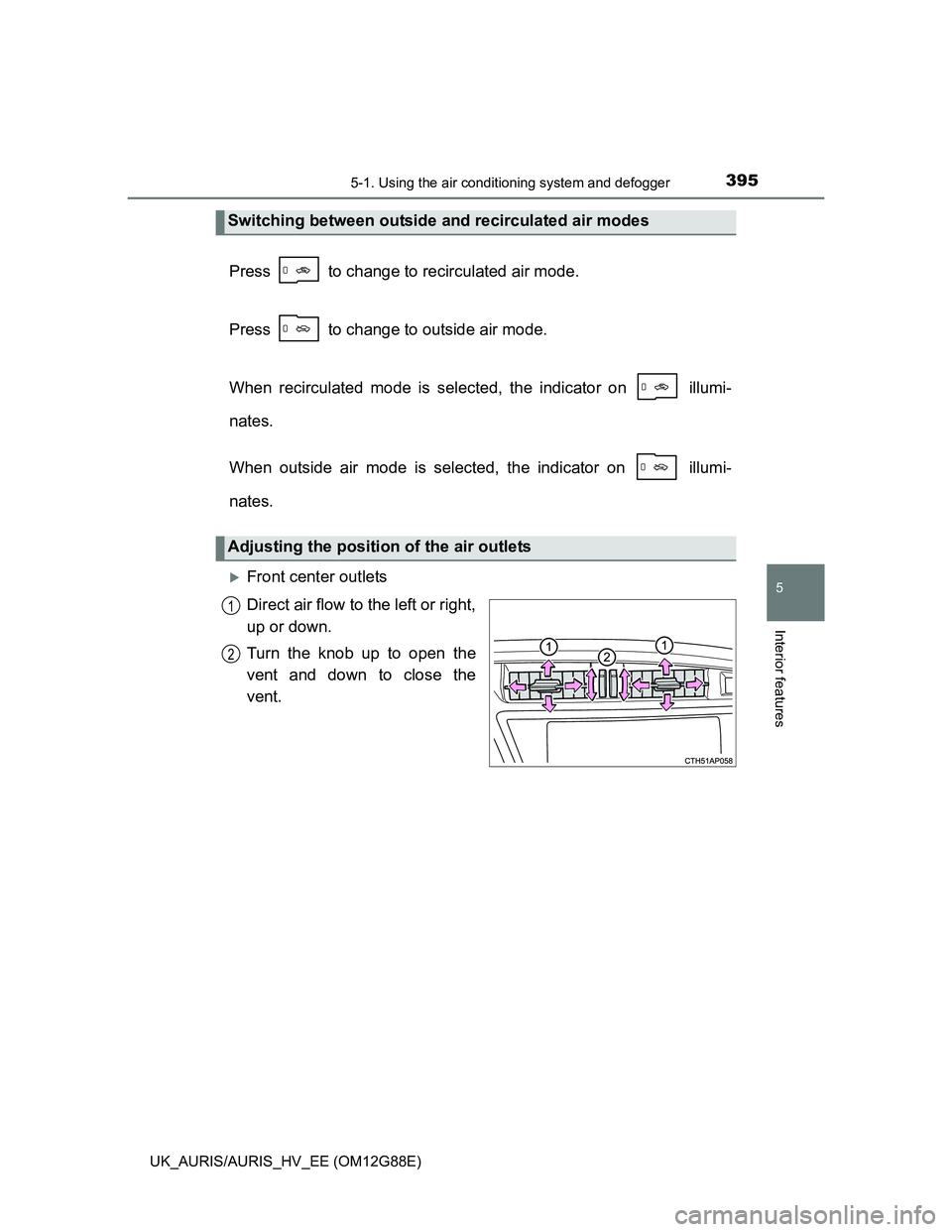

3955-1. Using the air conditioning system and defogger
UK_AURIS/AURIS_HV_EE (OM12G88E)
5
Interior features
Press to change to recirculated air mode.
Press to change to outside air mode.
When recirculated mode is selected, the indicator on illumi-
nates.
When outside air mode is selected, the indicator on illumi-
nates.
Front center outlets
Direct air flow to the left or right,
up or down.
Turn the knob up to open the
vent and down to close the
vent.
Switching between outside and recirculated air modes
Adjusting the position of the air outlets
1
2

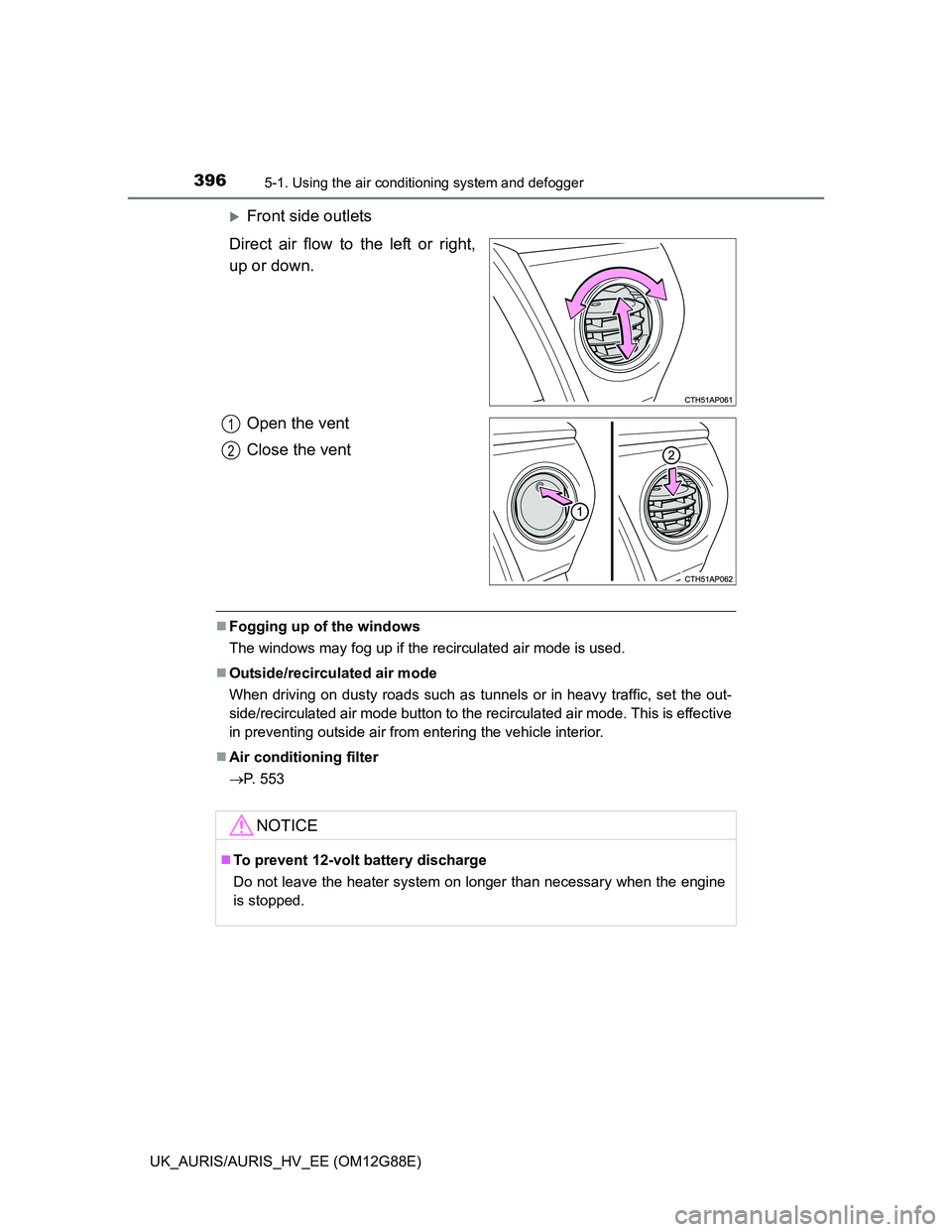

3965-1. Using the air conditioning system and defogger
UK_AURIS/AURIS_HV_EE (OM12G88E)
Front side outlets
Direct air flow to the left or right,
up or down.
Open the vent
Close the vent
Fogging up of the windows
The windows may fog up if the recirculated air mode is used.
Outside/recirculated air mode
When driving on dusty roads such as tunnels or in heavy traffic, set the out-
side/recirculated air mode button to the recirculated air mode. This is effective
in preventing outside air from entering the vehicle interior.
Air conditioning filter
P. 553
1
2
NOTICE
To prevent 12-volt battery discharge
Do not leave the heater system on longer than necessary when the engine
is stopped.

3975-1. Using the air conditioning system and defogger
UK_AURIS/AURIS_HV_EE (OM12G88E)
5
Interior features

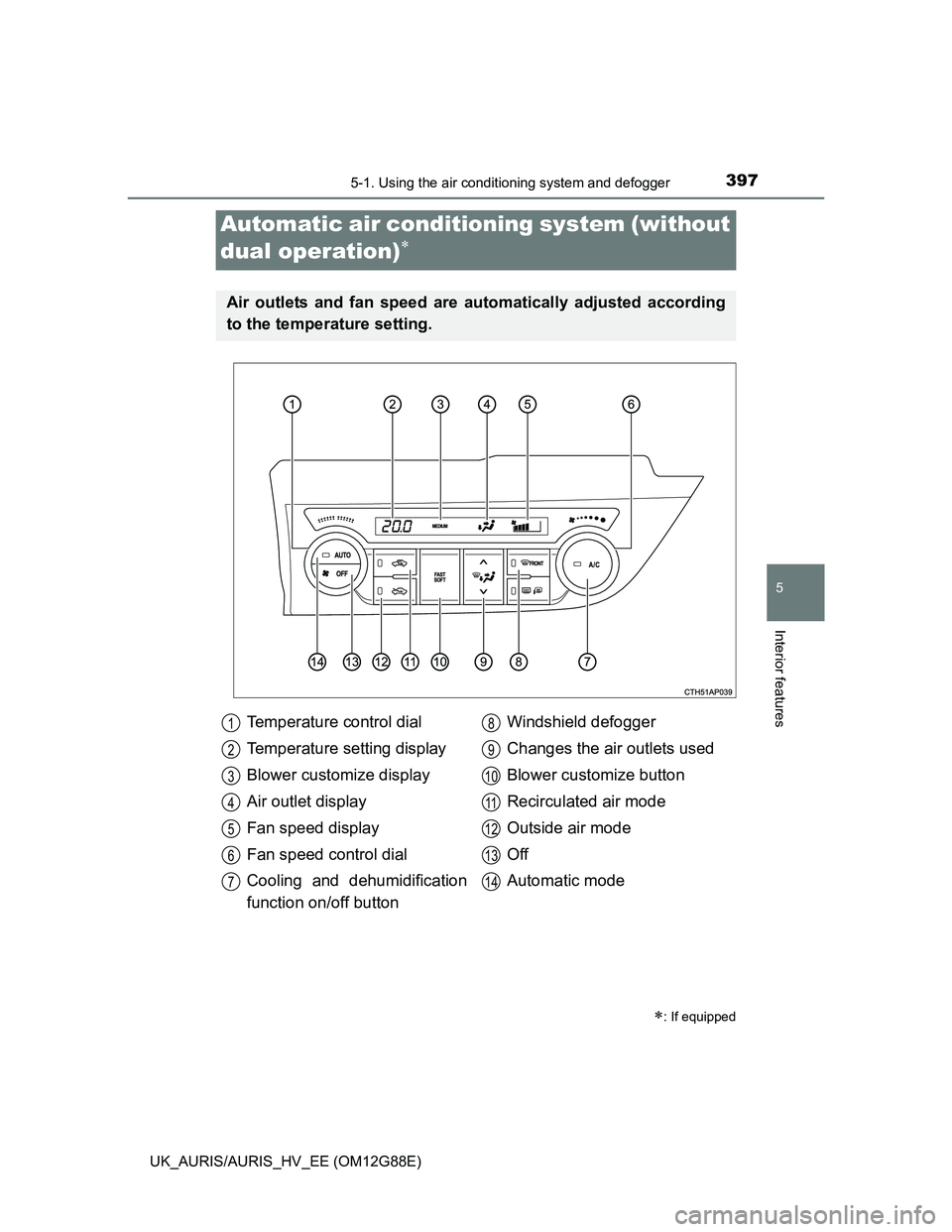

Automatic air conditioning system (without
dual operation)

: If equipped
Air outlets and fan speed are automatically adjusted according
to the temperature setting.
Temperature control dial
Temperature setting display
Blower customize display
Air outlet display
Fan speed display
Fan speed control dial
Cooling and dehumidification
function on/off buttonWindshield defogger
Changes the air outlets used
Blower customize button
Recirculated air mode
Outside air mode
Off
Automatic mode
1
2
3
4
5
6
7
8
9
10
11
12
13
14

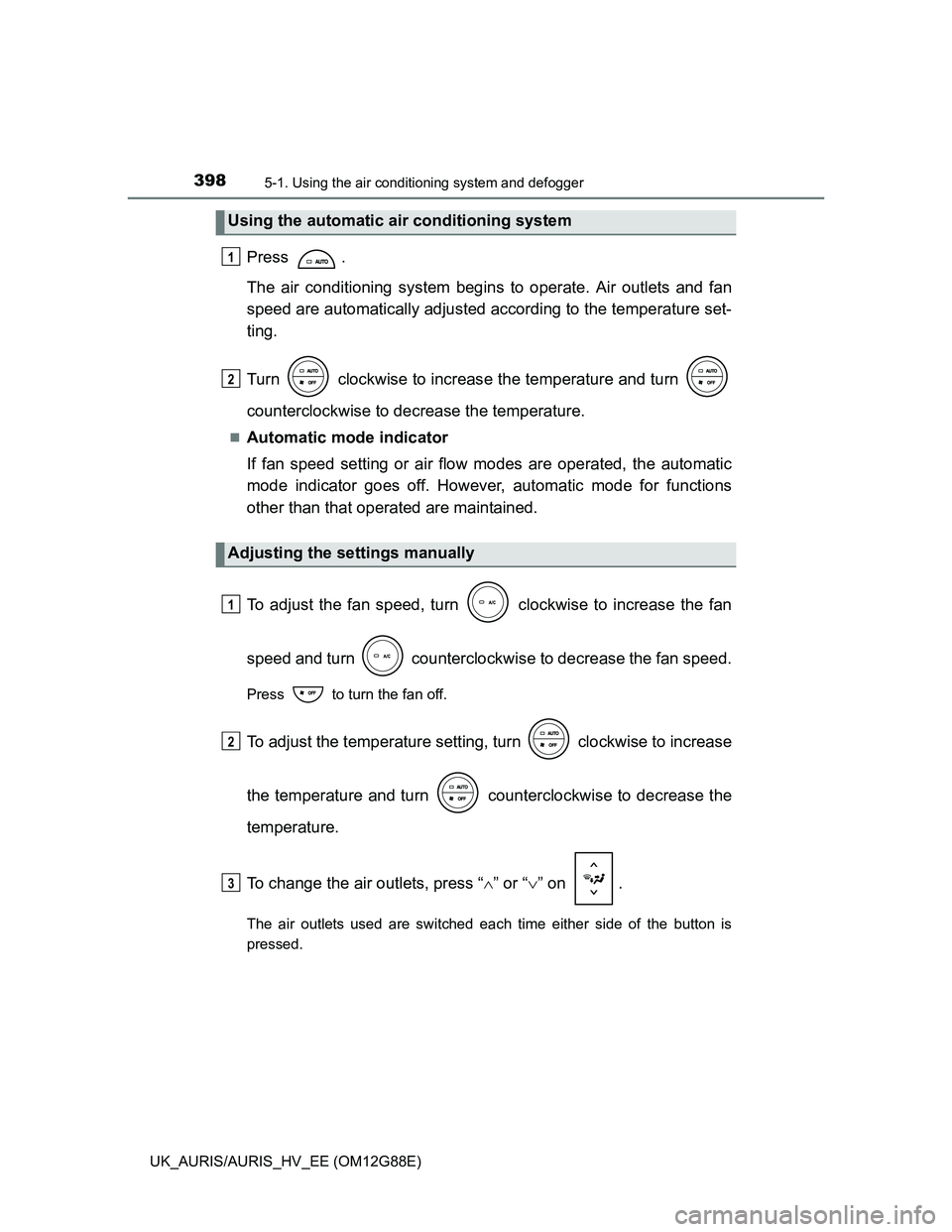

3985-1. Using the air conditioning system and defogger
UK_AURIS/AURIS_HV_EE (OM12G88E)
Press .
The air conditioning system begins to operate. Air outlets and fan
speed are automatically adjusted according to the temperature set-
ting.
Turn clockwise to increase the temperature and turn
counterclockwise to decrease the temperature.
Automatic mode indicator
If fan speed setting or air flow modes are operated, the automatic
mode indicator goes off. However, automatic mode for functions
other than that operated are maintained.
To adjust the fan speed, turn clockwise to increase the fan
speed and turn counterclockwise to decrease the fan speed.
Press to turn the fan off.
To adjust the temperature setting, turn clockwise to increase
the temperature and turn counterclockwise to decrease the
temperature.
To change the air outlets, press “” or “” on .
The air outlets used are switched each time either side of the button is
pressed.
Using the automatic air conditioning system
Adjusting the settings manually
1
2
1
2
3

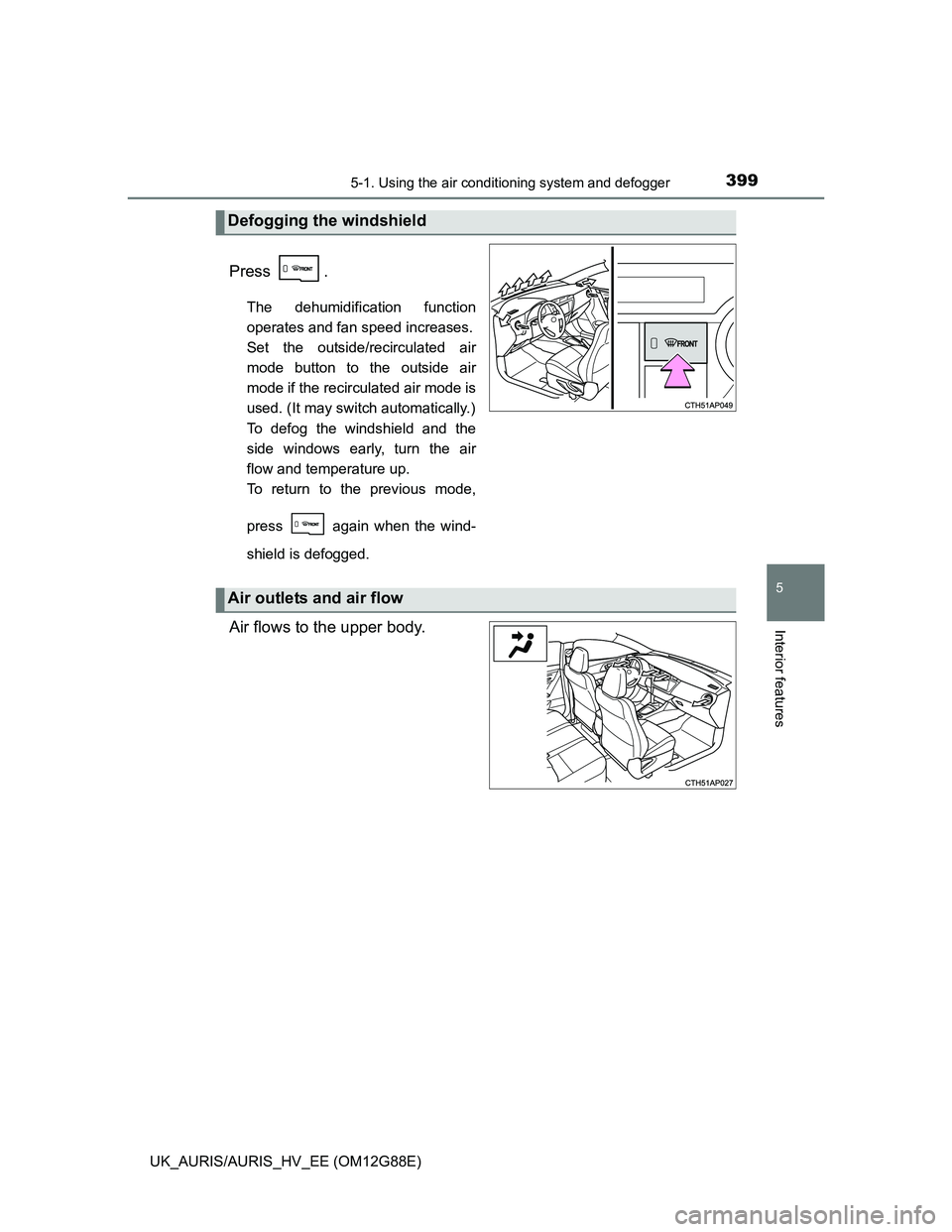

3995-1. Using the air conditioning system and defogger
UK_AURIS/AURIS_HV_EE (OM12G88E)
5
Interior features
Press .
The dehumidification function
operates and fan speed increases.
Set the outside/recirculated air
mode button to the outside air
mode if the recirculated air mode is
used. (It may switch automatically.)
To defog the windshield and the
side windows early, turn the air
flow and temperature up.
To return to the previous mode,
press again when the wind-
shield is defogged.
Air flows to the upper body.
Defogging the windshield
Air outlets and air flow

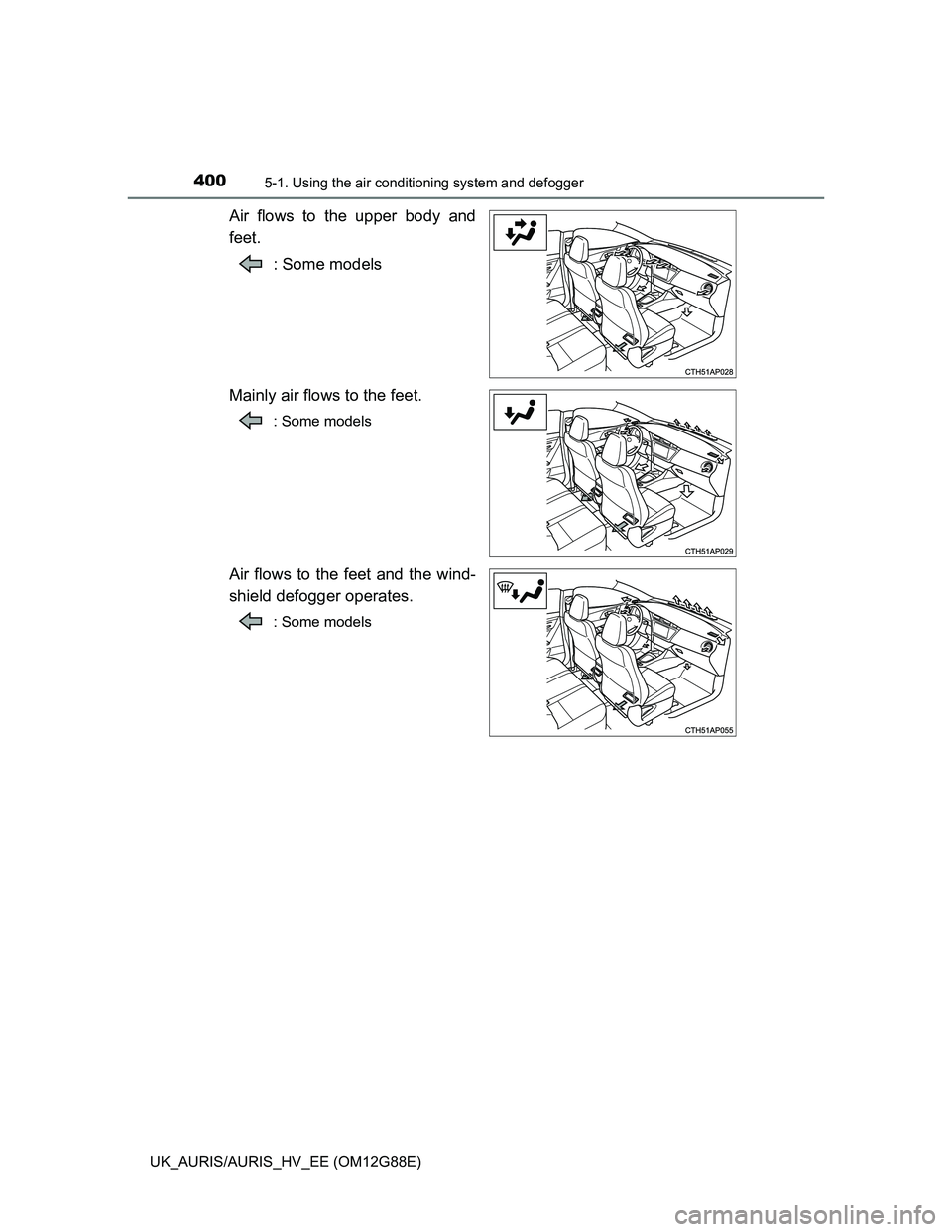

4005-1. Using the air conditioning system and defogger
UK_AURIS/AURIS_HV_EE (OM12G88E)
Air flows to the upper body and
feet.
: Some models
Mainly air flows to the feet.
: Some models
Air flows to the feet and the wind-
shield defogger operates.
: Some models
