TOYOTA AURIS HYBRID 2014 Owners Manual

5116-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12G88E)
6
Maintenance and care

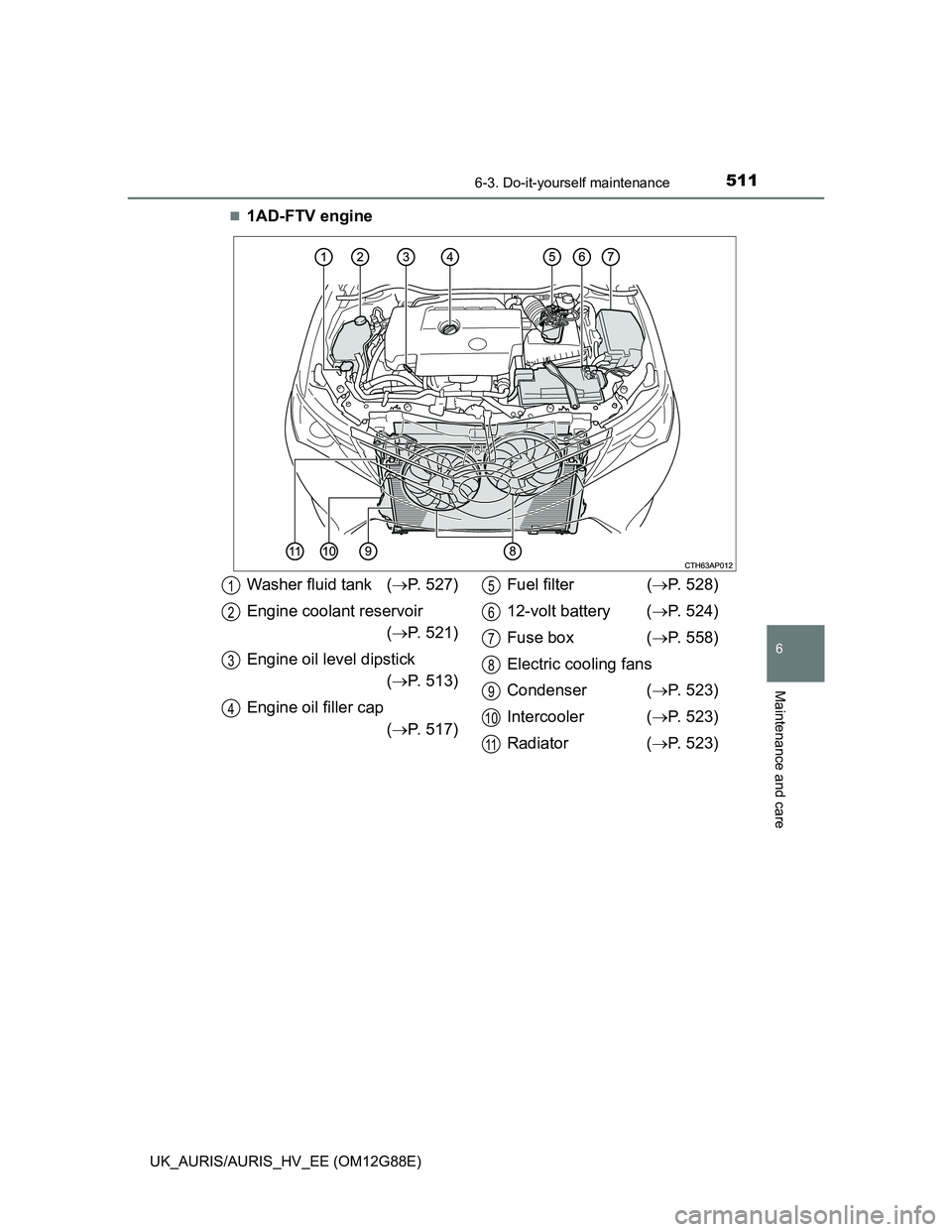

1AD-FTV engine
Washer fluid tank (P. 527)
Engine coolant reservoir
(P. 521)
Engine oil level dipstick
(P. 513)
Engine oil filler cap
(P. 517)Fuel filter (P. 528)
12-volt battery (P. 524)
Fuse box (P. 558)
Electric cooling fans
Condenser (P. 523)
Intercooler (P. 523)
Radiator (P. 523)1
2
3
4
5
6
7
8
9
10
11

5126-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12G88E)

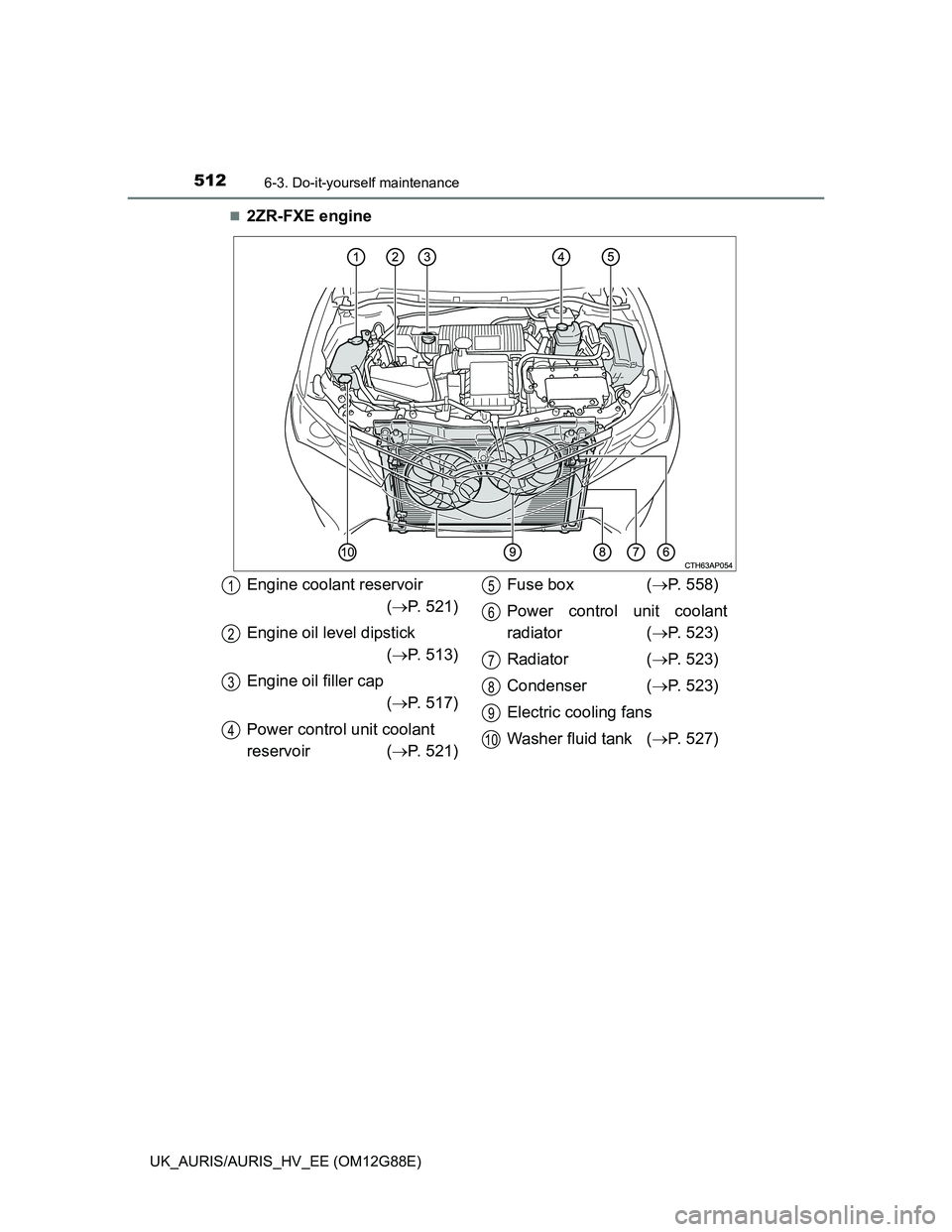

2ZR-FXE engine
Engine coolant reservoir
(P. 521)
Engine oil level dipstick
(P. 513)
Engine oil filler cap
(P. 517)
Power control unit coolant
reservoir (P. 521)Fuse box (P. 558)
Power control unit coolant
radiator (P. 523)
Radiator (P. 523)
Condenser (P. 523)
Electric cooling fans
Washer fluid tank (P. 527)1
2
3
4
5
6
7
8
9
10

5136-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12G88E)
6
Maintenance and care

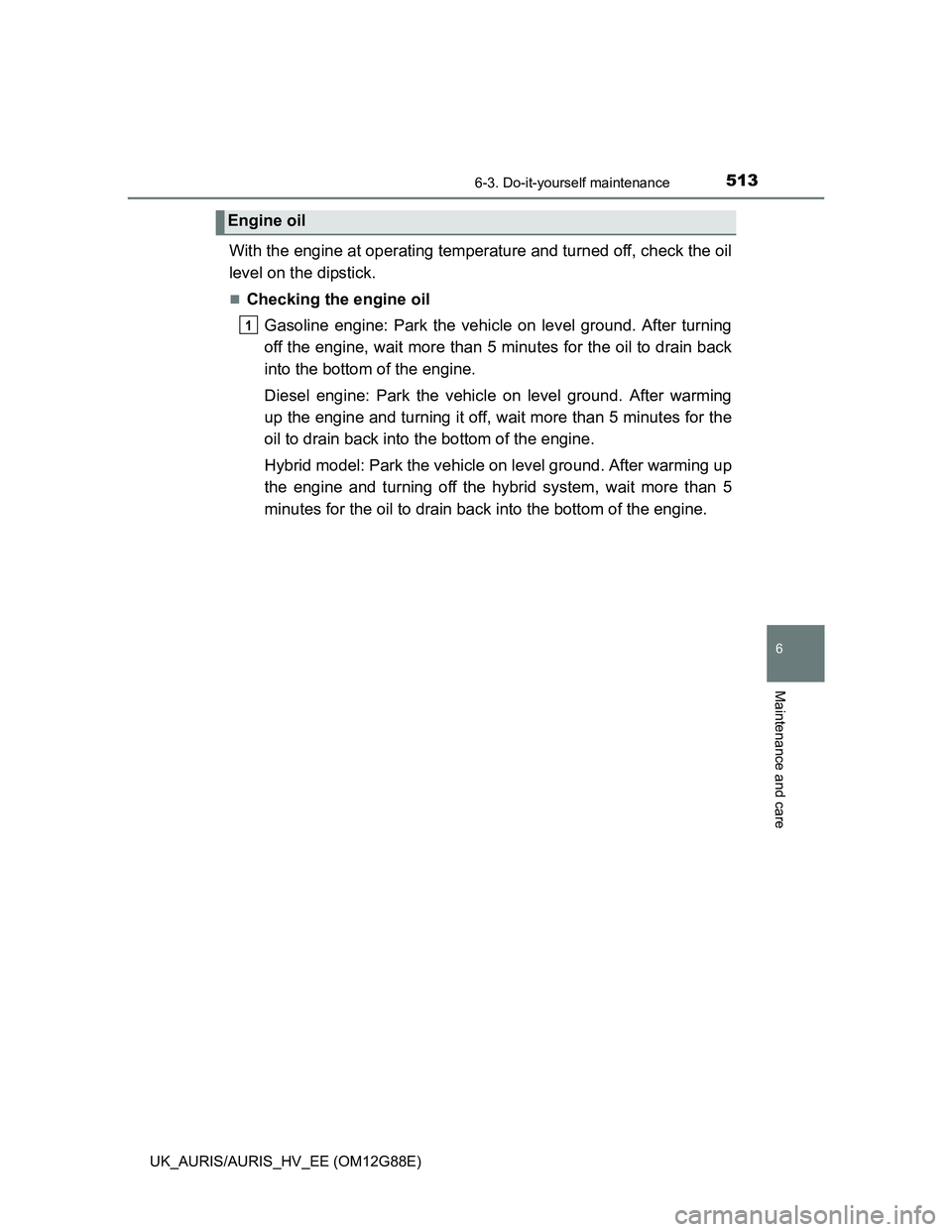

With the engine at operating temperature and turned off, check the oil
level on the dipstick.
Checking the engine oil
Gasoline engine: Park the vehicle on level ground. After turning
off the engine, wait more than 5 minutes for the oil to drain back
into the bottom of the engine.
Diesel engine: Park the vehicle on level ground. After warming
up the engine and turning it off, wait more than 5 minutes for the
oil to drain back into the bottom of the engine.
Hybrid model: Park the vehicle on level ground. After warming up
the engine and turning off the hybrid system, wait more than 5
minutes for the oil to drain back into the bottom of the engine.
Engine oil
1

5146-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12G88E)

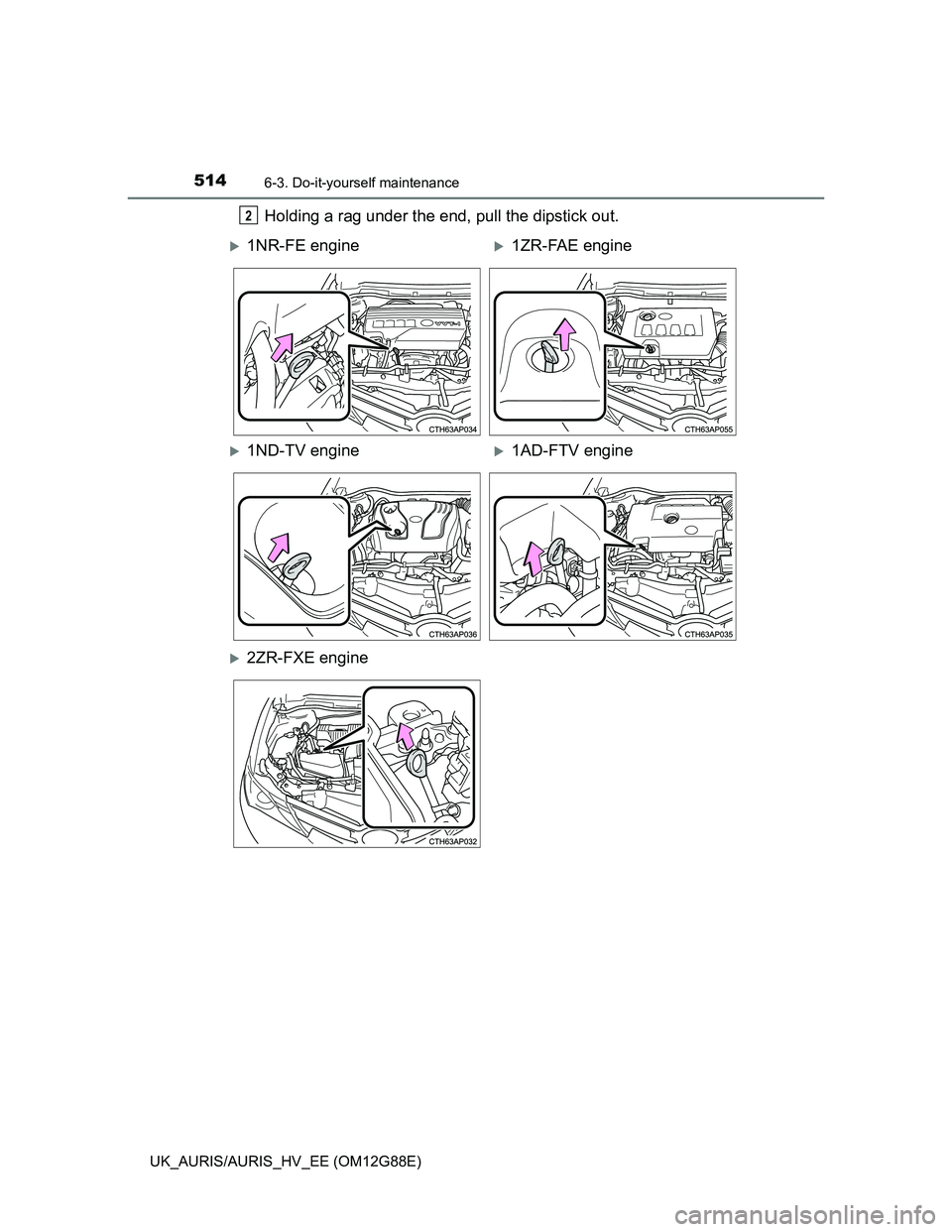

Holding a rag under the end, pull the dipstick out.2
1NR-FE engine1ZR-FAE engine
1ND-TV engine1AD-FTV engine
2ZR-FXE engine

5156-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12G88E)
6
Maintenance and care

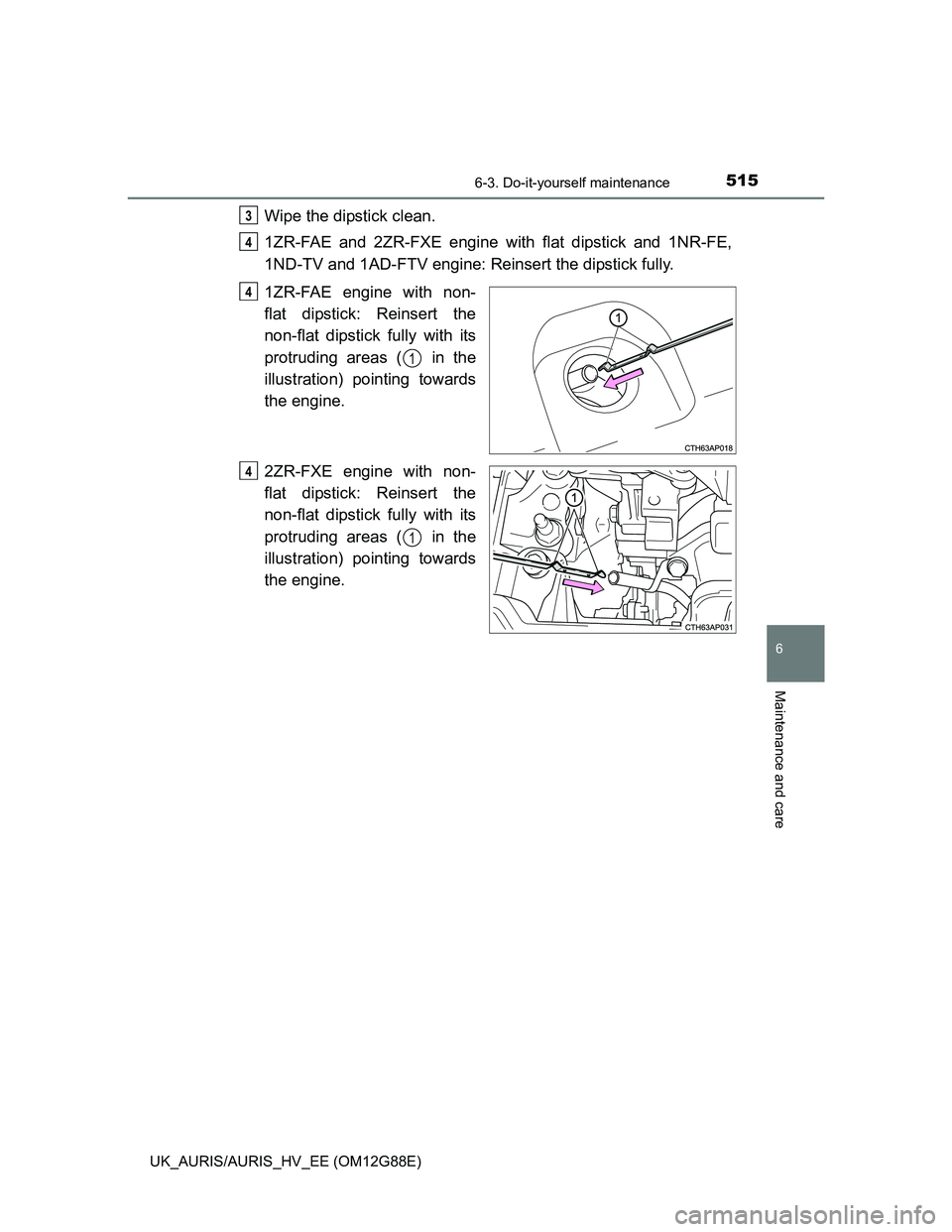

Wipe the dipstick clean.
1ZR-FAE and 2ZR-FXE engine with flat dipstick and 1NR-FE,
1ND-TV and 1AD-FTV engine: Reinsert the dipstick fully.
1ZR-FAE engine with non-
flat dipstick: Reinsert the
non-flat dipstick fully with its
protruding areas ( in the
illustration) pointing towards
the engine.
2ZR-FXE engine with non-
flat dipstick: Reinsert the
non-flat dipstick fully with its
protruding areas ( in the
illustration) pointing towards
the engine.3
4
4
1
4
1

5166-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12G88E)
Holding a rag under the end, pull the dipstick out and check the
oil level.
Low
Normal
Excessive
The shape of the dipstick may differ depending on the type of
vehicle or engine.
Wipe the dipstick and reinsert it fully.5
1
2
3
Flat dipstickNon-flat dipstick
6

5176-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12G88E)
6
Maintenance and care
Adding engine oil
If the oil level is below or near the low level mark, add engine oil of
the same type as that already in the engine.
Make sure to check the oil type and prepare the items needed
before adding oil.
1NR-FE engine1ZR-FAE engine
1ND-TV engine1AD-FTV engine
2ZR-FXE engine

5186-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12G88E)

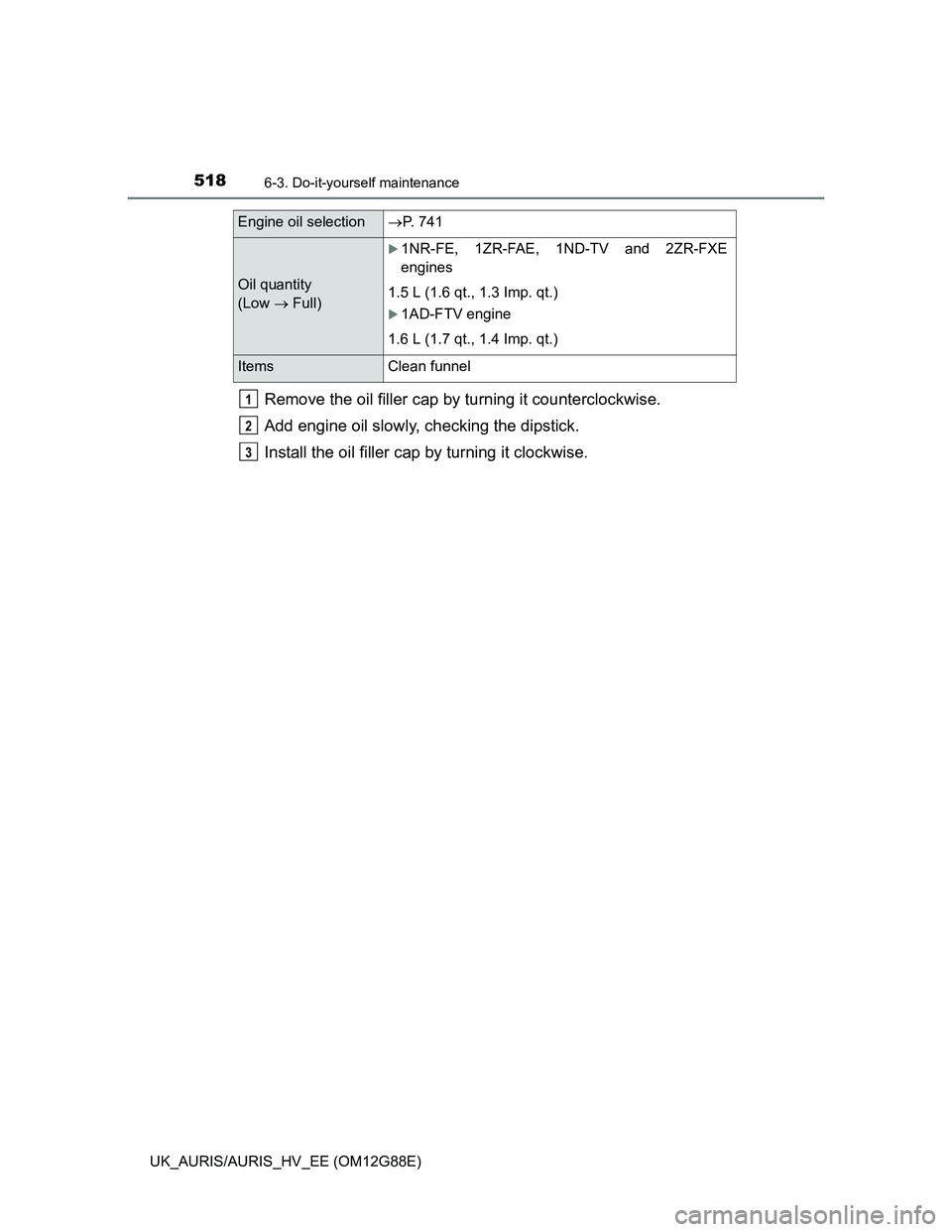

Remove the oil filler cap by turning it counterclockwise.
Add engine oil slowly, checking the dipstick.
Install the oil filler cap by turning it clockwise.
Engine oil selectionP. 741
Oil quantity
(Low  Full)
1NR-FE, 1ZR-FAE, 1ND-TV and 2ZR-FXE
engines
1.5 L (1.6 qt., 1.3 Imp. qt.)
1AD-FTV engine
1.6 L (1.7 qt., 1.4 Imp. qt.)
Items Clean funnel
1
2
3

5196-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12G88E)
6
Maintenance and care

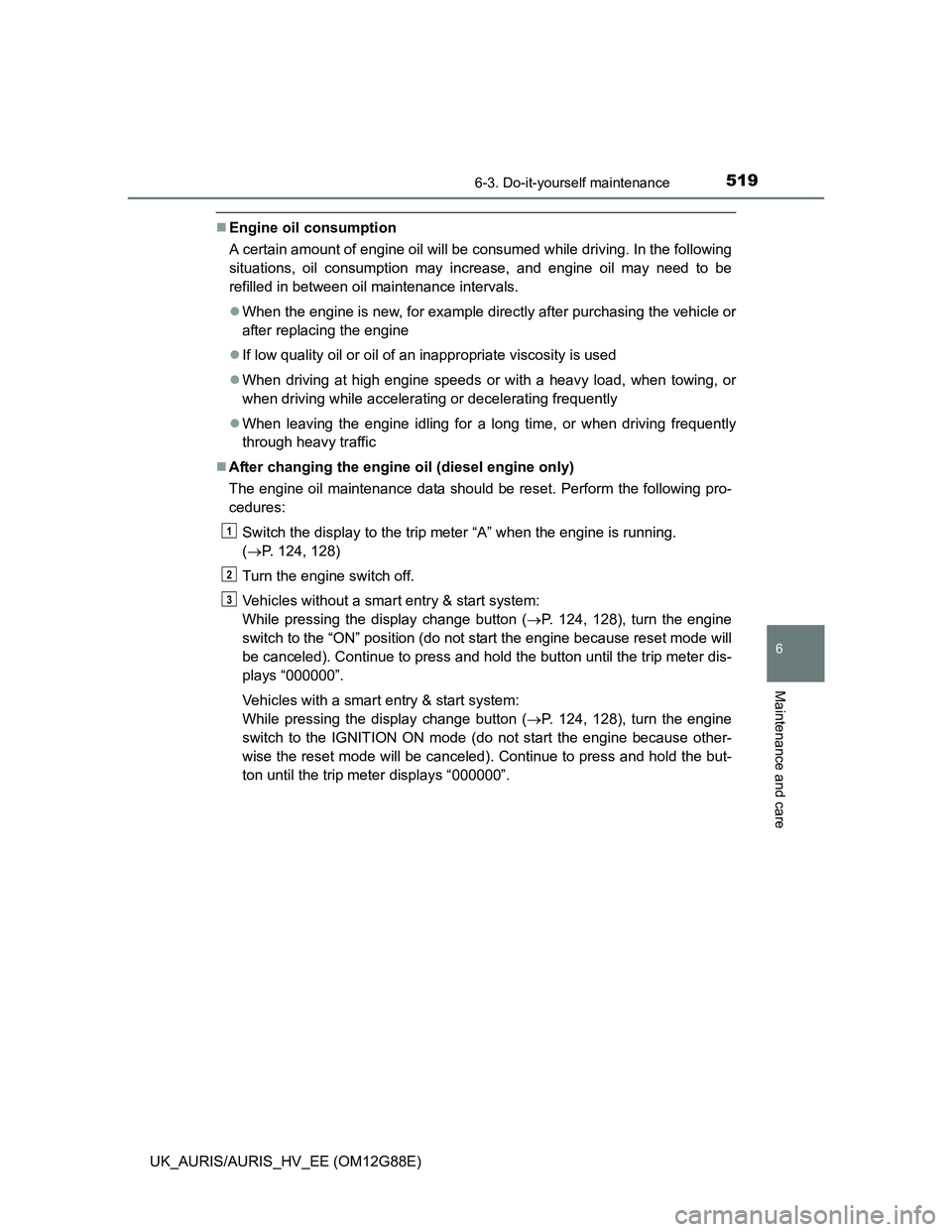

Engine oil consumption
A certain amount of engine oil will be consumed while driving. In the following
situations, oil consumption may increase, and engine oil may need to be
refilled in between oil maintenance intervals.
When the engine is new, for example directly after purchasing the vehicle or
after replacing the engine
If low quality oil or oil of an inappropriate viscosity is used
When driving at high engine speeds or with a heavy load, when towing, or
when driving while accelerating or decelerating frequently
When leaving the engine idling for a long time, or when driving frequently
through heavy traffic
After changing the engine oil (diesel engine only)
The engine oil maintenance data should be reset. Perform the following pro-
cedures:
Switch the display to the trip meter “A” when the engine is running.
(P. 124, 128)
Turn the engine switch off.
Vehicles without a smart entry & start system:
While pressing the display change button (P. 124, 128), turn the engine
switch to the “ON” position (do not start the engine because reset mode will
be canceled). Continue to press and hold the button until the trip meter dis-
plays “000000”.
Vehicles with a smart entry & start system:
While pressing the display change button (P. 124, 128), turn the engine
switch to the IGNITION ON mode (do not start the engine because other-
wise the reset mode will be canceled). Continue to press and hold the but-
ton until the trip meter displays “000000”.
1
2
3

5206-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12G88E)

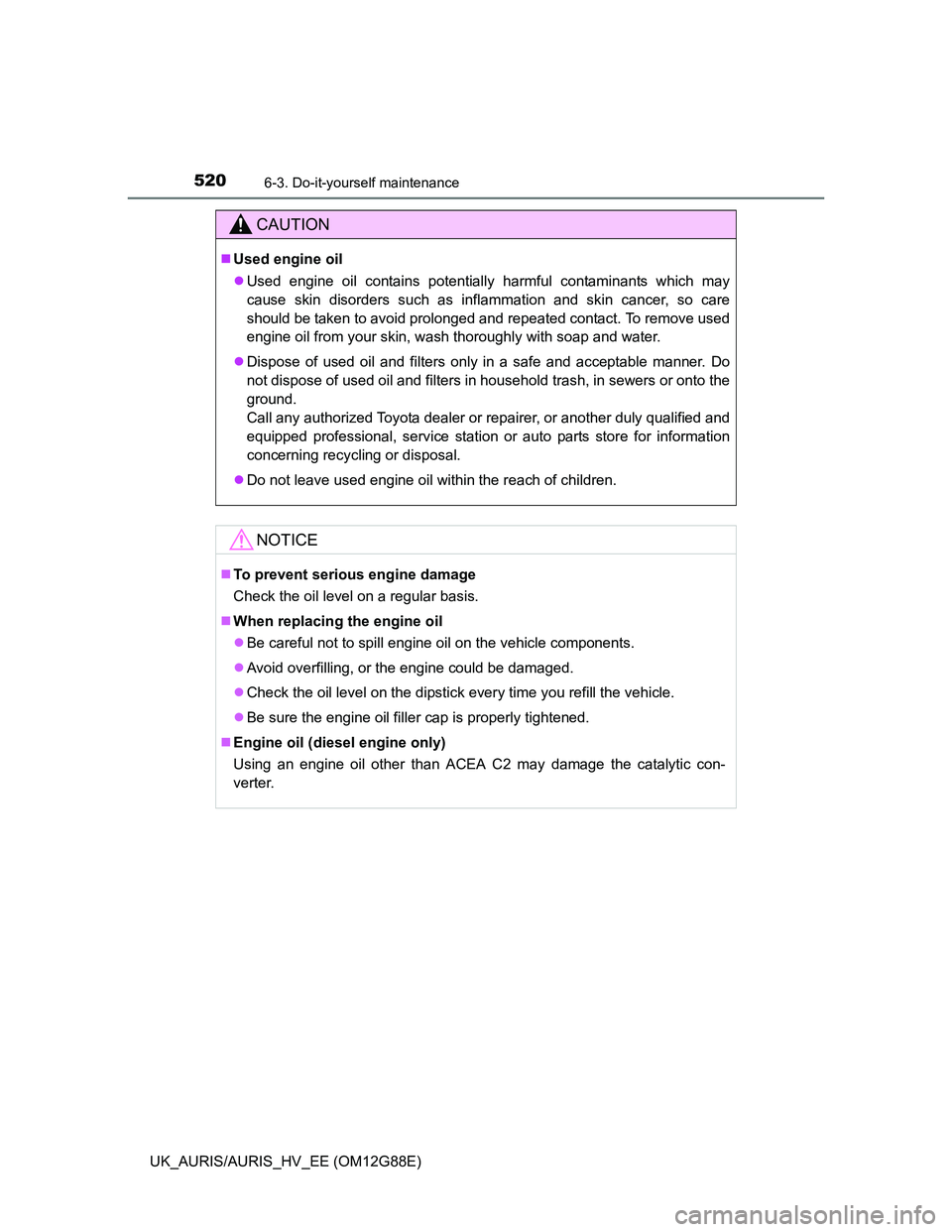

CAUTION
Used engine oil
Used engine oil contains potentially harmful contaminants which may
cause skin disorders such as inflammation and skin cancer, so care
should be taken to avoid prolonged and repeated contact. To remove used
engine oil from your skin, wash thoroughly with soap and water.
Dispose of used oil and filters only in a safe and acceptable manner. Do
not dispose of used oil and filters in household trash, in sewers or onto the
ground.
Call any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional, service station or auto parts store for information
concerning recycling or disposal.
Do not leave used engine oil within the reach of children.
NOTICE
To prevent serious engine damage
Check the oil level on a regular basis.
When replacing the engine oil
Be careful not to spill engine oil on the vehicle components.
Avoid overfilling, or the engine could be damaged.
Check the oil level on the dipstick every time you refill the vehicle.
Be sure the engine oil filler cap is properly tightened.
Engine oil (diesel engine only)
Using an engine oil other than ACEA C2 may damage the catalytic con-
verter.
