TOYOTA AURIS HYBRID 2014 Owners Manual

5816-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12G88E)
6
Maintenance and care

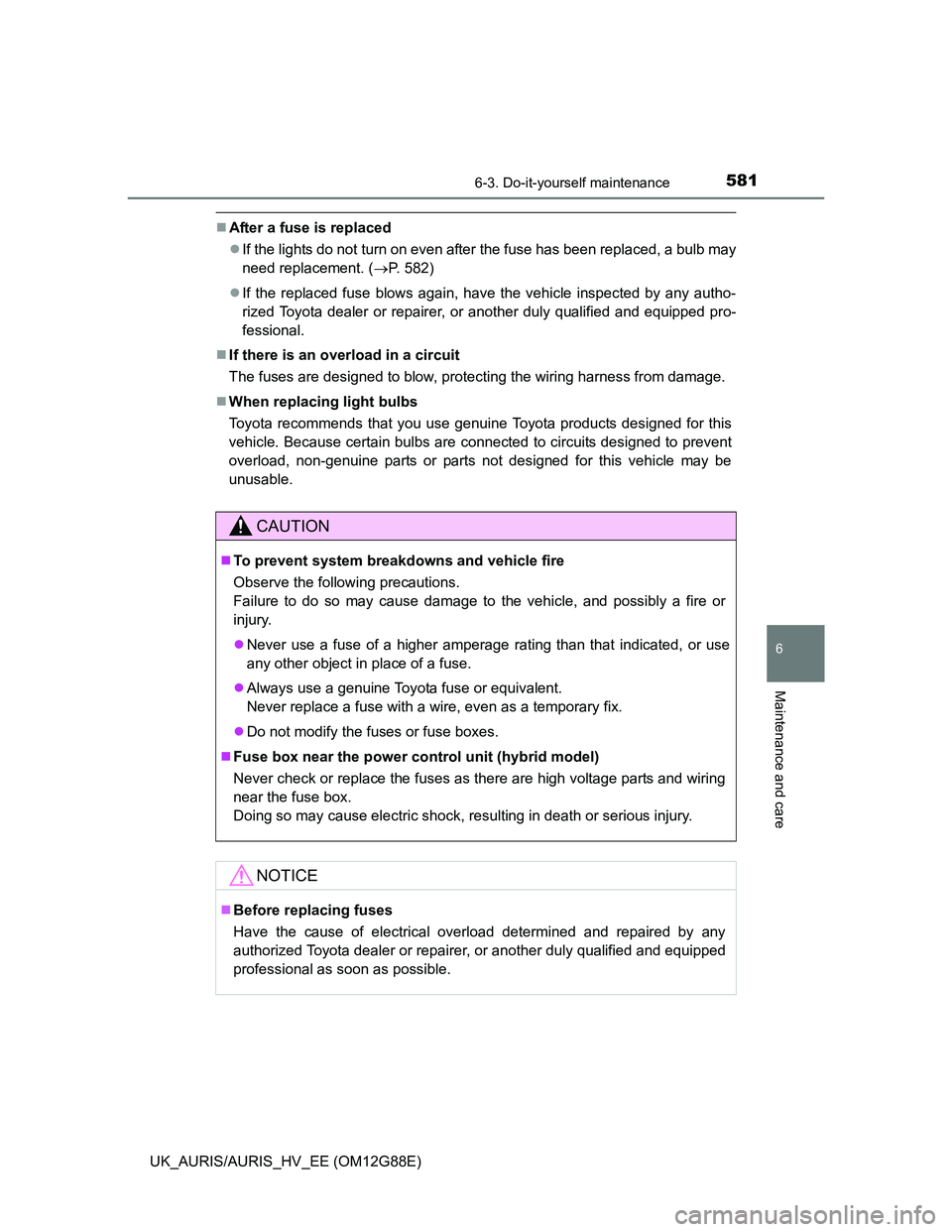

After a fuse is replaced
If the lights do not turn on even after the fuse has been replaced, a bulb may
need replacement. (P. 582)
If the replaced fuse blows again, have the vehicle inspected by any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped pro-
fessional.
If there is an overload in a circuit
The fuses are designed to blow, protecting the wiring harness from damage.
When replacing light bulbs
Toyota recommends that you use genuine Toyota products designed for this
vehicle. Because certain bulbs are connected to circuits designed to prevent
overload, non-genuine parts or parts not designed for this vehicle may be
unusable.
CAUTION
To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failure to do so may cause damage to the vehicle, and possibly a fire or
injury.
Never use a fuse of a higher amperage rating than that indicated, or use
any other object in place of a fuse.
Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
Do not modify the fuses or fuse boxes.
Fuse box near the power control unit (hybrid model)
Never check or replace the fuses as there are high voltage parts and wiring
near the fuse box.
Doing so may cause electric shock, resulting in death or serious injury.
NOTICE
Before replacing fuses
Have the cause of electrical overload determined and repaired by any
authorized Toyota dealer or repairer, or another duly qualified and equipped
professional as soon as possible.

5826-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12G88E)
Check the wattage of the light bulb to be replaced. (P. 754)
Front
Vehicles with halogen headlights
Light bulbs
You may replace the following bulbs by yourself. The difficulty
level of replacement varies depending on the bulb. As there is a
danger that components may be damaged, we recommend that
replacement is carried out by any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
Preparing for light bulb replacement
Bulb locations
Headlights
Side turn signal lights
Front turn signal lights
Front fog lights (if equipped)1
2
3
4

5836-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12G88E)
6
Maintenance and care

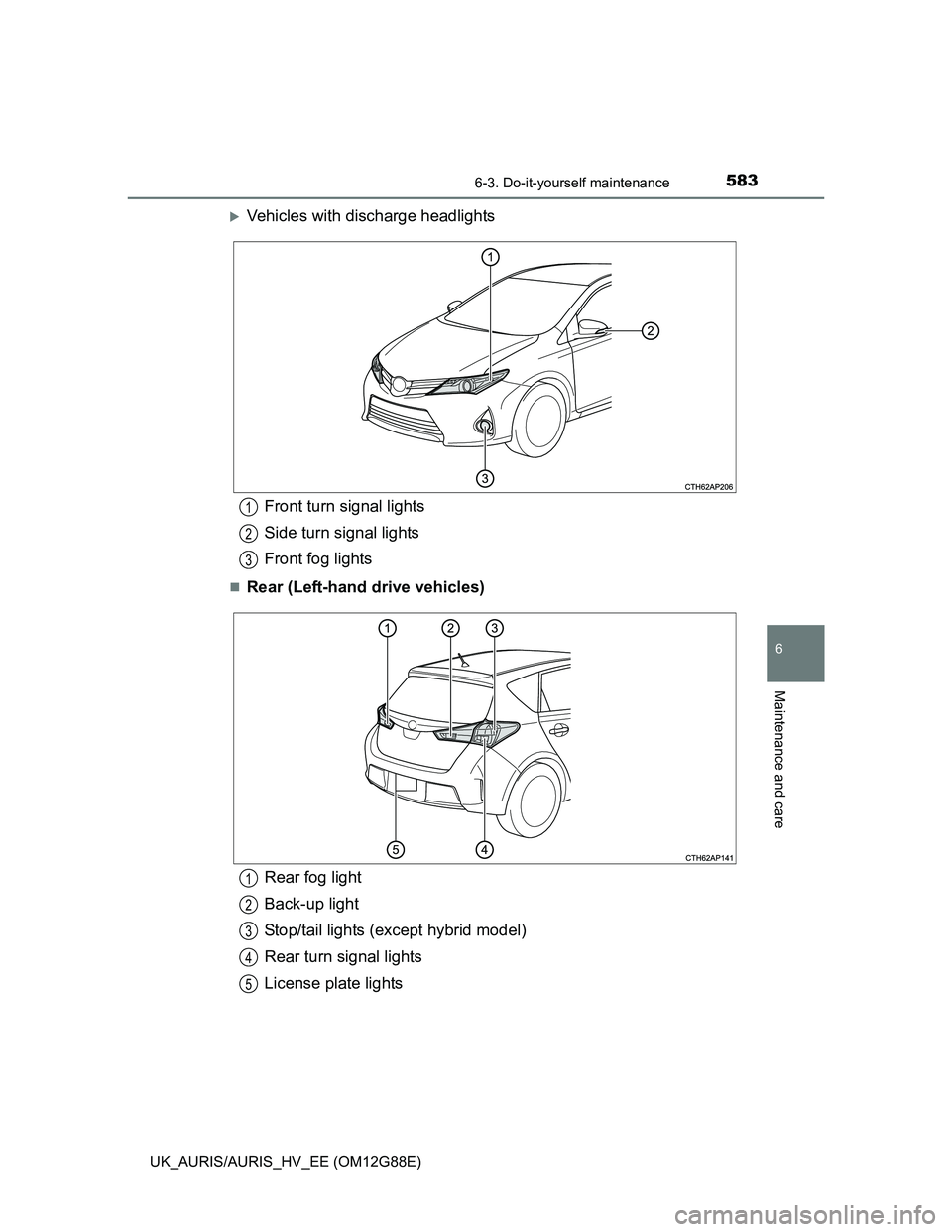

Vehicles with discharge headlights
Rear (Left-hand drive vehicles)
Front turn signal lights
Side turn signal lights
Front fog lights1
2
3
Rear fog light
Back-up light
Stop/tail lights (except hybrid model)
Rear turn signal lights
License plate lights1
2
3
4
5

5846-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12G88E)

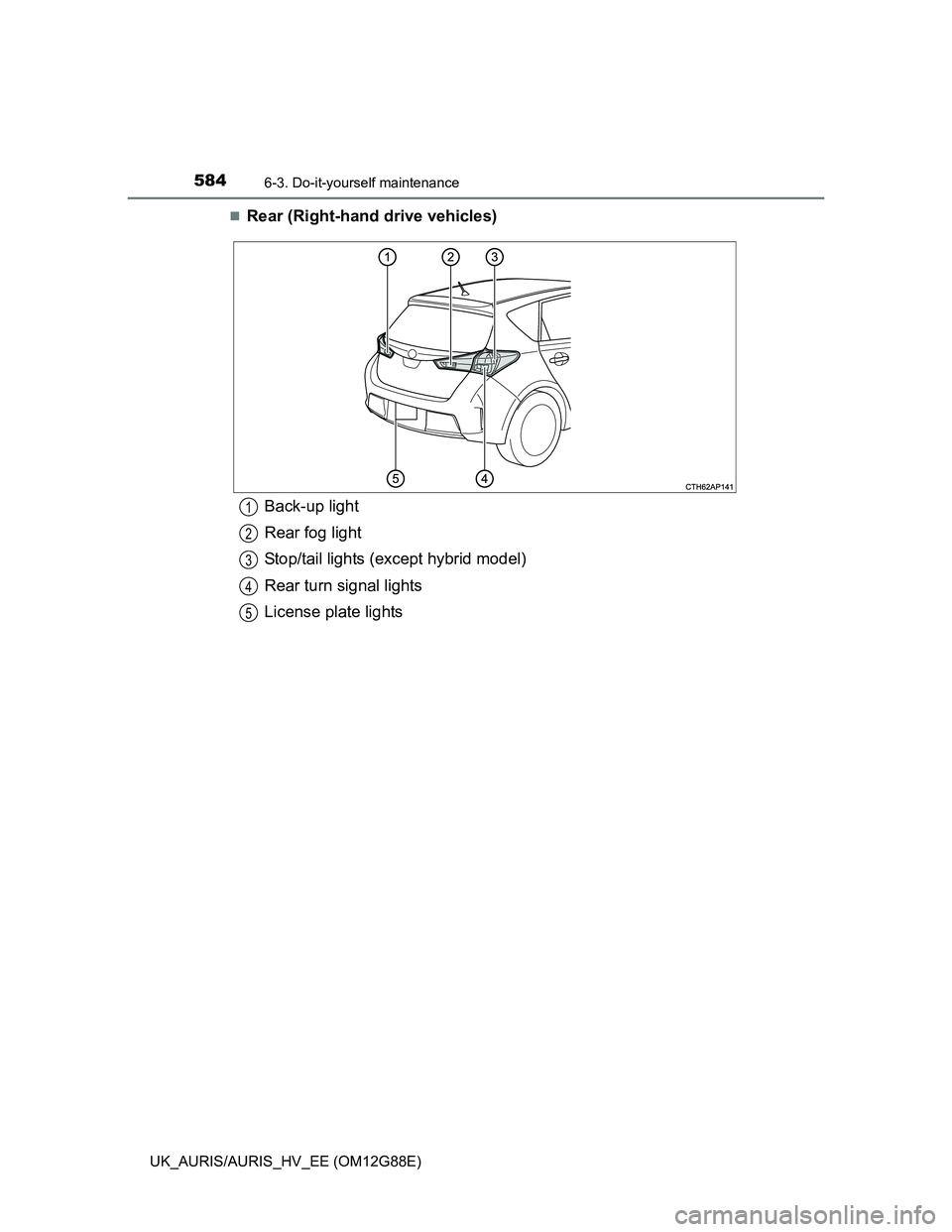

Rear (Right-hand drive vehicles)
Back-up light
Rear fog light
Stop/tail lights (except hybrid model)
Rear turn signal lights
License plate lights1
2
3
4
5

5856-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12G88E)
6
Maintenance and care

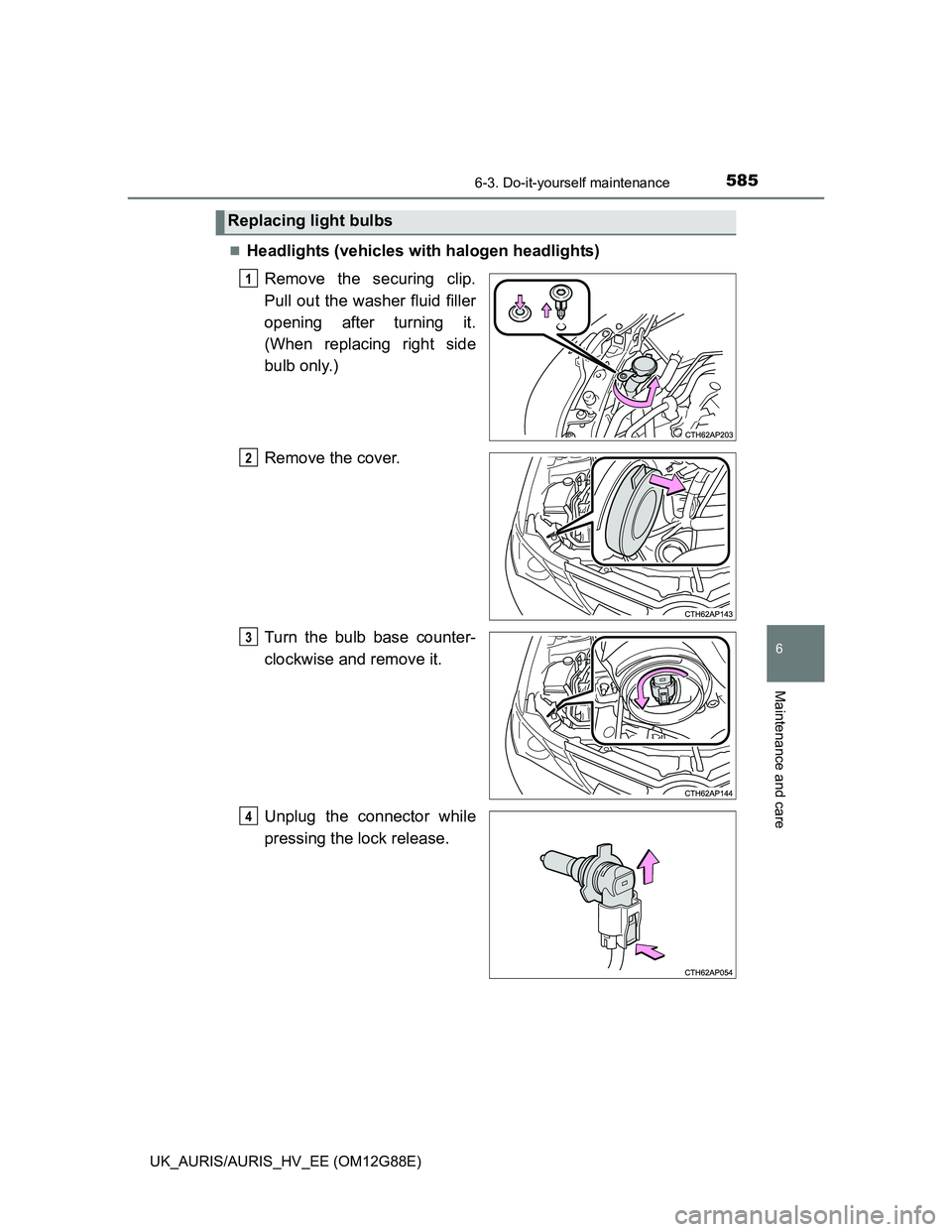

Headlights (vehicles with halogen headlights)
Remove the securing clip.
Pull out the washer fluid filler
opening after turning it.
(When replacing right side
bulb only.)
Remove the cover.
Turn the bulb base counter-
clockwise and remove it.
Unplug the connector while
pressing the lock release.
Replacing light bulbs
1
2
3
4

5866-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12G88E)

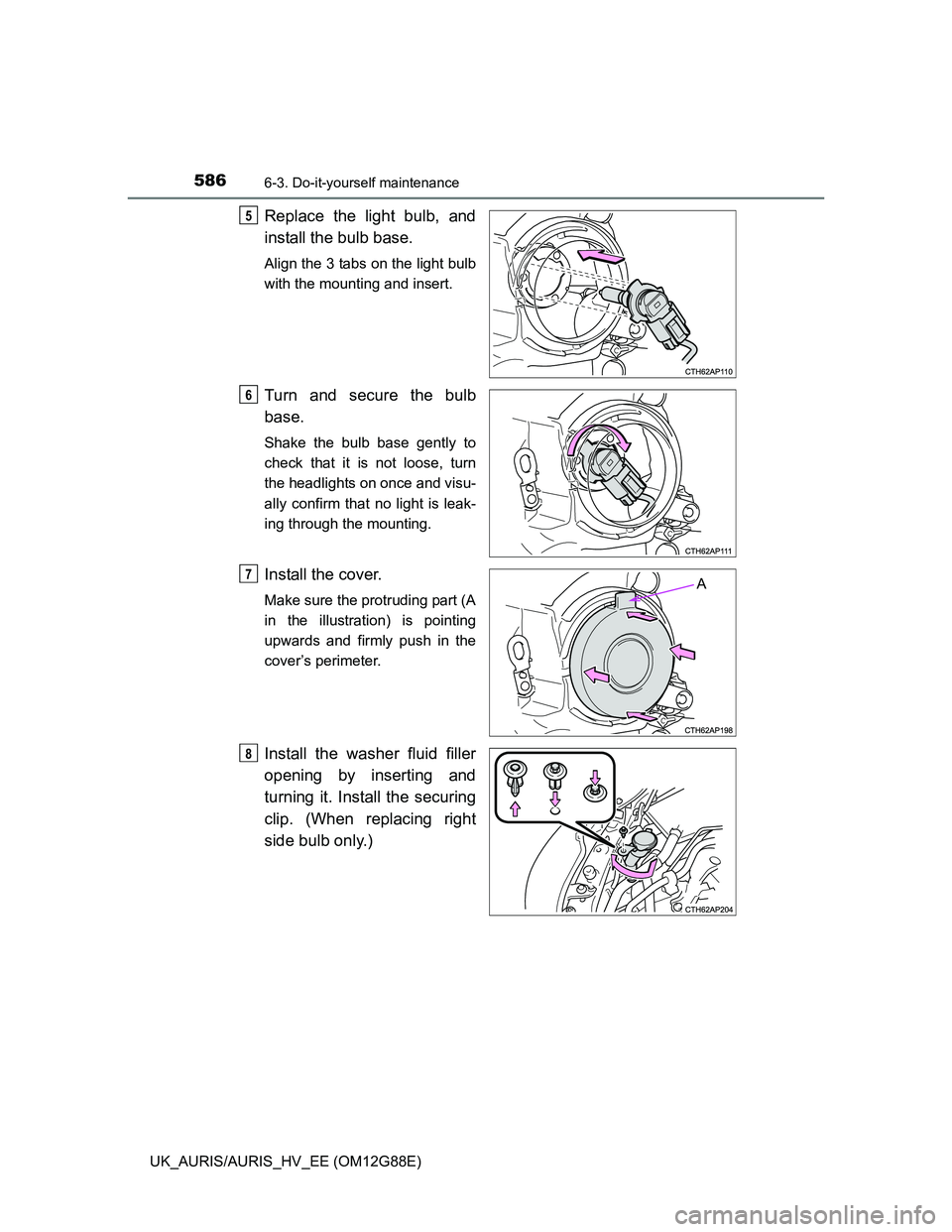

Replace the light bulb, and
install the bulb base.
Align the 3 tabs on the light bulb
with the mounting and insert.
Turn and secure the bulb
base.
Shake the bulb base gently to
check that it is not loose, turn
the headlights on once and visu-
ally confirm that no light is leak-
ing through the mounting.
Install the cover.
Make sure the protruding part (A
in the illustration) is pointing
upwards and firmly push in the
cover’s perimeter.
Install the washer fluid filler
opening by inserting and
turning it. Install the securing
clip. (When replacing right
side bulb only.)
5
6
A7
8

5876-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12G88E)
6
Maintenance and care

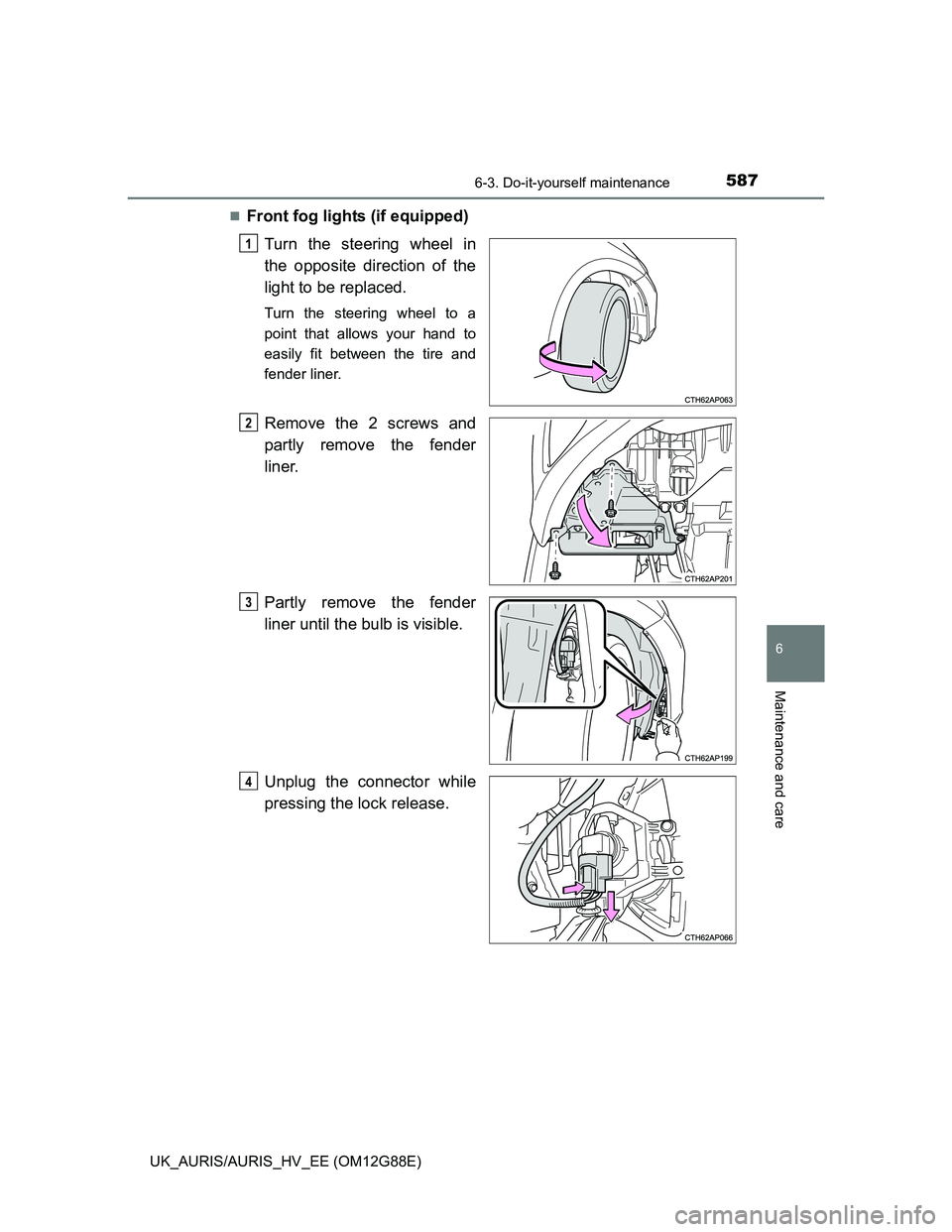

Front fog lights (if equipped)
Turn the steering wheel in
the opposite direction of the
light to be replaced.
Turn the steering wheel to a
point that allows your hand to
easily fit between the tire and
fender liner.
Remove the 2 screws and
partly remove the fender
liner.
Partly remove the fender
liner until the bulb is visible.
Unplug the connector while
pressing the lock release.
1
2
3
4

5886-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12G88E)

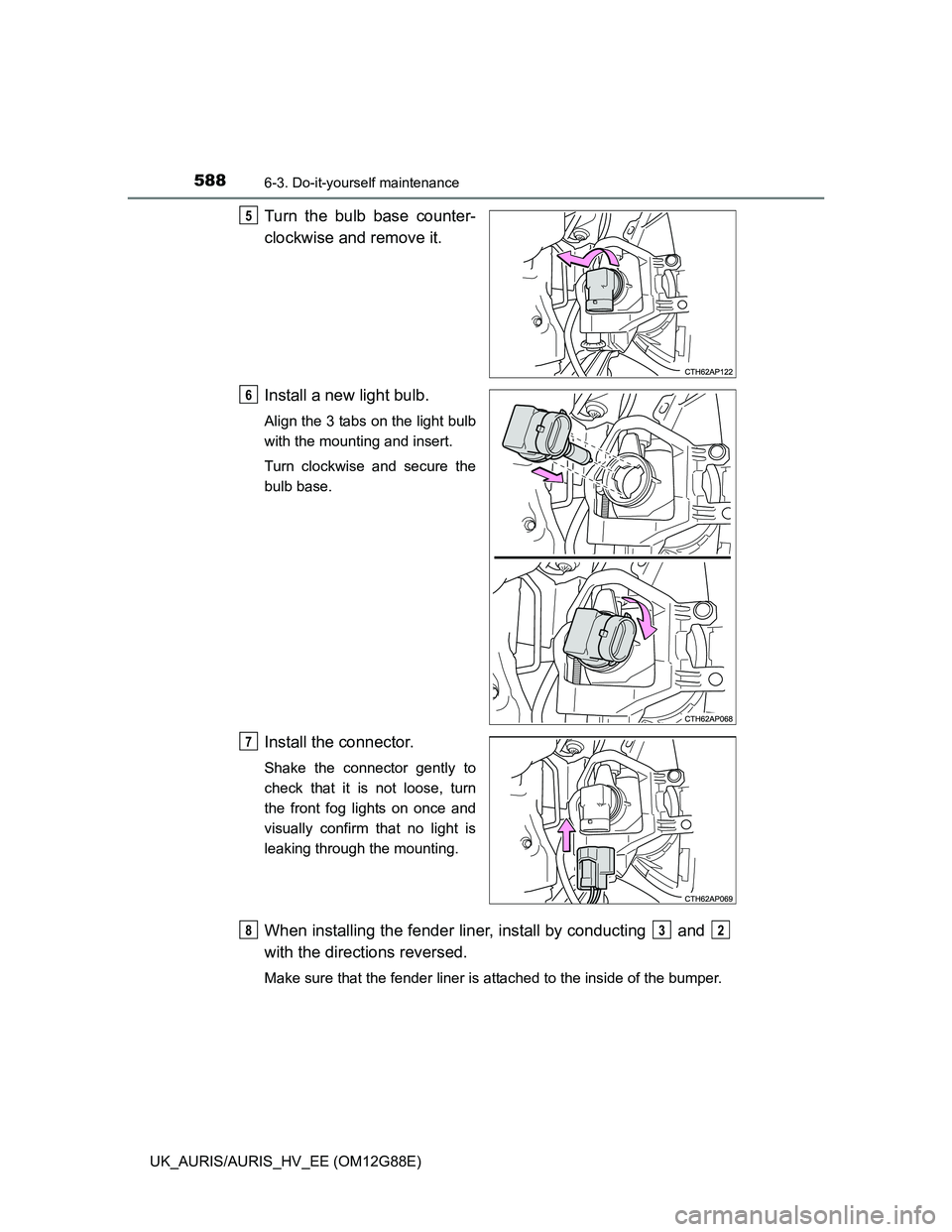

Turn the bulb base counter-
clockwise and remove it.
Install a new light bulb.
Align the 3 tabs on the light bulb
with the mounting and insert.
Turn clockwise and secure the
bulb base.
Install the connector.
Shake the connector gently to
check that it is not loose, turn
the front fog lights on once and
visually confirm that no light is
leaking through the mounting.
When installing the fender liner, install by conducting and
with the directions reversed.
Make sure that the fender liner is attached to the inside of the bumper.
5
6
7
832

5896-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12G88E)
6
Maintenance and care

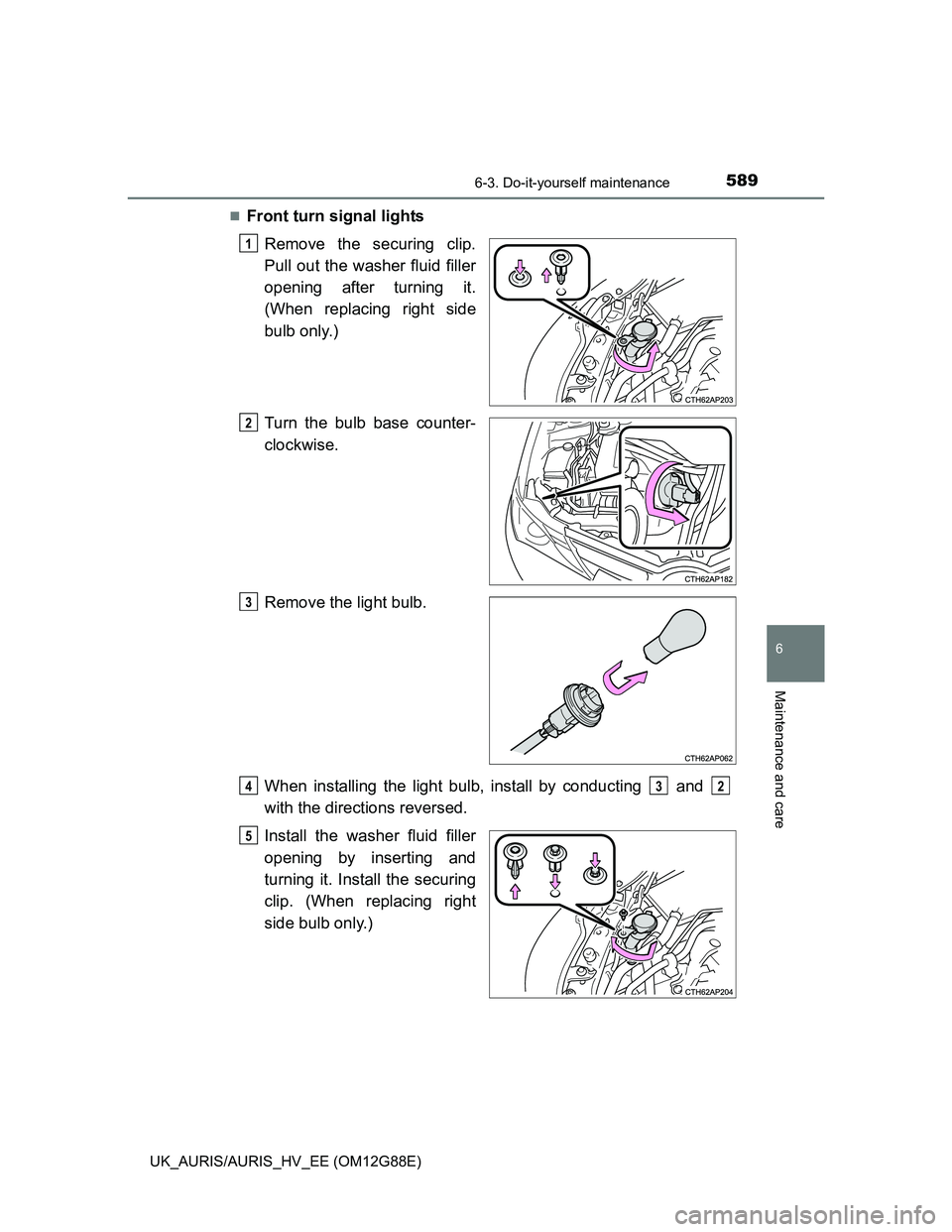

Front turn signal lights
Remove the securing clip.
Pull out the washer fluid filler
opening after turning it.
(When replacing right side
bulb only.)
Turn the bulb base counter-
clockwise.
Remove the light bulb.
When installing the light bulb, install by conducting and
with the directions reversed.
Install the washer fluid filler
opening by inserting and
turning it. Install the securing
clip. (When replacing right
side bulb only.)
1
2
3
432
5

5906-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12G88E)

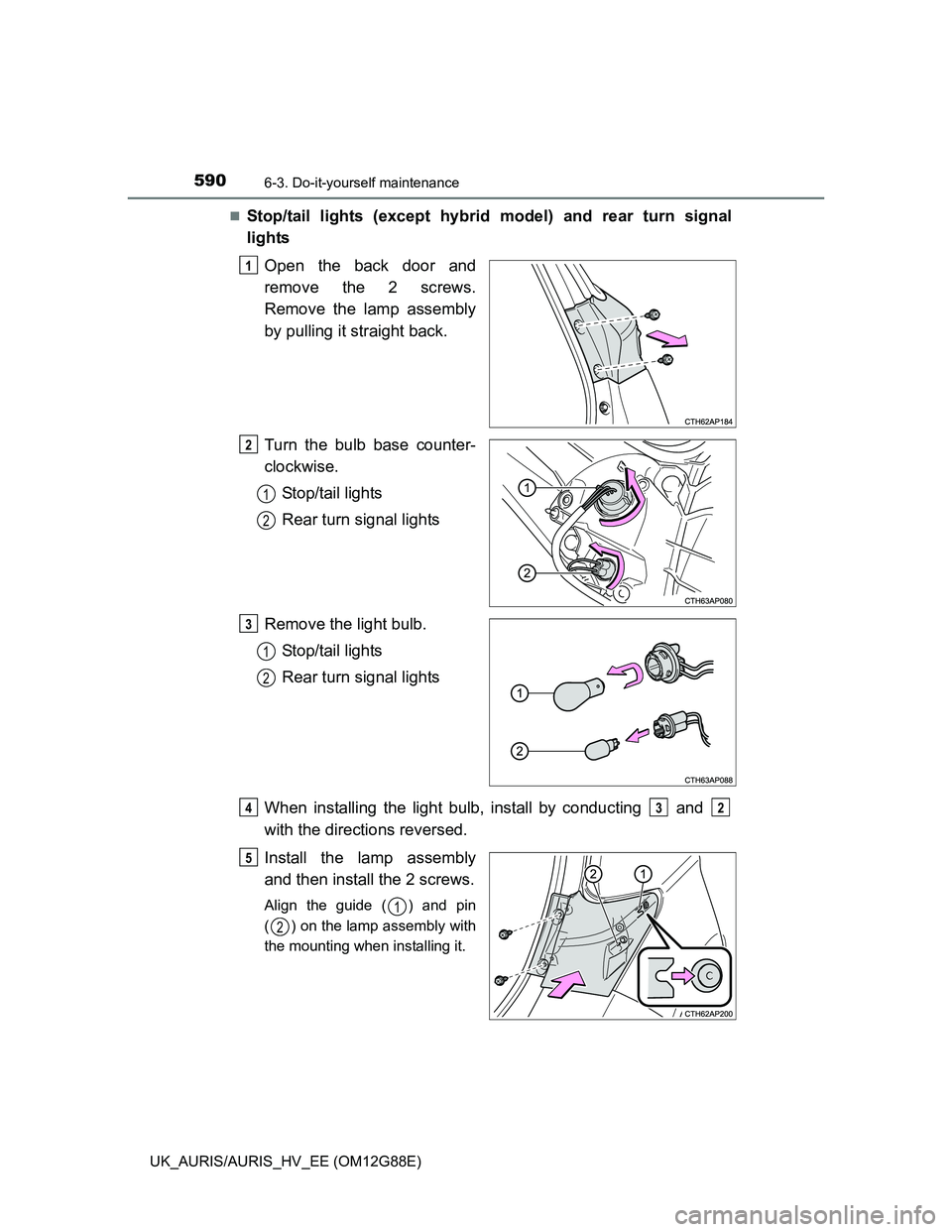

Stop/tail lights (except hybrid model) and rear turn signal
lights
Open the back door and
remove the 2 screws.
Remove the lamp assembly
by pulling it straight back.
Turn the bulb base counter-
clockwise.
Stop/tail lights
Rear turn signal lights
Remove the light bulb.
Stop/tail lights
Rear turn signal lights
When installing the light bulb, install by conducting and
with the directions reversed.
Install the lamp assembly
and then install the 2 screws.
Align the guide ( ) and pin
( ) on the lamp assembly with
the mounting when installing it.
1
2
1
2
3
1
2
432
5
1
2
