TOYOTA AURIS HYBRID 2014 Owners Manual

5916-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12G88E)
6
Maintenance and care

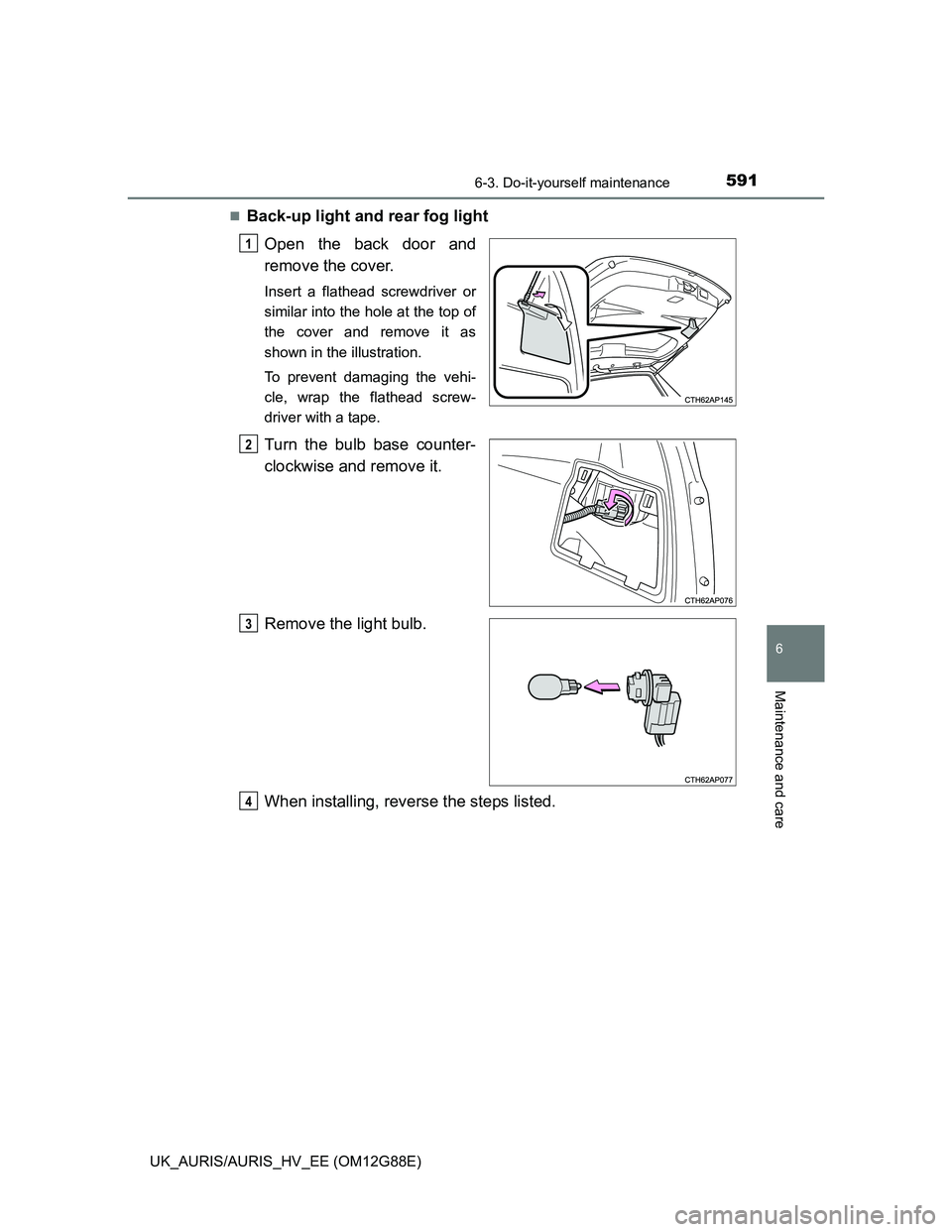

Back-up light and rear fog light
Open the back door and
remove the cover.
Insert a flathead screwdriver or
similar into the hole at the top of
the cover and remove it as
shown in the illustration.
To prevent damaging the vehi-
cle, wrap the flathead screw-
driver with a tape.
Turn the bulb base counter-
clockwise and remove it.
Remove the light bulb.
When installing, reverse the steps listed.
1
2
3
4

5926-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12G88E)
License plate lights
Remove the light unit
Insert a flathead screwdriver or
similar into the hole next to the
light and remove it as shown in
the illustration.
To prevent damaging the vehi-
cle, wrap the flathead screw-
driver with a tape.
Turn the bulb base counter-
clockwise and remove it.
Remove the light bulb
When installing, reverse the steps listed.
1
2
3
4

5936-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12G88E)
6
Maintenance and care

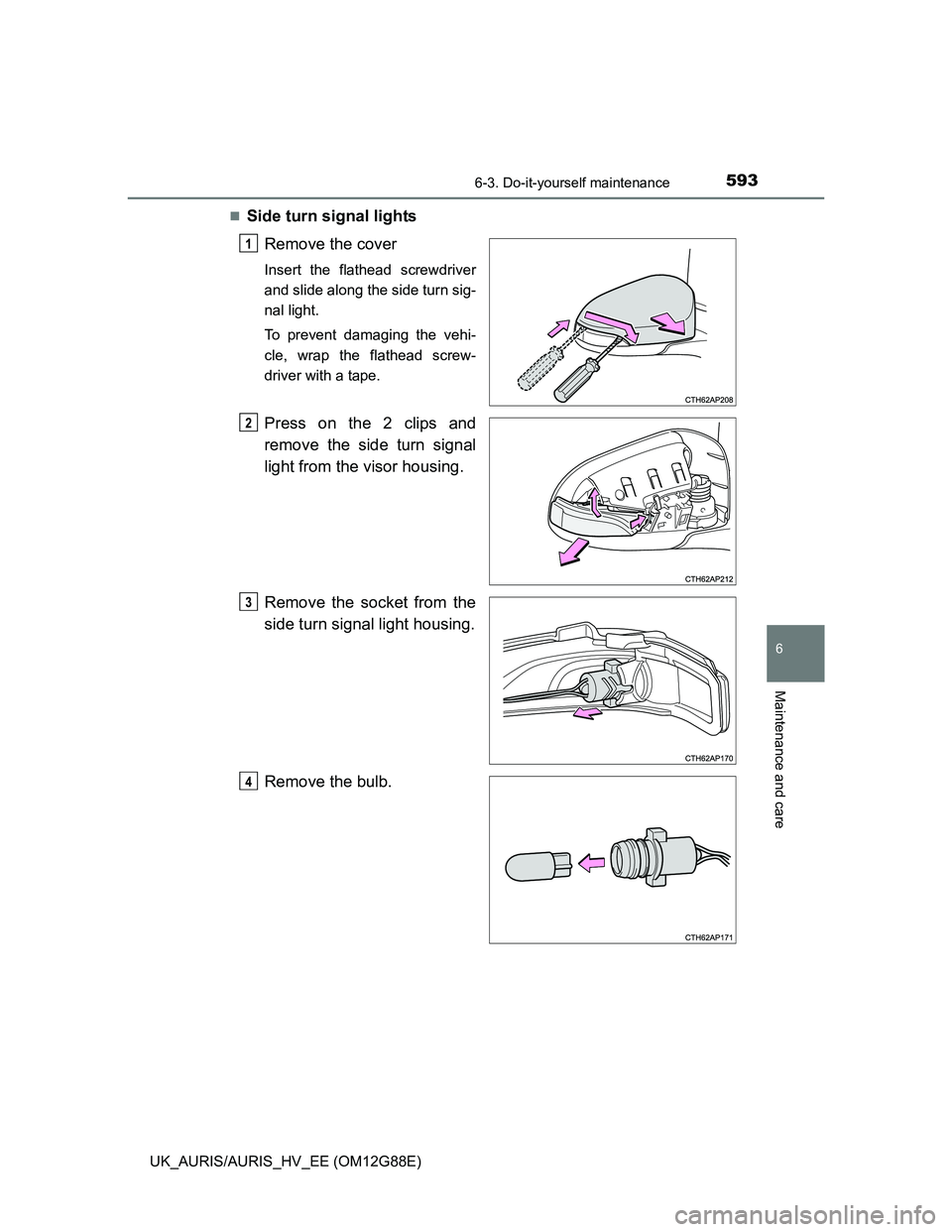

Side turn signal lights
Remove the cover
Insert the flathead screwdriver
and slide along the side turn sig-
nal light.
To prevent damaging the vehi-
cle, wrap the flathead screw-
driver with a tape.
Press on the 2 clips and
remove the side turn signal
light from the visor housing.
Remove the socket from the
side turn signal light housing.
Remove the bulb.
1
2
3
4

5946-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12G88E)

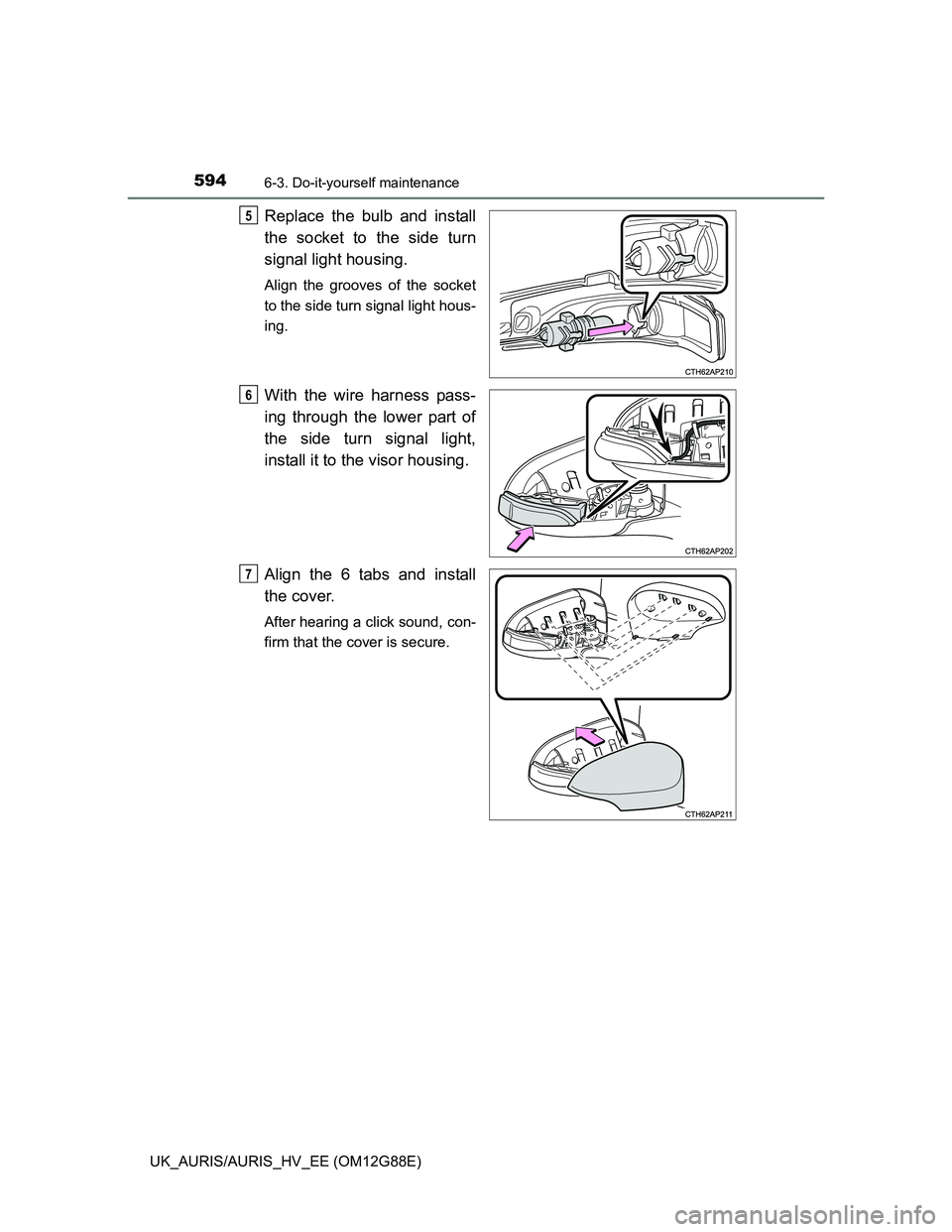

Replace the bulb and install
the socket to the side turn
signal light housing.
Align the grooves of the socket
to the side turn signal light hous-
ing.
With the wire harness pass-
ing through the lower part of
the side turn signal light,
install it to the visor housing.
Align the 6 tabs and install
the cover.
After hearing a click sound, con-
firm that the cover is secure.
5
6
7

5956-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12G88E)
6
Maintenance and care

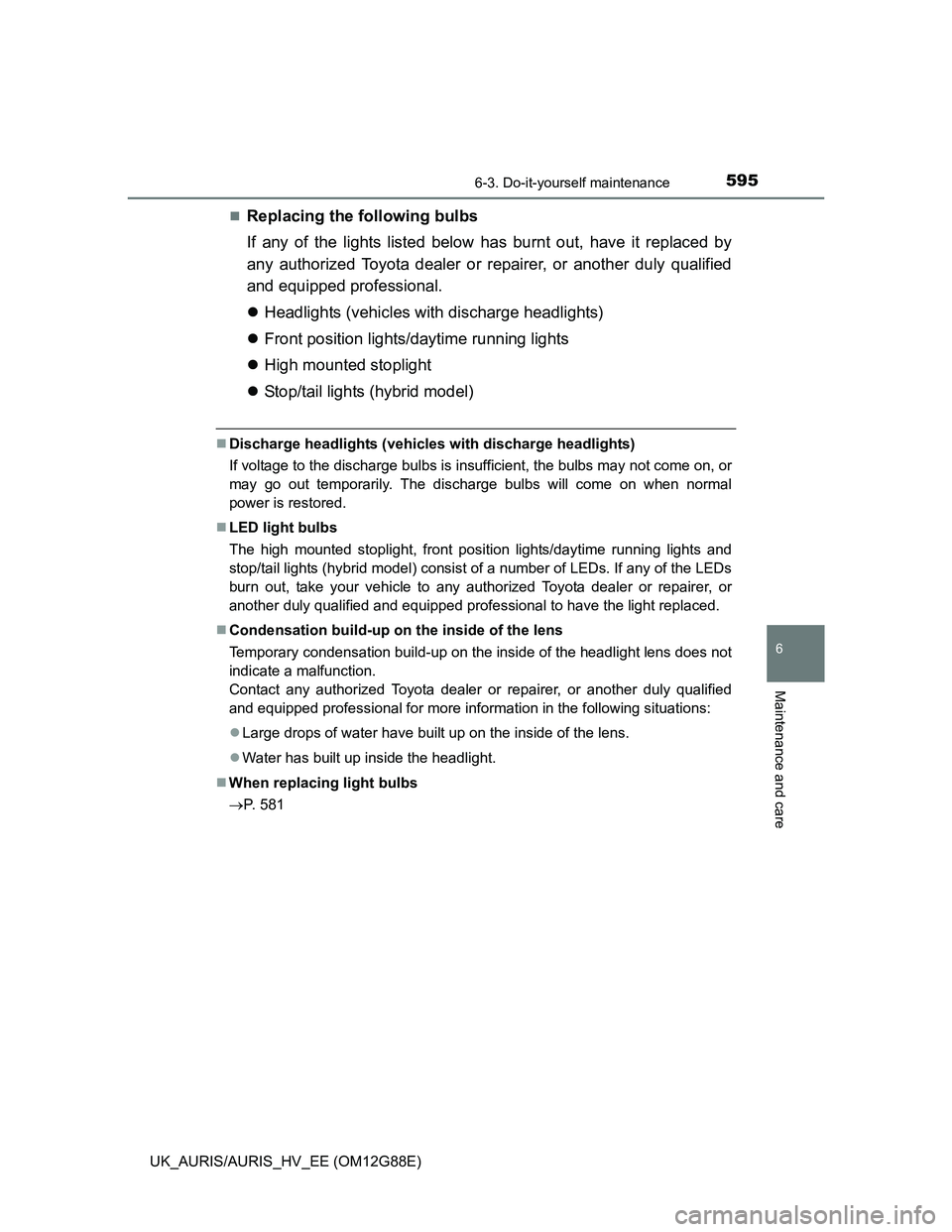

Replacing the following bulbs
If any of the lights listed below has burnt out, have it replaced by
any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional.
Headlights (vehicles with discharge headlights)
Front position lights/daytime running lights
High mounted stoplight
Stop/tail lights (hybrid model)
Discharge headlights (vehicles with discharge headlights)
If voltage to the discharge bulbs is insufficient, the bulbs may not come on, or
may go out temporarily. The discharge bulbs will come on when normal
power is restored.
LED light bulbs
The high mounted stoplight, front position lights/daytime running lights and
stop/tail lights (hybrid model) consist of a number of LEDs. If any of the LEDs
burn out, take your vehicle to any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional to have the light replaced.
Condensation build-up on the inside of the lens
Temporary condensation build-up on the inside of the headlight lens does not
indicate a malfunction.
Contact any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional for more information in the following situations:
Large drops of water have built up on the inside of the lens.
Water has built up inside the headlight.
When replacing light bulbs
P. 581

5966-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12G88E)

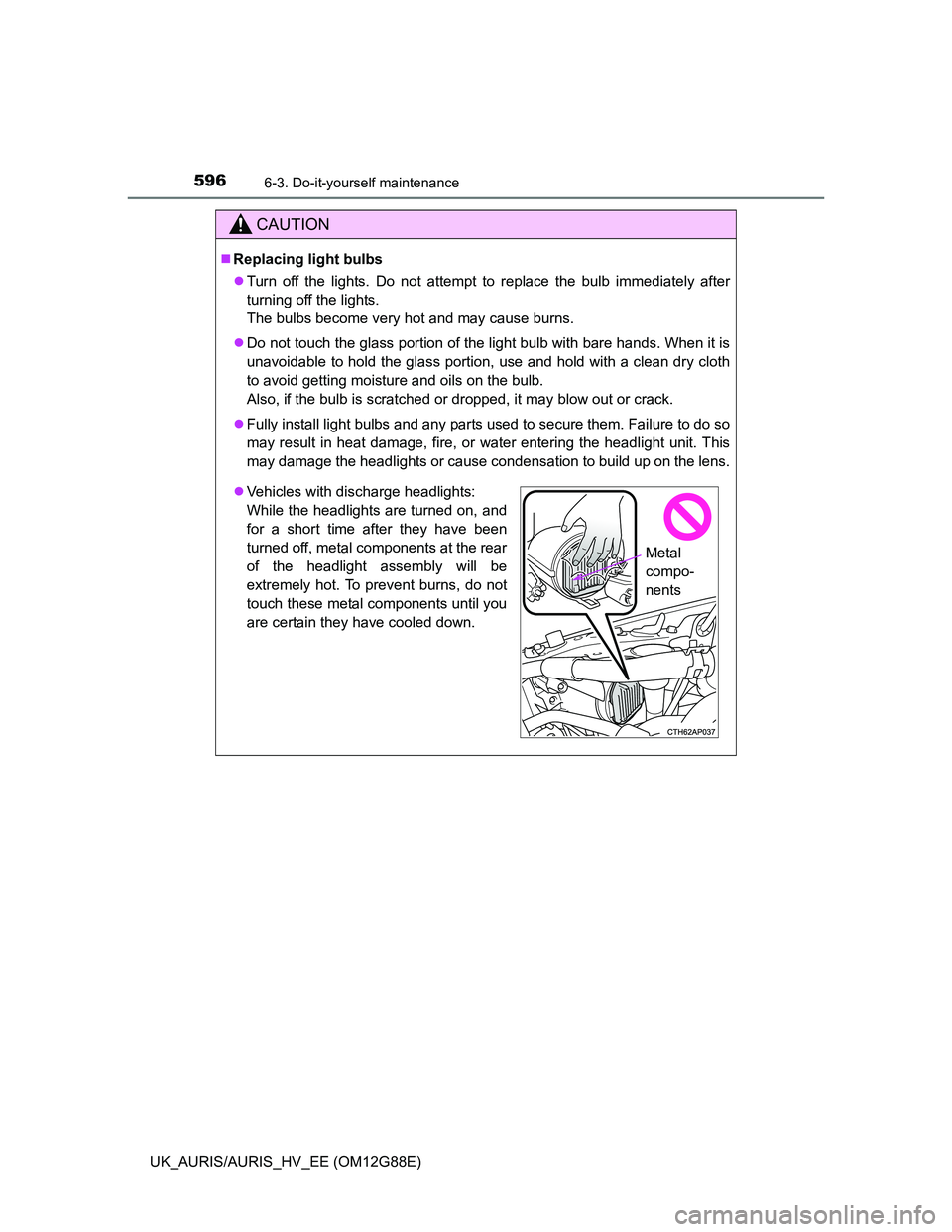

CAUTION
Replacing light bulbs
Turn off the lights. Do not attempt to replace the bulb immediately after
turning off the lights.
The bulbs become very hot and may cause burns.
Do not touch the glass portion of the light bulb with bare hands. When it is
unavoidable to hold the glass portion, use and hold with a clean dry cloth
to avoid getting moisture and oils on the bulb.
Also, if the bulb is scratched or dropped, it may blow out or crack.
Fully install light bulbs and any parts used to secure them. Failure to do so
may result in heat damage, fire, or water entering the headlight unit. This
may damage the headlights or cause condensation to build up on the lens.
Vehicles with discharge headlights:
While the headlights are turned on, and
for a short time after they have been
turned off, metal components at the rear
of the headlight assembly will be
extremely hot. To prevent burns, do not
touch these metal components until you
are certain they have cooled down.
Metal
compo-
nents

5976-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12G88E)
6
Maintenance and care

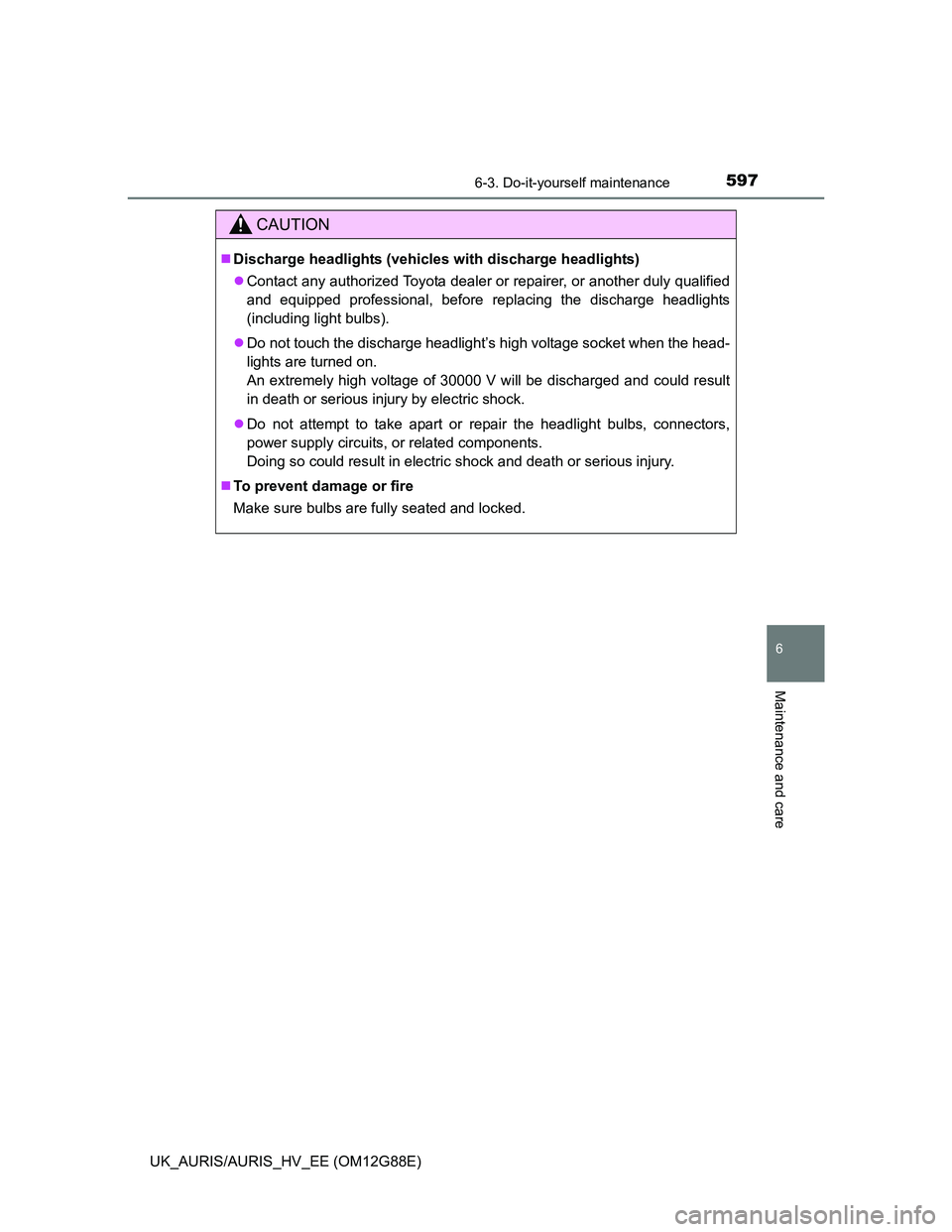

CAUTION
Discharge headlights (vehicles with discharge headlights)
Contact any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional, before replacing the discharge headlights
(including light bulbs).
Do not touch the discharge headlight’s high voltage socket when the head-
lights are turned on.
An extremely high voltage of 30000 V will be discharged and could result
in death or serious injury by electric shock.
Do not attempt to take apart or repair the headlight bulbs, connectors,
power supply circuits, or related components.
Doing so could result in electric shock and death or serious injury.
To prevent damage or fire
Make sure bulbs are fully seated and locked.

5986-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12G88E)

599

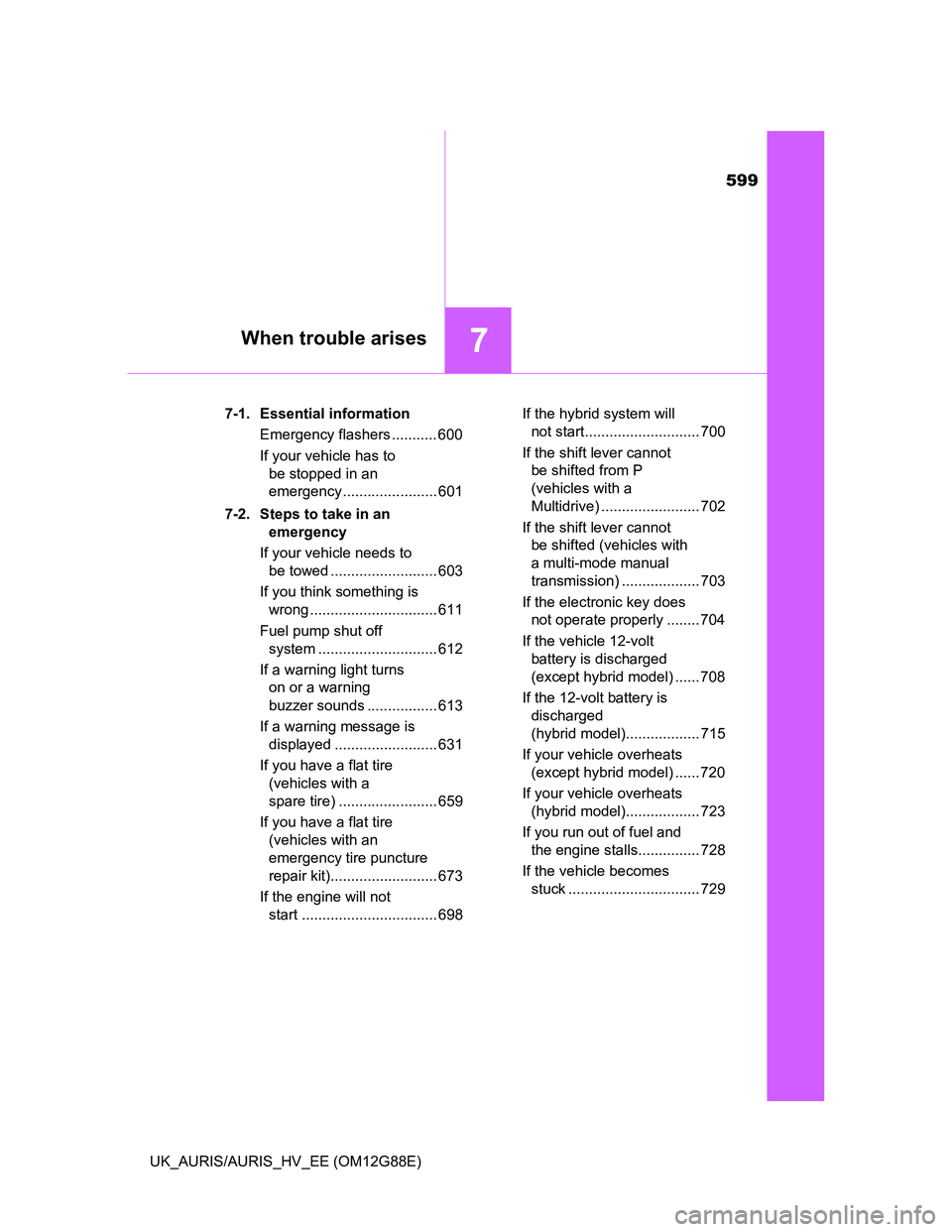

7When trouble arises
UK_AURIS/AURIS_HV_EE (OM12G88E)7-1. Essential information
Emergency flashers ........... 600
If your vehicle has to
be stopped in an
emergency ....................... 601
7-2. Steps to take in an
emergency
If your vehicle needs to
be towed .......................... 603
If you think something is
wrong ............................... 611
Fuel pump shut off
system ............................. 612
If a warning light turns
on or a warning
buzzer sounds ................. 613
If a warning message is
displayed ......................... 631
If you have a flat tire
(vehicles with a
spare tire) ........................ 659
If you have a flat tire
(vehicles with an
emergency tire puncture
repair kit).......................... 673
If the engine will not
start ................................. 698If the hybrid system will
not start............................ 700
If the shift lever cannot
be shifted from P
(vehicles with a
Multidrive) ........................ 702
If the shift lever cannot
be shifted (vehicles with
a multi-mode manual
transmission) ................... 703
If the electronic key does
not operate properly ........ 704
If the vehicle 12-volt
battery is discharged
(except hybrid model) ...... 708
If the 12-volt battery is
discharged
(hybrid model).................. 715
If your vehicle overheats
(except hybrid model) ...... 720
If your vehicle overheats
(hybrid model).................. 723
If you run out of fuel and
the engine stalls............... 728
If the vehicle becomes
stuck ................................ 729

600
UK_AURIS/AURIS_HV_EE (OM12G88E)
7-1. Essential information
Press the switch.
All the turn signal lights will flash.
To turn them off, press the switch
once again.
Emergency flashers
Except hybrid model: If the emergency flashers are used for a long time while
the engine is not operating, the 12-volt battery may discharge.
Hybrid model: If the emergency flashers are used for a long time while the
hybrid system is not operating (while the “READY” indicator is not illumi-
nated), the 12-volt battery may discharge.
Emergency flashers
The emergency flashers are used to warn other drivers when the
vehicle has to be stopped in the road due to a breakdown, etc.
