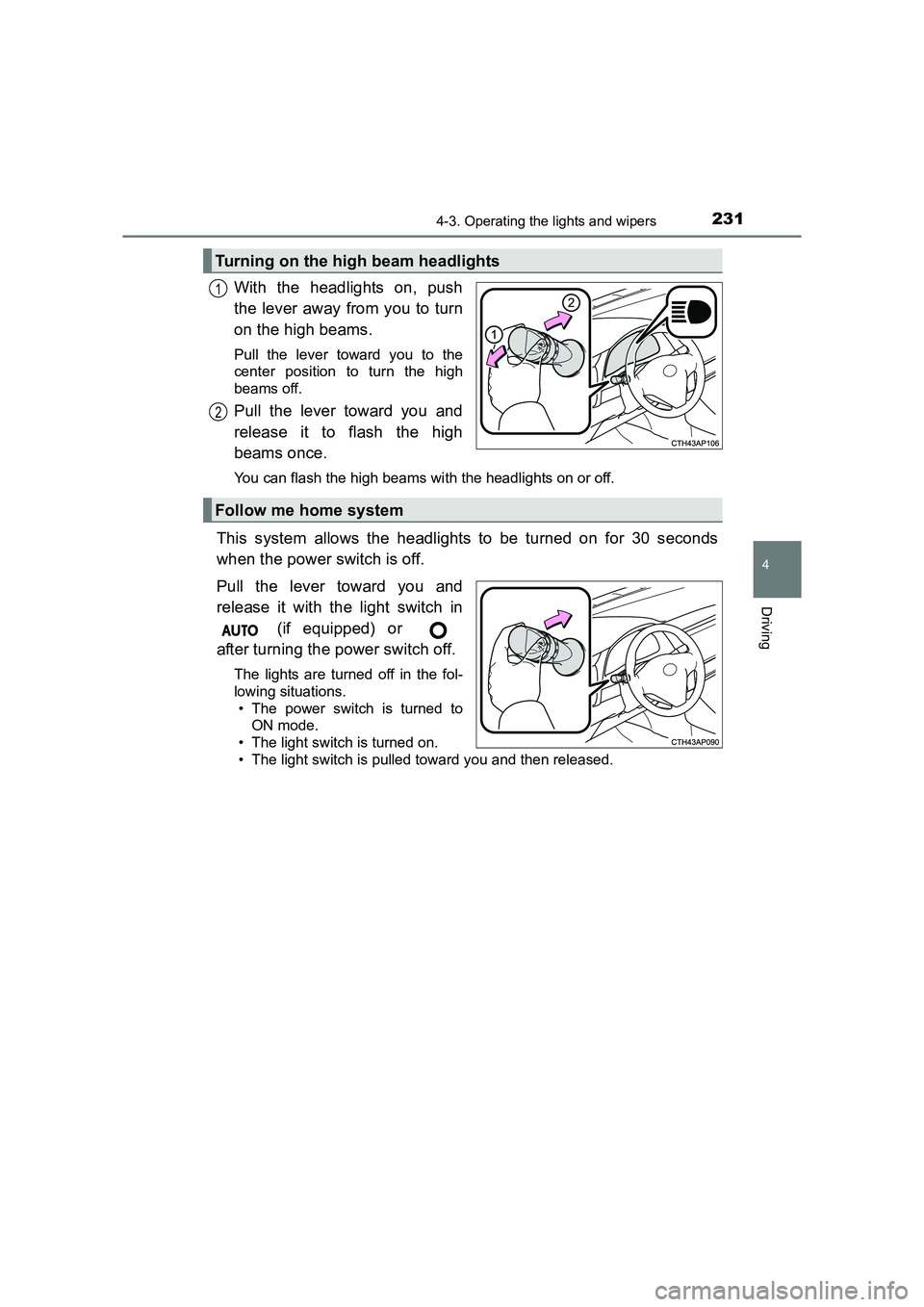

TOYOTA AURIS HYBRID 2016 Owners Manual

2314-3. Operating the lights and wipers
UK AURIS_HV_HB_EE (OM12K47E)
4
Driving
With the headlights on, push
the lever away from you to turn
on the high beams.
Pull the lever toward you to the
center position to turn the high
beams off.
Pull the lever toward you and
release it to flash the high
beams once.
You can flash the high beams with the headlights on or off.
This system allows the headlights to be turned on for 30 seconds
when the power switch is off.
Pull the lever toward you and
release it with the light switch in
(if equipped) or
after turning the power switch off.
The lights are turned off in the fol-
lowing situations. • The power switch is turned to ON mode.
• The light switch is turned on.
• The light switch is pulled toward you and then released.
Turning on the high beam headlights
1
2
Follow me home system

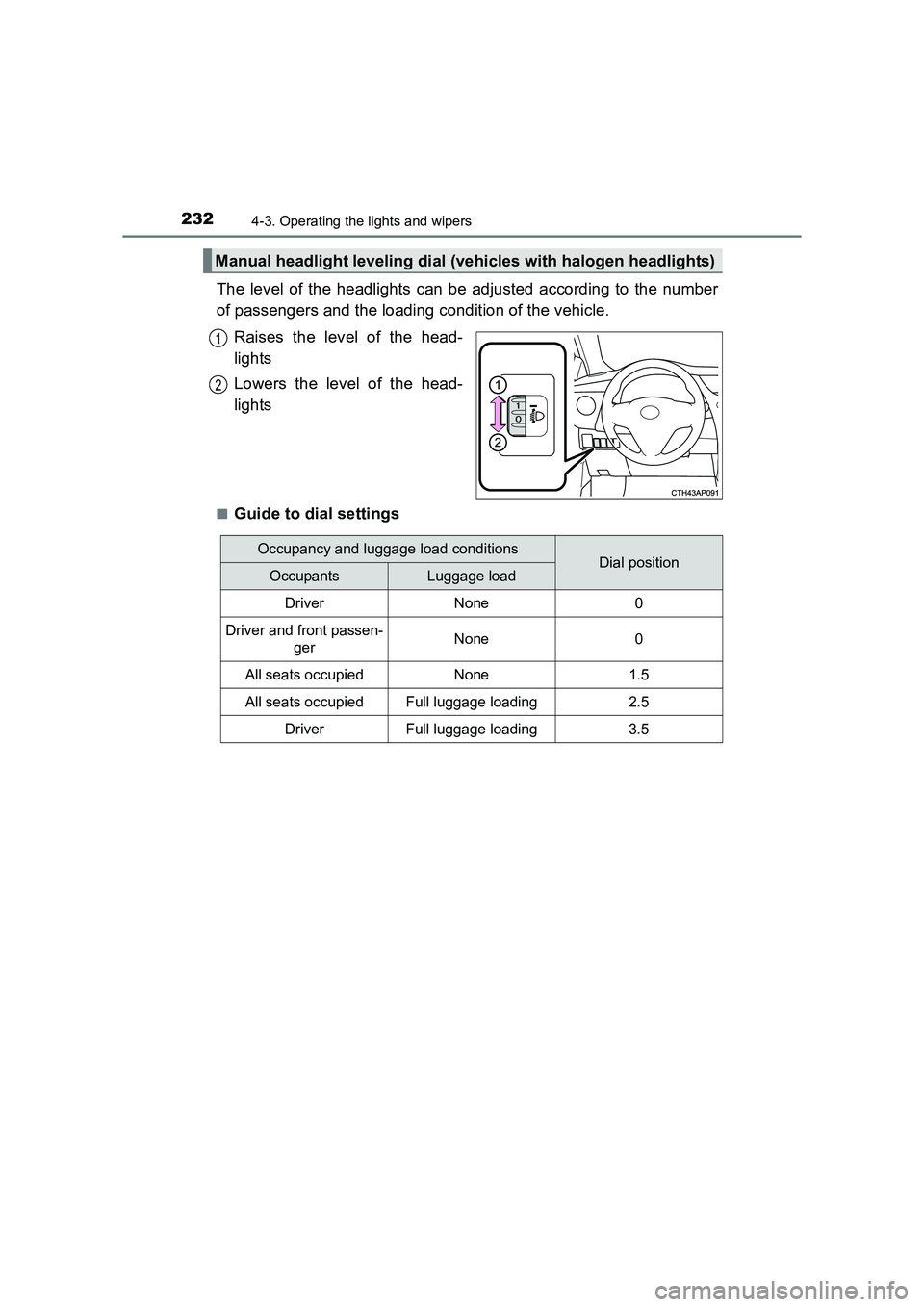

2324-3. Operating the lights and wipers
UK AURIS_HV_HB_EE (OM12K47E)
The level of the headlights can be adjusted according to the number
of passengers and the loading condition of the vehicle.Raises the level of the head-
lights
Lowers the level of the head-
lights
■Guide to dial settings
Manual headlight leveling dial (vehicles with halogen headlights)
1
2
Occupancy and luggage load conditionsDial positionOccupantsLuggage load
DriverNone0
Driver and front passen- gerNone0
All seats occupiedNone1.5
All seats occupiedFull luggage loading2.5
DriverFull luggage loading3.5

2334-3. Operating the lights and wipers
UK AURIS_HV_HB_EE (OM12K47E)
4
Driving
■Daytime running light system
To make your vehicle more visible to other drivers during daytime driving, the
daytime running lights turn on automatically whenever the hybrid system is
started and the parking brake is released with the headlight switch off or in
the position. (Illuminate brighter than the front position lights.) Daytime
running lights are not designed for use at night.
■ Headlight control sensor (if equipped)
■ Automatic light off system
When the light switch is in or : The headlights and front fog lights
turn off automatically if the power switch is turned off.
When the light switch is in : All lights turn off automatically if the power
switch is turned off.
To turn the lights on again, turn the power switch to ON mode, or turn the light
switch off once and then back to or .
■ Light reminder buzzer
A buzzer sounds when the power switch is turned off or turned to ACCES-
SORY mode and the driver's door is opened while the lights are turned on. The sensor may not function properly if an
object is placed on the sensor, or anything
that blocks the sensor is affixed to the
windshield.
Doing so interferes with the sensor
detecting the level of ambient light and
may cause the automatic headlight sys-
tem to malfunction.

2344-3. Operating the lights and wipers
UK AURIS_HV_HB_EE (OM12K47E)■
Automatic headlight leveling system (vehicles with LED headlights)
The level of the headlights is automatically adjusted according to the number
of passengers and the loading condition of the vehicle to ensure that the
headlights do not interfere with other road users.
■ Battery-saving function
In the following conditions, the remaining lights will go off automatically after
20 minutes in order to prevent the vehicle battery from being discharged:
●The headlights and/or tail lights are on.
● The power switch is turned to ACCESSORY mode or turned off.
● The light switch is in or .
This function will be canceled in any of the following situations:
● When the power switch is turned to ON mode.
● When the light switch is operated.
● When a door is opened or closed.
■ Customization
Settings (e.g. light sensor sensitivity) can be changed.
(Customizable features: →P. 566)
NOTICE
■ To prevent 12-volt battery discharge
Do not leave the lights on longer than necessary when the hybrid system is
off.

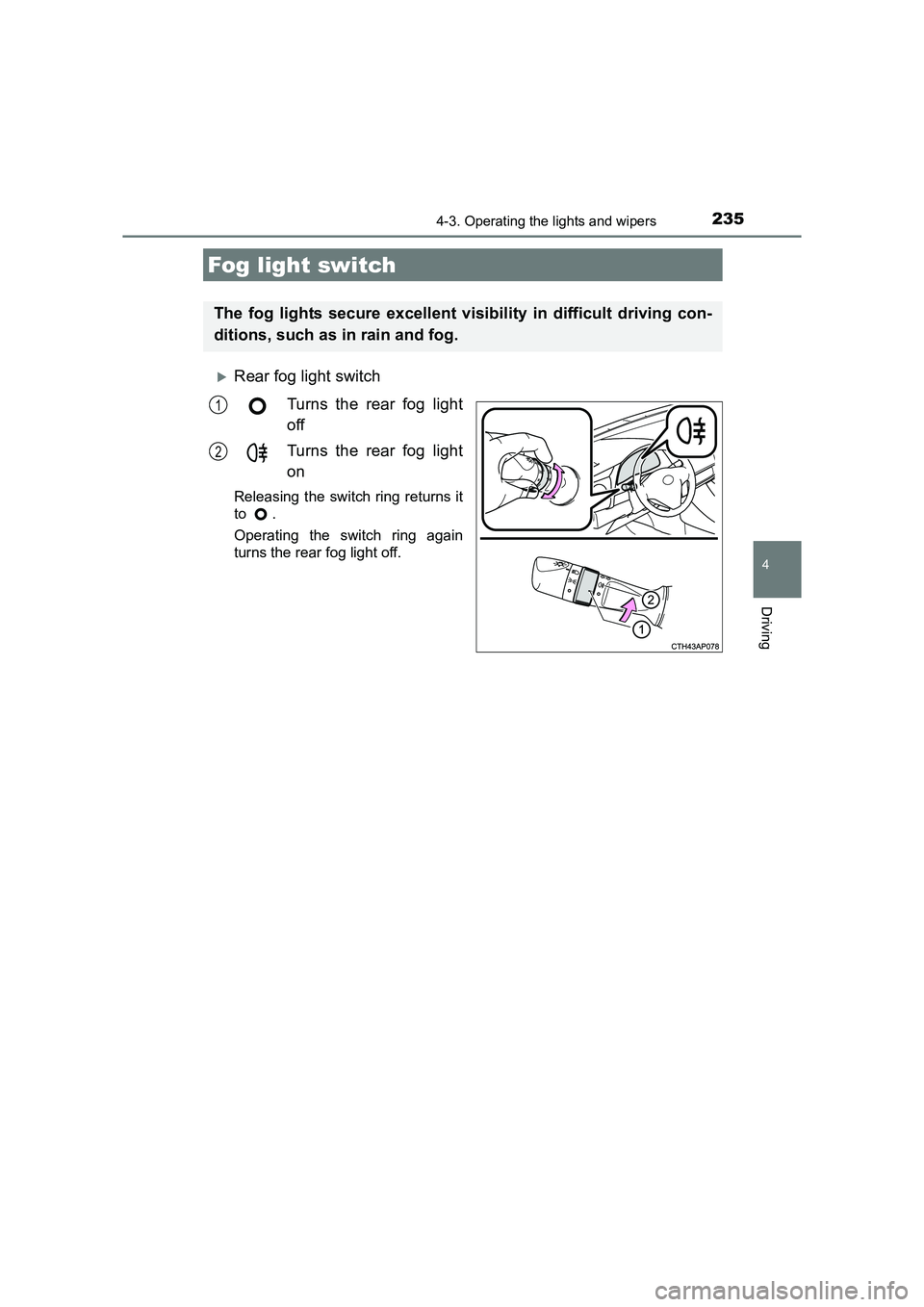

2354-3. Operating the lights and wipers
UK AURIS_HV_HB_EE (OM12K47E)
4
Driving
XRear fog light switchTurns the rear fog light
off
Turns the rear fog light
on
Releasing the switch ring returns it
to .
Operating the switch ring again
turns the rear fog light off.
Fog light switch
The fog lights secure excellent visibility in difficult driving con-
ditions, such as in rain and fog.
1
2

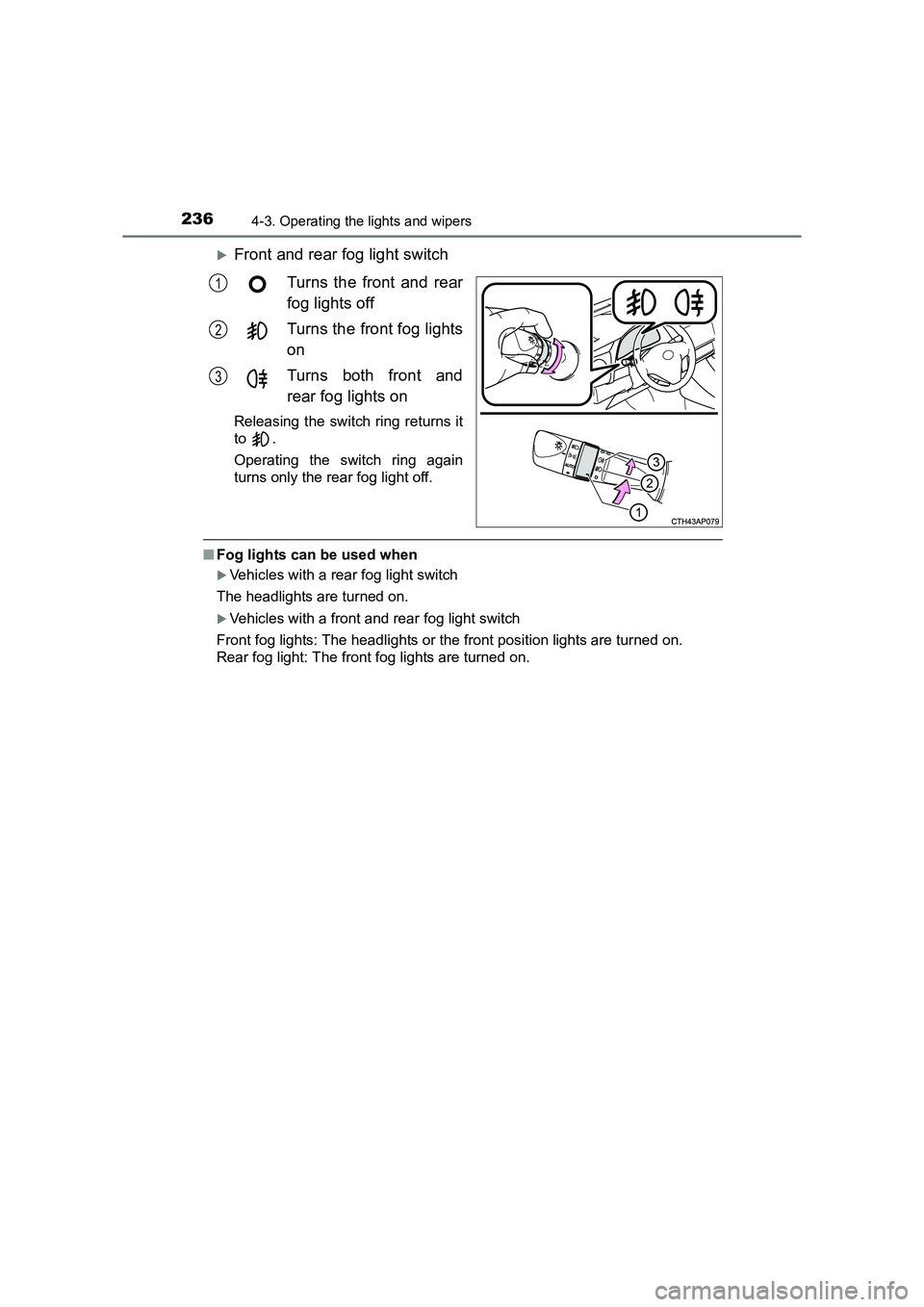

2364-3. Operating the lights and wipers
UK AURIS_HV_HB_EE (OM12K47E)
XFront and rear fog light switchTurns the front and rear
fog lights off
Turns the front fog lights
on
Turns both front and
rear fog lights on
Releasing the switch ring returns it
to .
Operating the switch ring again
turns only the rear fog light off.
■Fog lights can be used when
XVehicles with a rear fog light switch
The headlights are turned on.
XVehicles with a front and rear fog light switch
Front fog lights: The headlights or the front position lights are turned on.
Rear fog light: The front fog lights are turned on.
1
2
3

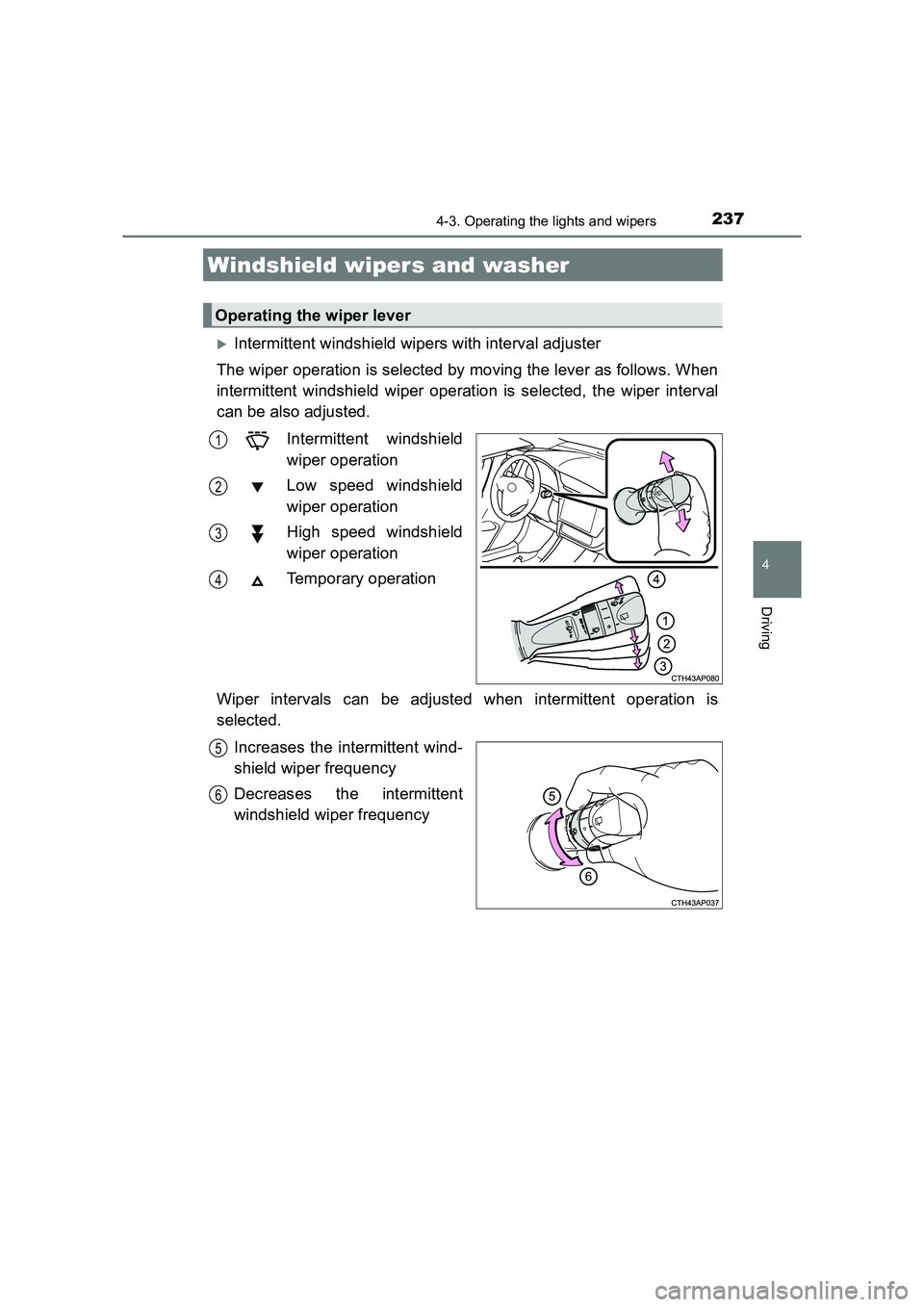

2374-3. Operating the lights and wipers
UK AURIS_HV_HB_EE (OM12K47E)
4
Driving
XIntermittent windshield wipers with interval adjuster
The wiper operation is selected by moving the lever as follows. When
intermittent windshield wiper operation is selected, the wiper interval
can be also adjusted.
Intermittent windshield
wiper operation
Low speed windshield
wiper operation
High speed windshield
wiper operation
Temporary operation
Wiper intervals can be adjusted when intermittent operation is
selected. Increases the intermittent wind-
shield wiper frequency
Decreases the intermittent
windshield wiper frequency
Windshield wipers and washer
Operating the wiper lever
1
2
3
4
5
6

2384-3. Operating the lights and wipers
UK AURIS_HV_HB_EE (OM12K47E)
Washer/wiper dual operation
Wipers will automatically operate a
couple of times after the washer
squirts.
Vehicles with headlight cleaners:
When the headlights are on and
the lever is pulled and held, the
headlight cleaners will operate
once. After this, the headlight
cleaners will operate every 5th
time the lever is pulled.
XRain-sensing windshield wipers
When “AUTO” is selected, the wipers will operate automatically when
the sensor detects falling rain. The system automatically adjusts wiper
timing in accordance with rain volume and vehicle speed.
Rain-sensing windshield
wiper operation
Low speed windshield
wiper operation
High speed windshield
wiper operation
Temporary operation
When “AUTO” is selected, the sensor sensitivity can be adjusted as
follows by turning the switch ring. Increases the rain-sensing
windshield wiper sensitivity
Decreases the rain-sensing
windshield wiper sensitivity
7
1
2
3
4
5
6

2394-3. Operating the lights and wipers
UK AURIS_HV_HB_EE (OM12K47E)
4
Driving
Washer/wiper dual operation
Wipers will automatically operate a
couple of times after the washer
squirts.
Vehicles with headlight cleaners:
When the headlights are on and
the lever is pulled and held, the
headlight cleaners will operate
once. After this, the headlight
cleaners will operate every 5th
time the lever is pulled.
■The windshield wiper and washer can be operated when
The power switch is in ON mode.
■ Effects of vehicle speed on wiper op eration (vehicles with rain-sensing
windshield wipers)
Even when the wipers are not in “AUTO” mode, wiper operation varies
depending on vehicle speed when the washer is being used (delay until drip
prevention wiper sweep occurs).
■ Raindrop sensor (vehicles with rain-sensing windshield wipers)
●If the wiper switch is turned to the “AUTO” position while the power switch is
in ON mode, the wiper will operate once to show that “AUTO” mode is acti-
vated.
● If the temperature of the raindrop sensor is 90 °C (194 °F) or higher, or -15 °C
(5 °F) or lower, automatic operation may not occur. In this case, operate the
wipers in any mode other than “AUTO”.
■ If no windshield washer fluid sprays
Check that the washer nozzles are not blocked if there is washer fluid in the
windshield washer fluid reservoir.
7
●The raindrop sensor judges the amount
of raindrops.
An optical sensor is adopted. It may not
operate properly when sunlight from the
rising or setting of the sun intermittently
strikes the windshield, or if bugs etc. are
present on the windshield.

2404-3. Operating the lights and wipers
UK AURIS_HV_HB_EE (OM12K47E)
WARNING
■ Caution regarding the use of washer fluid
When it is cold, do not use the washer fluid until the windshield becomes
warm. The fluid may freeze on the windshield and cause low visibility. This
may lead to an accident, resulting in death or serious injury.
■ Caution regarding the use of windshield wipers in “AUTO” mode (vehi-
cles with rain-sensing windshield wipers)
The windshield wipers may operate unexpectedly if the sensor is touched or
the windshield is subject to vibration in “AUTO” mode. Take care that your
fingers etc. do not become caught in the windshield wipers.
NOTICE
■When the windshield is dry
Do not use the wipers, as they may damage the windshield.
■ When there is no washer fluid spray from the nozzle
Damage to the washer fluid pump may be caused if the lever is pulled
toward you and held continually.
■ When a nozzle becomes blocked
In this case, contact any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional.
Do not try to clear it with a pin or other object. The nozzle will be damaged.
