TOYOTA AURIS HYBRID 2016 Owners Manual

2714-5. Toyota Safety Sense
UK AURIS_HV_HB_EE (OM12K47E)
4
Driving
■High beam automatic turning on or off conditions
●When all of the following conditions are fulfilled, the high beam will be auto-
matically turned on (after approximately 1 second):
• Vehicle speed is approximately 40 km/h (25 mph) or more.
• The area ahead of the vehicle is dark.
• There are no vehicles ahead with headlights or tail lights turned on.
• There are few streetlights on the road ahead.
● If any of the following conditions is met, the high beams will turn off automat-
ically:
• Vehicle speed is below approximately 30 km/h (19 mph).
• The area ahead of the vehicle is not dark.
• Vehicles ahead have their headlights or tail lights turned on.
• There are many streetlights on the road ahead.
■ Front sensor detection information
●The high beam may not be automatically turned off in the following situa-
tions:
• When vehicles ahead suddenly appear from a curve
• When the vehicle is cut in front of by another vehicle
• When vehicles ahead are hidden from sight due to repeated curves, road
dividers or roadside trees
• When vehicles ahead appear from the faraway lane on wide road
• When vehicles ahead have no lights
● The high beam may be turned off if a vehicle ahead that is using fog lights
without using the headlights is detected.
● House lights, street lights, traffic signals, and illuminated billboards or signs
may cause the high beam to switch to the low beams, or the low beams to
remain on.
● The following factors may affect the amount of time taken to turn the high
beam on or off:
• The brightness of headlights, fog lights, and tail lights of vehicles ahead
• The movement and direction of vehicles ahead
• When a vehicle ahead only has operational lights on one side
• When a vehicle ahead is a two-wheeled vehicle
• The condition of the road (gradient, curve, condition of the road surface,
etc.)
• The number of passengers and amount of luggage
● The high beam may be turned on or off when the driver does not expect it.
● Bicycles or similar objects may not be detected.

2724-5. Toyota Safety Sense
UK AURIS_HV_HB_EE (OM12K47E)●
In the situations shown below, the system may not be able to accurately
detect surrounding brightness levels. This may cause the low beams to
remain on or the high beams to cause problems for pedestrians, vehicles
ahead or other parties. In these cases, manually switch between the high
and low beams.
• In bad weather (rain, snow, fog, sandstorms, etc.)
• The windshield is obscured by fog, mist, ice, dirt, etc.
• The windshield is cracked or damaged.
• The front sensor is deformed or dirty.
• The front sensor temperature is extremely high.
• Surrounding brightness levels are equal to those of headlights, tail lights
or fog lights.
• Vehicles ahead have headlights or tail lights that are either switched off, dirty, are changing color, or are not aimed properly.
• When driving through an area of intermittently changing brightness and
darkness.
• When frequently and repeatedly driving ascending/descending roads, or roads with rough, bumpy or uneven surfaces (such as stone-paved
roads, gravel tracks, etc.).
• When frequently and repeatedly taking curves or driving on a winding road.
• There is a highly reflective object ahead of the vehicle, such as a sign or a mirror.
• The back of a vehicle ahead is highly reflective, such as a container on a
truck.
• The vehicle’s headlights are damaged or dirty, or are not aimed properly.
• The vehicle is listing or titling due to a flat tire, a trailer being towed, etc.
• The high beam and low beam are repeatedly being switched between in an abnormal manner.
• The driver believes that the high beam may be causing problems or dis-
tress to other drivers or pedestrians nearby.

2734-5. Toyota Safety Sense
UK AURIS_HV_HB_EE (OM12K47E)
4
Driving
RSA recognizes specific road signs using the front sensor and pro-
vides information to the driver via the multi-information display.
If the system judges that the vehicle is being driven over the speed
limit, performing prohibited actions, etc., in relation to the recognized
road signs, it alerts the driver using a warning display and warning
buzzer
*.
*: This setting needs to be customized.
Front sensor
RSA (Road Sign Assist)∗
∗: If equipped
Summary of function

2744-5. Toyota Safety Sense
UK AURIS_HV_HB_EE (OM12K47E)
After the front sensor recognizes a sign, it is displayed on the multi-
information display when the vehicle passes the sign.
●When the driving assist system
information is selected, a maxi-
mum of 3 signs can be dis-
played. ( →P. 106)
● When other than the driving
assist system information is
selected, a speed limit sign or
an all canceled sign can be dis-
played. ( →P. 106)
A no overtaking sign and a speed
limit sign with supplemental mark
are not displayed. However, if
signs other than speed limit signs
are recognized, they are men-
tioned in a stack under the current
speed limit sign.
Indication on the multi-information display

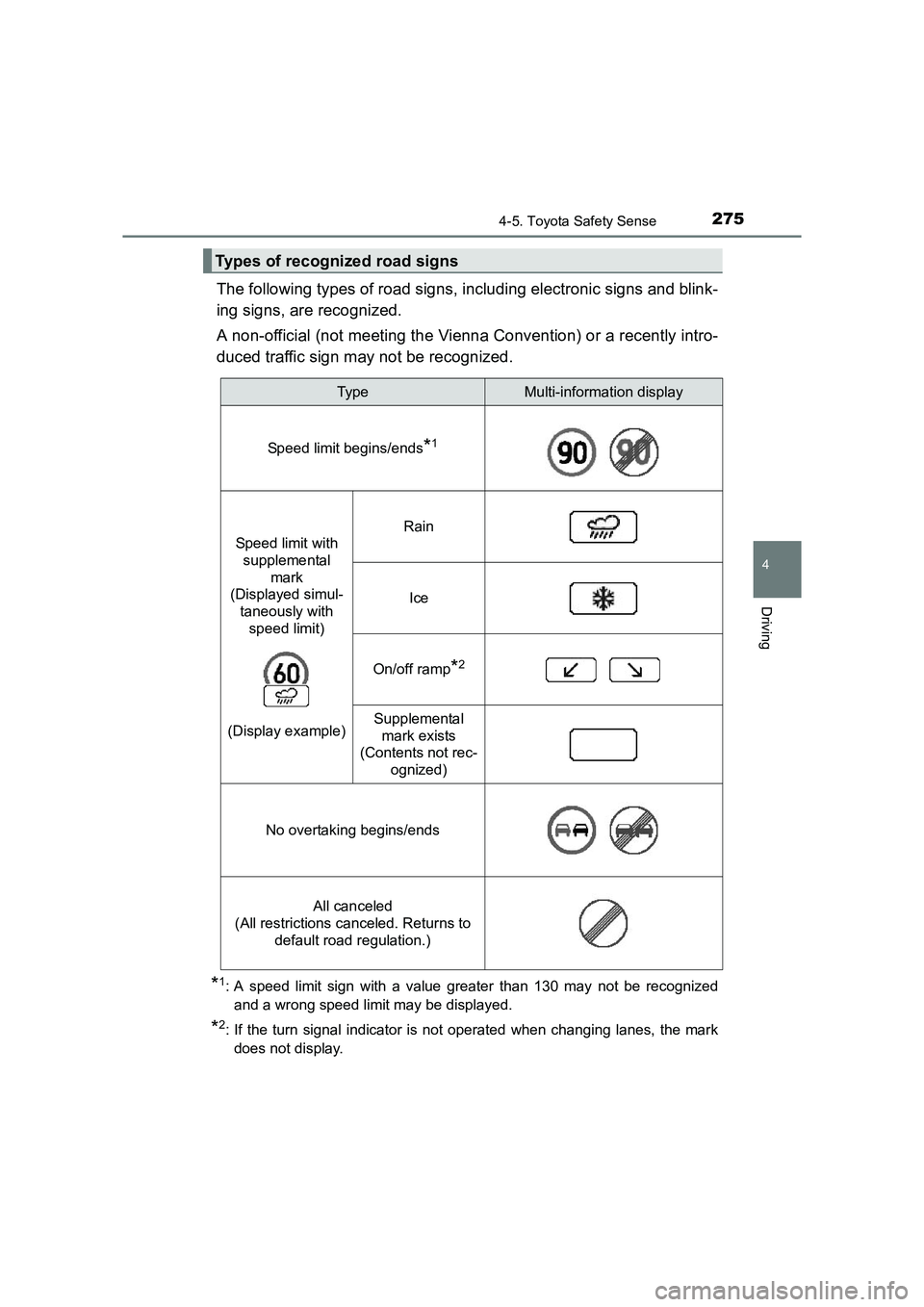

2754-5. Toyota Safety Sense
UK AURIS_HV_HB_EE (OM12K47E)
4
Driving
The following types of road signs, including electronic signs and blink-
ing signs, are recognized.
A non-official (not meeting the Vienna Convention) or a recently intro-
duced traffic sign may not be recognized.
*1: A speed limit sign with a value greater than 130 may not be recognizedand a wrong speed limit may be displayed.
*2: If the turn signal indicator is not operated when changing lanes, the markdoes not display.
Types of recognized road signs
Typ eMulti-information display
Speed limit begins/ends*1
Speed limit with supplemental mark
(Displayed simul-
taneously with speed limit)
(Display example)
Rain
Ice
On/off ramp*2
Supplemental mark exists
(Contents not rec-
ognized)
No overtaking begins/ends
All canceled
(All restrictions canceled. Returns to default road regulation.)

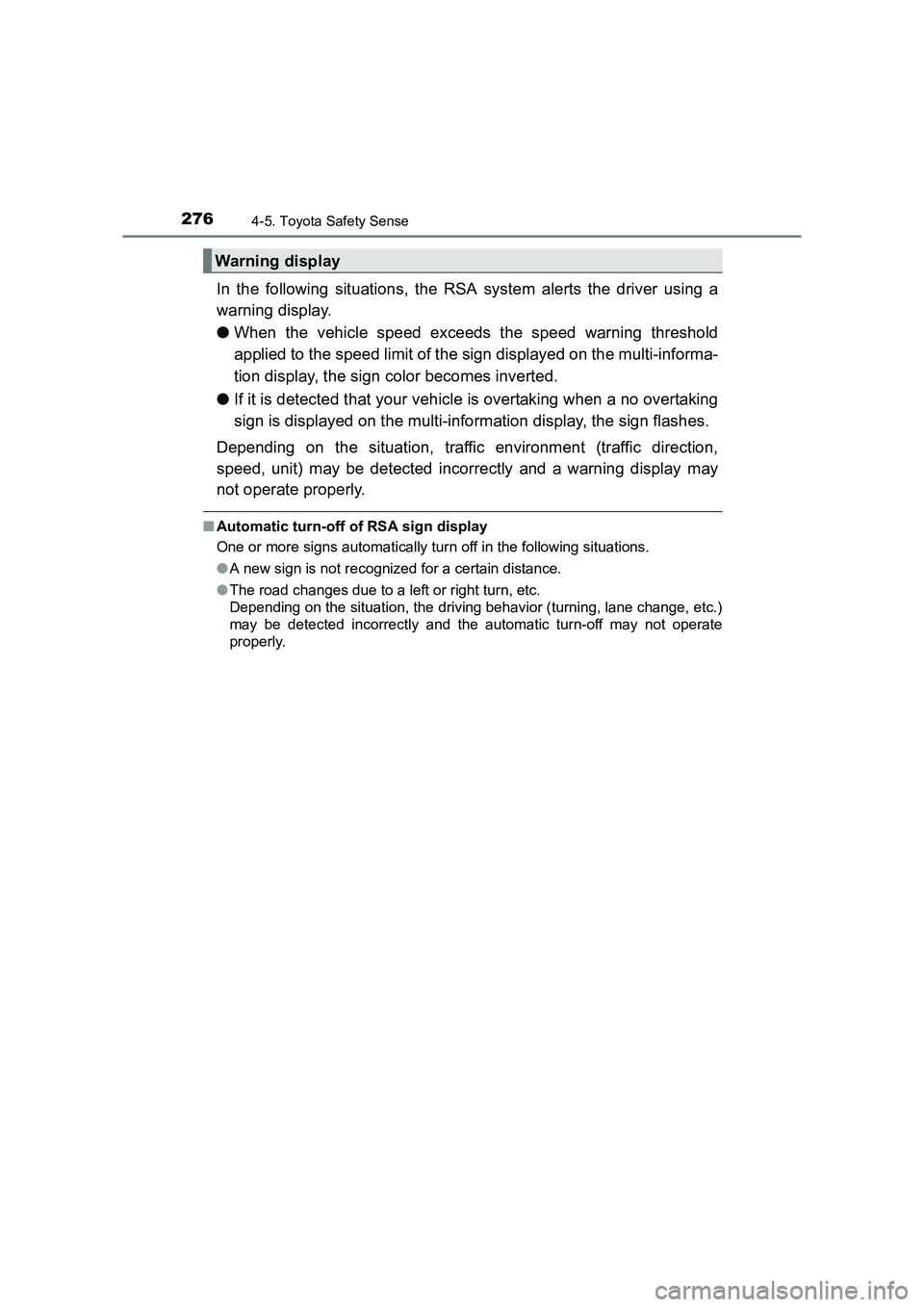

2764-5. Toyota Safety Sense
UK AURIS_HV_HB_EE (OM12K47E)
In the following situations, the RSA system alerts the driver using a
warning display.
●When the vehicle speed exceeds the speed warning threshold
applied to the speed limit of the sign displayed on the multi-informa-
tion display, the sign color becomes inverted.
● If it is detected that your vehicle is overtaking when a no overtaking
sign is displayed on the multi-information display, the sign flashes.
Depending on the situation, traffic environment (traffic direction,
speed, unit) may be detected incorrectly and a warning display may
not operate properly.
■ Automatic turn-off of RSA sign display
One or more signs automatically turn off in the following situations.
●A new sign is not recognized for a certain distance.
● The road changes due to a left or right turn, etc.
Depending on the situation, the driving behavior (turning, lane change, etc.)
may be detected incorrectly and the automatic turn-off may not operate
properly.
Warning display

2774-5. Toyota Safety Sense
UK AURIS_HV_HB_EE (OM12K47E)
4
Driving
■Conditions in which the function may not operate or detect correctly
In the following situations, RSA does not operate normally and may not rec-
ognize signs, display the incorrect sign, etc. However, this does not indicate a
malfunction.
● The front sensor is misaligned due to a strong impact being applied to the
sensor, etc.
● Dirt, snow, stickers, etc., are on the windshield near the front sensor.
● In inclement weather such as heavy rain, fog, snow or sand storms
● Light from an oncoming vehicle, the sun, etc., enters the front sensor.
● The sign is small, dirty, faded, tilted or bent, and if an electronic sign, the
contrast is poor.
● All or part of the sign is hidden by the leaves of a tree, a pole, etc.
● The sign is only visible to the front sensor for a short amount of time.
● The driving scene (turning, lane change, etc.) is judged incorrectly.
● Even if it is a sign not appropriate for the currently traveled lane, such a sign
exists directly after a freeway branches, or in an adjacent lane just before
merging.
● Stickers are attached to the rear of the preceding vehicle.
● A sign resembling a system compatible sign is recognized.
● The vehicle is driven in a country with a different direction of traffic.
● Side road speed signs may be detected and displayed (if positioned in sight
of the front sensor) while the vehicle is traveling on the main road.
● Roundabout exit road speed signs may be detected and displayed (if posi-
tioned in sight of the front sensor) while traveling on a roundabout.
● The speed information displayed on the meter and that displayed on the
Navigation system (if equipped) may be different due to the Navigation sys-
tem using map data.

2784-5. Toyota Safety Sense
UK AURIS_HV_HB_EE (OM12K47E)■
When driving vehicle in country with different speed unit
Since RSA recognizes signs based on the set unit of the meter, it is neces-
sary to change the set unit of the meter. Adjust the set unit of the meter to the
speed unit of signs in the current location. ( →P. 566)
■ Turning the system on/off
■ Speed limit sign display
If the power switch was last turned off while a speed limit sign was displayed
on the multi-information display, the same sign displays again when the
power switch is turned to ON mode.
■ When “Check RSA system.” is displ ayed on the multi-information dis-
play
The system may be malfunctioning. Have the vehicle inspected by any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped profes-
sional immediately.
■ Customization
The settings for warning display, warning buzzer
*, speeding warning thresh-
old, etc., can be changed. (Customizable feature: →P. 566)
*: If a speed limit with supplemental mark is exceeded, the warning buzzer
does not operate. Select on the settings display
(→ P. 112)
Press the enter/set switch on the meter
control switches.
WARNING
■ Before using the RSA
Do not rely solely upon the RSA system. RSA is a system which supports
the driver by providing information, but it is not a replacement for a driver’s
own vision and awareness. Drive safely by always paying careful attention
to the traffic rules.
Inappropriate or negligent driving could lead to an unexpected accident.
1
2

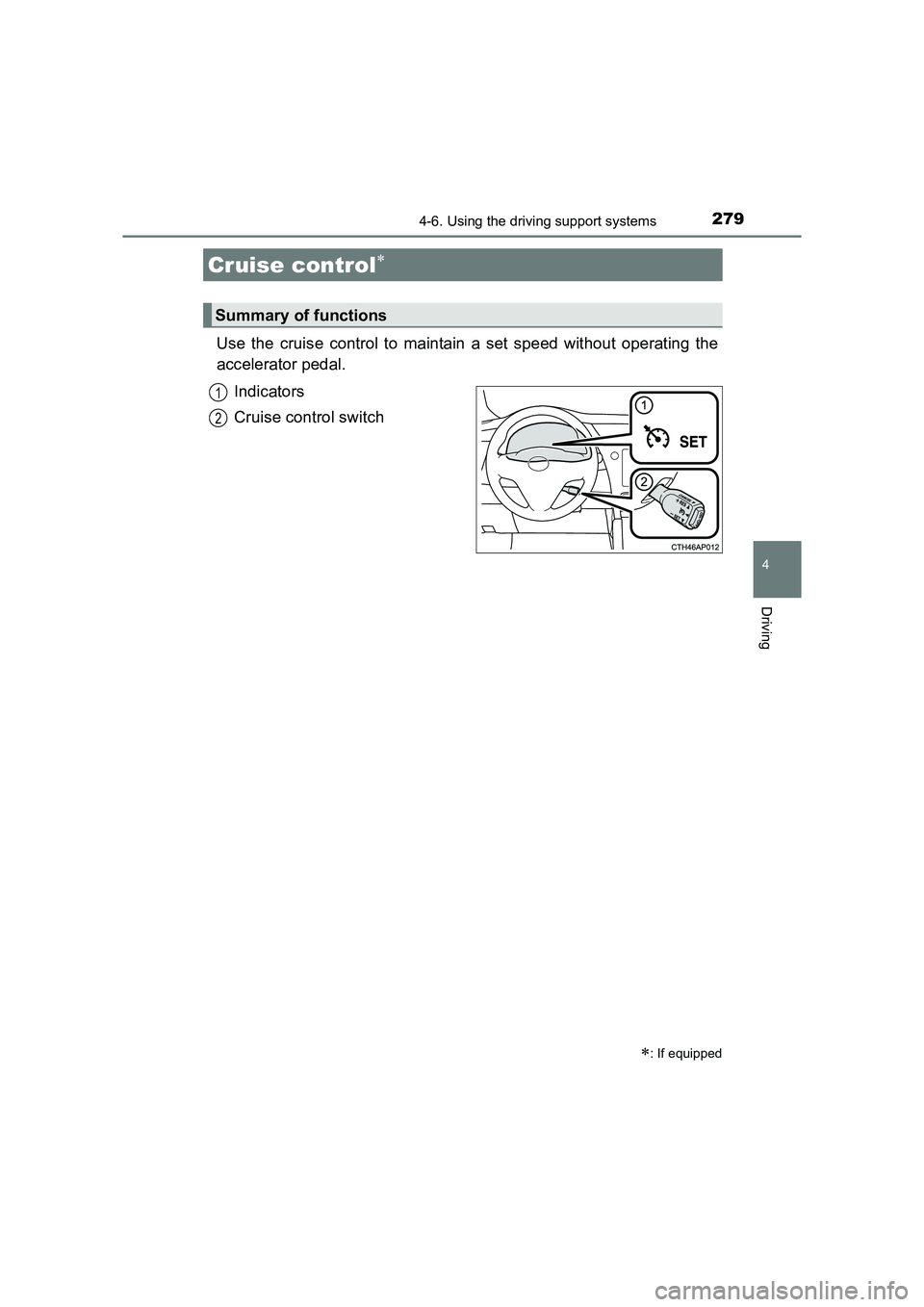

279
UK AURIS_HV_HB_EE (OM12K47E)
4
Driving
4-6. Using the driving support systems
Use the cruise control to maintain a set speed without operating the
accelerator pedal. Indicators
Cruise control switch
Cruise control∗
∗: If equipped
Summary of functions
1
2

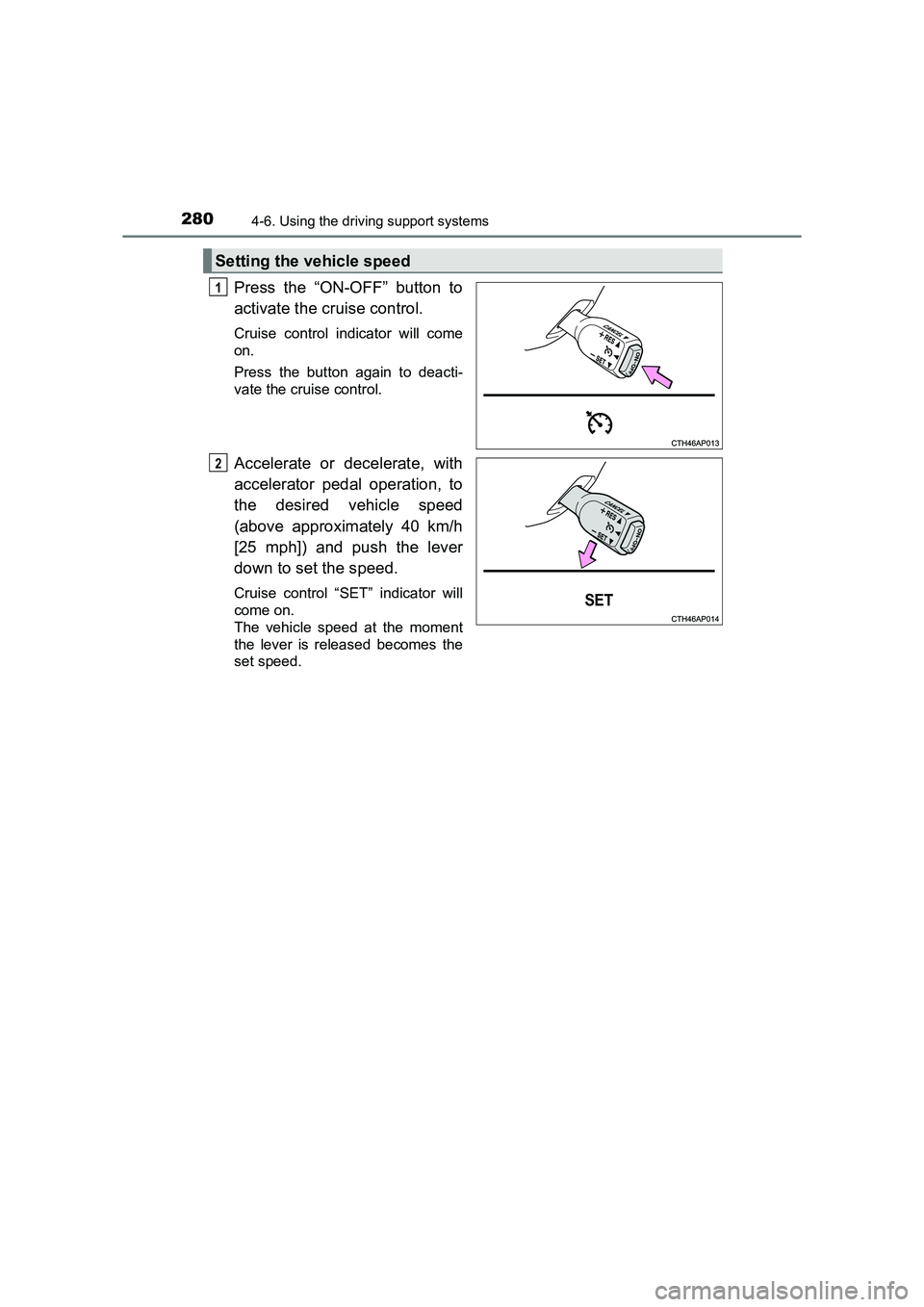

2804-6. Using the driving support systems
UK AURIS_HV_HB_EE (OM12K47E)
Press the “ON-OFF” button to
activate the cruise control.
Cruise control indicator will come
on.
Press the button again to deacti-
vate the cruise control.
Accelerate or decelerate, with
accelerator pedal operation, to
the desired vehicle speed
(above approximately 40 km/h
[25 mph]) and push the lever
down to set the speed.
Cruise control “SET” indicator will
come on.
The vehicle speed at the moment
the lever is released becomes the
set speed.
Setting the vehicle speed
1
2
