TOYOTA AURIS HYBRID 2016 Owners Manual

551
9Vehicle specifications
UK AURIS_HV_HB_EE (OM12K47E)9-1. Specifications
Maintenance data (fuel, oil level, etc.)........... 552
Fuel information ................. 564
9-2. Customization Customizable features .......566
9-3. Initialization Items to initialize ................573

552
UK AURIS_HV_HB_EE (OM12K47E)
9-1. Specifications
*1: Unladen vehicles
*2: Vehicles with 195/65R15 tires
*3: Vehicles with 205/55R16 tires
*4: Vehicles with 225/45R17 tires
*5: Gross vehicle mass is specified on the information tag (manufacturer’slabel). (
→P. 204)
*6: Vehicles with towing package (→P. 201)

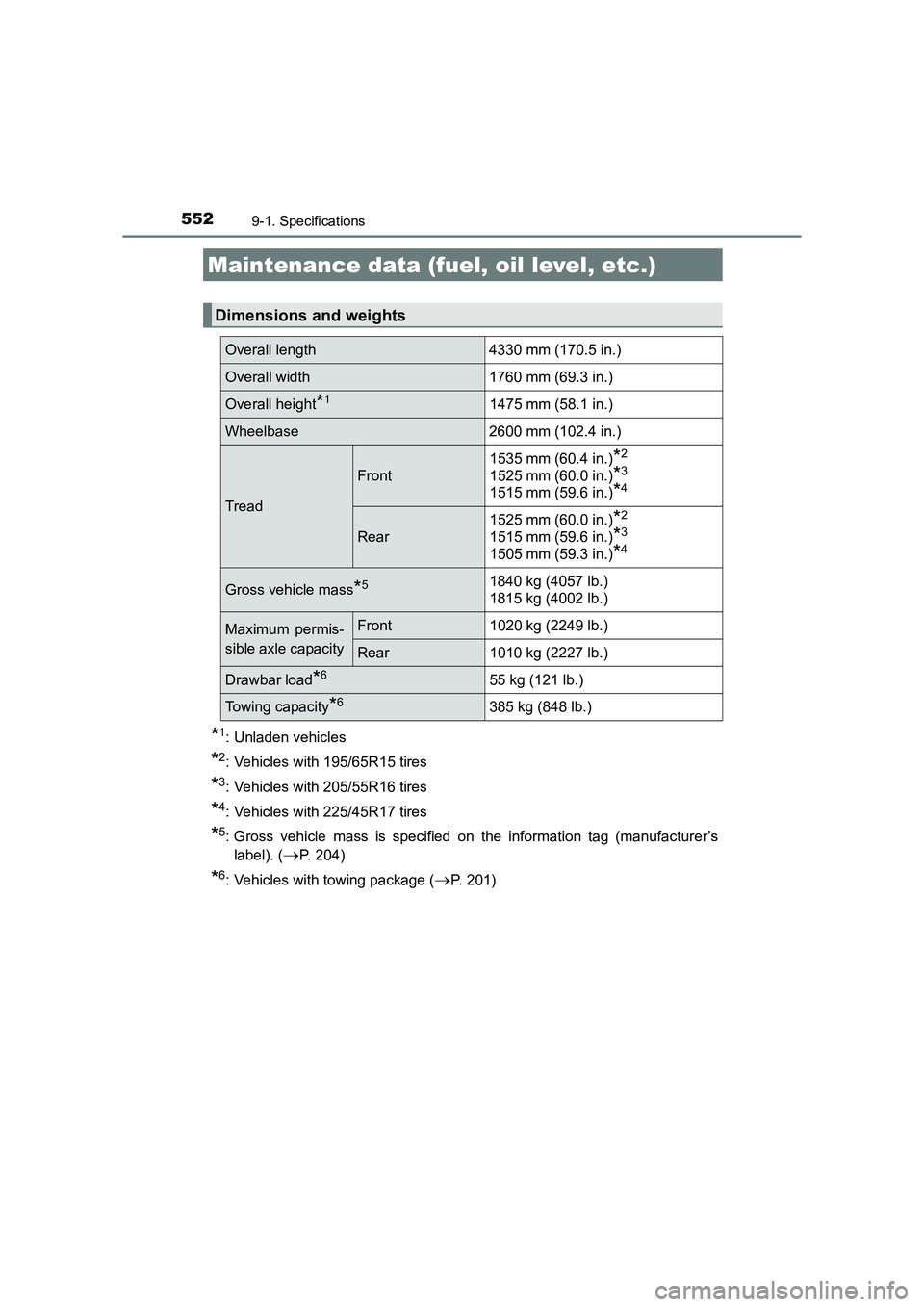

Maintenance data (fuel, oil level, etc.)
Dimensions and weights
Overall length 4330 mm (170.5 in.)
Overall width 1760 mm (69.3 in.)
Overall height*11475 mm (58.1 in.)
Wheelbase 2600 mm (102.4 in.)
Tread
Front 1535 mm (60.4 in.)
*2
1525 mm (60.0 in.)*3
1515 mm (59.6 in.)*4
Rear1525 mm (60.0 in.)
*2
1515 mm (59.6 in.)*3
1505 mm (59.3 in.)*4
Gross vehicle mass*51840 kg (4057 lb.)
1815 kg (4002 lb.)
Maximum permis-
sible axle capacityFront 1020 kg (2249 lb.)
Rear 1010 kg (2227 lb.)
Drawbar load*655 kg (121 lb.)
Towing capacity*6385 kg (848 lb.)

5539-1. Specifications
UK AURIS_HV_HB_EE (OM12K47E)
9
Vehicle specifications

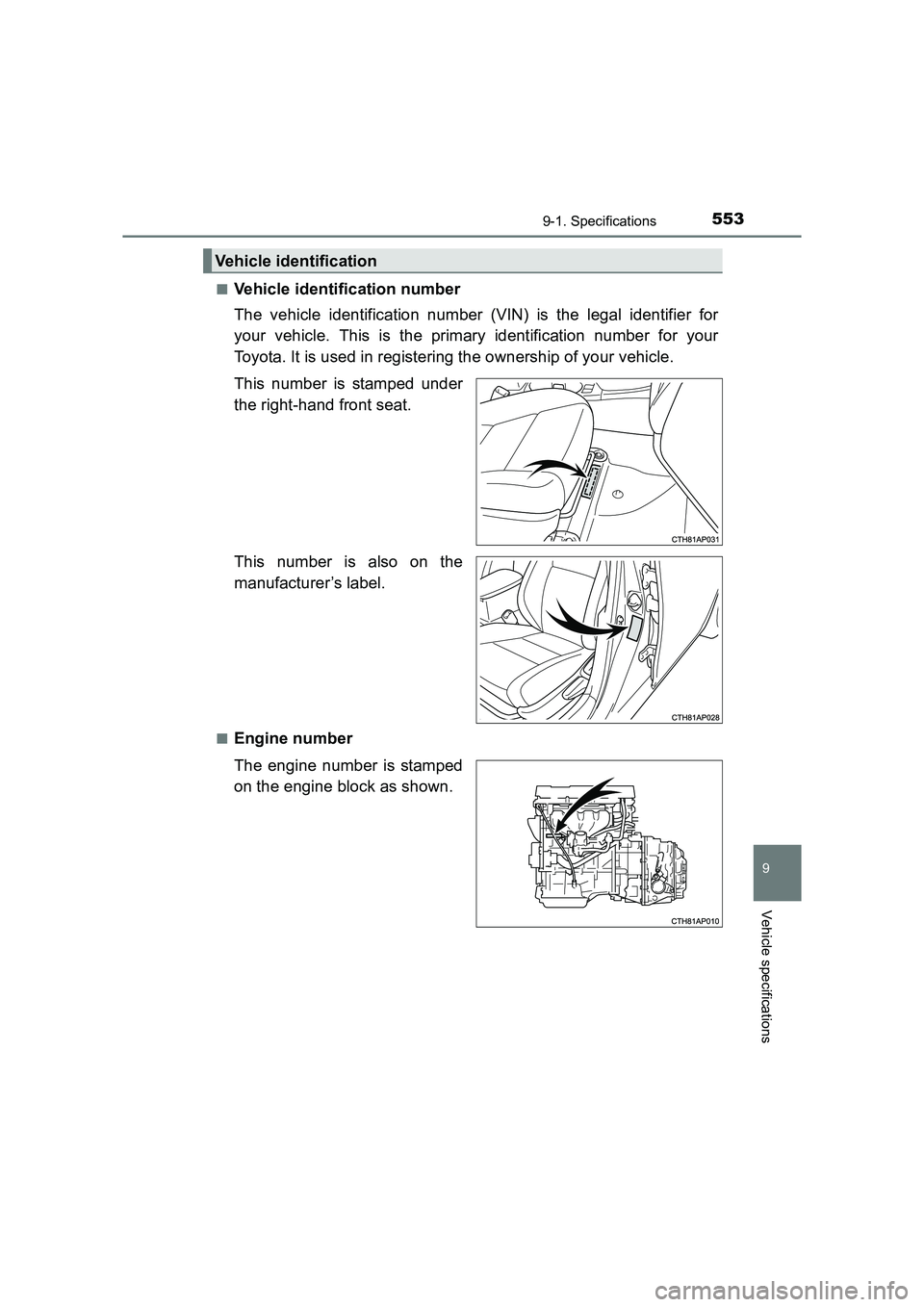

■Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for
your vehicle. This is the primary identification number for your
Toyota. It is used in registering the ownership of your vehicle.
This number is stamped under
the right-hand front seat.
This number is also on the
manufacturer’s label.
■Engine number
The engine number is stamped
on the engine block as shown.
Vehicle identification

5549-1. Specifications
UK AURIS_HV_HB_EE (OM12K47E)

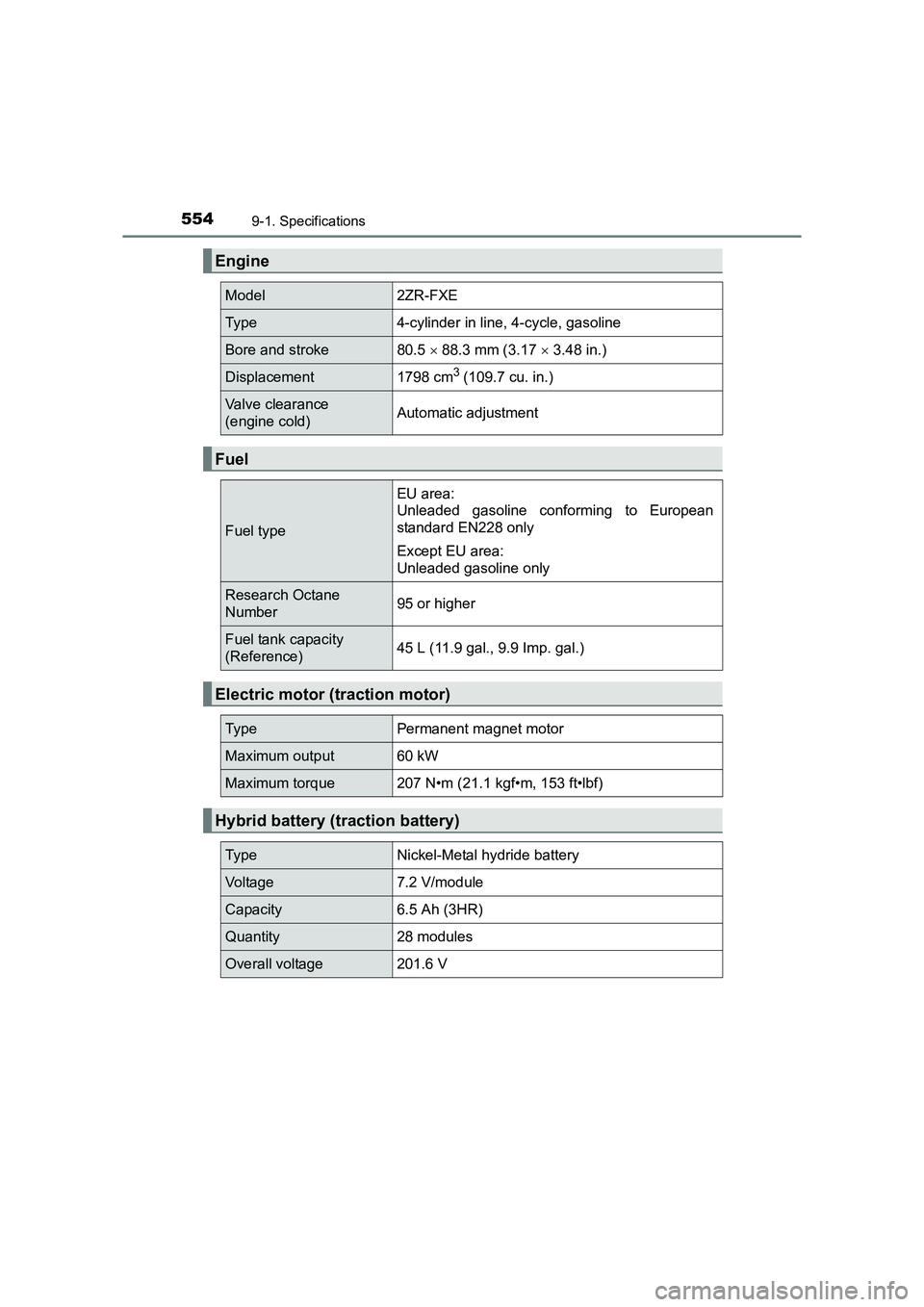

Engine
Model2ZR-FXE
Ty p e4-cylinder in line, 4-cycle, gasoline
Bore and stroke80.5 × 88.3 mm (3.17 × 3.48 in.)
Displacement1798 cm3 (109.7 cu. in.)
Valve clearance
(engine cold)Automatic adjustment
Fuel
Fuel type
EU area:
Unleaded gasoline conforming to European
standard EN228 only
Except EU area:
Unleaded gasoline only
Research Octane
Number95 or higher
Fuel tank capacity
(Reference)45 L (11.9 gal., 9.9 Imp. gal.)
Electric motor (traction motor)
Ty p ePermanent magnet motor
Maximum output60 kW
Maximum torque207 N•m (21.1 kgf•m, 153 ft•lbf)
Hybrid battery (traction battery)
Ty p eNickel-Metal hydride battery
Voltage7.2 V/module
Capacity6.5 Ah (3HR)
Quantity28 modules
Overall voltage201.6 V

5559-1. Specifications
UK AURIS_HV_HB_EE (OM12K47E)
9
Vehicle specifications
*: The engine oil capacity is a reference quantity to be used when changingthe engine oil. Warm up the engine and turn off the hybrid system, wait
more than 5 minutes, and check the oil level on the dipstick.
■
Engine oil selection
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Toyota
recommends the use of approved “Toyota Genuine Motor Oil”.
Another motor oil of matching quality can also be used.
Oil grade:
0W-20, 5W-30 and 10W-30:
API grade SL “Energy-Conserving”, SM “Energy-Conserving” or SN
“Resource-Conserving”; or ILSAC multigrade engine oil
15W-40:
API grade SL, SM or SN multigrade engine oil

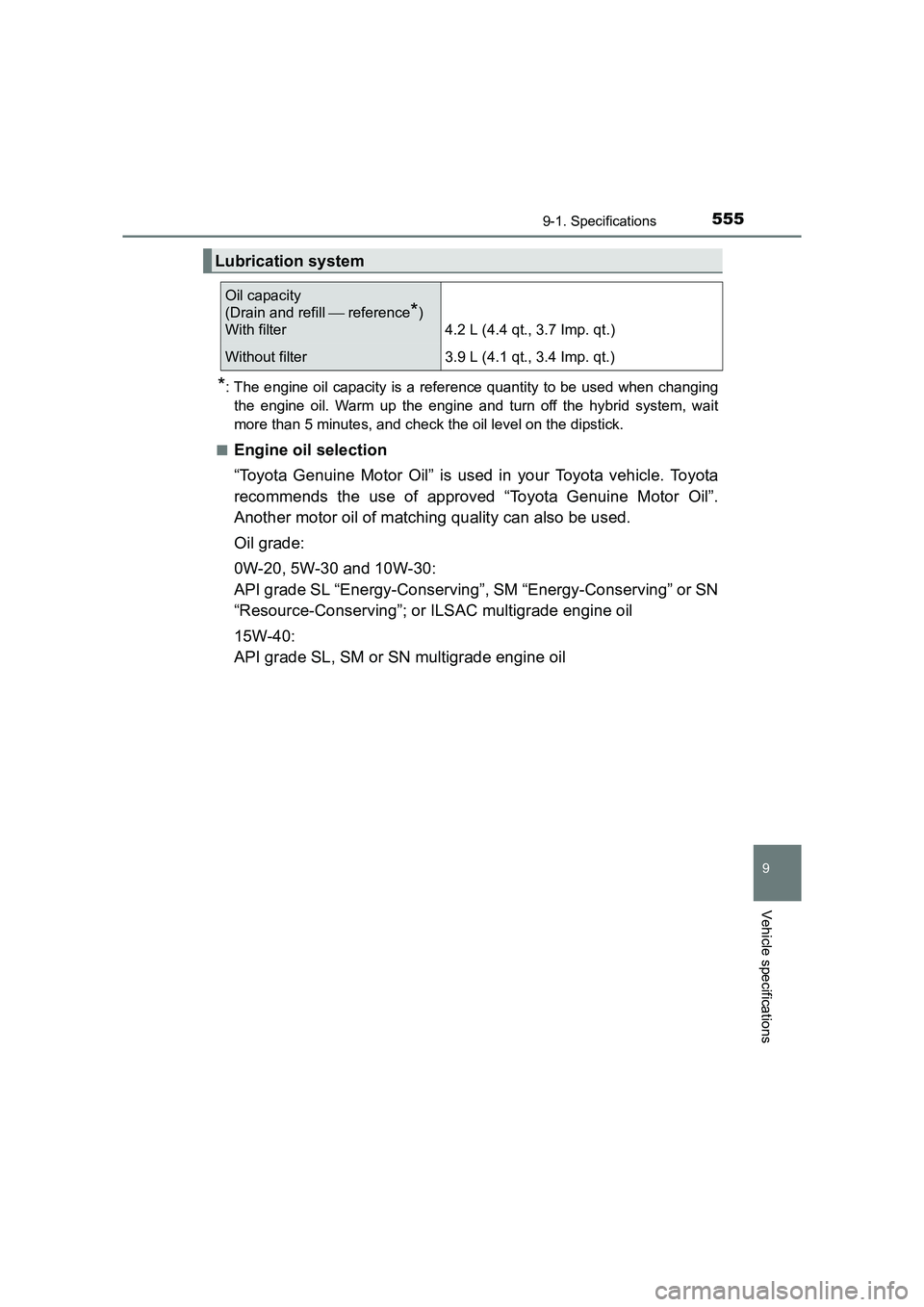

Lubrication system
Oil capacity
(Drain and refill  reference
*)
With filter 4.2 L (4.4 qt., 3.7 Imp. qt.)
Without filter 3.9 L (4.1 qt., 3.4 Imp. qt.)

5569-1. Specifications
UK AURIS_HV_HB_EE (OM12K47E)

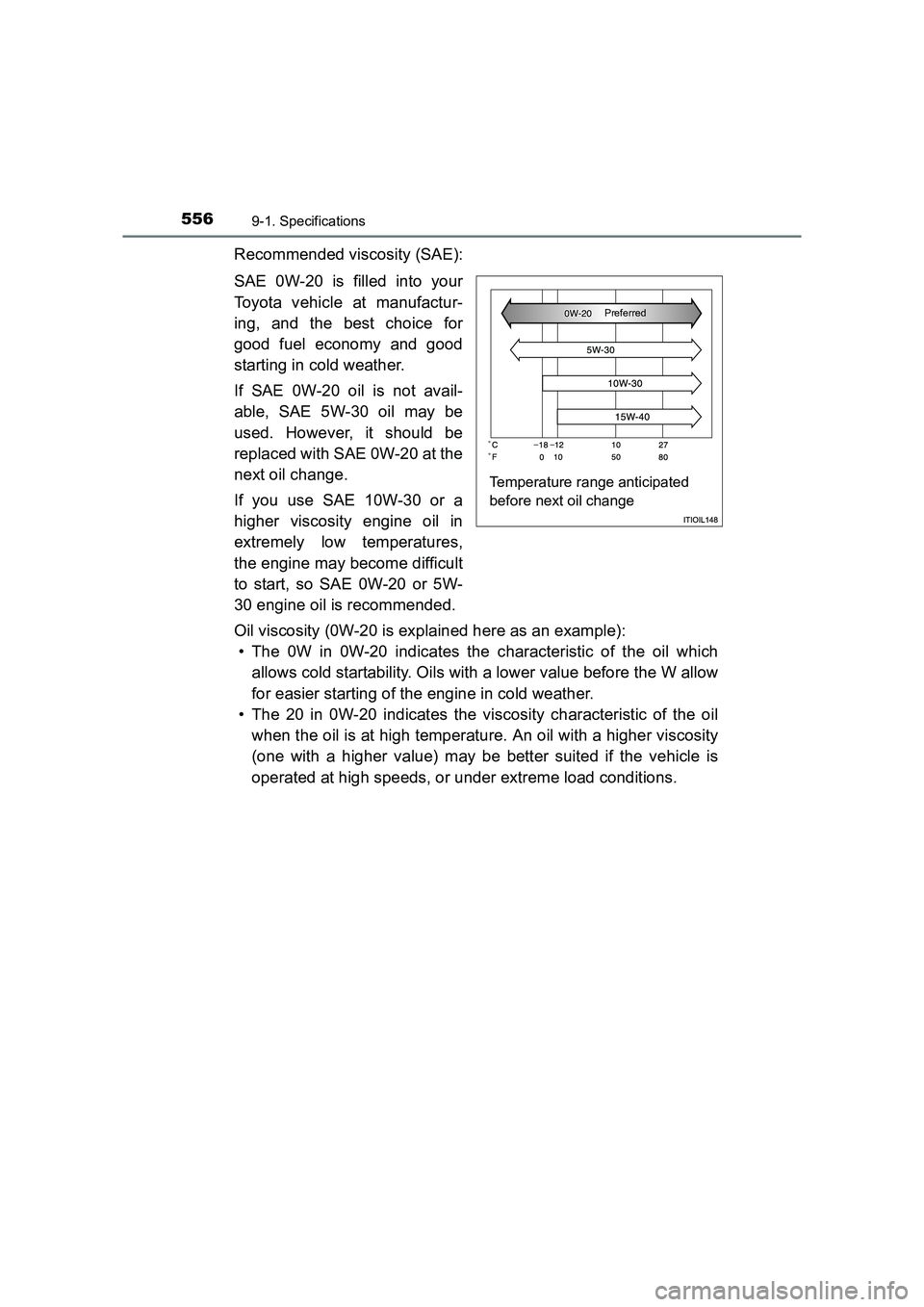

Recommended viscosity (SAE):
SAE 0W-20 is filled into your
Toyota vehicle at manufactur-
ing, and the best choice for
good fuel economy and good
starting in cold weather.
If SAE 0W-20 oil is not avail-
able, SAE 5W-30 oil may be
used. However, it should be
replaced with SAE 0W-20 at the
next oil change.
If you use SAE 10W-30 or a
higher viscosity engine oil in
extremely low temperatures,
the engine may become difficult
to start, so SAE 0W-20 or 5W-
30 engine oil is recommended.
Oil viscosity (0W-20 is explained here as an example):• The 0W in 0W-20 indicates the characteristic of the oil which allows cold startability. Oils with a lower value before the W allow
for easier starting of the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil
when the oil is at high temperature. An oil with a higher viscosity
(one with a higher value) may be better suited if the vehicle is
operated at high speeds, or under extreme load conditions.
Temperature range anticipated
before next oil change
Preferred

5579-1. Specifications
UK AURIS_HV_HB_EE (OM12K47E)
9
Vehicle specifications

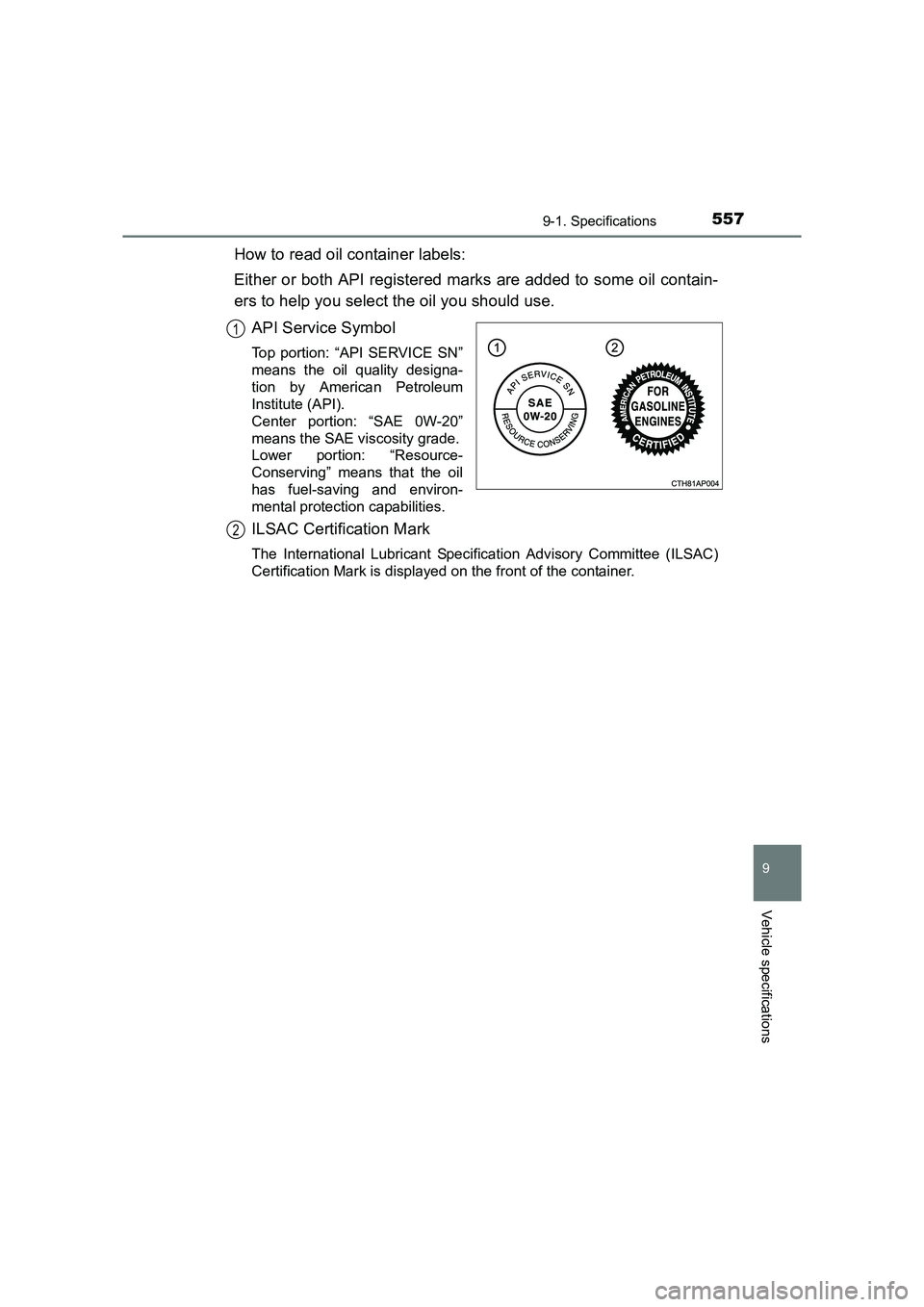

How to read oil container labels:
Either or both API registered marks are added to some oil contain-
ers to help you select the oil you should use.API Service Symbol
Top portion: “API SERVICE SN”
means the oil quality designa-
tion by American Petroleum
Institute (API).
Center portion: “SAE 0W-20”
means the SAE viscosity grade.
Lower portion: “Resource-
Conserving” means that the oil
has fuel-saving and environ-
mental protection capabilities.
ILSAC Certification Mark
The International Lubricant Specification Advisory Committee (ILSAC)
Certification Mark is displayed on the front of the container.
1
2

5589-1. Specifications
UK AURIS_HV_HB_EE (OM12K47E)

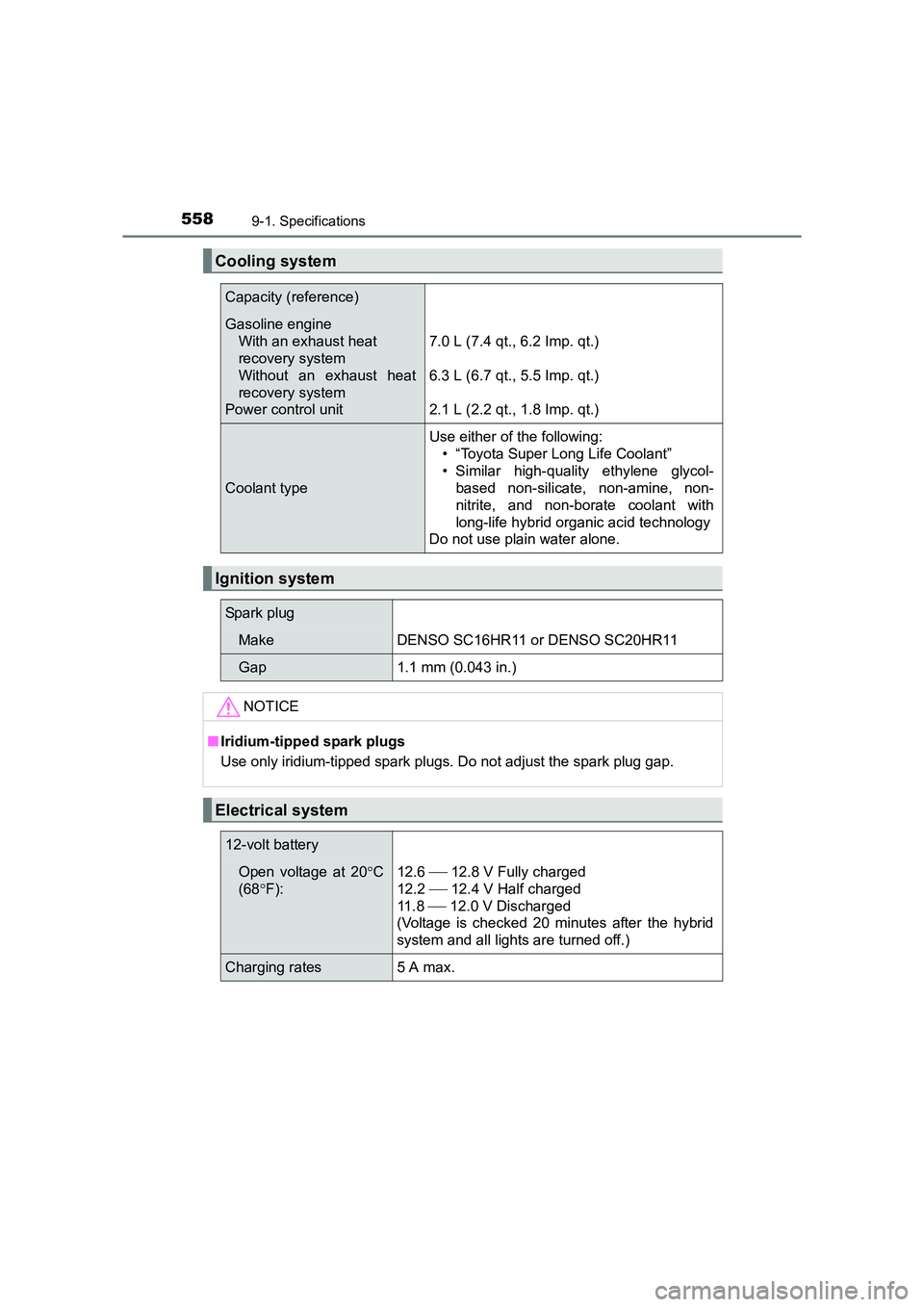

Cooling system
Capacity (reference)
Gasoline engineWith an exhaust heat
recovery system
Without an exhaust heat
recovery system
Power control unit
7.0 L (7.4 qt., 6.2 Imp. qt.)
6.3 L (6.7 qt., 5.5 Imp. qt.)
2.1 L (2.2 qt., 1.8 Imp. qt.)
Coolant type Use either of the following:
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based non-silicate, non-amine, non-
nitrite, and non-borate coolant with
long-life hybrid organic acid technology
Do not use plain water alone.
Ignition system
Spark plug
MakeDENSO SC16HR11 or DENSO SC20HR11
Gap1.1 mm (0.043 in.)
NOTICE
■ Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.
Electrical system
12-volt battery
Open voltage at 20°C
(68 °F): 12.6  12.8 V Fully charged
12.2
 12.4 V Half charged
11 . 8
 12.0 V Discharged
(Voltage is checked 20 minutes after the hybrid
system and all lights are turned off.)
Charging rates5 A max.

5599-1. Specifications
UK AURIS_HV_HB_EE (OM12K47E)
9
Vehicle specifications
*: The fluid capacity is a reference quantity.If replacement is necessary, contact any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
*1: Minimum pedal clearance when depressed with a force of 294 N (30 kgf,66 lbf) while the hybrid system is operating
*2: Parking brake lever travel when pulled up with a force of 200 N (20.4 kgf,45.0 lbf)

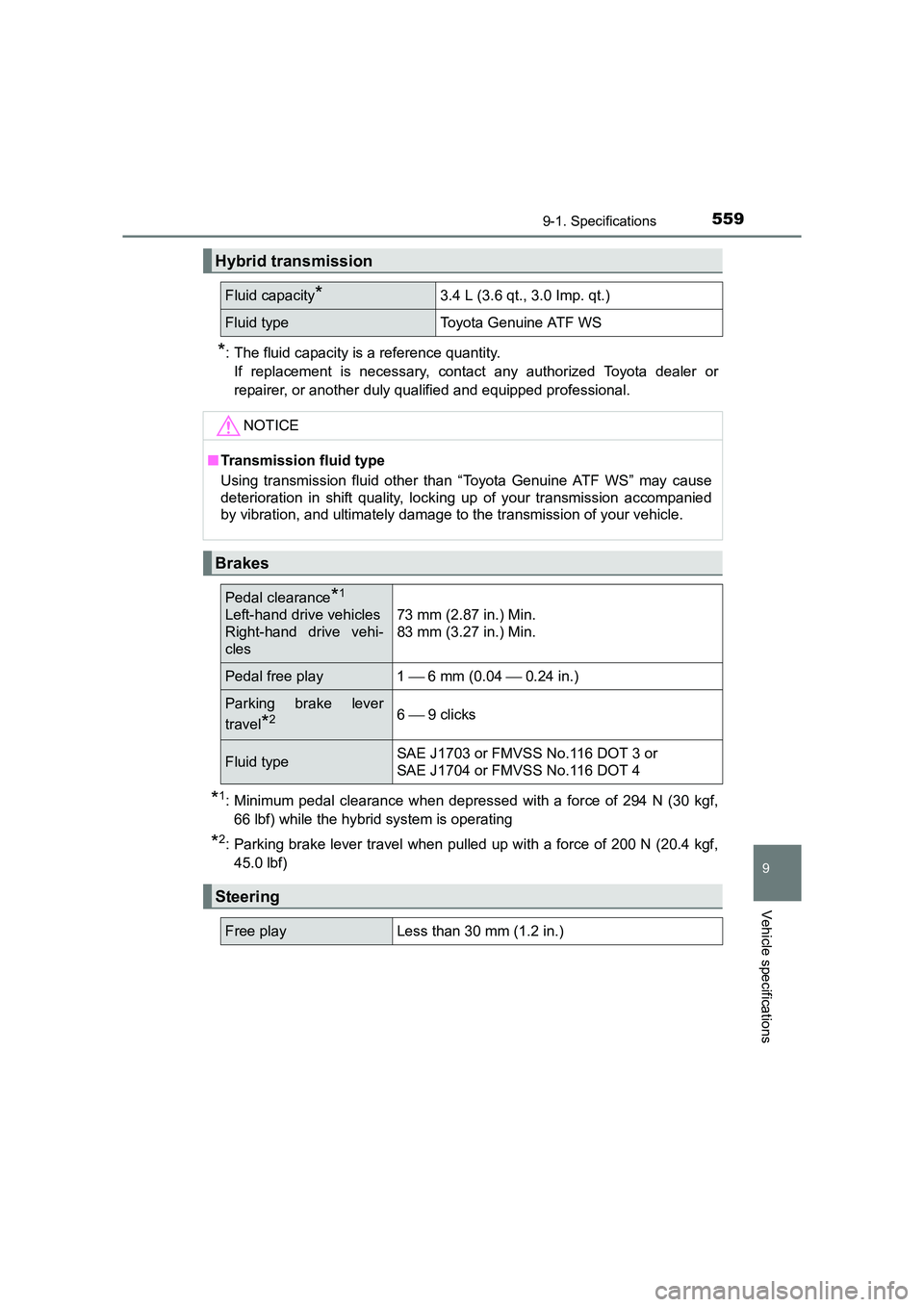

Hybrid transmission
Fluid capacity*3.4 L (3.6 qt., 3.0 Imp. qt.)
Fluid type Toyota Genuine ATF WS
NOTICE
■Transmission fluid type
Using transmission fluid other than “Toyota Genuine ATF WS” may cause
deterioration in shift quality, locking up of your transmission accompanied
by vibration, and ultimately damage to the transmission of your vehicle.
Brakes
Pedal clearance*1
Left-hand drive vehicles
Right-hand drive vehi-
cles73 mm (2.87 in.) Min.
83 mm (3.27 in.) Min.
Pedal free play 1  6 mm (0.04  0.24 in.)
Parking brake lever
travel
*26  9 clicks
Fluid type SAE J1703 or FMVSS No.116 DOT 3 or
SAE J1704 or FMVSS No.116 DOT 4
Steering
Free playLess than 30 mm (1.2 in.)

5609-1. Specifications
UK AURIS_HV_HB_EE (OM12K47E)

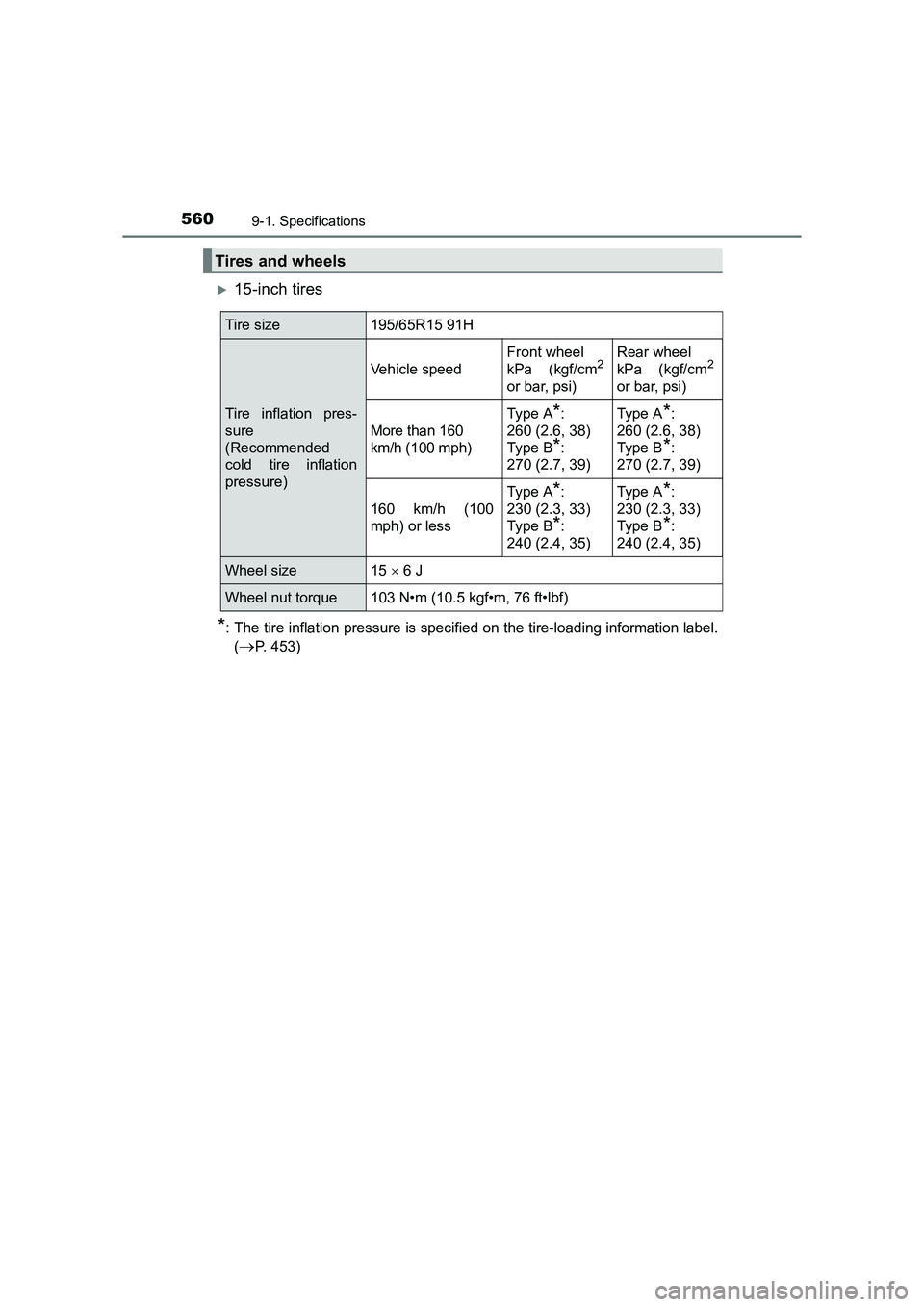

X15-inch tires
*: The tire inflation pressure is specified on the tire-loading information label.
(
→P. 453)
Tires and wheels
Tire size195/65R15 91H
Tire inflation pres-
sure
(Recommended
cold tire inflation
pressure)
Vehicle speed
Front wheel
kPa (kgf/cm2
or bar, psi)
Rear wheel
kPa (kgf/cm2
or bar, psi)
More than 160
km/h (100 mph)
Type A*:
260 (2.6, 38)
Type B
*:
270 (2.7, 39)
Type A*:
260 (2.6, 38)
Type B
*:
270 (2.7, 39)
160 km/h (100
mph) or less
Type A*:
230 (2.3, 33)
Type B
*:
240 (2.4, 35)
Type A*:
230 (2.3, 33)
Type B
*:
240 (2.4, 35)
Wheel size15 × 6 J
Wheel nut torque103 N•m (10.5 kgf•m, 76 ft•lbf)
