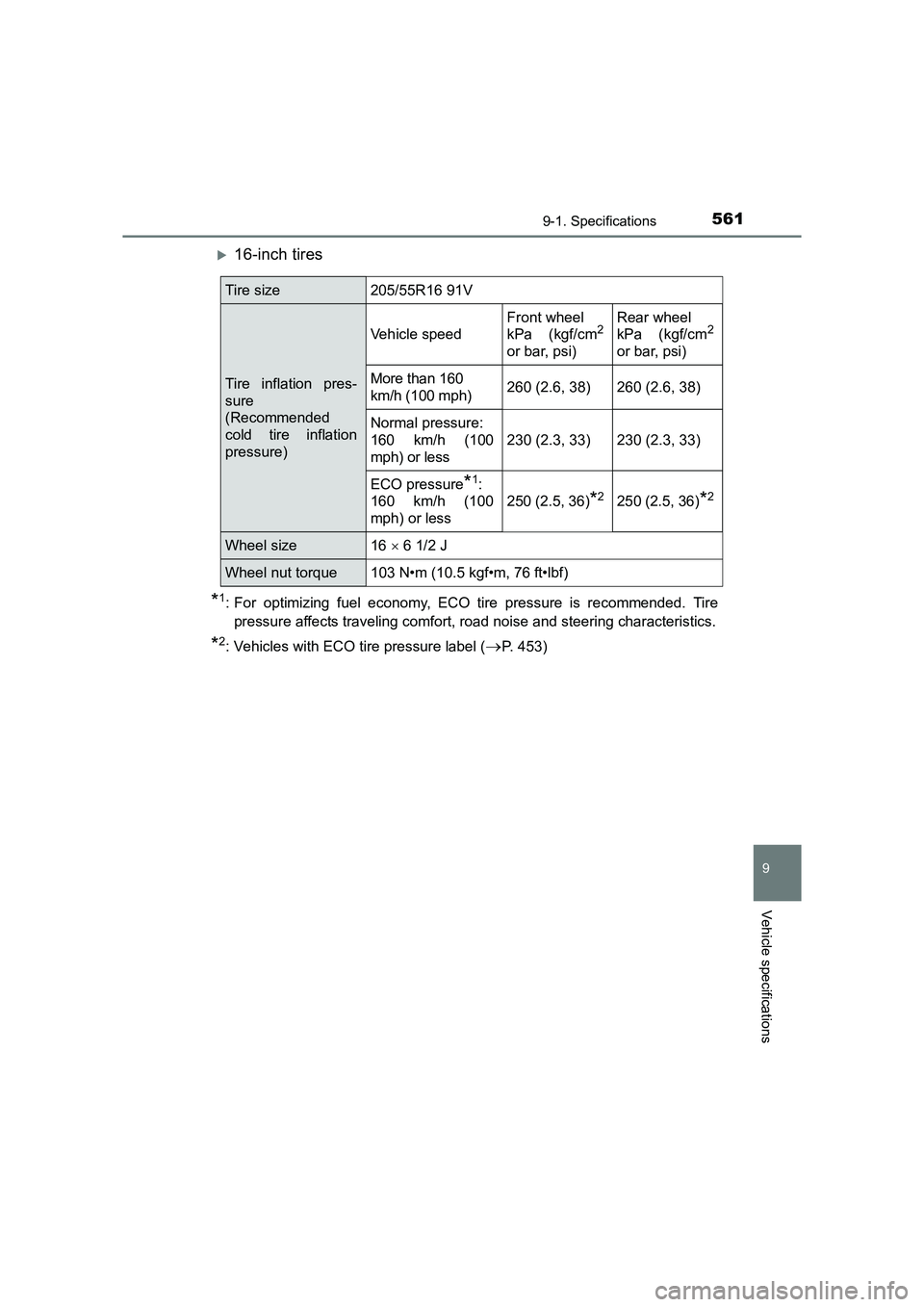

Page 561 of 592

TOYOTA AURIS HYBRID 2016  Owners Manual 5619-1. Specifications
UK AURIS_HV_HB_EE (OM12K47E)
9
Vehicle specifications
�X16-inch tires
*1: For optimizing fuel economy, ECO tire pressure is recommended. Tirepressure affects traveling comfort,

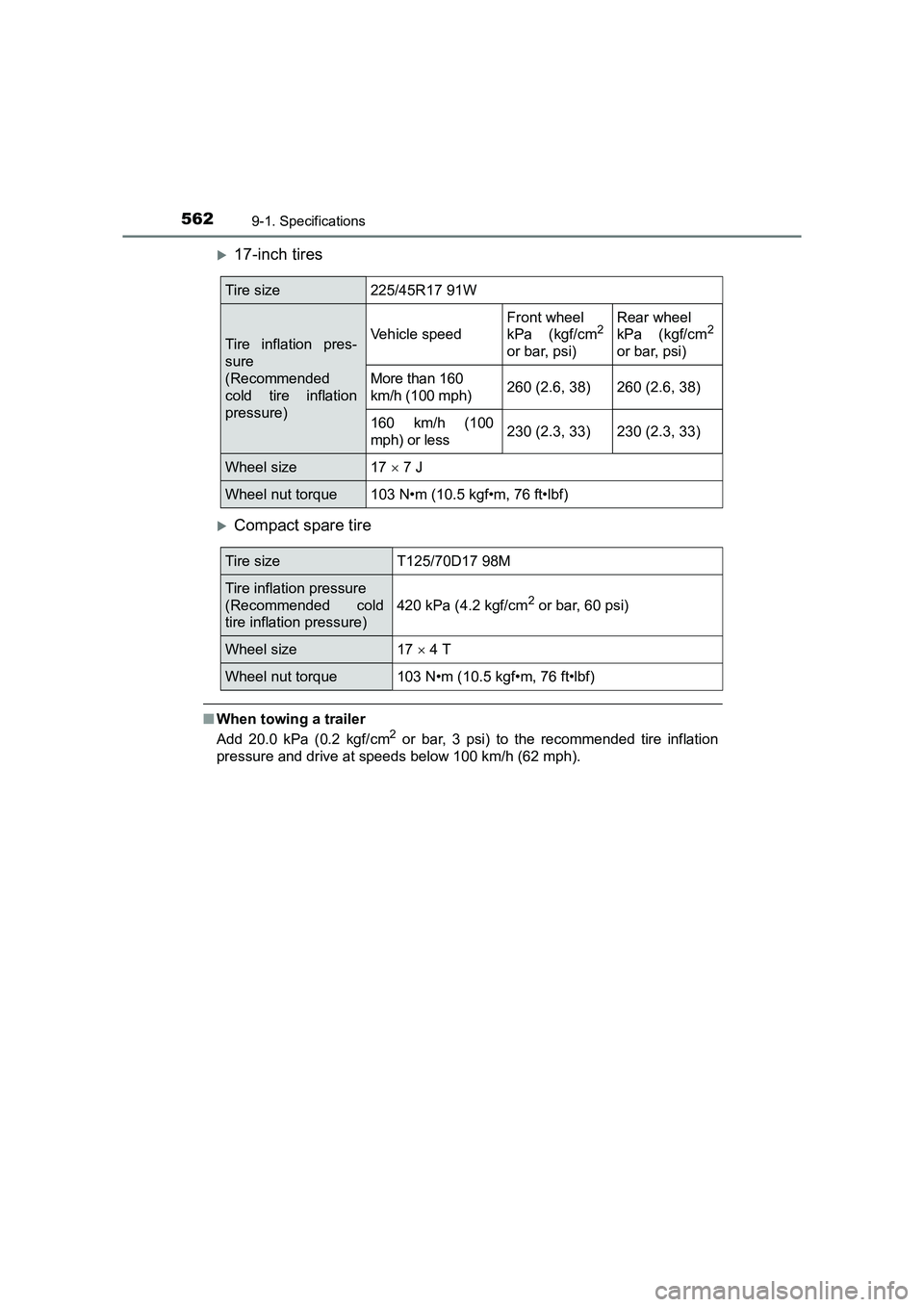

Page 562 of 592

TOYOTA AURIS HYBRID 2016  Owners Manual 5629-1. Specifications
UK AURIS_HV_HB_EE (OM12K47E)
�X17-inch tires
�XCompact spare tire
■When towing a trailer
Add 20.0 kPa (0.2 kgf/cm2 or bar, 3 psi) to the recommended tire inflation
pressure an

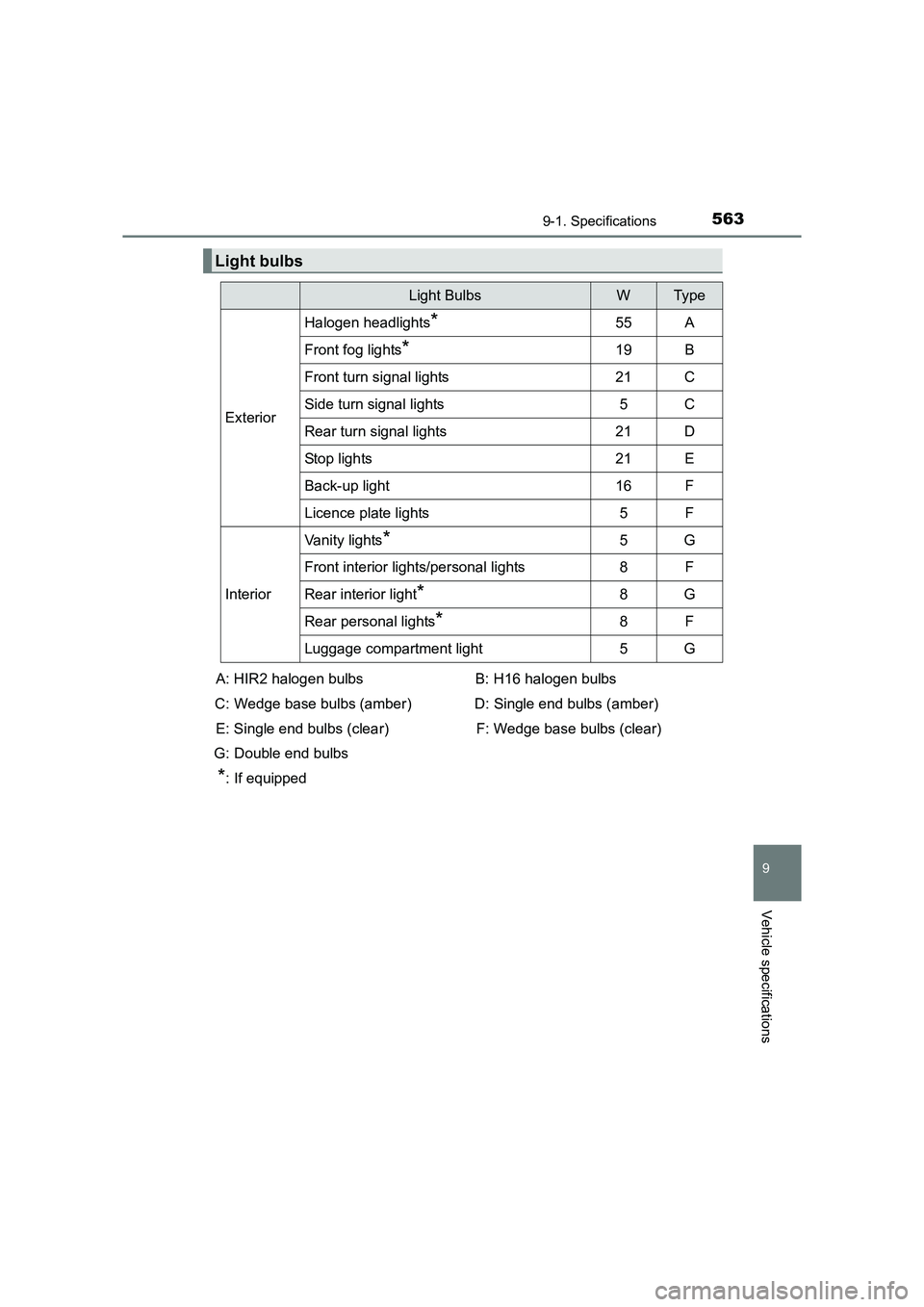

Page 563 of 592

TOYOTA AURIS HYBRID 2016  Owners Manual 5639-1. Specifications
UK AURIS_HV_HB_EE (OM12K47E)
9
Vehicle specifications
Light bulbs
Light BulbsWTyp e
Exterior
Halogen headlights*55A
Front fog lights*19B
Front turn signal lights21C
Side turn si

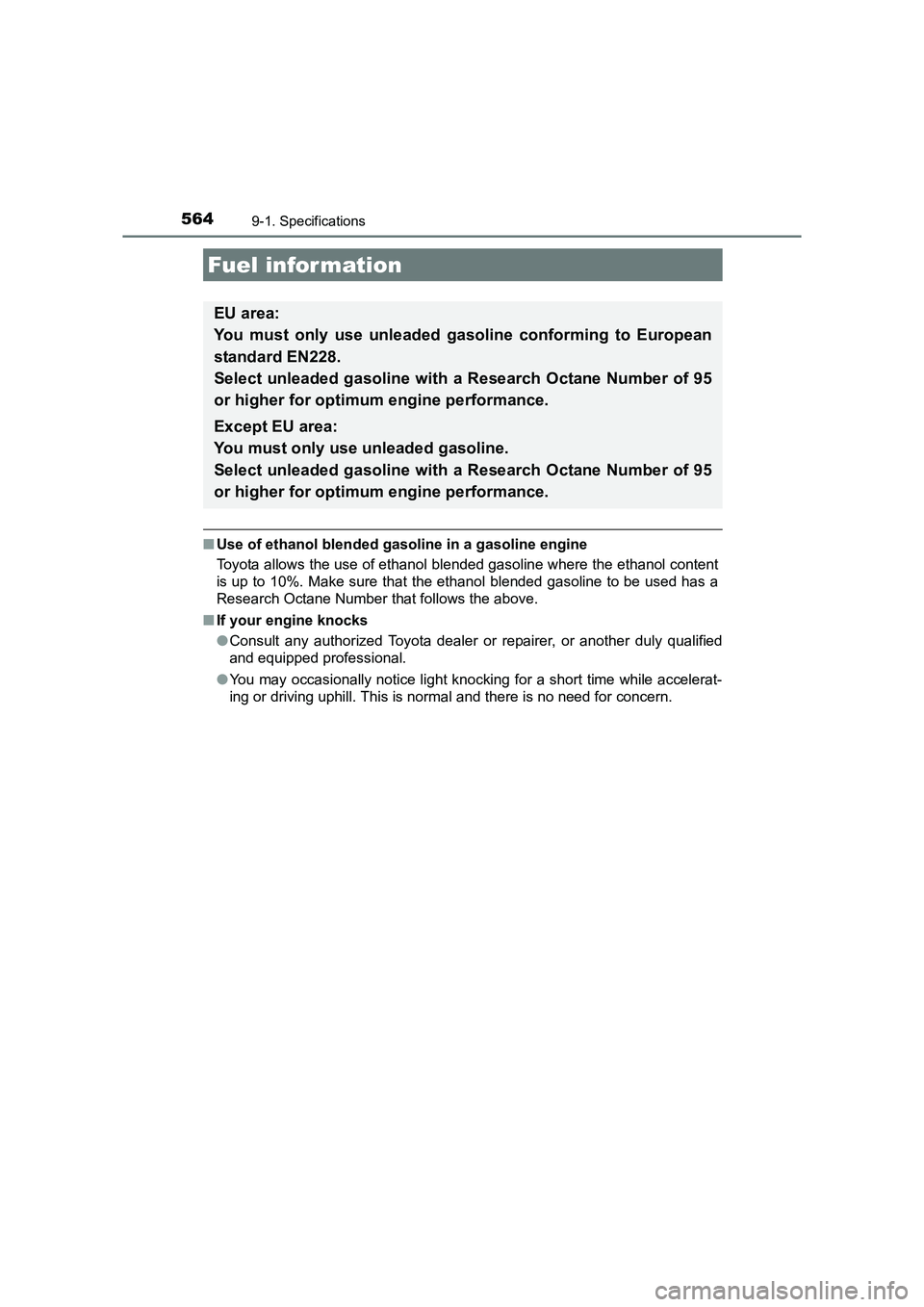

Page 564 of 592

TOYOTA AURIS HYBRID 2016  Owners Manual 5649-1. Specifications
UK AURIS_HV_HB_EE (OM12K47E)
■Use of ethanol blended gasoline in a gasoline engine
Toyota allows the use of ethanol blended gasoline where the ethanol content
is up to 10%. Ma

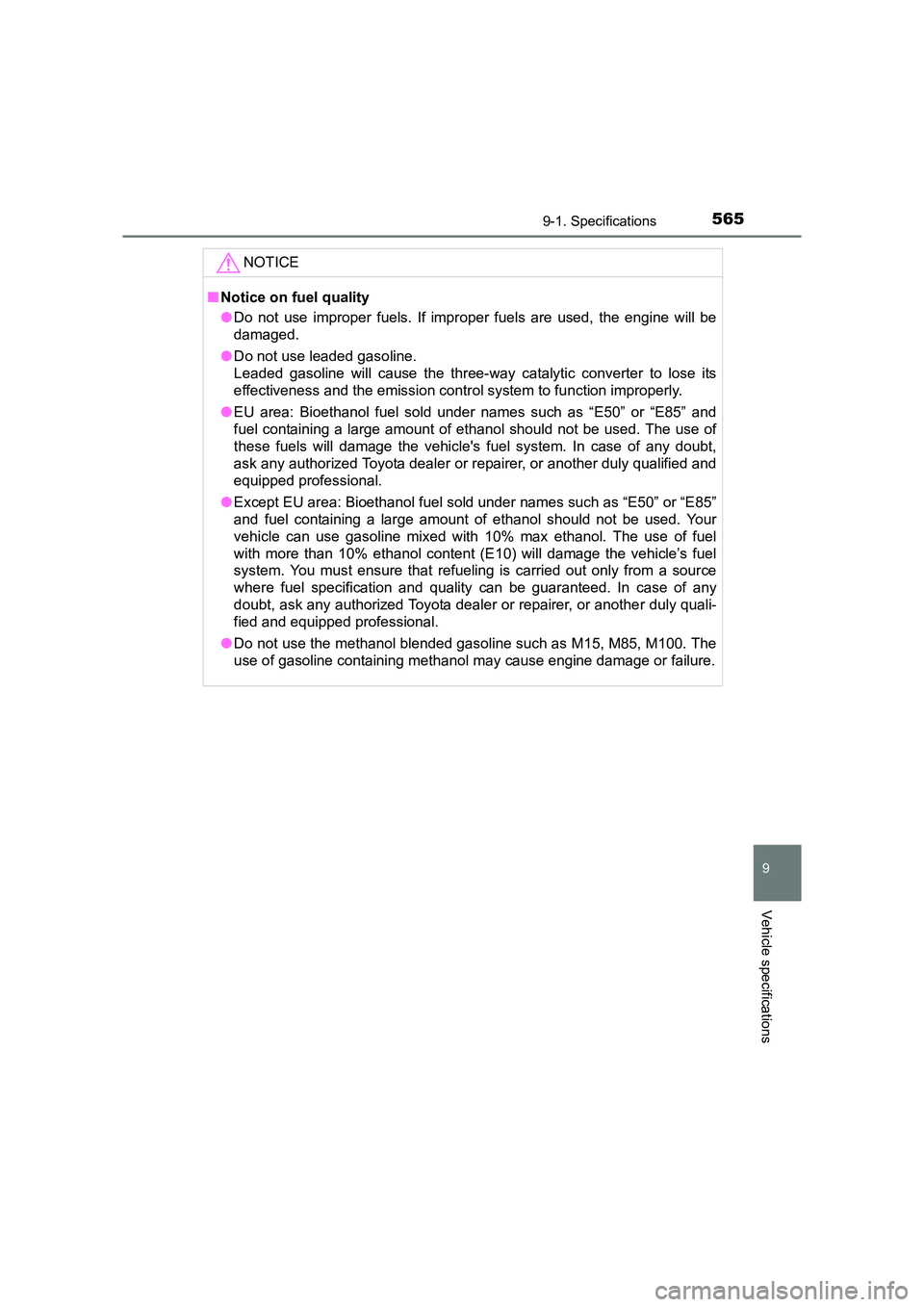

Page 565 of 592

TOYOTA AURIS HYBRID 2016  Owners Manual 5659-1. Specifications
UK AURIS_HV_HB_EE (OM12K47E)
9
Vehicle specifications
NOTICE
■Notice on fuel quality
●Do not use improper fuels. If impr oper fuels are used, the engine will be
damaged.
●

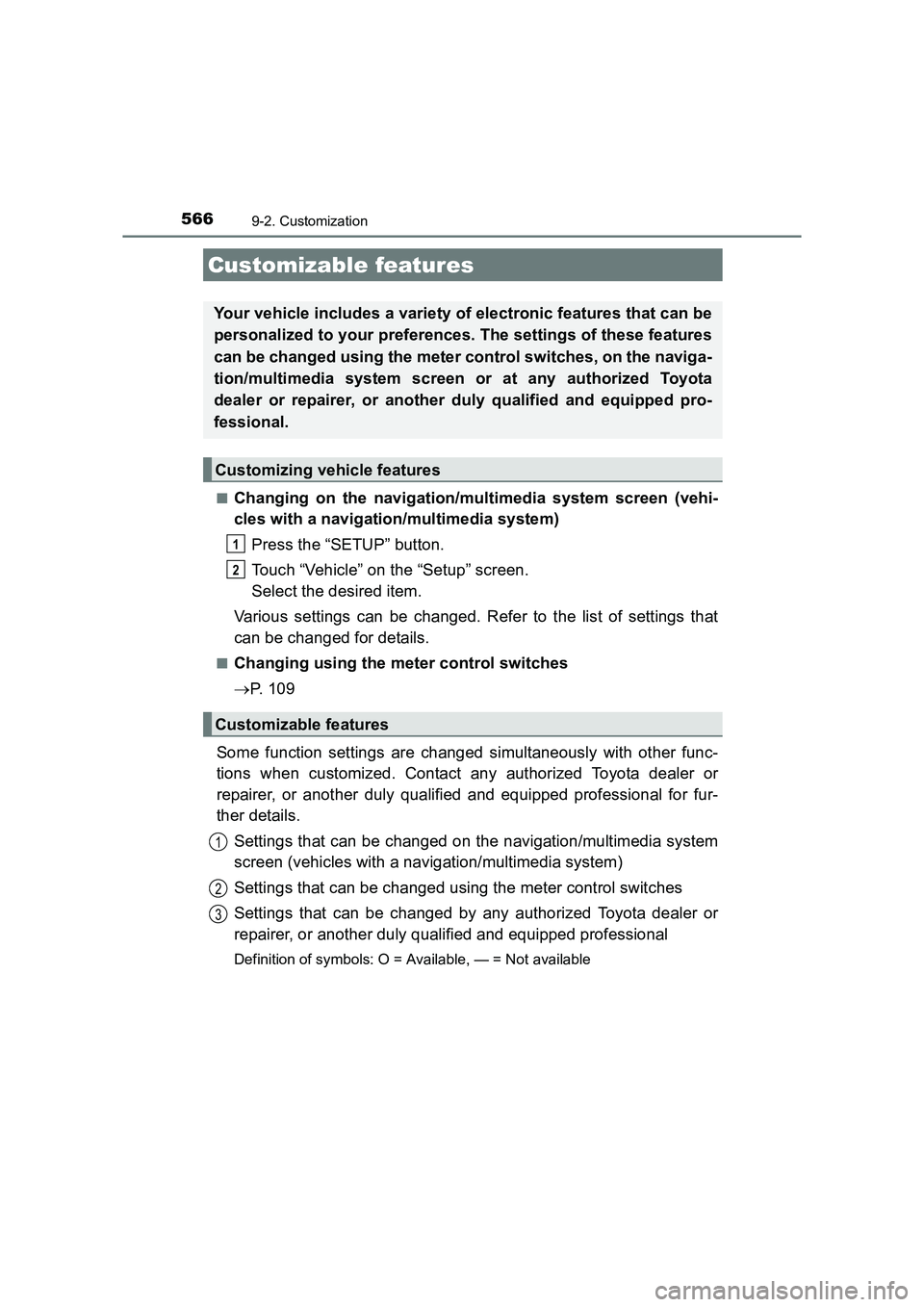

Page 566 of 592

TOYOTA AURIS HYBRID 2016  Owners Manual 566
UK AURIS_HV_HB_EE (OM12K47E)
9-2. Customization
■Changing on the navigation/multimedia system screen (vehi-
cles with a navigation/multimedia system)Press the “SETUP” button.
Touch “Vehicl

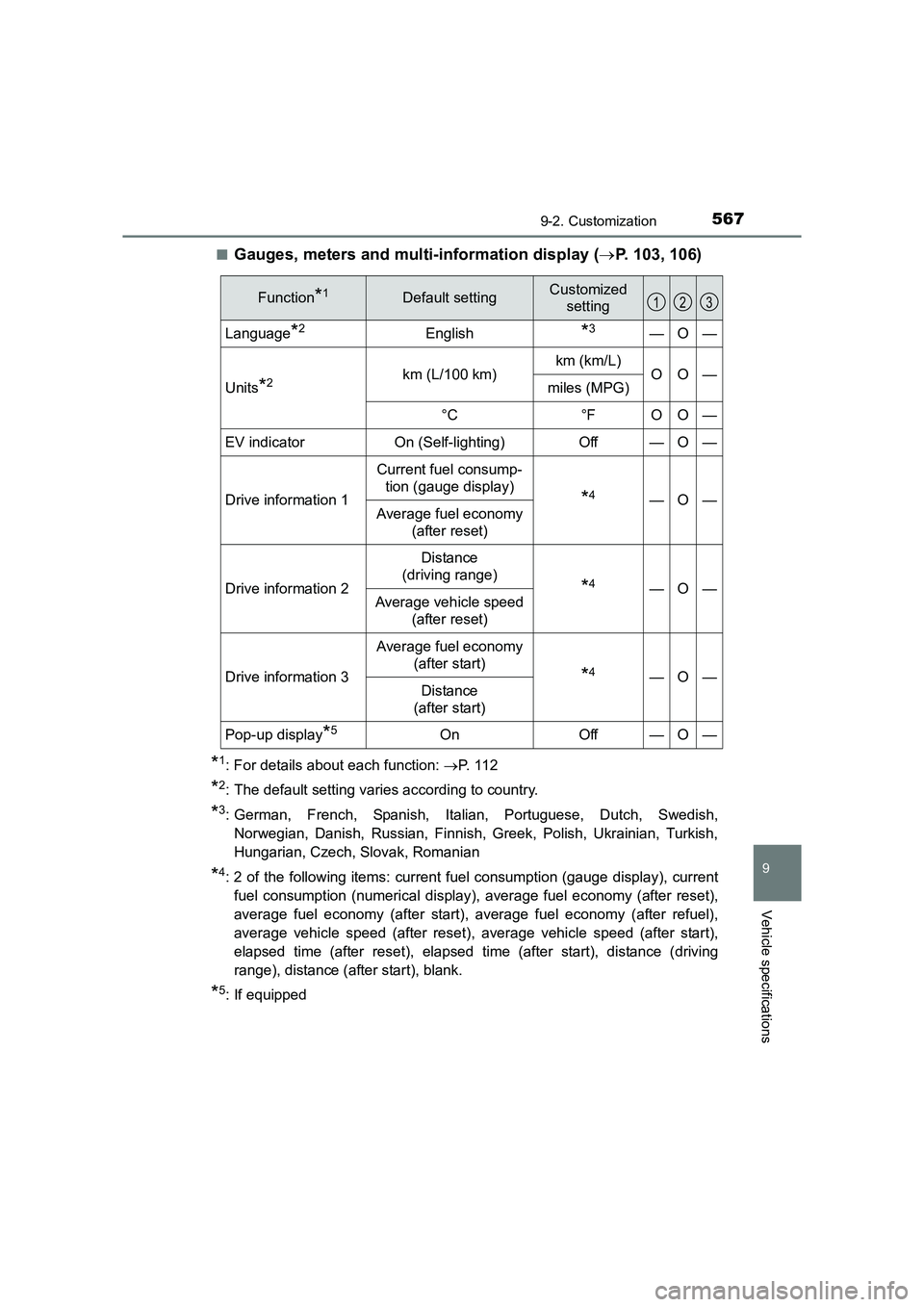

Page 567 of 592

TOYOTA AURIS HYBRID 2016  Owners Manual 5679-2. Customization
UK AURIS_HV_HB_EE (OM12K47E)
9
Vehicle specifications
■Gauges, meters and multi-information display (→P. 103, 106)
*1: For details about each function:  →P.  1 1 2
*2: The

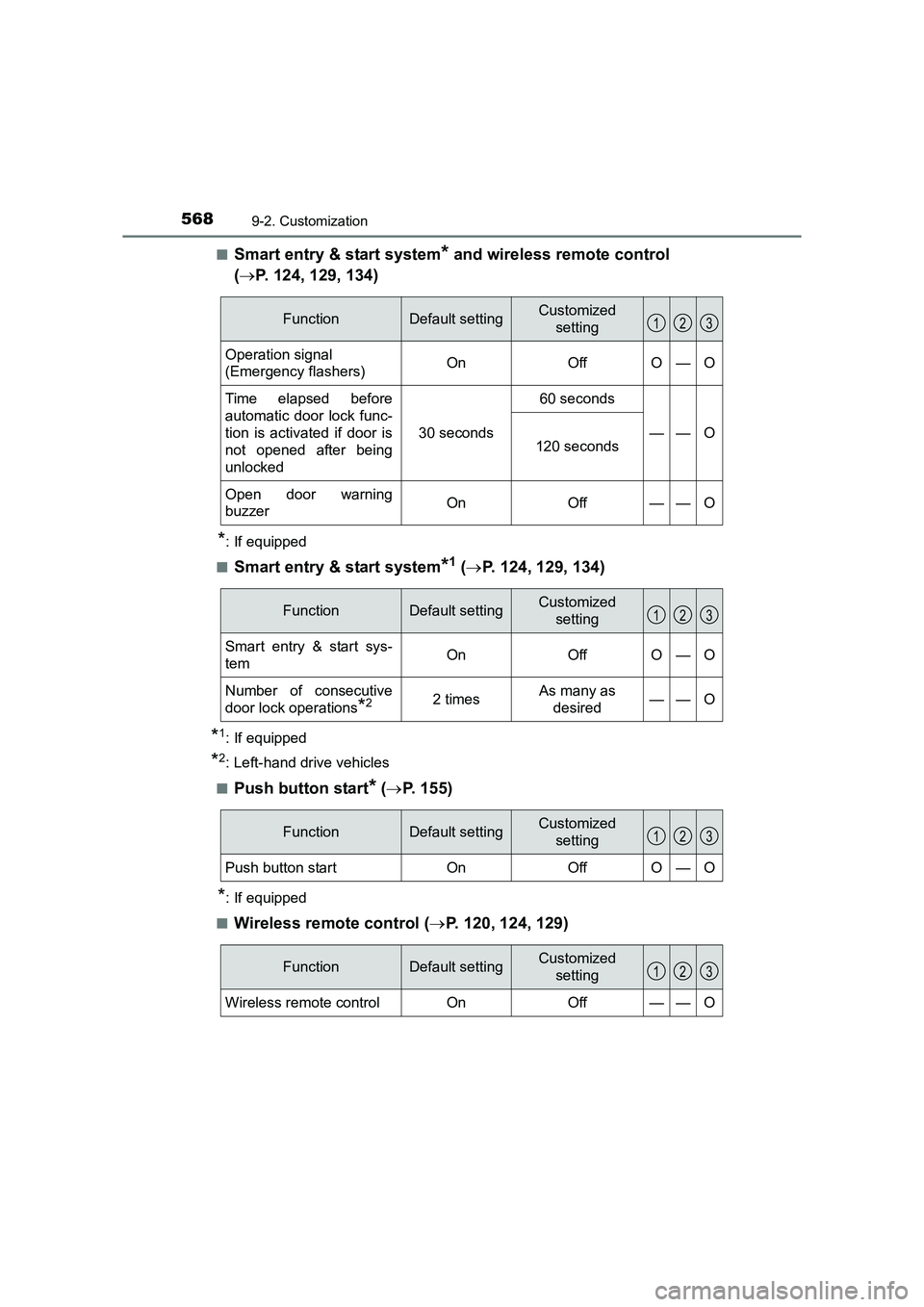

Page 568 of 592

TOYOTA AURIS HYBRID 2016  Owners Manual 5689-2. Customization
UK AURIS_HV_HB_EE (OM12K47E)■
Smart entry & start system* and wireless remote control
( → P. 124, 129, 134)
*: If equipped
■
Smart entry & start system*1 ( → P. 124, 129

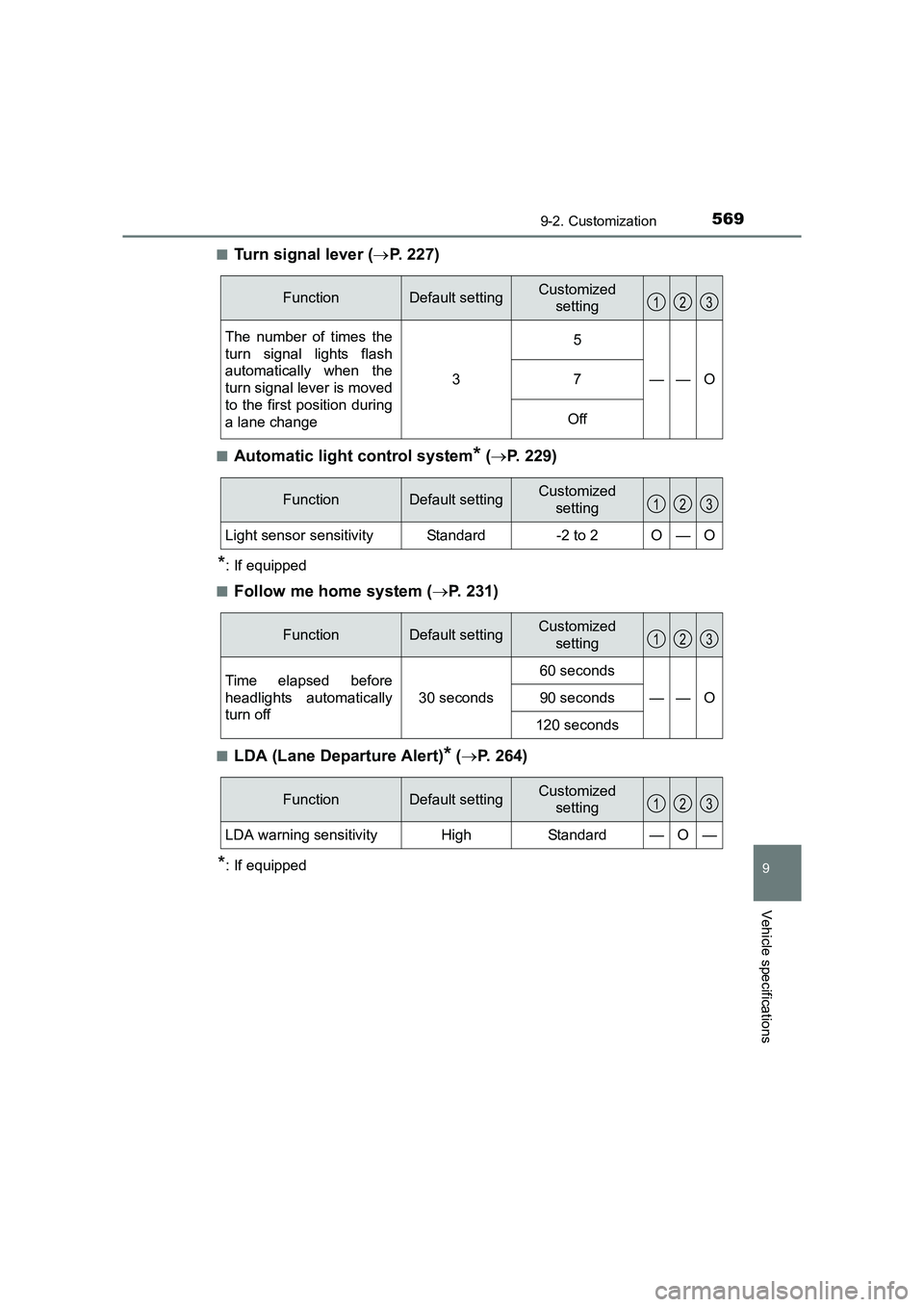

Page 569 of 592

TOYOTA AURIS HYBRID 2016  Owners Manual 5699-2. Customization
UK AURIS_HV_HB_EE (OM12K47E)
9
Vehicle specifications
■Turn signal lever (→P. 227)
■Automatic light control system* (→ P. 229)
*: If equipped
■
Follow me home system (

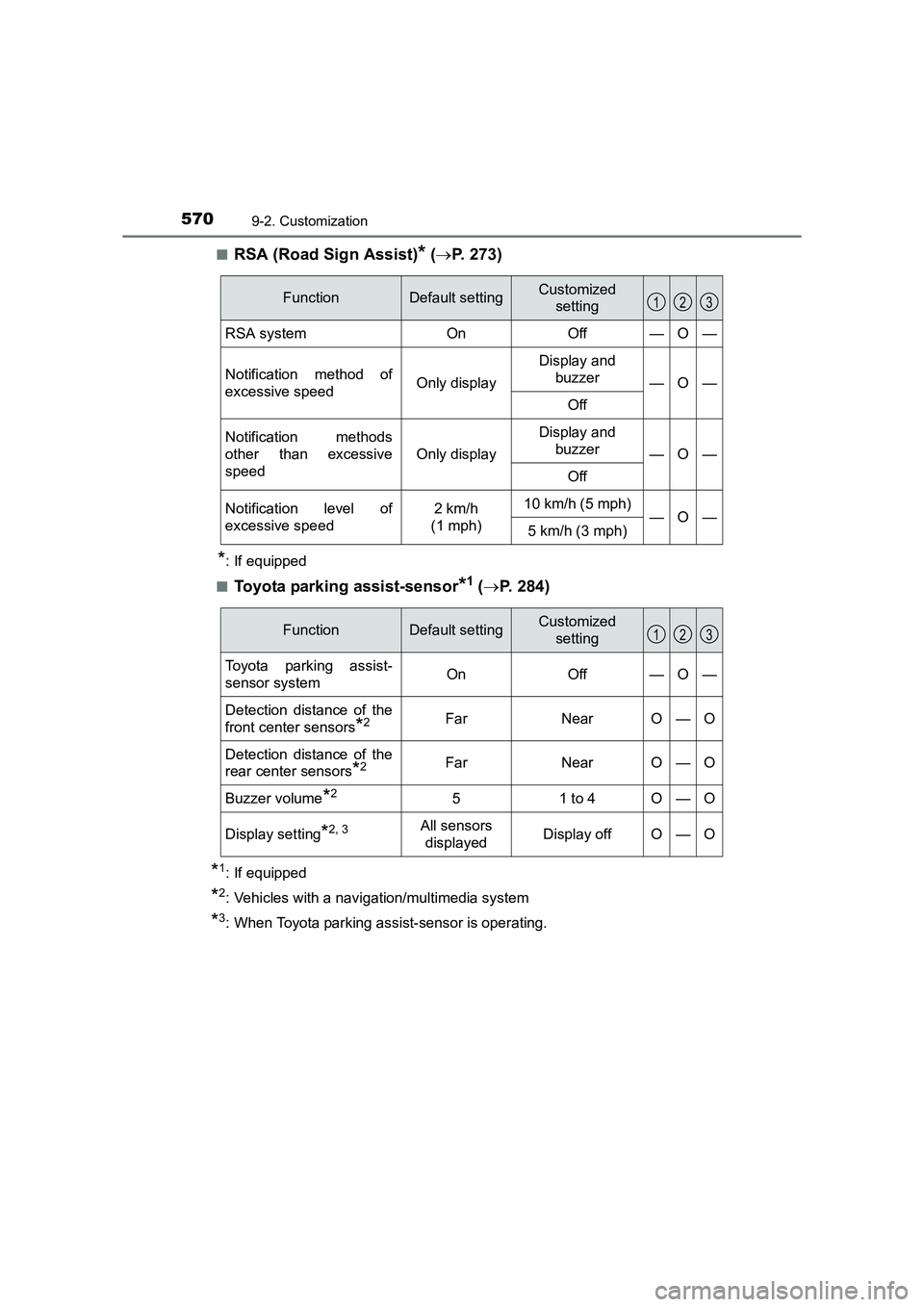

Page 570 of 592

TOYOTA AURIS HYBRID 2016  Owners Manual 5709-2. Customization
UK AURIS_HV_HB_EE (OM12K47E)■
RSA (Road Sign Assist)* (
→ P. 273)
*: If equipped
■
Toyota parking assist-sensor*1 ( → P. 284)
*1: If equipped
*2: Vehicles with a navigati
