TOYOTA AURIS HYBRID 2016 Owners Manual

5719-2. Customization
UK AURIS_HV_HB_EE (OM12K47E)
9

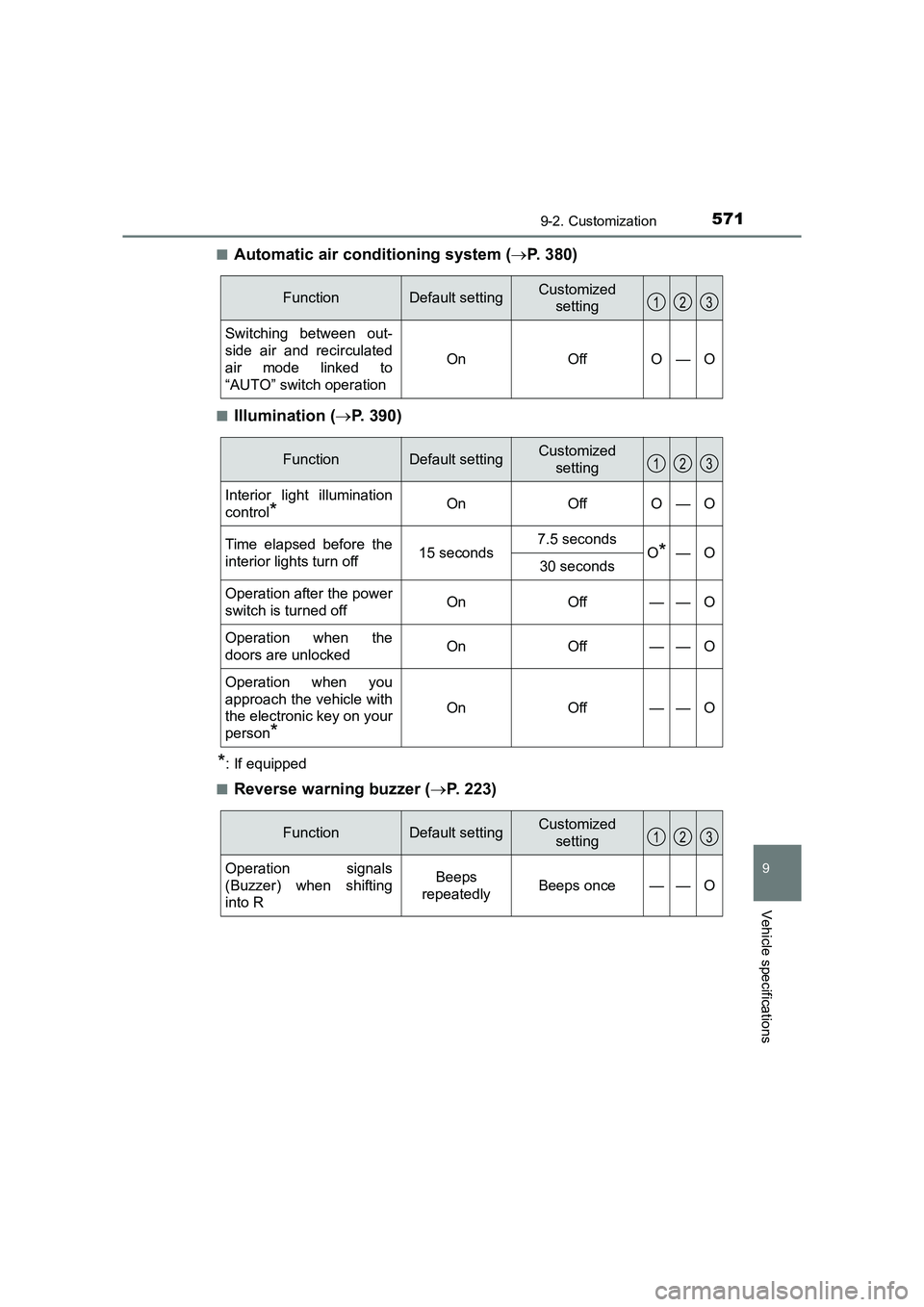

Vehicle specifications
■Automatic air conditioning system (→P. 380)
■Illumination ( →P. 390)
*: If equipped
■
Reverse warning buzzer ( →P. 223)
FunctionDefault settingCustomized
setting
Switching between out-
side air and recirculated
air mode linked to
“AUTO” switch operation
OnOffO—O
123
FunctionDefault settingCustomized
setting
Interior light illumination
control
*OnOffO—O
Time elapsed before the
interior lights turn off15 seconds7.5 secondsO*—O30 seconds
Operation after the power
switch is turned offOnOff——O
Operation when the
doors are unlockedOnOff——O
Operation when you
approach the vehicle with
the electronic key on your
person
*
OnOff——O
123
FunctionDefault settingCustomized setting
Operation signals
(Buzzer) when shifting
into RBeeps
repeatedlyBeeps once——O
123

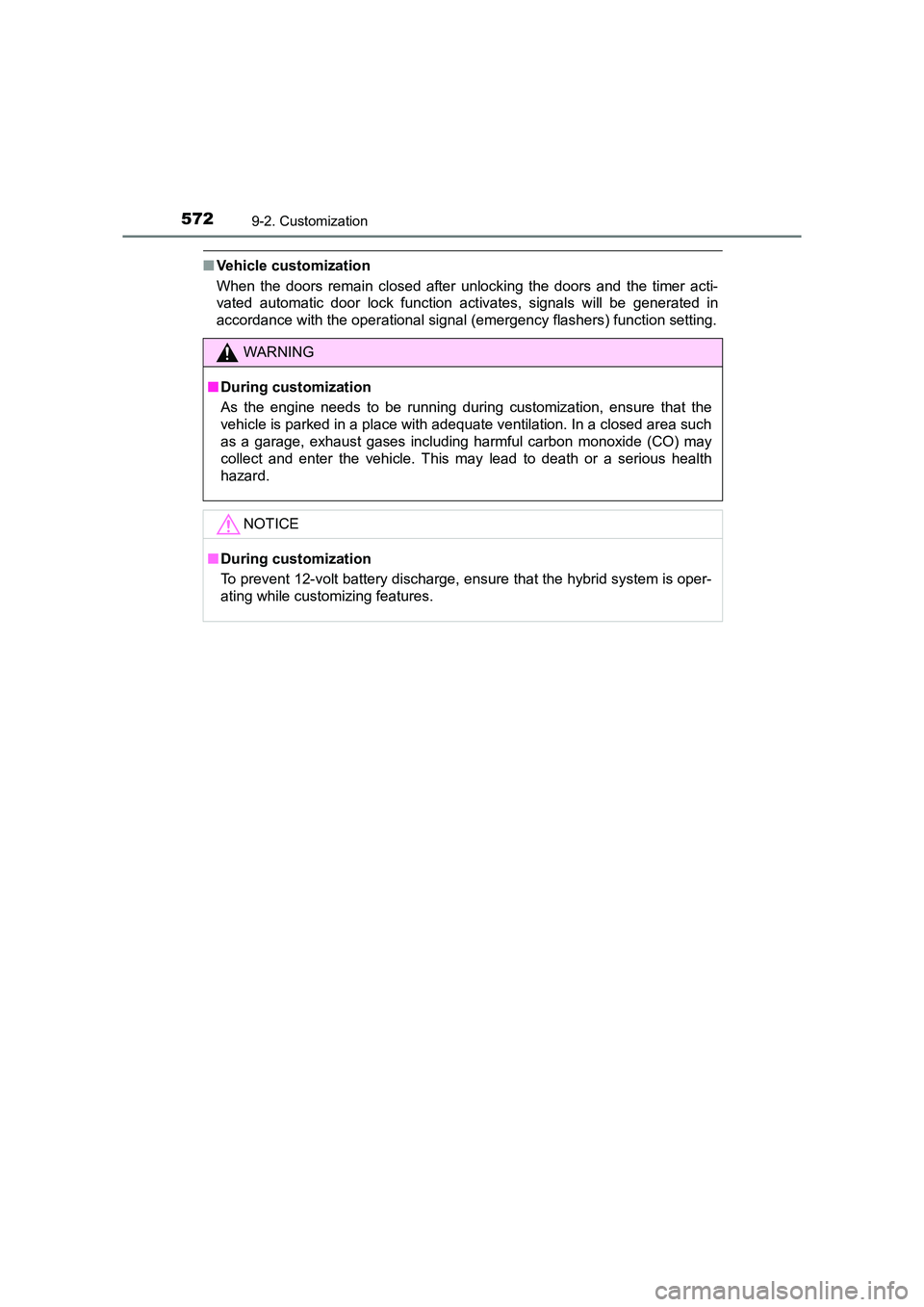

5729-2. Customization
UK AURIS_HV_HB_EE (OM12K47E)
■Vehicle customization
When the doors remain closed after unlocking the doors and the timer acti-
vated automatic door lock function activates, signals will be generated in
accordance with the operational signal (emergency flashers) function setting.
WARNING
■ During customization
As the engine needs to be running during customization, ensure that the
vehicle is parked in a place with adequate ventilation. In a closed area such
as a garage, exhaust gases including harmful carbon monoxide (CO) may
collect and enter the vehicle. This may lead to death or a serious health
hazard.
NOTICE
■During customization
To prevent 12-volt battery discharge, ens ure that the hybrid system is oper-
ating while customizing features.

573
UK AURIS_HV_HB_EE (OM12K47E)
9
Vehicle specifications

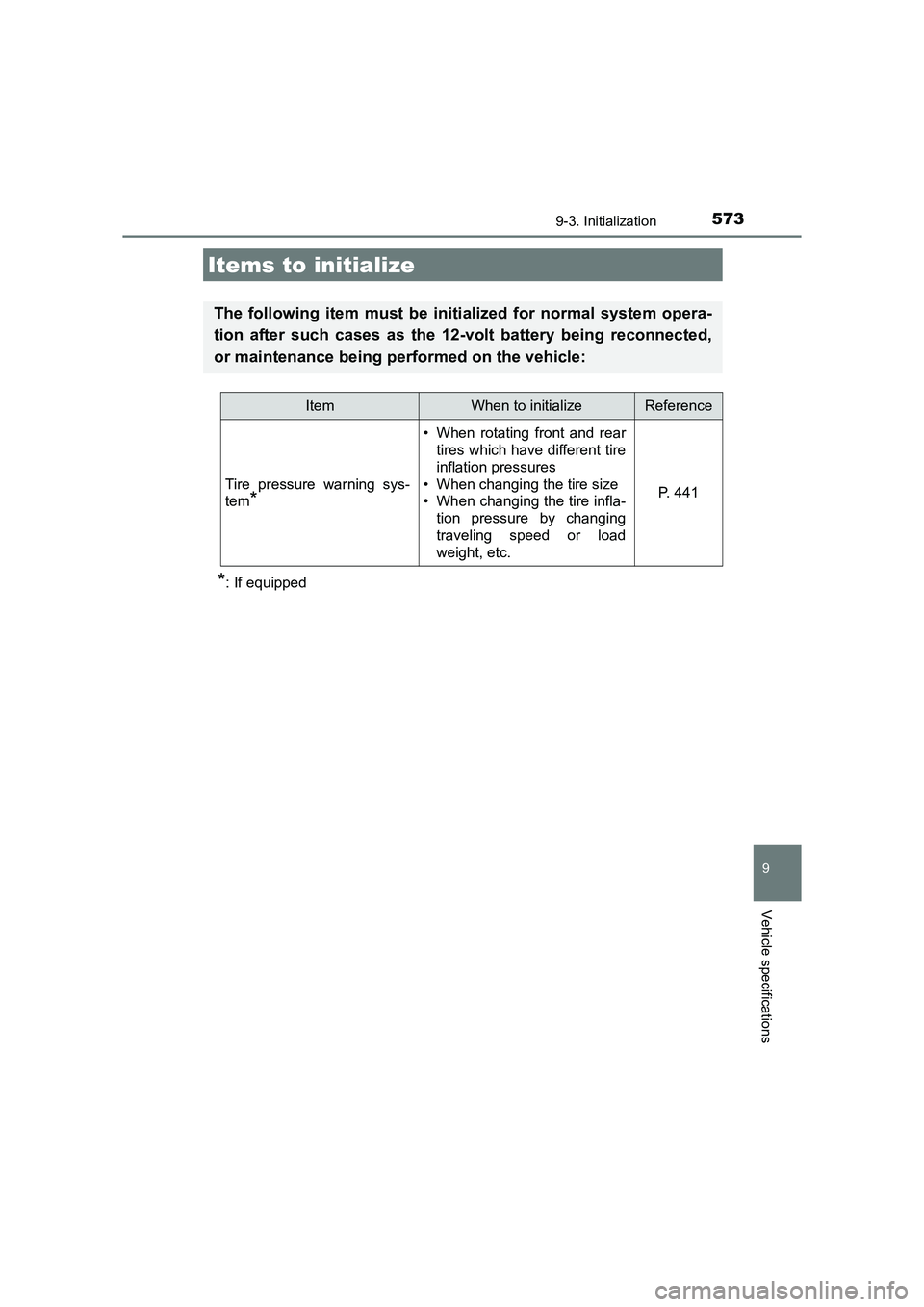

9-3. Initialization
*: If equipped
Items to initialize
The following item must be initialized for normal system opera-
tion after such cases as the 12-volt battery being reconnected,
or maintenance being performed on the vehicle:
ItemWhen to initializeReference
Tire pressure warning sys-
tem
*
• When rotating front and reartires which have different tire
inflation pressures
• When changing the tire size
• When changing the tire infla- tion pressure by changing
traveling speed or load
weight, etc.
P. 441

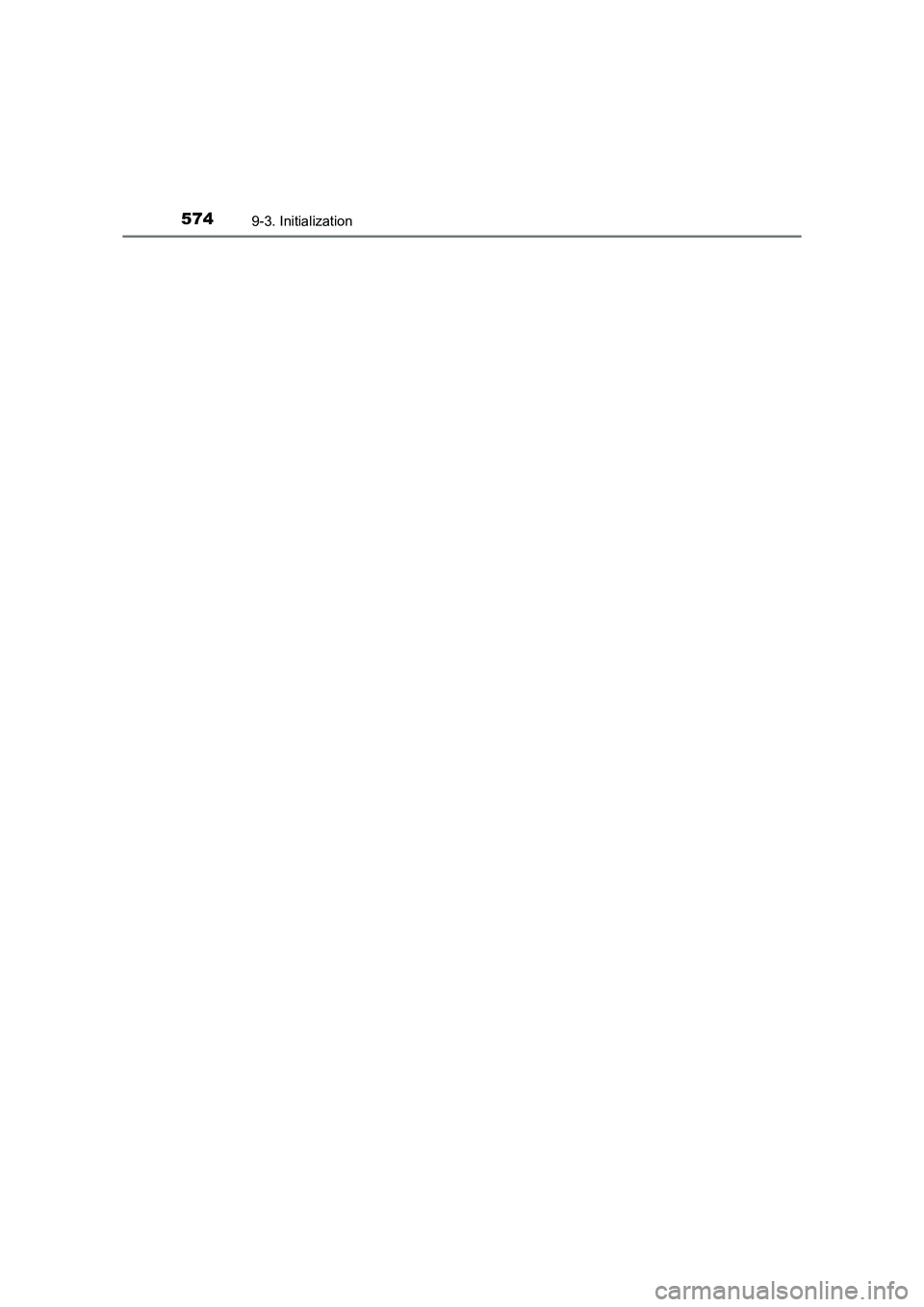

5749-3. Initialization
UK AURIS_HV_HB_EE (OM12K47E)

575

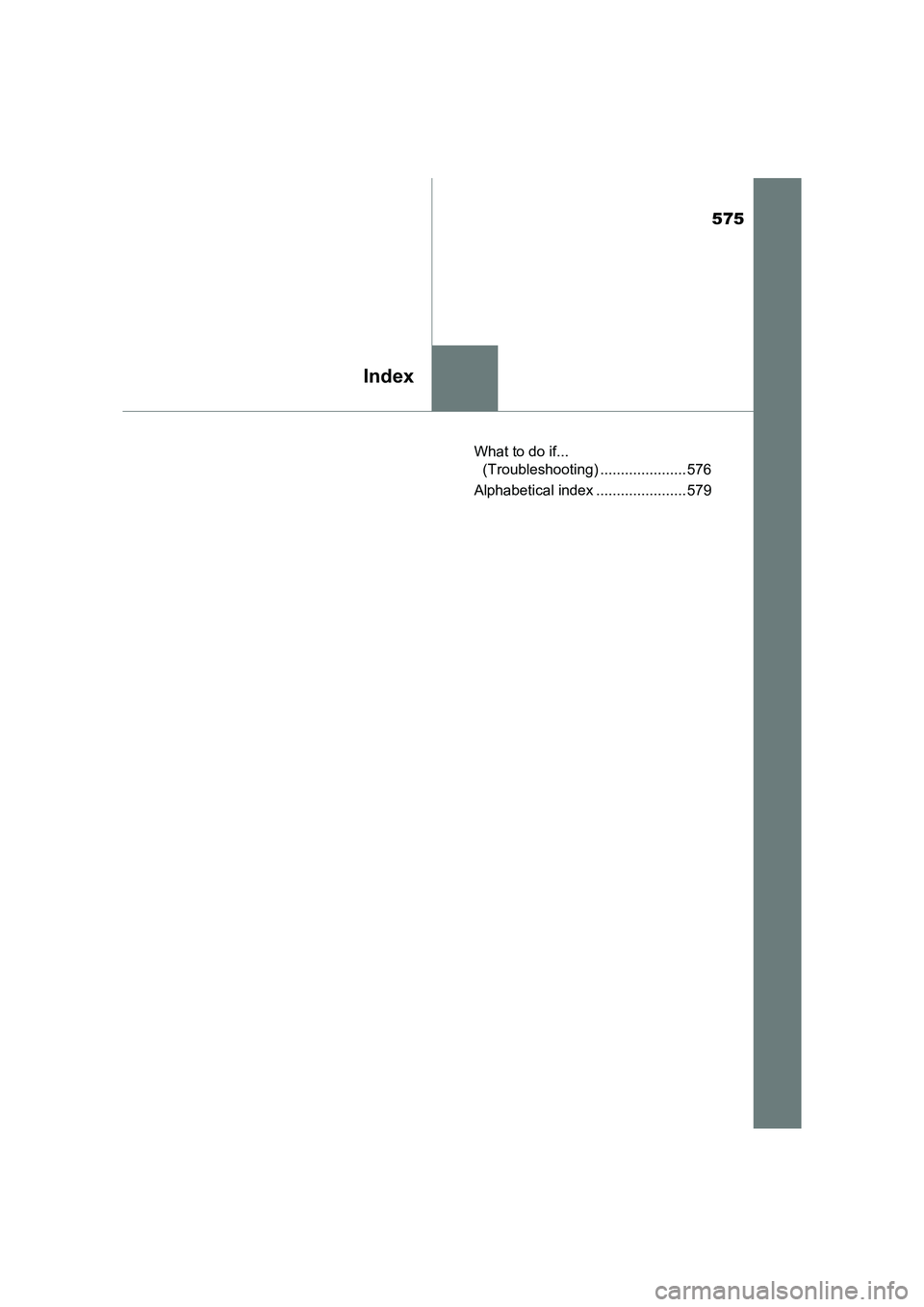

Index
UK AURIS_HV_HB_EE (OM12K47E)What to do if...
(Troubleshooting) ..................... 576
Alphabetical index ......................579

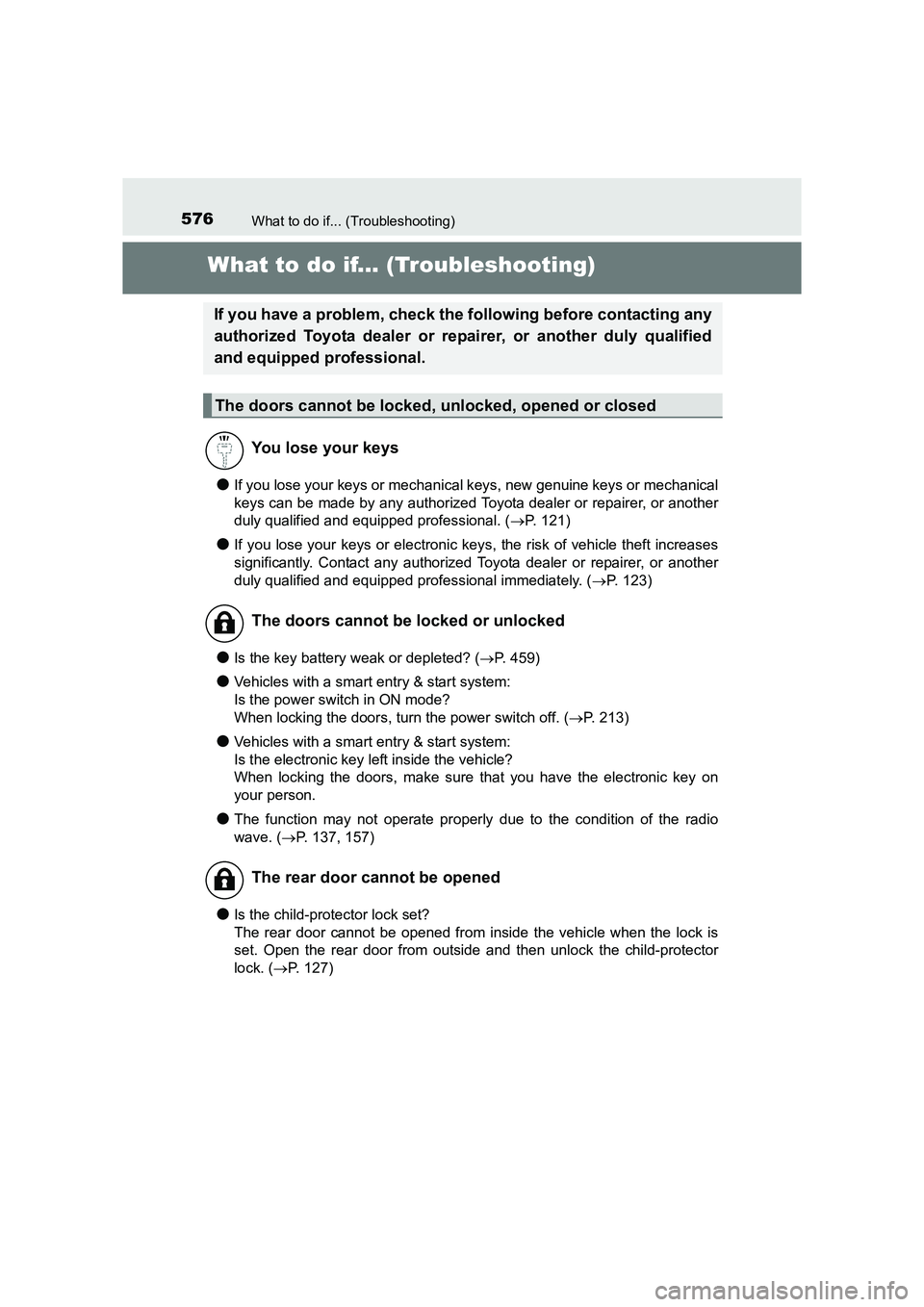

576
UK AURIS_HV_HB_EE (OM12K47E)
What to do if... (Troubleshooting)
What to do if... (Troubleshooting)
●If you lose your keys or mechanical keys, new genuine keys or mechanical
keys can be made by any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional. (→P. 121)
●If you lose your keys or electronic keys, the risk of vehicle theft increases
significantly. Contact any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional immediately. ( →P. 123)
●Is the key battery weak or depleted? ( →P. 459)
●Vehicles with a smart entry & start system:
Is the power switch in ON mode?
When locking the doors, turn the power switch off. ( →P. 213)
●Vehicles with a smart entry & start system:
Is the electronic key left inside the vehicle?
When locking the doors, make sure that you have the electronic key on
your person.
●The function may not operate properly due to the condition of the radio
wave. ( →P. 137, 157)
●Is the child-protector lock set?
The rear door cannot be opened from inside the vehicle when the lock is
set. Open the rear door from outside and then unlock the child-protector
lock. ( →P. 127)
If you have a problem, check the following before contacting any
authorized Toyota dealer or repairer, or another duly qualified
and equipped professional.
The doors cannot be locked, unlocked, opened or closed
You lose your keys
The doors cannot be locked or unlocked
The rear door cannot be opened

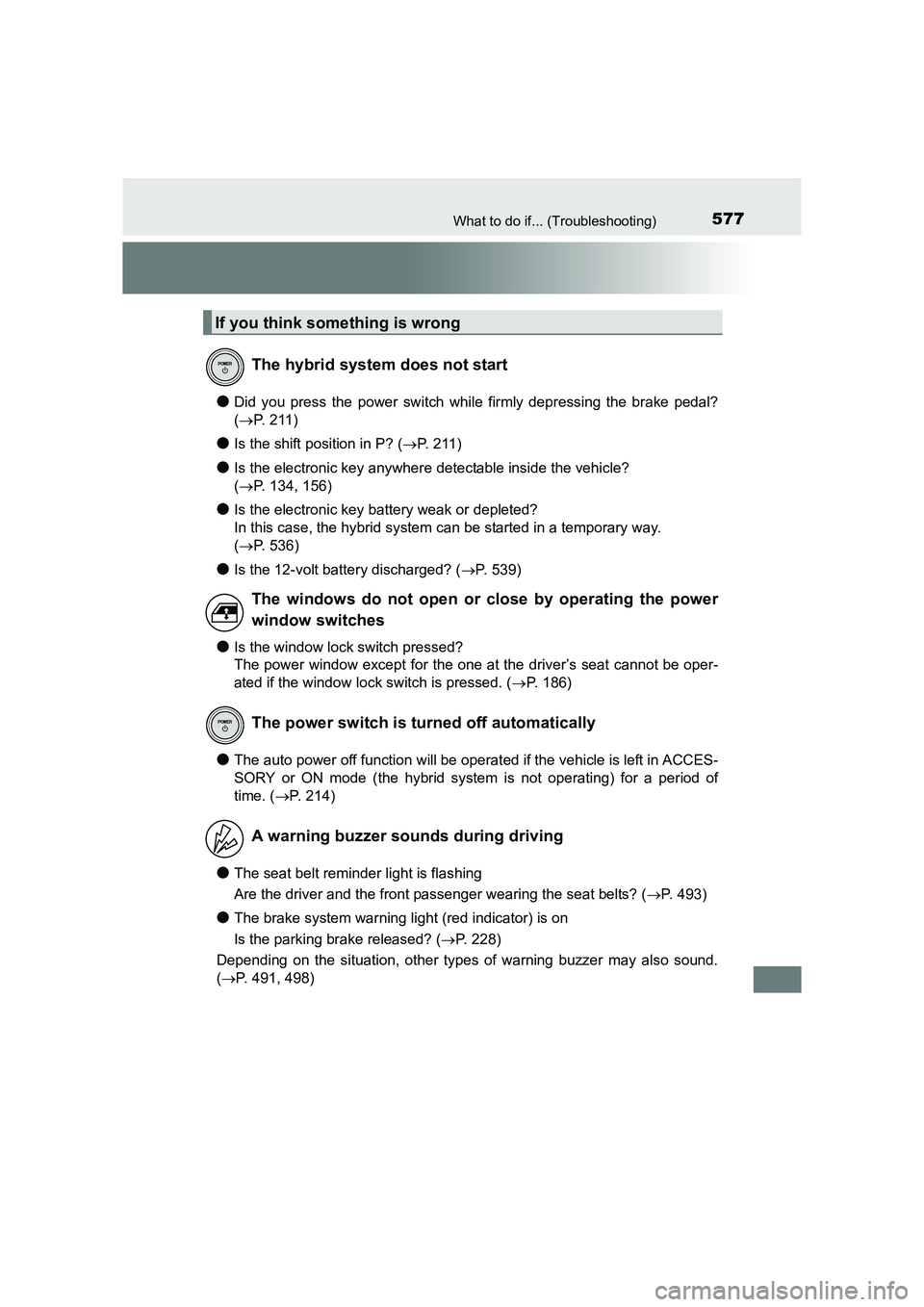

577What to do if... (Troubleshooting)
UK AURIS_HV_HB_EE (OM12K47E)
●Did you press the power switch while firmly depressing the brake pedal?
(→ P. 211)
●Is the shift position in P? ( →P. 211)
●Is the electronic key anywhere detectable inside the vehicle?
(→ P. 134, 156)
●Is the electronic key battery weak or depleted?
In this case, the hybrid system can be started in a temporary way.
(→ P. 536)
●Is the 12-volt battery discharged? ( →P. 539)
●Is the window lock switch pressed?
The power window except for the one at the driver’s seat cannot be oper-
ated if the window lock switch is pressed. ( →P. 186)
●The auto power off function will be operated if the vehicle is left in ACCES-
SORY or ON mode (the hybrid system is not operating) for a period of
time. ( →P. 214)
●The seat belt reminder light is flashing
Are the driver and the front passenger wearing the seat belts? ( →P. 493)
●The brake system warning light (red indicator) is on
Is the parking brake released? ( →P. 228)
Depending on the situation, other types of warning buzzer may also sound.
( → P. 491, 498)
If you think something is wrong
The hybrid system does not start
The windows do not open or close by operating the power
window switches
The power switch is turned off automatically
A warning buzzer sounds during driving

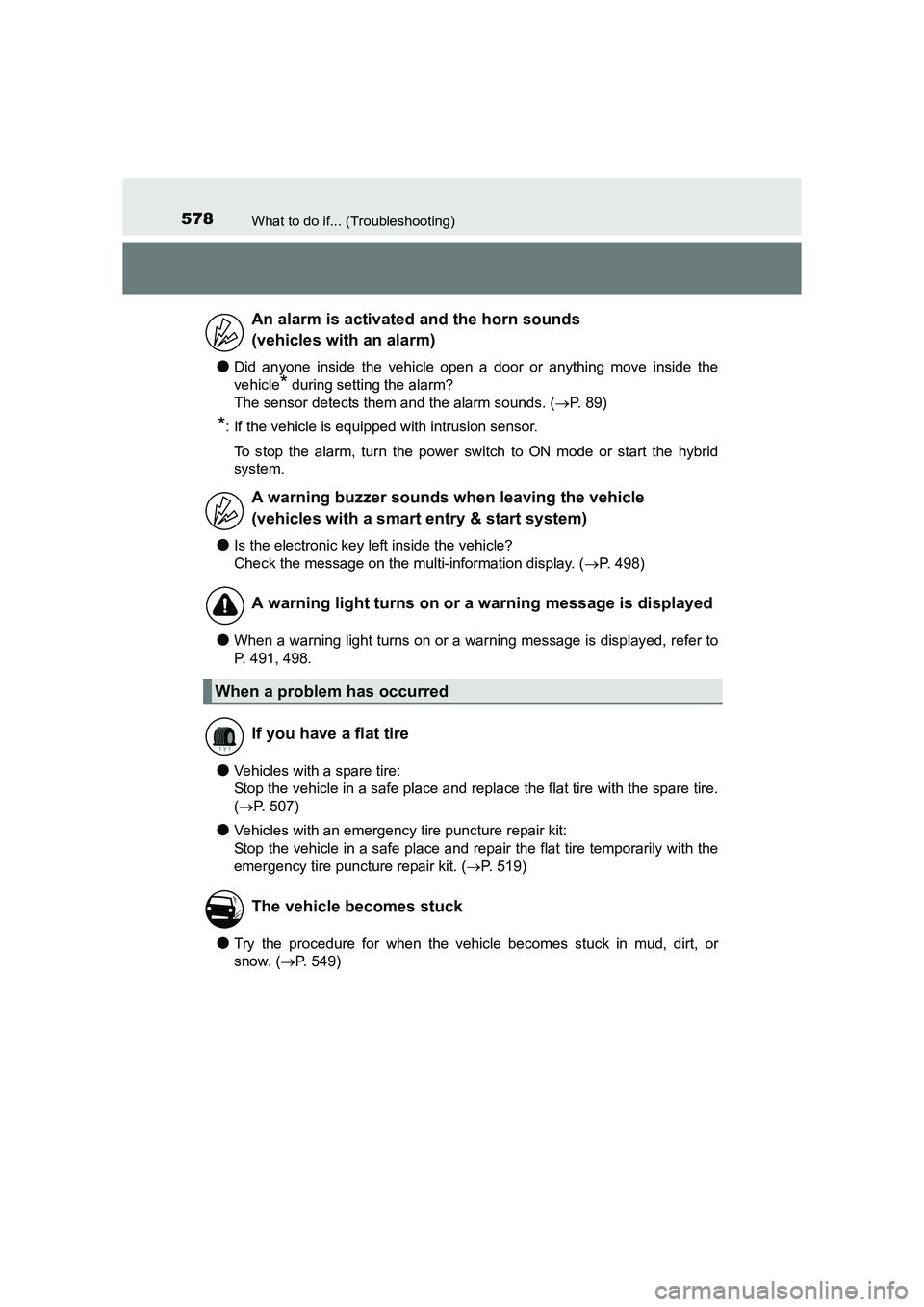

578What to do if... (Troubleshooting)
UK AURIS_HV_HB_EE (OM12K47E)
●Did anyone inside the vehicle open a door or anything move inside the
vehicle
* during setting the alarm?
The sensor detects them and the alarm sounds. ( →P. 89)
*: If the vehicle is equipped with intrusion sensor.
To stop the alarm, turn the power sw itch to ON mode or start the hybrid
system.
●Is the electronic key left inside the vehicle?
Check the message on the multi-information display. ( →P. 498)
●When a warning light turns on or a warning message is displayed, refer to
P. 491, 498.
●Vehicles with a spare tire:
Stop the vehicle in a safe place and replace the flat tire with the spare tire.
(→ P. 507)
●Vehicles with an emergency tire puncture repair kit:
Stop the vehicle in a safe place and repair the flat tire temporarily with the
emergency tire puncture repair kit. ( →P. 519)
●Try the procedure for when the vehicle becomes stuck in mud, dirt, or
snow. ( →P. 549)
An alarm is activated and the horn sounds
(vehicles with an alarm)
A warning buzzer sounds when leaving the vehicle
(vehicles with a smart entry & start system)
A warning light turns on or a warning message is displayed
When a problem has occurred
If you have a flat tire
The vehicle becomes stuck

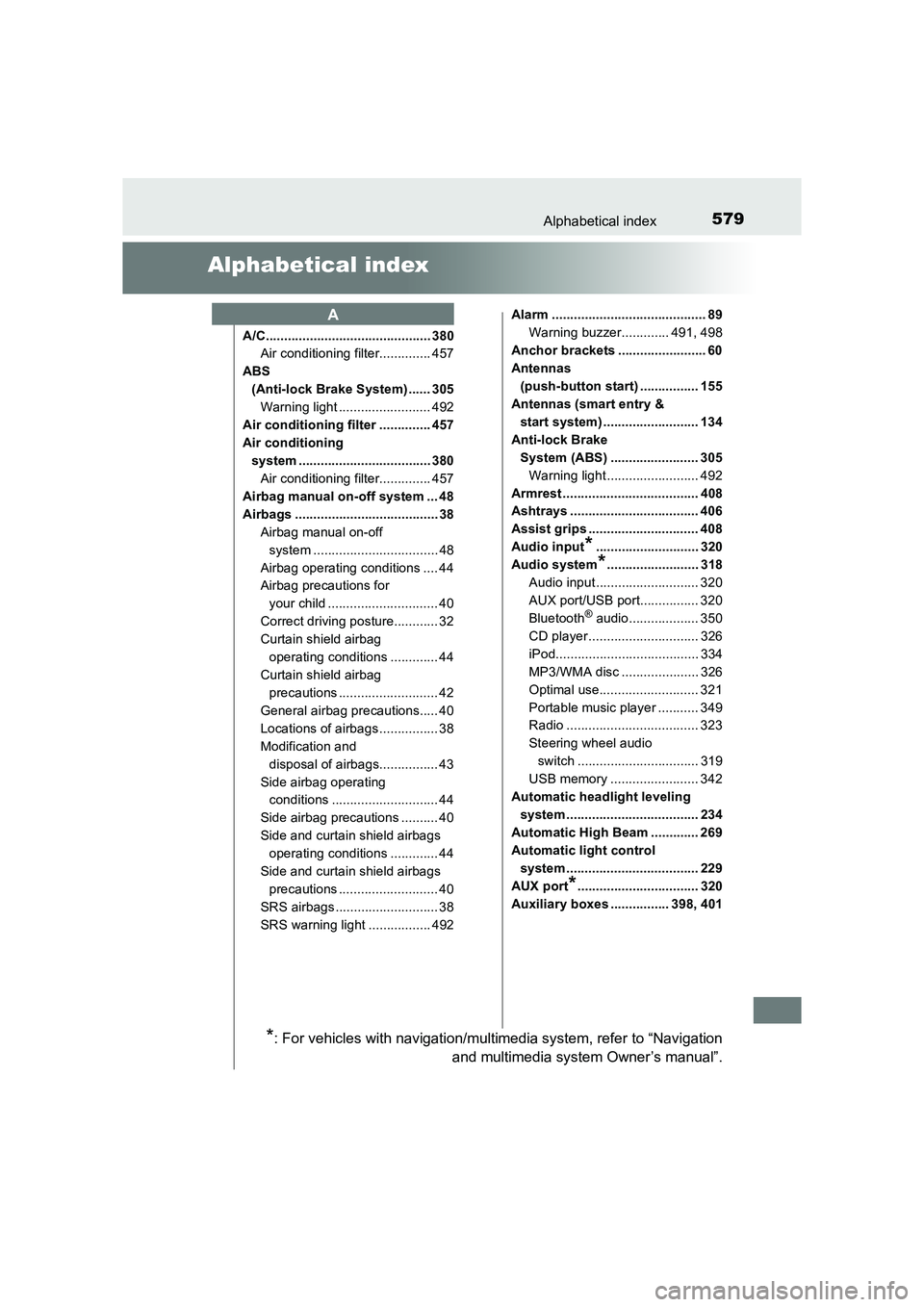

579
UK AURIS_HV_HB_EE (OM12K47E)
Alphabetical index
Alphabetical index
A/C............................................. 380Air conditioning filter.............. 457
ABS (Anti-lock Brake System) ...... 305Warning light ......................... 492
Air conditioning filter .............. 457
Air conditioning system .................................... 380
Air conditioning filter.............. 457
Airbag manual on-off system ... 48
Airbags ....................................... 38 Airbag manual on-off system .................................. 48
Airbag operating conditions .... 44
Airbag precautions for your child .............................. 40
Correct driving posture............ 32
Curtain shield airbag operating conditions ............. 44
Curtain shield airbag precautions ........................... 42
General airbag precautions..... 40
Locations of airbags................ 38
Modification and disposal of airbags................ 43
Side airbag operating conditions ............................. 44
Side airbag precautions .......... 40
Side and curtain shield airbags operating conditions ............. 44
Side and curtain shield airbags precautions ........................... 40
SRS airbags ............................ 38
SRS warning light ................. 492 Alarm .......................................... 89
Warning buzzer............. 491, 498
Anchor brackets ........................ 60
Antennas (push-button start) ................ 155
Antennas (smart entry & start system) .......................... 134
Anti-lock Brake System (ABS) ........................ 305Warning light ......................... 492
Armrest ..................................... 408
Ashtrays ................................... 406
Assist grips .............................. 408
Audio input
*............................ 320
Audio system
*......................... 318
Audio input ............................ 320
AUX port/USB port................ 320
Bluetooth
® audio................... 350
CD player .............................. 326
iPod....................................... 334
MP3/WMA disc ..................... 326
Optimal use........................... 321
Portable music player ........... 349
Radio .................................... 323
Steering wheel audio switch ................................. 319
USB memory ........................ 342
Automatic headlight leveling system .................................... 234
Automatic High Beam ............. 269
Automatic light control
system .................................... 229
AUX port
*................................. 320
Auxiliary boxes ................ 398, 401
A
*: For vehicles with navigation/multimedia system, refer to “Navigation and multimedia system Owner’s manual”.

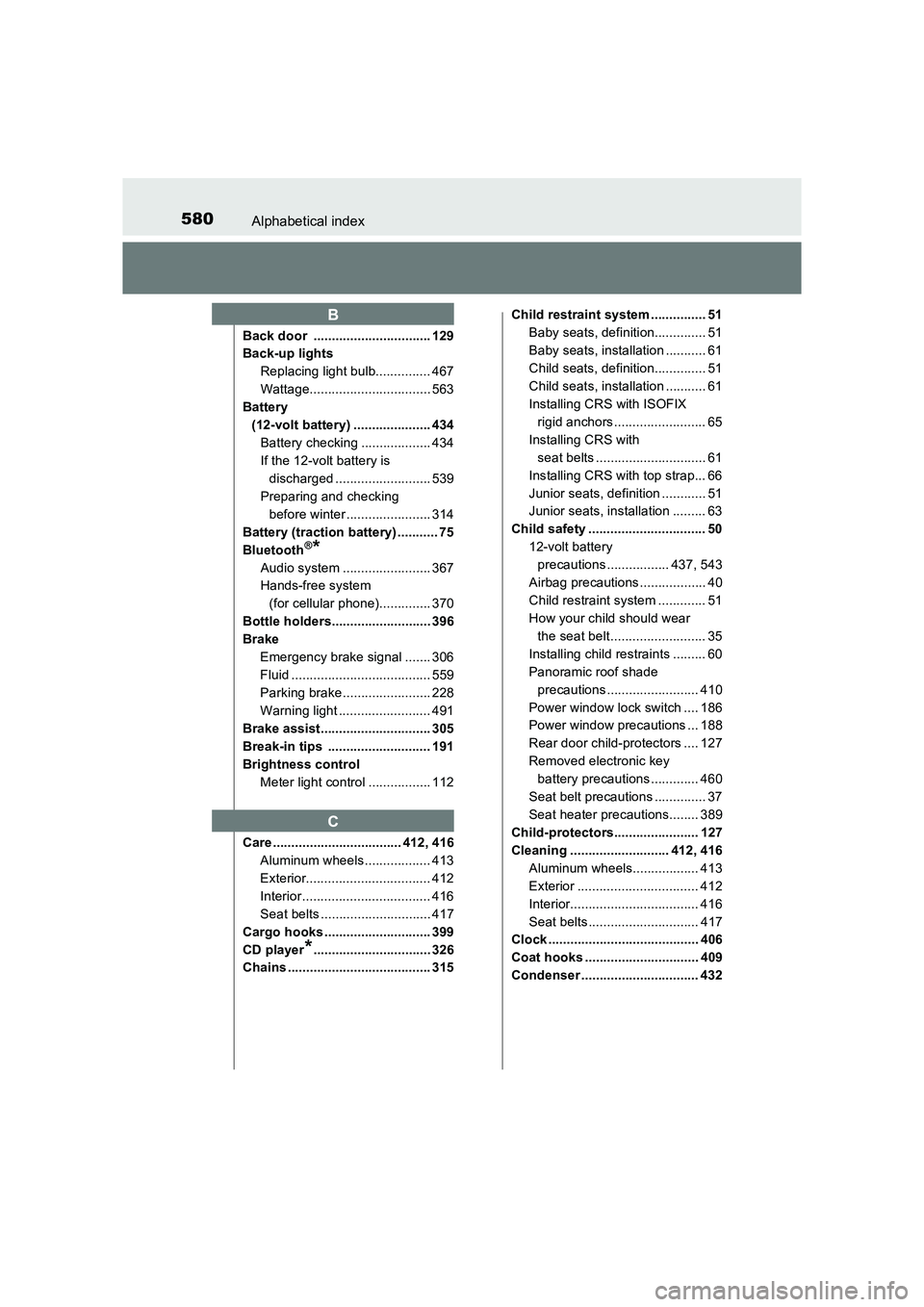

580Alphabetical index
UK AURIS_HV_HB_EE (OM12K47E)
Back door ................................ 129
Back-up lightsReplacing light bulb............... 467
Wattage................................. 563
Battery (12-volt battery) ..................... 434Battery checking ................... 434
If the 12-volt battery is discharged .......................... 539
Preparing and checking before winter ....................... 314
Battery (traction battery) ........... 75
Bluetooth
®*
Audio system ........................ 367
Hands-free system (for cellular phone).............. 370
Bottle holders........................... 396
Brake Emergency brake signal ....... 306
Fluid ...................................... 559
Parking brake........................ 228
Warning light ......................... 491
Brake assist.............................. 305
Break-in tips ............................ 191
Brightness control Meter light control ................. 112
Care ................................... 412, 416 Aluminum wheels.................. 413
Exterior.................................. 412
Interior................................... 416
Seat belts .............................. 417
Cargo hooks ............................. 399
CD player
*................................ 326
Chains ....................................... 315 Child restraint system ............... 51
Baby seats, definition.............. 51
Baby seats, installation ........... 61
Child seats, definition.............. 51
Child seats, installation ........... 61
Installing CRS with ISOFIX rigid anchors ......................... 65
Installing CRS with seat belts .............................. 61
Installing CRS with top strap... 66
Junior seats, definition ............ 51
Junior seats, installation ......... 63
Child safety ................................ 50 12-volt battery precautions ................. 437, 543
Airbag precautions .................. 40
Child restraint system ............. 51
How your child should wear the seat belt.......................... 35
Installing child restraints ......... 60
Panoramic roof shade precautions ......................... 410
Power window lock switch .... 186
Power window precautions ... 188
Rear door child-protectors .... 127
Removed electronic key battery precautions ............. 460
Seat belt precautions .............. 37
Seat heater precautions........ 389
Child-protectors....................... 127
Cleaning ........................... 412, 416
Aluminum wheels.................. 413
Exterior ................................. 412
Interior................................... 416
Seat belts.............................. 417
Clock ......................................... 406
Coat hooks ............................... 409
Condenser ................................ 432
B
C
