After the front sensor recognizes a sign, it is displayed on the multi-
information display when the vehicle passes the sign.
●When the driving assist system
information is selected, a maxi-
mum of 3 signs can be dis-
played. (P. 107)
●When other than the driving
assist system information is
selected, a speed limit sign or
an all canceled sign can be dis-
played. (P. 107)
A no overtaking sign and a speed
limit sign with supplemental mark
are not displayed. However, if
signs other than speed limit signs
are recognized, they are men-
tioned in a stack under the current
speed limit sign.
Indication on the multi-information display
AURIS Touring Sports_OM_Europe_OM12L13E.book 281 ページ ２０１６年６月２７日　月曜日　午後５時２１分

2824-5. Toyota Safety Sense
AURIS Touring Sports_EE (12L13E)
The following types of road signs, including electronic signs and blink-
ing signs, are recognized.
A non-official (not meeting the Vienna Convention) or a recently intro-
duced traffic sign may not be recognized.
*1: A speed limit sign with a value greater than 130 may not be recognized
and a wrong speed limit may be displayed.
*2: If the turn signal indicator is not operated when changing lanes, the mark
does not display.

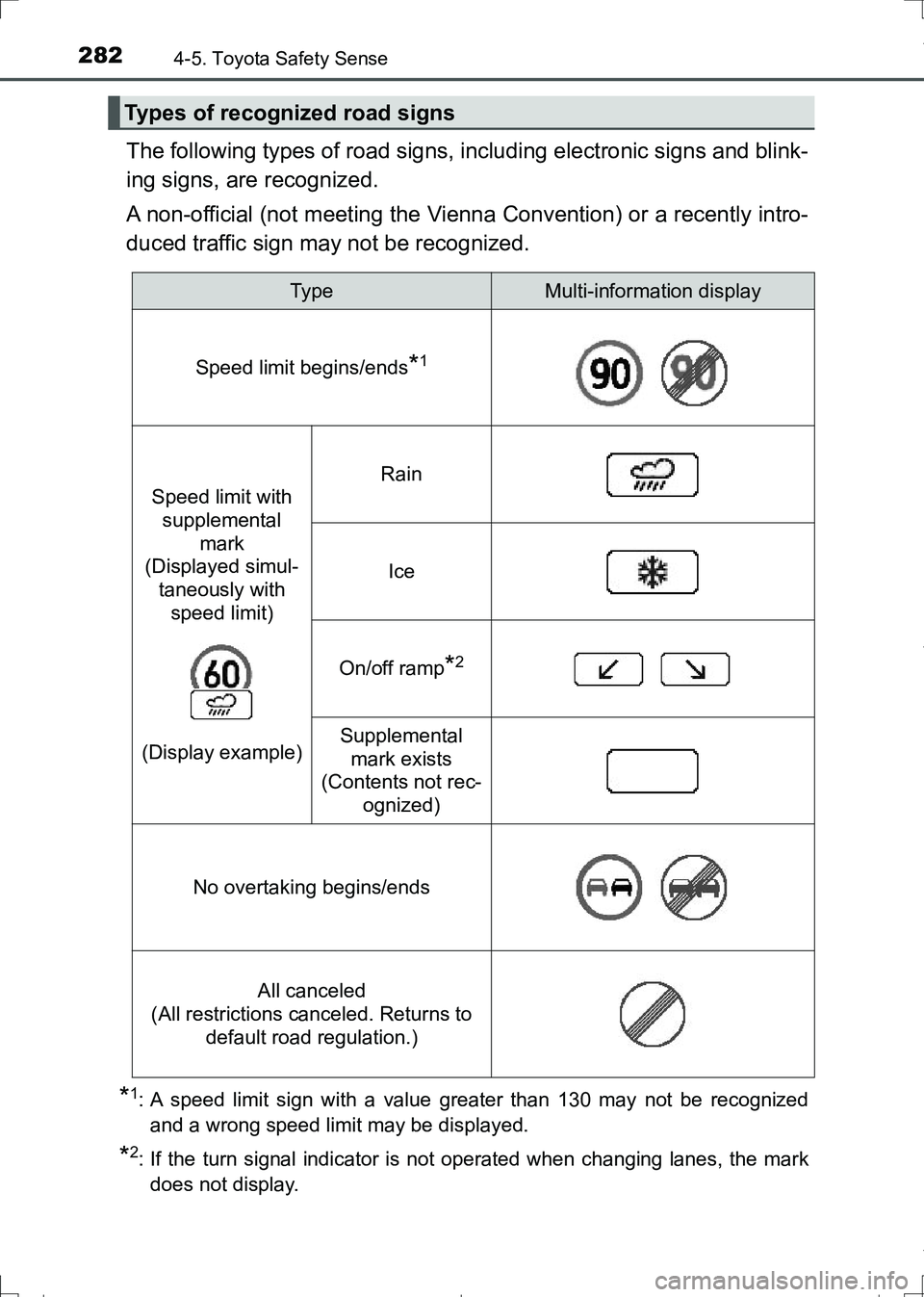

Types of recognized road signs
Ty p eMulti-information display
Speed limit begins/ends*1
Speed limit with
supplemental
mark
(Displayed simul-
taneously with
speed limit)
(Display example)
Rain
Ice
On/off ramp*2
Supplemental
mark exists
(Contents not rec-
ognized)
No overtaking begins/ends
All canceled
(All restrictions canceled. Returns to
default road regulation.)
AURIS Touring Sports_OM_Europe_OM12L13E.book 282 ページ ２０１６年６月２７日　月曜日　午後５時２１分

2834-5. Toyota Safety Sense
AURIS Touring Sports_EE (12L13E)
4
Driving
In the following situations, the RSA system alerts the driver using a
warning display.
●When the vehicle speed exceeds the speed warning threshold
applied to the speed limit of the sign displayed on the multi-informa-
tion display, the sign color becomes inverted.
●If it is detected that your vehicle is overtaking when a no overtaking
sign is displayed on the multi-information display, the sign flashes.
Depending on the situation, traffic environment (traffic direction,
speed, unit) may be detected incorrectly and a warning display may
not operate properly.
■Automatic turn-off of RSA sign display
One or more signs automatically turn off in the following situations.
●A new sign is not recognized for a certain distance.
●The road changes due to a left or right turn, etc.
Depending on the situation, the driving behavior (turning, lane change, etc.)
may be detected incorrectly and the automatic turn-off may not operate
properly.

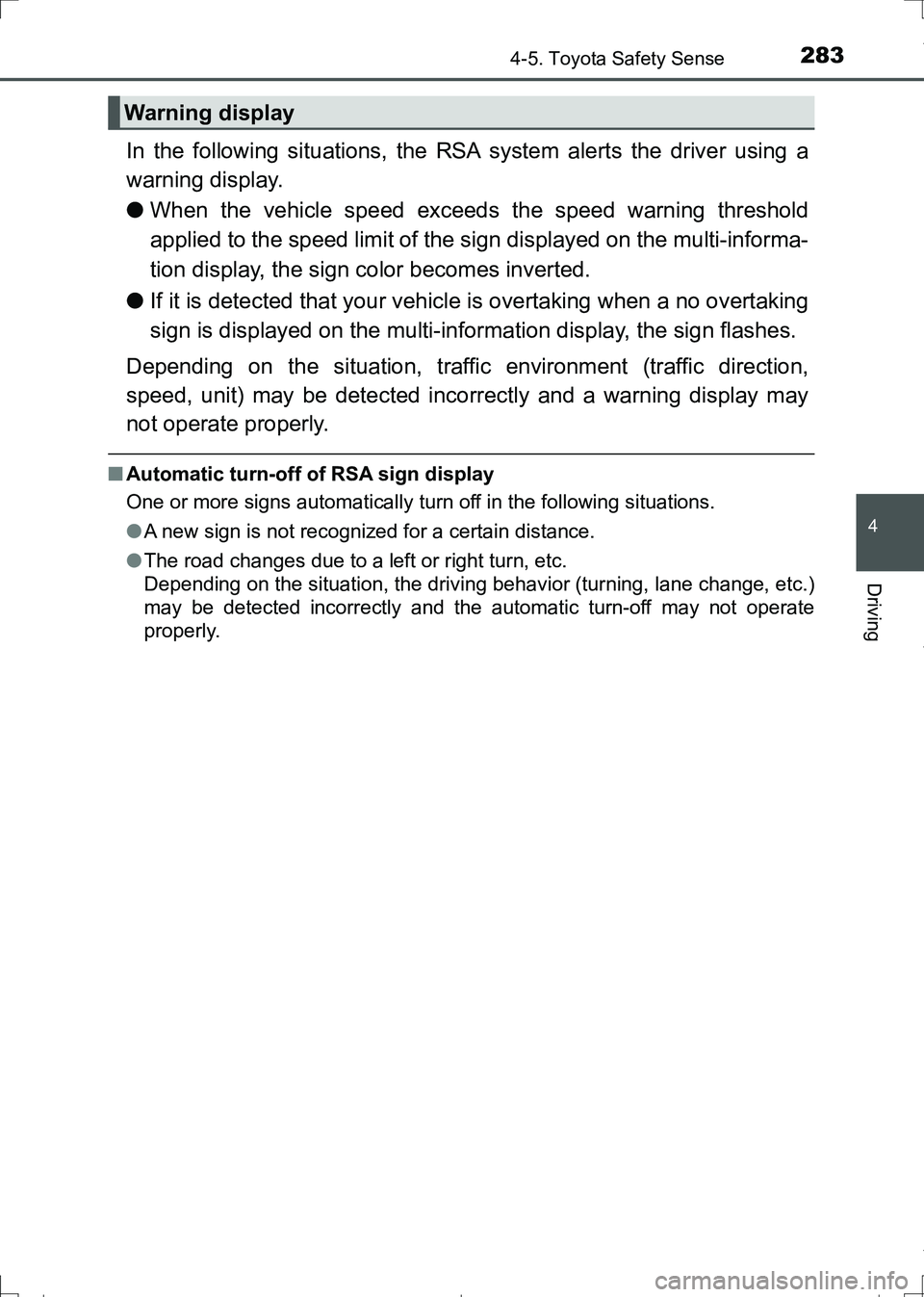

Warning display
AURIS Touring Sports_OM_Europe_OM12L13E.book 283 ページ ２０１６年６月２７日　月曜日　午後５時２１分

2844-5. Toyota Safety Sense
AURIS Touring Sports_EE (12L13E)■Conditions in which the function may not operate or detect correctly
In the following situations, RSA does not operate normally and may not rec-
ognize signs, display the incorrect sign, etc. However, this does not indicate a
malfunction.
●The front sensor is misaligned due to a strong impact being applied to the
sensor, etc.
●Dirt, snow, stickers, etc., are on the windshield near the front sensor.
●In inclement weather such as heavy rain, fog, snow or sand storms
●Light from an oncoming vehicle, the sun, etc., enters the front sensor.
●The sign is small, dirty, faded, tilted or bent, and if an electronic sign, the
contrast is poor.
●All or part of the sign is hidden by the leaves of a tree, a pole, etc.
●The sign is only visible to the front sensor for a short amount of time.
●The driving scene (turning, lane change, etc.) is judged incorrectly.
●Even if it is a sign not appropriate for the currently traveled lane, such a sign
exists directly after a freeway branches, or in an adjacent lane just before
merging.
●Stickers are attached to the rear of the preceding vehicle.
●A sign resembling a system compatible sign is recognized.
●The vehicle is driven in a country with a different direction of traffic.
●Side road speed signs may be detected and displayed (if positioned in sight
of the front sensor) while the vehicle is traveling on the main road.
●Roundabout exit road speed signs may be detected and displayed (if posi-
tioned in sight of the front sensor) while traveling on a roundabout.
●The speed information displayed on the meter and that displayed on the
Navigation system (if equipped) may be different due to the Navigation sys-
tem using map data.
AURIS Touring Sports_OM_Europe_OM12L13E.book 284 ページ ２０１６年６月２７日　月曜日　午後５時２１分

2854-5. Toyota Safety Sense
AURIS Touring Sports_EE (12L13E)
4
Driving

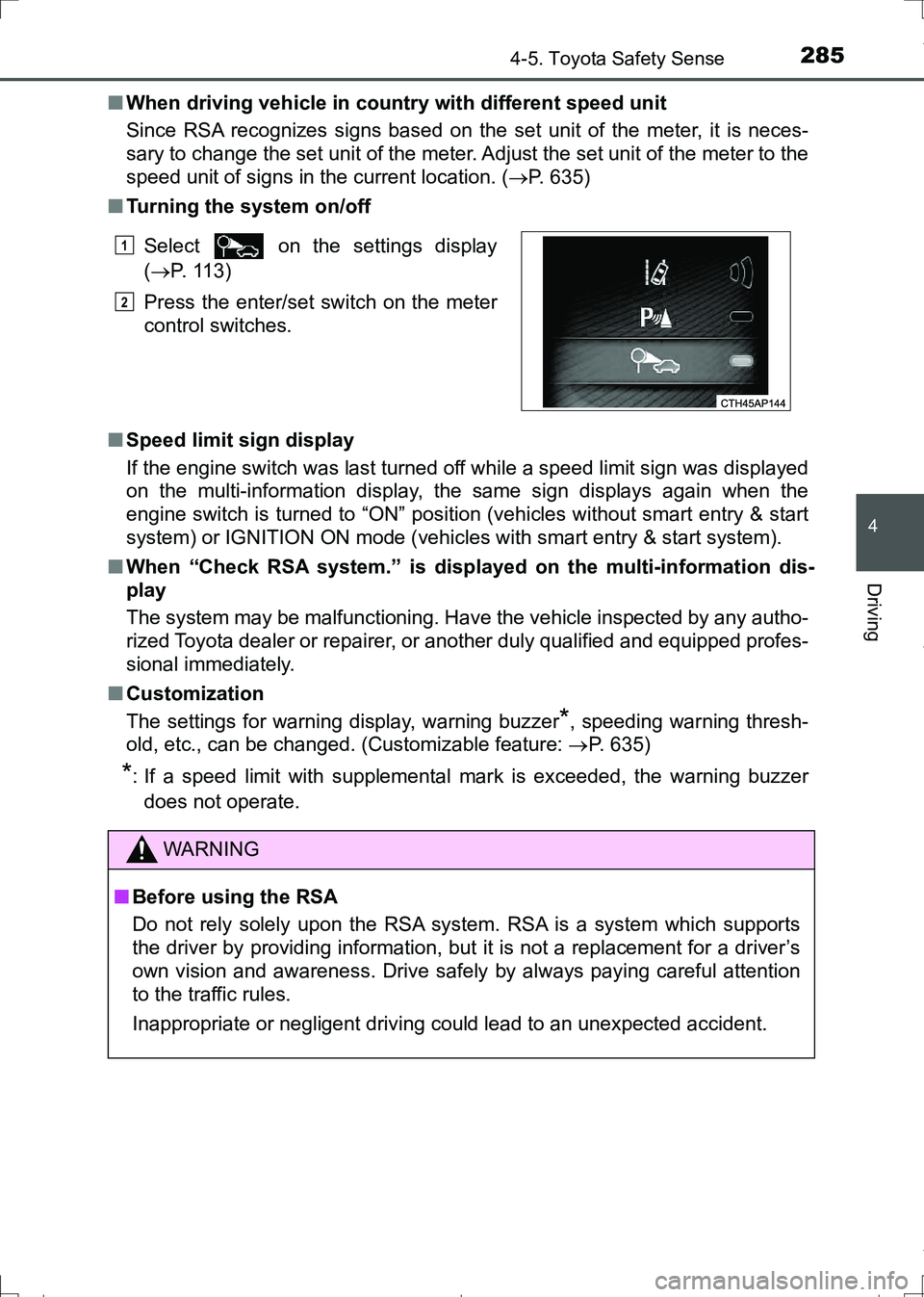

■When driving vehicle in country with different speed unit
Since RSA recognizes signs based on the set unit of the meter, it is neces-
sary to change the set unit of the meter. Adjust the set unit of the meter to the
speed unit of signs in the current location. (P. 635)
■Turning the system on/off
■Speed limit sign display
If the engine switch was last turned off while a speed limit sign was displayed
on the multi-information display, the same sign displays again when the
engine switch is turned to “ON” position (vehicles without smart entry & start
system) or IGNITION ON mode (vehicles with smart entry & start system).
■When “Check RSA system.” is displayed on the multi-information dis-
play
The system may be malfunctioning. Have the vehicle inspected by any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped profes-
sional immediately.
■Customization
The settings for warning display, warning buzzer
*, speeding warning thresh-
old, etc., can be changed. (Customizable feature: P. 635)
*: If a speed limit with supplemental mark is exceeded, the warning buzzer
does not operate. Select on the settings display
(P. 113)
Press the enter/set switch on the meter
control switches.
WARNING
■Before using the RSA
Do not rely solely upon the RSA system. RSA is a system which supports
the driver by providing information, but it is not a replacement for a driver’s
own vision and awareness. Drive safely by always paying careful attention
to the traffic rules.
Inappropriate or negligent driving could lead to an unexpected accident.
1
2
AURIS Touring Sports_OM_Europe_OM12L13E.book 285 ページ ２０１６年６月２７日　月曜日　午後５時２１分

286
AURIS Touring Sports_EE (12L13E)
4-6. Using the driving support systems
◆When the shift lever is in D or M
■Stopping the engine
While driving with the shift lever
in D or M, depress the brake
pedal, and stop the vehicle.
The Stop & Start indicator will
come on.
■
Restarting the engine
Release the brake pedal.
The Stop & Start indicator will turn off.

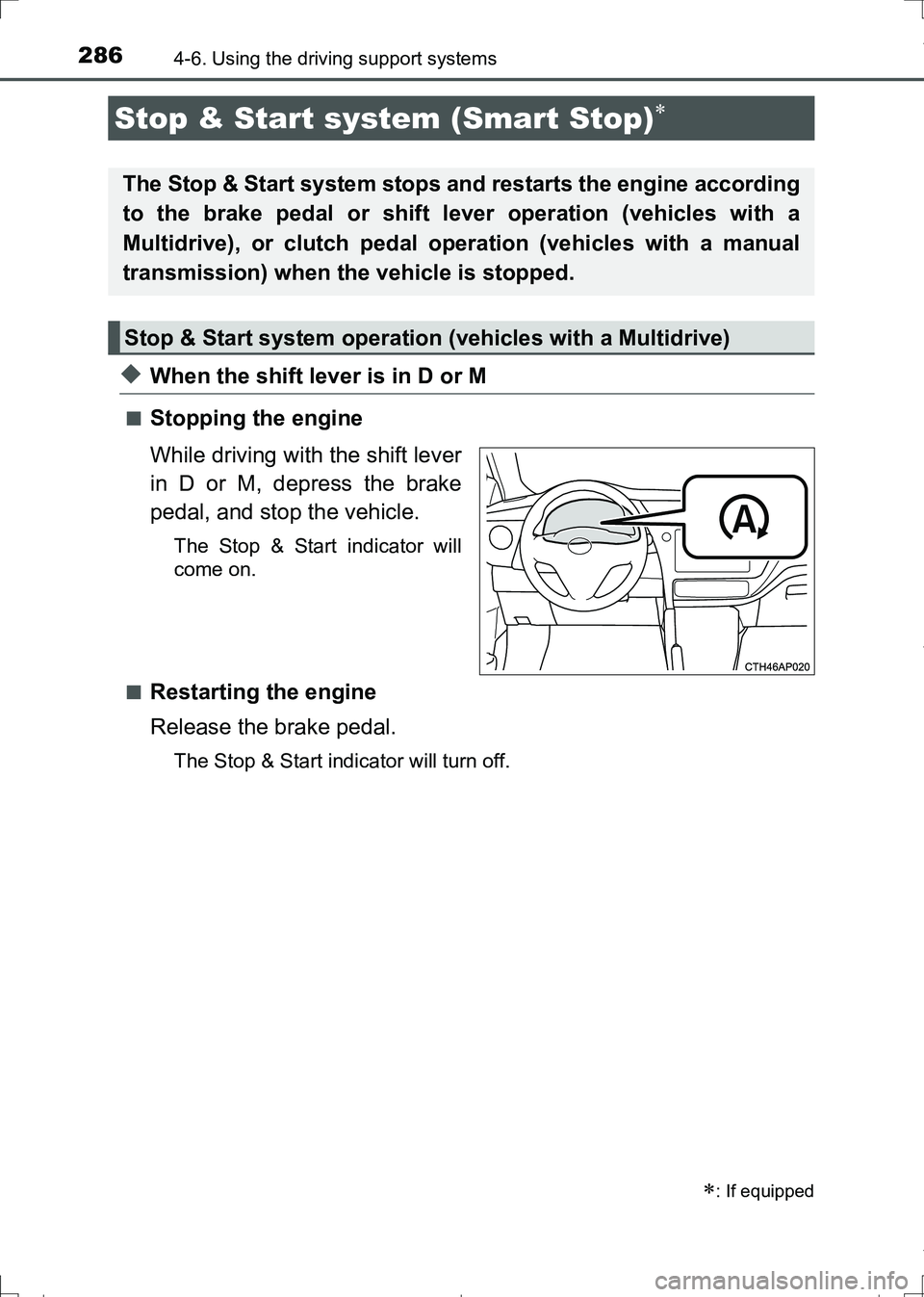

Stop & Start system (Smart Stop)
: If equipped
The Stop & Start system stops and restarts the engine according
to the brake pedal or shift lever operation (vehicles with a
Multidrive), or clutch pedal operation (vehicles with a manual
transmission) when the vehicle is stopped.
Stop & Start system operation (vehicles with a Multidrive)
AURIS Touring Sports_OM_Europe_OM12L13E.book 286 ページ ２０１６年６月２７日　月曜日　午後５時２１分

2874-6. Using the driving support systems
AURIS Touring Sports_EE (12L13E)
4
Driving

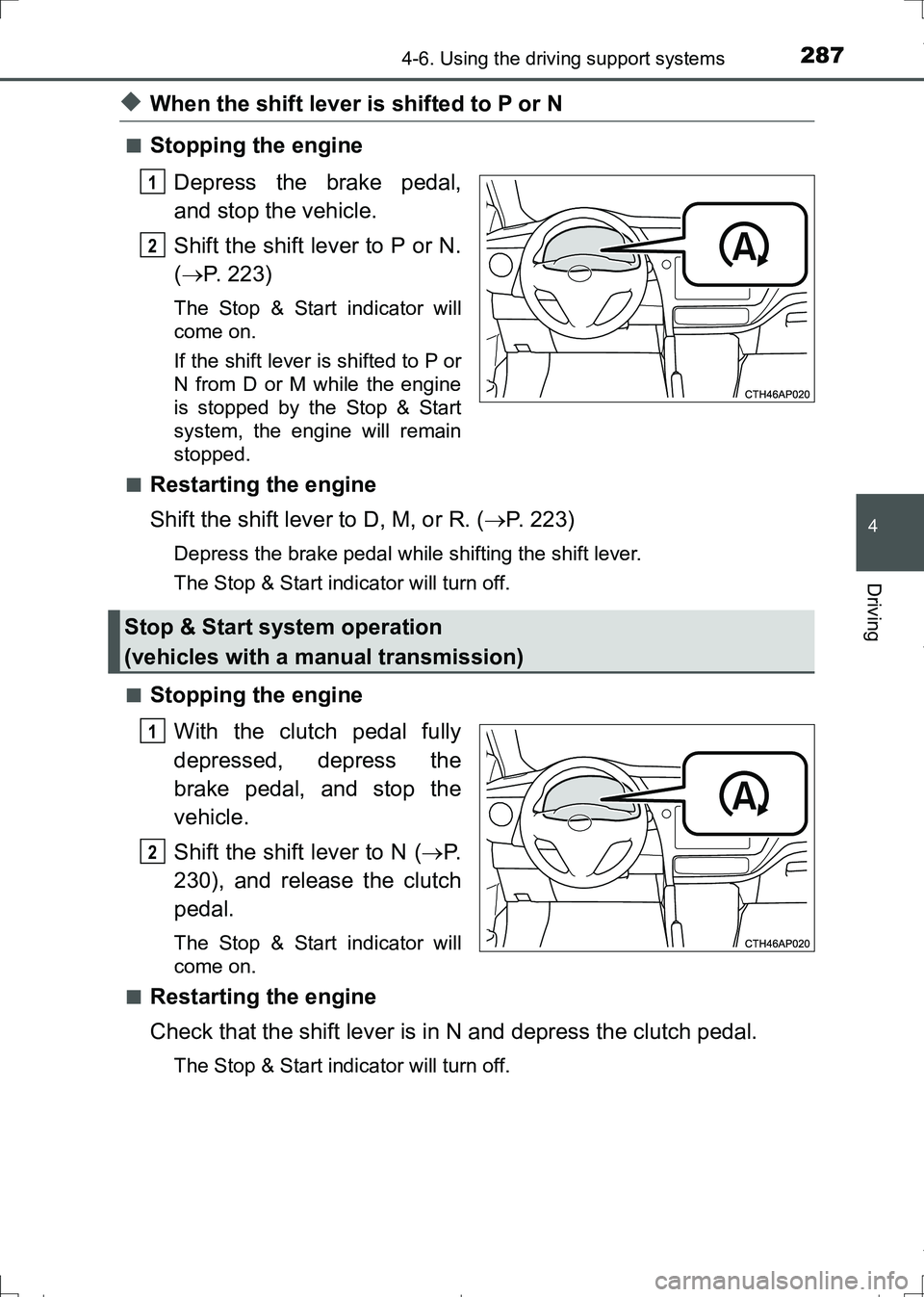

◆When the shift lever is shifted to P or N
■Stopping the engine
Depress the brake pedal,
and stop the vehicle.
Shift the shift lever to P or N.
(P. 223)
The Stop & Start indicator will
come on.
If the shift lever is shifted to P or
N from D or M while the engine
is stopped by the Stop & Start
system, the engine will remain
stopped.
■
Restarting the engine
Shift the shift lever to D, M, or R. (P. 223)
Depress the brake pedal while shifting the shift lever.
The Stop & Start indicator will turn off.
■
Stopping the engine
With the clutch pedal fully
depressed, depress the
brake pedal, and stop the
vehicle.
Shift the shift lever to N (P.
230), and release the clutch
pedal.
The Stop & Start indicator will
come on.
■
Restarting the engine
Check that the shift lever is in N and depress the clutch pedal.
The Stop & Start indicator will turn off.
1
2
Stop & Start system operation
(vehicles with a manual transmission)
1
2
AURIS Touring Sports_OM_Europe_OM12L13E.book 287 ページ ２０１６年６月２７日　月曜日　午後５時２１分

2884-6. Using the driving support systems
AURIS Touring Sports_EE (12L13E)
Press the Stop & Start cancel
switch to disable the Stop & Start
system.
The Stop & Start cancel indicator
will come on.
Pressing the switch again will
enable the Stop & Start system and
the Stop & Start cancel indicator
will turn off.
■
Automatic reactivation of the Stop & Start system
Vehicles without a smart entry & start system
Even if the Stop & Start system is disabled by the Stop & Start can-
cel switch, it will be automatically re-enabled once the engine
switch is turned to the “LOCK” position then to the “START” posi-
tion.
Vehicles with a smart entry & start system
Even if the Stop & Start system is disabled by the Stop & Start can-
cel switch, it will be automatically re-enabled once the engine
switch is turned off, and then the engine is started.
■If the Stop & Start cancel switch is pressed while the vehicle is
stopped
●When the engine is stopped by the Stop & Start system, pressing
the Stop & Start cancel switch will restart the engine.
From the next time the vehicle is stopped (after Stop & Start sys-
tem has been turned off), the engine will not be stopped.
●With the Stop & Start system disabled, pressing the Stop & Start
cancel switch will re-enable the system but not stop the engine.
From the next time the vehicle is stopped (after Stop & Start sys-
tem has been turned on), the engine will be stopped.

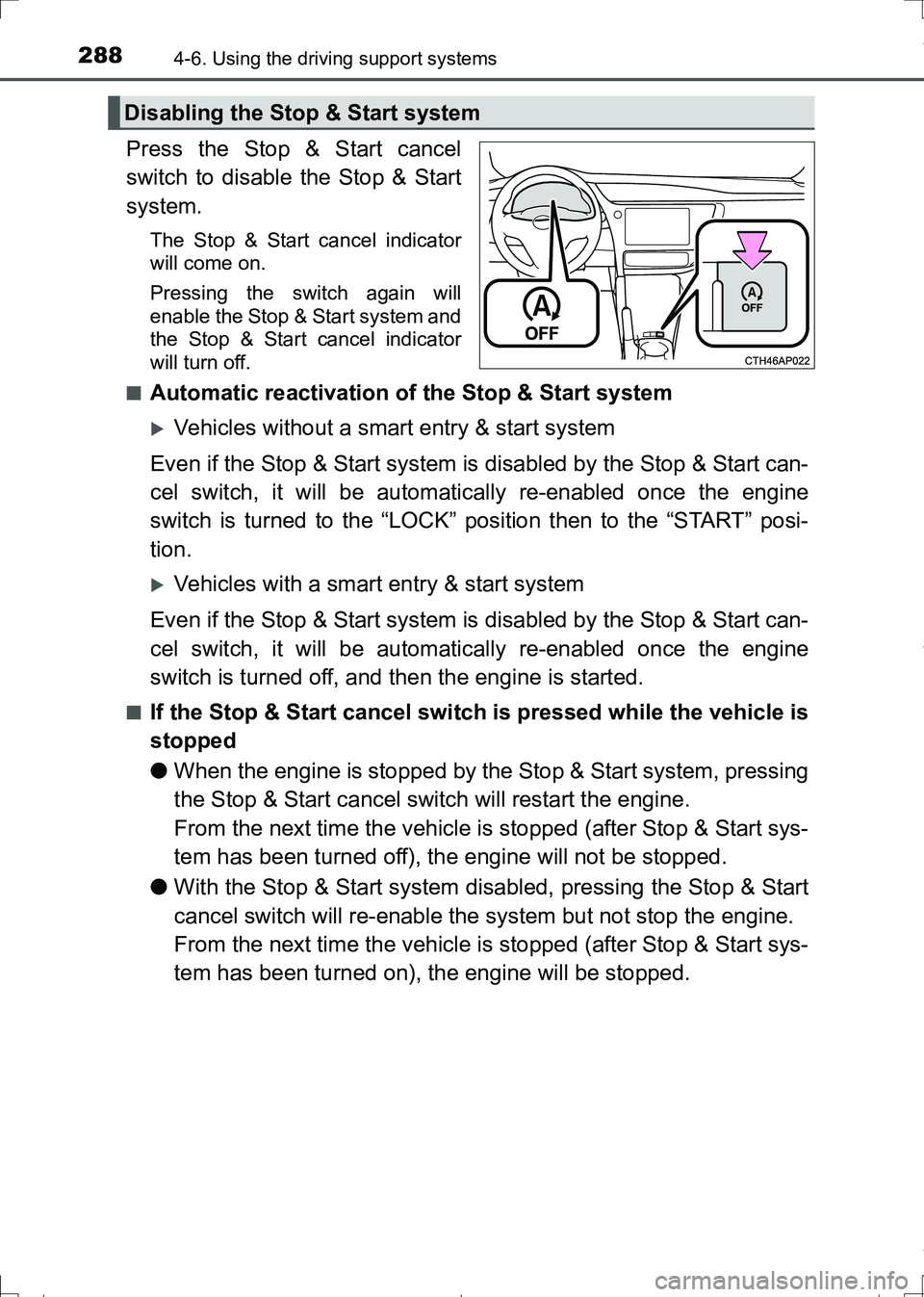

Disabling the Stop & Start system
AURIS Touring Sports_OM_Europe_OM12L13E.book 288 ページ ２０１６年６月２７日　月曜日　午後５時２１分

2894-6. Using the driving support systems
AURIS Touring Sports_EE (12L13E)
4
Driving
After the engine is stopped by the Stop & Start system when the vehi-
cle is on an incline, brake force is temporarily maintained to prevent
rolling backwards until the engine is restarted and drive force is gener-
ated.
When drive force is generated, the maintained brake force is automat-
ically canceled.
●This function operates on flat surfaces as well as steep inclines.
●Sound may be generated from the brakes, but this is not a malfunc-
tion.
●Brake pedal response may change and vibration may occur, but
these are not malfunctions.
■Operating conditions
●The Stop & Start system is operational when all of the following conditions
are met:
• Vehicles with a Multidrive: The brake pedal is being depressed firmly.
• Vehicles with a Multidrive: The shift lever is in a position other than R.
• is off.
• The driver’s seat belt is fastened.
• The engine is adequately warmed up.
• The driver’s door is closed.
• Vehicles with a Multidrive: The accelerator pedal is not being depressed.
• Vehicles with a manual transmission: The clutch pedal is not being
depressed.
• The outside temperature is -5°C (23°F) or higher.
• Vehicles with a manual transmission: The shift lever is in N.
• The hood is closed.

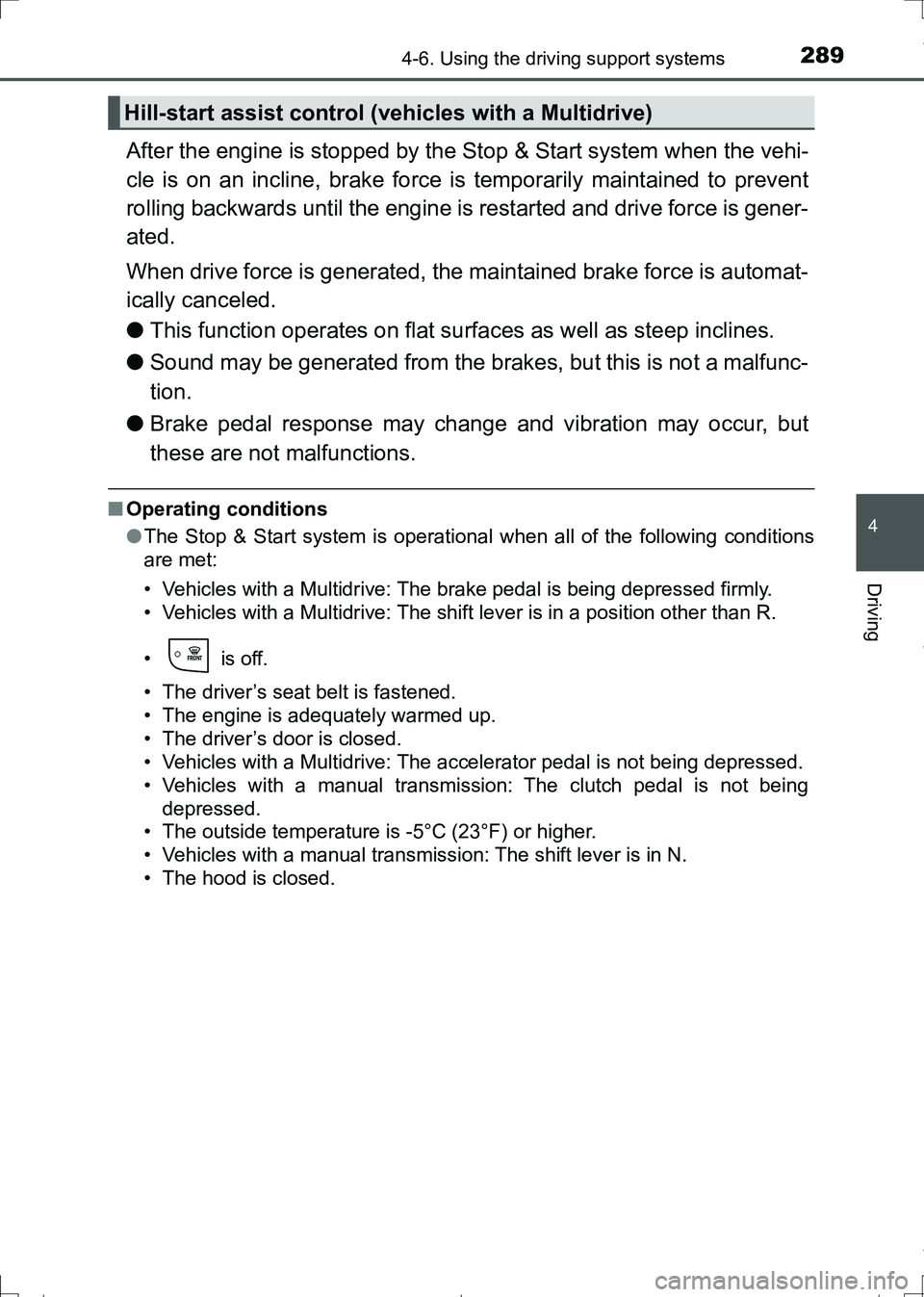

Hill-start assist control (vehicles with a Multidrive)
AURIS Touring Sports_OM_Europe_OM12L13E.book 289 ページ ２０１６年６月２７日　月曜日　午後５時２１分

2904-6. Using the driving support systems
AURIS Touring Sports_EE (12L13E)●In the following situations the engine may not be stopped by the Stop & Start
system. This is not a malfunction of the Stop & Start system.
• The air conditioning system is being used when the ambient temperature
is high or low.
• The battery is not sufficiently charged or is undergoing a periodic
recharge.
• The brake booster vacuum is low.
• Vehicles with a Multidrive: The vehicle is stopped on a steep incline.
• The steering wheel is being operated.
• Due to traffic or other circumstances the vehicle is stopped repeatedly.
• The vehicle is being driven in a high altitude area.
• Engine coolant temperature or transmission fluid temperature is
extremely low or high.
• The battery fluid temperature is extremely low or high.
• The battery was recently replaced or the battery terminals were recently
disconnected.
• Vehicles with a power heater: The power heater is being used.
●In the following situations, the engine will restart automatically if the engine
is stopped by the Stop & Start system. (To enable stopping of the engine by
the Stop & Start system, drive the vehicle.)
• The air conditioning system is turned on.
• is turned on.
• The steering wheel is operated.
• Vehicles with a Multidrive: The shift lever is shifted to R from D or M.
• Vehicles with a Multidrive: The shift lever is shifted to D, M or R from P or
N.
• The driver’s seat belt is unfastened.
• The driver’s door is opened.
• Vehicles with a Multidrive: The accelerator pedal is depressed.
• The Stop & Start cancel switch is pressed.
• The vehicle starts to roll on an incline.
• Vehicles with a power heater: The power heater is turned on.
●In the following situations, the engine may restart automatically if the engine
is stopped by the Stop & Start system. (To enable stopping of the engine by
the Stop & Start system, drive the vehicle.)
• The brake pedal is pumped or strongly depressed.
• The air conditioning system is being used.
• The battery is not sufficiently charged.
AURIS Touring Sports_OM_Europe_OM12L13E.book 290 ページ ２０１６年６月２７日　月曜日　午後５時２１分
