■Front side sensors
■Center sensors
Approximate distance to
obstacleMulti-information
displayBuzzer
Less than 25 cm
(0.8 ft.)Continuous
Approximate distance to
obstacleMulti-information
displayBuzzer
Front: 100 to 55 cm
(3.3 to 1.8 ft.)
Rear: 150 to 55 cm
(4.9 to 1.8 ft.)Slow
55 to 42.5 cm
(1.8 to 1.4 ft.)Medium
42.5 to 30 cm
(1.4 to 1.0 ft.)Fast
Less than 30 cm
(1.0 ft.)Continuous
AURIS Touring Sports_OM_Europe_OM12L13E.book 311 ページ ２０１６年６月２７日　月曜日　午後５時２１分

3124-6. Using the driving support systems
AURIS Touring Sports_EE (12L13E)
Approximately 100 cm (3.3 ft.)
Approximately 150 cm (4.9 ft.)
Approximately 25 cm (0.8 ft.)
Approximately 50 cm (1.6 ft.)
Approximately 50 cm (1.6 ft.)
The diagram shows the detection
range of the sensors. Note that the
sensors cannot detect obstacles
that are extremely close to the
vehicle.
The range of the sensors may
change depending on the shape of
the object etc.
Detection range of the sensors
1
2
3
4
5
AURIS Touring Sports_OM_Europe_OM12L13E.book 312 ページ ２０１６年６月２７日　月曜日　午後５時２１分

3134-6. Using the driving support systems
AURIS Touring Sports_EE (12L13E)
4
Driving
■The Toyota parking assist-sensor can be operated when
Vehicles without a smart entry & start system:
The engine switch is in the “ON” position.
Vehicles with a smart entry & start system:
The engine switch is in IGNITION ON mode.
●Front sensors:
• Vehicles with a Multidrive:
The shift lever is in a position other than P.
• Vehicles with a manual transmission:
The parking brake is not applied.
• The vehicle speed is less than about 10 km/h (6 mph).
(At any speed when the shift lever is in R)
●Rear sensors:
The shift lever is in R.
■Sensor detection information
●Certain vehicle conditions and the surrounding environment may affect the
ability of the sensor to correctly detect obstacles. Particular instances where
this may occur are listed below.
• There is dirt, snow or ice on the sensor.
• A sensor is frozen.
• A sensor is covered in any way.
• The vehicle is leaning considerably to one side.
• On an extremely bumpy road, on an incline, on gravel, or on grass.
• The vicinity of the vehicle is noisy due to vehicle horns, motorcycle
engines, air brakes of large vehicles, or other loud noises producing ultra-
sonic waves.
• There is another vehicle equipped with parking assist sensors in the
vicinity.
• A sensor is coated with a sheet of spray or heavy rain.
• The vehicle is equipped with a fender pole or wireless antenna.
• Towing eyelet is installed.
• A bumper or sensor receives a strong impact.
• The vehicle is approaching a tall or curved curb.
• In harsh sunlight or intense cold weather.
• A non-genuine Toyota suspension (lowered suspension etc.) is installed.
In addition to the examples above, there are instances in which, because of
their shapes, signs and other objects may be judged by the sensor to be
closer than they are.
AURIS Touring Sports_OM_Europe_OM12L13E.book 313 ページ ２０１６年６月２７日　月曜日　午後５時２１分

3144-6. Using the driving support systems
AURIS Touring Sports_EE (12L13E)●The shape of the obstacle may prevent the sensor from detecting it. Pay
particular attention to the following obstacles:
• Wires, fences, ropes, etc.
• Cotton, snow and other materials that absorb sound waves
• Sharply-angled objects
• Low obstacles
• Tall obstacles with upper sections projecting outwards in the direction of
your vehicle
■If “Clean sonar.” is displayed on the multi-information display
A sensor may be dirty or covered with snow or ice. In this case, clean the
sensor and the system should return to normal.
If a sensor is frozen due to low temperatures, a warning message may be dis-
played or an obstacle may not be detected. When the sensor thaws out, the
system should return to normal.
■If “Check sonar system.” is displayed on the multi-information display
The system may not operate due to the malfunction of a sensor.
Have the vehicle inspected by any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional.
WARNING
■Caution when using the Toyota parking assist-sensor
Observe the following precautions.
Failing to do so may result in the vehicle being unable to be driven safely
and possibly cause an accident.
●Do not use the sensor at speeds in excess of 10 km/h (6 mph).
●Do not attach any accessories within the sensor range.
NOTICE
■Notes on the Toyota parking assist-sensor
●Do not apply intensive bursts of water or steam to the sensor area.
Doing so may result in the sensor malfunctioning.
●If your vehicle is involved in an accident, it will affect the sensors and may
result in a system failure.
Contact any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional.
AURIS Touring Sports_OM_Europe_OM12L13E.book 314 ページ ２０１６年６月２７日　月曜日　午後５時２１分

3154-6. Using the driving support systems
AURIS Touring Sports_EE (12L13E)
4
Driving
Simple-IPA switch
Display
Indicator
Simple-IPA (Simple-Intelligent Parking
Assist)

: If equipped
Simple-IPA is a system that assists parallel parking operations.
When parking between two parked vehicles or in the space
behind one parked vehicle, the sensors installed on the sides of
the front bumper are utilized and a space which the vehicle can
be parked in is detected. Parking operations are then assisted
by automatic operation of the steering wheel.
Detecting allowable parking space
Parking the vehicle in a detected parking space
*
Turning the steering wheel to park in the target parking space*
Parking in the target parking space is complete*
*
: The steering wheel is operated automatically.
Simple-IPA switch and multi-information display
1
2
3
4
1
2
3
AURIS Touring Sports_OM_Europe_OM12L13E.book 315 ページ ２０１６年６月２７日　月曜日　午後５時２１分

3164-6. Using the driving support systems
AURIS Touring Sports_EE (12L13E)

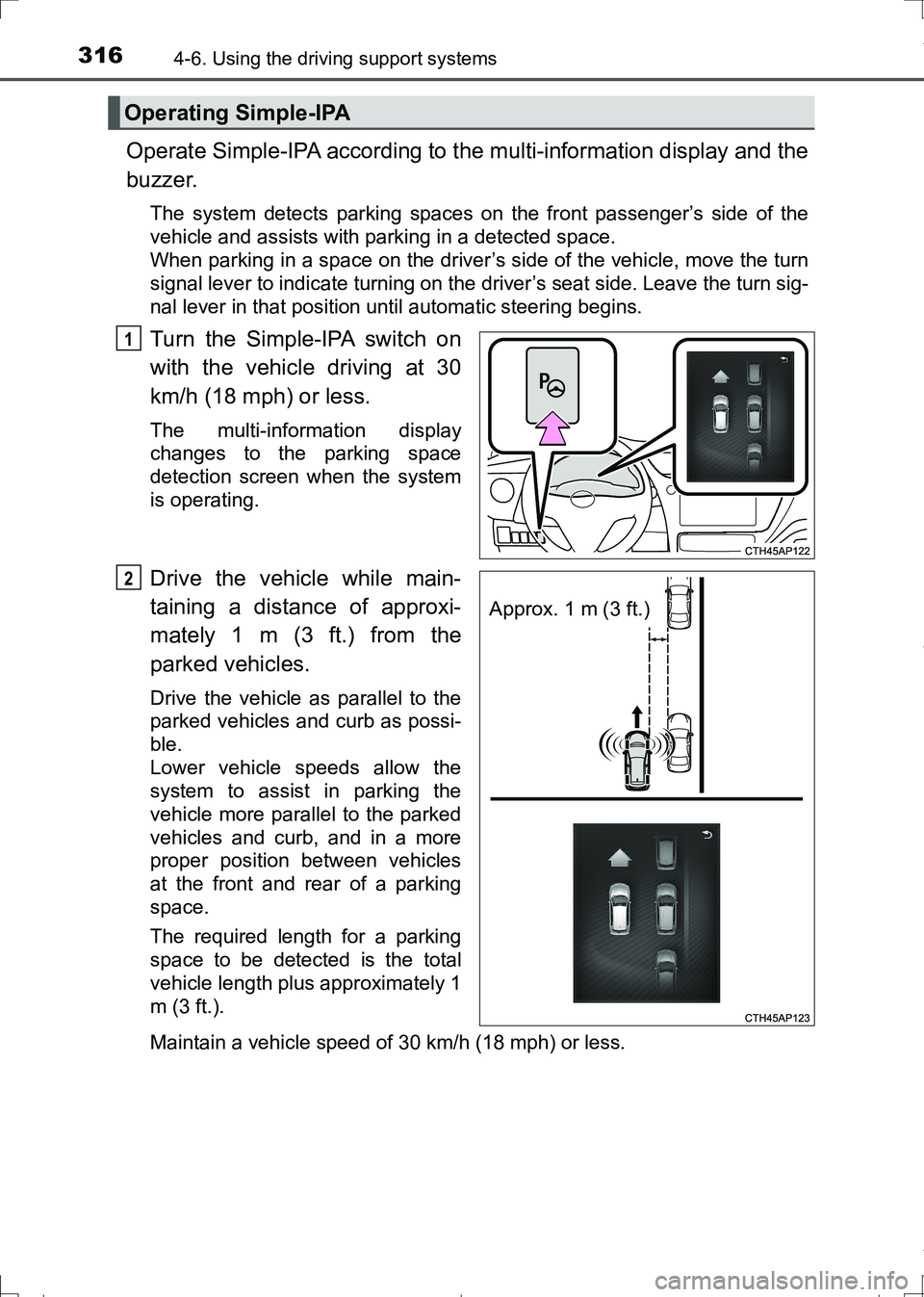

Operate Simple-IPA according to the multi-information display and the
buzzer.
The system detects parking spaces on the front passenger’s side of the
vehicle and assists with parking in a detected space.
When parking in a space on the driver’s side of the vehicle, move the turn
signal lever to indicate turning on the driver’s seat side. Leave the turn sig-
nal lever in that position until automatic steering begins.
Turn the Simple-IPA switch on
with the vehicle driving at 30
km/h (18 mph) or less.
The multi-information display
changes to the parking space
detection screen when the system
is operating.
Drive the vehicle while main-
taining a distance of approxi-
mately 1 m (3 ft.) from the
parked vehicles.
Drive the vehicle as parallel to the
parked vehicles and curb as possi-
ble.
Lower vehicle speeds allow the
system to assist in parking the
vehicle more parallel to the parked
vehicles and curb, and in a more
proper position between vehicles
at the front and rear of a parking
space.
The required length for a parking
space to be detected is the total
vehicle length plus approximately 1
m (3 ft.).
Maintain a vehicle speed of 30 km/h (18 mph) or less.
Operating Simple-IPA
1
Approx. 1 m (3 ft.)
2
AURIS Touring Sports_OM_Europe_OM12L13E.book 316 ページ ２０１６年６月２７日　月曜日　午後５時２１分

3174-6. Using the driving support systems
AURIS Touring Sports_EE (12L13E)
4
Driving

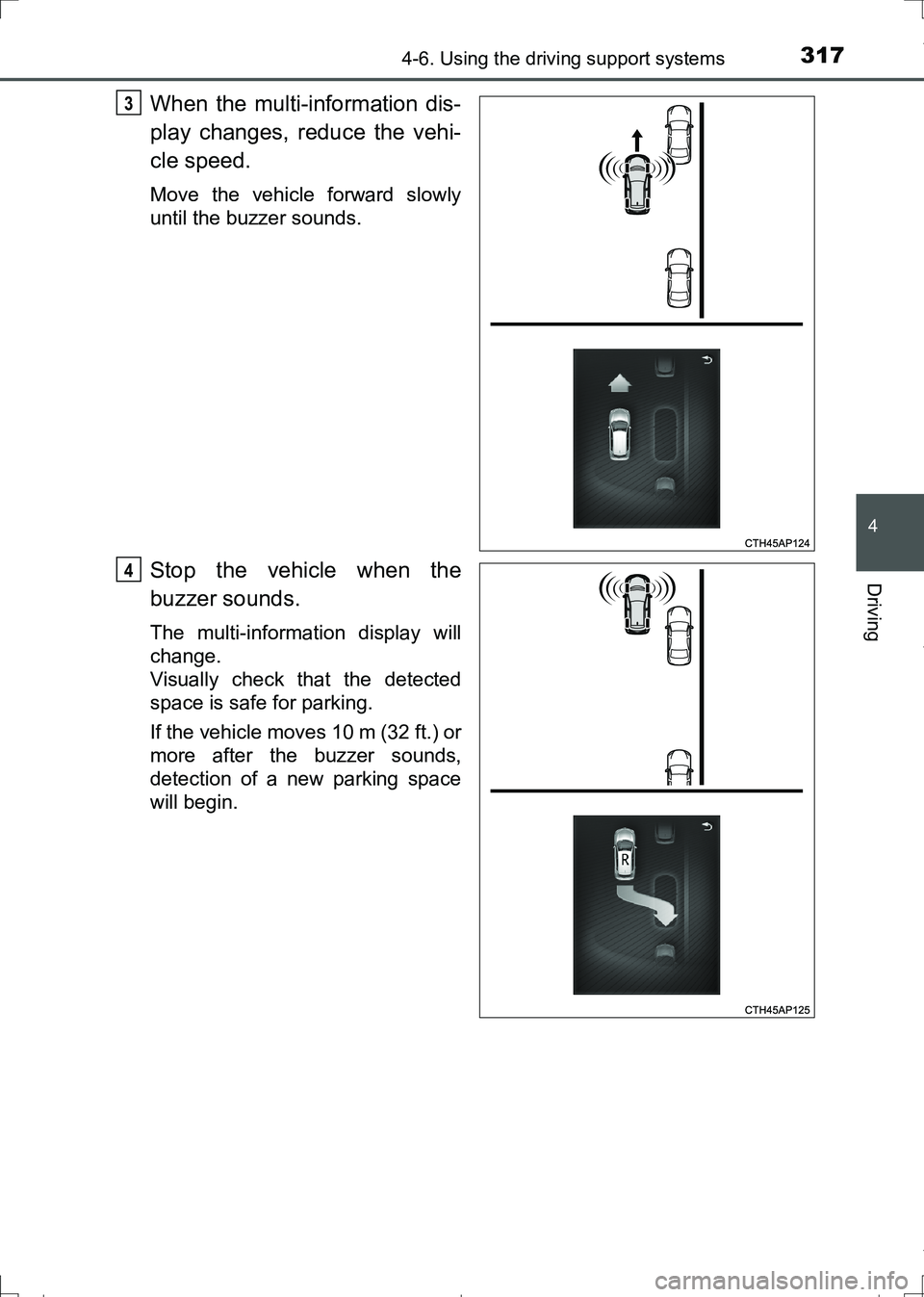

When the multi-information dis-
play changes, reduce the vehi-
cle speed.
Move the vehicle forward slowly
until the buzzer sounds.
Stop the vehicle when the
buzzer sounds.
The multi-information display will
change.
Visually check that the detected
space is safe for parking.
If the vehicle moves 10 m (32 ft.) or
more after the buzzer sounds,
detection of a new parking space
will begin.
3
4
AURIS Touring Sports_OM_Europe_OM12L13E.book 317 ページ ２０１６年６月２７日　月曜日　午後５時２１分

3184-6. Using the driving support systems
AURIS Touring Sports_EE (12L13E)

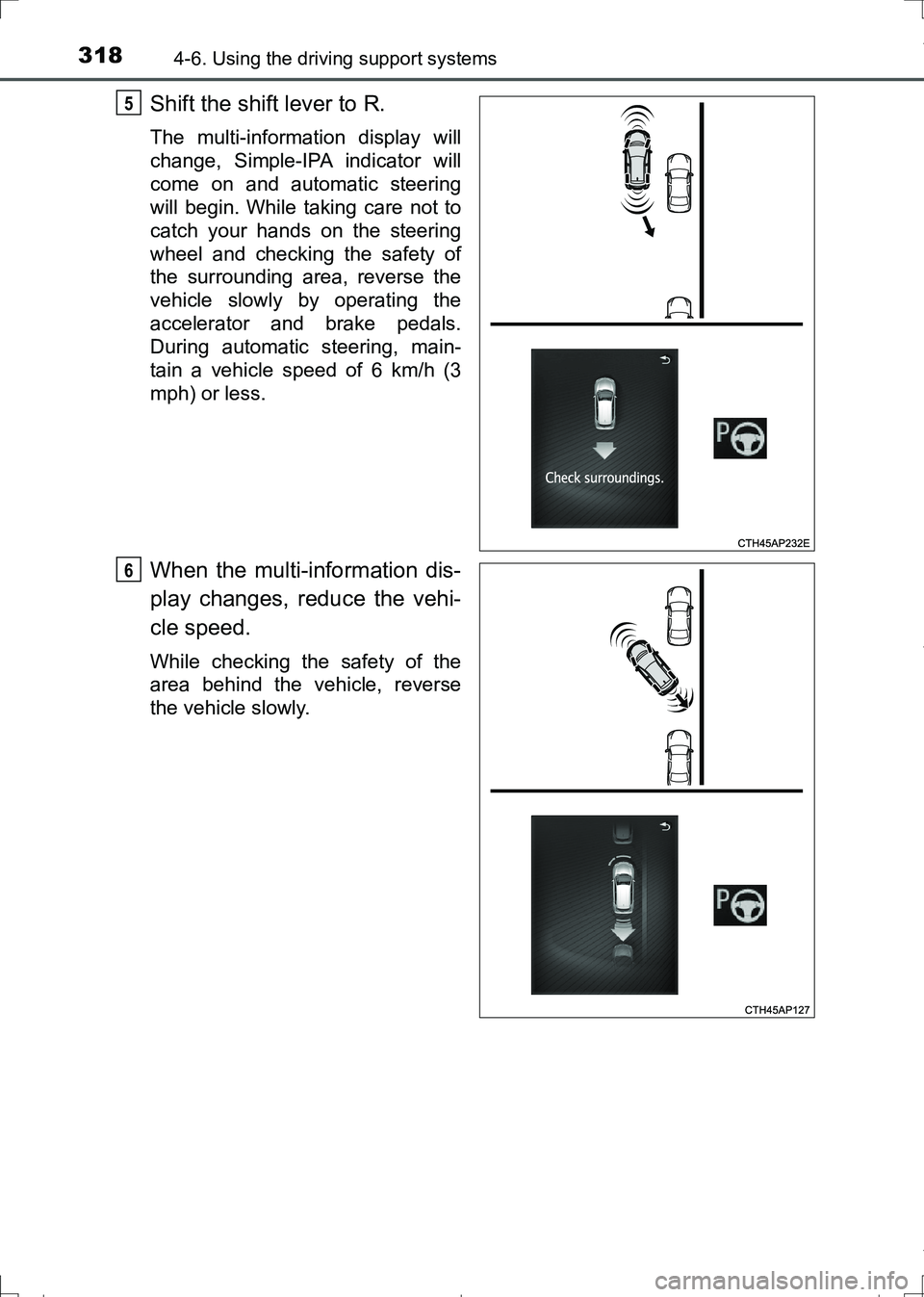

Shift the shift lever to R.
The multi-information display will
change, Simple-IPA indicator will
come on and automatic steering
will begin. While taking care not to
catch your hands on the steering
wheel and checking the safety of
the surrounding area, reverse the
vehicle slowly by operating the
accelerator and brake pedals.
During automatic steering, main-
tain a vehicle speed of 6 km/h (3
mph) or less.
When the multi-information dis-
play changes, reduce the vehi-
cle speed.
While checking the safety of the
area behind the vehicle, reverse
the vehicle slowly.
5
6
AURIS Touring Sports_OM_Europe_OM12L13E.book 318 ページ ２０１６年６月２７日　月曜日　午後５時２１分

3194-6. Using the driving support systems
AURIS Touring Sports_EE (12L13E)
4
Driving
When the rear Toyota parking
assist-sensor’s warning buzzer
sounds continuously, com-
pletely stop the vehicle immedi-
ately.
The multi-information display will
change when the warning buzzer
starts sounding continuously.
Shift the shift lever to D (Multidrive) or 1 (manual transmission).
While the steering wheel is turning, keep the vehicle at a complete stop.
When the steering wheel stops turning, move the vehicle forward slowly
while checking the safety of the area in front of the vehicle.
When the front Toyota parking
assist-sensor’s warning buzzer
sounds continuously, com-
pletely stop the vehicle immedi-
ately.
The multi-information display will
change when the warning buzzer
starts sounding continuously.
7
8
9
AURIS Touring Sports_OM_Europe_OM12L13E.book 319 ページ ２０１６年６月２７日　月曜日　午後５時２１分

3204-6. Using the driving support systems
AURIS Touring Sports_EE (12L13E)

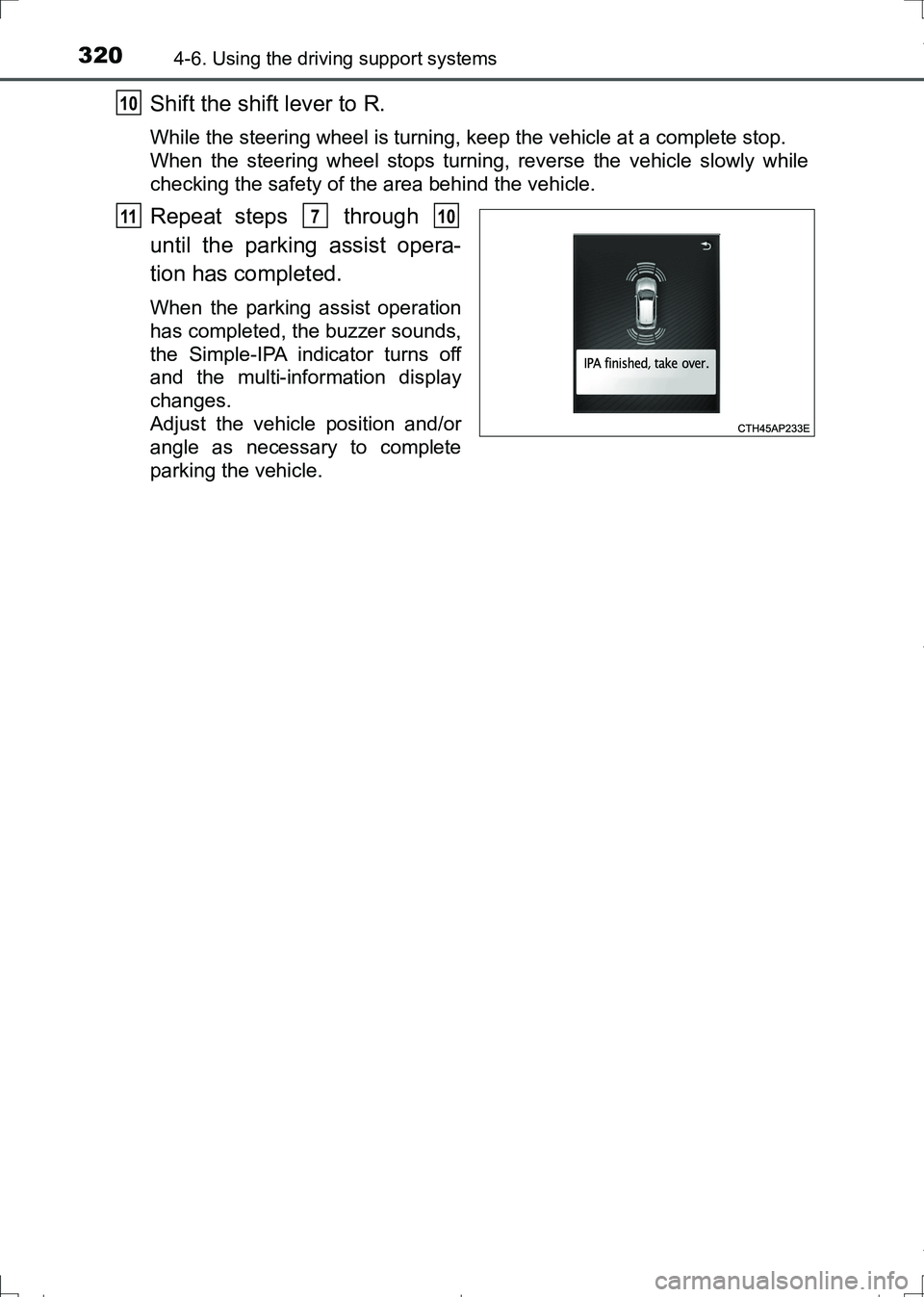

Shift the shift lever to R.
While the steering wheel is turning, keep the vehicle at a complete stop.
When the steering wheel stops turning, reverse the vehicle slowly while
checking the safety of the area behind the vehicle.
Repeat steps through
until the parking assist opera-
tion has completed.
When the parking assist operation
has completed, the buzzer sounds,
the Simple-IPA indicator turns off
and the multi-information display
changes.
Adjust the vehicle position and/or
angle as necessary to complete
parking the vehicle.
10
11710
AURIS Touring Sports_OM_Europe_OM12L13E.book 320 ページ ２０１６年６月２７日　月曜日　午後５時２１分
