TOYOTA AURIS HYBRID 2017 Owners Manual

4316-3. Using the storage features
AURIS Touring Sports_EE (12L13E)
6
Interior features
Raise the hooks to use.
Cargo hooks are provided for
securing loose items.

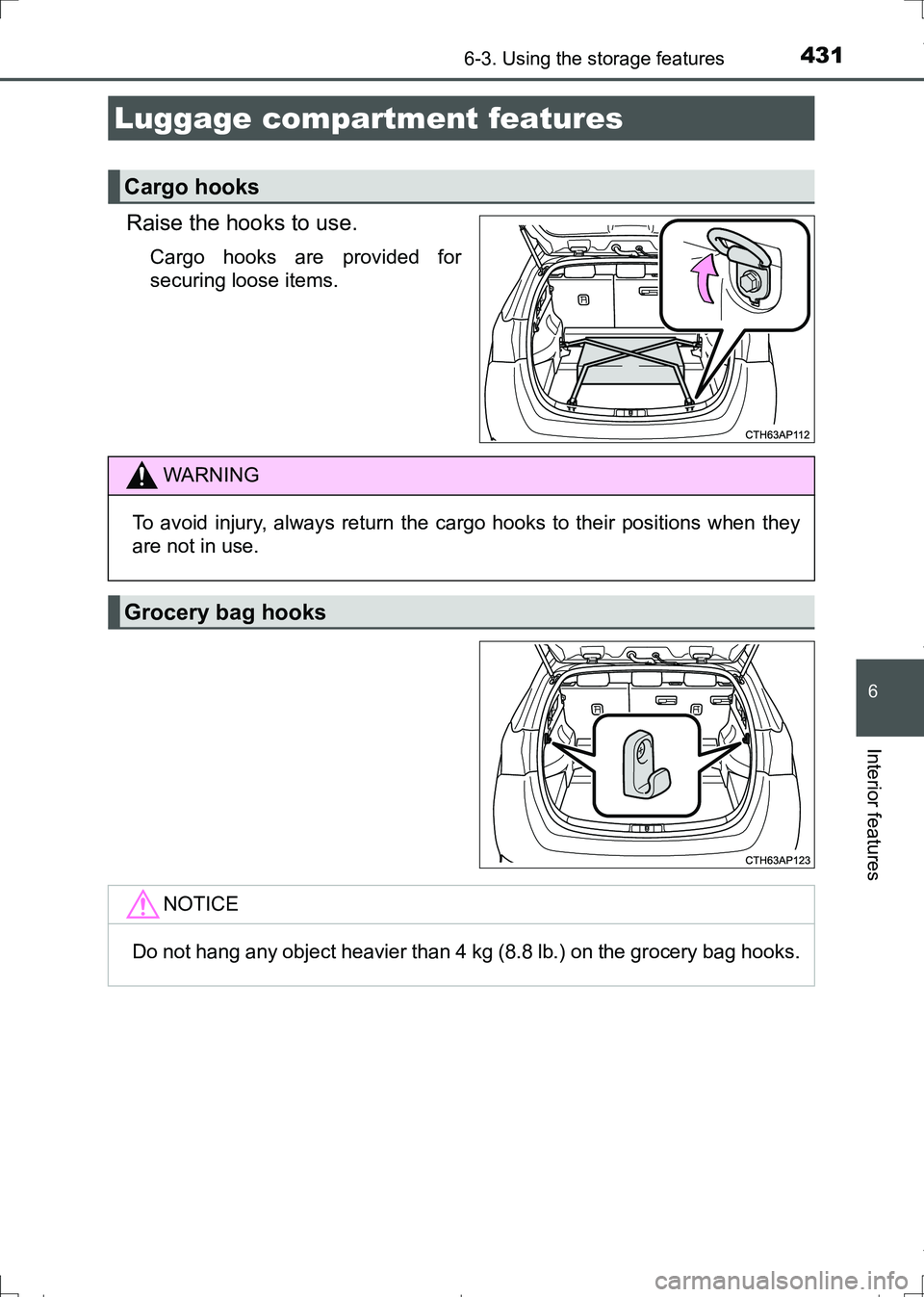

Luggage compartment features
Cargo hooks
WARNING
To avoid injury, always return the cargo hooks to their positions when they
are not in use.
Grocery bag hooks
NOTICE
Do not hang any object heavier than 4 kg (8.8 lb.) on the grocery bag hooks.
AURIS Touring Sports_OM_Europe_OM12L13E.book 431 ページ ２０１６年６月２７日　月曜日　午後５時２１分

4326-3. Using the storage features
AURIS Touring Sports_EE (12L13E)■

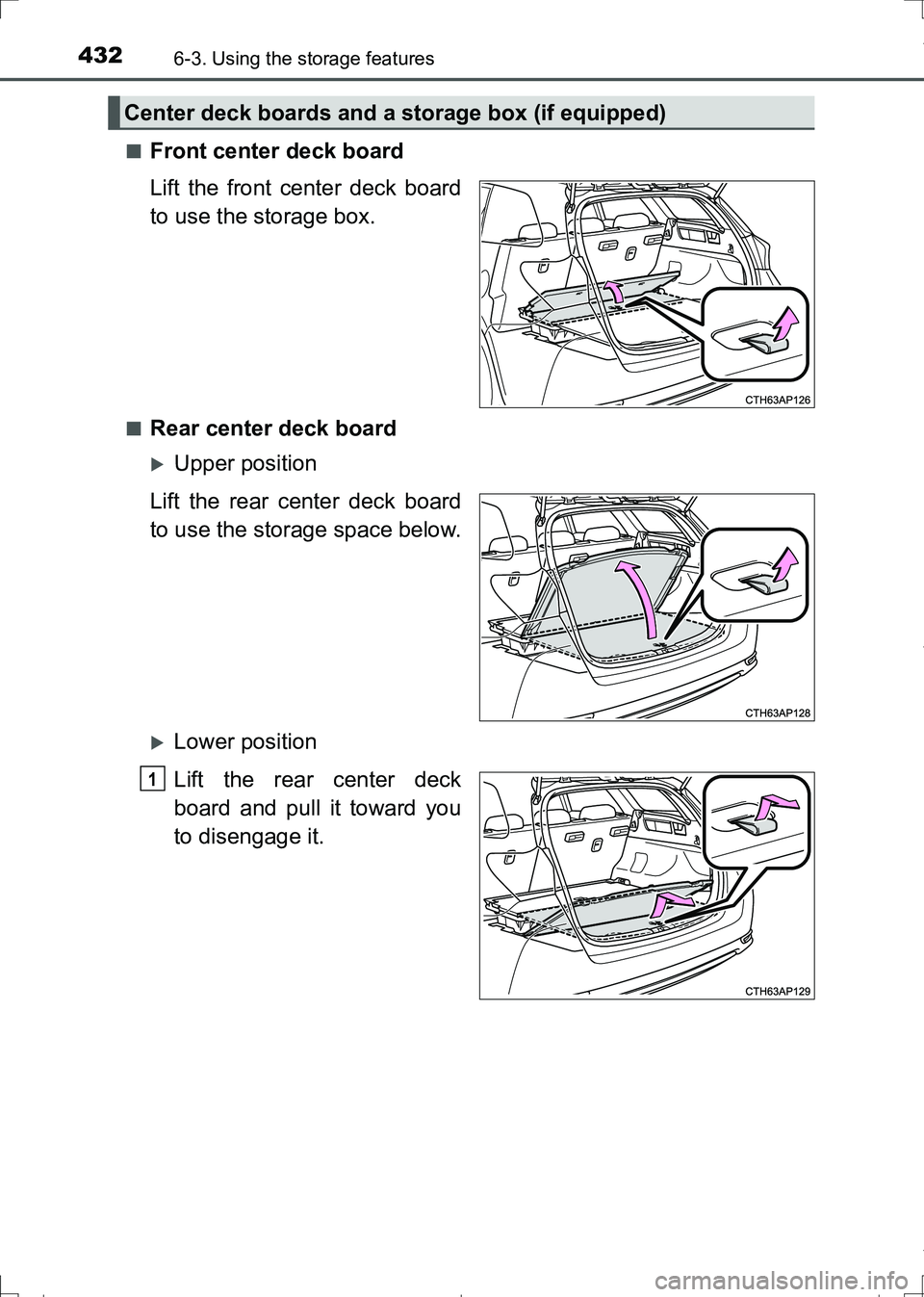

Front center deck board
Lift the front center deck board
to use the storage box.
■Rear center deck board
Upper position
Lift the rear center deck board
to use the storage space below.
Lower position
Lift the rear center deck
board and pull it toward you
to disengage it.
Center deck boards and a storage box (if equipped)
1
AURIS Touring Sports_OM_Europe_OM12L13E.book 432 ページ ２０１６年６月２７日　月曜日　午後５時２１分

4336-3. Using the storage features
AURIS Touring Sports_EE (12L13E)
6
Interior features

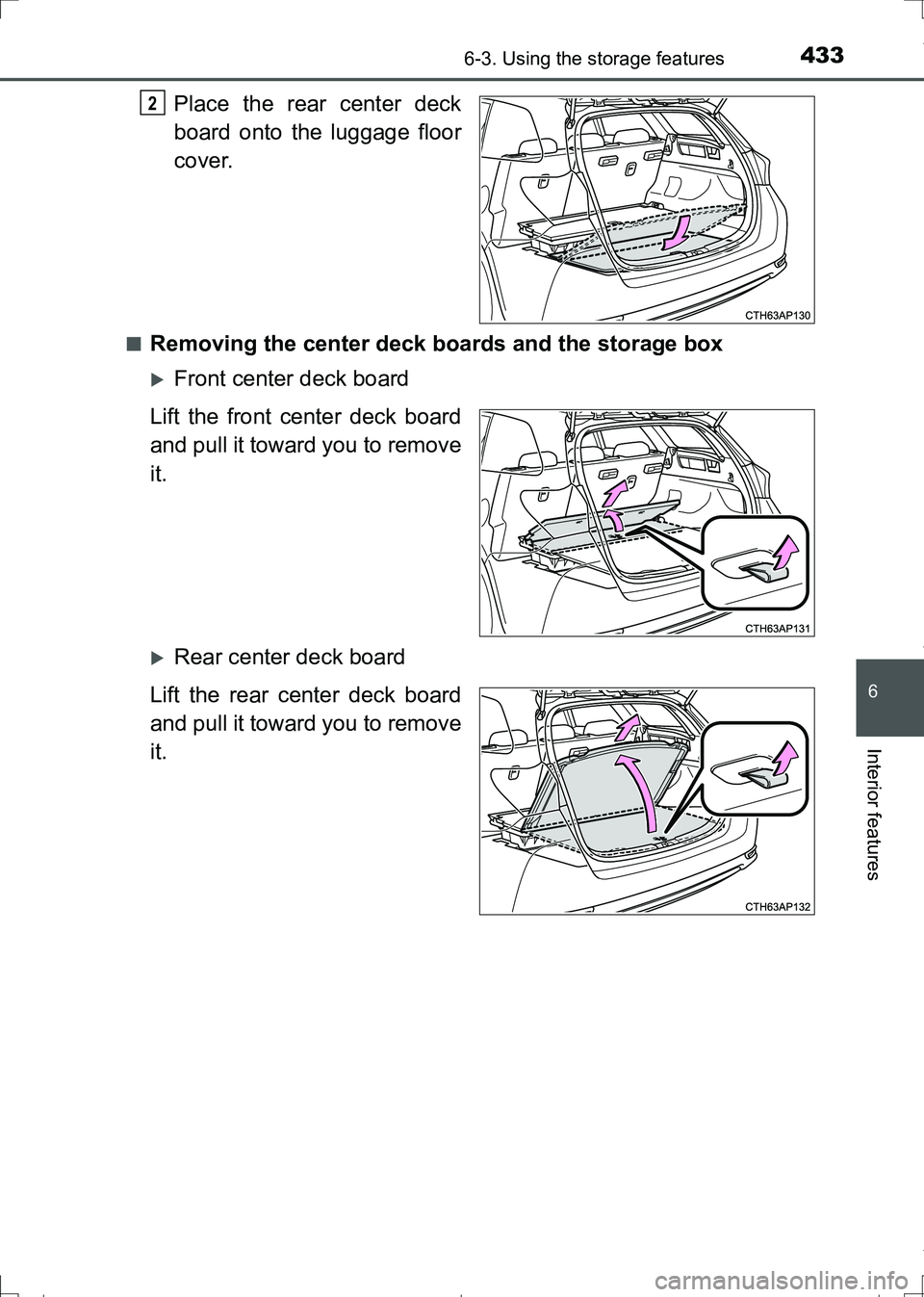

Place the rear center deck
board onto the luggage floor
cover.
■Removing the center deck boards and the storage box
Front center deck board
Lift the front center deck board
and pull it toward you to remove
it.
Rear center deck board
Lift the rear center deck board
and pull it toward you to remove
it.
2
AURIS Touring Sports_OM_Europe_OM12L13E.book 433 ページ ２０１６年６月２７日　月曜日　午後５時２１分

4346-3. Using the storage features
AURIS Touring Sports_EE (12L13E)

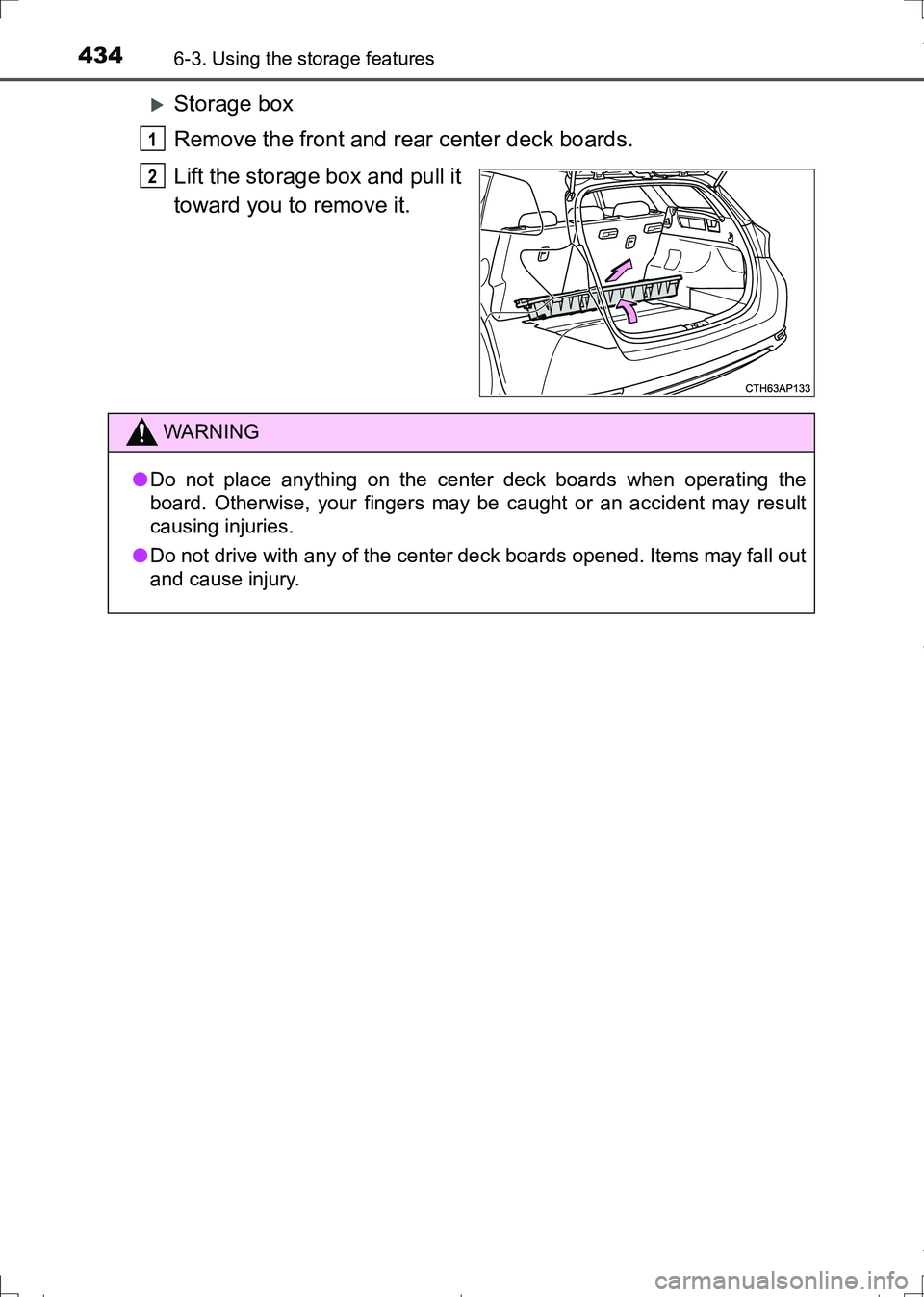

Storage box
Remove the front and rear center deck boards.
Lift the storage box and pull it
toward you to remove it.
1
2
WARNING
●Do not place anything on the center deck boards when operating the
board. Otherwise, your fingers may be caught or an accident may result
causing injuries.
●Do not drive with any of the center deck boards opened. Items may fall out
and cause injury.
AURIS Touring Sports_OM_Europe_OM12L13E.book 434 ページ ２０１６年６月２７日　月曜日　午後５時２１分

4356-3. Using the storage features
AURIS Touring Sports_EE (12L13E)
6
Interior features

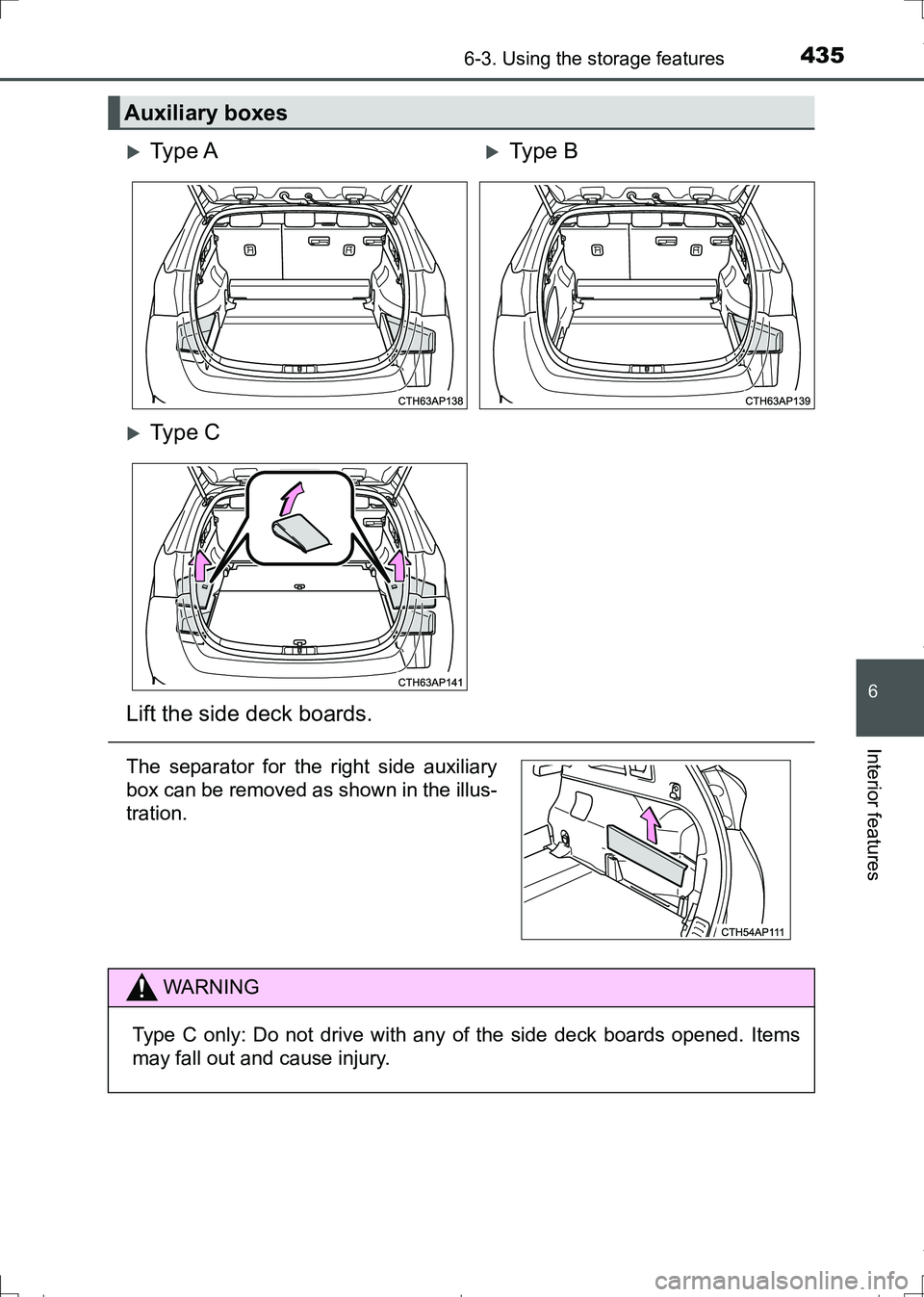

Auxiliary boxes
Ty p e AType B
Ty p e C
Lift the side deck boards.
The separator for the right side auxiliary
box can be removed as shown in the illus-
tration.
WARNING
Type C only: Do not drive with any of the side deck boards opened. Items
may fall out and cause injury.
AURIS Touring Sports_OM_Europe_OM12L13E.book 435 ページ ２０１６年６月２７日　月曜日　午後５時２１分

4366-3. Using the storage features
AURIS Touring Sports_EE (12L13E)■

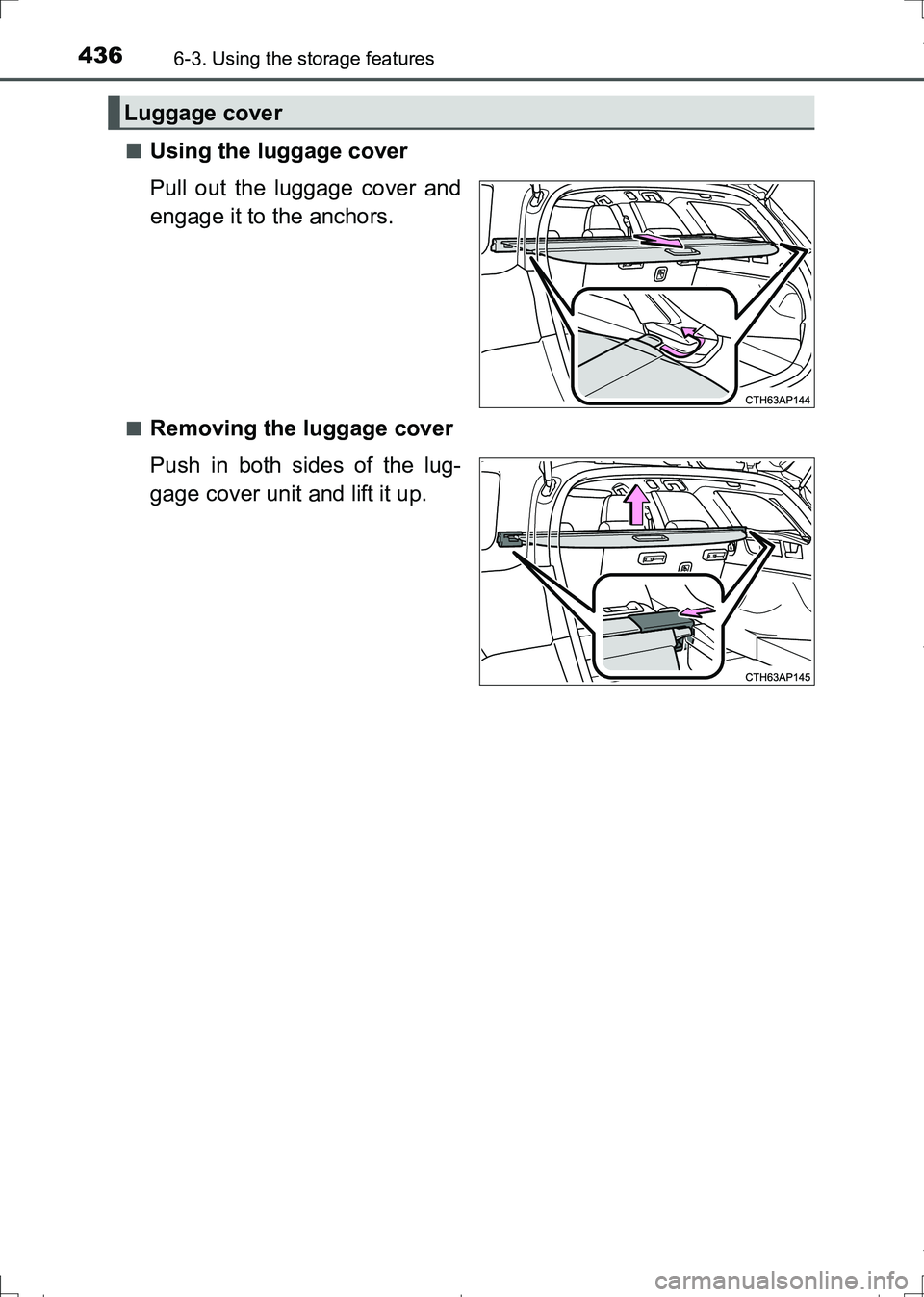

Using the luggage cover
Pull out the luggage cover and
engage it to the anchors.
■Removing the luggage cover
Push in both sides of the lug-
gage cover unit and lift it up.
Luggage cover
AURIS Touring Sports_OM_Europe_OM12L13E.book 436 ページ ２０１６年６月２７日　月曜日　午後５時２１分

4376-3. Using the storage features
AURIS Touring Sports_EE (12L13E)
6
Interior features

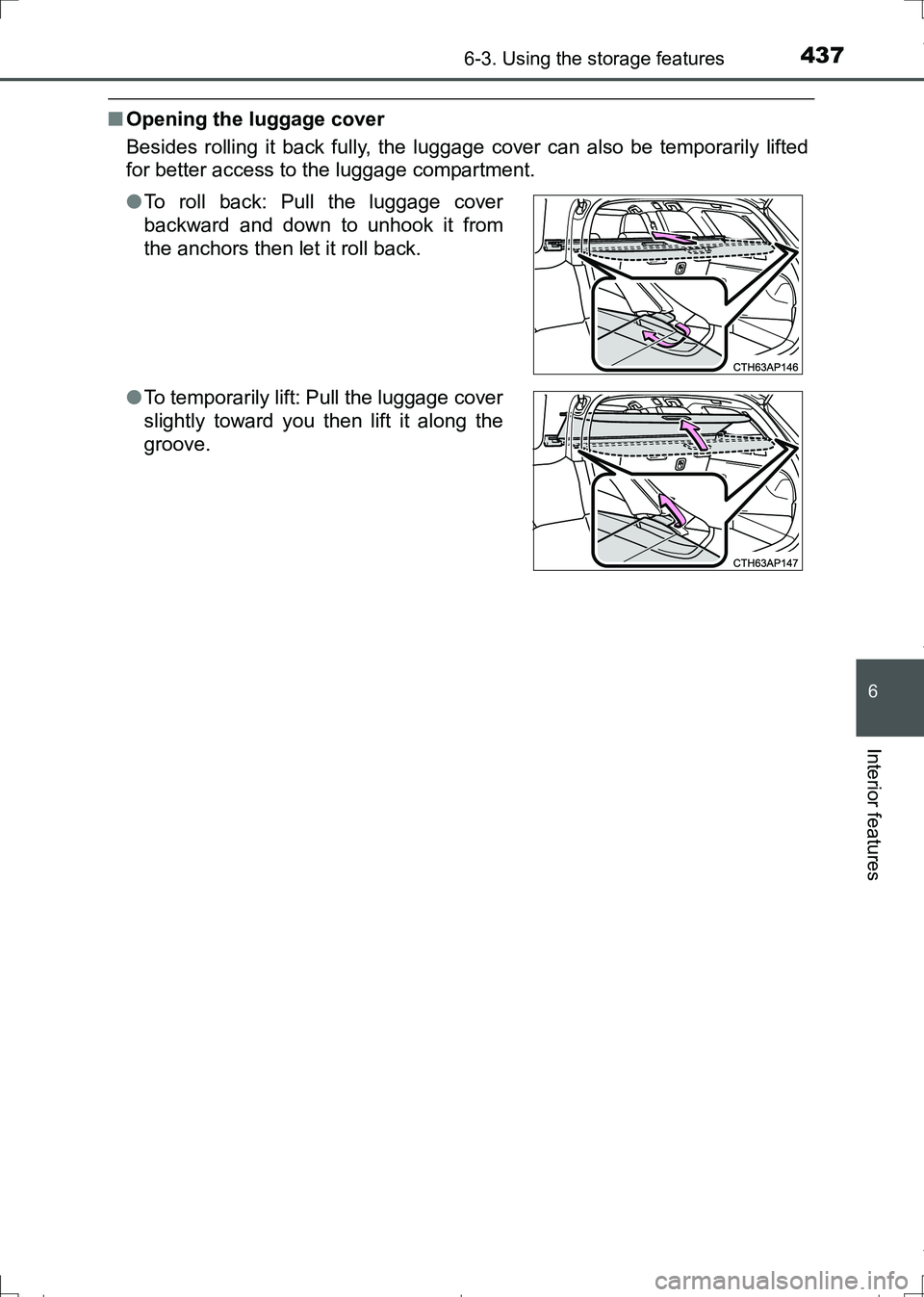

■Opening the luggage cover
Besides rolling it back fully, the luggage cover can also be temporarily lifted
for better access to the luggage compartment.
●To roll back: Pull the luggage cover
backward and down to unhook it from
the anchors then let it roll back.
●To temporarily lift: Pull the luggage cover
slightly toward you then lift it along the
groove.
AURIS Touring Sports_OM_Europe_OM12L13E.book 437 ページ ２０１６年６月２７日　月曜日　午後５時２１分

4386-3. Using the storage features
AURIS Touring Sports_EE (12L13E)

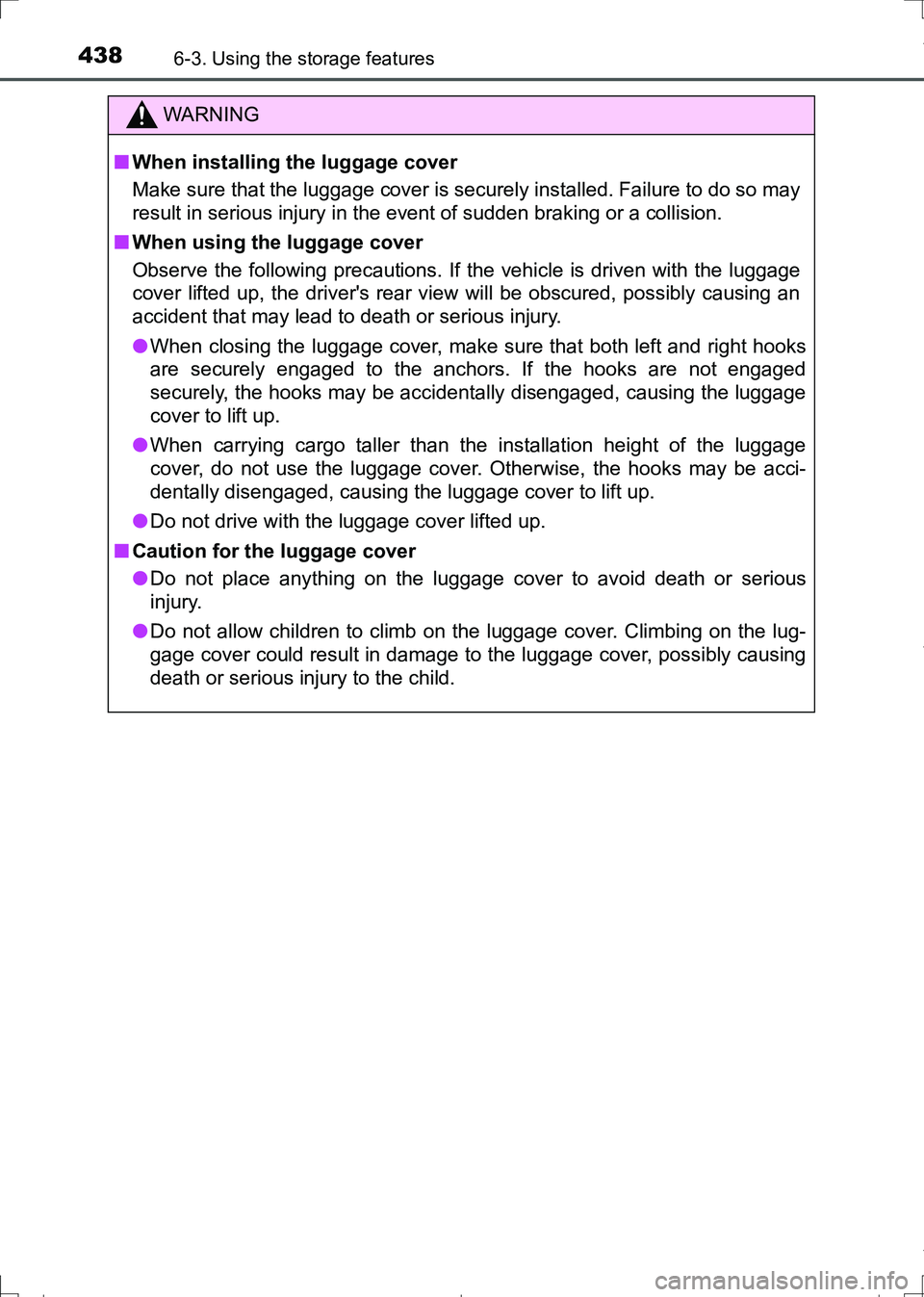

WARNING
■When installing the luggage cover
Make sure that the luggage cover is securely installed. Failure to do so may
result in serious injury in the event of sudden braking or a collision.
■When using the luggage cover
Observe the following precautions. If the vehicle is driven with the luggage
cover lifted up, the driver's rear view will be obscured, possibly causing an
accident that may lead to death or serious injury.
●When closing the luggage cover, make sure that both left and right hooks
are securely engaged to the anchors. If the hooks are not engaged
securely, the hooks may be accidentally disengaged, causing the luggage
cover to lift up.
●When carrying cargo taller than the installation height of the luggage
cover, do not use the luggage cover. Otherwise, the hooks may be acci-
dentally disengaged, causing the luggage cover to lift up.
●Do not drive with the luggage cover lifted up.
■Caution for the luggage cover
●Do not place anything on the luggage cover to avoid death or serious
injury.
●Do not allow children to climb on the luggage cover. Climbing on the lug-
gage cover could result in damage to the luggage cover, possibly causing
death or serious injury to the child.
AURIS Touring Sports_OM_Europe_OM12L13E.book 438 ページ ２０１６年６月２７日　月曜日　午後５時２１分

4396-3. Using the storage features
AURIS Touring Sports_EE (12L13E)
6
Interior features

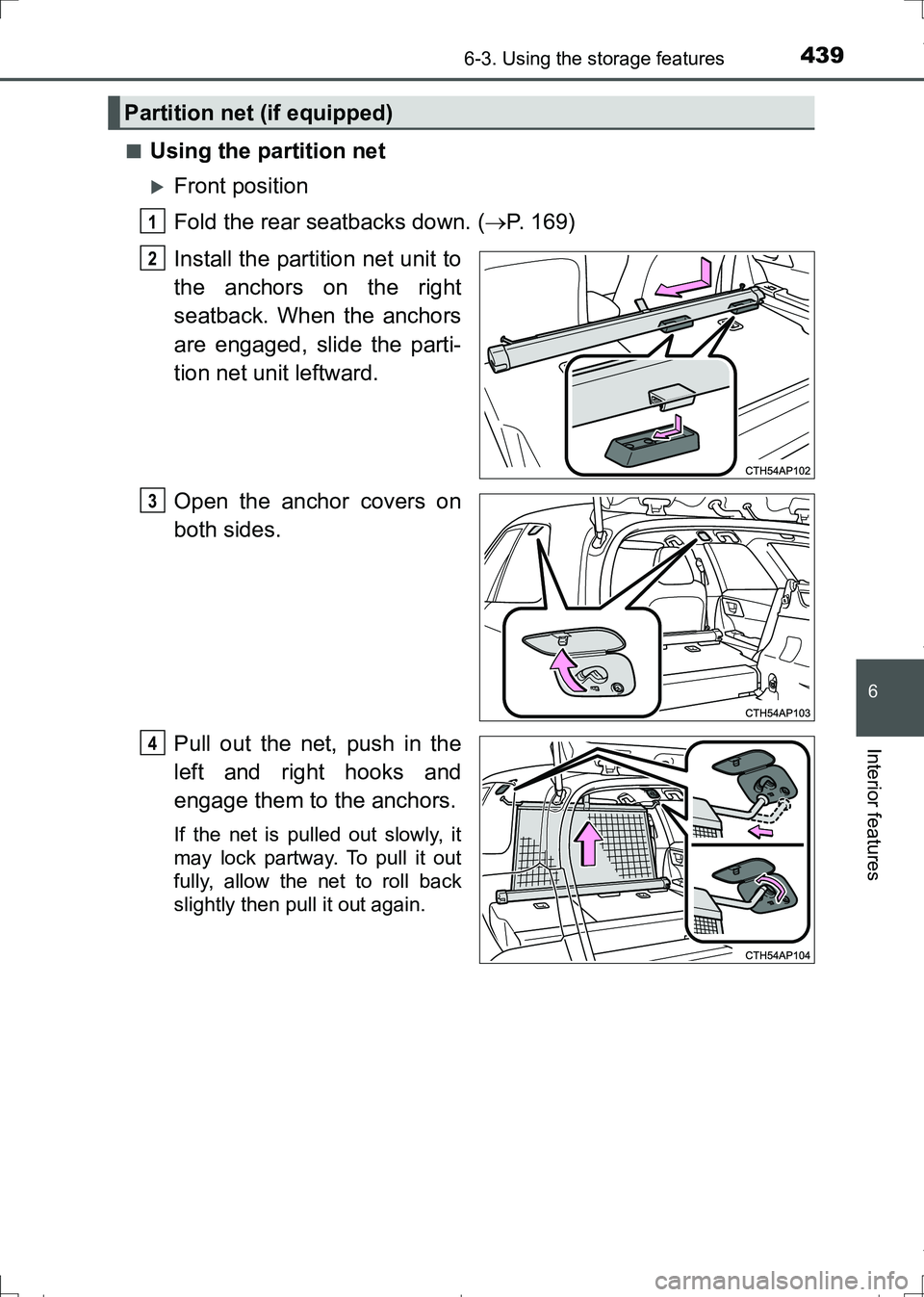

■Using the partition net
Front position
Fold the rear seatbacks down. (P. 169)
Install the partition net unit to
the anchors on the right
seatback. When the anchors
are engaged, slide the parti-
tion net unit leftward.
Open the anchor covers on
both sides.
Pull out the net, push in the
left and right hooks and
engage them to the anchors.
If the net is pulled out slowly, it
may lock partway. To pull it out
fully, allow the net to roll back
slightly then pull it out again.
Partition net (if equipped)
1
2
3
4
AURIS Touring Sports_OM_Europe_OM12L13E.book 439 ページ ２０１６年６月２７日　月曜日　午後５時２１分

4406-3. Using the storage features
AURIS Touring Sports_EE (12L13E)

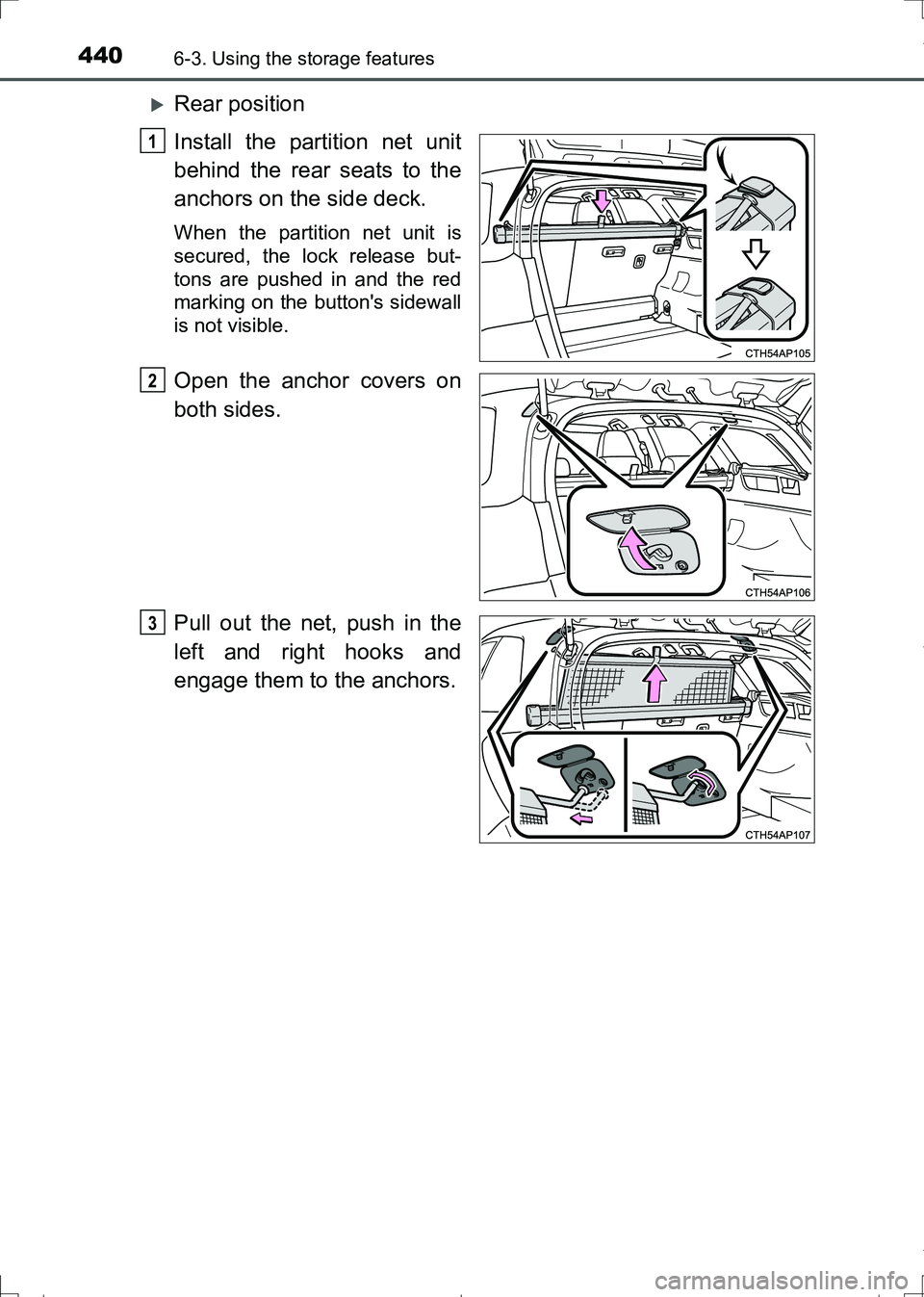

Rear position
Install the partition net unit
behind the rear seats to the
anchors on the side deck.
When the partition net unit is
secured, the lock release but-
tons are pushed in and the red
marking on the button's sidewall
is not visible.
Open the anchor covers on
both sides.
Pull out the net, push in the
left and right hooks and
engage them to the anchors.
1
2
3
