Page 471 of 664

4717-3. Do-it-yourself maintenance
AURIS Touring Sports_EE (12L13E)
7
Maintenance and care

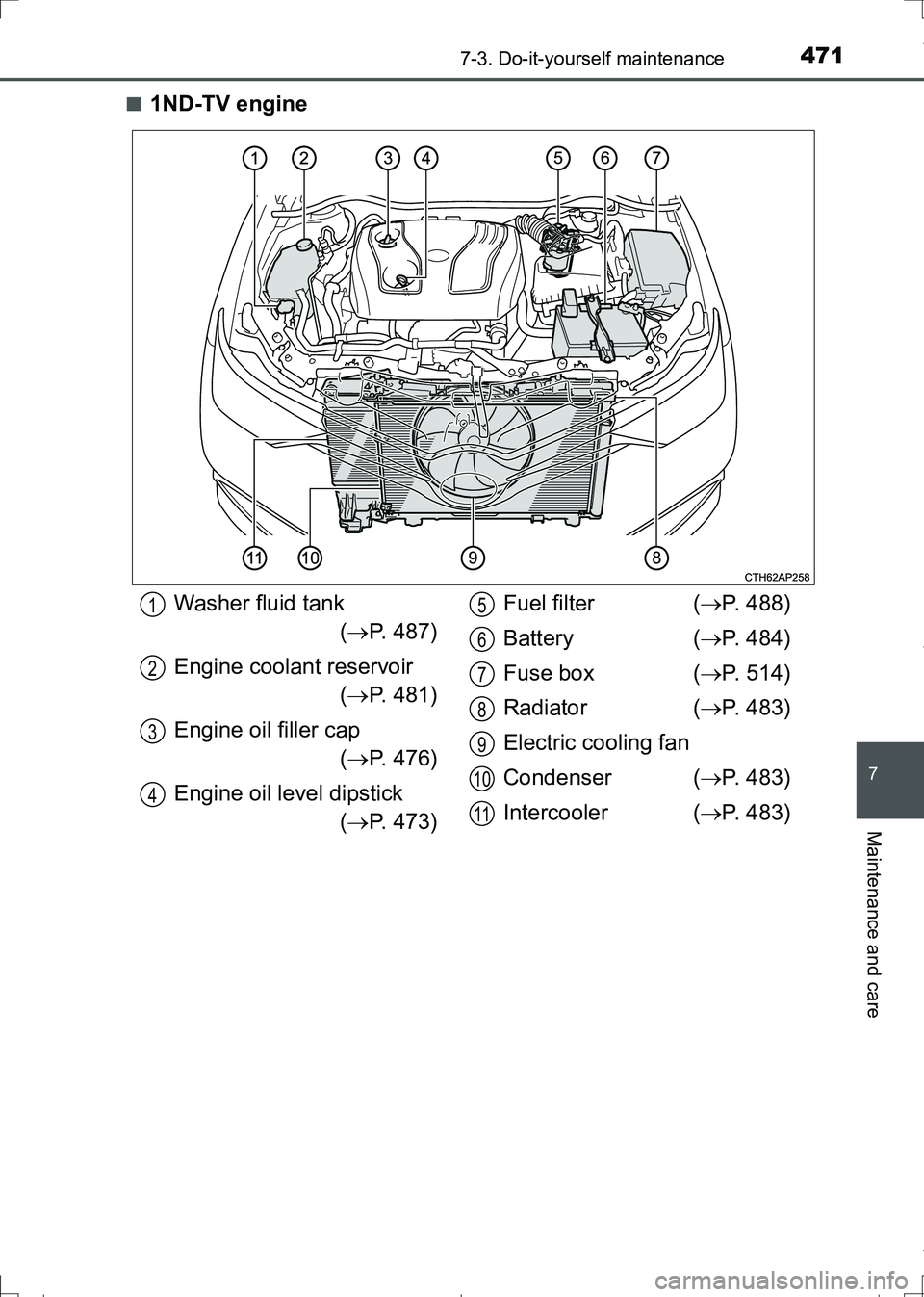

■1ND-TV engine
Washer fluid tank
(P. 487)
Engine coolant reservoir
(P. 481)
Engine oil filler cap
(P. 476)
Engine oil level dipstick
(P. 473)Fuel filter (P. 488)
Battery (P. 484)
Fuse box (P. 514)
Radiator (P. 483)
Electric cooling fan
Condenser (P. 483)
Intercooler (P. 483)1
2
3
4
5
6
7
8
9
10
11
AURIS Touring Sports_OM_Europe_OM12L13E.book 471 ページ 2016年6月27日 月曜日 午後5時21分
Page 472 of 664

4727-3. Do-it-yourself maintenance
AURIS Touring Sports_EE (12L13E)■

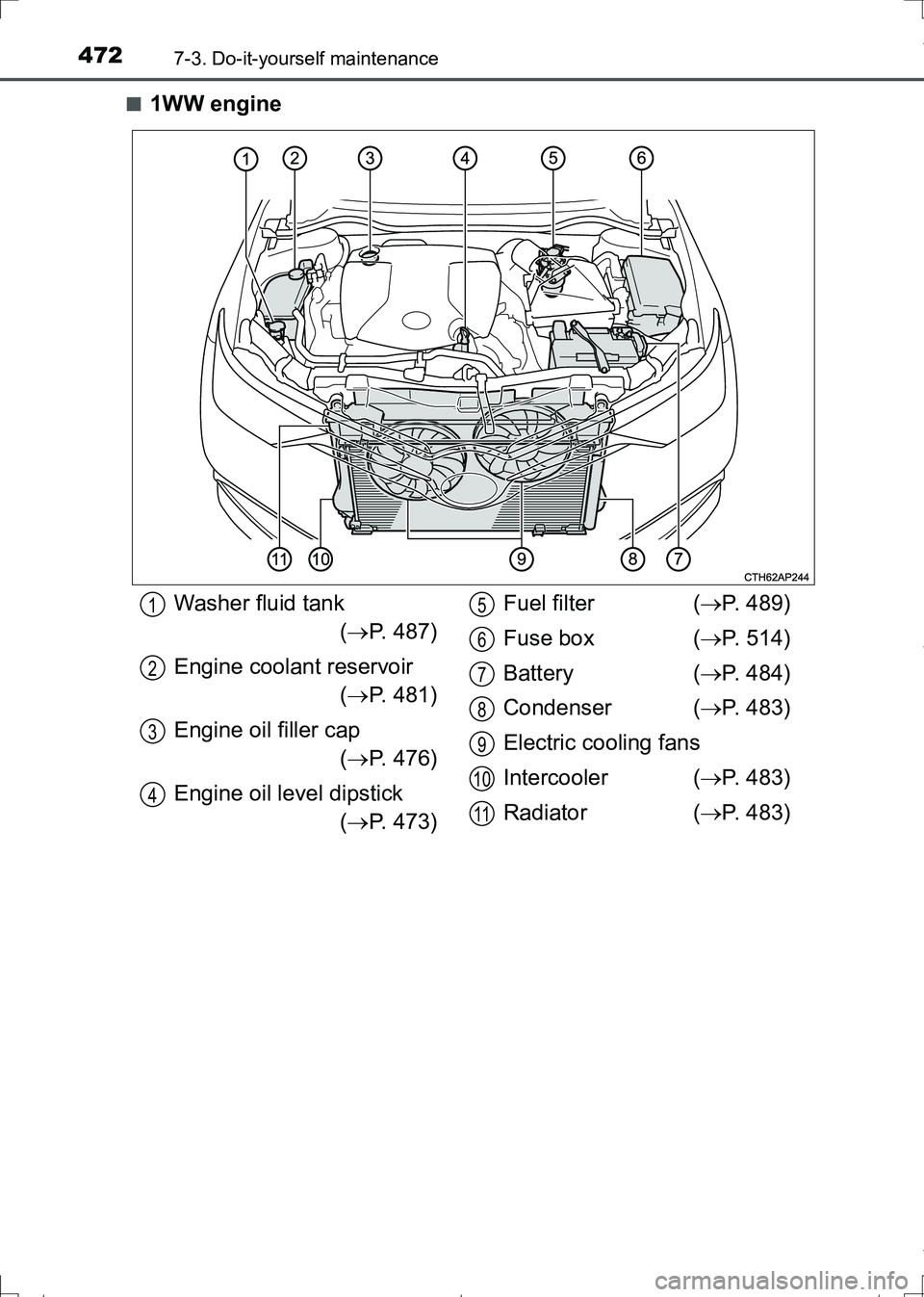

1WW engine
Washer fluid tank
(P. 487)
Engine coolant reservoir
(P. 481)
Engine oil filler cap
(P. 476)
Engine oil level dipstick
(P. 473)Fuel filter (P. 489)
Fuse box (P. 514)
Battery (P. 484)
Condenser (P. 483)
Electric cooling fans
Intercooler (P. 483)
Radiator (P. 483)1
2
3
4
5
6
7
8
9
10
11
AURIS Touring Sports_OM_Europe_OM12L13E.book 472 ページ 2016年6月27日 月曜日 午後5時21分
Page 473 of 664

4737-3. Do-it-yourself maintenance
AURIS Touring Sports_EE (12L13E)
7
Maintenance and care

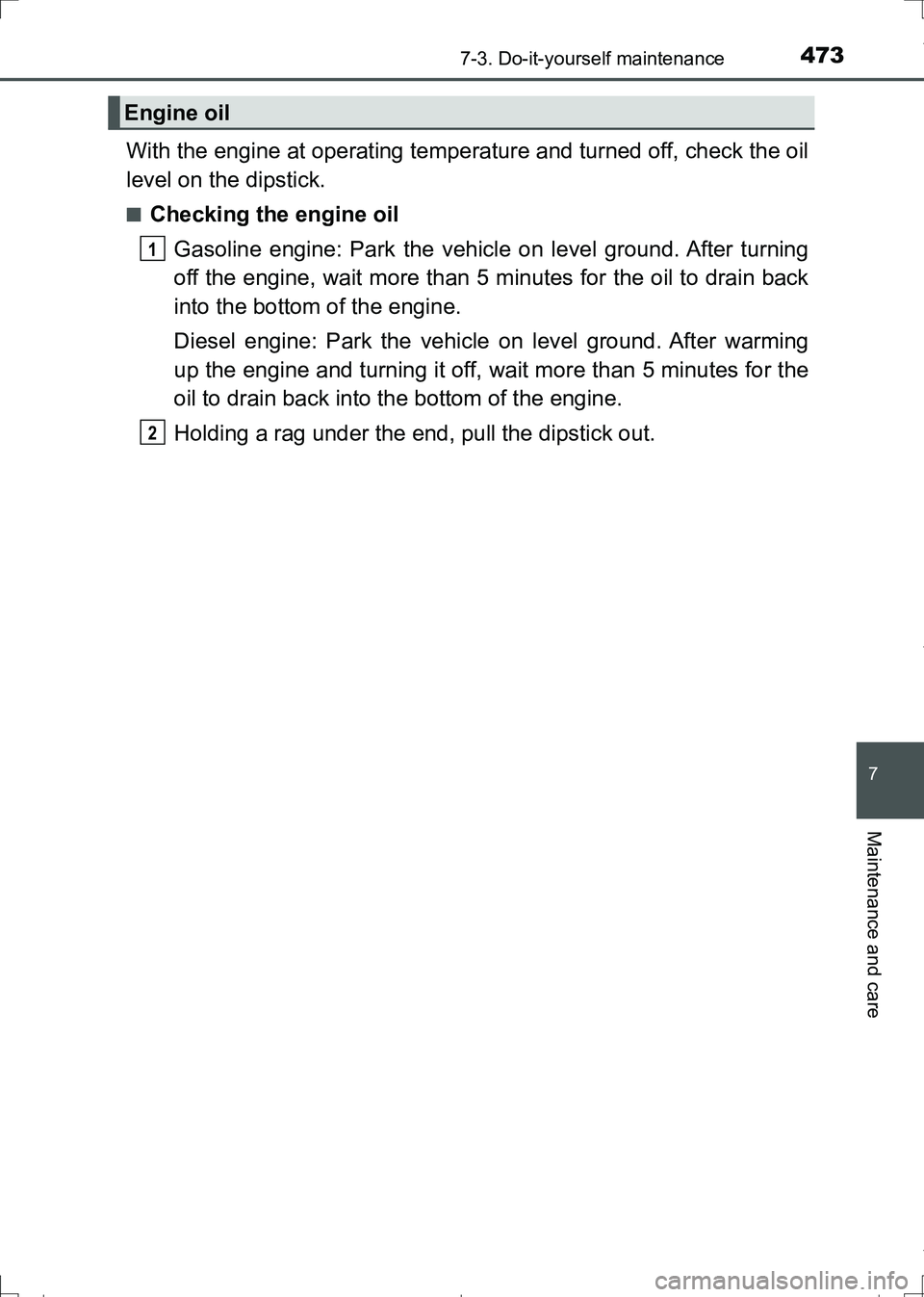

With the engine at operating temperature and turned off, check the oil
level on the dipstick.
■Checking the engine oil
Gasoline engine: Park the vehicle on level ground. After turning
off the engine, wait more than 5 minutes for the oil to drain back
into the bottom of the engine.
Diesel engine: Park the vehicle on level ground. After warming
up the engine and turning it off, wait more than 5 minutes for the
oil to drain back into the bottom of the engine.
Holding a rag under the end, pull the dipstick out.
Engine oil
1
2
AURIS Touring Sports_OM_Europe_OM12L13E.book 473 ページ 2016年6月27日 月曜日 午後5時21分
Page 474 of 664

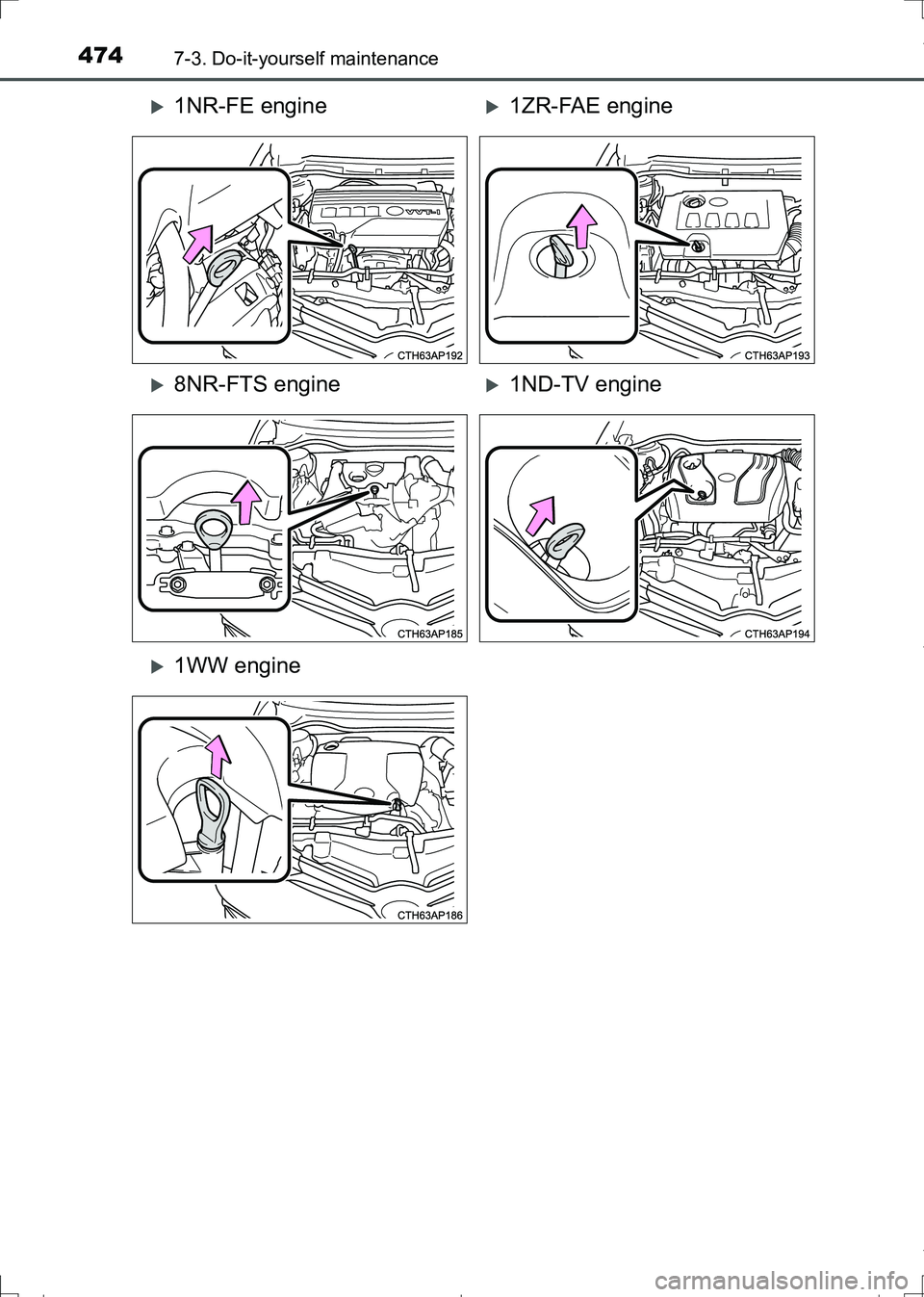

4747-3. Do-it-yourself maintenance
AURIS Touring Sports_EE (12L13E)
1NR-FE engine1ZR-FAE engine
8NR-FTS engine1ND-TV engine
1WW engine
AURIS Touring Sports_OM_Europe_OM12L13E.book 474 ページ 2016年6月27日 月曜日 午後5時21分
Page 475 of 664

4757-3. Do-it-yourself maintenance
AURIS Touring Sports_EE (12L13E)
7
Maintenance and care

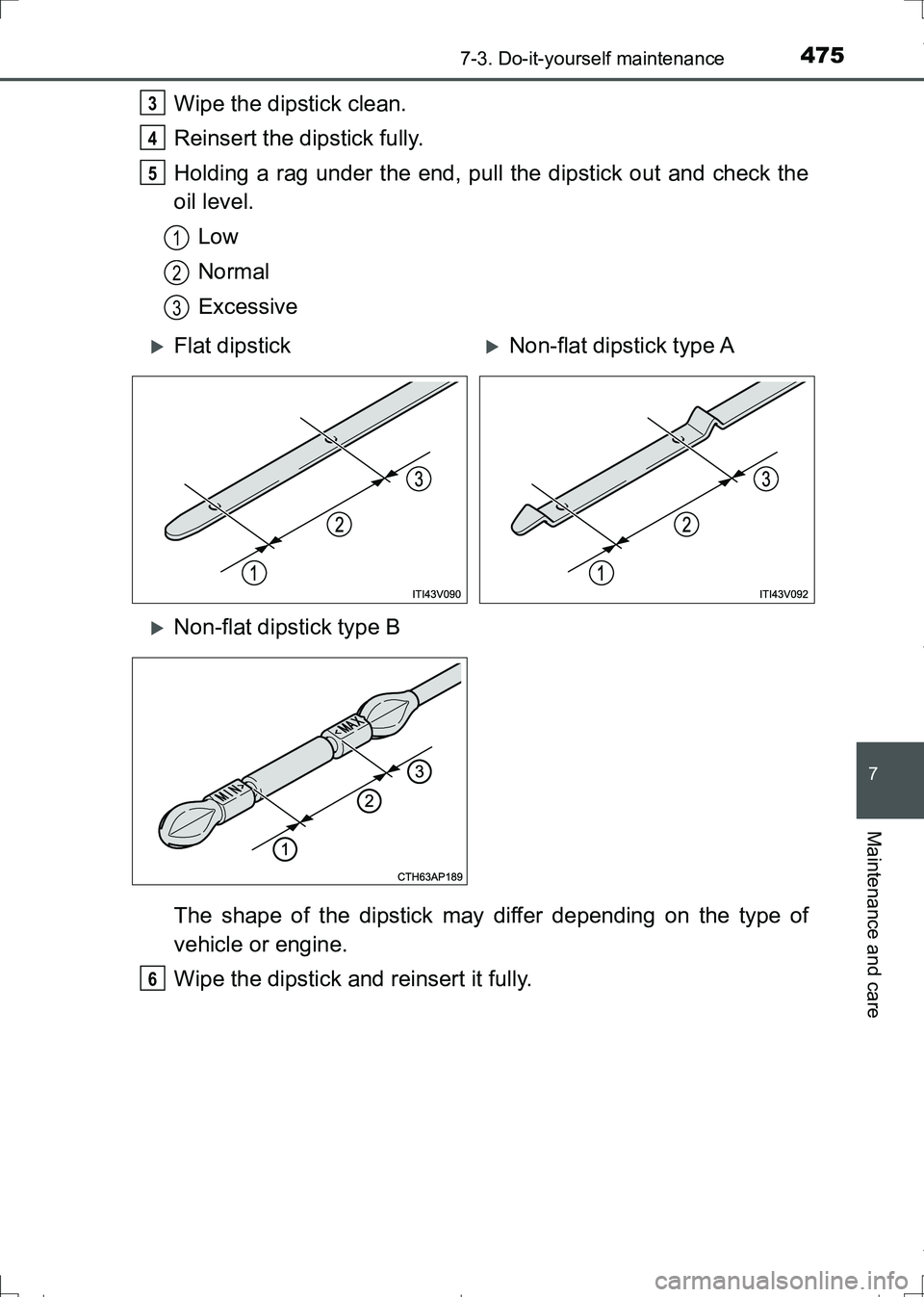

Wipe the dipstick clean.
Reinsert the dipstick fully.
Holding a rag under the end, pull the dipstick out and check the
oil level.
Low
Normal
Excessive
The shape of the dipstick may differ depending on the type of
vehicle or engine.
Wipe the dipstick and reinsert it fully.3
4
5
1
2
3
Flat dipstickNon-flat dipstick type A
Non-flat dipstick type B
6
AURIS Touring Sports_OM_Europe_OM12L13E.book 475 ページ 2016年6月27日 月曜日 午後5時21分
Page 476 of 664

4767-3. Do-it-yourself maintenance
AURIS Touring Sports_EE (12L13E)■

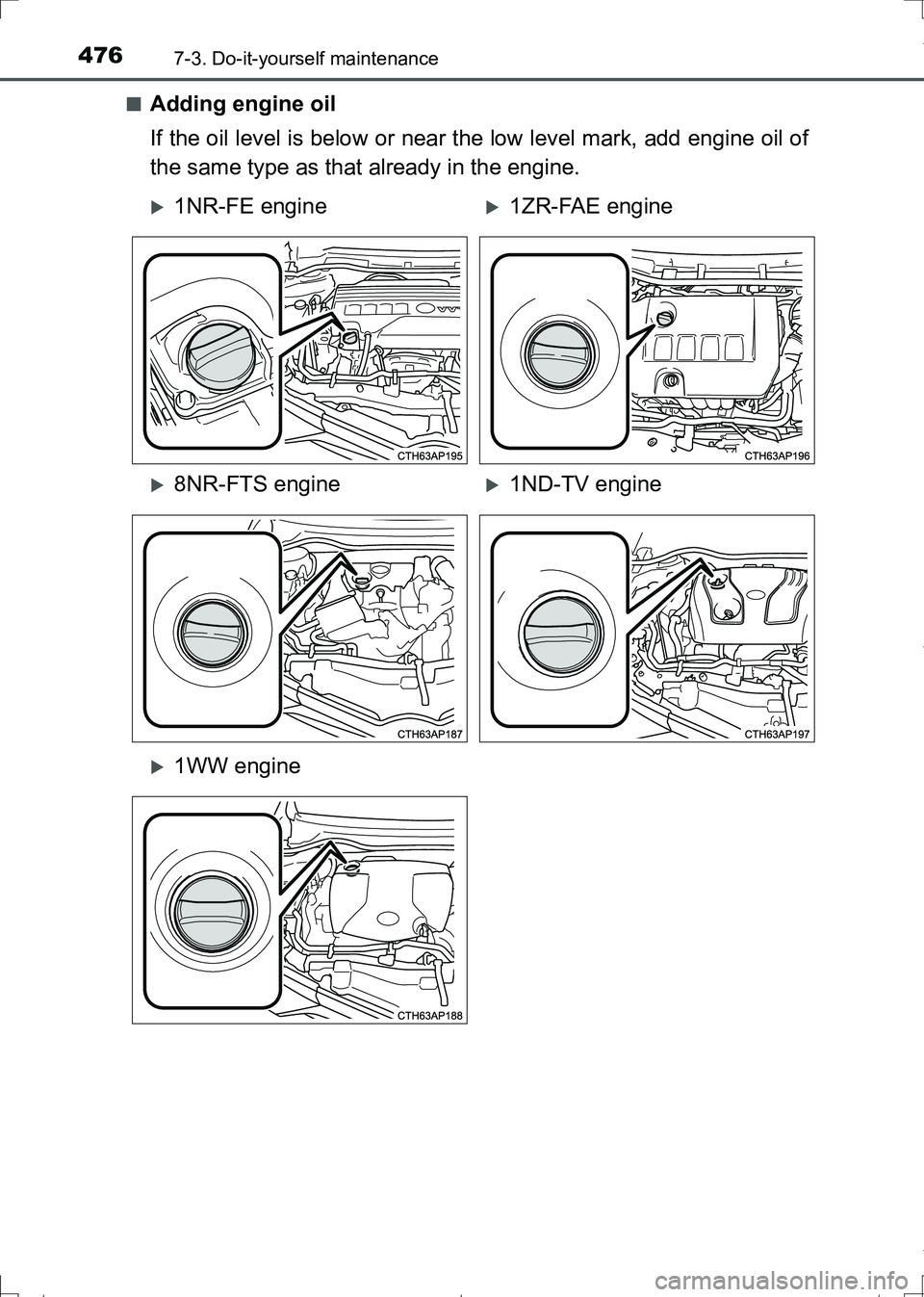

Adding engine oil
If the oil level is below or near the low level mark, add engine oil of
the same type as that already in the engine.
1NR-FE engine1ZR-FAE engine
8NR-FTS engine1ND-TV engine
1WW engine
AURIS Touring Sports_OM_Europe_OM12L13E.book 476 ページ 2016年6月27日 月曜日 午後5時21分
Page 477 of 664

4777-3. Do-it-yourself maintenance
AURIS Touring Sports_EE (12L13E)
7
Maintenance and care

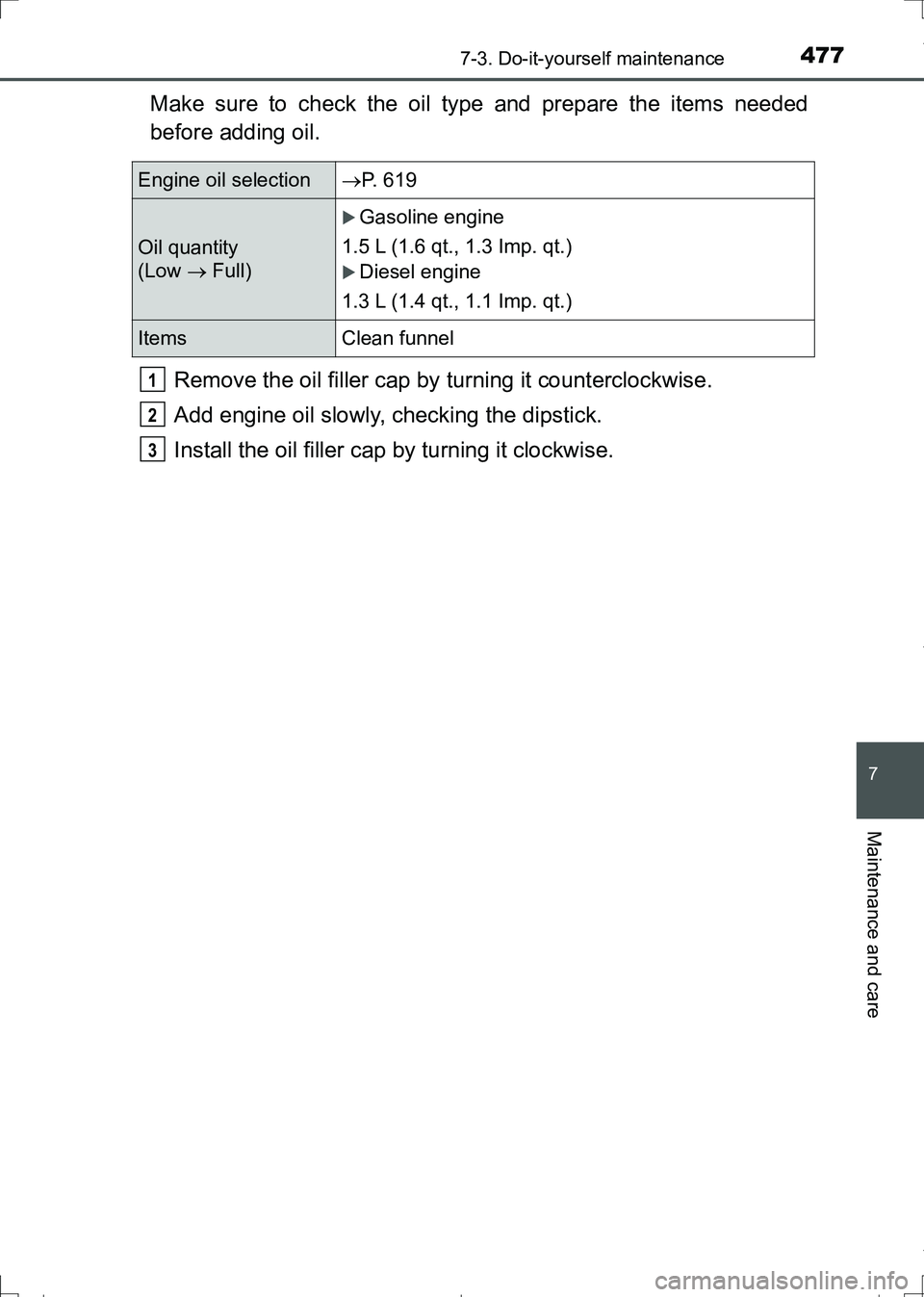

Make sure to check the oil type and prepare the items needed
before adding oil.
Remove the oil filler cap by turning it counterclockwise.
Add engine oil slowly, checking the dipstick.
Install the oil filler cap by turning it clockwise.
Engine oil selectionP. 619
Oil quantity
(Low Full)
Gasoline engine
1.5 L (1.6 qt., 1.3 Imp. qt.)
Diesel engine
1.3 L (1.4 qt., 1.1 Imp. qt.)
Items Clean funnel
1
2
3
AURIS Touring Sports_OM_Europe_OM12L13E.book 477 ページ 2016年6月27日 月曜日 午後5時21分
Page 478 of 664

4787-3. Do-it-yourself maintenance
AURIS Touring Sports_EE (12L13E)

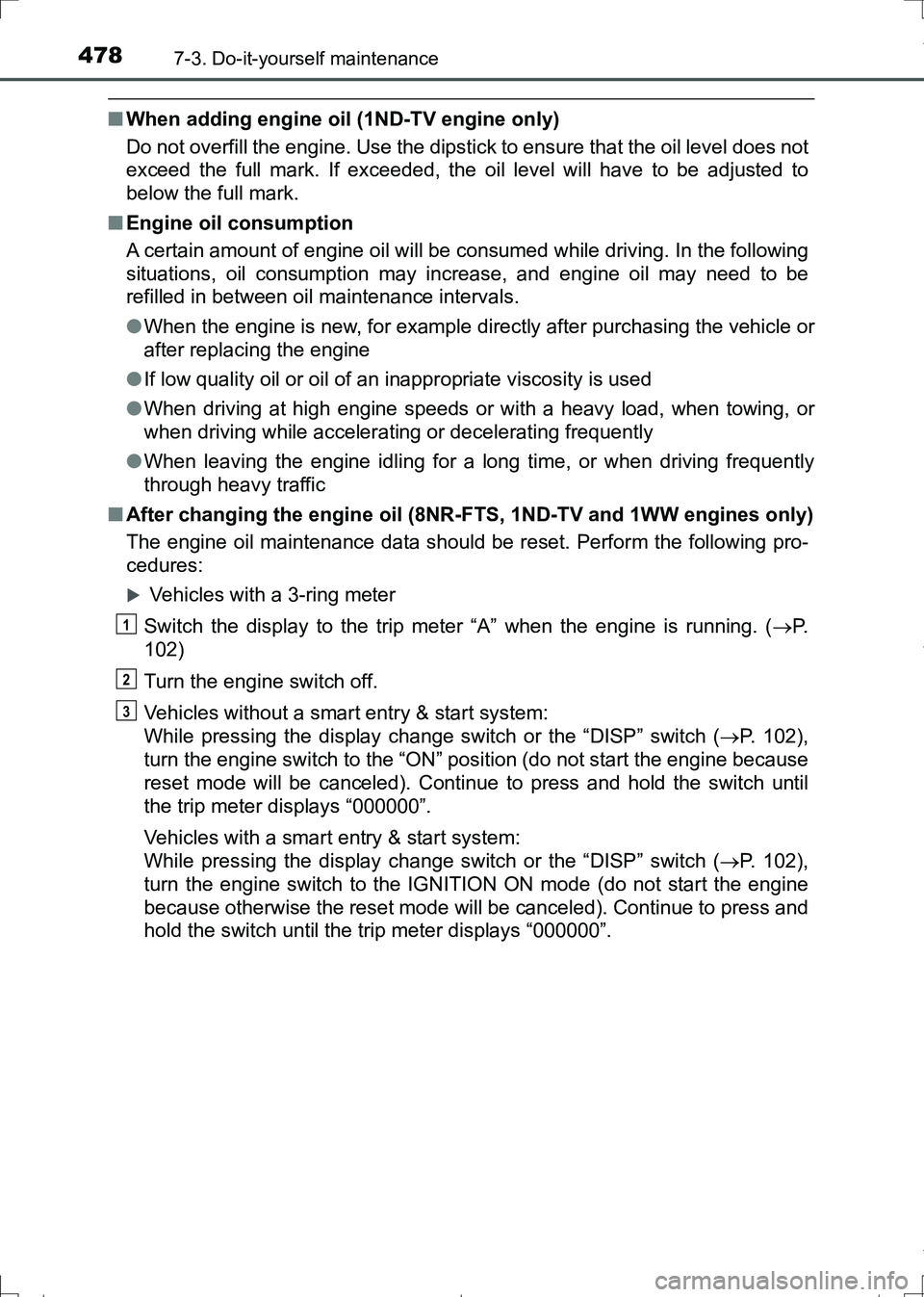

■When adding engine oil (1ND-TV engine only)
Do not overfill the engine. Use the dipstick to ensure that the oil level does not
exceed the full mark. If exceeded, the oil level will have to be adjusted to
below the full mark.
■Engine oil consumption
A certain amount of engine oil will be consumed while driving. In the following
situations, oil consumption may increase, and engine oil may need to be
refilled in between oil maintenance intervals.
●When the engine is new, for example directly after purchasing the vehicle or
after replacing the engine
●If low quality oil or oil of an inappropriate viscosity is used
●When driving at high engine speeds or with a heavy load, when towing, or
when driving while accelerating or decelerating frequently
●When leaving the engine idling for a long time, or when driving frequently
through heavy traffic
■After changing the engine oil (8NR-FTS, 1ND-TV and 1WW engines only)
The engine oil maintenance data should be reset. Perform the following pro-
cedures:
Vehicles with a 3-ring meter
Switch the display to the trip meter “A” when the engine is running. (P.
102)
Turn the engine switch off.
Vehicles without a smart entry & start system:
While pressing the display change switch or the “DISP” switch (P. 102),
turn the engine switch to the “ON” position (do not start the engine because
reset mode will be canceled). Continue to press and hold the switch until
the trip meter displays “000000”.
Vehicles with a smart entry & start system:
While pressing the display change switch or the “DISP” switch (P. 102),
turn the engine switch to the IGNITION ON mode (do not start the engine
because otherwise the reset mode will be canceled). Continue to press and
hold the switch until the trip meter displays “000000”.
1
2
3
AURIS Touring Sports_OM_Europe_OM12L13E.book 478 ページ 2016年6月27日 月曜日 午後5時21分
Page 479 of 664

4797-3. Do-it-yourself maintenance
AURIS Touring Sports_EE (12L13E)
7
Maintenance and care

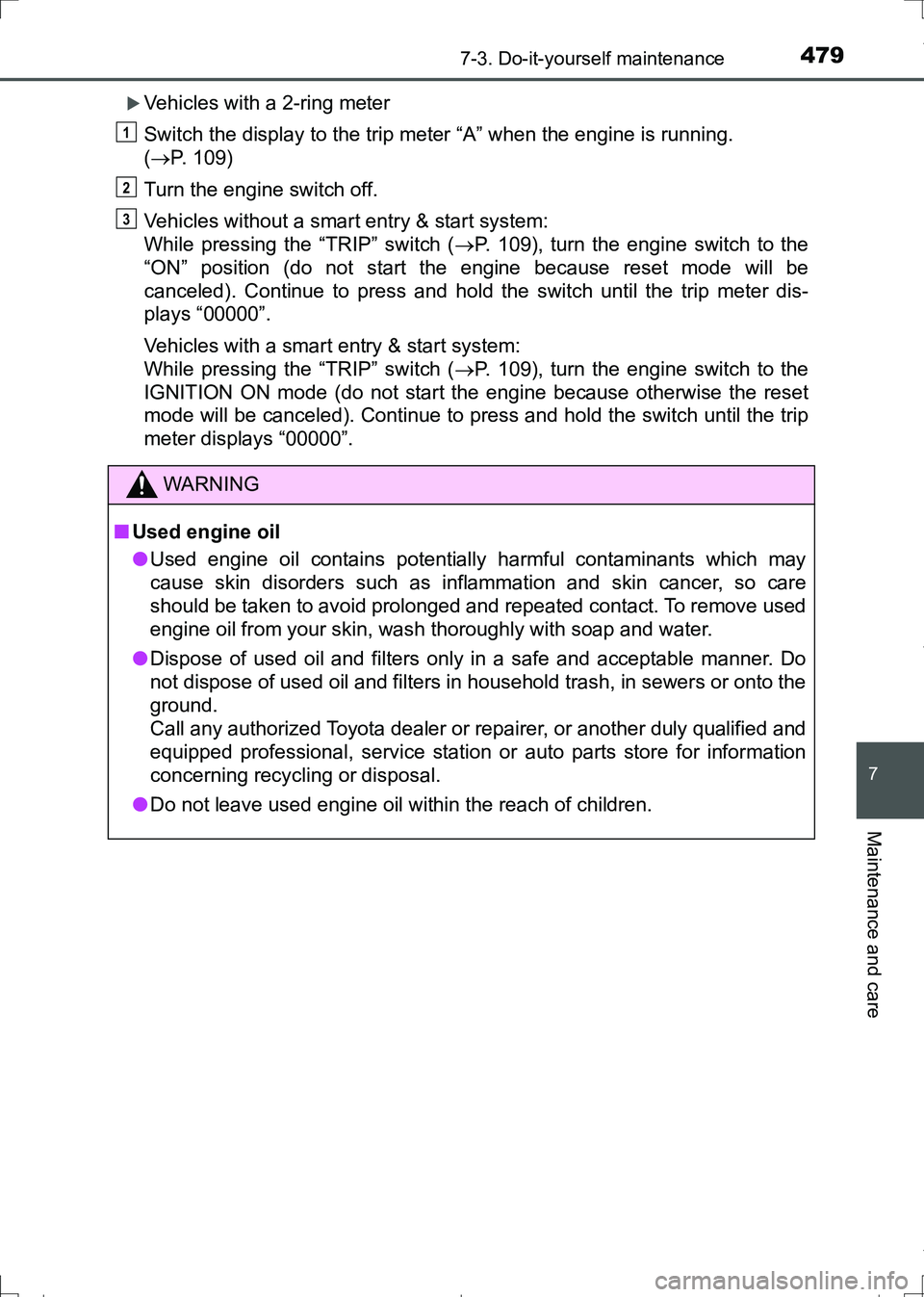

Vehicles with a 2-ring meter
Switch the display to the trip meter “A” when the engine is running.
(P. 109)
Turn the engine switch off.
Vehicles without a smart entry & start system:
While pressing the “TRIP” switch (P. 109), turn the engine switch to the
“ON” position (do not start the engine because reset mode will be
canceled). Continue to press and hold the switch until the trip meter dis-
plays “00000”.
Vehicles with a smart entry & start system:
While pressing the “TRIP” switch (P. 109), turn the engine switch to the
IGNITION ON mode (do not start the engine because otherwise the reset
mode will be canceled). Continue to press and hold the switch until the trip
meter displays “00000”.
WARNING
■Used engine oil
●Used engine oil contains potentially harmful contaminants which may
cause skin disorders such as inflammation and skin cancer, so care
should be taken to avoid prolonged and repeated contact. To remove used
engine oil from your skin, wash thoroughly with soap and water.
●Dispose of used oil and filters only in a safe and acceptable manner. Do
not dispose of used oil and filters in household trash, in sewers or onto the
ground.
Call any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional, service station or auto parts store for information
concerning recycling or disposal.
●Do not leave used engine oil within the reach of children.
1
2
3
AURIS Touring Sports_OM_Europe_OM12L13E.book 479 ページ 2016年6月27日 月曜日 午後5時21分
Page 480 of 664

4807-3. Do-it-yourself maintenance
AURIS Touring Sports_EE (12L13E)

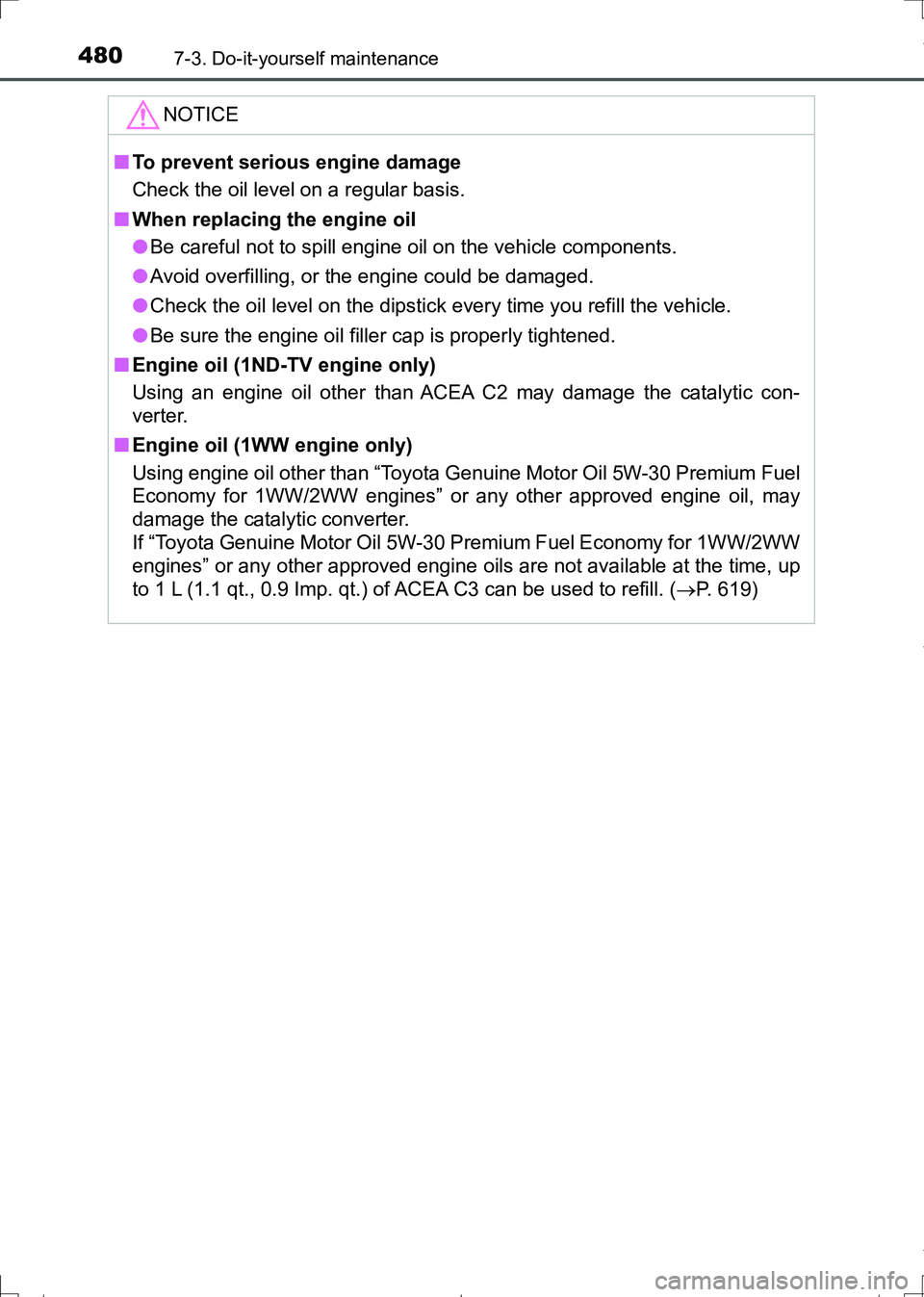

NOTICE
■To prevent serious engine damage
Check the oil level on a regular basis.
■When replacing the engine oil
●Be careful not to spill engine oil on the vehicle components.
●Avoid overfilling, or the engine could be damaged.
●Check the oil level on the dipstick every time you refill the vehicle.
●Be sure the engine oil filler cap is properly tightened.
■Engine oil (1ND-TV engine only)
Using an engine oil other than ACEA C2 may damage the catalytic con-
verter.
■Engine oil (1WW engine only)
Using engine oil other than “Toyota Genuine Motor Oil 5W-30 Premium Fuel
Economy for 1WW/2WW engines” or any other approved engine oil, may
damage the catalytic converter.
If “Toyota Genuine Motor Oil 5W-30 Premium Fuel Economy for 1WW/2WW
engines” or any other approved engine oils are not available at the time, up
to 1 L (1.1 qt., 0.9 Imp. qt.) of ACEA C3 can be used to refill. (P. 619)
