Maintenance and care

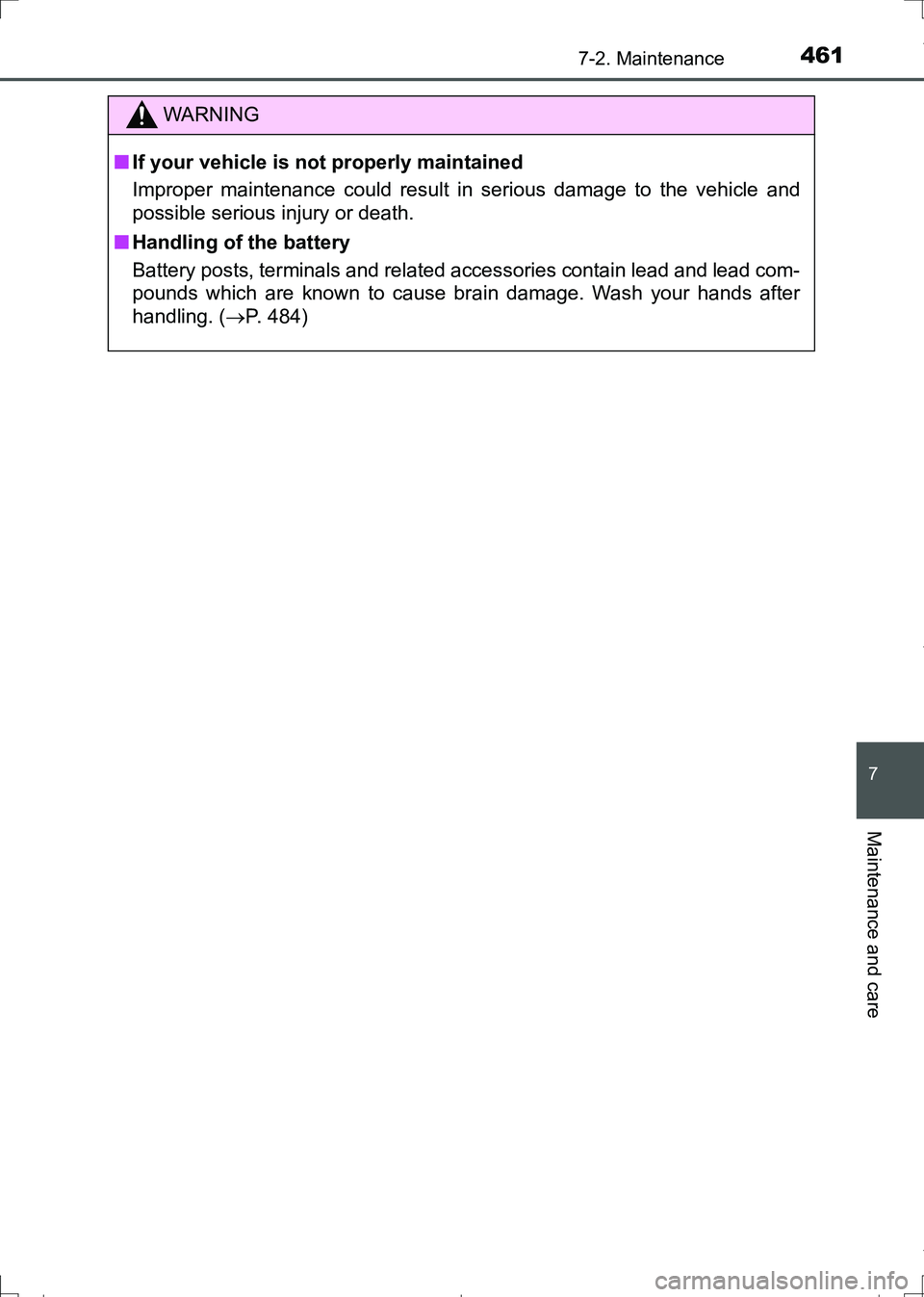

WARNING
■If your vehicle is not properly maintained
Improper maintenance could result in serious damage to the vehicle and
possible serious injury or death.
■Handling of the battery
Battery posts, terminals and related accessories contain lead and lead com-
pounds which are known to cause brain damage. Wash your hands after
handling. (P. 484)
AURIS Touring Sports_OM_Europe_OM12L13E.book 461 ページ ２０１６年６月２７日　月曜日　午後５時２１分

462
AURIS Touring Sports_EE (12L13E)
7-3. Do-it-yourself maintenance

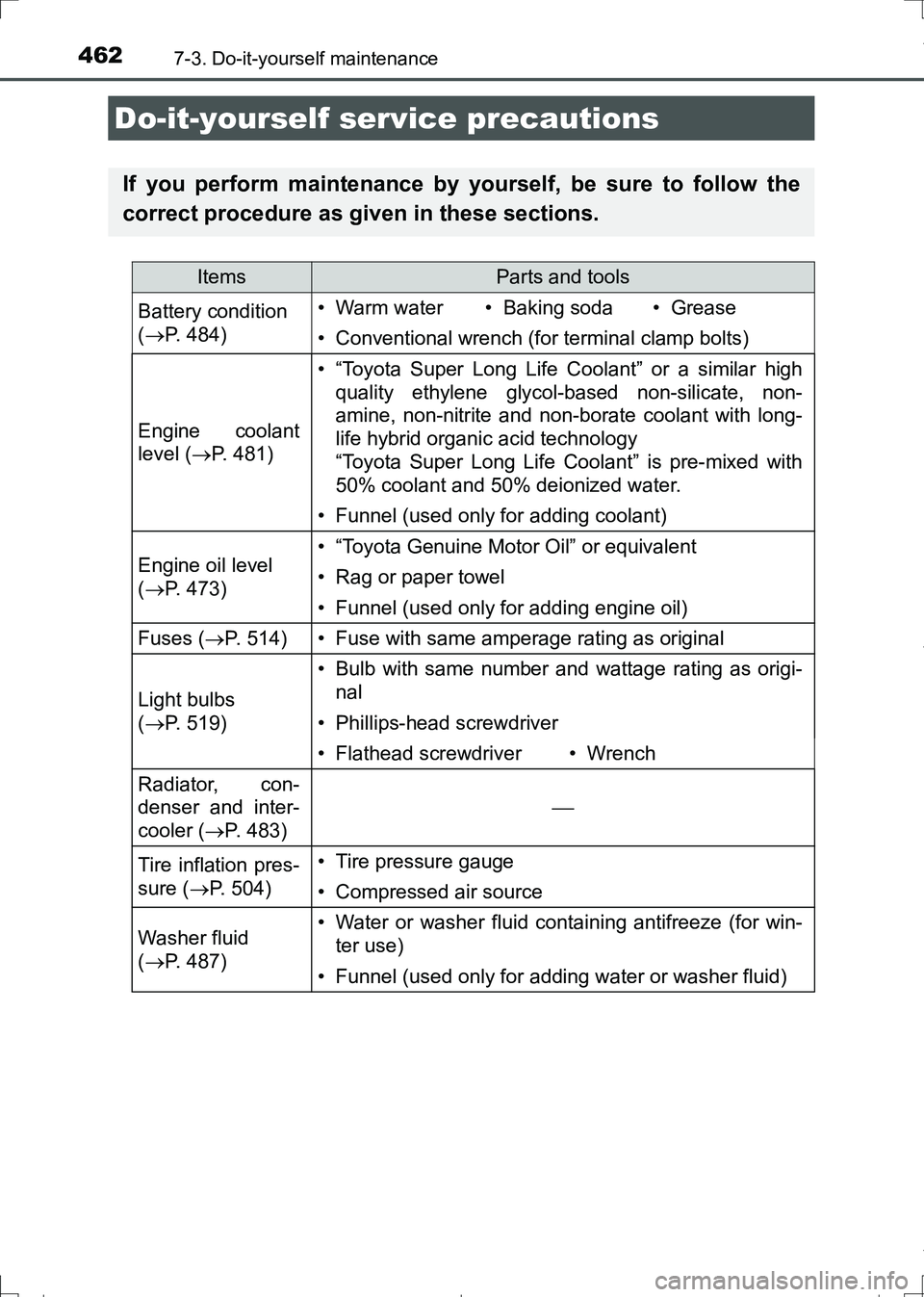

Do-it-yourself service precautions
If you perform maintenance by yourself, be sure to follow the
correct procedure as given in these sections.
ItemsParts and tools
Battery condition
(P. 484)• Warm water• Baking soda• Grease
• Conventional wrench (for terminal clamp bolts)
Engine coolant
level (P. 481)
• “Toyota Super Long Life Coolant” or a similar high
quality ethylene glycol-based non-silicate, non-
amine, non-nitrite and non-borate coolant with long-
life hybrid organic acid technology
“Toyota Super Long Life Coolant” is pre-mixed with
50% coolant and 50% deionized water.
• Funnel (used only for adding coolant)
Engine oil level
(P. 473)• “Toyota Genuine Motor Oil” or equivalent
• Rag or paper towel
• Funnel (used only for adding engine oil)
Fuses (P. 514)• Fuse with same amperage rating as original
Light bulbs
(P. 519)
• Bulb with same number and wattage rating as origi-
nal
• Phillips-head screwdriver
• Flathead screwdriver• Wrench
Radiator, con-
denser and inter-
cooler (P. 483)

Tire inflation pres-
sure (P. 504)• Tire pressure gauge
• Compressed air source
Washer fluid
(P. 487)• Water or washer fluid containing antifreeze (for win-
ter use)
• Funnel (used only for adding water or washer fluid)
AURIS Touring Sports_OM_Europe_OM12L13E.book 462 ページ ２０１６年６月２７日　月曜日　午後５時２１分

4637-3. Do-it-yourself maintenance
AURIS Touring Sports_EE (12L13E)
7
Maintenance and care

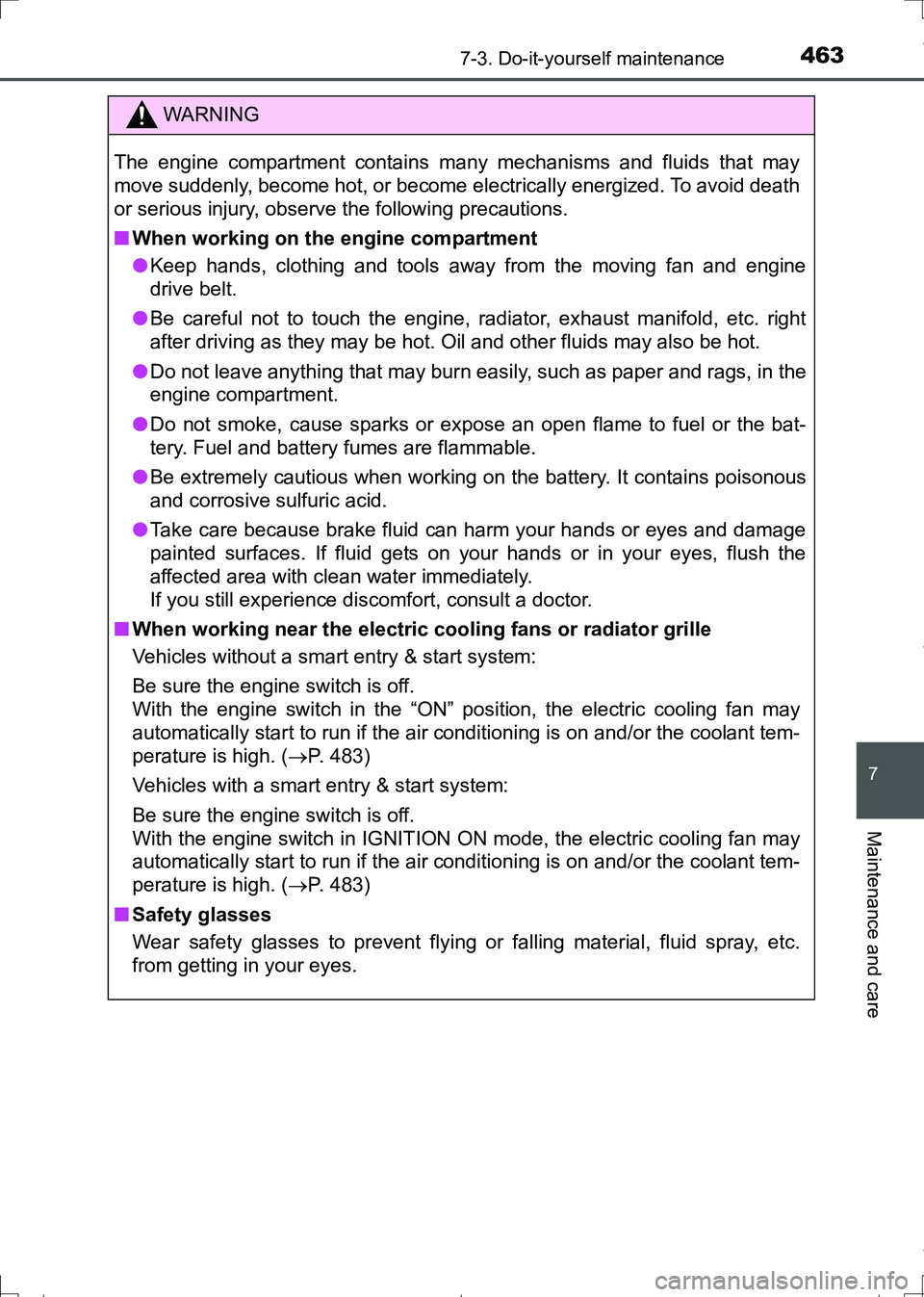

WARNING
The engine compartment contains many mechanisms and fluids that may
move suddenly, become hot, or become electrically energized. To avoid death
or serious injury, observe the following precautions.
■When working on the engine compartment
●Keep hands, clothing and tools away from the moving fan and engine
drive belt.
●Be careful not to touch the engine, radiator, exhaust manifold, etc. right
after driving as they may be hot. Oil and other fluids may also be hot.
●Do not leave anything that may burn easily, such as paper and rags, in the
engine compartment.
●Do not smoke, cause sparks or expose an open flame to fuel or the bat-
tery. Fuel and battery fumes are flammable.
●Be extremely cautious when working on the battery. It contains poisonous
and corrosive sulfuric acid.
●Take care because brake fluid can harm your hands or eyes and damage
painted surfaces. If fluid gets on your hands or in your eyes, flush the
affected area with clean water immediately.
If you still experience discomfort, consult a doctor.
■When working near the electric cooling fans or radiator grille
Vehicles without a smart entry & start system:
Be sure the engine switch is off.
With the engine switch in the “ON” position, the electric cooling fan may
automatically start to run if the air conditioning is on and/or the coolant tem-
perature is high. (P. 483)
Vehicles with a smart entry & start system:
Be sure the engine switch is off.
With the engine switch in IGNITION ON mode, the electric cooling fan may
automatically start to run if the air conditioning is on and/or the coolant tem-
perature is high. (P. 483)
■Safety glasses
Wear safety glasses to prevent flying or falling material, fluid spray, etc.
from getting in your eyes.
AURIS Touring Sports_OM_Europe_OM12L13E.book 463 ページ ２０１６年６月２７日　月曜日　午後５時２１分

4647-3. Do-it-yourself maintenance
AURIS Touring Sports_EE (12L13E)

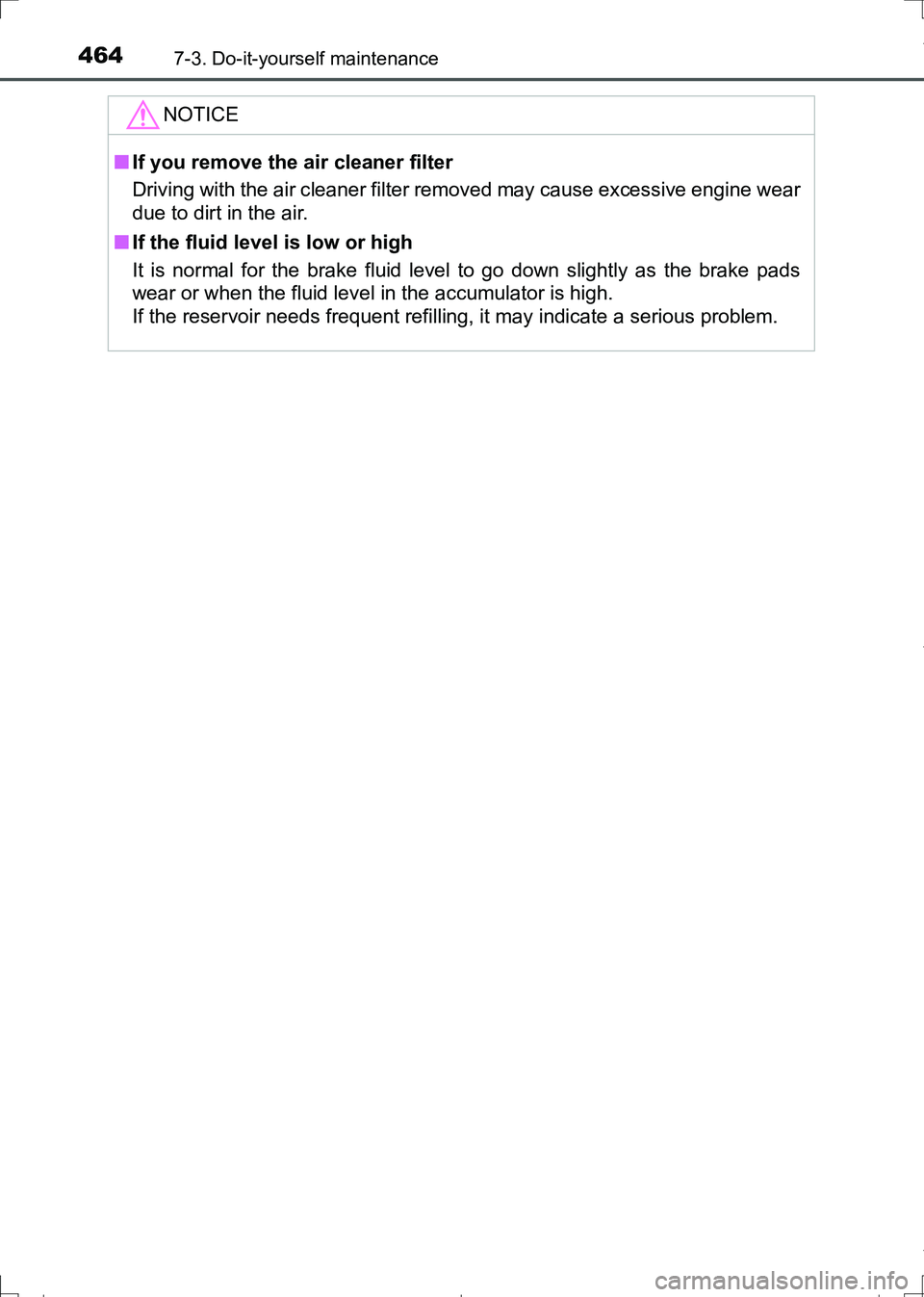

NOTICE
■If you remove the air cleaner filter
Driving with the air cleaner filter removed may cause excessive engine wear
due to dirt in the air.
■If the fluid level is low or high
It is normal for the brake fluid level to go down slightly as the brake pads
wear or when the fluid level in the accumulator is high.
If the reservoir needs frequent refilling, it may indicate a serious problem.
AURIS Touring Sports_OM_Europe_OM12L13E.book 464 ページ ２０１６年６月２７日　月曜日　午後５時２１分

4657-3. Do-it-yourself maintenance
AURIS Touring Sports_EE (12L13E)
7
Maintenance and care

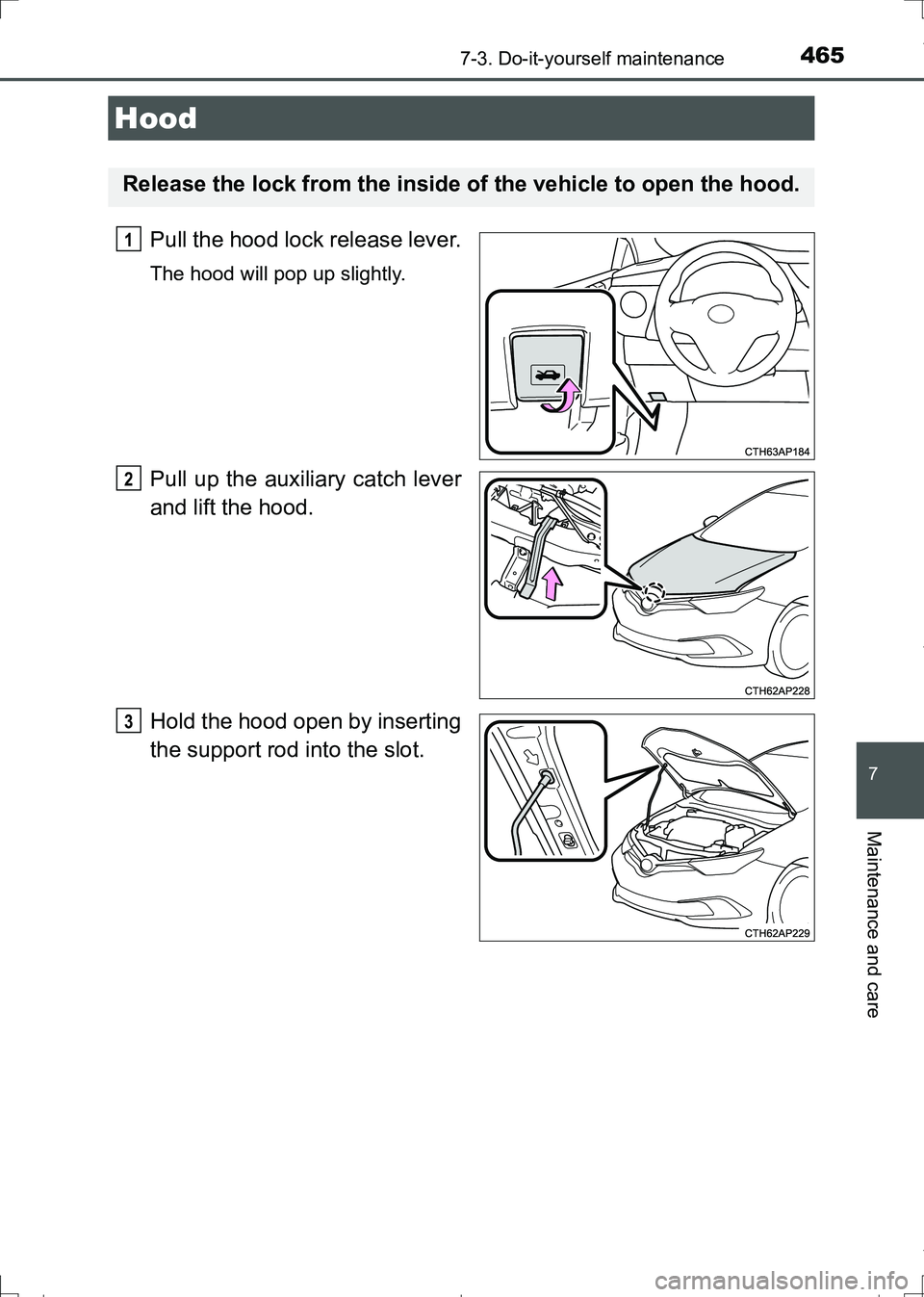

Pull the hood lock release lever.
The hood will pop up slightly.
Pull up the auxiliary catch lever
and lift the hood.
Hold the hood open by inserting
the support rod into the slot.
Hood
Release the lock from the inside of the vehicle to open the hood.
1
2
3
AURIS Touring Sports_OM_Europe_OM12L13E.book 465 ページ ２０１６年６月２７日　月曜日　午後５時２１分

4667-3. Do-it-yourself maintenance
AURIS Touring Sports_EE (12L13E)

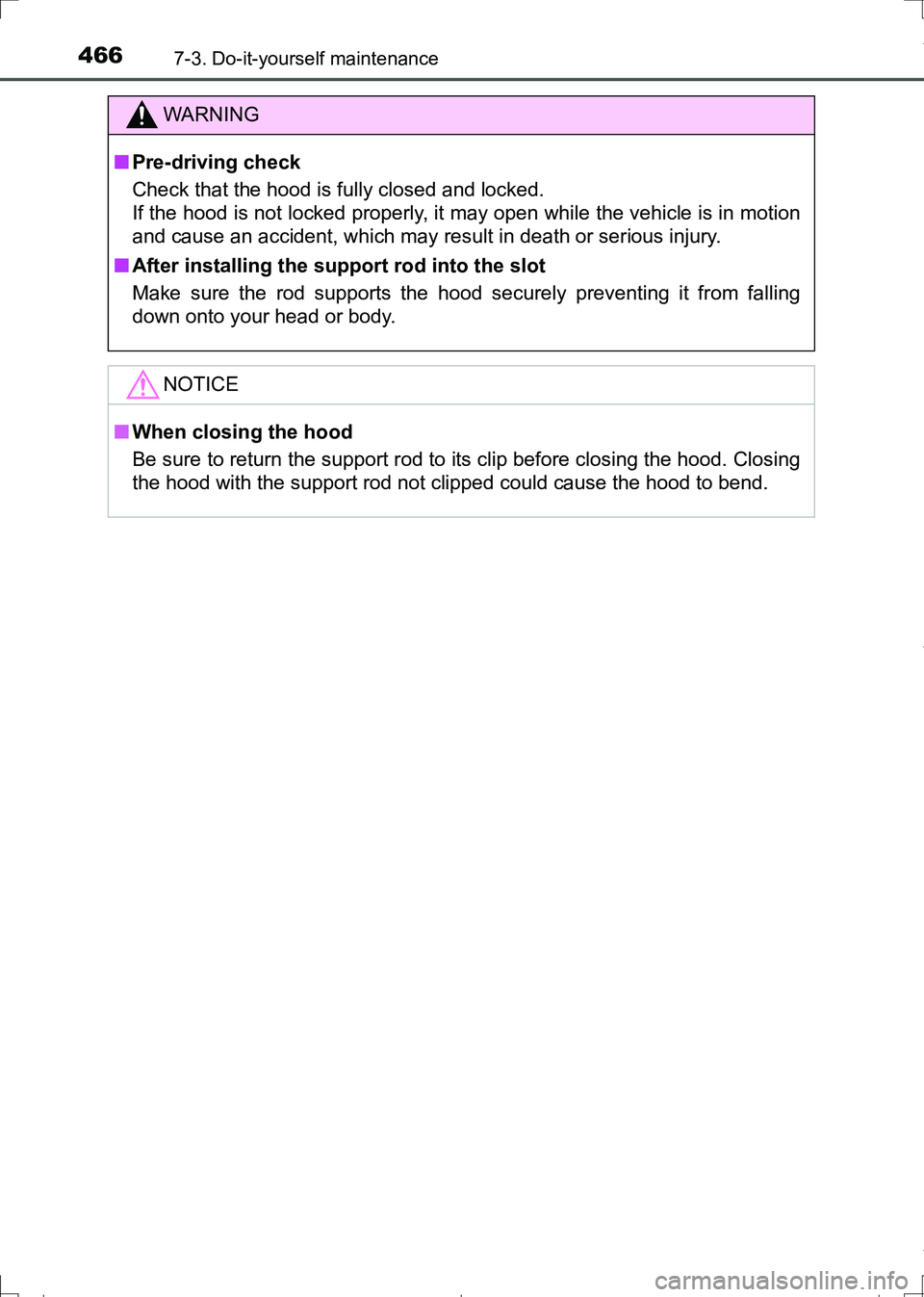

WARNING
■Pre-driving check
Check that the hood is fully closed and locked.
If the hood is not locked properly, it may open while the vehicle is in motion
and cause an accident, which may result in death or serious injury.
■After installing the support rod into the slot
Make sure the rod supports the hood securely preventing it from falling
down onto your head or body.
NOTICE
■When closing the hood
Be sure to return the support rod to its clip before closing the hood. Closing
the hood with the support rod not clipped could cause the hood to bend.
AURIS Touring Sports_OM_Europe_OM12L13E.book 466 ページ ２０１６年６月２７日　月曜日　午後５時２１分

4677-3. Do-it-yourself maintenance
AURIS Touring Sports_EE (12L13E)
7
Maintenance and care
◆Front
◆Rear
Type A
Type B

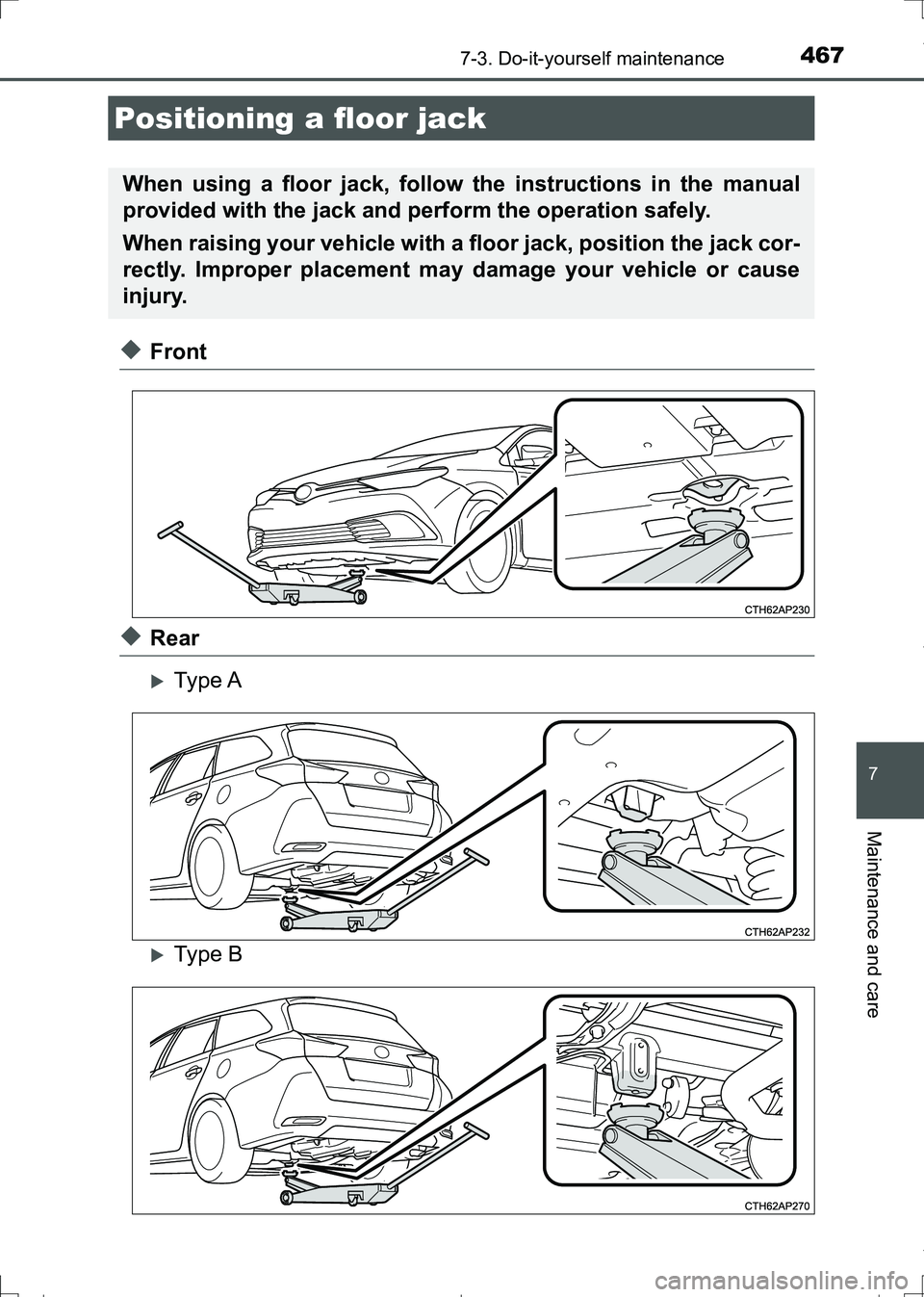

Positioning a floor jack
When using a floor jack, follow the instructions in the manual
provided with the jack and perform the operation safely.
When raising your vehicle with a floor jack, position the jack cor-
rectly. Improper placement may damage your vehicle or cause
injury.
AURIS Touring Sports_OM_Europe_OM12L13E.book 467 ページ ２０１６年６月２７日　月曜日　午後５時２１分

4687-3. Do-it-yourself maintenance
AURIS Touring Sports_EE (12L13E)■

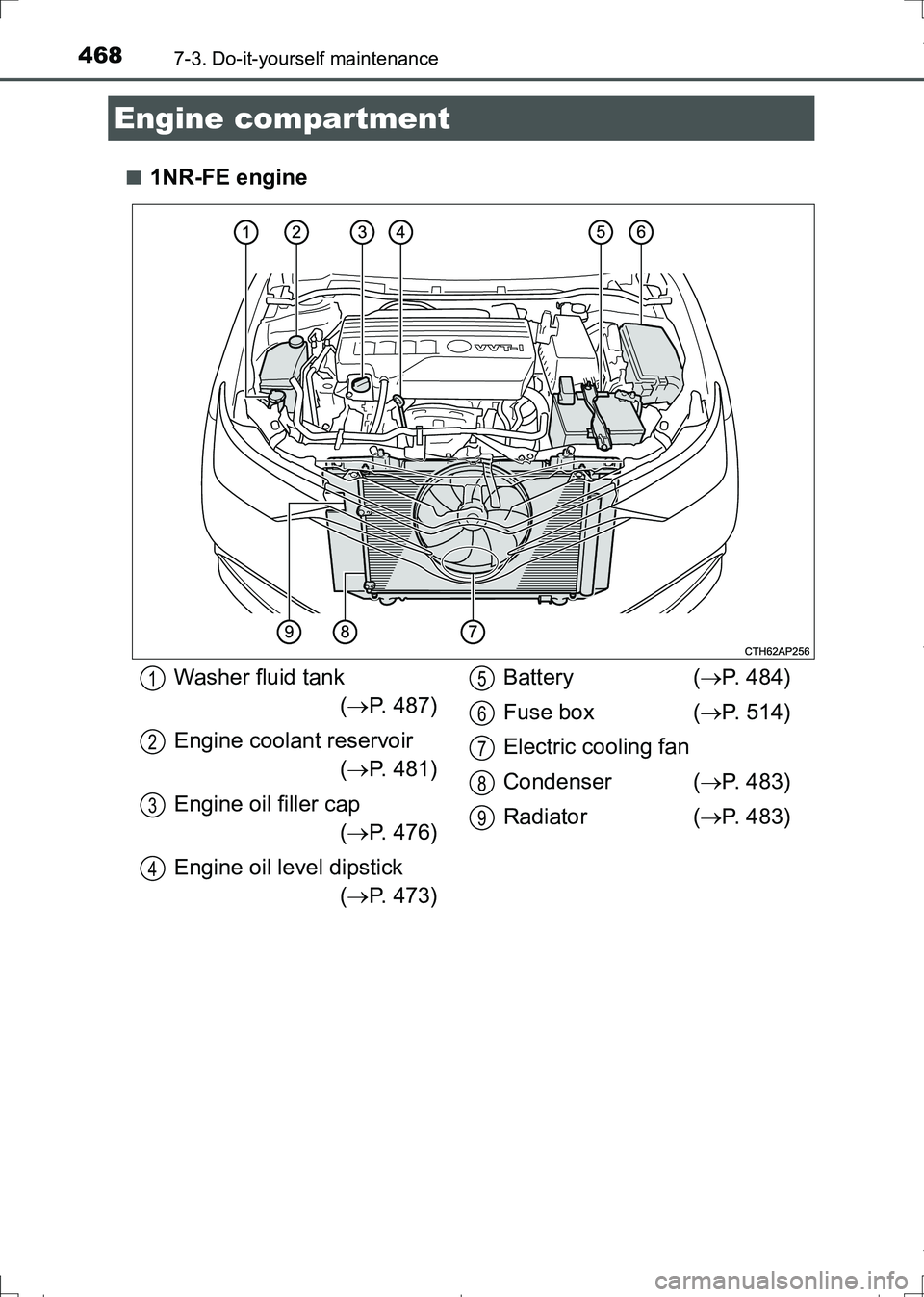

1NR-FE engine
Engine compartment
Washer fluid tank
(P. 487)
Engine coolant reservoir
(P. 481)
Engine oil filler cap
(P. 476)
Engine oil level dipstick
(P. 473)Battery (P. 484)
Fuse box (P. 514)
Electric cooling fan
Condenser (P. 483)
Radiator (P. 483)1
2
3
4
5
6
7
8
9
AURIS Touring Sports_OM_Europe_OM12L13E.book 468 ページ ２０１６年６月２７日　月曜日　午後５時２１分

4697-3. Do-it-yourself maintenance
AURIS Touring Sports_EE (12L13E)
7
Maintenance and care

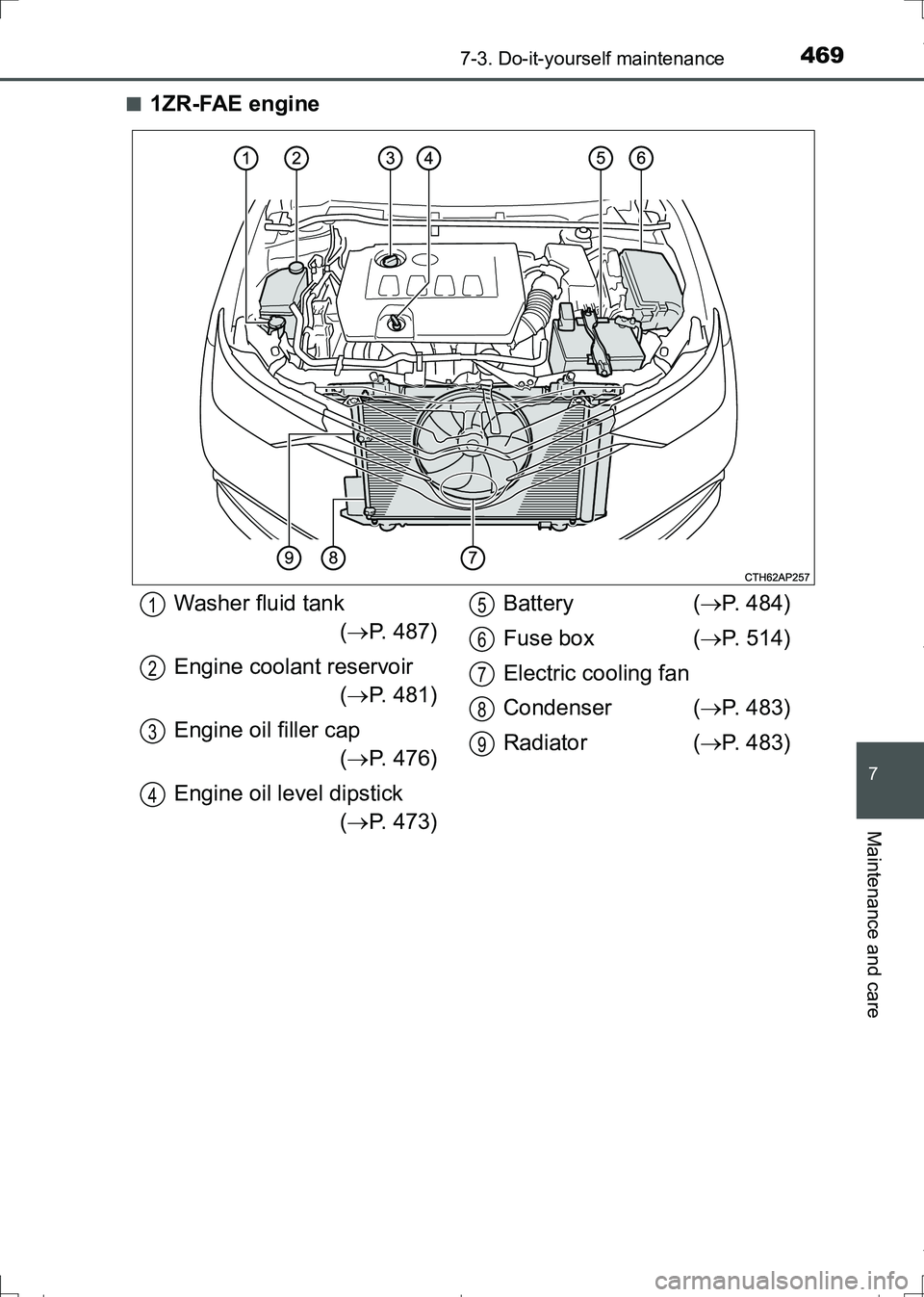

■1ZR-FAE engine
