5718-2. Steps to take in an emergency
AURIS Touring Sports_EE (12L13E)
8
When trouble arises

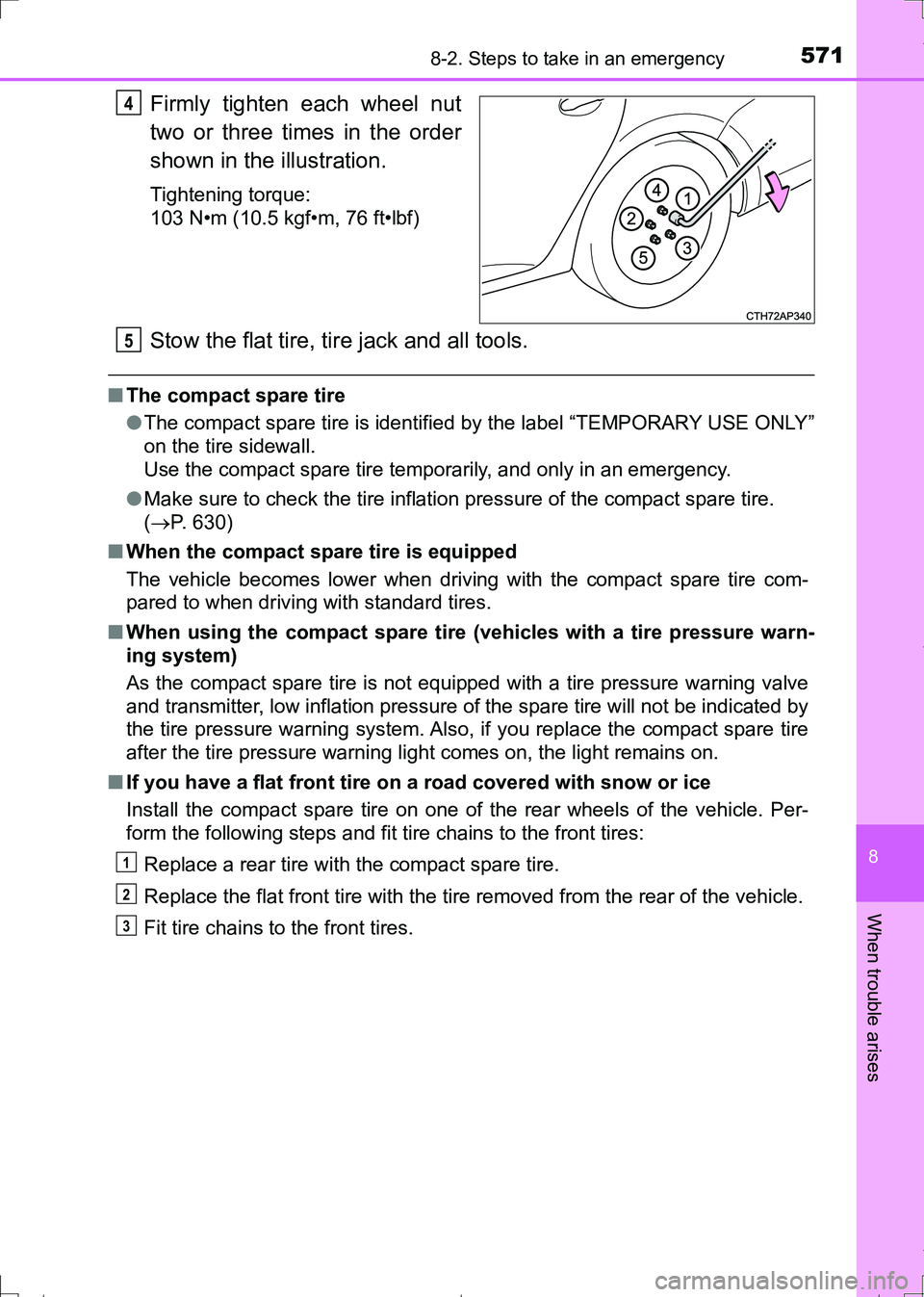

Firmly tighten each wheel nut
two or three times in the order
shown in the illustration.
Tightening torque:
103 N•m (10.5 kgf•m, 76 ft•lbf)
Stow the flat tire, tire jack and all tools.
■The compact spare tire
●The compact spare tire is identified by the label “TEMPORARY USE ONLY”
on the tire sidewall.
Use the compact spare tire temporarily, and only in an emergency.
●Make sure to check the tire inflation pressure of the compact spare tire.
(P. 630)
■When the compact spare tire is equipped
The vehicle becomes lower when driving with the compact spare tire com-
pared to when driving with standard tires.
■When using the compact spare tire (vehicles with a tire pressure warn-
ing system)
As the compact spare tire is not equipped with a tire pressure warning valve
and transmitter, low inflation pressure of the spare tire will not be indicated by
the tire pressure warning system. Also, if you replace the compact spare tire
after the tire pressure warning light comes on, the light remains on.
■If you have a flat front tire on a road covered with snow or ice
Install the compact spare tire on one of the rear wheels of the vehicle. Per-
form the following steps and fit tire chains to the front tires:
Replace a rear tire with the compact spare tire.
Replace the flat front tire with the tire removed from the rear of the vehicle.
Fit tire chains to the front tires.
4
5
1
2
3
AURIS Touring Sports_OM_Europe_OM12L13E.book 571 ページ ２０１６年６月２７日　月曜日　午後５時２１分

5728-2. Steps to take in an emergency

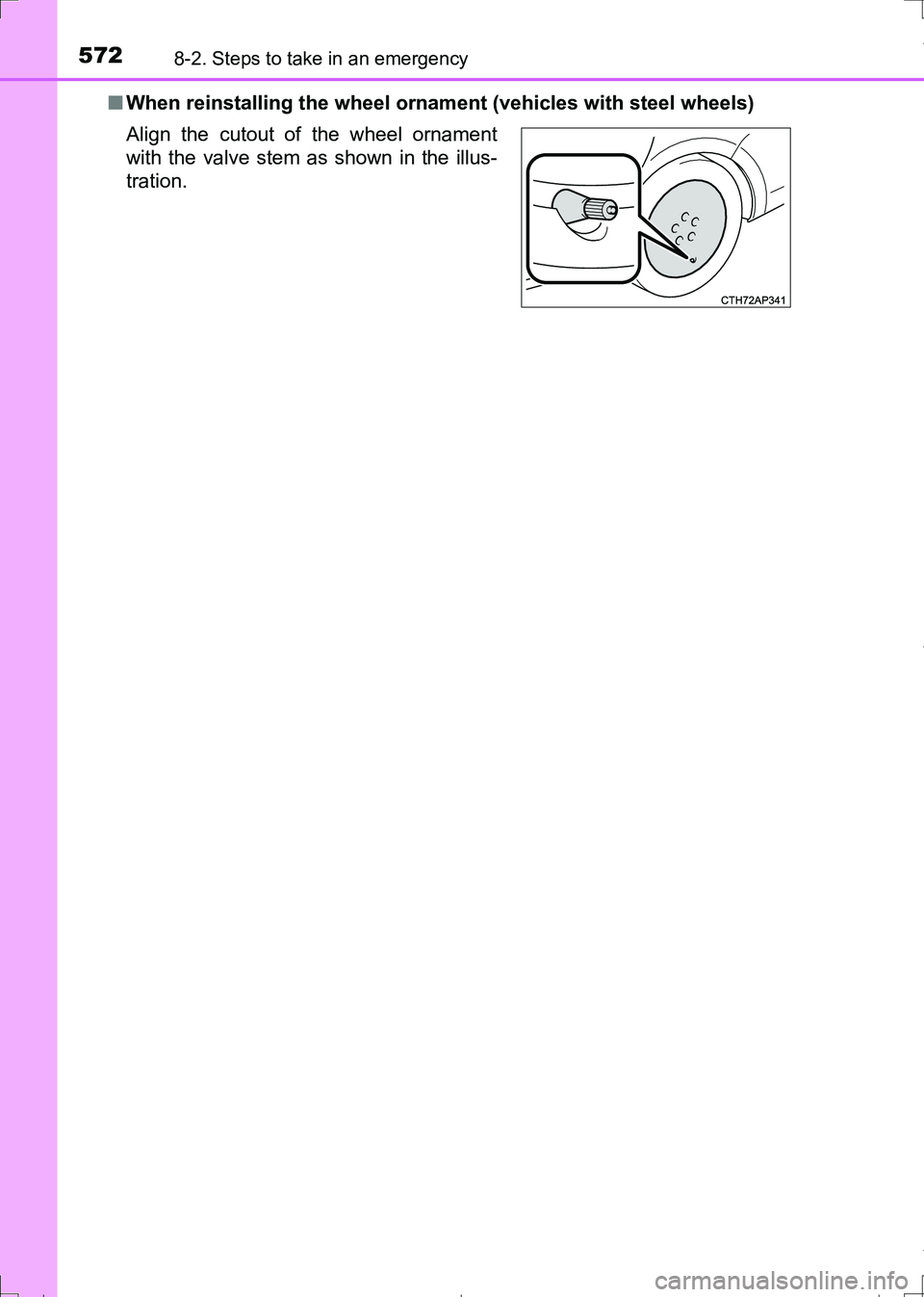

AURIS Touring Sports_EE (12L13E)■When reinstalling the wheel ornament (vehicles with steel wheels)
Align the cutout of the wheel ornament
with the valve stem as shown in the illus-
tration.
AURIS Touring Sports_OM_Europe_OM12L13E.book 572 ページ ２０１６年６月２７日　月曜日　午後５時２１分

5738-2. Steps to take in an emergency
AURIS Touring Sports_EE (12L13E)
8
When trouble arises

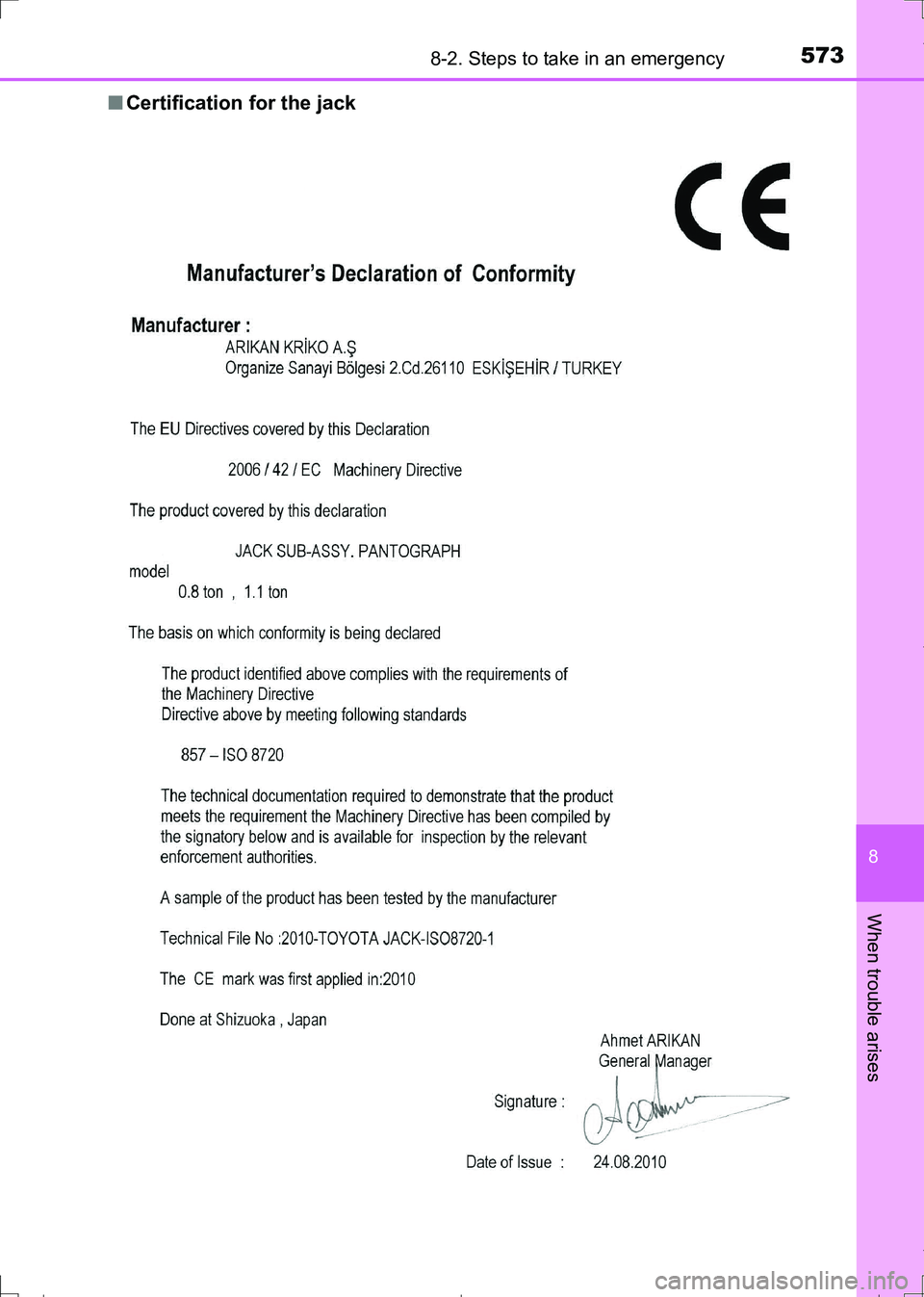

■Certification for the jack
AURIS Touring Sports_OM_Europe_OM12L13E.book 573 ページ ２０１６年６月２７日　月曜日　午後５時２１分

5748-2. Steps to take in an emergency
AURIS Touring Sports_EE (12L13E)

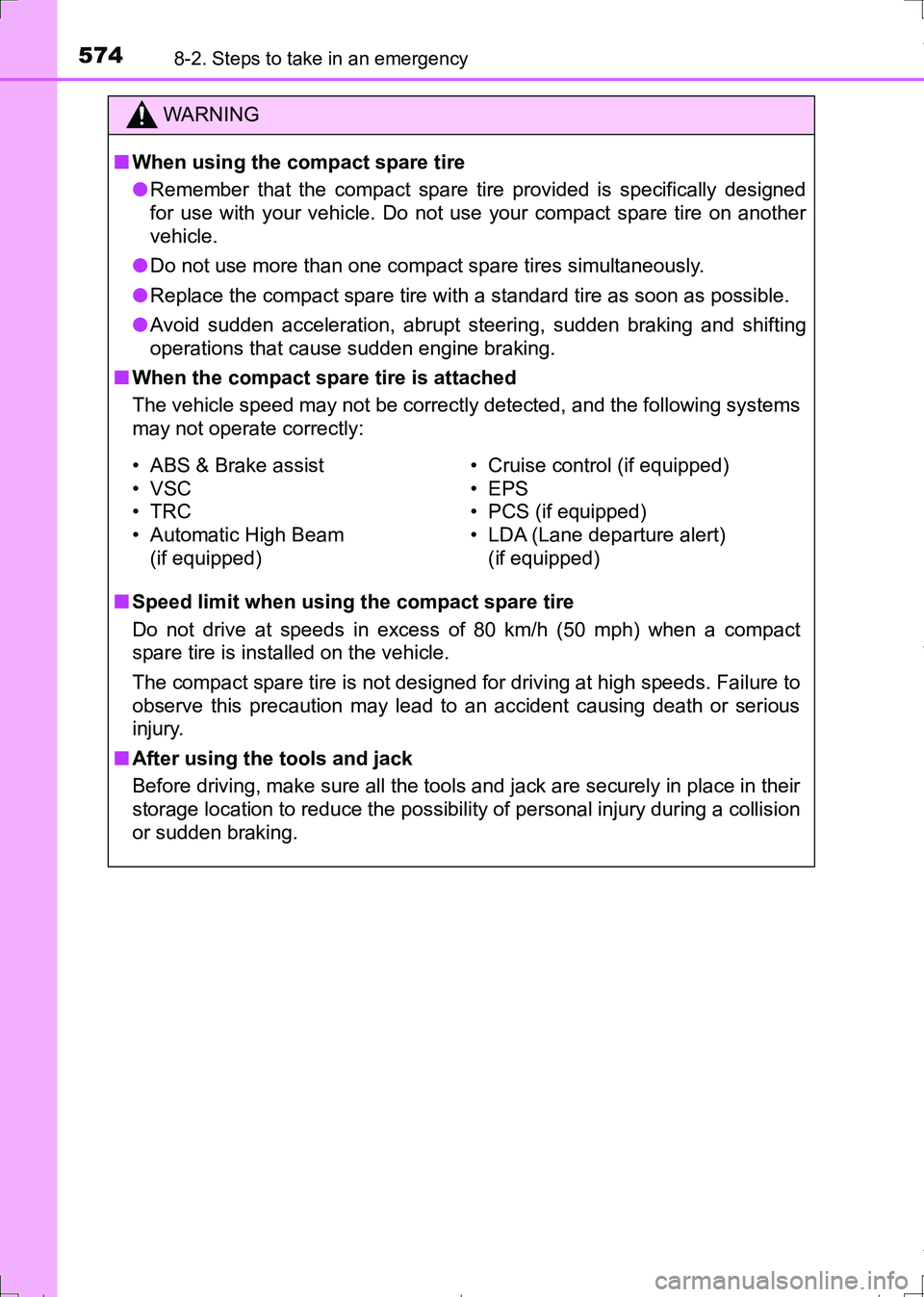

WARNING
■When using the compact spare tire
●Remember that the compact spare tire provided is specifically designed
for use with your vehicle. Do not use your compact spare tire on another
vehicle.
●Do not use more than one compact spare tires simultaneously.
●Replace the compact spare tire with a standard tire as soon as possible.
●Avoid sudden acceleration, abrupt steering, sudden braking and shifting
operations that cause sudden engine braking.
■When the compact spare tire is attached
The vehicle speed may not be correctly detected, and the following systems
may not operate correctly:
■Speed limit when using the compact spare tire
Do not drive at speeds in excess of 80 km/h (50 mph) when a compact
spare tire is installed on the vehicle.
The compact spare tire is not designed for driving at high speeds. Failure to
observe this precaution may lead to an accident causing death or serious
injury.
■After using the tools and jack
Before driving, make sure all the tools and jack are securely in place in their
storage location to reduce the possibility of personal injury during a collision
or sudden braking.
• ABS & Brake assist
•VSC
• TRC
• Automatic High Beam
(if equipped)• Cruise control (if equipped)
•EPS
• PCS (if equipped)
• LDA (Lane departure alert)
(if equipped)
AURIS Touring Sports_OM_Europe_OM12L13E.book 574 ページ ２０１６年６月２７日　月曜日　午後５時２１分

5758-2. Steps to take in an emergency
AURIS Touring Sports_EE (12L13E)
8
When trouble arises

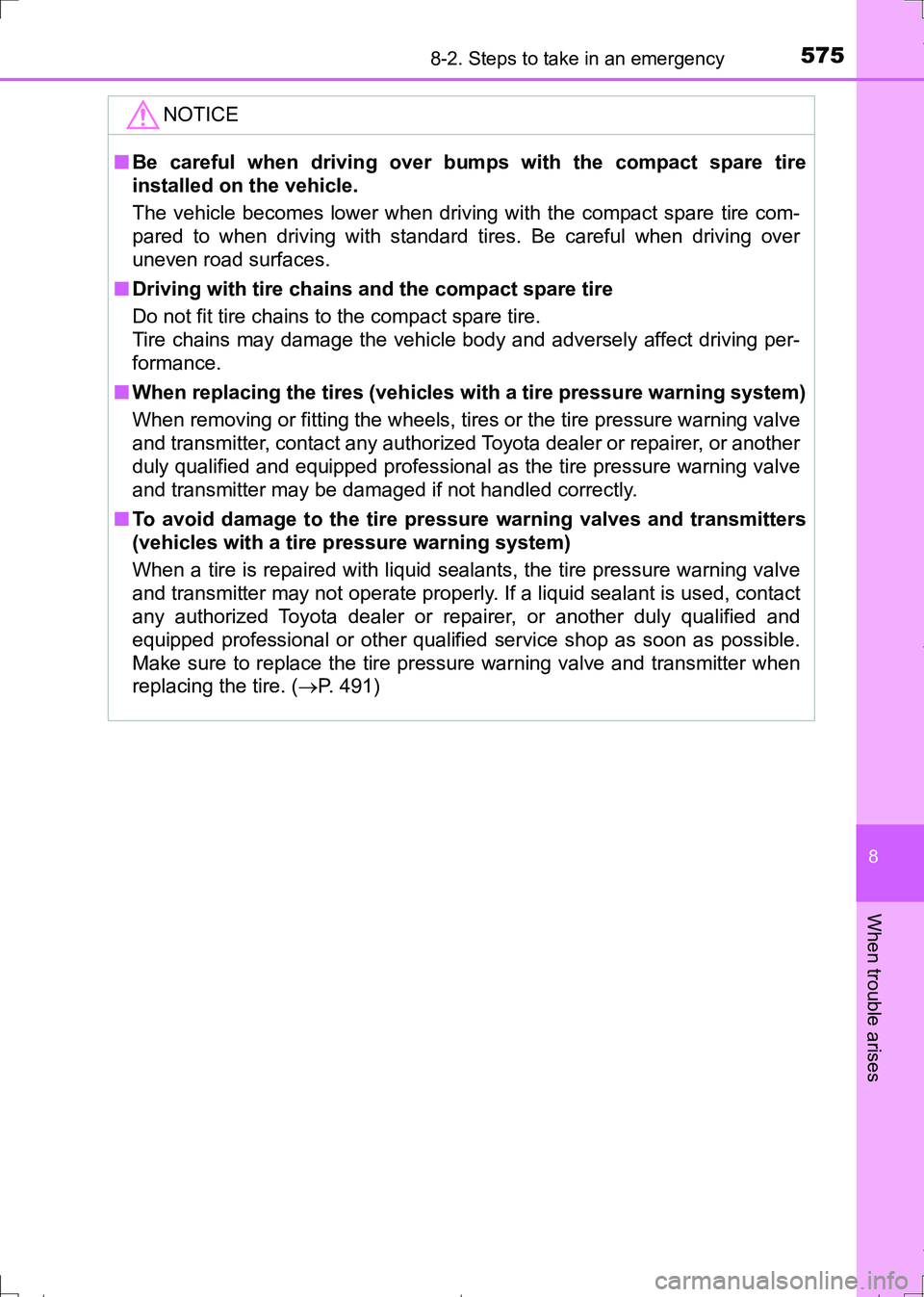

NOTICE
■Be careful when driving over bumps with the compact spare tire
installed on the vehicle.
The vehicle becomes lower when driving with the compact spare tire com-
pared to when driving with standard tires. Be careful when driving over
uneven road surfaces.
■Driving with tire chains and the compact spare tire
Do not fit tire chains to the compact spare tire.
Tire chains may damage the vehicle body and adversely affect driving per-
formance.
■When replacing the tires (vehicles with a tire pressure warning system)
When removing or fitting the wheels, tires or the tire pressure warning valve
and transmitter, contact any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional as the tire pressure warning valve
and transmitter may be damaged if not handled correctly.
■To avoid damage to the tire pressure warning valves and transmitters
(vehicles with a tire pressure warning system)
When a tire is repaired with liquid sealants, the tire pressure warning valve
and transmitter may not operate properly. If a liquid sealant is used, contact
any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional or other qualified service shop as soon as possible.
Make sure to replace the tire pressure warning valve and transmitter when
replacing the tire. (P. 491)
AURIS Touring Sports_OM_Europe_OM12L13E.book 575 ページ ２０１６年６月２７日　月曜日　午後５時２１分

5768-2. Steps to take in an emergency
AURIS Touring Sports_EE (12L13E)
If you have a flat tire (vehicles with an
emergency tire puncture repair kit)
Your vehicle is not equipped with a spare tire, but instead is equipped
with an emergency tire puncture repair kit.
A puncture caused by a nail or screw passing through the tire tread can
be repaired temporarily using the emergency tire puncture repair kit.
(The kit contains a bottle of sealant. The sealant can be used only once
to temporarily repair one tire without removing the nail or screw from
the tire.) Depending on the damage, this kit cannot be used to repair the
tire. (P. 577)
After temporarily repairing the tire with the kit, have the tire repaired or
replaced by any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional. Repairs conducted using the
emergency tire puncture repair kit are only a temporary measure. Have
the tire repaired and replaced as soon as possible.
AURIS Touring Sports_OM_Europe_OM12L13E.book 576 ページ ２０１６年６月２７日　月曜日　午後５時２１分

5778-2. Steps to take in an emergency
AURIS Touring Sports_EE (12L13E)
8
When trouble arises

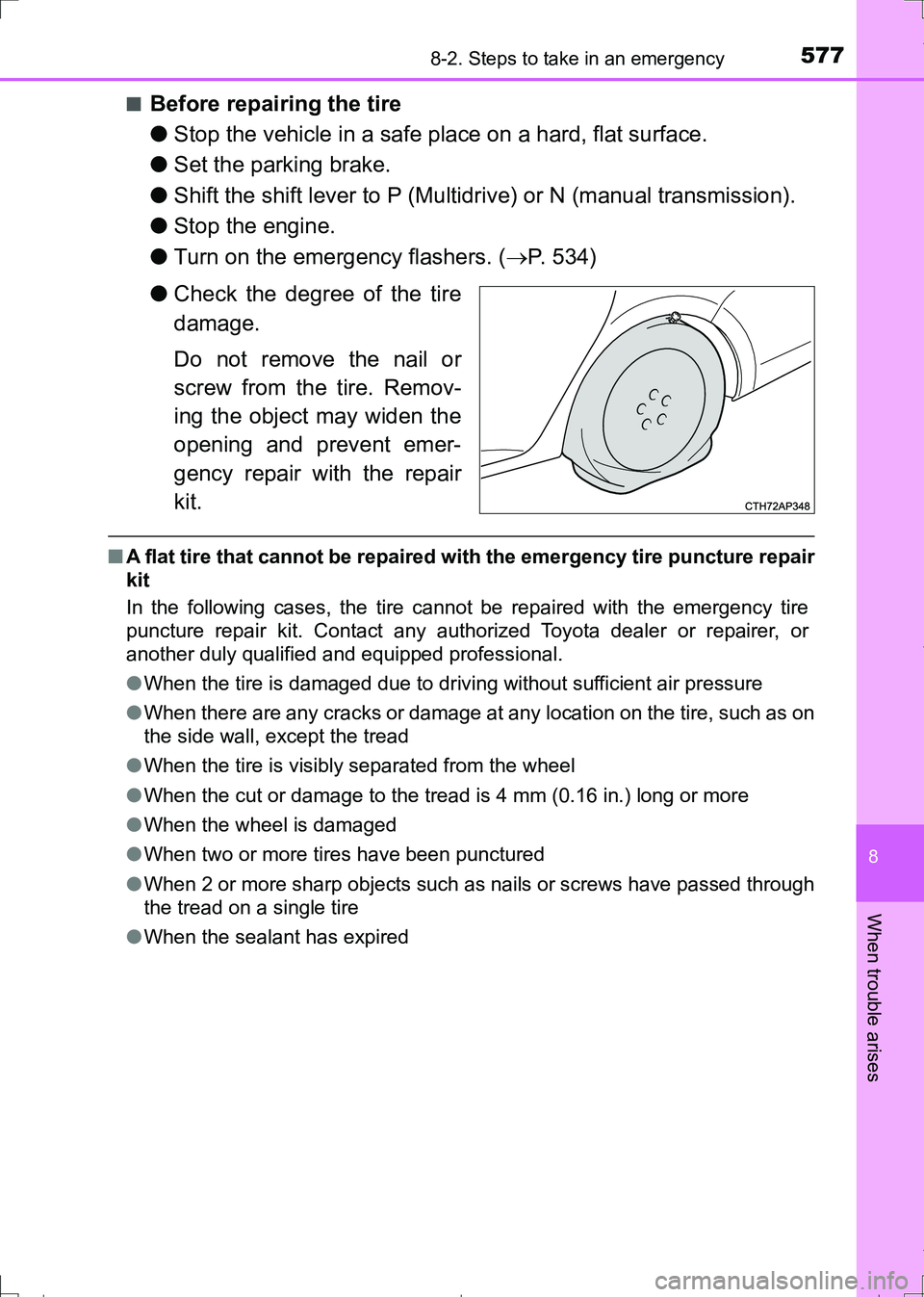

■Before repairing the tire
●Stop the vehicle in a safe place on a hard, flat surface.
●Set the parking brake.
●Shift the shift lever to P (Multidrive) or N (manual transmission).
●Stop the engine.
●Turn on the emergency flashers. (P. 534)
●Check the degree of the tire
damage.
Do not remove the nail or
screw from the tire. Remov-
ing the object may widen the
opening and prevent emer-
gency repair with the repair
kit.
■A flat tire that cannot be repaired with the emergency tire puncture repair
kit
In the following cases, the tire cannot be repaired with the emergency tire
puncture repair kit. Contact any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional.
●When the tire is damaged due to driving without sufficient air pressure
●When there are any cracks or damage at any location on the tire, such as on
the side wall, except the tread
●When the tire is visibly separated from the wheel
●When the cut or damage to the tread is 4 mm (0.16 in.) long or more
●When the wheel is damaged
●When two or more tires have been punctured
●When 2 or more sharp objects such as nails or screws have passed through
the tread on a single tire
●When the sealant has expired
AURIS Touring Sports_OM_Europe_OM12L13E.book 577 ページ ２０１６年６月２７日　月曜日　午後５時２１分

5788-2. Steps to take in an emergency
AURIS Touring Sports_EE (12L13E)■

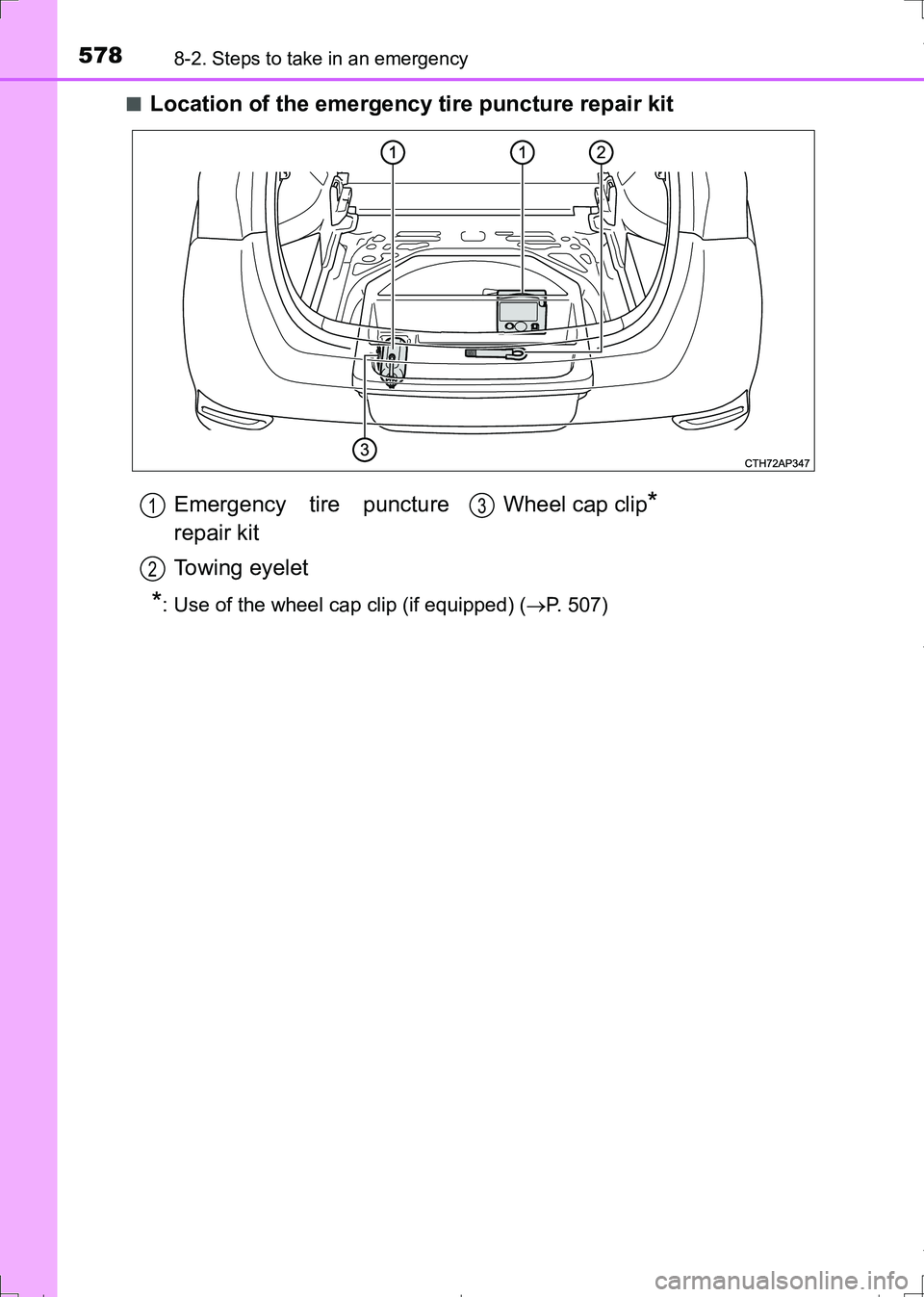

Location of the emergency tire puncture repair kit
*: Use of the wheel cap clip (if equipped) (P. 507)
Emergency tire puncture
repair kit
Towing eyeletWheel cap clip*1
2
3
AURIS Touring Sports_OM_Europe_OM12L13E.book 578 ページ ２０１６年６月２７日　月曜日　午後５時２１分

5798-2. Steps to take in an emergency
AURIS Touring Sports_EE (12L13E)
8
When trouble arises

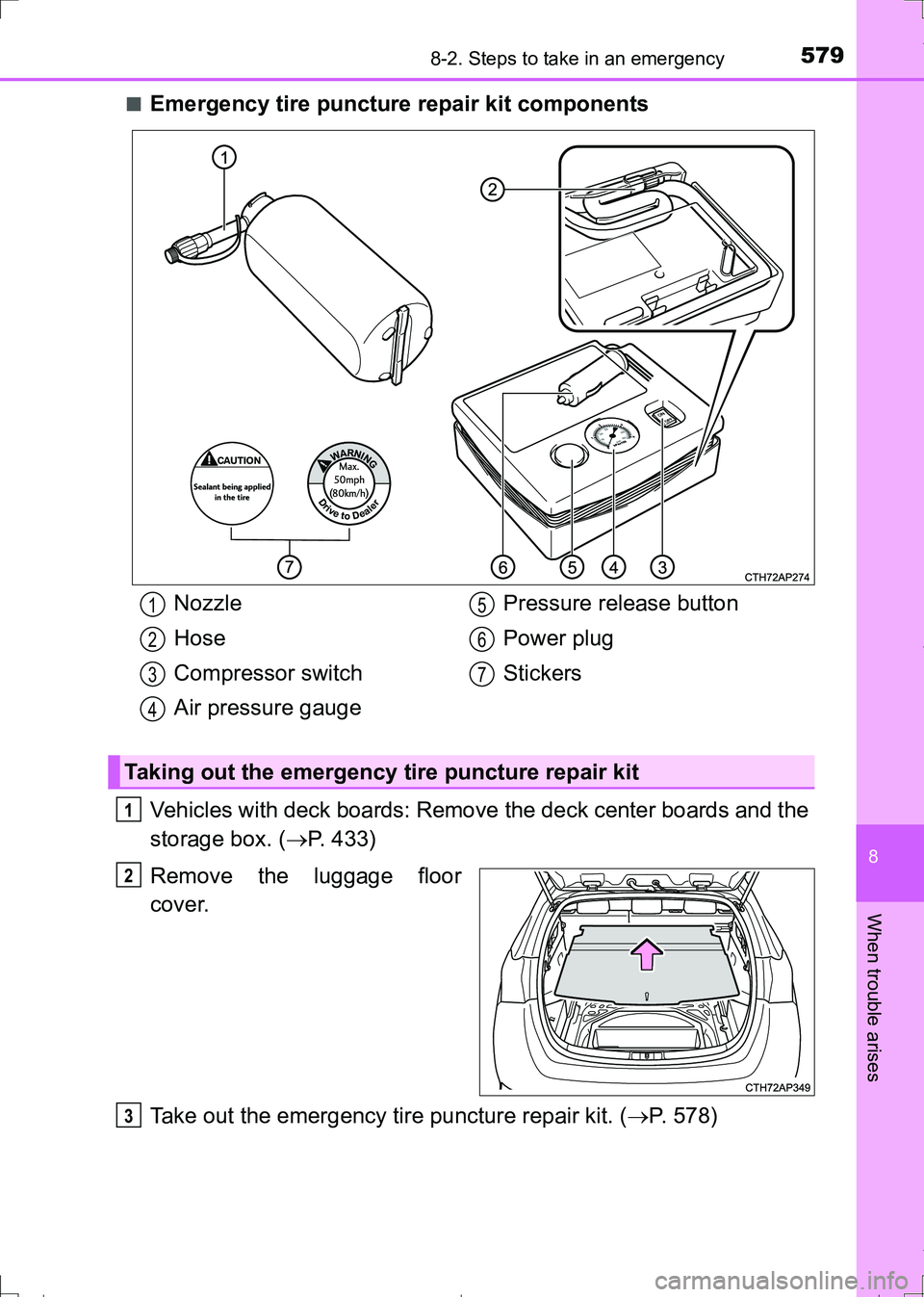

■Emergency tire puncture repair kit components
Vehicles with deck boards: Remove the deck center boards and the
storage box. (P. 433)
Remove the luggage floor
cover.
Take out the emergency tire puncture repair kit. (P. 578)
Nozzle
Hose
Compressor switch
Air pressure gaugePressure release button
Power plug
Stickers1
2
3
4
5
6
7
Taking out the emergency tire puncture repair kit
1
2
3
AURIS Touring Sports_OM_Europe_OM12L13E.book 579 ページ ２０１６年６月２７日　月曜日　午後５時２１分

5808-2. Steps to take in an emergency
AURIS Touring Sports_EE (12L13E)
Take out the repair kit.
When taking out the bottle from the original bag, do not tear or discard the
bag.
Attach the 2 stickers as shown.
Remove any dirt and moisture from
the wheel before attaching the
label. If it is impossible to attach
the label, make sure to tell any
authorized Toyota dealer or
repairer, or other duly qualified and
equipped professional when you
have them repair and replace the
tire that sealant is injected.
Remove the valve cap from the
valve of the punctured tire.
Remove the cap from the noz-
zle.

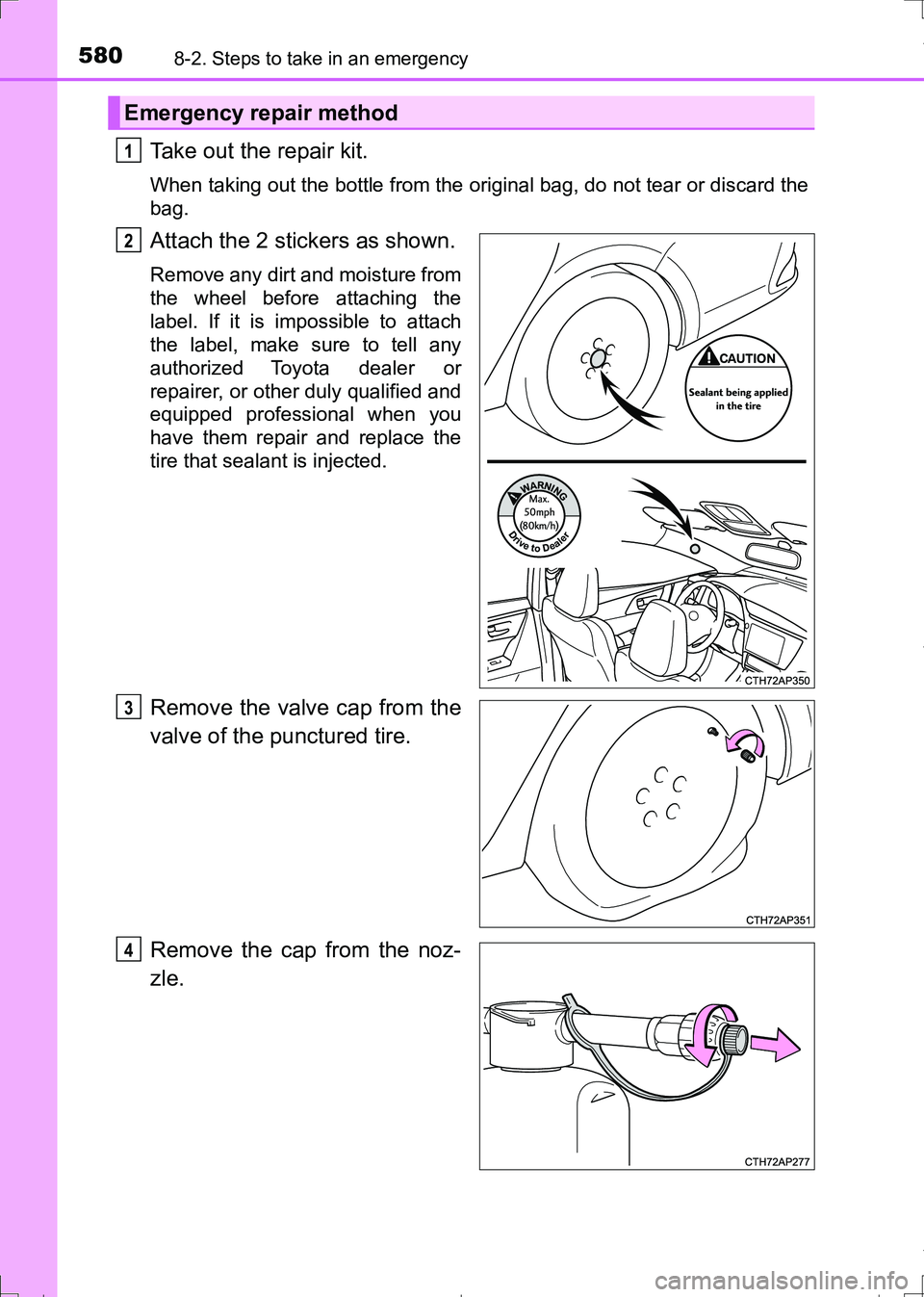

Emergency repair method
1
2
3
4
AURIS Touring Sports_OM_Europe_OM12L13E.book 580 ページ ２０１６年６月２７日　月曜日　午後５時２１分
