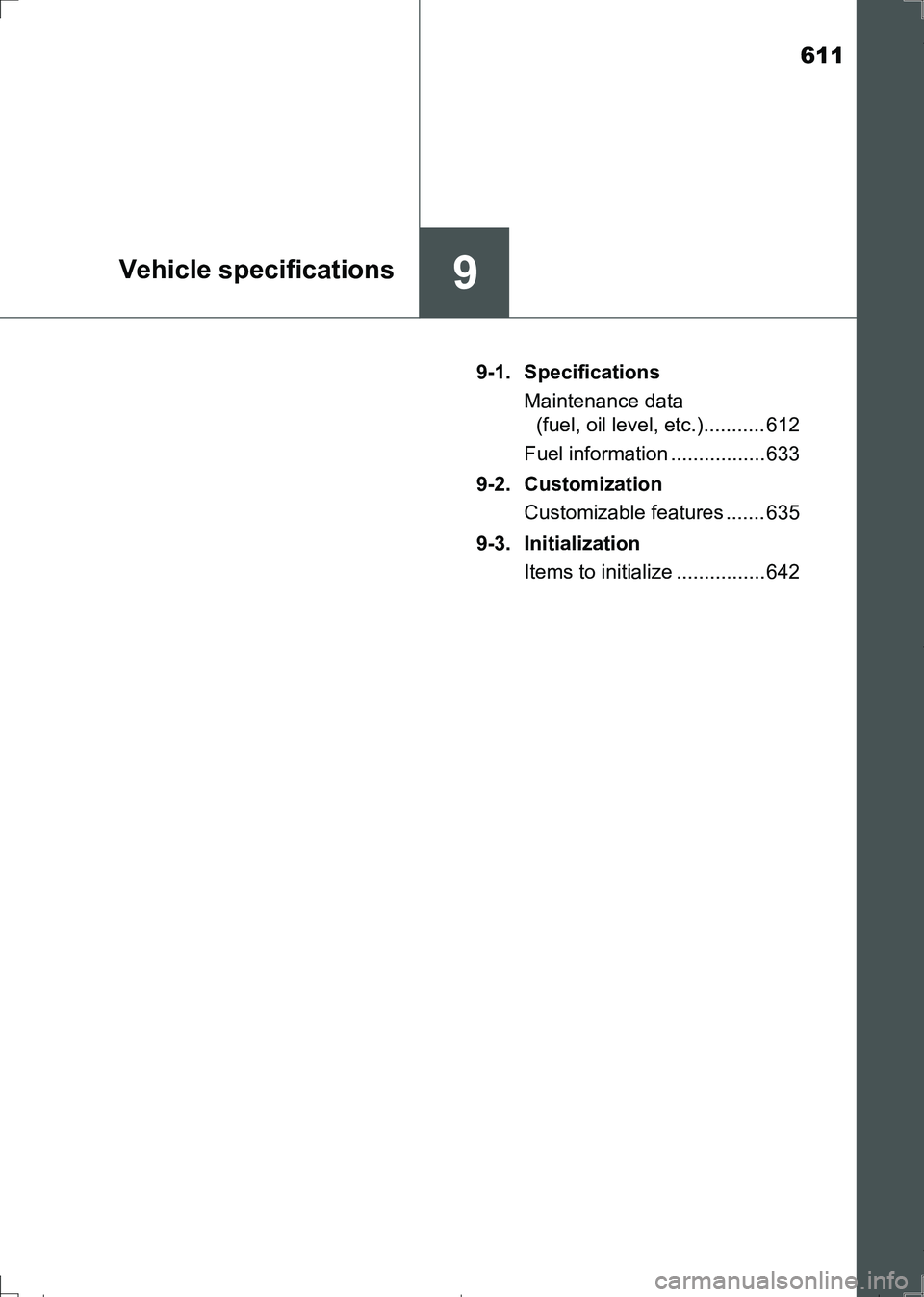

TOYOTA AURIS HYBRID 2017 Owners Manual

611
9Vehicle specifications
AURIS Touring Sports_EE (12L13E)9-1. Specifications
Maintenance data
(fuel, oil level, etc.)........... 612
Fuel information ................. 633
9-2. Customization
Customizable features ....... 635
9-3. Initialization
Items to initialize ................ 642
AURIS Touring Sports_OM_Europe_OM12L13E.book 611 ページ ２０１６年６月２７日　月曜日　午後５時２１分

612
AURIS Touring Sports_EE (12L13E)

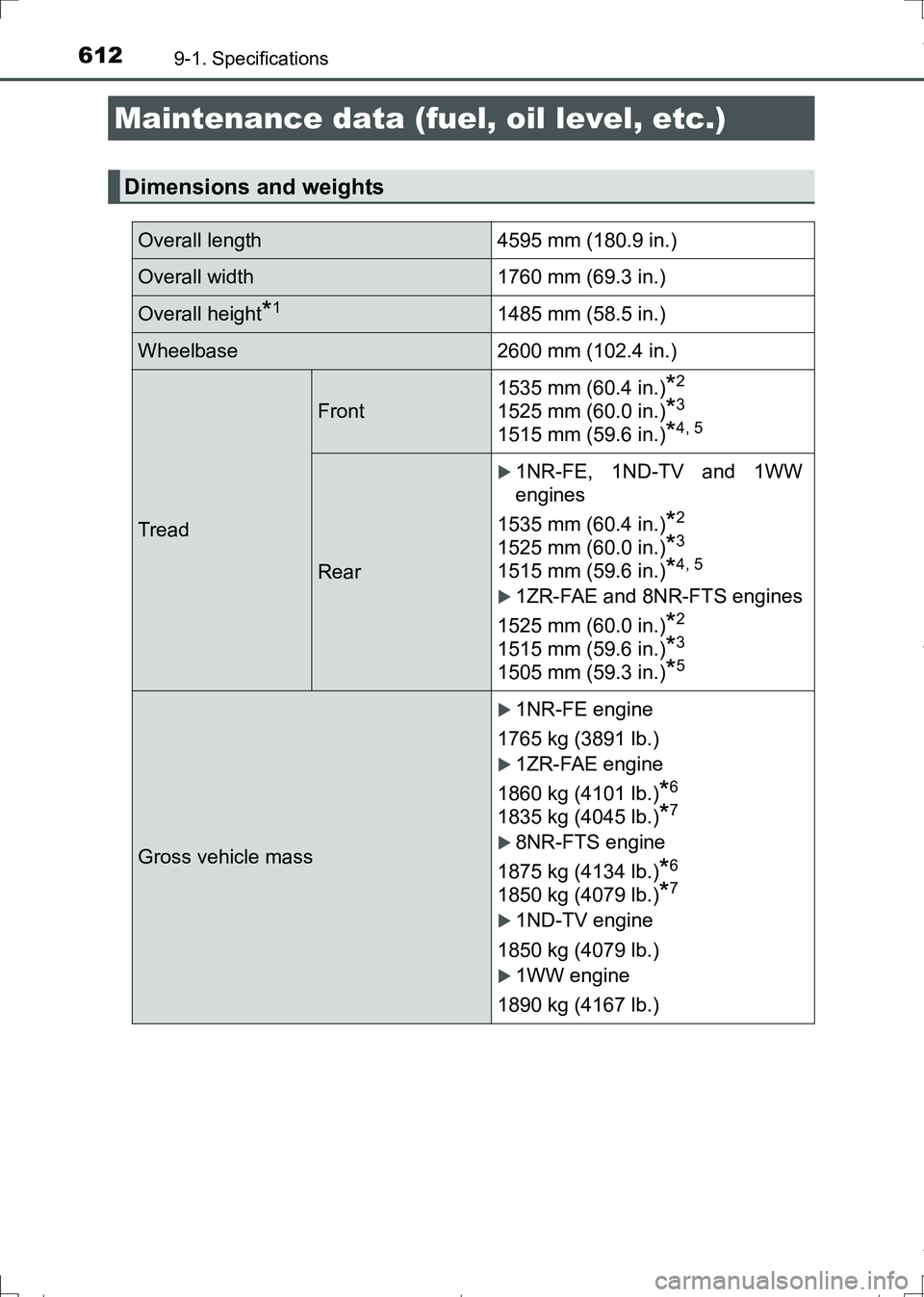

9-1. Specifications
Maintenance data (fuel, oil level, etc.)
Dimensions and weights
Overall length 4595 mm (180.9 in.)
Overall width 1760 mm (69.3 in.)
Overall height*11485 mm (58.5 in.)
Wheelbase 2600 mm (102.4 in.)
Tread
Front1535 mm (60.4 in.)
*2
1525 mm (60.0 in.)*3
1515 mm (59.6 in.)*4, 5
Rear
1NR-FE, 1ND-TV and 1WW
engines
1535 mm (60.4 in.)
*2
1525 mm (60.0 in.)*3
1515 mm (59.6 in.)*4, 5
1ZR-FAE and 8NR-FTS engines
1525 mm (60.0 in.)
*2
1515 mm (59.6 in.)*3
1505 mm (59.3 in.)*5
Gross vehicle mass
1NR-FE engine
1765 kg (3891 lb.)
1ZR-FAE engine
1860 kg (4101 lb.)
*6
1835 kg (4045 lb.)*7
8NR-FTS engine
1875 kg (4134 lb.)
*6
1850 kg (4079 lb.)*7
1ND-TV engine
1850 kg (4079 lb.)
1WW engine
1890 kg (4167 lb.)
AURIS Touring Sports_OM_Europe_OM12L13E.book 612 ページ ２０１６年６月２７日　月曜日　午後５時２１分

6139-1. Specifications
AURIS Touring Sports_EE (12L13E)
9
Vehicle specifications

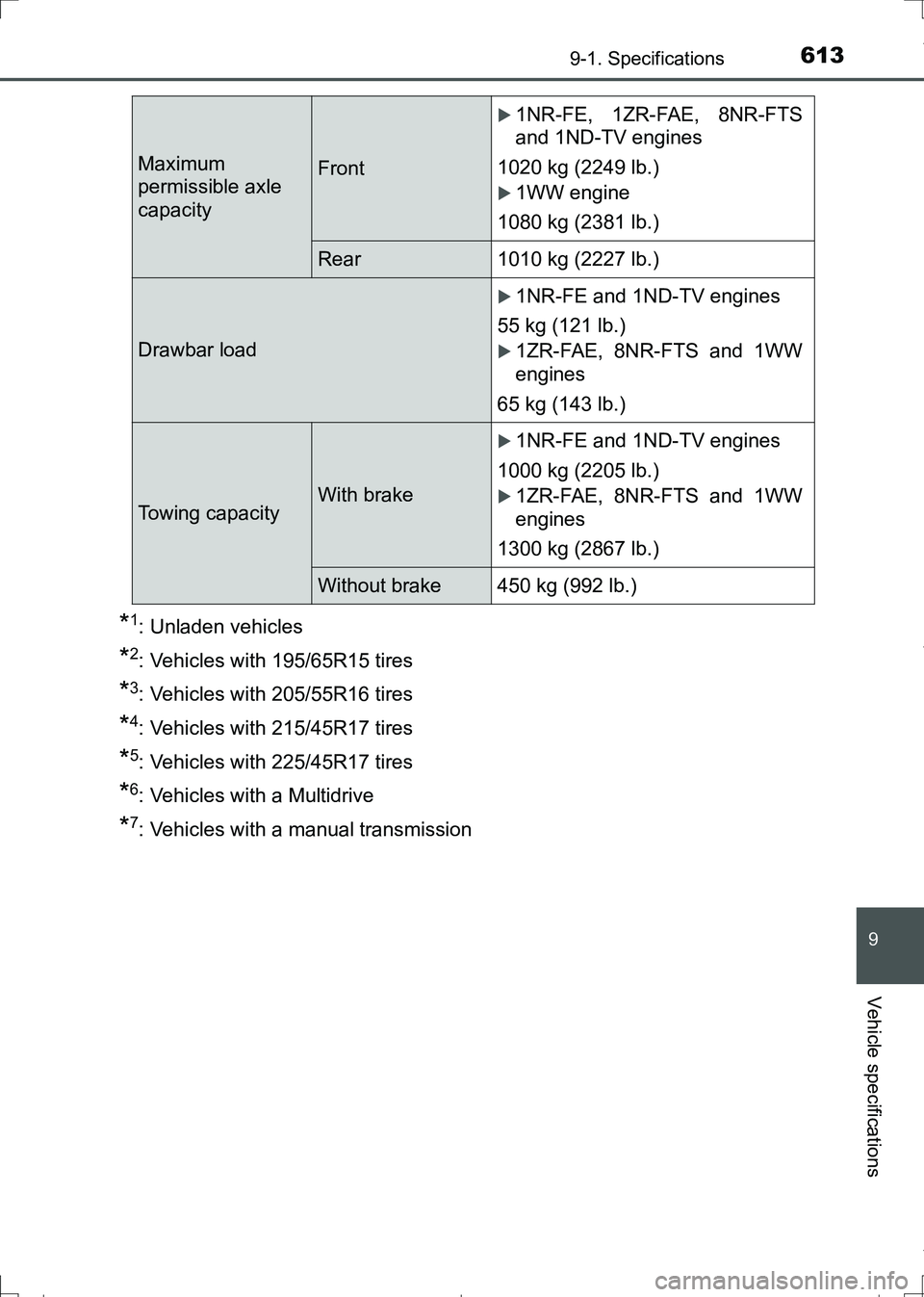

*1: Unladen vehicles
*2: Vehicles with 195/65R15 tires
*3: Vehicles with 205/55R16 tires
*4: Vehicles with 215/45R17 tires
*5: Vehicles with 225/45R17 tires
*6: Vehicles with a Multidrive
*7: Vehicles with a manual transmission
Maximum
permissible axle
capacityFront
1NR-FE, 1ZR-FAE, 8NR-FTS
and 1ND-TV engines
1020 kg (2249 lb.)
1WW engine
1080 kg (2381 lb.)
Rear 1010 kg (2227 lb.)
Drawbar load
1NR-FE and 1ND-TV engines
55 kg (121 lb.)
1ZR-FAE, 8NR-FTS and 1WW
engines
65 kg (143 lb.)
Towing capacityWith brake
1NR-FE and 1ND-TV engines
1000 kg (2205 lb.)
1ZR-FAE, 8NR-FTS and 1WW
engines
1300 kg (2867 lb.)
Without brake 450 kg (992 lb.)
AURIS Touring Sports_OM_Europe_OM12L13E.book 613 ページ ２０１６年６月２７日　月曜日　午後５時２１分

6149-1. Specifications
AURIS Touring Sports_EE (12L13E)■

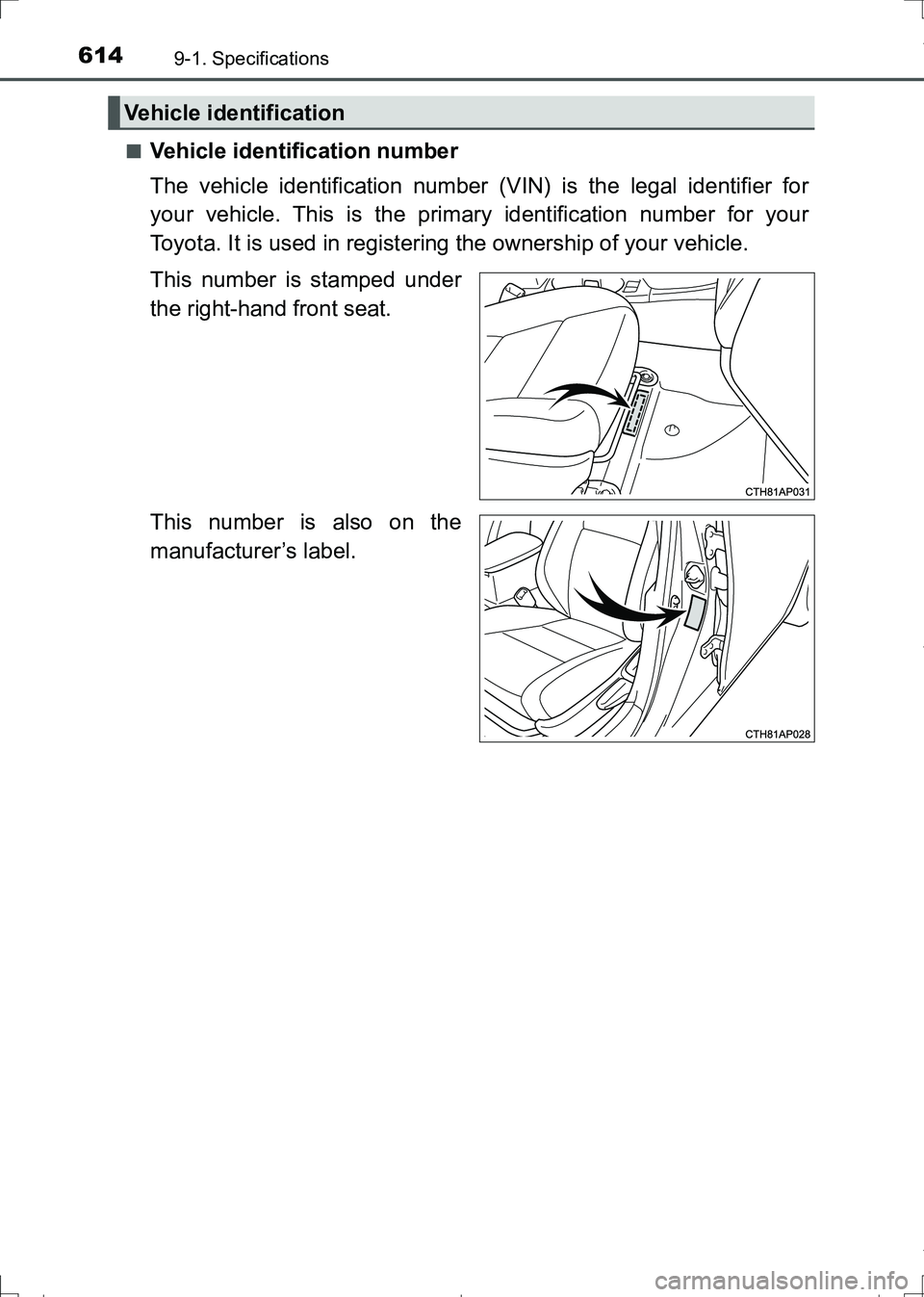

Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for
your vehicle. This is the primary identification number for your
Toyota. It is used in registering the ownership of your vehicle.
This number is stamped under
the right-hand front seat.
This number is also on the
manufacturer’s label.
Vehicle identification
AURIS Touring Sports_OM_Europe_OM12L13E.book 614 ページ ２０１６年６月２７日　月曜日　午後５時２１分

6159-1. Specifications
AURIS Touring Sports_EE (12L13E)
9
Vehicle specifications

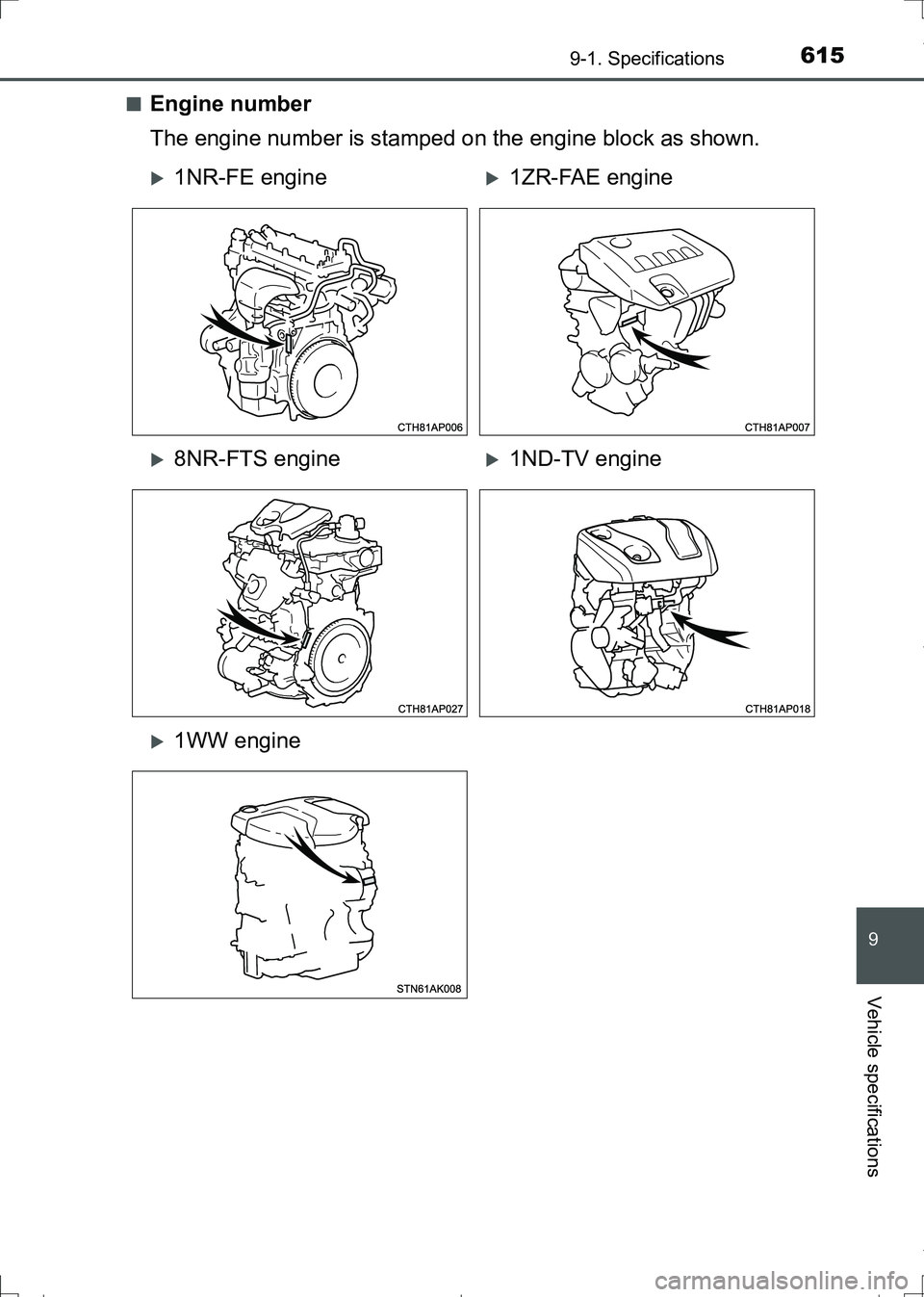

■Engine number
The engine number is stamped on the engine block as shown.
1NR-FE engine1ZR-FAE engine
8NR-FTS engine1ND-TV engine
1WW engine
AURIS Touring Sports_OM_Europe_OM12L13E.book 615 ページ ２０１６年６月２７日　月曜日　午後５時２１分

6169-1. Specifications
AURIS Touring Sports_EE (12L13E)

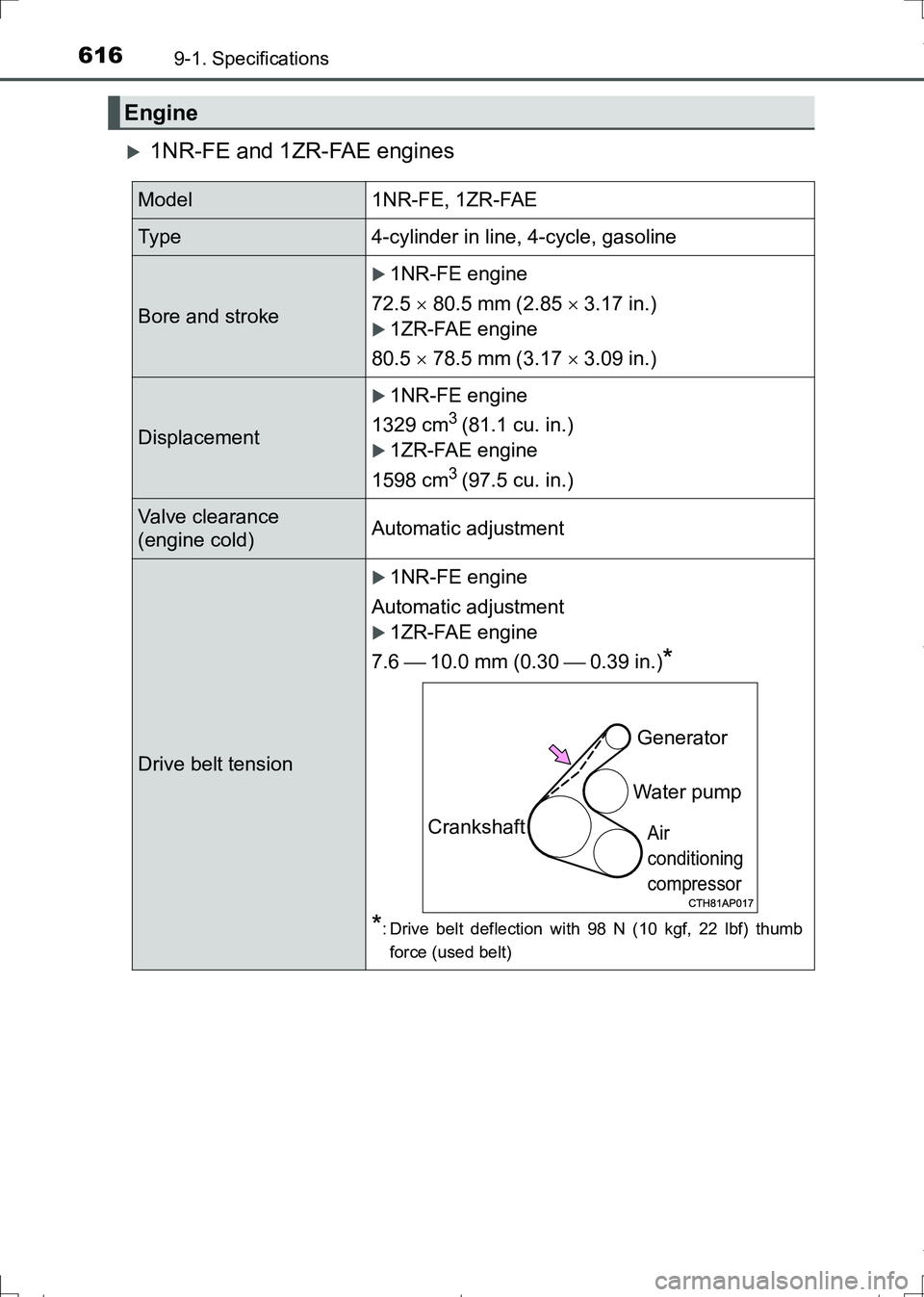

1NR-FE and 1ZR-FAE engines
Engine
Model1NR-FE, 1ZR-FAE
Ty p e4-cylinder in line, 4-cycle, gasoline
Bore and stroke
1NR-FE engine
72.5  80.5 mm (2.85  3.17 in.)
1ZR-FAE engine
80.5  78.5 mm (3.17  3.09 in.)
Displacement
1NR-FE engine
1329 cm
3 (81.1 cu. in.)
1ZR-FAE engine
1598 cm
3 (97.5 cu. in.)
Valve clearance
(engine cold)Automatic adjustment
Drive belt tension
1NR-FE engine
Automatic adjustment
1ZR-FAE engine
7.6 10.0 mm (0.30 0.39 in.)
*
*
: Drive belt deflection with 98 N (10 kgf, 22 lbf) thumb
force (used belt)
Generator
Water pump
Air
conditioning
compressorCrankshaft
AURIS Touring Sports_OM_Europe_OM12L13E.book 616 ページ ２０１６年６月２７日　月曜日　午後５時２１分

6179-1. Specifications
AURIS Touring Sports_EE (12L13E)
9
Vehicle specifications

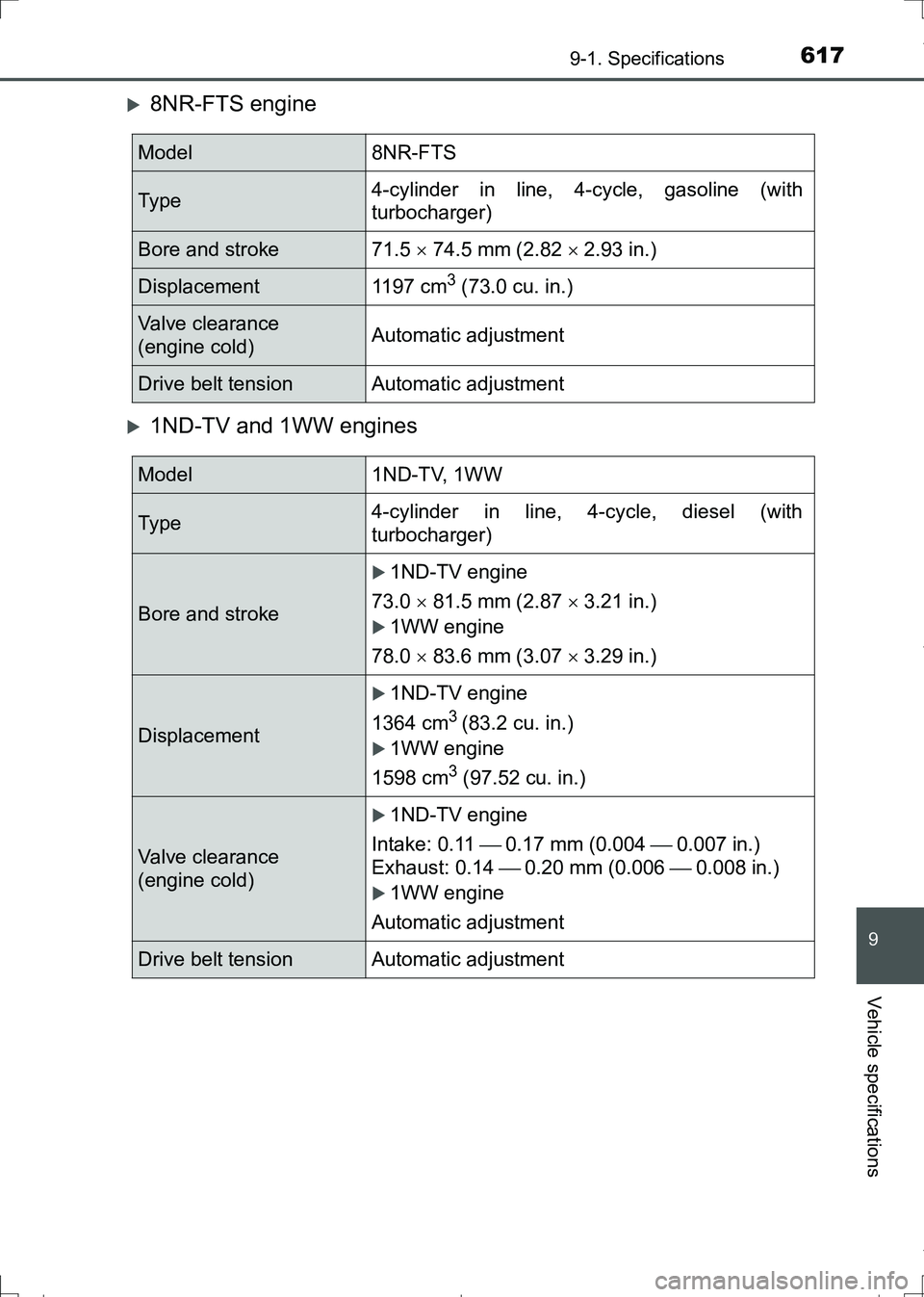

8NR-FTS engine
1ND-TV and 1WW engines
Model8NR-FTS
Ty p e4-cylinder in line, 4-cycle, gasoline (with
turbocharger)
Bore and stroke71.5  74.5 mm (2.82  2.93 in.)
Displacement1197 cm3 (73.0 cu. in.)
Valve clearance
(engine cold)Automatic adjustment
Drive belt tensionAutomatic adjustment
Model 1ND-TV, 1WW
Ty p e4-cylinder in line, 4-cycle, diesel (with
turbocharger)
Bore and stroke
1ND-TV engine
73.0  81.5 mm (2.87  3.21 in.)
1WW engine
78.0  83.6 mm (3.07  3.29 in.)
Displacement
1ND-TV engine
1364 cm
3 (83.2 cu. in.)
1WW engine
1598 cm
3 (97.52 cu. in.)
Valve clearance
(engine cold)
1ND-TV engine
Intake: 0.11 0.17 mm (0.004 0.007 in.)
Exhaust: 0.14 0.20 mm (0.006 0.008 in.)
1WW engine
Automatic adjustment
Drive belt tension Automatic adjustment
AURIS Touring Sports_OM_Europe_OM12L13E.book 617 ページ ２０１６年６月２７日　月曜日　午後５時２１分

6189-1. Specifications
AURIS Touring Sports_EE (12L13E)
Gasoline engine
Diesel engine

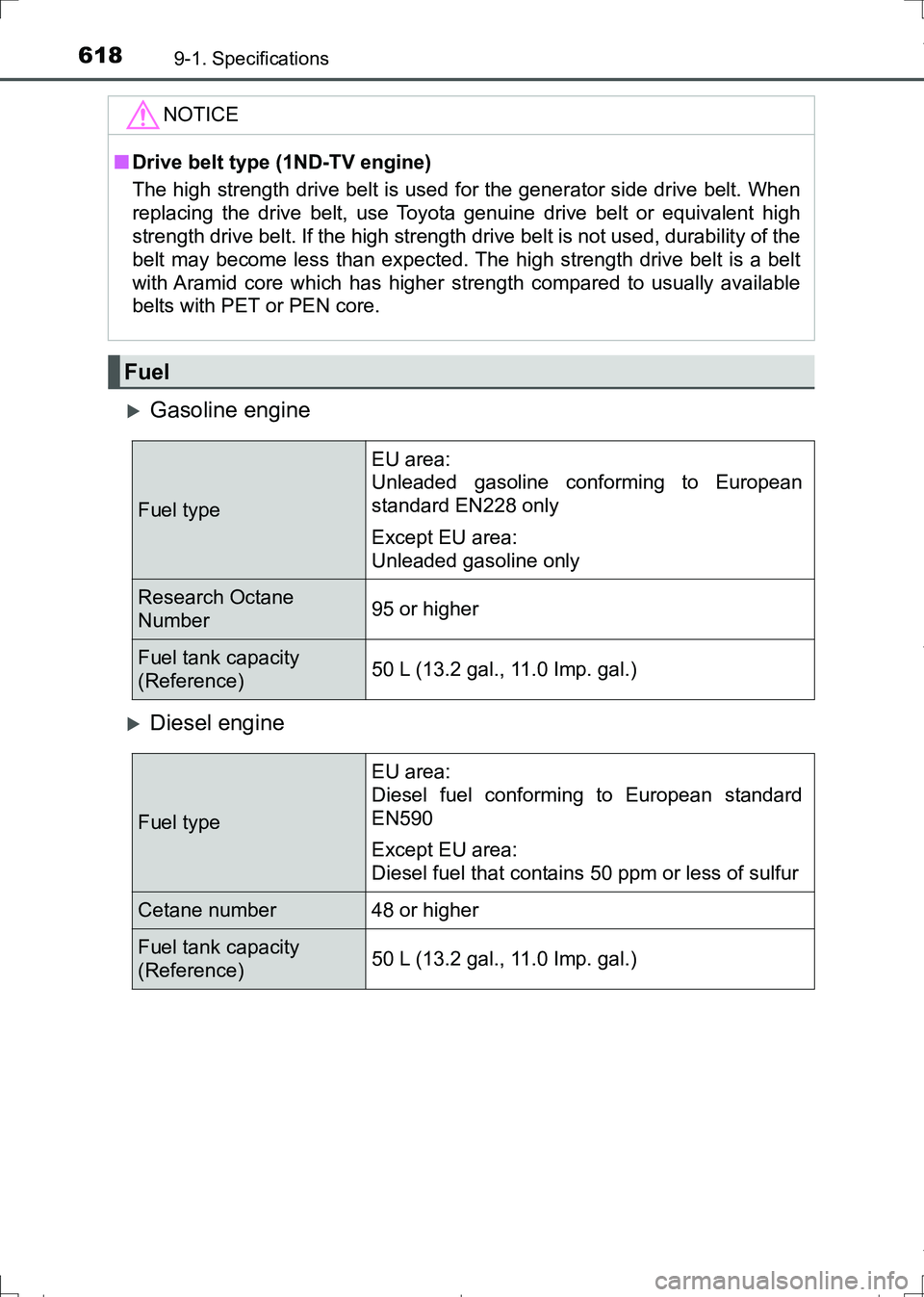

NOTICE
■Drive belt type (1ND-TV engine)
The high strength drive belt is used for the generator side drive belt. When
replacing the drive belt, use Toyota genuine drive belt or equivalent high
strength drive belt. If the high strength drive belt is not used, durability of the
belt may become less than expected. The high strength drive belt is a belt
with Aramid core which has higher strength compared to usually available
belts with PET or PEN core.
Fuel
Fuel type
EU area:
Unleaded gasoline conforming to European
standard EN228 only
Except EU area:
Unleaded gasoline only
Research Octane
Number95 or higher
Fuel tank capacity
(Reference)50 L (13.2 gal., 11.0 Imp. gal.)
Fuel type
EU area:
Diesel fuel conforming to European standard
EN590
Except EU area:
Diesel fuel that contains 50 ppm or less of sulfur
Cetane number48 or higher
Fuel tank capacity
(Reference)50 L (13.2 gal., 11.0 Imp. gal.)
AURIS Touring Sports_OM_Europe_OM12L13E.book 618 ページ ２０１６年６月２７日　月曜日　午後５時２１分

6199-1. Specifications
AURIS Touring Sports_EE (12L13E)
9
Vehicle specifications
*: The engine oil capacity is a reference quantity to be used when changing
the engine oil. Warm up and turn off the engine, wait more than 5 minutes,
and check the oil level on the dipstick.
■
Engine oil selection
1NR-FE and 1ZR-FAE engines
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Toyota
recommends the use of approved “Toyota Genuine Motor Oil”.
Another motor oil of matching quality can also be used.
Oil grade:
0W-20, 5W-30 and 10W-30:
API grade SL “Energy-Conserving”, SM “Energy-Conserving” or SN
“Resource-Conserving”; or ILSAC multigrade engine oil
15W-40:
API grade SL, SM or SN multigrade engine oil

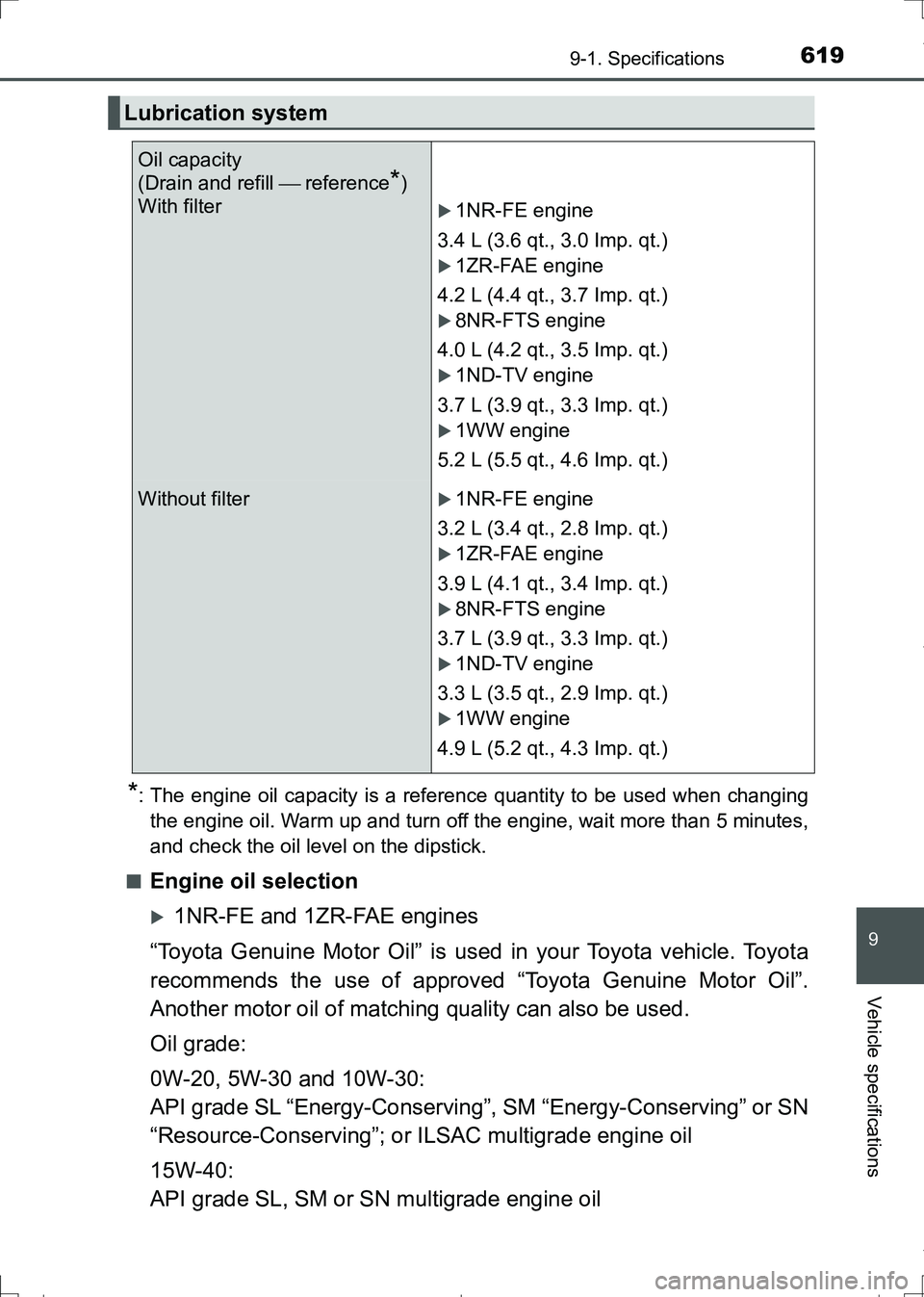

Lubrication system
Oil capacity
(Drain and refill  reference
*)
With filter
1NR-FE engine
3.4 L (3.6 qt., 3.0 Imp. qt.)
1ZR-FAE engine
4.2 L (4.4 qt., 3.7 Imp. qt.)
8NR-FTS engine
4.0 L (4.2 qt., 3.5 Imp. qt.)
1ND-TV engine
3.7 L (3.9 qt., 3.3 Imp. qt.)
1WW engine
5.2 L (5.5 qt., 4.6 Imp. qt.)
Without filter1NR-FE engine
3.2 L (3.4 qt., 2.8 Imp. qt.)
1ZR-FAE engine
3.9 L (4.1 qt., 3.4 Imp. qt.)
8NR-FTS engine
3.7 L (3.9 qt., 3.3 Imp. qt.)
1ND-TV engine
3.3 L (3.5 qt., 2.9 Imp. qt.)
1WW engine
4.9 L (5.2 qt., 4.3 Imp. qt.)
AURIS Touring Sports_OM_Europe_OM12L13E.book 619 ページ ２０１６年６月２７日　月曜日　午後５時２１分

6209-1. Specifications
AURIS Touring Sports_EE (12L13E)

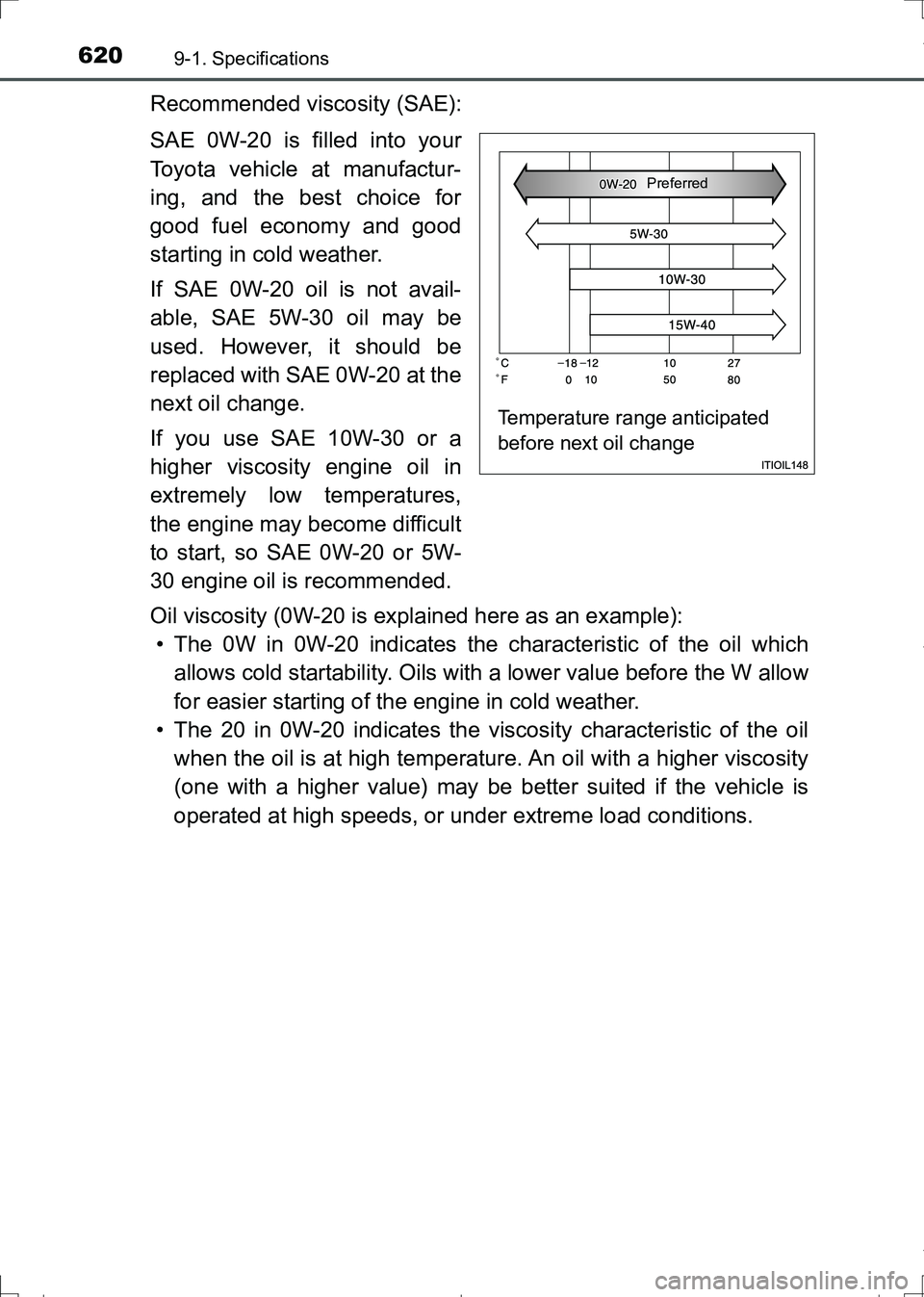

Recommended viscosity (SAE):
SAE 0W-20 is filled into your
Toyota vehicle at manufactur-
ing, and the best choice for
good fuel economy and good
starting in cold weather.
If SAE 0W-20 oil is not avail-
able, SAE 5W-30 oil may be
used. However, it should be
replaced with SAE 0W-20 at the
next oil change.
If you use SAE 10W-30 or a
higher viscosity engine oil in
extremely low temperatures,
the engine may become difficult
to start, so SAE 0W-20 or 5W-
30 engine oil is recommended.
Oil viscosity (0W-20 is explained here as an example):
• The 0W in 0W-20 indicates the characteristic of the oil which
allows cold startability. Oils with a lower value before the W allow
for easier starting of the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil
when the oil is at high temperature. An oil with a higher viscosity
(one with a higher value) may be better suited if the vehicle is
operated at high speeds, or under extreme load conditions.
Temperature range anticipated
before next oil change
Preferred
