TOYOTA AURIS HYBRID 2017 Owners Manual

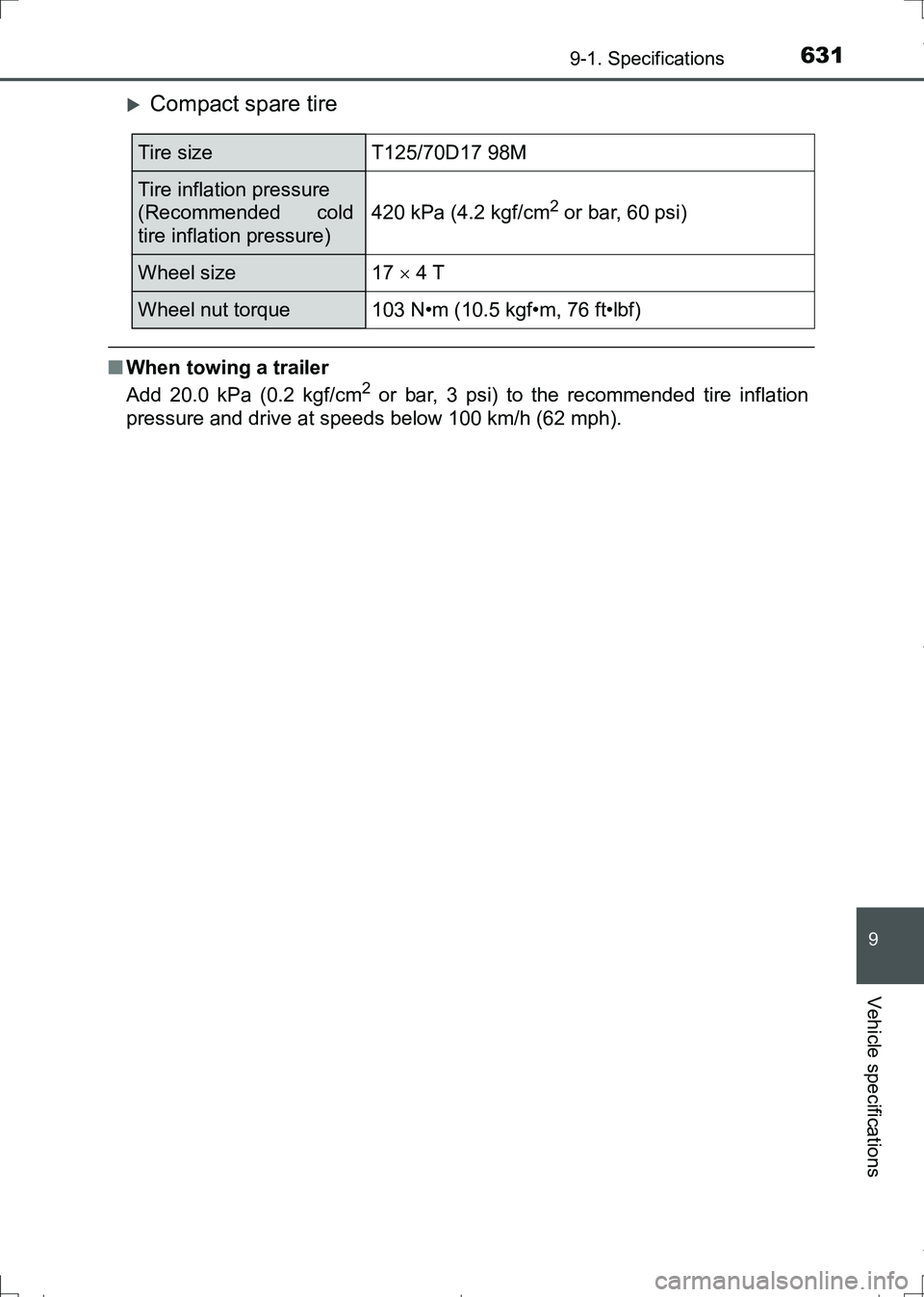

6319-1. Specifications
AURIS Touring Sports_EE (12L13E)
9
Vehicle specifications
Compact spare tire
■When towing a trailer
Add 20.0 kPa (0.2 kgf/cm2 or bar, 3 psi) to the recommended tire inflation
pressure and drive at speeds below 100 km/h (62 mph).
Tire sizeT125/70D17 98M
Tire inflation pressure
(Recommended cold
tire inflation pressure)
420 kPa (4.2 kgf/cm2 or bar, 60 psi)
Wheel size17  4 T
Wheel nut torque103 N•m (10.5 kgf•m, 76 ft•lbf)
AURIS Touring Sports_OM_Europe_OM12L13E.book 631 ページ ２０１６年６月２７日　月曜日　午後５時２１分

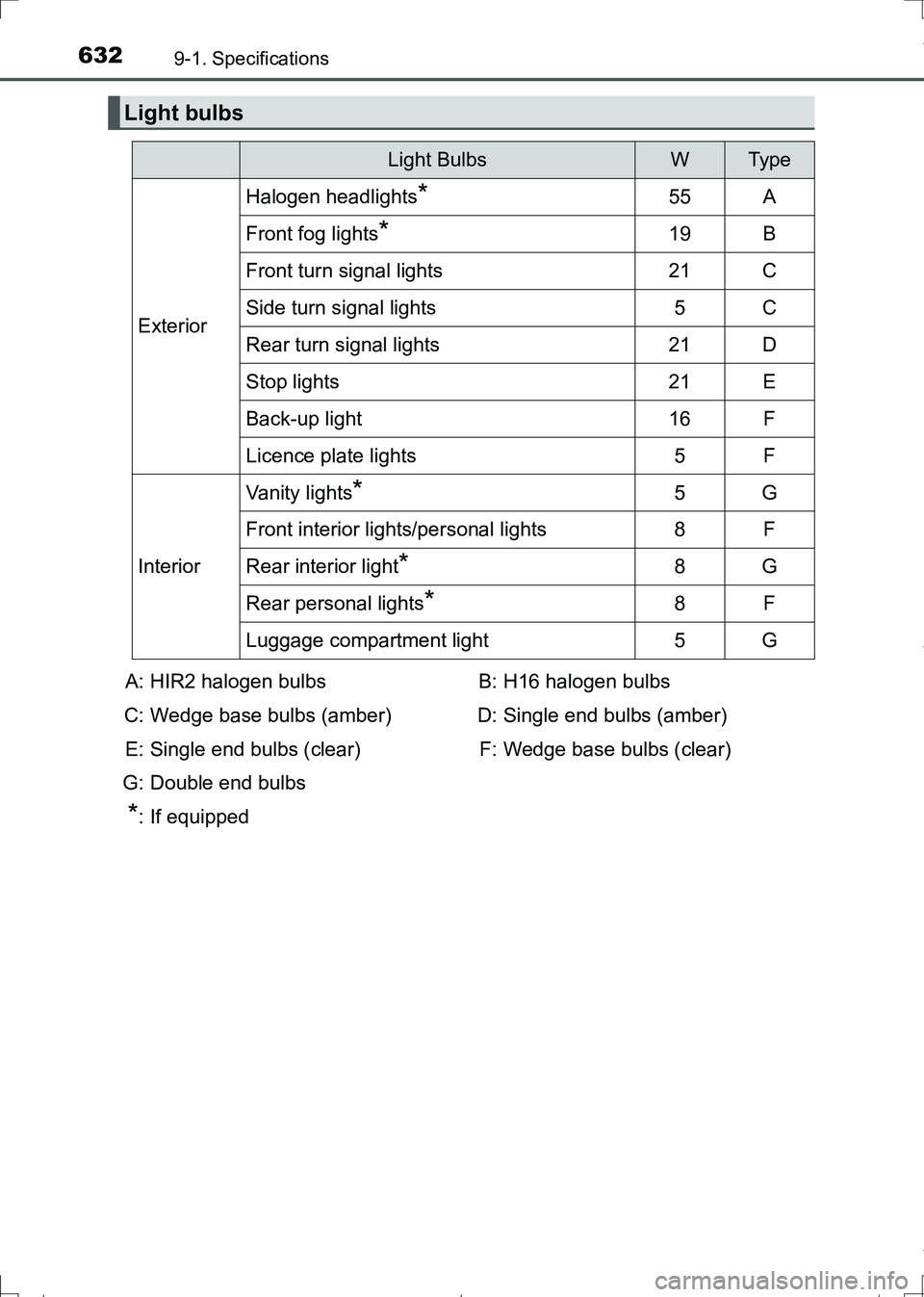

6329-1. Specifications
AURIS Touring Sports_EE (12L13E)
Light bulbs
Light BulbsWTy p e
Exterior
Halogen headlights*55A
Front fog lights*19B
Front turn signal lights21C
Side turn signal lights5C
Rear turn signal lights21D
Stop lights21E
Back-up light16F
Licence plate lights5F
Interior
Vanity lights*5G
Front interior lights/personal lights8F
Rear interior light*8G
Rear personal lights*8F
Luggage compartment light5G
A: HIR2 halogen bulbs
C: Wedge base bulbs (amber)
E: Single end bulbs (clear)
G: Double end bulbs
*: If equippedB: H16 halogen bulbs
D: Single end bulbs (amber)
F: Wedge base bulbs (clear)
AURIS Touring Sports_OM_Europe_OM12L13E.book 632 ページ ２０１６年６月２７日　月曜日　午後５時２１分

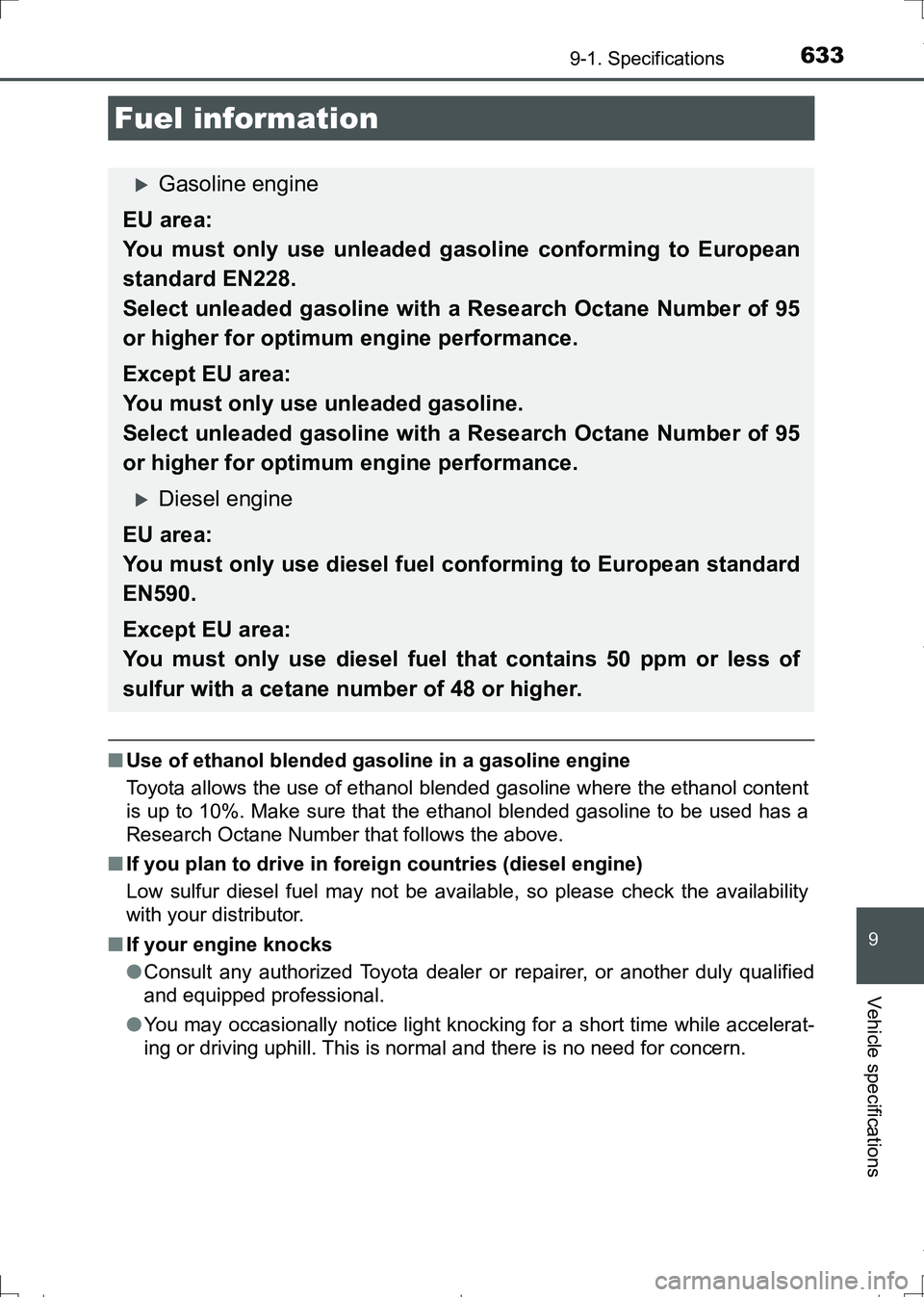

6339-1. Specifications
AURIS Touring Sports_EE (12L13E)
9
Vehicle specifications
■Use of ethanol blended gasoline in a gasoline engine
Toyota allows the use of ethanol blended gasoline where the ethanol content
is up to 10%. Make sure that the ethanol blended gasoline to be used has a
Research Octane Number that follows the above.
■If you plan to drive in foreign countries (diesel engine)
Low sulfur diesel fuel may not be available, so please check the availability
with your distributor.
■If your engine knocks
●Consult any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional.
●You may occasionally notice light knocking for a short time while accelerat-
ing or driving uphill. This is normal and there is no need for concern.
Fuel information
Gasoline engine
EU area:
You must only use unleaded gasoline conforming to European
standard EN228.
Select unleaded gasoline with a Research Octane Number of 95
or higher for optimum engine performance.
Except EU area:
You must only use unleaded gasoline.
Select unleaded gasoline with a Research Octane Number of 95
or higher for optimum engine performance.
Diesel engine
EU area:
You must only use diesel fuel conforming to European standard
EN590.
Except EU area:
You must only use diesel fuel that contains 50 ppm or less of
sulfur with a cetane number of 48 or higher.
AURIS Touring Sports_OM_Europe_OM12L13E.book 633 ページ ２０１６年６月２７日　月曜日　午後５時２１分

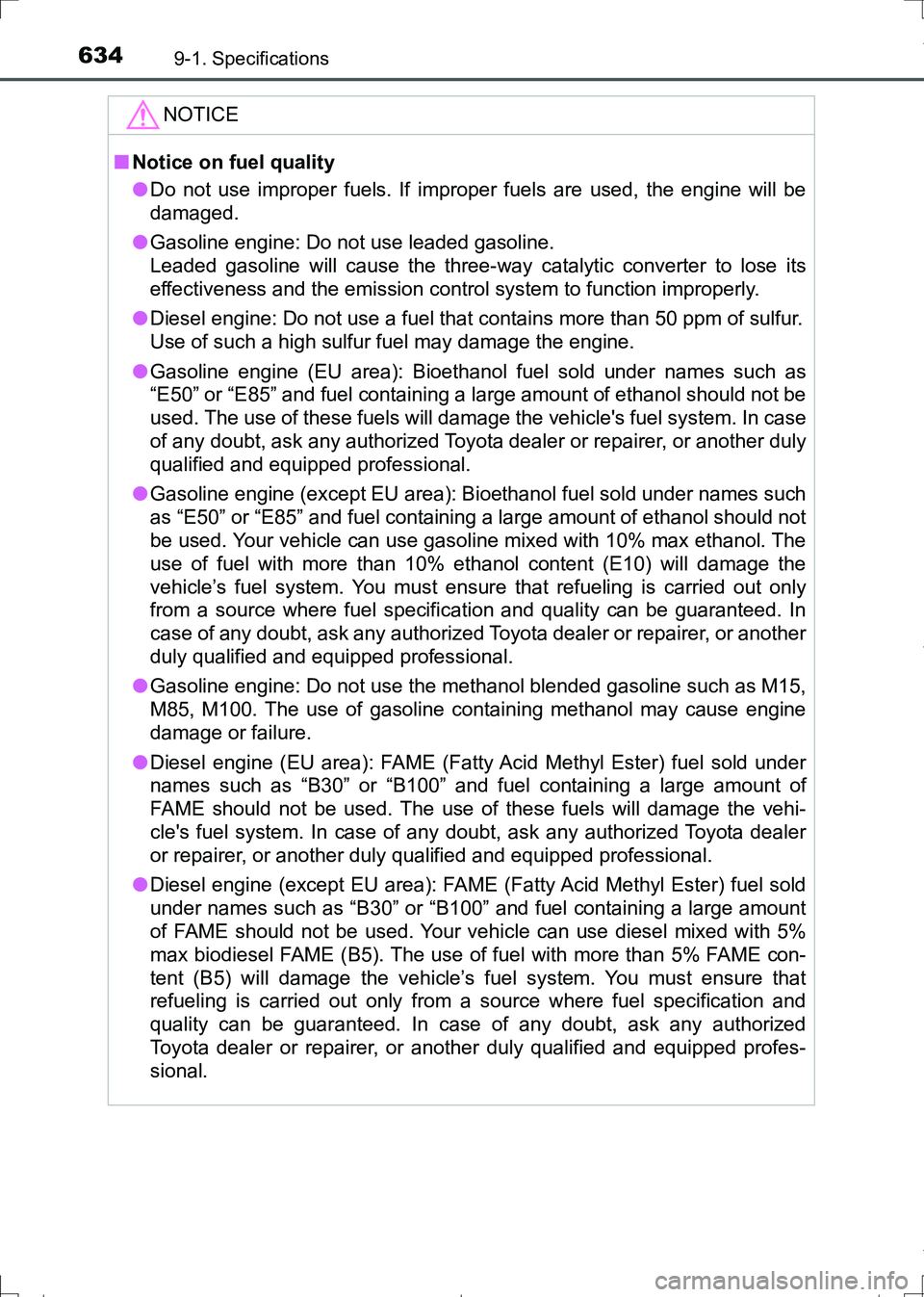

6349-1. Specifications
AURIS Touring Sports_EE (12L13E)
NOTICE
■Notice on fuel quality
●Do not use improper fuels. If improper fuels are used, the engine will be
damaged.
●Gasoline engine: Do not use leaded gasoline.
Leaded gasoline will cause the three-way catalytic converter to lose its
effectiveness and the emission control system to function improperly.
●Diesel engine: Do not use a fuel that contains more than 50 ppm of sulfur.
Use of such a high sulfur fuel may damage the engine.
●Gasoline engine (EU area): Bioethanol fuel sold under names such as
“E50” or “E85” and fuel containing a large amount of ethanol should not be
used. The use of these fuels will damage the vehicle's fuel system. In case
of any doubt, ask any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional.
●Gasoline engine (except EU area): Bioethanol fuel sold under names such
as “E50” or “E85” and fuel containing a large amount of ethanol should not
be used. Your vehicle can use gasoline mixed with 10% max ethanol. The
use of fuel with more than 10% ethanol content (E10) will damage the
vehicle’s fuel system. You must ensure that refueling is carried out only
from a source where fuel specification and quality can be guaranteed. In
case of any doubt, ask any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional.
●Gasoline engine: Do not use the methanol blended gasoline such as M15,
M85, M100. The use of gasoline containing methanol may cause engine
damage or failure.
●Diesel engine (EU area): FAME (Fatty Acid Methyl Ester) fuel sold under
names such as “B30” or “B100” and fuel containing a large amount of
FAME should not be used. The use of these fuels will damage the vehi-
cle's fuel system. In case of any doubt, ask any authorized Toyota dealer
or repairer, or another duly qualified and equipped professional.
●Diesel engine (except EU area): FAME (Fatty Acid Methyl Ester) fuel sold
under names such as “B30” or “B100” and fuel containing a large amount
of FAME should not be used. Your vehicle can use diesel mixed with 5%
max biodiesel FAME (B5). The use of fuel with more than 5% FAME con-
tent (B5) will damage the vehicle’s fuel system. You must ensure that
refueling is carried out only from a source where fuel specification and
quality can be guaranteed. In case of any doubt, ask any authorized
Toyota dealer or repairer, or another duly qualified and equipped profes-
sional.
AURIS Touring Sports_OM_Europe_OM12L13E.book 634 ページ ２０１６年６月２７日　月曜日　午後５時２１分

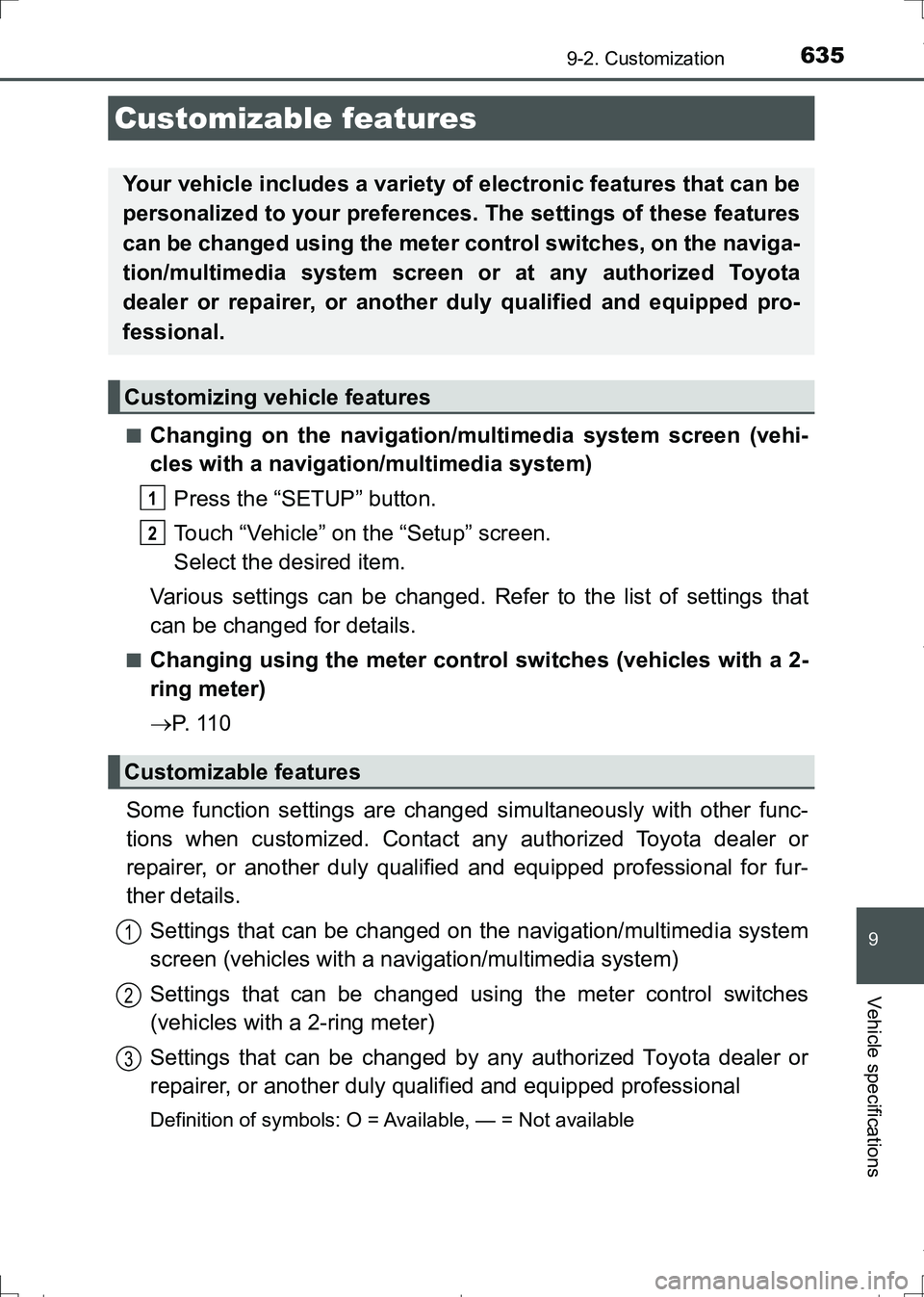

635
AURIS Touring Sports_EE (12L13E)
9
Vehicle specifications
9-2. Customization
■Changing on the navigation/multimedia system screen (vehi-
cles with a navigation/multimedia system)
Press the “SETUP” button.
Touch “Vehicle” on the “Setup” screen.
Select the desired item.
Various settings can be changed. Refer to the list of settings that
can be changed for details.
■Changing using the meter control switches (vehicles with a 2-
ring meter)
P. 1 1 0
Some function settings are changed simultaneously with other func-
tions when customized. Contact any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional for fur-
ther details.
Settings that can be changed on the navigation/multimedia system
screen (vehicles with a navigation/multimedia system)
Settings that can be changed using the meter control switches
(vehicles with a 2-ring meter)
Settings that can be changed by any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional
Definition of symbols: O = Available, — = Not available
Customizable features
Your vehicle includes a variety of electronic features that can be
personalized to your preferences. The settings of these features
can be changed using the meter control switches, on the naviga-
tion/multimedia system screen or at any authorized Toyota
dealer or repairer, or another duly qualified and equipped pro-
fessional.
Customizing vehicle features
Customizable features
1
2
1
2
3
AURIS Touring Sports_OM_Europe_OM12L13E.book 635 ページ ２０１６年６月２７日　月曜日　午後５時２１分

6369-2. Customization
AURIS Touring Sports_EE (12L13E)■
Gauges, meters and multi-information display*1 (P. 98, 107)
Function*2Default settingCustomized set-
ting
Language*3English*4—O—
Units*3km (L/100 km)km (km/L)OO—miles (MPG)
°C°FOO—
Eco Driving Indicator
Light
*5On
(Self-lighting)Off—O—
Drive information 1
Current fuel
consumption
(gauge display)
*6—O—Average fuel
economy (after
reset)
Drive information 2
Distance
(driving range)
*6—O—Average vehi-
cle speed (after
reset)
Drive information 3*5
Stop & Start
system opera-
tion time (after
start)
*6—O—Stop & Start
system opera-
tion time (after
reset)
Pop-up display*5OnOff—O—
123
AURIS Touring Sports_OM_Europe_OM12L13E.book 636 ページ ２０１６年６月２７日　月曜日　午後５時２１分

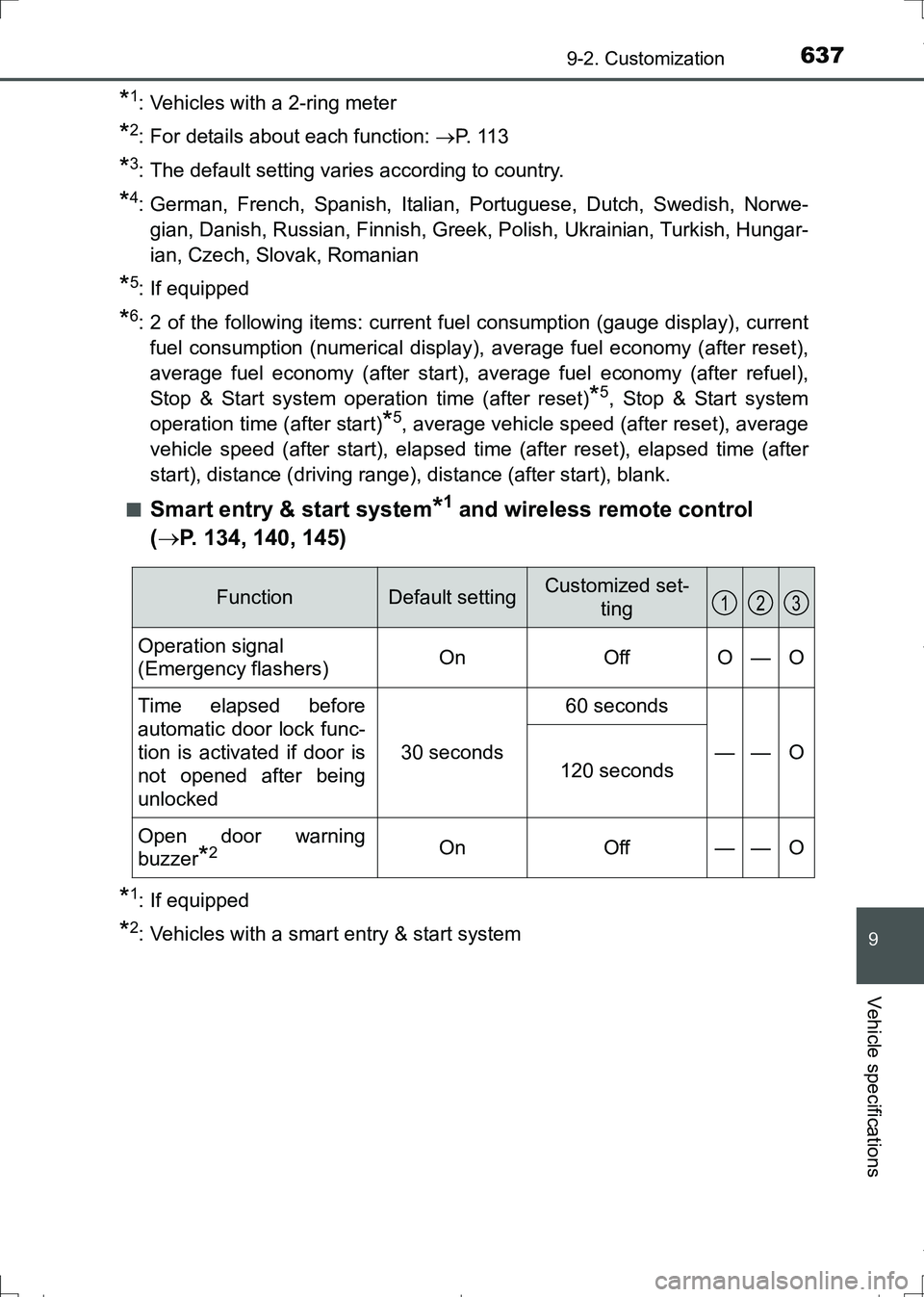

6379-2. Customization
AURIS Touring Sports_EE (12L13E)
9
Vehicle specifications
*1: Vehicles with a 2-ring meter
*2: For details about each function: P. 1 1 3
*3: The default setting varies according to country.
*4: German, French, Spanish, Italian, Portuguese, Dutch, Swedish, Norwe-
gian, Danish, Russian, Finnish, Greek, Polish, Ukrainian, Turkish, Hungar-
ian, Czech, Slovak, Romanian
*5: If equipped
*6: 2 of the following items: current fuel consumption (gauge display), current
fuel consumption (numerical display), average fuel economy (after reset),
average fuel economy (after start), average fuel economy (after refuel),
Stop & Start system operation time (after reset)
*5, Stop & Start system
operation time (after start)
*5, average vehicle speed (after reset), average
vehicle speed (after start), elapsed time (after reset), elapsed time (after
start), distance (driving range), distance (after start), blank.
■
Smart entry & start system*1 and wireless remote control
(P. 134, 140, 145)
*1: If equipped
*2: Vehicles with a smart entry & start system
FunctionDefault settingCustomized set-
ting
Operation signal
(Emergency flashers)OnOffO—O
Time elapsed before
automatic door lock func-
tion is activated if door is
not opened after being
unlocked
30 seconds
60 seconds
——O120 seconds
Open door warning
buzzer
*2OnOff——O
123
AURIS Touring Sports_OM_Europe_OM12L13E.book 637 ページ ２０１６年６月２７日　月曜日　午後５時２１分

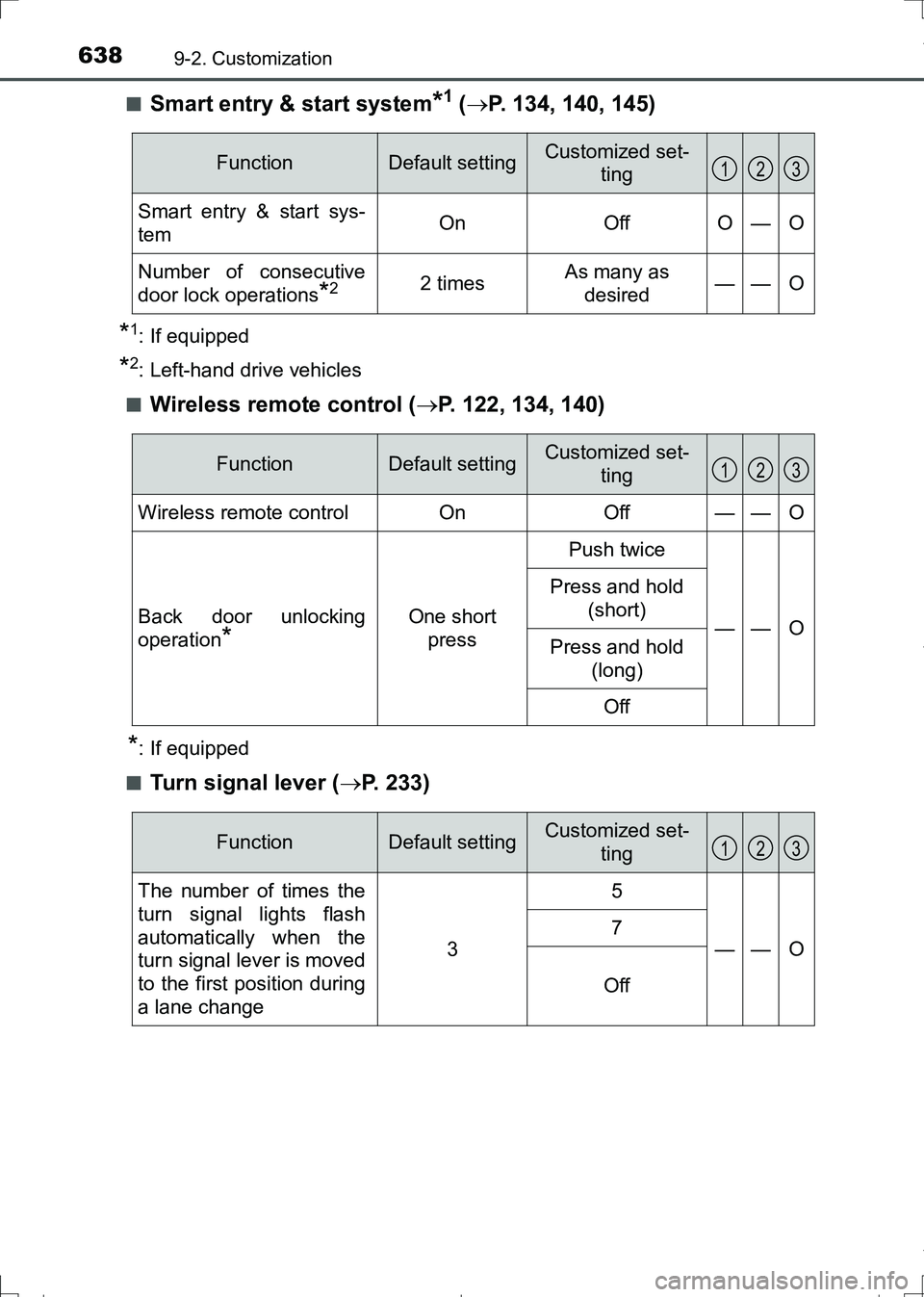

6389-2. Customization
AURIS Touring Sports_EE (12L13E)■
Smart entry & start system*1 (P. 134, 140, 145)
*1: If equipped
*2: Left-hand drive vehicles
■
Wireless remote control (P. 122, 134, 140)
*: If equipped
■
Turn signal lever (P. 233)
FunctionDefault settingCustomized set-
ting
Smart entry & start sys-
temOnOffO—O
Number of consecutive
door lock operations
*22 timesAs many as
desired——O
123
FunctionDefault settingCustomized set-
ting
Wireless remote controlOnOff——O
Back door unlocking
operation
*
One short
press
Push twice
——O
Press and hold
(short)
Press and hold
(long)
Off
123
FunctionDefault settingCustomized set-
ting
The number of times the
turn signal lights flash
automatically when the
turn signal lever is moved
to the first position during
a lane change
3
5
——O
7
Off
123
AURIS Touring Sports_OM_Europe_OM12L13E.book 638 ページ ２０１６年６月２７日　月曜日　午後５時２１分

6399-2. Customization
AURIS Touring Sports_EE (12L13E)
9
Vehicle specifications
■Automatic light control system* (P. 235)
*: If equipped
■
Follow me home system (P. 237)
■LDA (Lane Departure Alert)* (P. 271)
*: If equipped
■
RSA (Road Sign Assist)* (P. 280)
*: If equipped
FunctionDefault settingCustomized set-
ting
Light sensor sensitivityStandard-2 to 2O—O
123
FunctionDefault settingCustomized set-
ting
Time elapsed before
headlights automatically
turn off
30 seconds
60 seconds
——O90 seconds
120 seconds
123
FunctionDefault settingCustomized set-
ting
LDA warning sensitivityHighStandard—O—
123
FunctionDefault settingCustomized set-
ting
RSA systemOnOff—O—
Notification method of
excessive speed Only display
Display and
buzzer
—O—
Off
Notification methods
other than excessive
speed
Only display
Display and
buzzer
—O—
Off
Notification level of
excessive speed 2 km/h (1 mph)10 km/h (5 mph)—O—5 km/h (3 mph)
123
AURIS Touring Sports_OM_Europe_OM12L13E.book 639 ページ ２０１６年６月２７日　月曜日　午後５時２１分

6409-2. Customization
AURIS Touring Sports_EE (12L13E)■
Stop & Start system* (P. 286)
*: If equipped
■
Toyota parking assist-sensor*1 (P. 308)
*1: If equipped
*2: Vehicles with a navigation/multimedia system
*3: When Toyota parking assist-sensor is operating.
■
Automatic air conditioning system* (P. 409)
*: If equipped
FunctionDefault settingCustomized set-
ting
Change the Stop & Start
system duration when the
A/C is on
NormalLong—O—
123
FunctionDefault settingCustomized set-
ting
Toyota parking assist-
sensor systemOnOff—O—
Detection distance of the
front center sensors
*2FarNearO—O
Detection distance of the
rear center sensors
*2FarNearO—O
Buzzer volume*251 to 4O—O
Display setting*2, 3All sensors dis-
playedDisplay offO—O
123
FunctionDefault settingCustomized set-
ting
Switching between out-
side air and recirculated
air mode linked to
“AUTO” switch operation
OnOffO—O
A/C auto switch operationOnOff——O
123
AURIS Touring Sports_OM_Europe_OM12L13E.book 640 ページ ２０１６年６月２７日　月曜日　午後５時２１分
