TOYOTA AURIS HYBRID 2017 Owners Manual

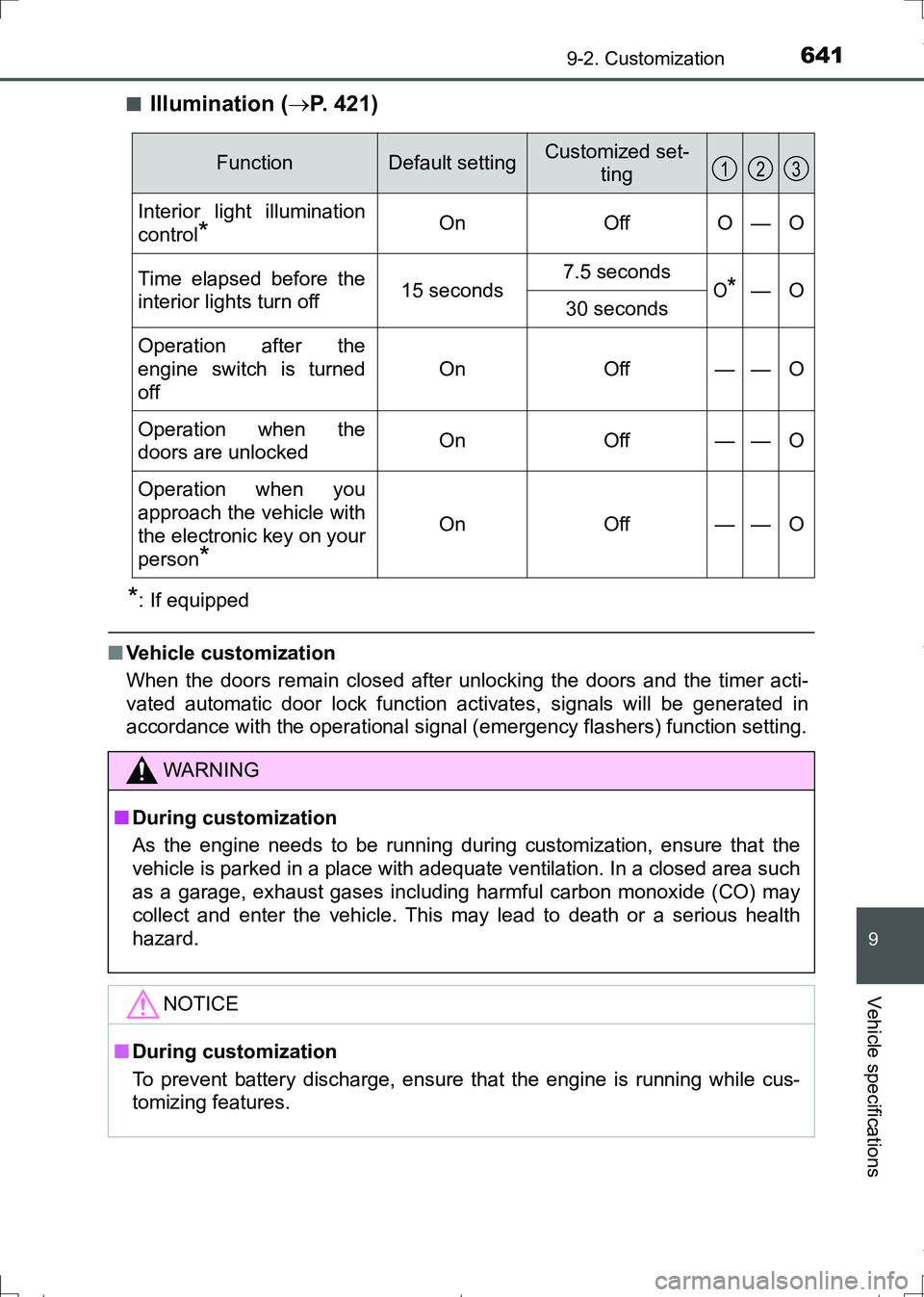

6419-2. Customization
AURIS Touring Sports_EE (12L13E)
9
Vehicle specifications
■Illumination (P. 421)
*: If equipped
■Vehicle customization
When the doors remain closed after unlocking the doors and the timer acti-
vated automatic door lock function activates, signals will be generated in
accordance with the operational signal (emergency flashers) function setting.
FunctionDefault settingCustomized set-
ting
Interior light illumination
control
*OnOffO—O
Time elapsed before the
interior lights turn off15 seconds7.5 secondsO*—O30 seconds
Operation after the
engine switch is turned
off
OnOff——O
Operation when the
doors are unlockedOnOff——O
Operation when you
approach the vehicle with
the electronic key on your
person
*
OnOff——O
123
WARNING
■During customization
As the engine needs to be running during customization, ensure that the
vehicle is parked in a place with adequate ventilation. In a closed area such
as a garage, exhaust gases including harmful carbon monoxide (CO) may
collect and enter the vehicle. This may lead to death or a serious health
hazard.
NOTICE
■During customization
To prevent battery discharge, ensure that the engine is running while cus-
tomizing features.
AURIS Touring Sports_OM_Europe_OM12L13E.book 641 ページ ２０１６年６月２７日　月曜日　午後５時２１分

642
AURIS Touring Sports_EE (12L13E)

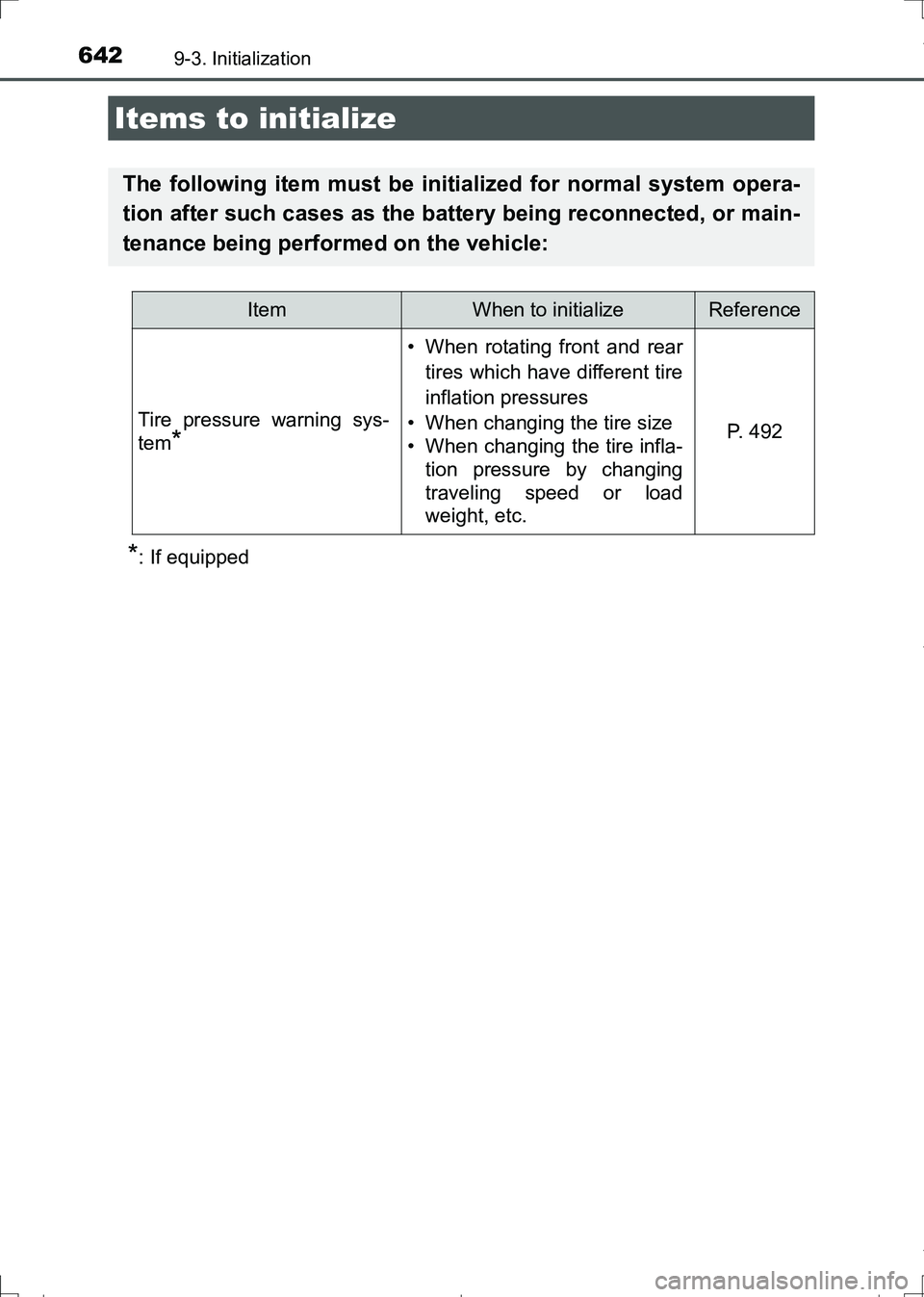

9-3. Initialization
*: If equipped
Items to initialize
The following item must be initialized for normal system opera-
tion after such cases as the battery being reconnected, or main-
tenance being performed on the vehicle:
ItemWhen to initializeReference
Tire pressure warning sys-
tem
*
• When rotating front and rear
tires which have different tire
inflation pressures
• When changing the tire size
• When changing the tire infla-
tion pressure by changing
traveling speed or load
weight, etc.
P. 492
AURIS Touring Sports_OM_Europe_OM12L13E.book 642 ページ ２０１６年６月２７日　月曜日　午後５時２１分

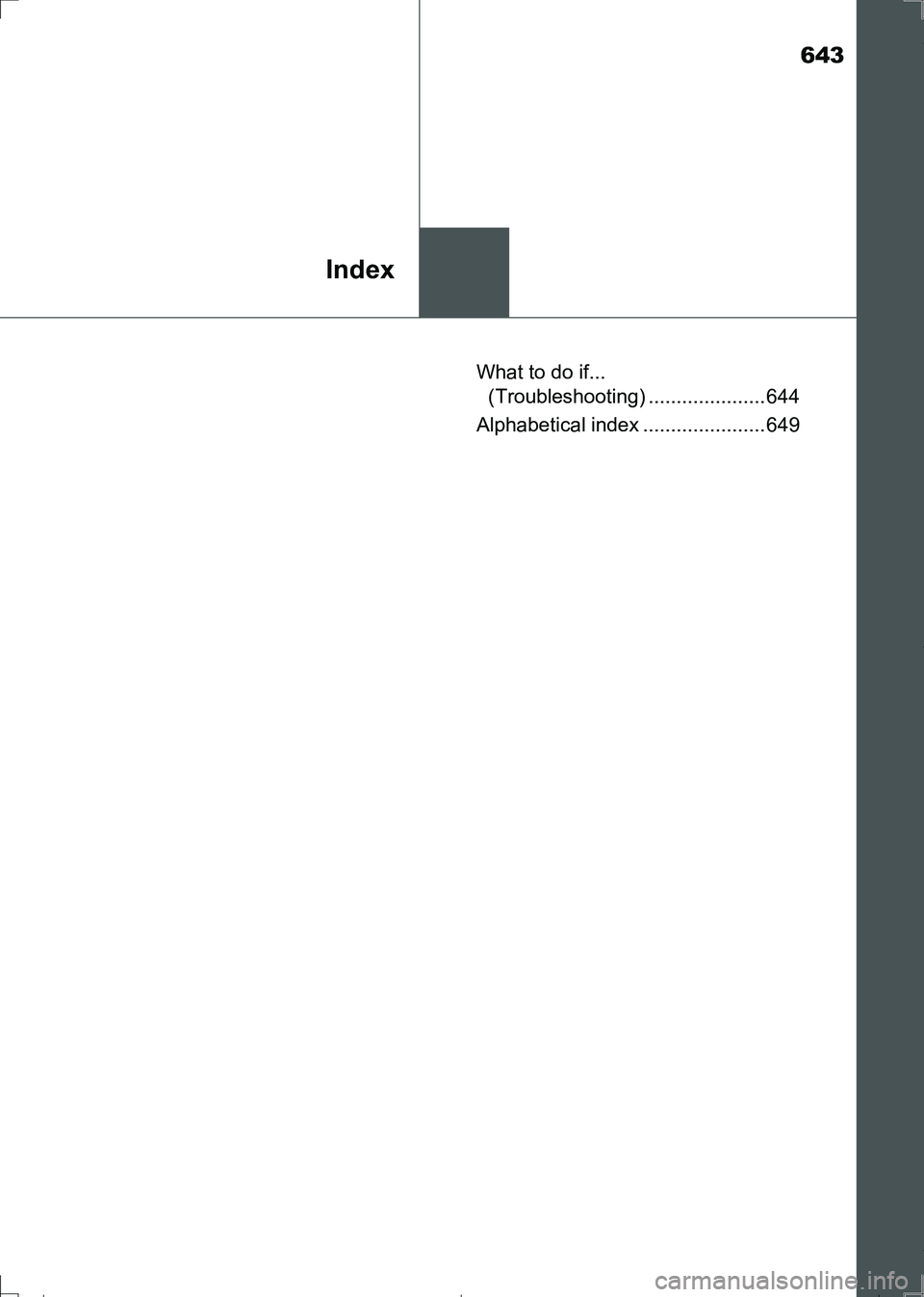

643
Index
AURIS Touring Sports_EE (12L13E)What to do if...
(Troubleshooting) ..................... 644
Alphabetical index ...................... 649
AURIS Touring Sports_OM_Europe_OM12L13E.book 643 ページ ２０１６年６月２７日　月曜日　午後５時２１分

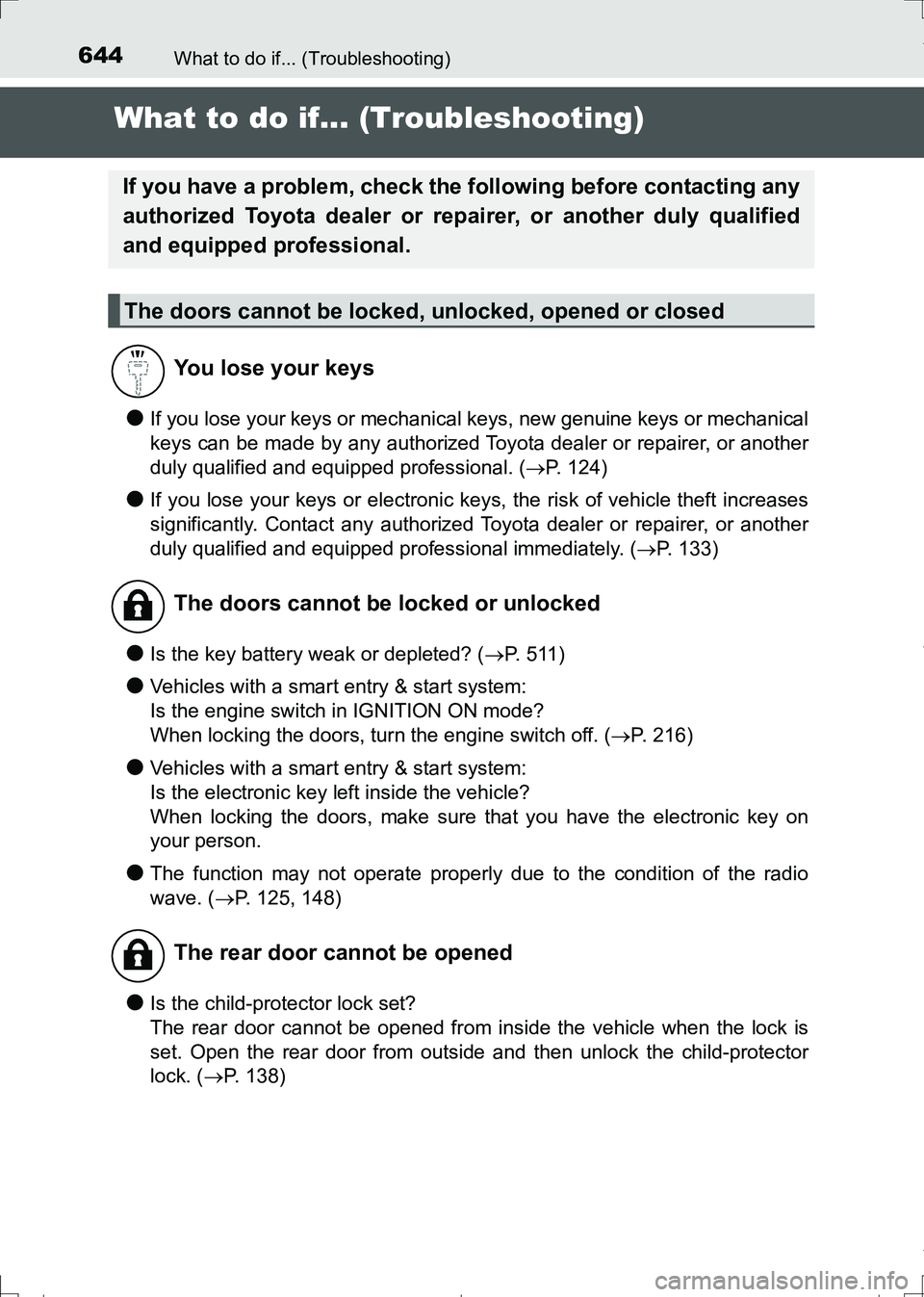

644
AURIS Touring Sports_EE (12L13E)
What to do if... (Troubleshooting)
What to do if... (Troubleshooting)
●If you lose your keys or mechanical keys, new genuine keys or mechanical
keys can be made by any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional. (P. 124)
●If you lose your keys or electronic keys, the risk of vehicle theft increases
significantly. Contact any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional immediately. (P. 133)
●Is the key battery weak or depleted? (P. 511)
●Vehicles with a smart entry & start system:
Is the engine switch in IGNITION ON mode?
When locking the doors, turn the engine switch off. (P. 216)
●Vehicles with a smart entry & start system:
Is the electronic key left inside the vehicle?
When locking the doors, make sure that you have the electronic key on
your person.
●The function may not operate properly due to the condition of the radio
wave. (P. 125, 148)
●Is the child-protector lock set?
The rear door cannot be opened from inside the vehicle when the lock is
set. Open the rear door from outside and then unlock the child-protector
lock. (P. 138)
If you have a problem, check the following before contacting any
authorized Toyota dealer or repairer, or another duly qualified
and equipped professional.
The doors cannot be locked, unlocked, opened or closed
You lose your keys
The doors cannot be locked or unlocked
The rear door cannot be opened
AURIS Touring Sports_OM_Europe_OM12L13E.book 644 ページ ２０１６年６月２７日　月曜日　午後５時２１分

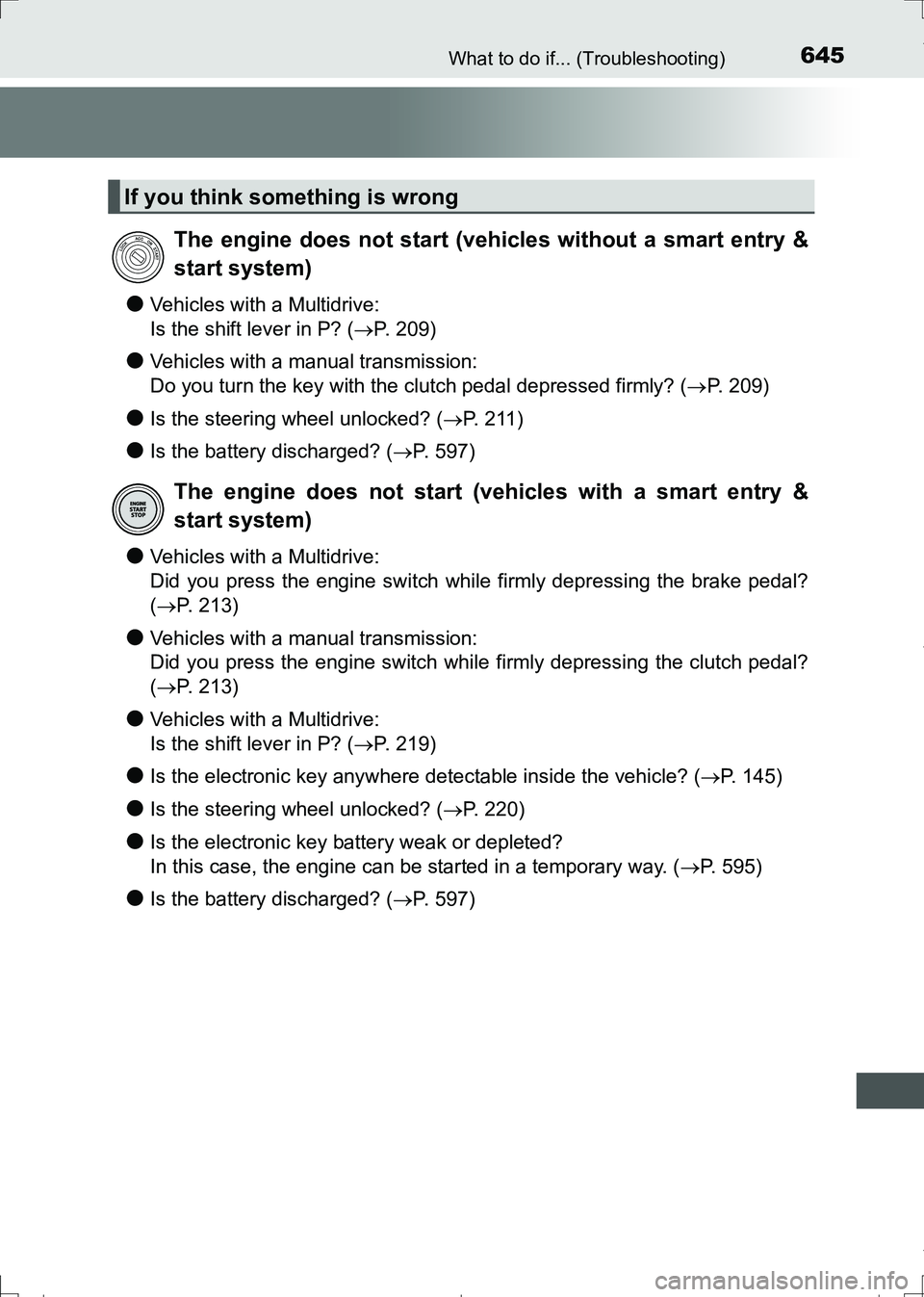

645What to do if... (Troubleshooting)
AURIS Touring Sports_EE (12L13E)
●Vehicles with a Multidrive:
Is the shift lever in P? (P. 209)
●Vehicles with a manual transmission:
Do you turn the key with the clutch pedal depressed firmly? (P. 209)
●Is the steering wheel unlocked? (P. 211)
●Is the battery discharged? (P. 597)
●Vehicles with a Multidrive:
Did you press the engine switch while firmly depressing the brake pedal?
(P. 213)
●Vehicles with a manual transmission:
Did you press the engine switch while firmly depressing the clutch pedal?
(P. 213)
●Vehicles with a Multidrive:
Is the shift lever in P? (P. 219)
●Is the electronic key anywhere detectable inside the vehicle? (P. 145)
●Is the steering wheel unlocked? (P. 220)
●Is the electronic key battery weak or depleted?
In this case, the engine can be started in a temporary way. (P. 595)
●Is the battery discharged? (P. 597)
If you think something is wrong
The engine does not start (vehicles without a smart entry &
start system)
The engine does not start (vehicles with a smart entry &
start system)
AURIS Touring Sports_OM_Europe_OM12L13E.book 645 ページ ２０１６年６月２７日　月曜日　午後５時２１分

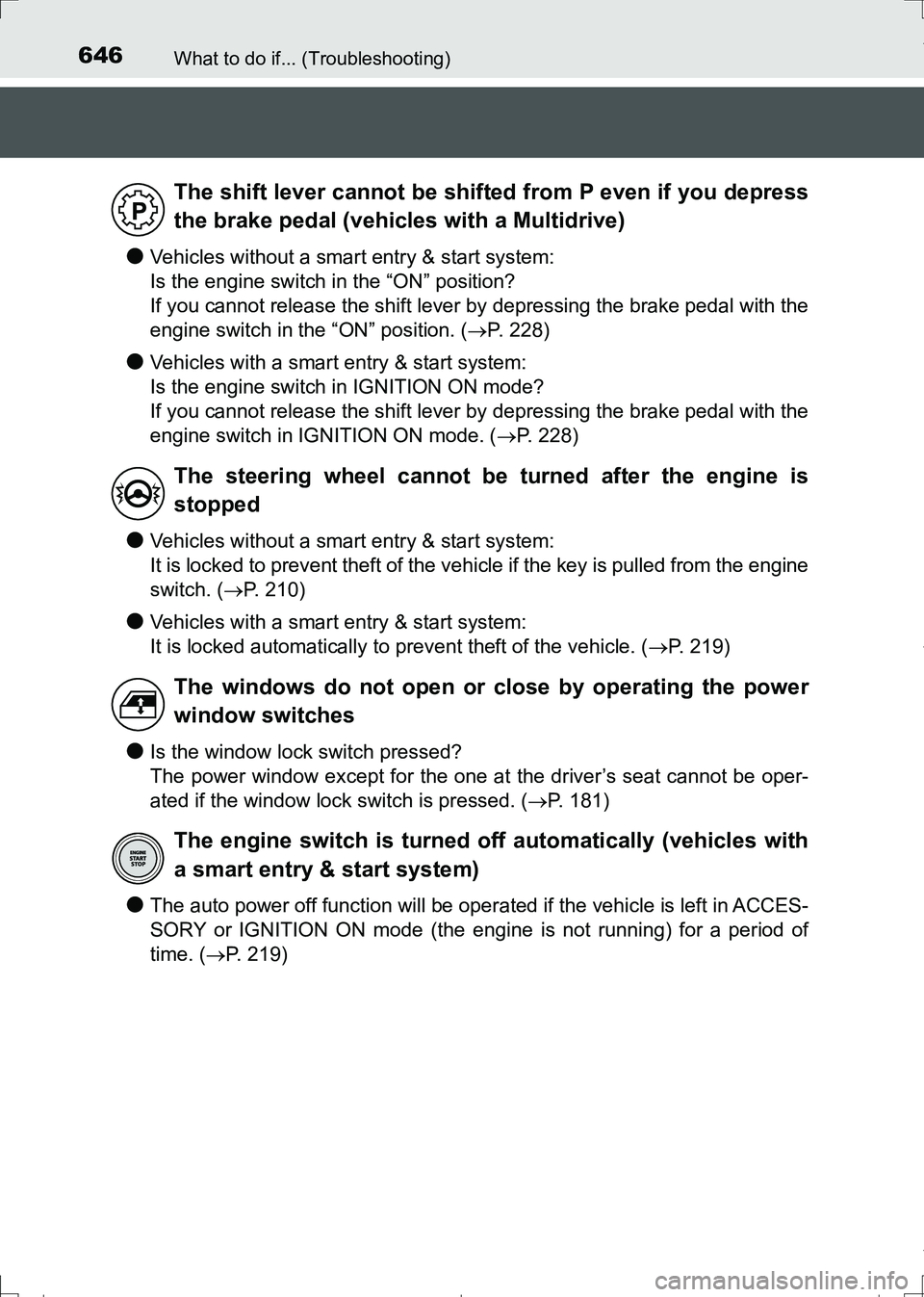

646What to do if... (Troubleshooting)
AURIS Touring Sports_EE (12L13E)
●Vehicles without a smart entry & start system:
Is the engine switch in the “ON” position?
If you cannot release the shift lever by depressing the brake pedal with the
engine switch in the “ON” position. (P. 228)
●Vehicles with a smart entry & start system:
Is the engine switch in IGNITION ON mode?
If you cannot release the shift lever by depressing the brake pedal with the
engine switch in IGNITION ON mode. (P. 228)
●Vehicles without a smart entry & start system:
It is locked to prevent theft of the vehicle if the key is pulled from the engine
switch. (P. 210)
●Vehicles with a smart entry & start system:
It is locked automatically to prevent theft of the vehicle. (P. 219)
●Is the window lock switch pressed?
The power window except for the one at the driver’s seat cannot be oper-
ated if the window lock switch is pressed. (P. 181)
●The auto power off function will be operated if the vehicle is left in ACCES-
SORY or IGNITION ON mode (the engine is not running) for a period of
time. (P. 219)
The shift lever cannot be shifted from P even if you depress
the brake pedal (vehicles with a Multidrive)
The steering wheel cannot be turned after the engine is
stopped
The windows do not open or close by operating the power
window switches
The engine switch is turned off automatically (vehicles with
a smart entry & start system)
AURIS Touring Sports_OM_Europe_OM12L13E.book 646 ページ ２０１６年６月２７日　月曜日　午後５時２１分

647What to do if... (Troubleshooting)
AURIS Touring Sports_EE (12L13E)
●The seat belt reminder light is flashing
Are the driver and the front passenger wearing the seat belts? (P. 549)
●The brake system warning light is on
Is the parking brake released? (P. 234)
Depending on the situation, other types of warning buzzer may also sound.
(P. 545, 557)
●Did anyone inside the vehicle open a door during setting the alarm?
The sensor detects it and the alarm sounds. (P. 87)
Vehicles without a smart entry & start system
To stop the alarm, turn the engine switch to the “ON” position or start the
engine.
Vehicles with a smart entry & start system
To stop the alarm, turn the engine switch to IGNITION ON mode or start the
engine.
●Is the electronic key left inside the vehicle?
Vehicles with a 2-ring meter: Check the message on the multi-information
display. (P. 557)
●When a warning light turns on, refer to P. 545.
●When a warning light turns on or a warning message is displayed, refer to
P. 545, 557.
A warning buzzer sounds during driving
An alarm is activated and the horn sounds
(vehicles with an alarm)
A warning buzzer sounds when leaving the vehicle
(vehicles with a smart entry & start system)
A warning light turns on
(vehicles with a 3-ring meter)
A warning light turns on or a warning message is displayed
(vehicles with a 2-ring meter)
AURIS Touring Sports_OM_Europe_OM12L13E.book 647 ページ ２０１６年６月２７日　月曜日　午後５時２１分

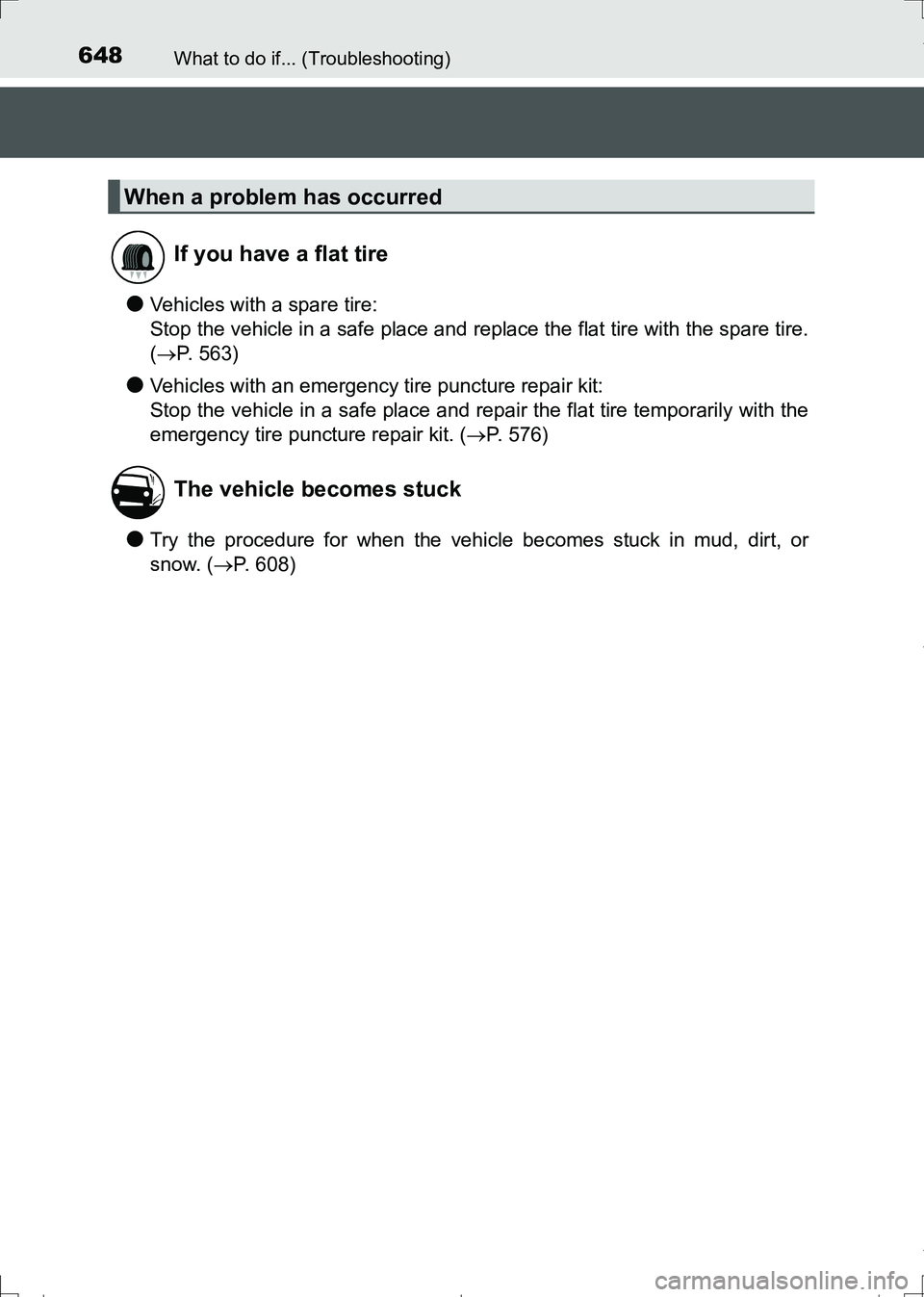

648What to do if... (Troubleshooting)
AURIS Touring Sports_EE (12L13E)
●Vehicles with a spare tire:
Stop the vehicle in a safe place and replace the flat tire with the spare tire.
(P. 563)
●Vehicles with an emergency tire puncture repair kit:
Stop the vehicle in a safe place and repair the flat tire temporarily with the
emergency tire puncture repair kit. (P. 576)
●Try the procedure for when the vehicle becomes stuck in mud, dirt, or
snow. (P. 608)
When a problem has occurred
If you have a flat tire
The vehicle becomes stuck
AURIS Touring Sports_OM_Europe_OM12L13E.book 648 ページ ２０１６年６月２７日　月曜日　午後５時２１分

649
AURIS Touring Sports_EE (12L13E)

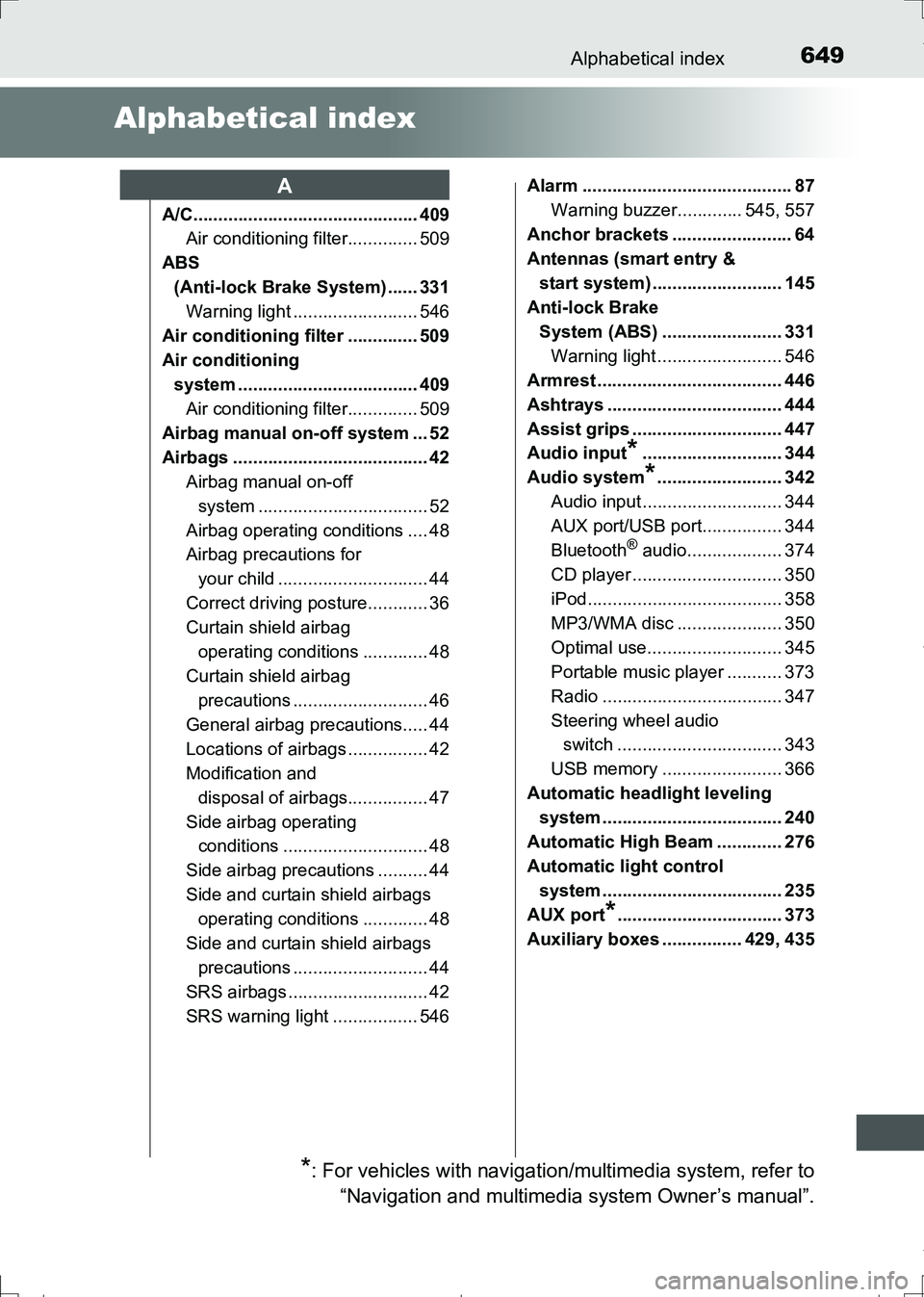

Alphabetical index
Alphabetical index
A/C............................................. 409
Air conditioning filter.............. 509
ABS
(Anti-lock Brake System) ...... 331
Warning light ......................... 546
Air conditioning filter .............. 509
Air conditioning
system .................................... 409
Air conditioning filter.............. 509
Airbag manual on-off system ... 52
Airbags ....................................... 42
Airbag manual on-off
system .................................. 52
Airbag operating conditions .... 48
Airbag precautions for
your child .............................. 44
Correct driving posture............ 36
Curtain shield airbag
operating conditions ............. 48
Curtain shield airbag
precautions ........................... 46
General airbag precautions..... 44
Locations of airbags ................ 42
Modification and
disposal of airbags................ 47
Side airbag operating
conditions ............................. 48
Side airbag precautions .......... 44
Side and curtain shield airbags
operating conditions ............. 48
Side and curtain shield airbags
precautions ........................... 44
SRS airbags ............................ 42
SRS warning light ................. 546Alarm .......................................... 87
Warning buzzer............. 545, 557
Anchor brackets ........................ 64
Antennas (smart entry &
start system) .......................... 145
Anti-lock Brake
System (ABS) ........................ 331
Warning light ......................... 546
Armrest ..................................... 446
Ashtrays ................................... 444
Assist grips .............................. 447
Audio input
*............................ 344
Audio system
*......................... 342
Audio input ............................ 344
AUX port/USB port................ 344
Bluetooth
® audio................... 374
CD player .............................. 350
iPod....................................... 358
MP3/WMA disc ..................... 350
Optimal use........................... 345
Portable music player ........... 373
Radio .................................... 347
Steering wheel audio
switch ................................. 343
USB memory ........................ 366
Automatic headlight leveling
system .................................... 240
Automatic High Beam ............. 276
Automatic light control
system .................................... 235
AUX port
*................................. 373
Auxiliary boxes ................ 429, 435
A
*: For vehicles with navigation/multimedia system, refer to
“Navigation and multimedia system Owner’s manual”.
AURIS Touring Sports_OM_Europe_OM12L13E.book 649 ページ ２０１６年６月２７日　月曜日　午後５時２１分

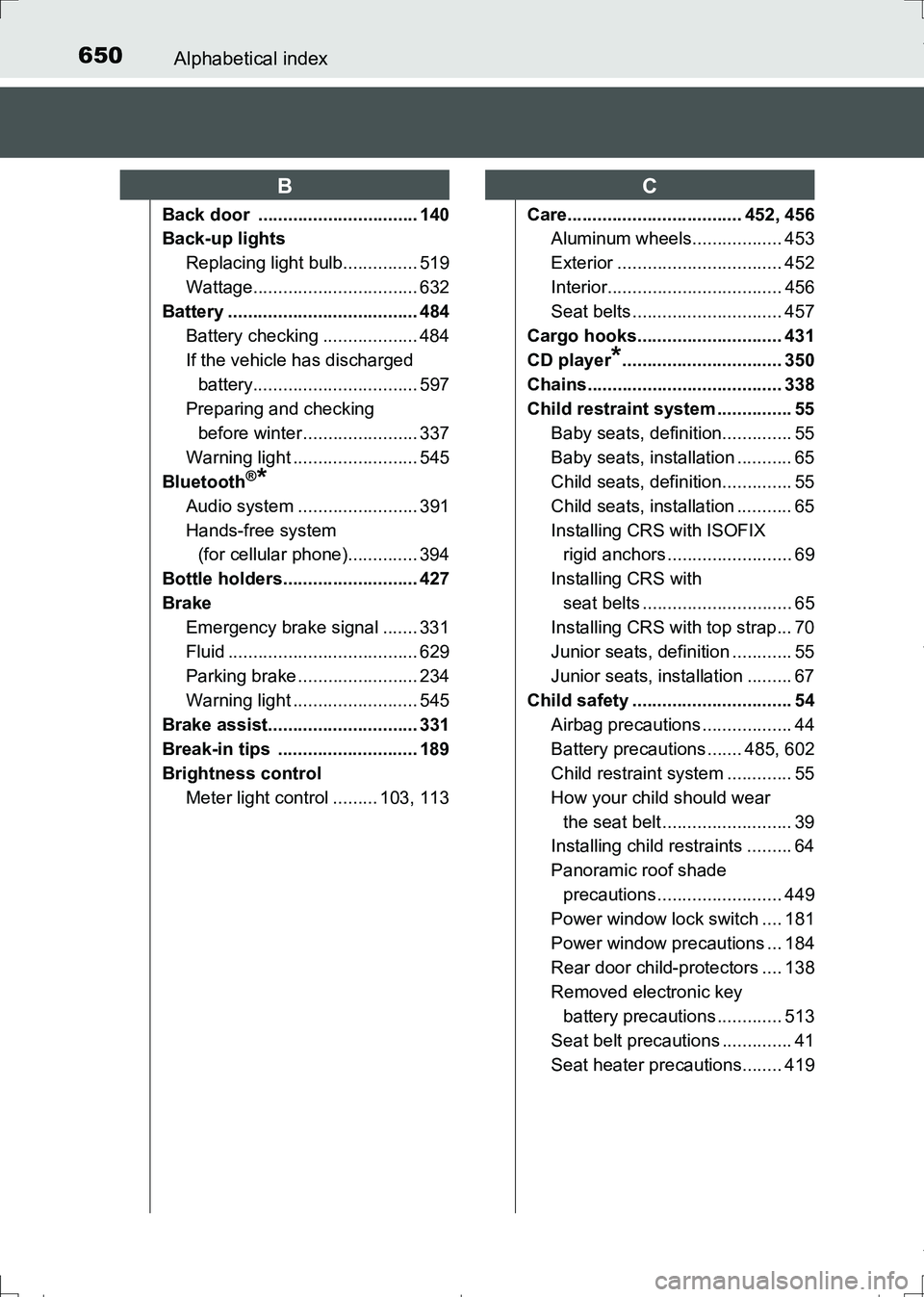

650Alphabetical index
AURIS Touring Sports_EE (12L13E)
Back door ................................ 140
Back-up lights
Replacing light bulb............... 519
Wattage................................. 632
Battery ...................................... 484
Battery checking ................... 484
If the vehicle has discharged
battery................................. 597
Preparing and checking
before winter ....................... 337
Warning light ......................... 545
Bluetooth
®*
Audio system ........................ 391
Hands-free system
(for cellular phone).............. 394
Bottle holders........................... 427
Brake
Emergency brake signal ....... 331
Fluid ...................................... 629
Parking brake ........................ 234
Warning light ......................... 545
Brake assist.............................. 331
Break-in tips ............................ 189
Brightness control
Meter light control ......... 103, 113Care................................... 452, 456
Aluminum wheels.................. 453
Exterior ................................. 452
Interior................................... 456
Seat belts .............................. 457
Cargo hooks............................. 431
CD player
*................................ 350
Chains....................................... 338
Child restraint system ............... 55
Baby seats, definition.............. 55
Baby seats, installation ........... 65
Child seats, definition.............. 55
Child seats, installation ........... 65
Installing CRS with ISOFIX
rigid anchors ......................... 69
Installing CRS with
seat belts .............................. 65
Installing CRS with top strap... 70
Junior seats, definition ............ 55
Junior seats, installation ......... 67
Child safety ................................ 54
Airbag precautions .................. 44
Battery precautions ....... 485, 602
Child restraint system ............. 55
How your child should wear
the seat belt .......................... 39
Installing child restraints ......... 64
Panoramic roof shade
precautions ......................... 449
Power window lock switch .... 181
Power window precautions ... 184
Rear door child-protectors .... 138
Removed electronic key
battery precautions ............. 513
Seat belt precautions .............. 41
Seat heater precautions........ 419
BC
AURIS Touring Sports_OM_Europe_OM12L13E.book 650 ページ ２０１６年６月２７日　月曜日　午後５時２１分
