TOYOTA AURIS TOURING SPORTS 2013 Owners Manual

351
Auris Touring Sports_EE (OM12G12E)
5

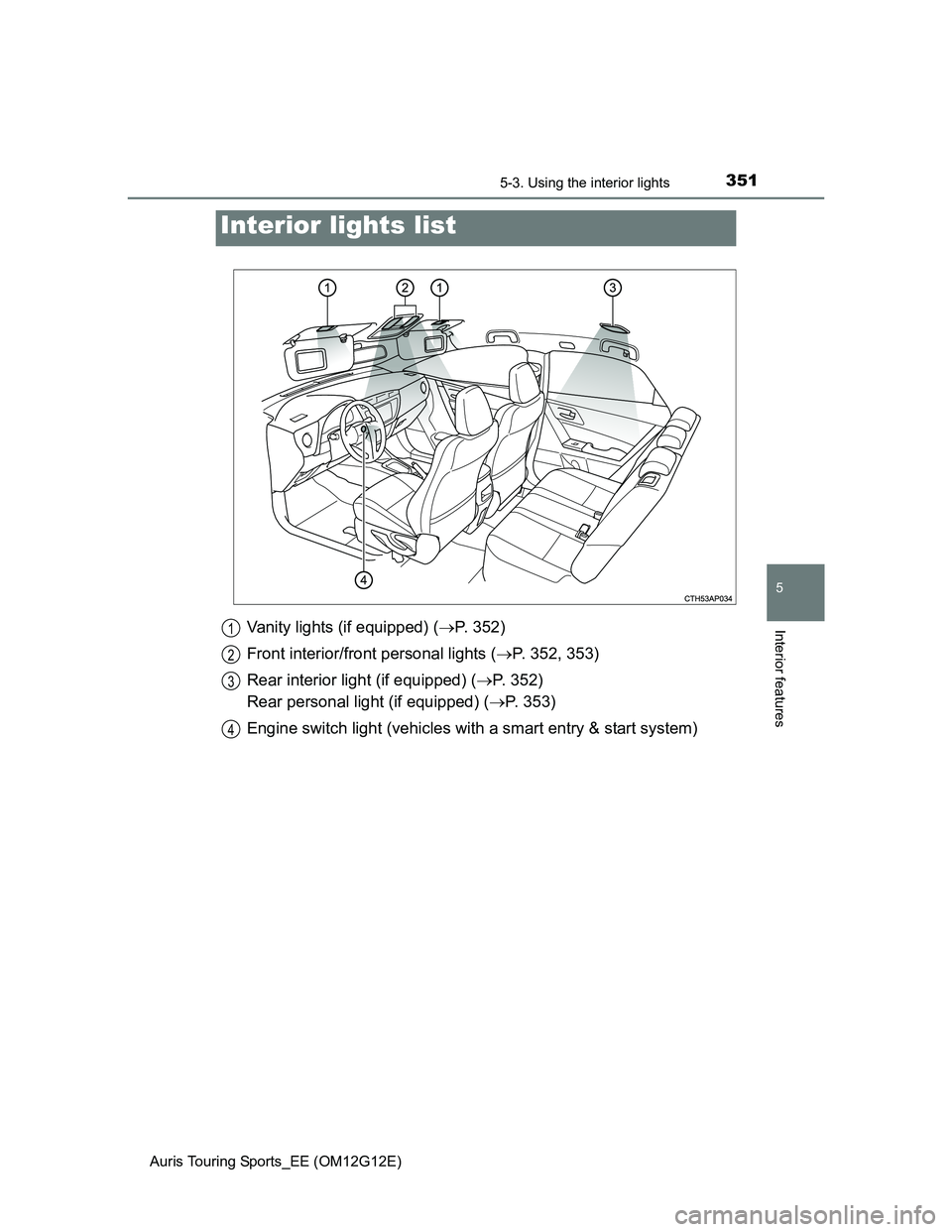

Interior features
5-3. Using the interior lights
Vanity lights (if equipped) (P. 352)
Front interior/front personal lights (P. 352, 353)
Rear interior light (if equipped) (P. 352)
Rear personal light (if equipped) (P. 353)
Engine switch light (vehicles with a smart entry & start system)
Interior lights list
1
2
3
4

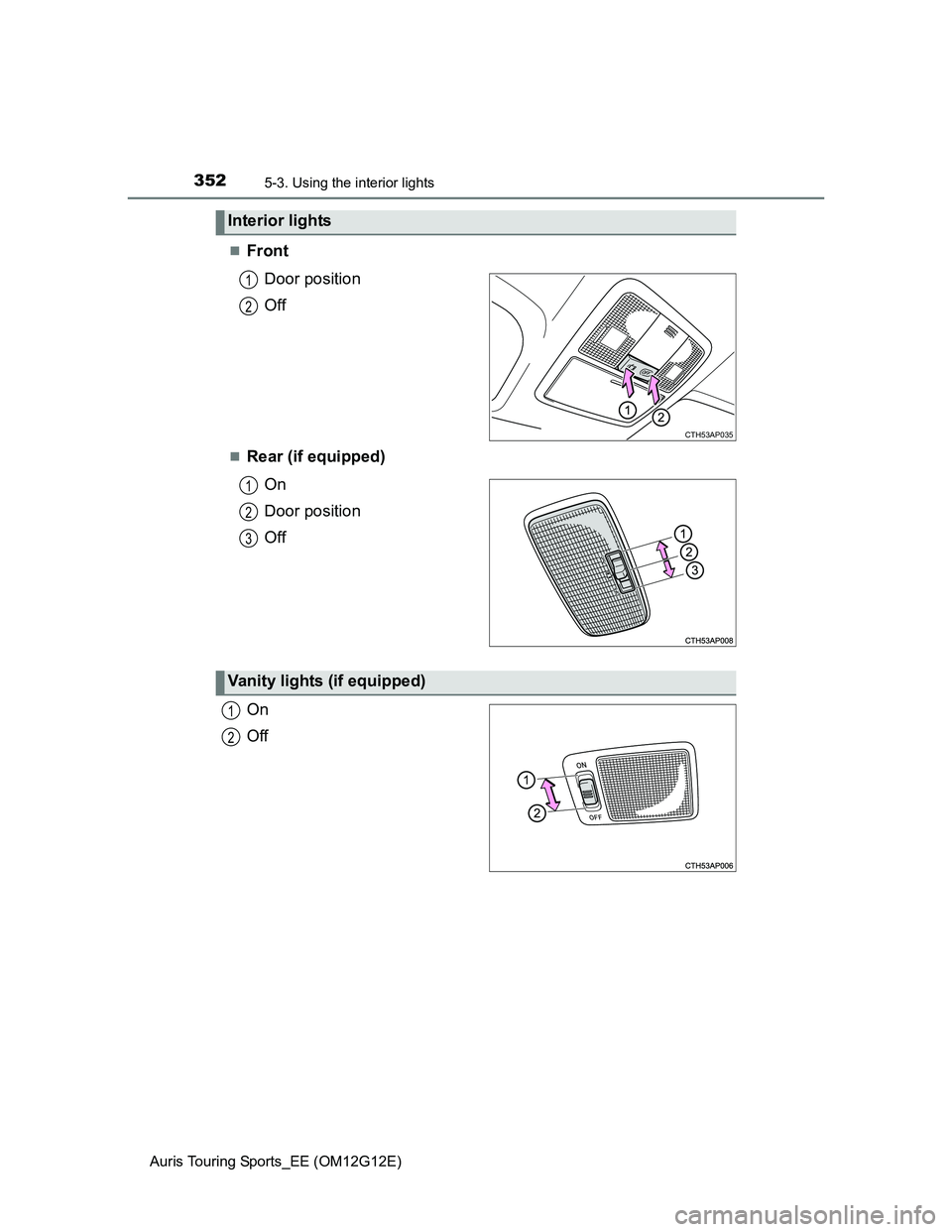

3525-3. Using the interior lights
Auris Touring Sports_EE (OM12G12E)
Front
Door position
Off
Rear (if equipped)
On
Door position
Off
On
Off
Interior lights
CTH53AP035
1
2
1
2
3
Vanity lights (if equipped)
1
2

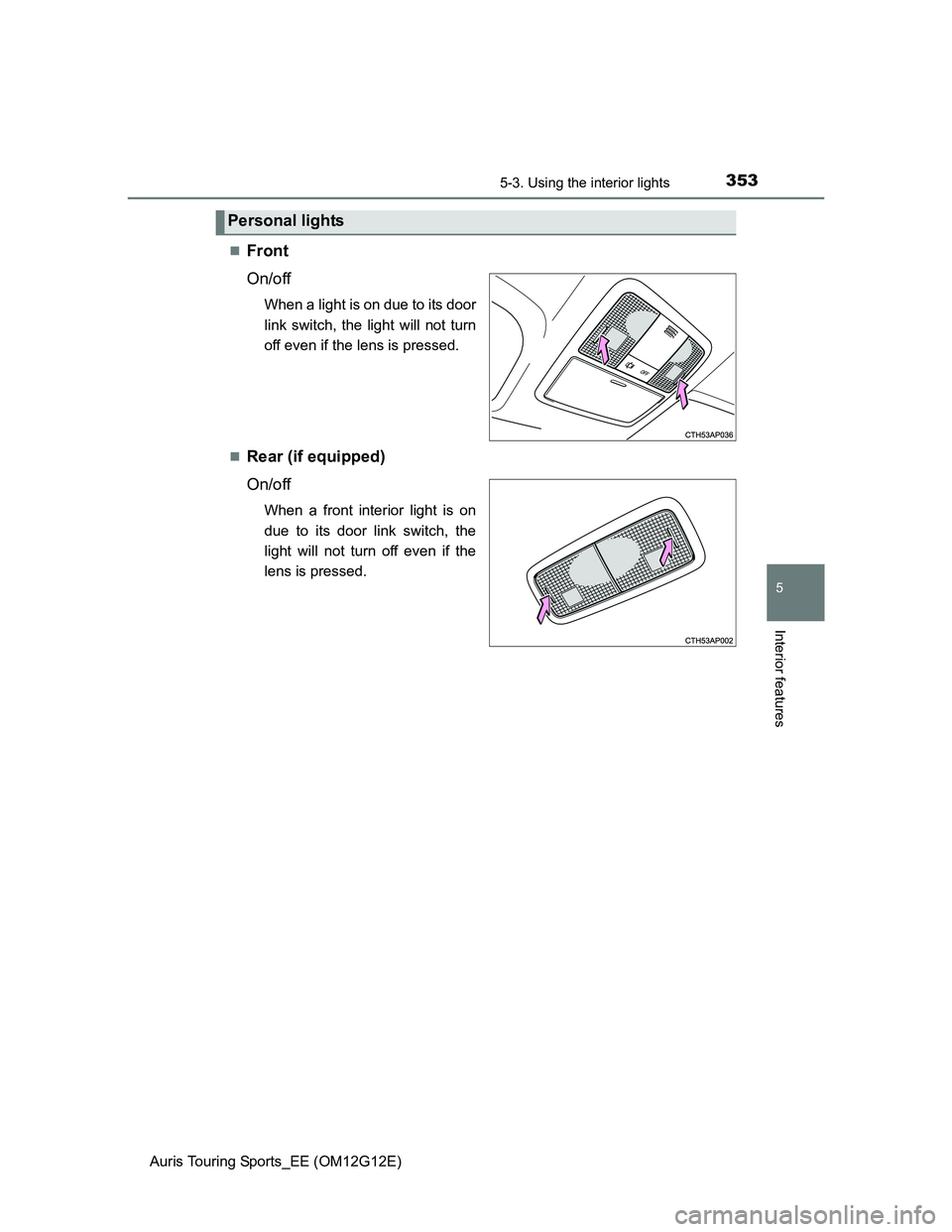

3535-3. Using the interior lights
Auris Touring Sports_EE (OM12G12E)
5
Interior features
Front
On/off
When a light is on due to its door
link switch, the light will not turn
off even if the lens is pressed.

Rear (if equipped)
On/off
When a front interior light is on
due to its door link switch, the
light will not turn off even if the
lens is pressed.
Personal lights

3545-3. Using the interior lights
Auris Touring Sports_EE (OM12G12E)
Illuminated entry system
Vehicles without a smart entry & start system
When the interior light switch is in the “DOOR” position, the interior light auto-
matically turns on/off according to the engine switch position, whether the
doors are locked/unlocked and whether the doors are open/closed.
Vehicles with a smart entry & start system
When the interior light switch is in the “DOOR” position, the interior light and
engine switch light automatically turn on/off according to engine switch mode,
the presence of the electronic key, whether the doors are locked/unlocked
and whether the doors are open/closed.
To prevent the battery from being discharged
If the following lights remain on when the engine switch is turned off, the lights
will go off automatically after 20 minutes:
Personal/interior lights
Luggage compartment light
Vanity lights (if equipped)
Customization that can be configured at any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional
Setting (e.g. the time elapsed before lights turn off) can be changed.
(Customizable features: P. 588)

355
Auris Touring Sports_EE (OM12G12E)
5
Interior features

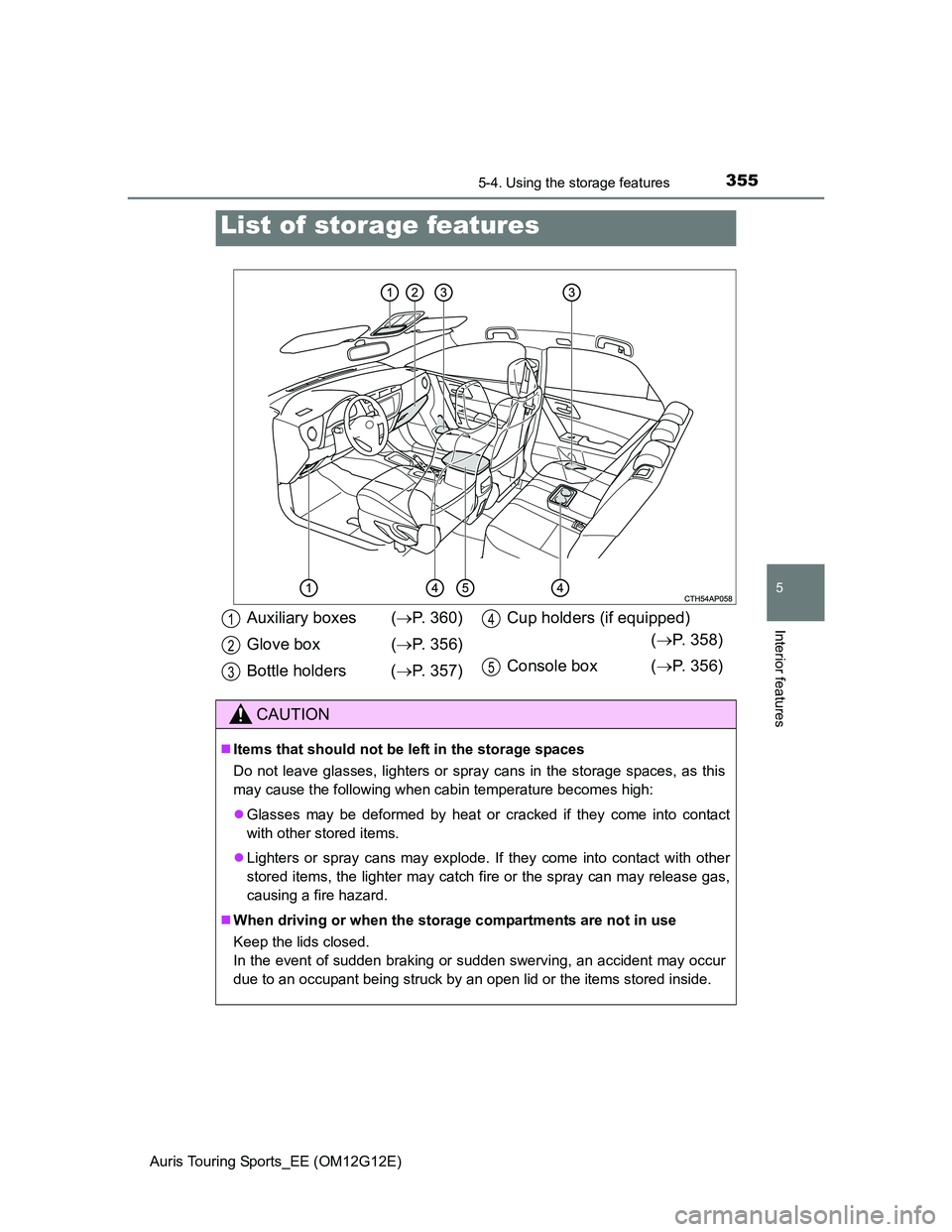

5-4. Using the storage features
List of storage features
Auxiliary boxes (P. 360)
Glove box (P. 356)
Bottle holders (P. 357)Cup holders (if equipped)
(P. 358)
Console box (P. 356)
CAUTION
Items that should not be left in the storage spaces
Do not leave glasses, lighters or spray cans in the storage spaces, as this
may cause the following when cabin temperature becomes high:
Glasses may be deformed by heat or cracked if they come into contact
with other stored items.
Lighters or spray cans may explode. If they come into contact with other
stored items, the lighter may catch fire or the spray can may release gas,
causing a fire hazard.
When driving or when the storage compartments are not in use
Keep the lids closed.
In the event of sudden braking or sudden swerving, an accident may occur
due to an occupant being struck by an open lid or the items stored inside.
1
2
3
4
5

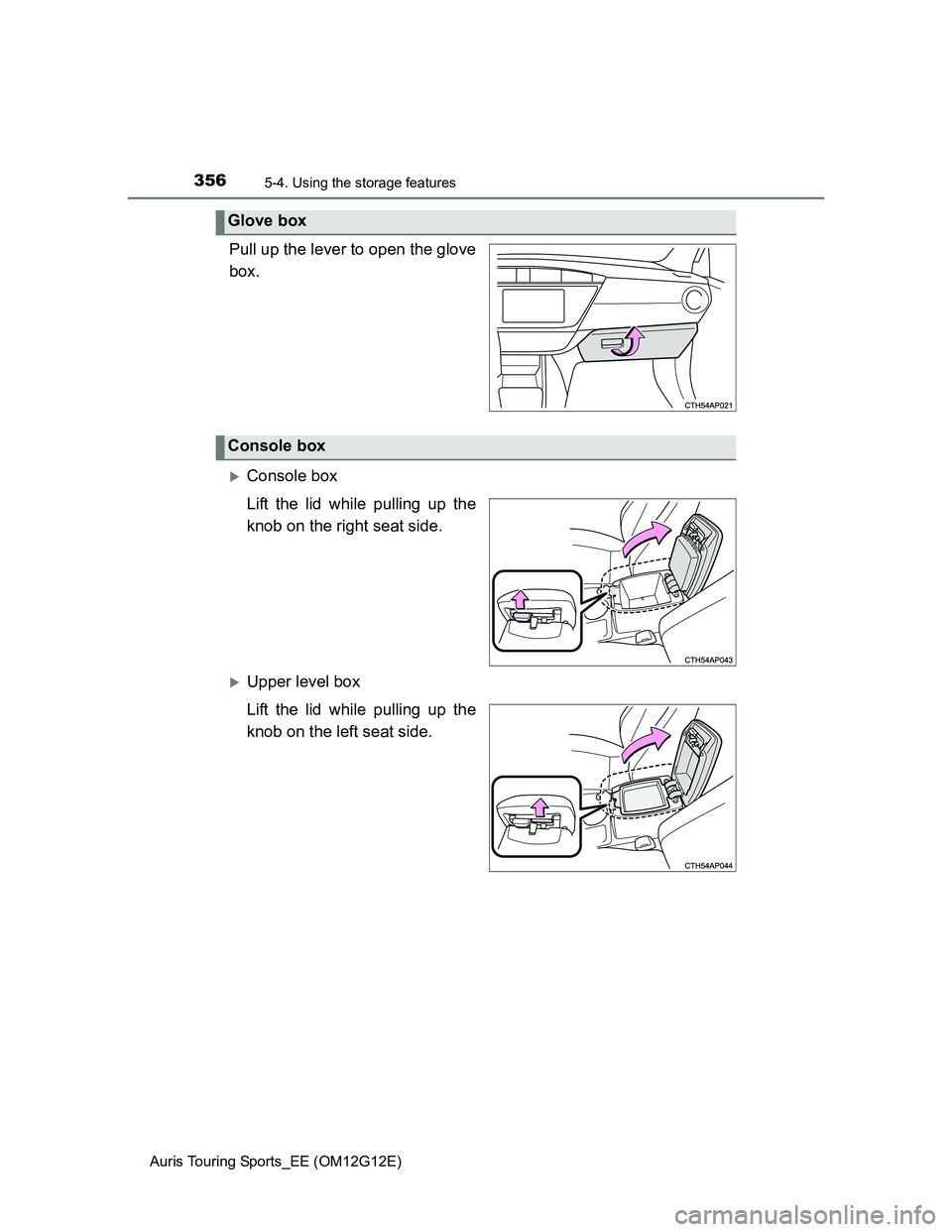

3565-4. Using the storage features
Auris Touring Sports_EE (OM12G12E)
Pull up the lever to open the glove
box.
Console box
Lift the lid while pulling up the
knob on the right seat side.
Upper level box
Lift the lid while pulling up the
knob on the left seat side.
Glove box
Console box

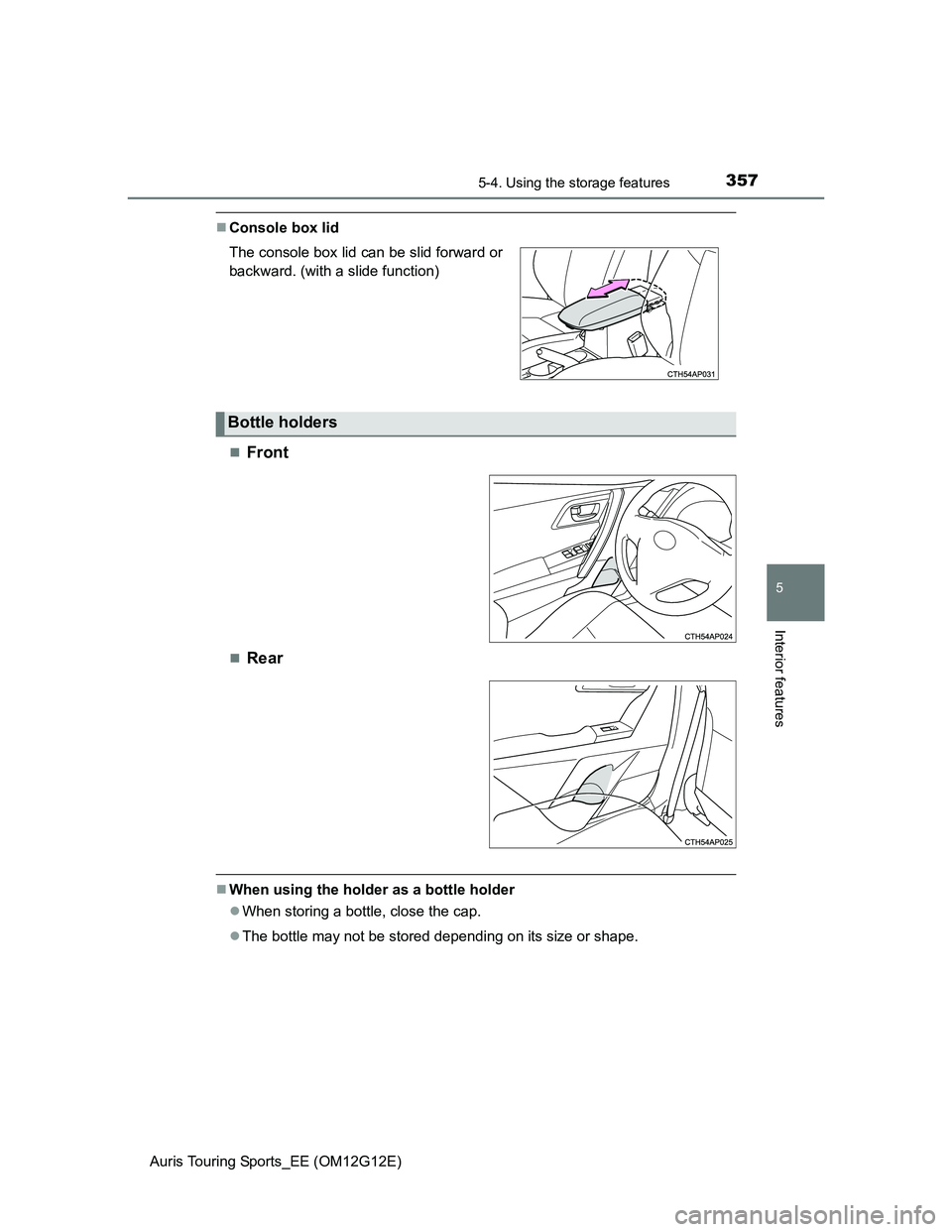

3575-4. Using the storage features
Auris Touring Sports_EE (OM12G12E)
5
Interior features
Console box lid

Front
Rear
When using the holder as a bottle holder
When storing a bottle, close the cap.
The bottle may not be stored depending on its size or shape. The console box lid can be slid forward or
backward. (with a slide function)
Bottle holders

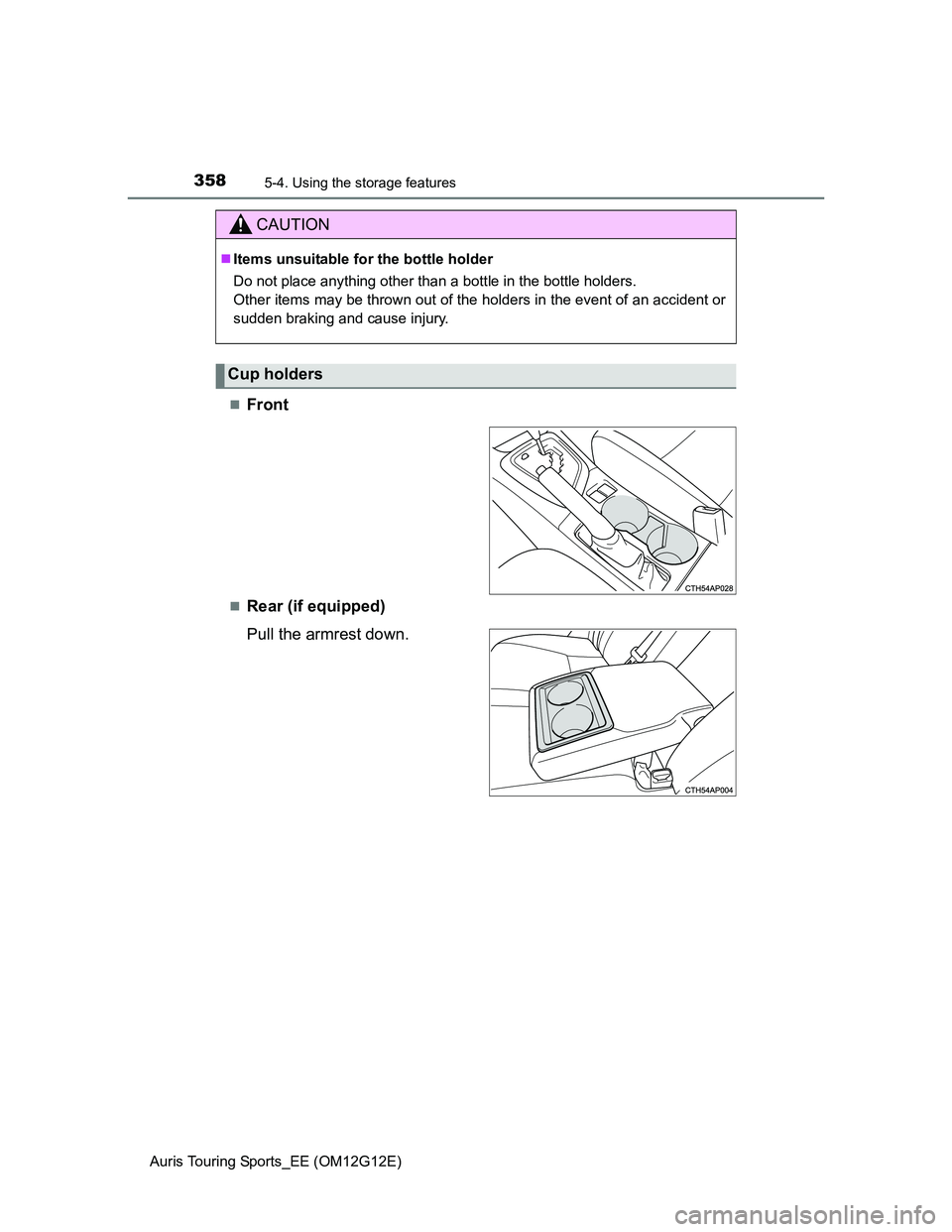

3585-4. Using the storage features
Auris Touring Sports_EE (OM12G12E)
Front
Rear (if equipped)
Pull the armrest down.
CAUTION
Items unsuitable for the bottle holder
Do not place anything other than a bottle in the bottle holders.
Other items may be thrown out of the holders in the event of an accident or
sudden braking and cause injury.
Cup holders

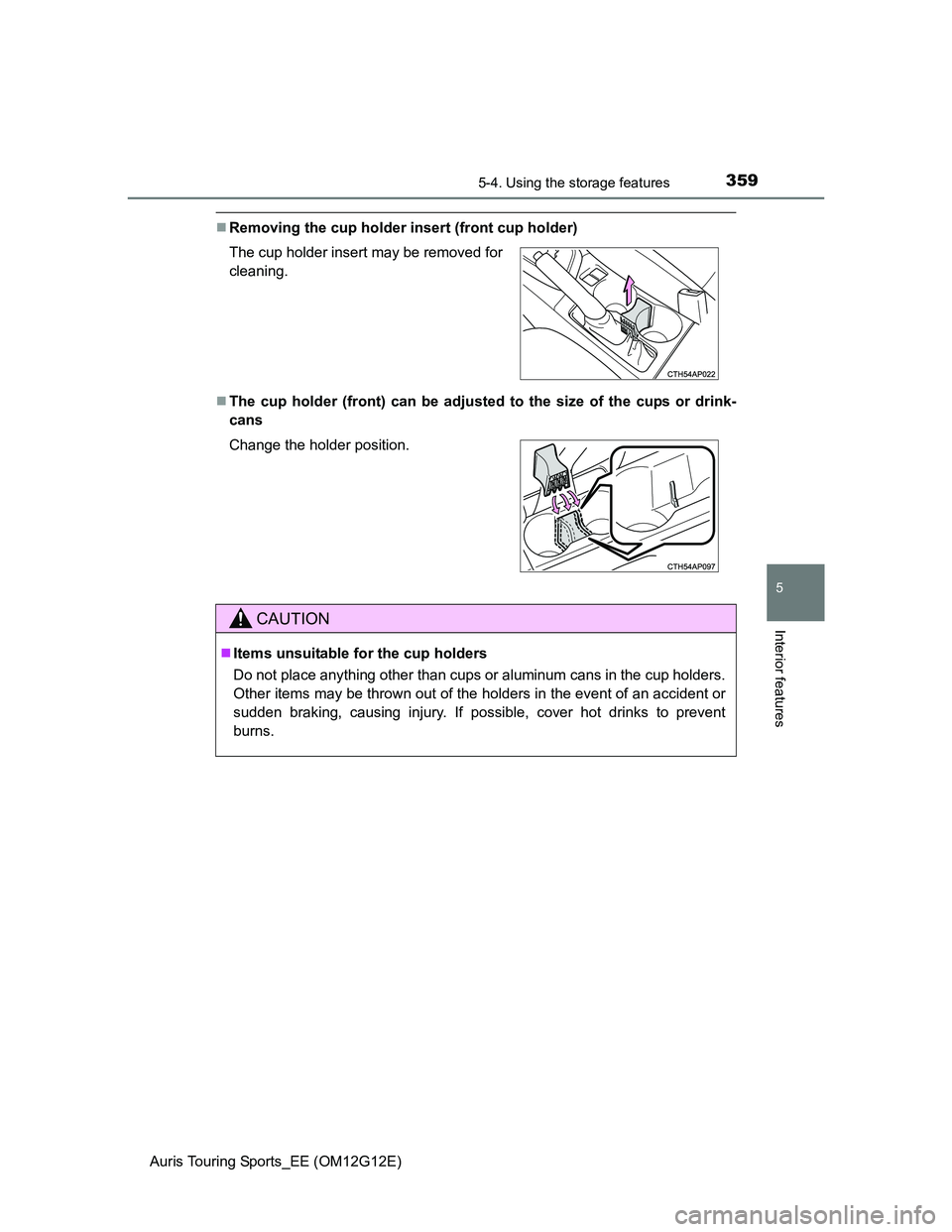

3595-4. Using the storage features
Auris Touring Sports_EE (OM12G12E)
5
Interior features
Removing the cup holder insert (front cup holder)
The cup holder (front) can be adjusted to the size of the cups or drink-
cans The cup holder insert may be removed for
cleaning.
Change the holder position.
CAUTION
Items unsuitable for the cup holders
Do not place anything other than cups or aluminum cans in the cup holders.
Other items may be thrown out of the holders in the event of an accident or
sudden braking, causing injury. If possible, cover hot drinks to prevent
burns.

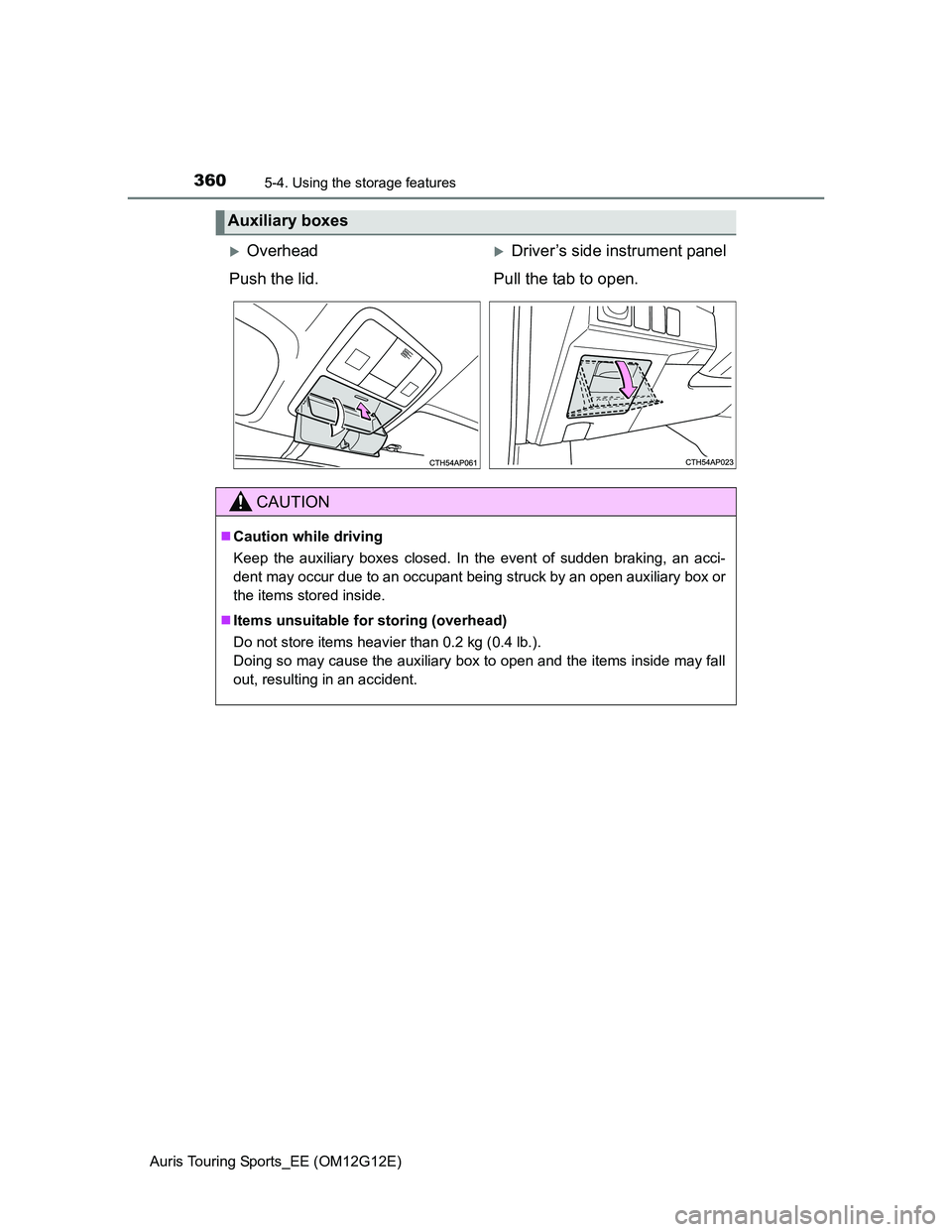

3605-4. Using the storage features
Auris Touring Sports_EE (OM12G12E)
Auxiliary boxes
OverheadDriver’s side instrument panel
Push the lid. Pull the tab to open.
CAUTION
Caution while driving
Keep the auxiliary boxes closed. In the event of sudden braking, an acci-
dent may occur due to an occupant being struck by an open auxiliary box or
the items stored inside.
Items unsuitable for storing (overhead)
Do not store items heavier than 0.2 kg (0.4 lb.).
Doing so may cause the auxiliary box to open and the items inside may fall
out, resulting in an accident.
