TOYOTA AURIS TOURING SPORTS 2013 Owners Manual

3615-4. Using the storage features
Auris Touring Sports_EE (OM12G12E)
5
Interior features
Raise the hooks to use.
Cargo hooks are provided for
securing loose items.
Luggage compar tment features
Cargo hooks
CAUTION
When the cargo hooks are not in use
To avoid injury, always return the cargo hooks to their positions when they
are not in use.
Grocery bag hooks
NOTICE
To prevent damage
Do not hang any object heavier than 4 kg (8.8 lb.) on the grocery bag hooks.

3625-4. Using the storage features
Auris Touring Sports_EE (OM12G12E)

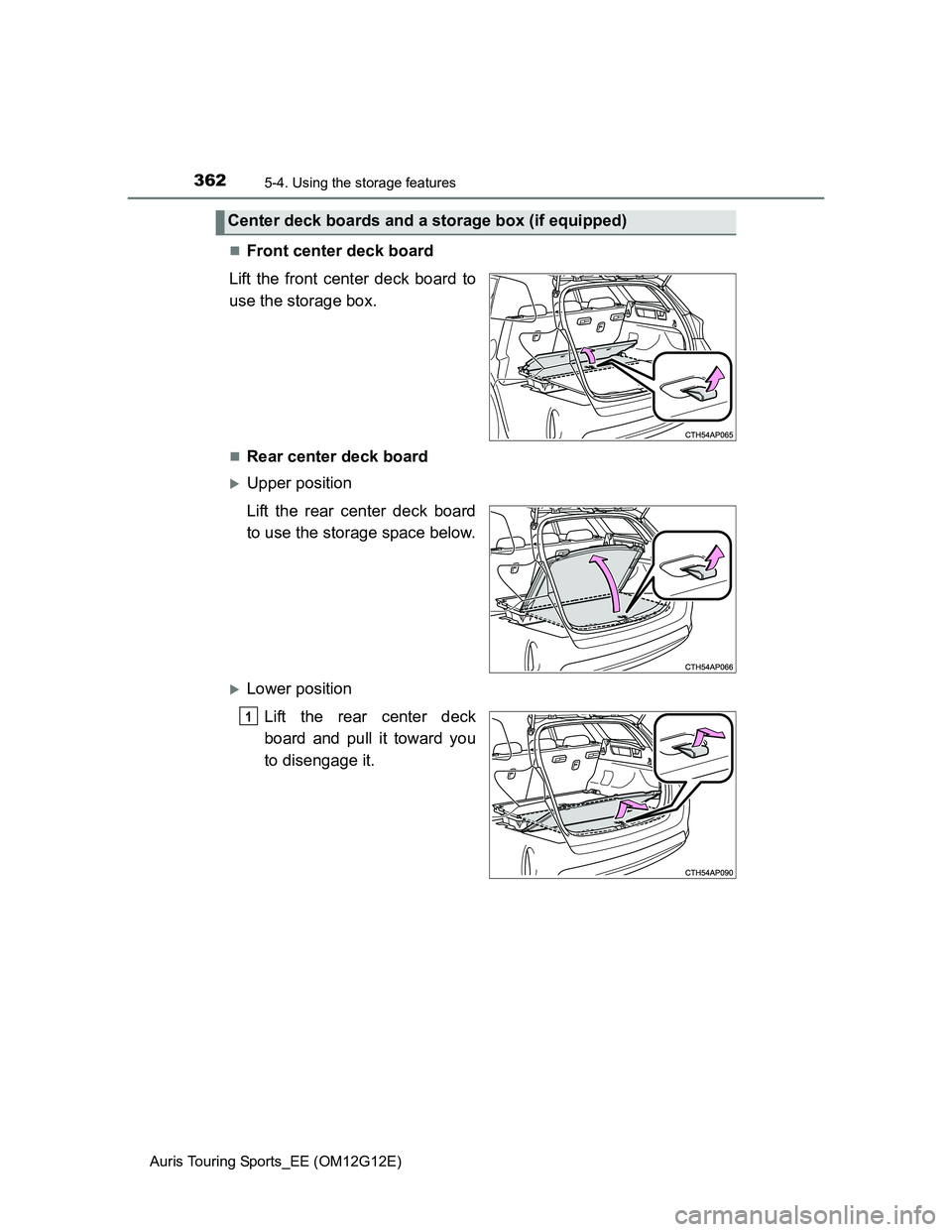

Front center deck board
Lift the front center deck board to
use the storage box.
Rear center deck board
Upper position
Lift the rear center deck board
to use the storage space below.
Lower position
Lift the rear center deck
board and pull it toward you
to disengage it.
Center deck boards and a storage box (if equipped)
1

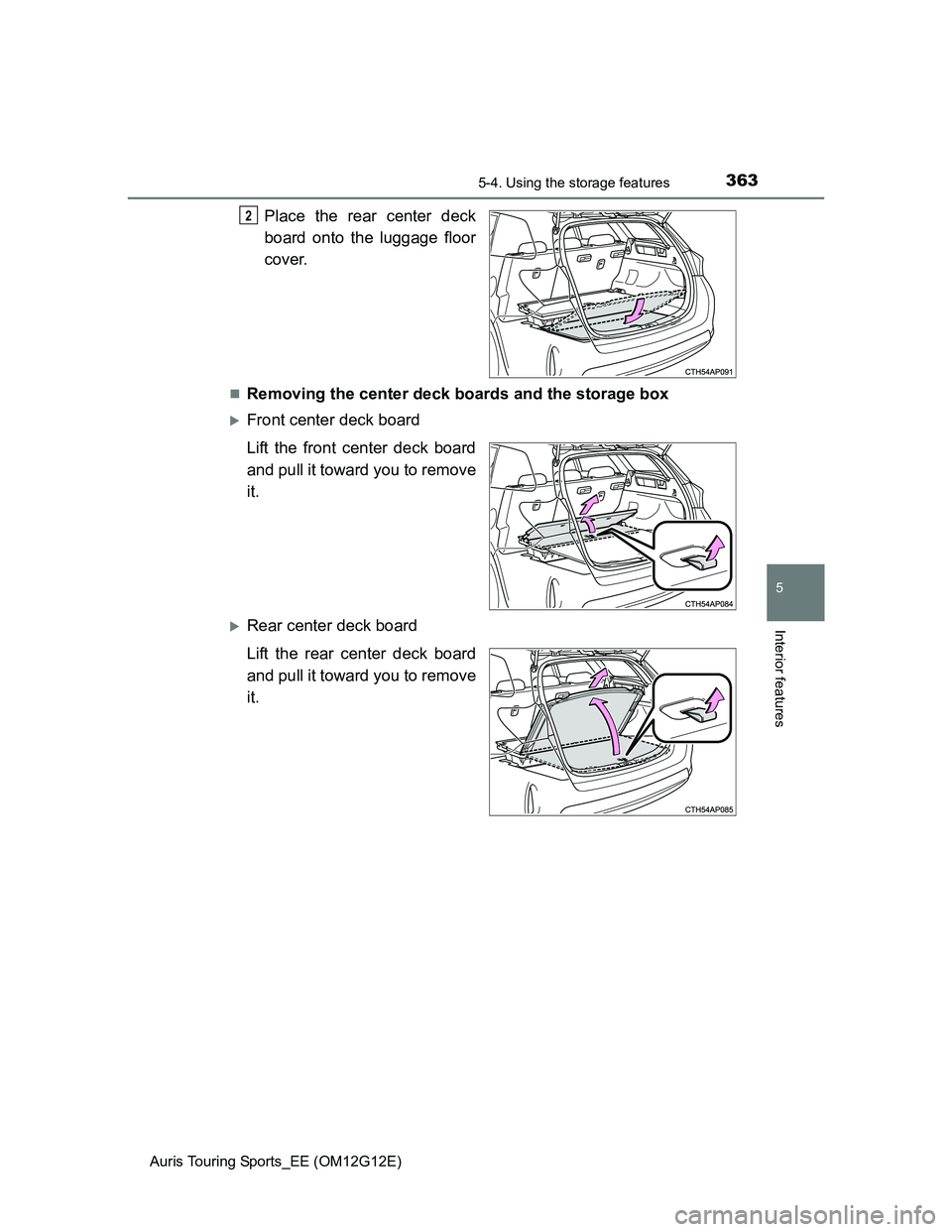

3635-4. Using the storage features
Auris Touring Sports_EE (OM12G12E)
5
Interior features
Place the rear center deck
board onto the luggage floor
cover.
Removing the center deck boards and the storage box
Front center deck board
Lift the front center deck board
and pull it toward you to remove
it.
Rear center deck board
Lift the rear center deck board
and pull it toward you to remove
it.
2

3645-4. Using the storage features
Auris Touring Sports_EE (OM12G12E)

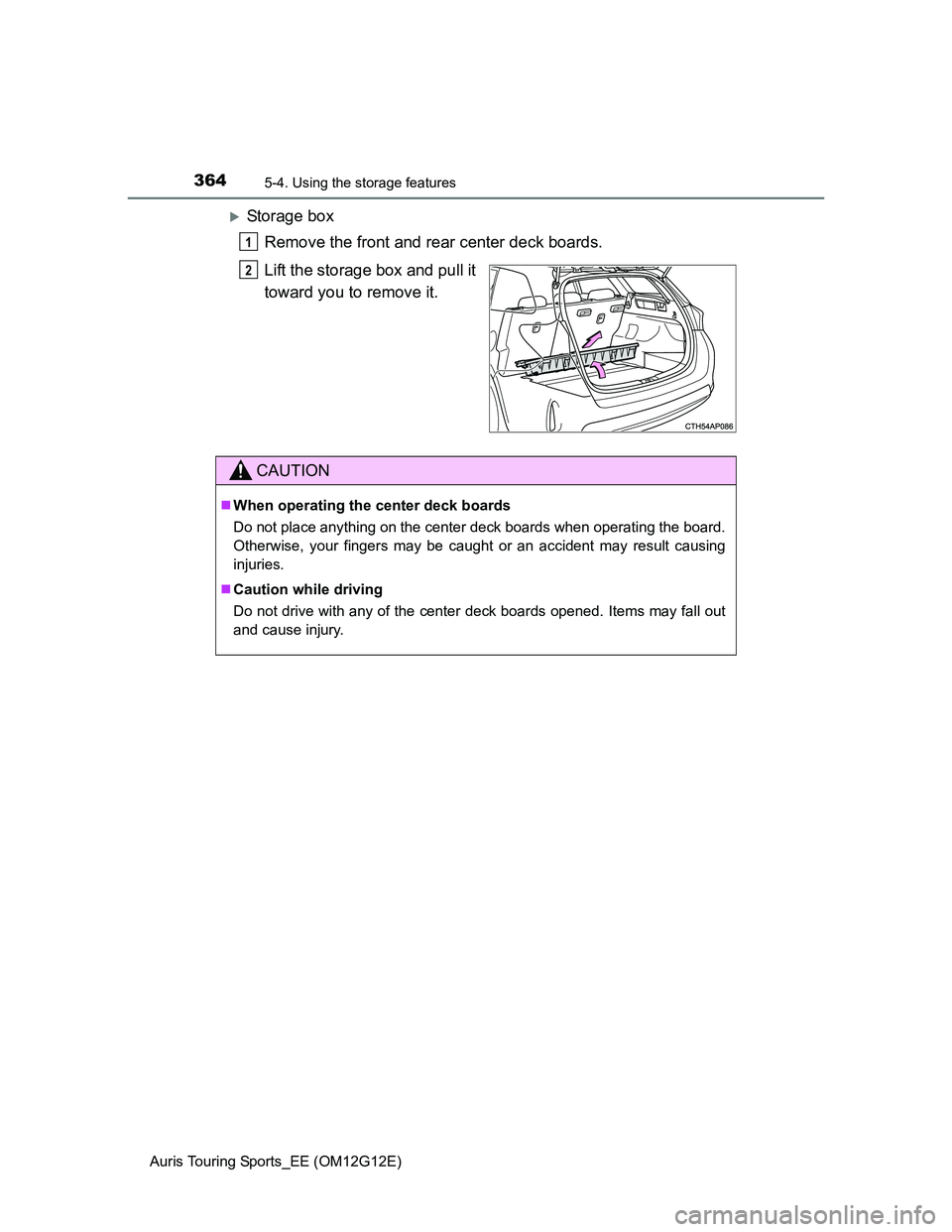

Storage box
Remove the front and rear center deck boards.
Lift the storage box and pull it
toward you to remove it.
1
2
CAUTION
When operating the center deck boards
Do not place anything on the center deck boards when operating the board.
Otherwise, your fingers may be caught or an accident may result causing
injuries.
Caution while driving
Do not drive with any of the center deck boards opened. Items may fall out
and cause injury.

3655-4. Using the storage features
Auris Touring Sports_EE (OM12G12E)
5
Interior features

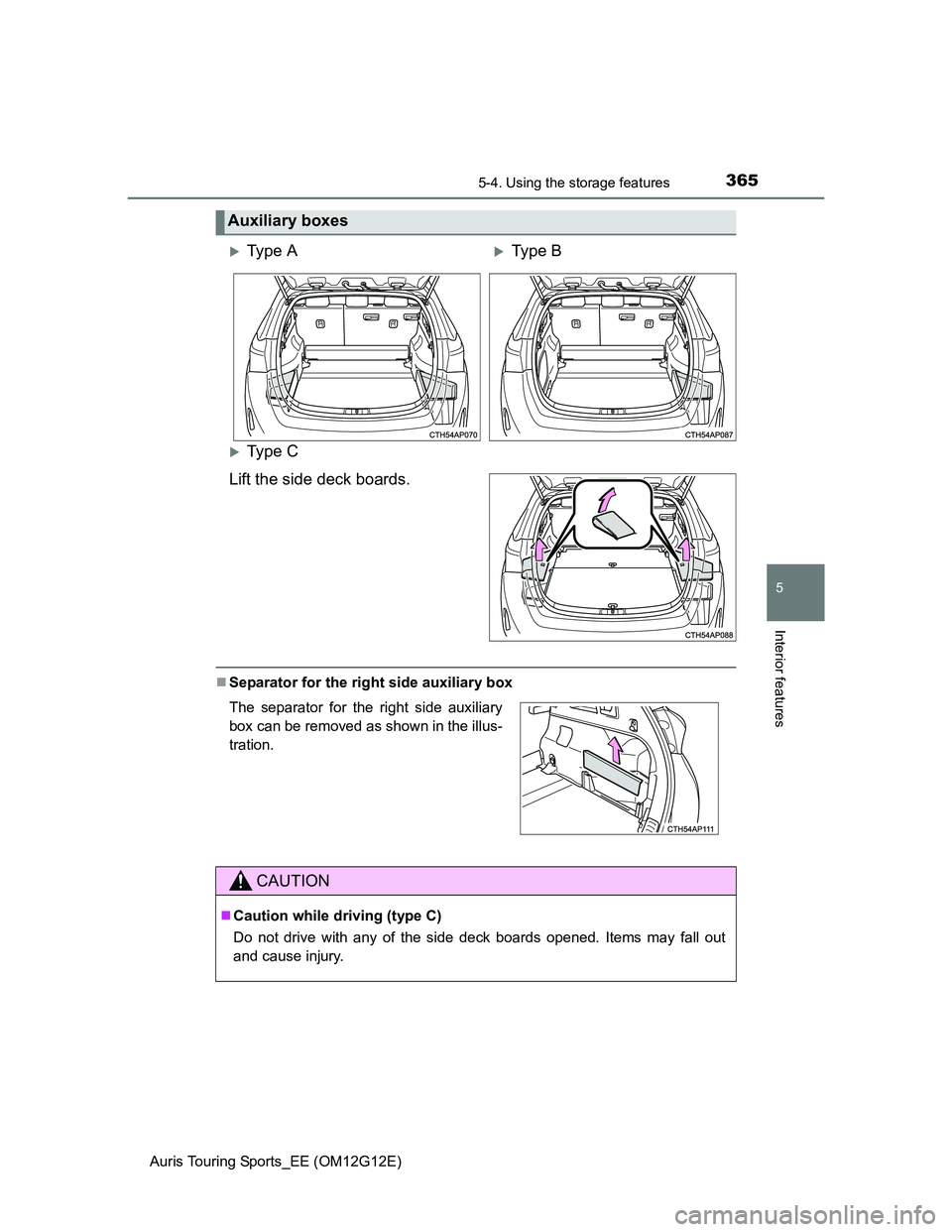

Ty p e C
Lift the side deck boards.
Separator for the right side auxiliary box
Auxiliary boxes
Ty p e AType B
The separator for the right side auxiliary
box can be removed as shown in the illus-
tration.
CAUTION
Caution while driving (type C)
Do not drive with any of the side deck boards opened. Items may fall out
and cause injury.

3665-4. Using the storage features
Auris Touring Sports_EE (OM12G12E)

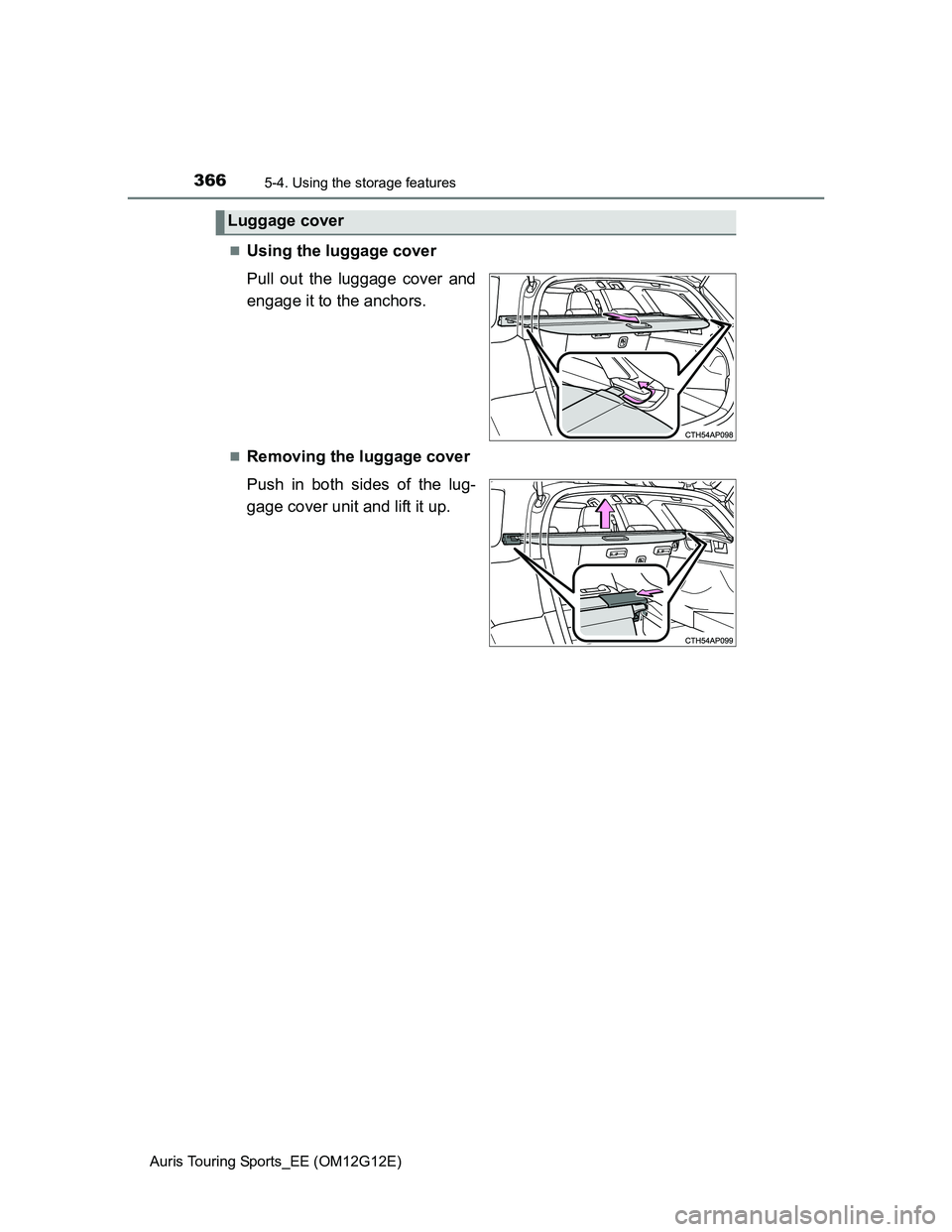

Using the luggage cover
Pull out the luggage cover and
engage it to the anchors.
Removing the luggage cover
Push in both sides of the lug-
gage cover unit and lift it up.
Luggage cover

3675-4. Using the storage features
Auris Touring Sports_EE (OM12G12E)
5
Interior features

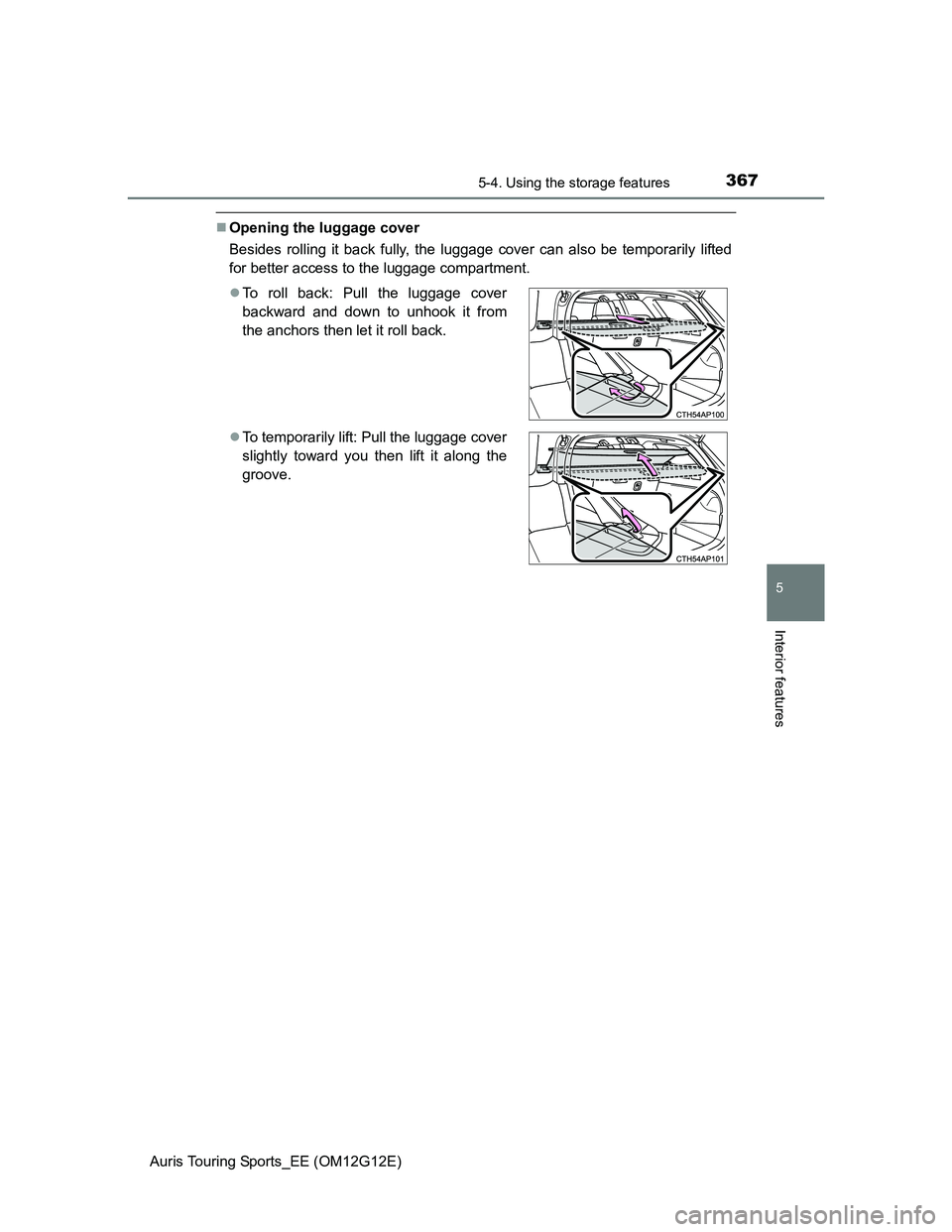

Opening the luggage cover
Besides rolling it back fully, the luggage cover can also be temporarily lifted
for better access to the luggage compartment.
To roll back: Pull the luggage cover
backward and down to unhook it from
the anchors then let it roll back.
To temporarily lift: Pull the luggage cover
slightly toward you then lift it along the
groove.

3685-4. Using the storage features
Auris Touring Sports_EE (OM12G12E)

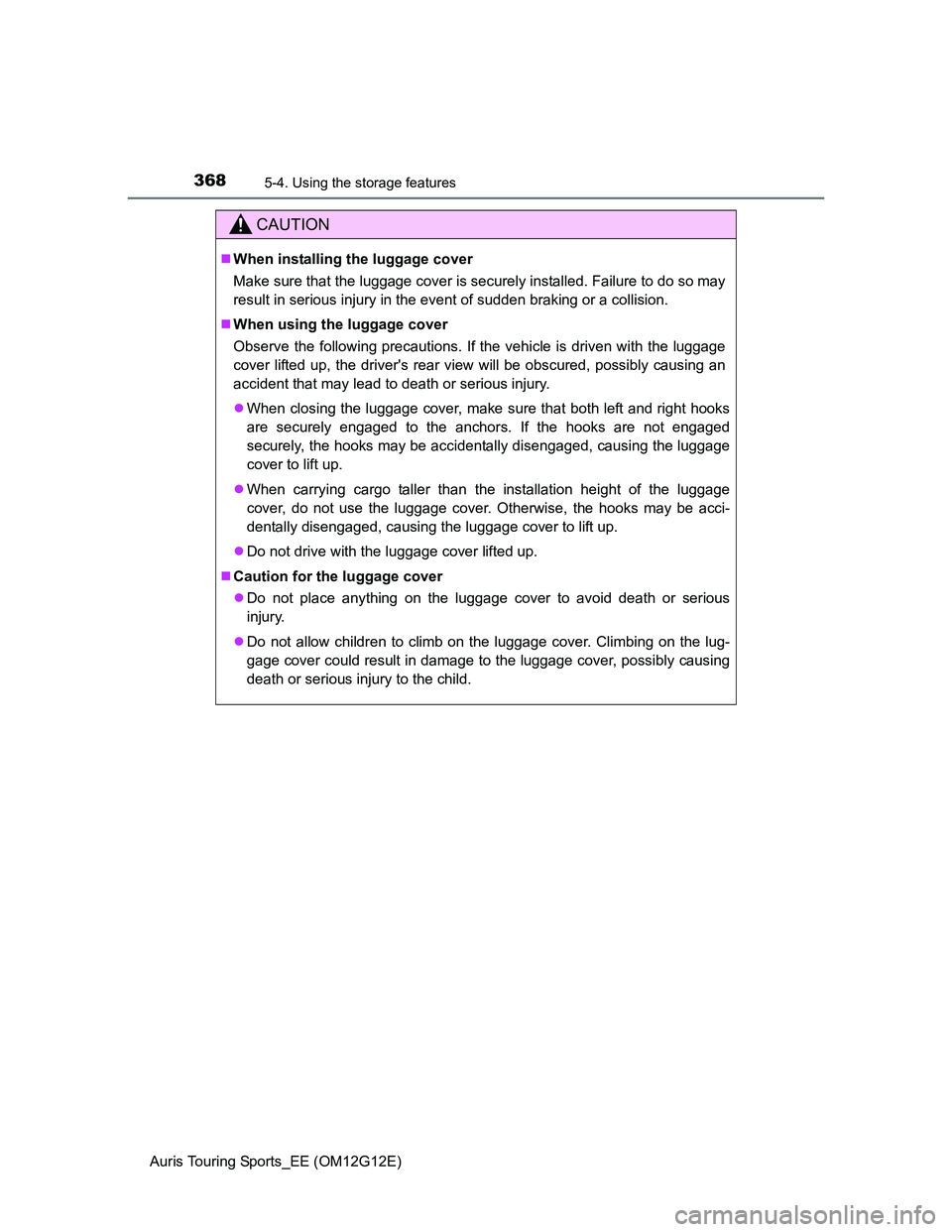

CAUTION
When installing the luggage cover
Make sure that the luggage cover is securely installed. Failure to do so may
result in serious injury in the event of sudden braking or a collision.
When using the luggage cover
Observe the following precautions. If the vehicle is driven with the luggage
cover lifted up, the driver's rear view will be obscured, possibly causing an
accident that may lead to death or serious injury.
When closing the luggage cover, make sure that both left and right hooks
are securely engaged to the anchors. If the hooks are not engaged
securely, the hooks may be accidentally disengaged, causing the luggage
cover to lift up.
When carrying cargo taller than the installation height of the luggage
cover, do not use the luggage cover. Otherwise, the hooks may be acci-
dentally disengaged, causing the luggage cover to lift up.
Do not drive with the luggage cover lifted up.
Caution for the luggage cover
Do not place anything on the luggage cover to avoid death or serious
injury.
Do not allow children to climb on the luggage cover. Climbing on the lug-
gage cover could result in damage to the luggage cover, possibly causing
death or serious injury to the child.

3695-4. Using the storage features
Auris Touring Sports_EE (OM12G12E)
5
Interior features

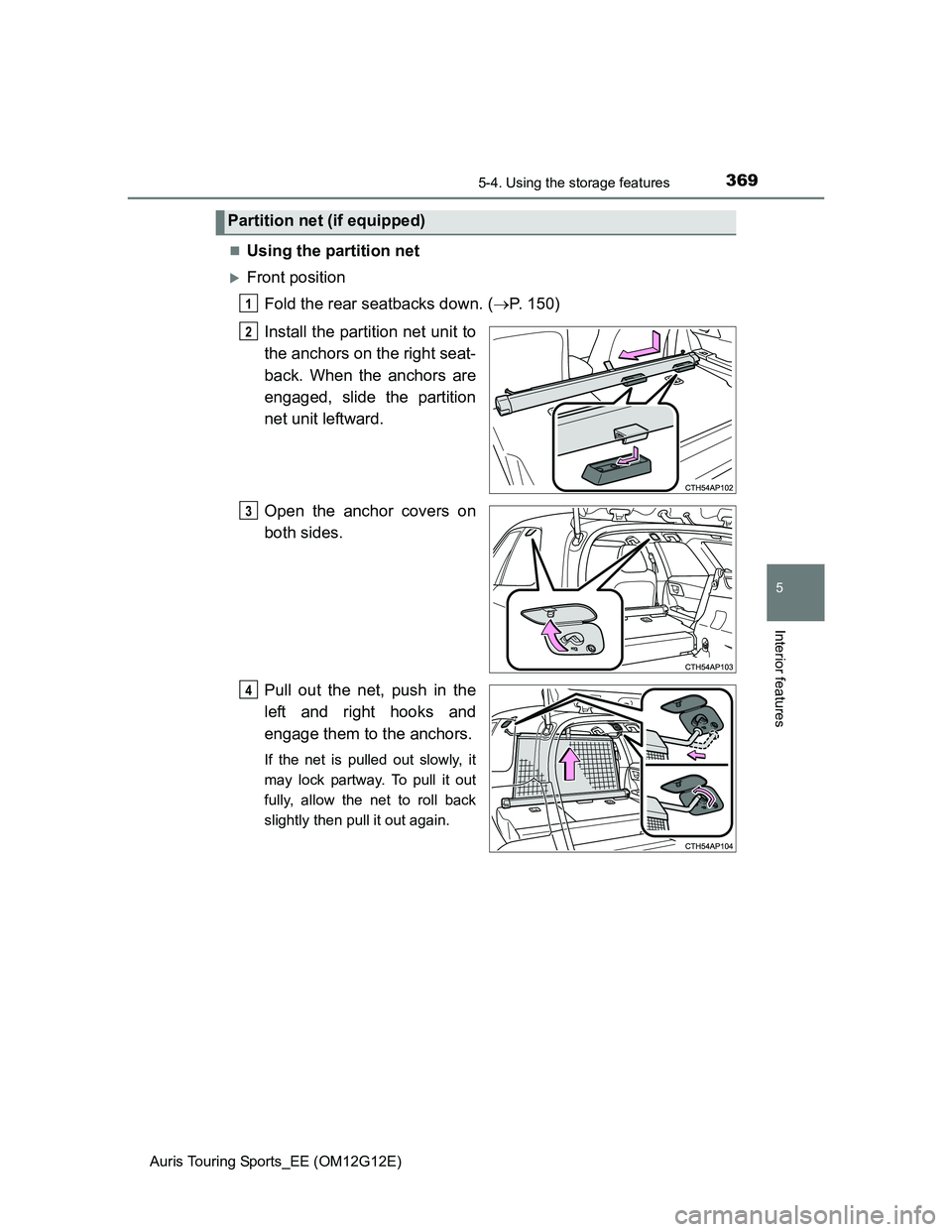

Using the partition net
Front position
Fold the rear seatbacks down. (P. 150)
Install the partition net unit to
the anchors on the right seat-
back. When the anchors are
engaged, slide the partition
net unit leftward.
Open the anchor covers on
both sides.
Pull out the net, push in the
left and right hooks and
engage them to the anchors.
If the net is pulled out slowly, it
may lock partway. To pull it out
fully, allow the net to roll back
slightly then pull it out again.
Partition net (if equipped)
1
2
3
4

3705-4. Using the storage features
Auris Touring Sports_EE (OM12G12E)

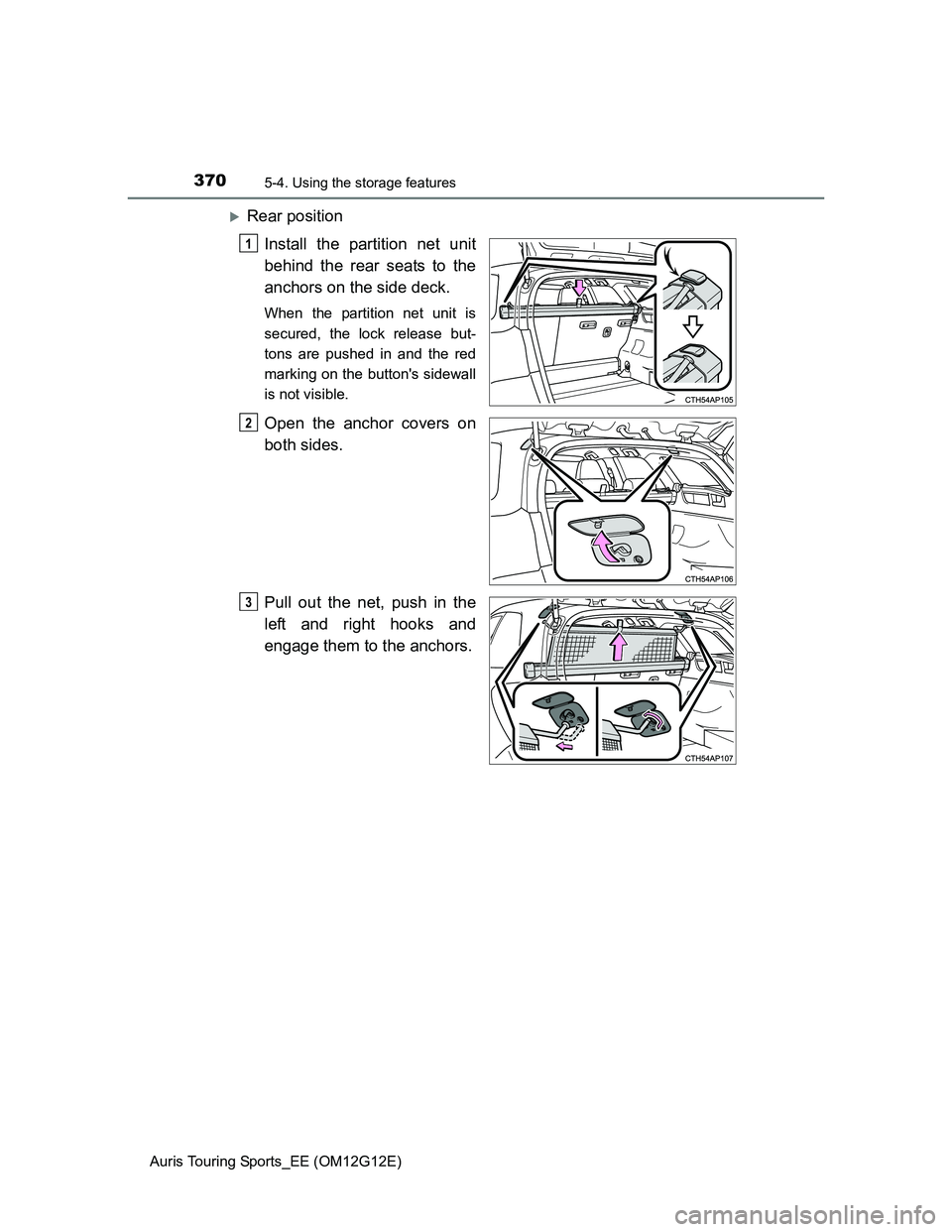

Rear position
Install the partition net unit
behind the rear seats to the
anchors on the side deck.
When the partition net unit is
secured, the lock release but-
tons are pushed in and the red
marking on the button's sidewall
is not visible.
Open the anchor covers on
both sides.
Pull out the net, push in the
left and right hooks and
engage them to the anchors.
1
2
3
