TOYOTA AURIS TOURING SPORTS 2013 Owners Manual

3815-5. Other interior features
Auris Touring Sports_EE (OM12G12E)
5
Interior features

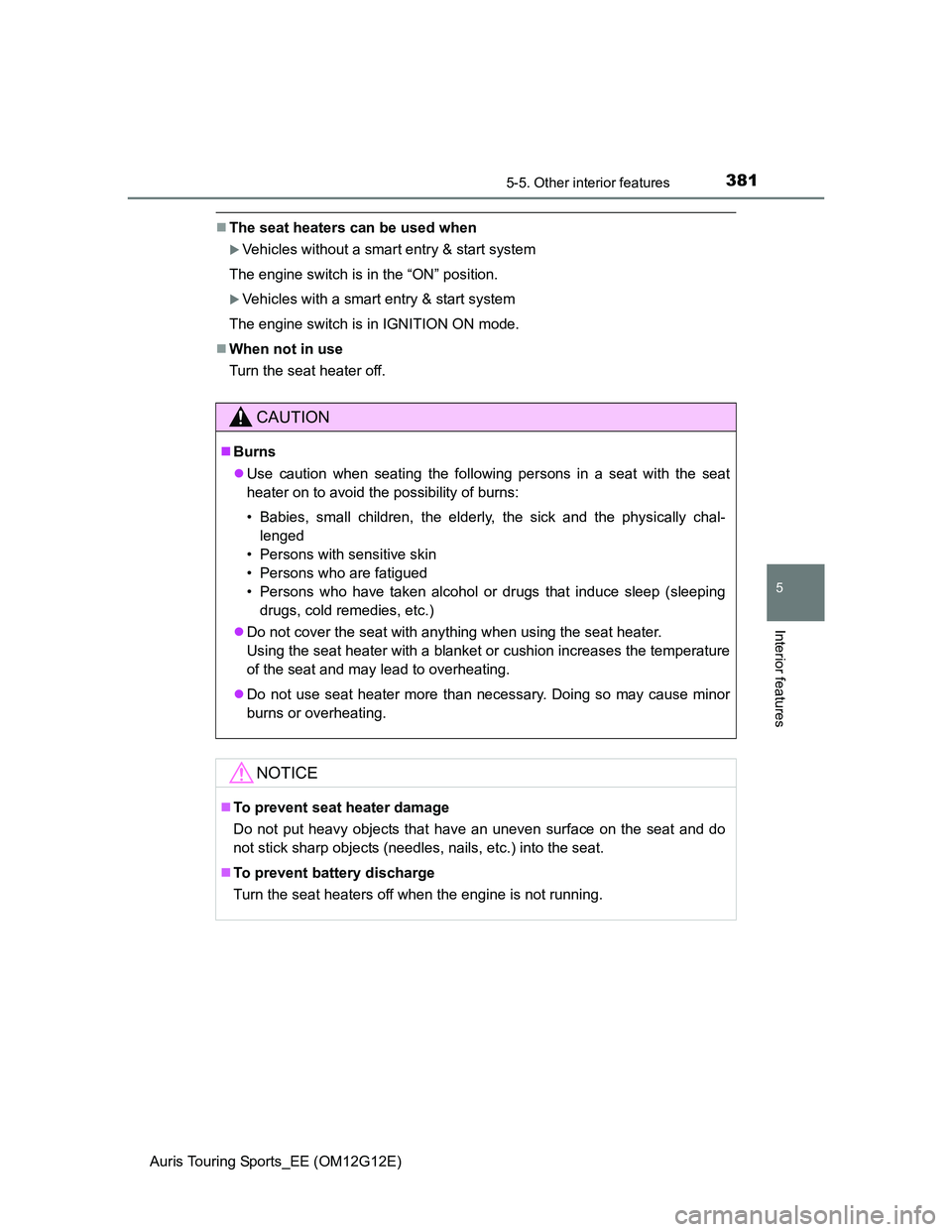

The seat heaters can be used when
Vehicles without a smart entry & start system
The engine switch is in the “ON” position.
Vehicles with a smart entry & start system
The engine switch is in IGNITION ON mode.
When not in use
Turn the seat heater off.
CAUTION
Burns
Use caution when seating the following persons in a seat with the seat
heater on to avoid the possibility of burns:
• Babies, small children, the elderly, the sick and the physically chal-
lenged
• Persons with sensitive skin
• Persons who are fatigued
• Persons who have taken alcohol or drugs that induce sleep (sleeping
drugs, cold remedies, etc.)
Do not cover the seat with anything when using the seat heater.
Using the seat heater with a blanket or cushion increases the temperature
of the seat and may lead to overheating.
Do not use seat heater more than necessary. Doing so may cause minor
burns or overheating.
NOTICE
To prevent seat heater damage
Do not put heavy objects that have an uneven surface on the seat and do
not stick sharp objects (needles, nails, etc.) into the seat.
To prevent battery discharge
Turn the seat heaters off when the engine is not running.

3825-5. Other interior features
Auris Touring Sports_EE (OM12G12E)

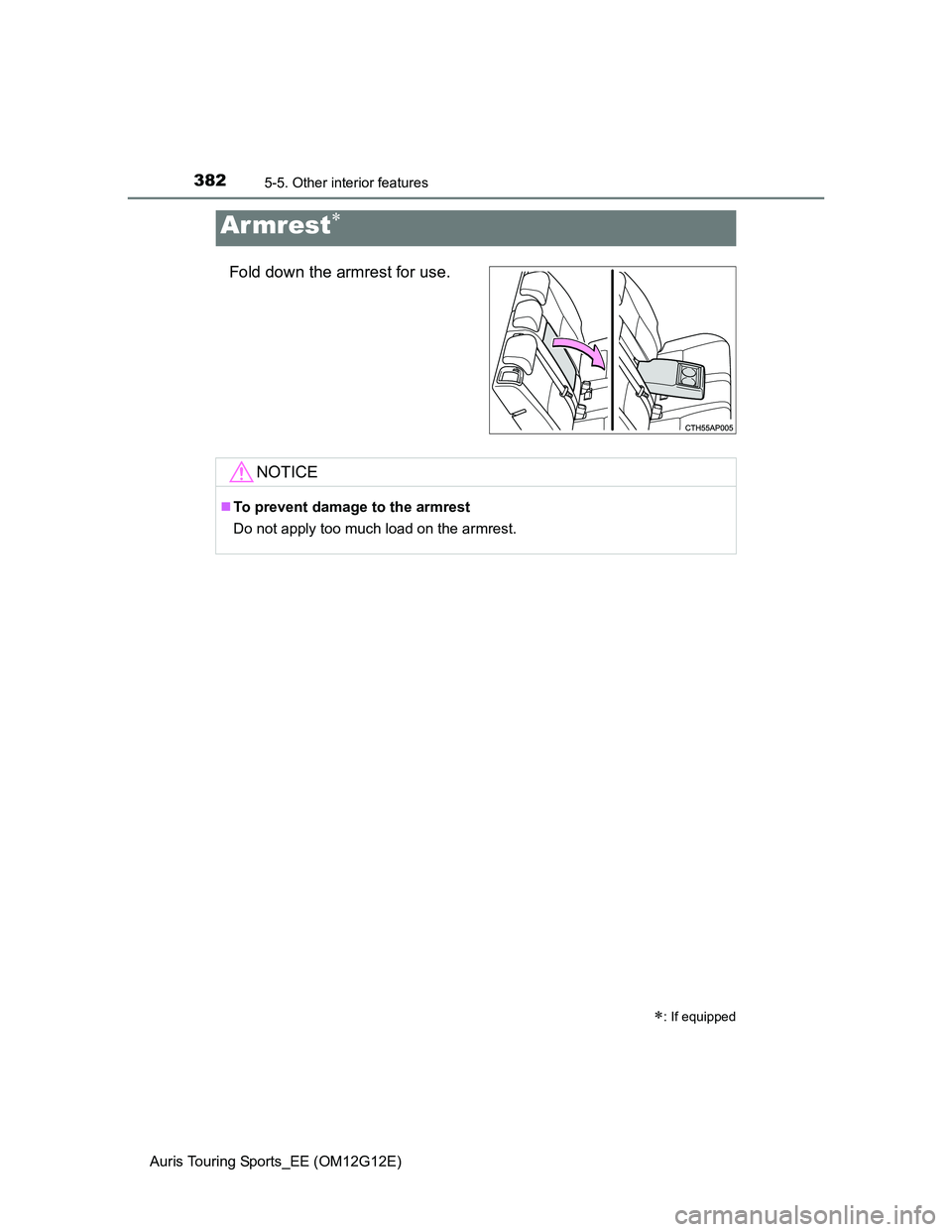

Fold down the armrest for use.
Ar mrest
: If equipped
NOTICE
To prevent damage to the armrest
Do not apply too much load on the armrest.

3835-5. Other interior features
Auris Touring Sports_EE (OM12G12E)
5
Interior features

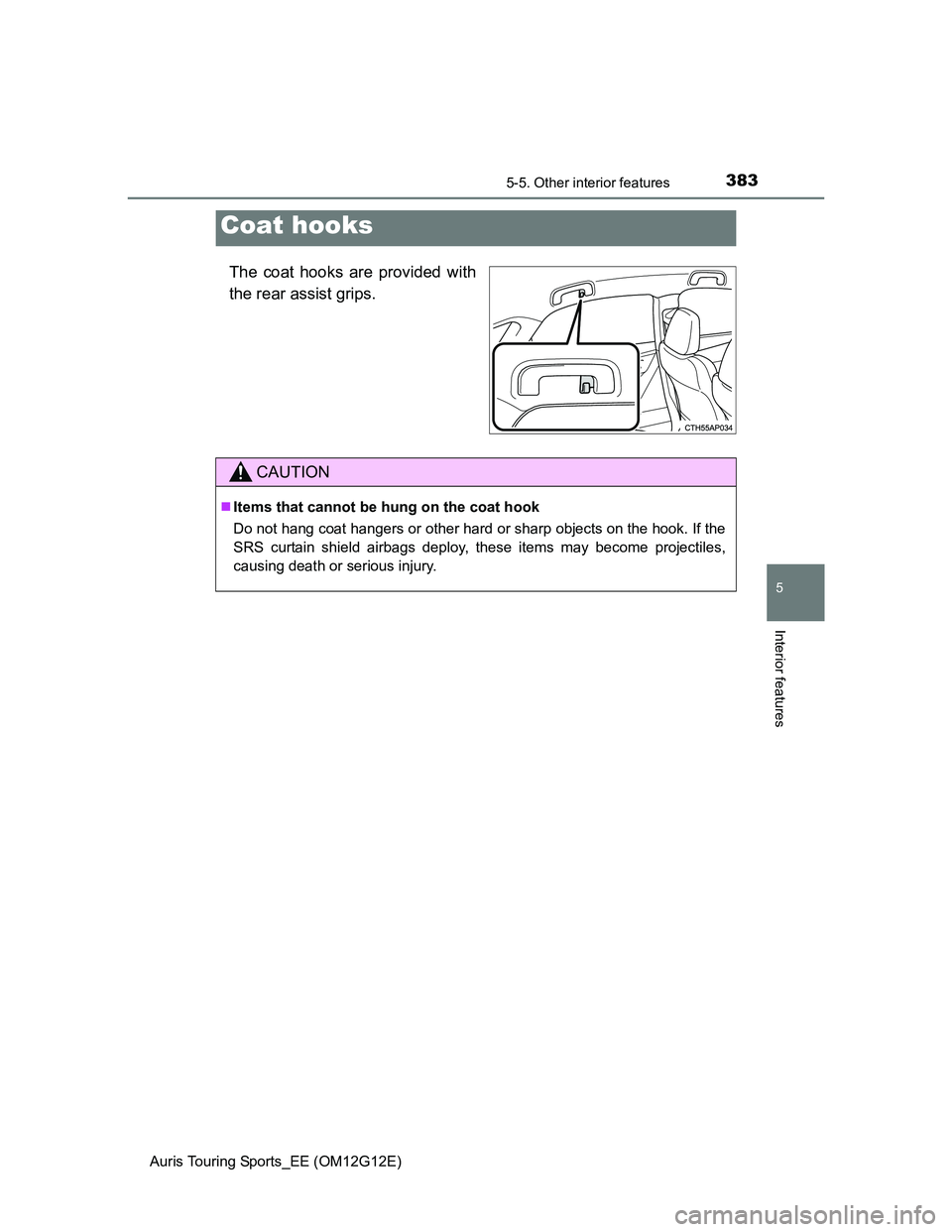

The coat hooks are provided with
the rear assist grips.
Coat hooks
CAUTION
Items that cannot be hung on the coat hook
Do not hang coat hangers or other hard or sharp objects on the hook. If the
SRS curtain shield airbags deploy, these items may become projectiles,
causing death or serious injury.

3845-5. Other interior features
Auris Touring Sports_EE (OM12G12E)

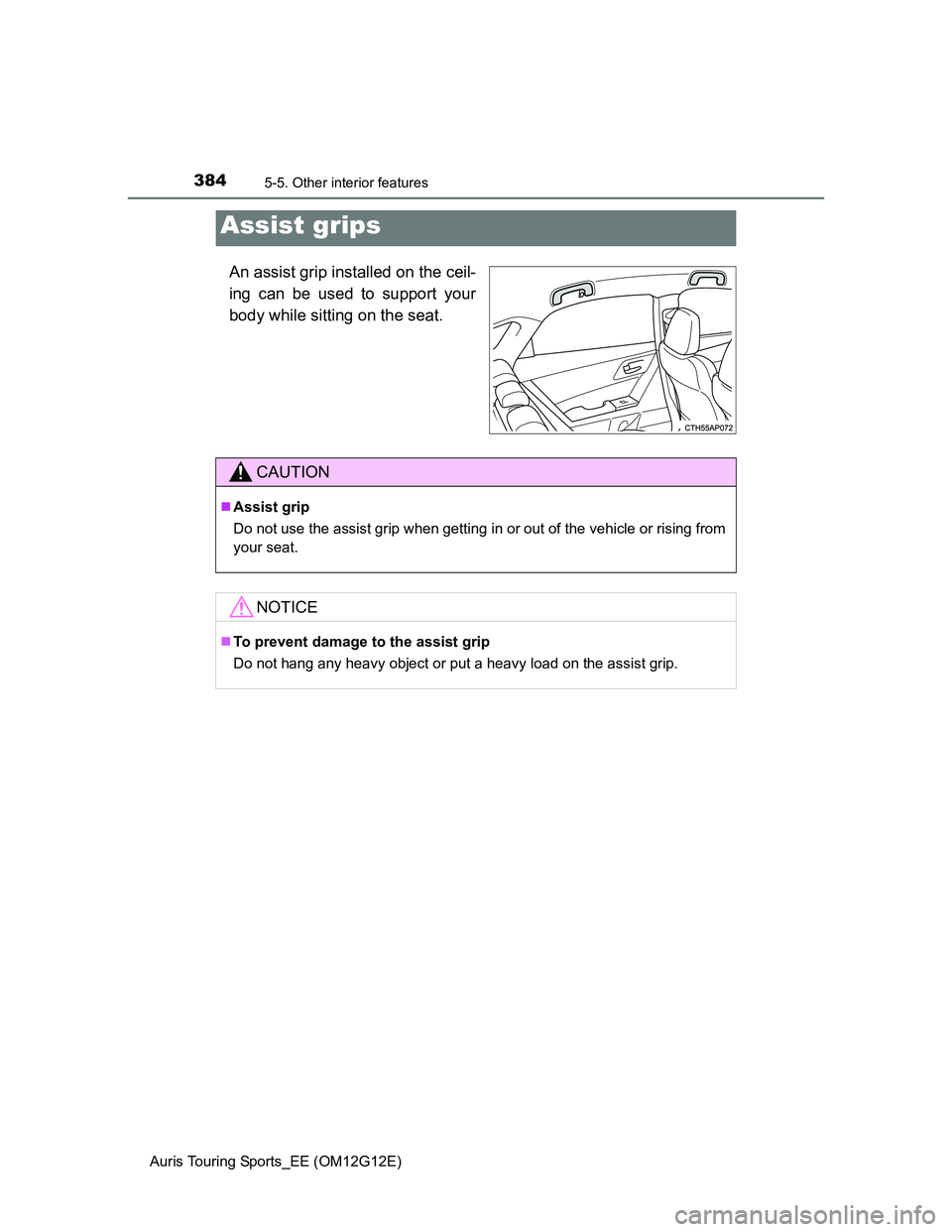

An assist grip installed on the ceil-
ing can be used to support your
body while sitting on the seat.
Assist grips
CAUTION
Assist grip
Do not use the assist grip when getting in or out of the vehicle or rising from
your seat.
NOTICE
To prevent damage to the assist grip
Do not hang any heavy object or put a heavy load on the assist grip.

3855-5. Other interior features
Auris Touring Sports_EE (OM12G12E)
5
Interior features

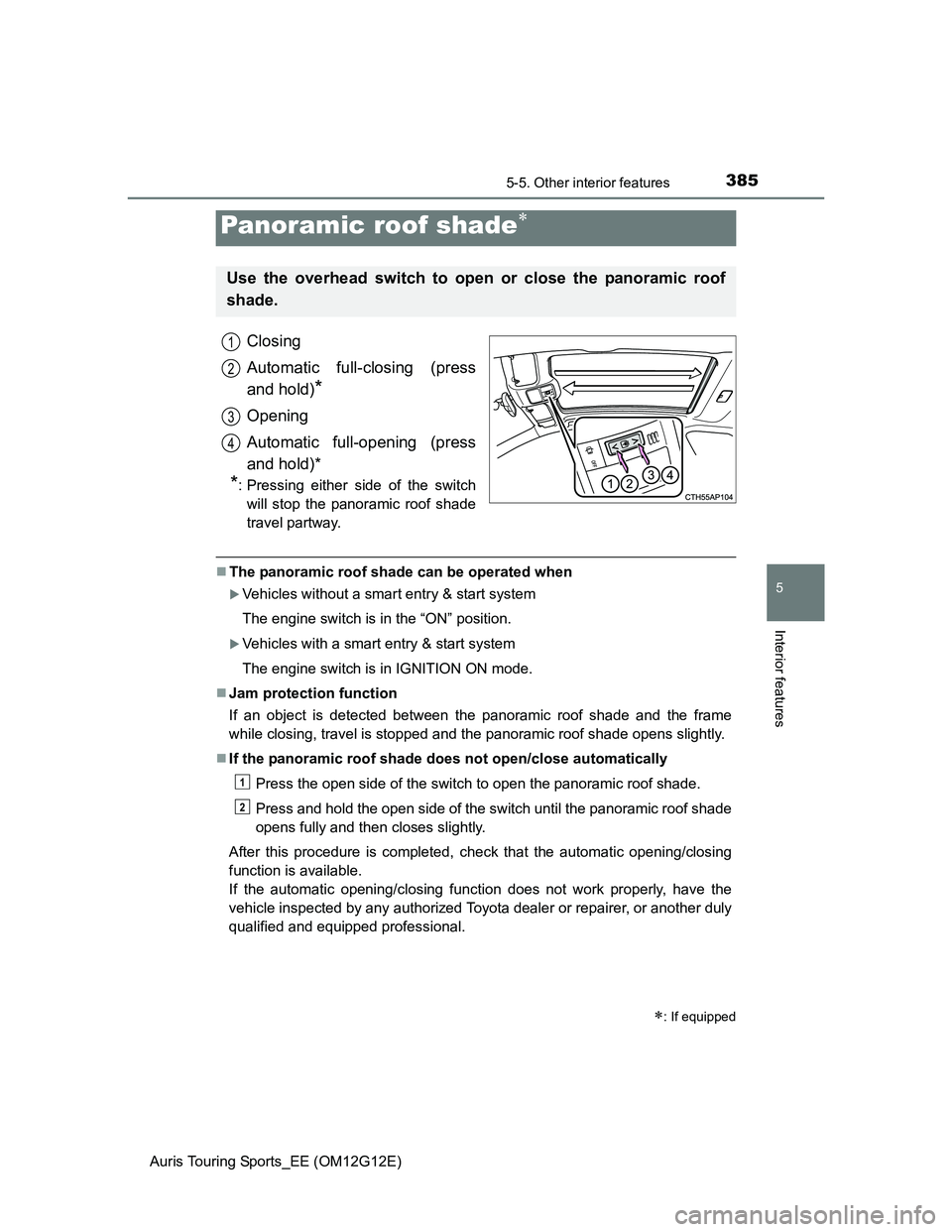

Closing
Automatic full-closing (press
and hold)
*
Opening
Automatic full-opening (press
and hold)*
*: Pressing either side of the switch
will stop the panoramic roof shade
travel partway.
The panoramic roof shade can be operated when
Vehicles without a smart entry & start system
The engine switch is in the “ON” position.
Vehicles with a smart entry & start system
The engine switch is in IGNITION ON mode.
Jam protection function
If an object is detected between the panoramic roof shade and the frame
while closing, travel is stopped and the panoramic roof shade opens slightly.
If the panoramic roof shade does not open/close automatically
Press the open side of the switch to open the panoramic roof shade.
Press and hold the open side of the switch until the panoramic roof shade
opens fully and then closes slightly.
After this procedure is completed, check that the automatic opening/closing
function is available.
If the automatic opening/closing function does not work properly, have the
vehicle inspected by any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional.
Panoramic roof shade
: If equipped
Use the overhead switch to open or close the panoramic roof
shade.
1
2
3
4
1
2

3865-5. Other interior features
Auris Touring Sports_EE (OM12G12E)

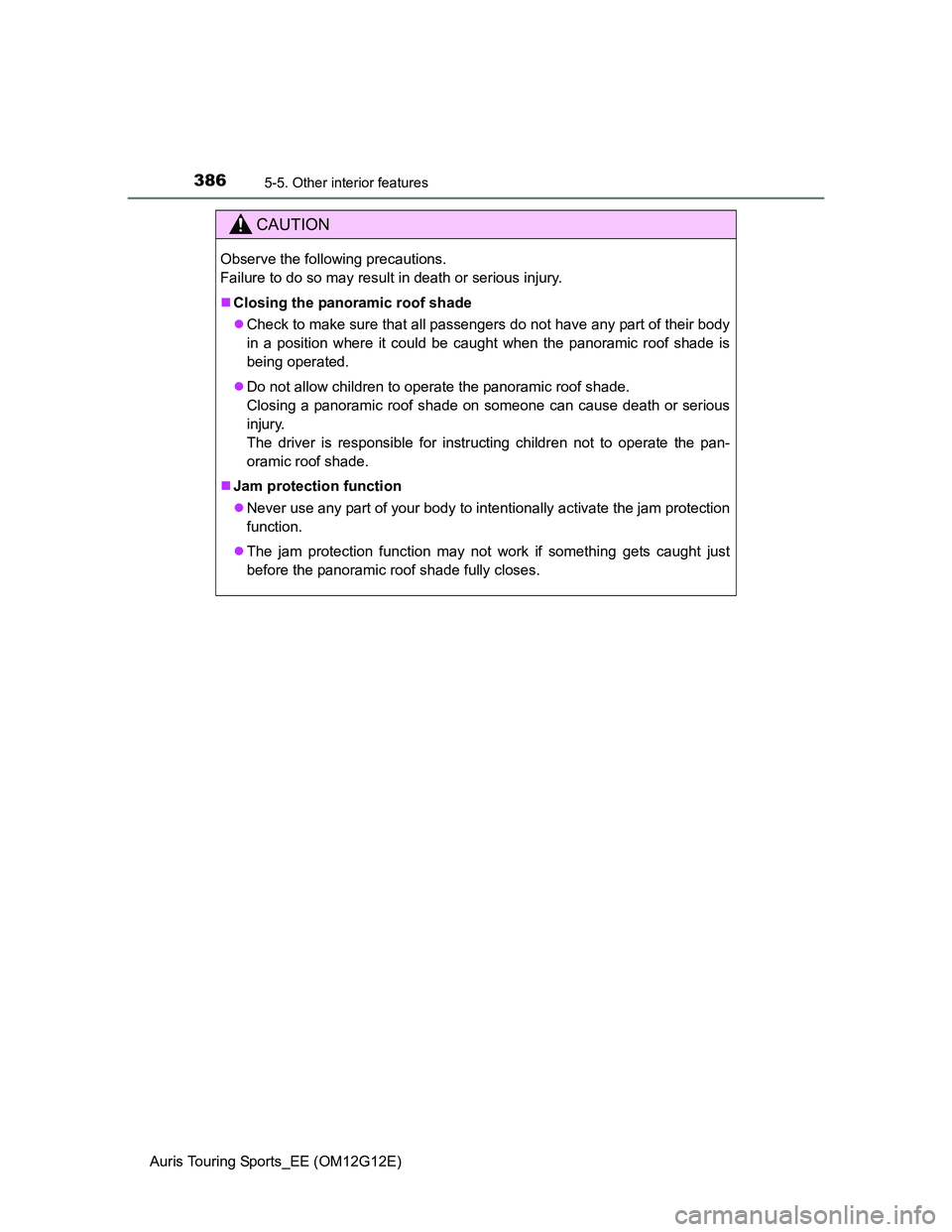

CAUTION
Observe the following precautions.
Failure to do so may result in death or serious injury.
Closing the panoramic roof shade
Check to make sure that all passengers do not have any part of their body
in a position where it could be caught when the panoramic roof shade is
being operated.
Do not allow children to operate the panoramic roof shade.
Closing a panoramic roof shade on someone can cause death or serious
injury.
The driver is responsible for instructing children not to operate the pan-
oramic roof shade.
Jam protection function
Never use any part of your body to intentionally activate the jam protection
function.
The jam protection function may not work if something gets caught just
before the panoramic roof shade fully closes.

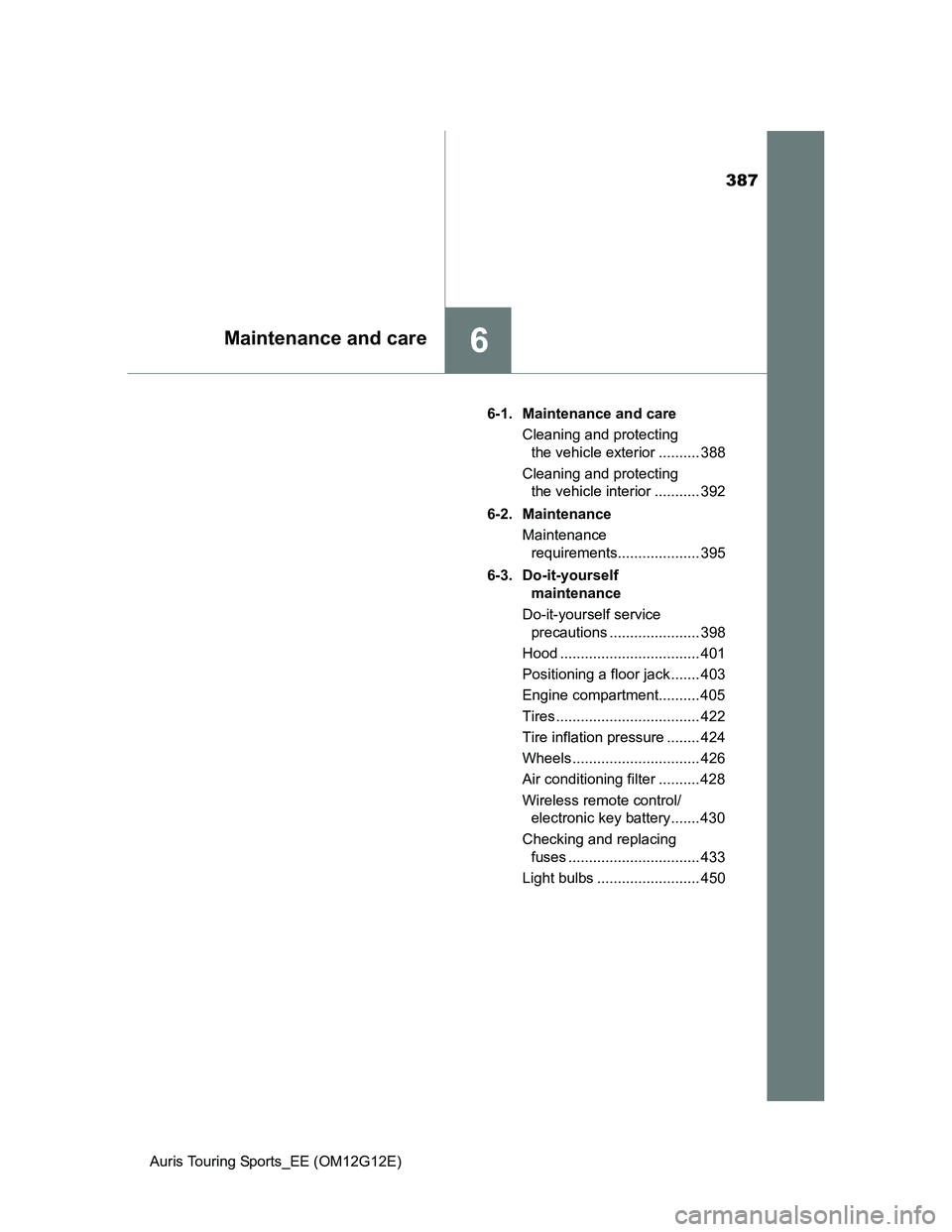

387
6Maintenance and care
Auris Touring Sports_EE (OM12G12E)6-1. Maintenance and care
Cleaning and protecting
the vehicle exterior .......... 388
Cleaning and protecting
the vehicle interior ........... 392
6-2. Maintenance
Maintenance
requirements.................... 395
6-3. Do-it-yourself
maintenance
Do-it-yourself service
precautions ...................... 398
Hood .................................. 401
Positioning a floor jack ....... 403
Engine compartment.......... 405
Tires ................................... 422
Tire inflation pressure ........ 424
Wheels ............................... 426
Air conditioning filter .......... 428
Wireless remote control/
electronic key battery....... 430
Checking and replacing
fuses ................................ 433
Light bulbs ......................... 450

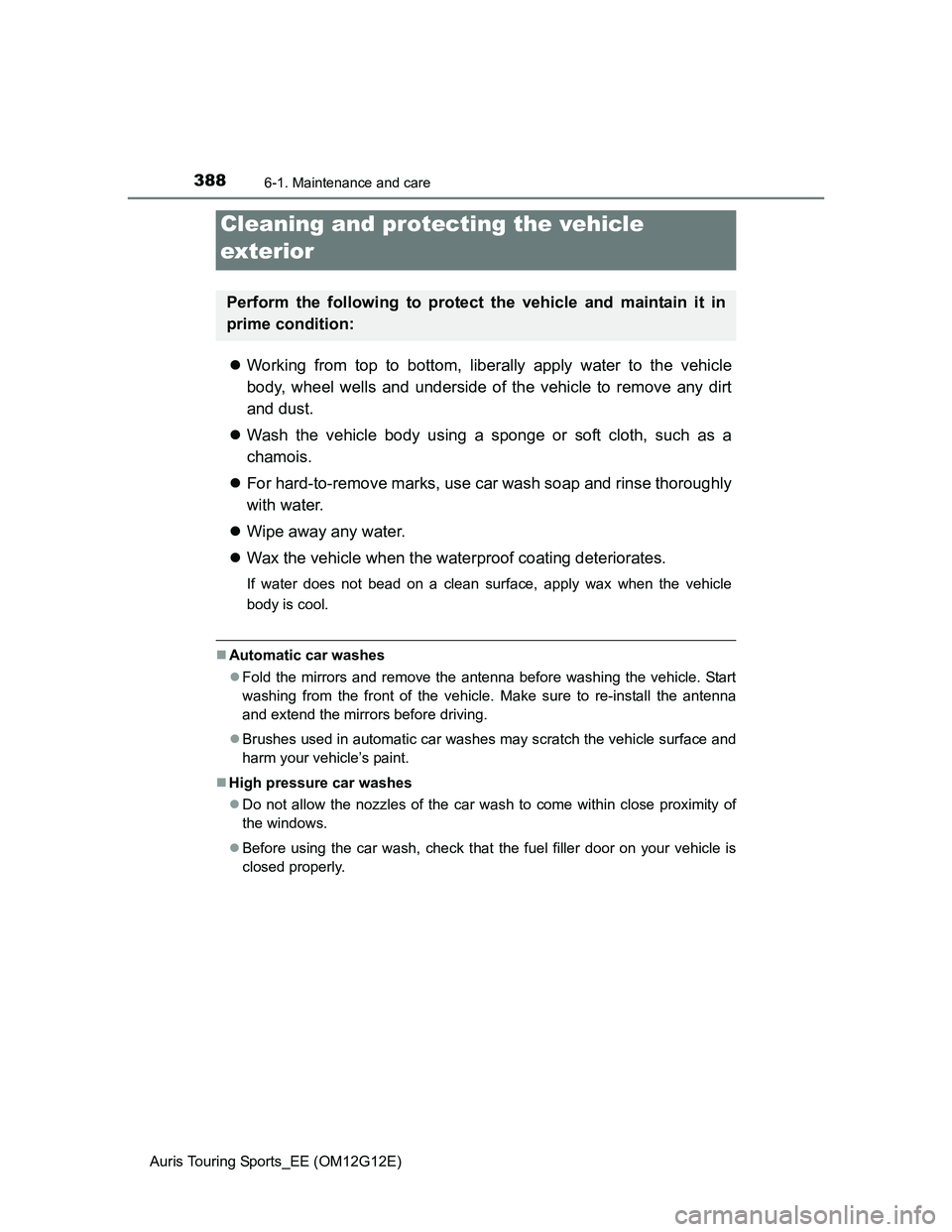

388
Auris Touring Sports_EE (OM12G12E)
6-1. Maintenance and care
Working from top to bottom, liberally apply water to the vehicle
body, wheel wells and underside of the vehicle to remove any dirt
and dust.
Wash the vehicle body using a sponge or soft cloth, such as a
chamois.
For hard-to-remove marks, use car wash soap and rinse thoroughly
with water.
Wipe away any water.
Wax the vehicle when the waterproof coating deteriorates.
If water does not bead on a clean surface, apply wax when the vehicle
body is cool.
Automatic car washes
Fold the mirrors and remove the antenna before washing the vehicle. Start
washing from the front of the vehicle. Make sure to re-install the antenna
and extend the mirrors before driving.
Brushes used in automatic car washes may scratch the vehicle surface and
harm your vehicle’s paint.
High pressure car washes
Do not allow the nozzles of the car wash to come within close proximity of
the windows.
Before using the car wash, check that the fuel filler door on your vehicle is
closed properly.
Cleaning and protecting the vehicle
exterior
Perform the following to protect the vehicle and maintain it in
prime condition:

3896-1. Maintenance and care
Auris Touring Sports_EE (OM12G12E)
6
Maintenance and care

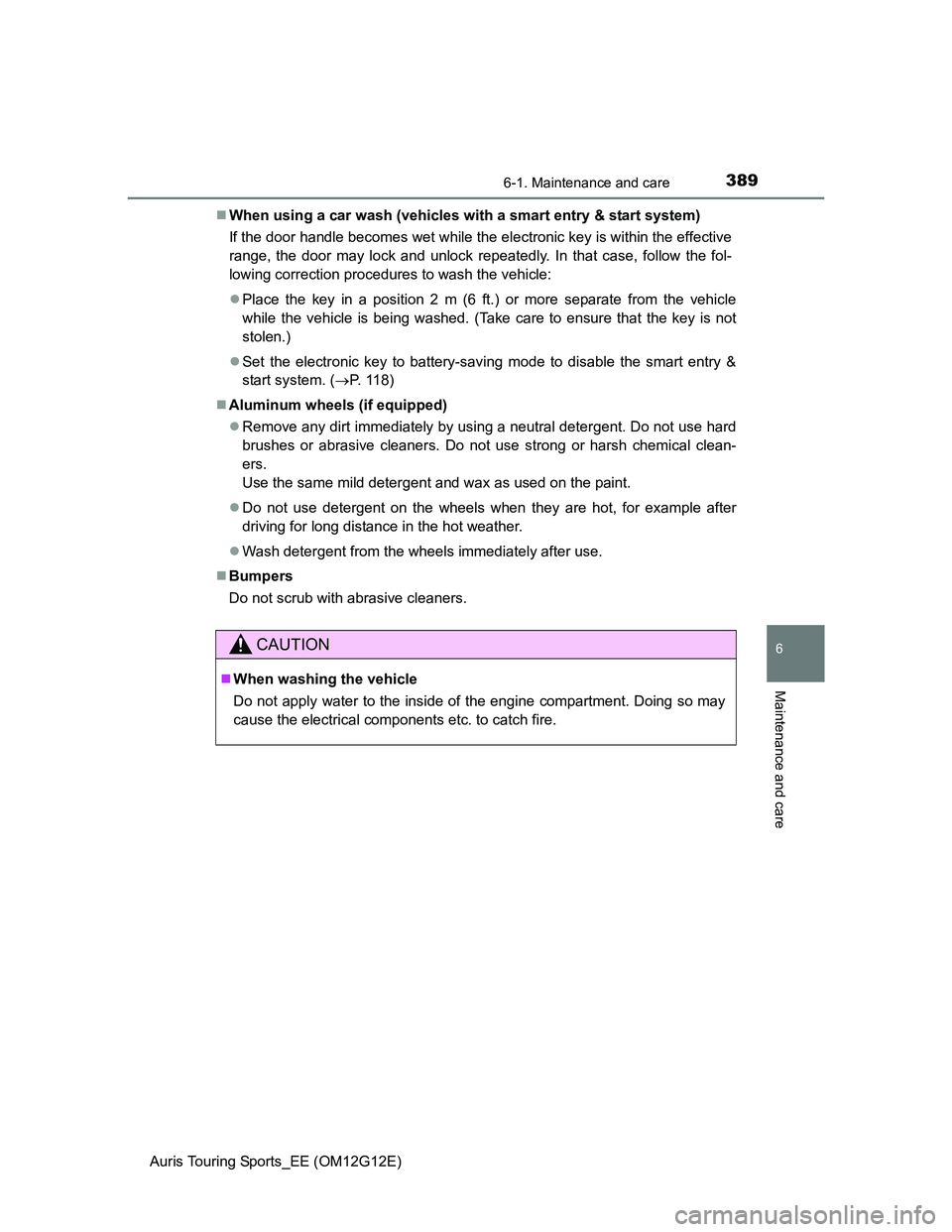

When using a car wash (vehicles with a smart entry & start system)
If the door handle becomes wet while the electronic key is within the effective
range, the door may lock and unlock repeatedly. In that case, follow the fol-
lowing correction procedures to wash the vehicle:
Place the key in a position 2 m (6 ft.) or more separate from the vehicle
while the vehicle is being washed. (Take care to ensure that the key is not
stolen.)
Set the electronic key to battery-saving mode to disable the smart entry &
start system. (P. 118)
Aluminum wheels (if equipped)
Remove any dirt immediately by using a neutral detergent. Do not use hard
brushes or abrasive cleaners. Do not use strong or harsh chemical clean-
ers.
Use the same mild detergent and wax as used on the paint.
Do not use detergent on the wheels when they are hot, for example after
driving for long distance in the hot weather.
Wash detergent from the wheels immediately after use.
Bumpers
Do not scrub with abrasive cleaners.
CAUTION
When washing the vehicle
Do not apply water to the inside of the engine compartment. Doing so may
cause the electrical components etc. to catch fire.

3906-1. Maintenance and care
Auris Touring Sports_EE (OM12G12E)
CAUTION
When cleaning the windshield (vehicles with rain-sensing windshield
wipers)
When the upper part of the windshield where the raindrop sensor is
located is touched by hand
When a wet rag or similar is held close to the raindrop sensor
If something bumps against the windshield
If you directly touch the raindrop sensor body or if something bumps into
the raindrop sensor
Precautions regarding the exhaust pipe
Exhaust gasses cause the exhaust pipe to become quite hot.
When washing the vehicle, be careful not to touch the pipe until it has
cooled sufficiently, as touching a hot exhaust pipe can cause burns.
Set the wiper switch to off.
If the wiper switch is in “AUTO”, the wip-
ers may operate unexpectedly in the fol-
lowing situations, and may result in
hands being caught or other serious inju-
ries and cause damage to the wiper
blades.
Off
