TOYOTA AVALON 2000 Owners Manual

'00 AVALON U (L/O 9908)
11 0
CAUTION
Do not adjust the mirror while the
vehicle is moving. It may cause the
driver to mishandle the vehicle and
an accident may occur resulting in
personal injuries.

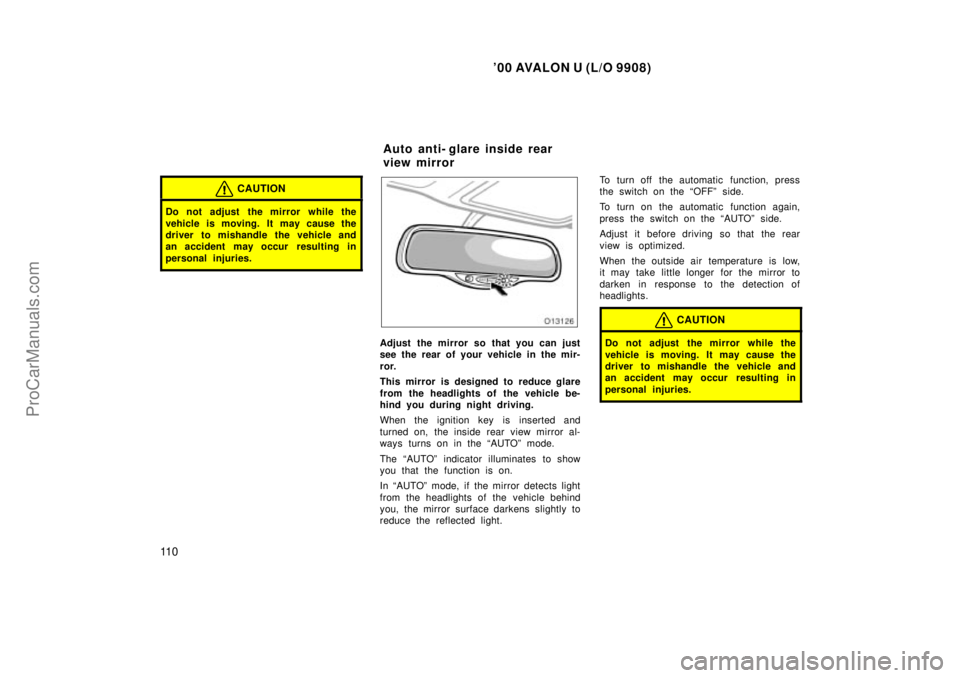

Adjust the mirror so that you can just
see the rear of your vehicle in the mir-
ror.
This mirror is designed to reduce glare
from the headlights of the vehicle be-
hind you during night driving.
When the ignition key is inserted and
turned on, the inside rear view mirror al-
ways turns on in the AUTOº mode.
The AUTOº indicator illuminates to show
you that the function is on.
In AUTOº mode, if the mirror detects light
from the headlights of the vehicle behind
you, the mirror surface darkens slightly to
reduce the reflected light.To turn off the automatic function, press
the switch on the OFFº side.
To turn on the automatic function again,
press the switch on the AUTOº side.
Adjust it before driving so that the rear
view is optimized.
When the outside air temperature is low,
it may take little longer for the mirror to
darken in response to the detection of
headlights.
CAUTION
Do not adjust the mirror while the
vehicle is moving. It may cause the
driver to mishandle the vehicle and
an accident may occur resulting in
personal injuries.
Auto anti- glare inside rear
view mirror
ProCarManuals.com

'00 AVALON U (L/O9908)
111

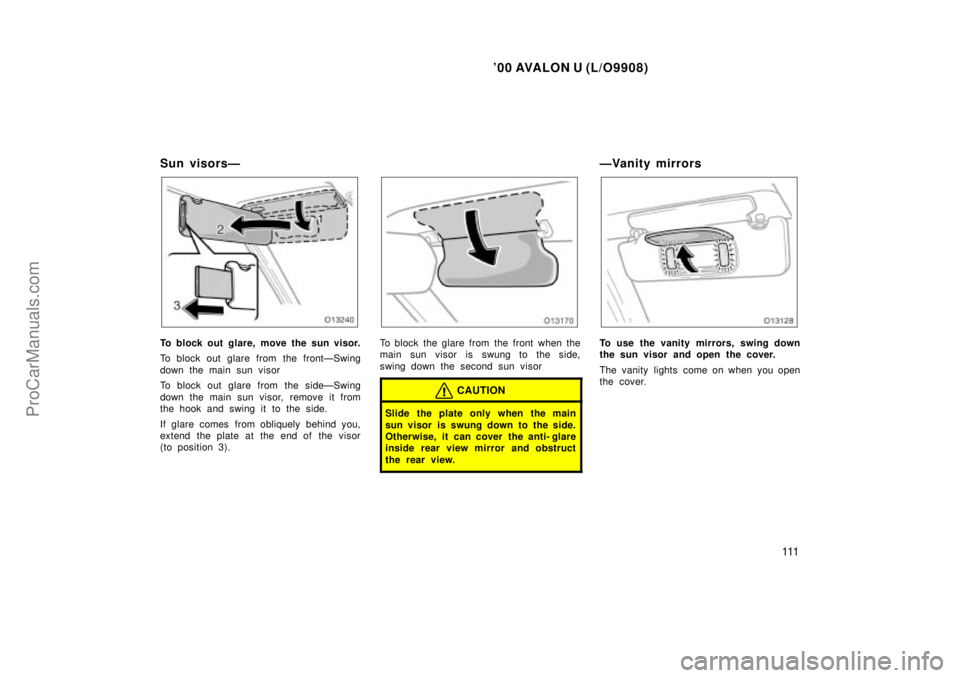

Sun visorsÐ
To block out glare, move the sun visor.
To block out glare from the frontÐSwing
down the main sun visor
To block out glare from the sideÐSwing
down the main sun visor, remove it from
the hook and swing it to the side.
If glare comes from obliquely behind you,
extend the plate at the end of the visor
(to position 3).To block the glare from the front when the
main sun visor is swung to the side,
swing down the second sun visor
CAUTION
Slide the plate only when the main
sun visor is swung down to the side.
Otherwise, it can cover the anti- glare
inside rear view mirror and obstruct
the rear view.
ÐVanity mirrors
To use the vanity mirrors, swing down
the sun visor and open the cover.
The vanity lights come on when you open
the cover.
ProCarManuals.com

'00 AVALON U (L/O 9908)
11 2
OPERATION OF INSTRUMENTS AND
CONTROLS
Lights, Wipers and Defogger
Headlights and turn signals11 3
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Emergency flashers 11 6
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Instrument panel light control 11 7
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front fog lights 11 7
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Interior light 11 8
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Front personal lights 11 9
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . .
Rear personal lights 11 9
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . .
Ignition switch light 120
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Windshield wipers and washer 120
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Shifting the windshield wiper position 121
. . . . . . . . . . . . . . . . . . . . . . . . .
Rear window and outside rear view mirror defoggers 122
. . . . . . . . . . .
SECTION 1- 4
ProCarManuals.com

'00 AVALON U (L/O9908)
11 3
HEADLIGHTS
To turn on the following lights: Twist
the headlight/turn signal lever knob.
Position 1ÐParking, tail, license plate,
side marker and instrument panel lights
Position 2ÐHeadlights and all of the
above
Position 3 (AUTOº)ÐHeadlights and/or all
of the lights in position 1
They automatically turn on or off depend-
ing on the darkness of the surroundings.
Manually twist the knob to the position 2
to turn on the headlights if they are need-
ed immediately when entering a dark tun-
nel, parking structure, etc.The automatic light control sensor is on
the top of the driver's side instrument
panel.
Do not place anything on the instrument
panel, and/or do not affix anything on the
windshield to block this sensor.
If you feel that the automatic light control
comes into operation too early or too late,
have the sensor adjusted by your Toyota
dealer.The lights automatically turn off after 30
seconds when all doors and trunk lid are
closed with the ignition key in the ACCº
or LOCKº position and the lever at posi-
tion 2, or after 20 minutes or more when
the door or trunk lid is kept open. The
lights also automatically turn off when the
driver 's door is opened with the lever at
position 1. If the doors are locked by the
wireless remote control transmitter, the
lights automatically turn off immediately.
To turn them on again, turn the key to the
ONº position or actuate the headlight
switch. If you are going to park for over
one week, make sure the headlight switch
is off.
NOTICE
To prevent the battery from being dis-
charged, do not leave the lights onfor a long period when the engine isnot running.
Headlights and turn signals
(with automatic light control
system)
ProCarManuals.com

'00 AVALON U (L/O 9908)
11 4
Daytime running light system (all mod-
els in Canada and some models in the
U.S.A.)
The headlights turn on at reduced intensi-
ty when the parking brake is released with
the engine started, even with the light
switch in the OFFº position. They will not
go off until the ignition switch is turned
off.
To turn on the other exterior lights and
instrument panel lights, twist the knob to
the position 1.
Twist the knob to the position 2 to turn
to full intensity for driving at night.
High- Low beamsÐFor high beams, turn
the headlights on and push the lever away
from you (position 1). Pull the lever to-
ward you (position 2) for low beams.
The headlight high beam indicator light
(blue light) on the instrument panel will
tell you that the high beams are on.
Flashing the high beam headlights
(position 3)ÐPull the lever all the way
back. The high beam headlights turn off
when you release the lever.
You can flash the high beam headlights
with the knob turned to OFFº.TURN SIGNALS
To signal a turn, push the headlight/
turn signal lever up or down to position
1.
The key must be in the ONº position.
The lever automatically returns after you
make a turn, but you may have to return
it by hand after you change lanes.
To signal a lane change, move the lever
up or down to the pressure point (position
2) and hold it.
If the turn signal indicator lights (green
lights) on the instrument panel flash faster
than normal, a front or rear turn signal
bulb is burned out.
ProCarManuals.com

'00 AVALON U (L/O9908)
11 5
HEADLIGHTS
To turn on the following lights: Twist
the headlight/turn signal lever knob.
Position 1ÐParking, tail, license plate,
side marker and instrument panel lights
Position 2ÐHeadlights and all of the
aboveThe lights automatically turn off after 30
seconds when all doors and trunk lid are
closed with the ignition key in the ACCº
or LOCKº position and the lever at posi-
tion 2, or after 20 minutes or more when
the door or trunk lid is kept open. The
lights also automatically turn off when the
driver 's door is opened with the lever at
position 1. If the doors are locked by the
wireless remote control transmitter, the
lights automatically turn off immediately.
To turn them on again, turn the key to the
ONº position or actuate the headlight
switch. If you are going to park for over
one week, make sure the headlight switch
is off.
NOTICE
To prevent the battery from being dis-
charged, do not leave the lights onfor a long period when the engine isnot running.
Daytime running light system (all mod-
els in Canada and some models in the
U.S.A.)
The headlights turn on at reduced intensi-
ty when the parking brake is released with
the engine started, even with the light
switch in the OFFº position. They will not
go off until the ignition switch is turned
off.
To turn on the other exterior lights and
instrument panel lights, twist the knob to
the position 1.
Twist the knob to the position 2 to turn
to full intensity for driving at night.
Headlights and turn signals
(without automatic light
control system)
ProCarManuals.com

'00 AVALON U (L/O 9908)
11 6
High- Low beamsÐFor high beams, turn
the headlights on and push the lever away
from you (position 1). Pull the lever to-
ward you (position 2) for low beams.
The headlight high beam indicator light
(blue light) on the instrument panel will
tell you that the high beams are on.
Flashing the high beam headlights
(position 3)ÐPull the lever all the way
back. The high beam headlights turn off
when you release the lever.
You can flash the high beam headlights
with the knob turned to OFFº.TURN SIGNALS
To signal a turn, push the headlight/
turn signal lever up or down to position
1.
The key must be in the ONº position.
The lever automatically returns after you
make a turn, but you may have to return
it by hand after you change lanes.
To signal a lane change, move the lever
up or down to the pressure point (position
2) and hold it.
If the turn signal indicator lights (green
lights) on the instrument panel flash faster
than normal, a front or rear turn signal
bulb is burned out.
Emergency flashers
To turn on the emergency flashers,
push the switch.
All the turn signal lights will flash. To turn
them off, push the switch once again.
Turn on the emergency flashers to warn
other drivers if your vehicle must be
stopped where it might be a traffic hazard.
Always pull as far off the road as pos-
sible.
The turn signal light switch will not work
when the emergency flashers are operat-
ing.
ProCarManuals.com

'00 AVALON U (L/O9908)
11 7
NOTICE
To prevent the battery from being dis-charged, do not leave the switch onlonger than necessary when the en-gine is not running.
Instrument panel light control
To adjust the brightness of the instru-
ment panel lights, turn the knob.
Front fog lights
To turn on the front fog lights, twist
the band of the headlight and turn sig-
nal switch lever. They will come on
only when the headlights are on low
beam.
ProCarManuals.com

'00 AVALON U (L/O 9908)
11 8
Interior light
Ty p e A
Ty p e B
Ty p e C
Type A and BÐThe interior light turns
on when any of the door is opened.
The light goes off when all of the doors
are closed.
To prevent the battery being discharged,
the light will automatically turn off when
the key is removed and the door is left
opened for 20 minutes or more.
You cannot turn off the light when any of
the doors is opened.Type CÐTo turn on the interior light,
slide the switch.
The interior light switch has the following
positions:
ONºÐKeeps the light on all the time.
OFFºÐTurns the light off.
DOORºÐTurns the light on when any of
the door is opened. The light remains on
for some time after all of the doors are
closed.
To prevent the battery being discharged,
the lights will automatically turn off when
the key is removed and the door is left
opened with the switch at DOORº position
for 20 minutes or more.
ProCarManuals.com

'00 AVALON U (L/O9908)
11 9

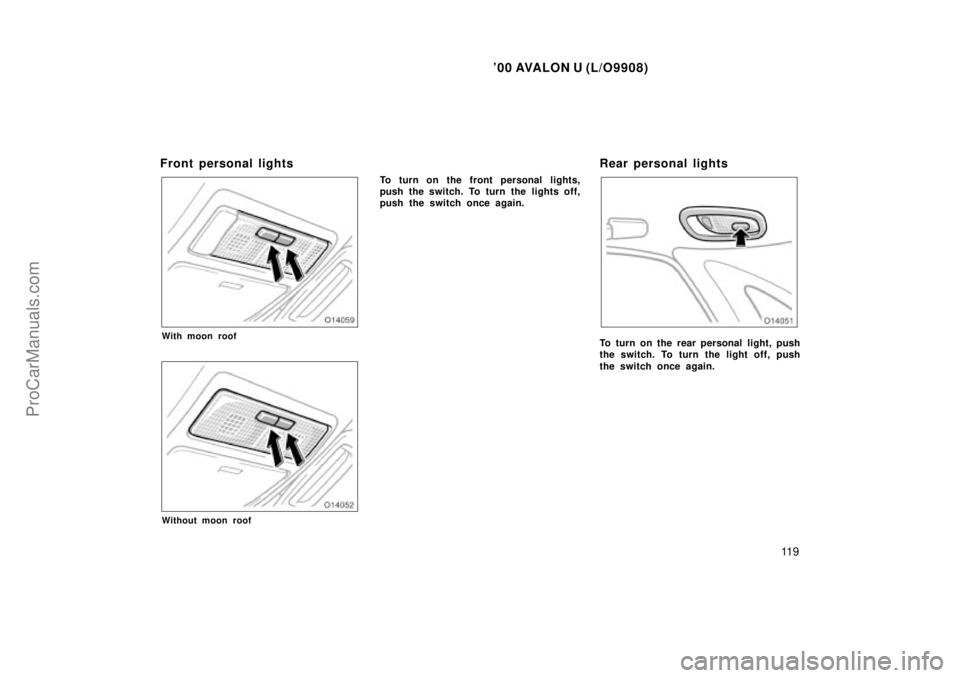

Front personal lights
With moon roof
Without moon roof
To turn on the front personal lights,
push the switch. To turn the lights off,
push the switch once again.
Rear personal lights
To turn on the rear personal light, push
the switch. To turn the light off, push
the switch once again.
