TOYOTA AVALON 2000 Owners Manual

'00 AVALON U (L/O 9908)
150
Automatic transmission156
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\

ProCarManuals.com

'00 AVALON U (L/O9908)
151
Traction control system164
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
.
ProCarManuals.com

'00 AVALON U (L/O 9908)
152
Vehicle skid control system166
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
ProCarManuals.com

'00 AVALON U (L/O9908)
153
Parking brake168
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . .
ProCarManuals.com

'00 AVALON U (L/O 9908)
154
Cruise control168
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . .
ProCarManuals.com

'00 AVALON U (L/O9908)
155
STARTºÐStarter motor on. The key
will return to the ONº position when
released.
For starting tips, see Section 3.
ONºÐEngine on and all accessories
on.
This is the normal driving position.
ACCºÐAccessories such as the radio
operate, but the engine is off.
If you leave the key in the ACCº or
LOCKº position and open the driver's
door, a buzzer will remind you to remove
the key.
LOCKºÐEngine is off and the steering
wheel is locked. The key can be re-
moved only at this position.You must push in the key to turn the key
from ACCº to the LOCKº position. The
selector lever must be in the Pº position
before pushing the key.
Vehicles with engine immobiliser systemÐ
Once you remove the key, the engine im-
mobiliser system is automatically set. (See
Engine immobiliser systemº in Section
1- 2.)
When starting the engine, the key may
seem stuck at the LOCKº position. To
free it, first be sure the key is pushed all
the way in, and then rock the steering
wheel slightly while turning the key gently.
NOTICE
Do not leave the key in the ONº
position if the engine is not running.The battery will discharge and theignition could be damaged.
Ignition switch with steering
lock
ProCarManuals.com

'00 AVALON U (L/O 9908)
156
Your automatic transmission has a shift
lock system to minimize the possibility of
incorrect operation. This means you can
only shift out of Pº position when the
brake pedal is depressed (with the ignition
switch in ONº position and the lock re-
lease button depressed).
(a) Selector lever
The shift position is also displayed on the
instrument cluster.
P:Parking, engine starting and
key removal
R: Reverse
N: Neutral
D: Normal driving (with overdrive on)
2: Stronger engine braking
L: Maximum engine braking

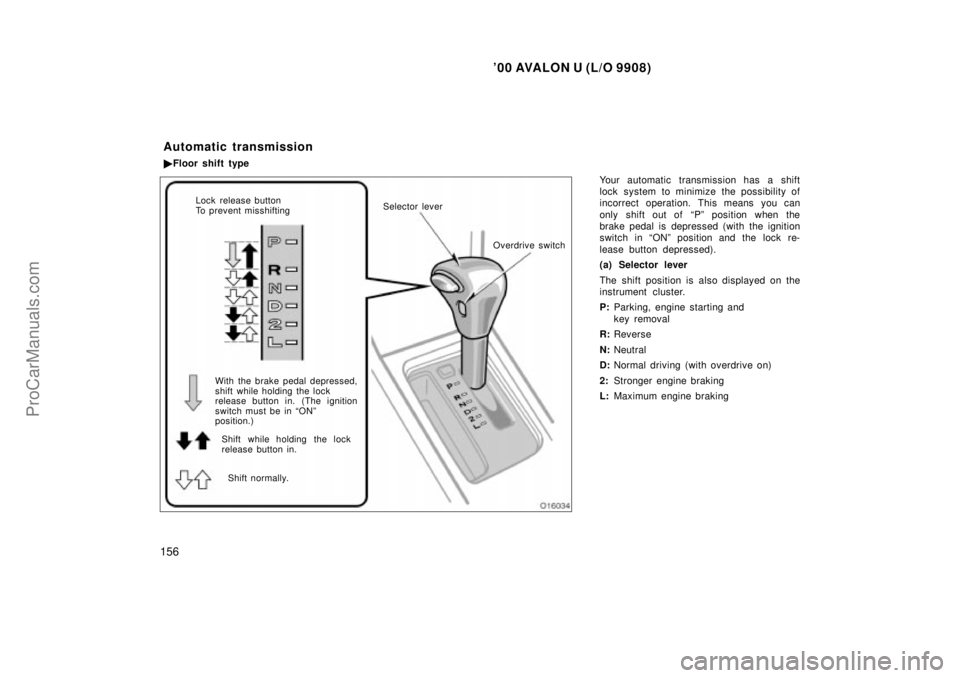

Automatic transmission

Floor shift type
Overdrive switch
With the brake pedal depressed,
shift while holding the lock
release button in. (The ignition
switch must be in ONº
position.) Shift while holding the lock
release button in.
Shift normally.
Lock release button
To prevent misshifting
Selector lever
ProCarManuals.com

'00 AVALON U (L/O9908)
157
(b) Overdrive switch
You can select either a third gear (with
overdrive off) or fourth gear (with over-
drive on) by pushing this switch.
To turn the overdrive off, push the switch.
The O/D OFFº indicator light should come
on. To turn the overdrive on again, push
the switch again. The O/D OFFº indicator
light should go off.
Always drive your vehicle with the over-
drive on for better fuel economy and
quieter driving.
If the engine is turned off when the over-
drive is off and restarted, the overdrive
will automatically be on.When the cruise control is being used,
even if you downshift the transmission by
pushing and releasing the overdrive
switch, engine braking will not applied be-
cause the cruise control is not cancelled.
For ways to decrease the vehicle speed,
see Cruise controlº in this section.
(c) Normal driving
1. Start the engine as instructed in How to start the engineº in Section 3. The
transmission must be in Pº or Nº.
2. With your foot holding down the brake pedal, shift the selector lever to Dº.
When the lever is in the Dº position, the
automatic transmission system will select
the most suitable gear for running condi-
tions such as normal cruising, hill climb-
ing, hard towing, etc.
Always turn the overdrive on for better
fuel economy and quieter driving. If the
engine coolant temperature is low, the
transmission will not shift into the over-
drive gear even with the overdrive on.
CAUTION
Never put your foot on the accelera-
tor pedal while shifting.
3. Release the parking brake and brake pedal. Depress the accelerator pedal
slowly for smooth starting.
(d) Using engine braking
To use engine braking, you can downshift
the transmission as follows:
Push the overdrive switch. The O/D
OFFº indicator light will come on and
the transmission will downshift to the
third gear.
Shift into the 2º position. The trans-
mission will downshift to the second
gear when the vehicle speed drops
down to or lower than 132 km/h (82
mph), and stronger engine braking will
be enabled.
Shift into the Lº position. The trans-
mission will downshift to the first gear
when the vehicle speed drops down to
or lower than 59 km/h (36 mph), and
maximum engine braking will be en-
abled.
When the cruise control is being used,
even if you downshift the transmission by
pushing and releasing the overdrive
switch, engine braking will not applied be-
cause the cruise control is not cancelled.
For ways to decrease the vehicle speed,
see Cruise controlº in this section.
ProCarManuals.com

'00 AVALON U (L/O 9908)
158
CAUTION
Be careful when downshifting on a
slippery surface. Abrupt shifting
could cause the vehicle to spin or
skid.
(e) Using 2º and Lº positions
The 2º and Lº positions are used for
strong engine braking as described pre-
viously.
With the selector lever in 2º or Lº, you
can start the vehicle in motion as with the
lever in Dº.
With the selector lever in 2º, the vehicle
will start in the first gear and automatical-
ly shift to second gear.
With the selector lever in Lº, the trans-
mission is engaged in first gear.
NOTICE

Be careful not to overrev the en-gine. Watch the tachometer to keepengine rpm from going into the redzone. The approximate maximum al-
lowable speed for each position isgiven below for your reference:
2º 139 km/h (86 mph) . . . . . . . . . . .
Lº 76 km/h (47 mph)
. . . . . . . . . . . .

Do not continue hill climbing or
hard towing for a long time in the2º or Lº position. This may causesevere automatic transmission dam-
age from overheating. To preventsuch damage, Dº position shouldbe used in hill climbing or hard
towing.
(f) Backing up
1. Bring the vehicle to a complete stop.
2. With the brake pedal held down with your foot, shift the selector lever to the
Rº position.
NOTICE
Never shift into reverse while the ve-
hicle is moving.
(g) Parking
1. Bring the vehicle to a complete stop.
2. With the brake pedal pressed down, fully depress the parking brake pedal
to apply the parking brake securely.
3. With the brake pedal pressed down, shift the selector lever to the Pº posi-
tion.
CAUTION
Never attempt to move the selector
lever into Pº position under any cir-
cumstances while the vehicle is mov-
ing. Serious mechanical damage and
loss of vehicle control may result.
(h) Good driving practice
If the transmission repeatedly shifts up
and down between third gear and over-
drive when climbing a gentle slope, the
overdrive should be turned off. Be sure
to turn the switch on immediately after-
ward.
When towing a trailer, in order to main-
tain engine braking efficiency, do not
use overdrive.
ProCarManuals.com

'00 AVALON U (L/O9908)
159
CAUTION
Always keep your foot on the brake
pedal while stopped with the engine
running. This prevents the vehicle
from creeping.
NOTICE
Do not hold the vehicle on an up-grade with the accelerator pedal. Itcan cause the transmission to over-heat. Always use the brake pedal or
parking brake.
(i) Rocking your vehicle if stuck
CAUTION
If your vehicle becomes stuck in
snow, mud, sand, etc., then you may
attempt to rock the vehicle free by
moving it forward and backward. Do
not attempt this procedure if people
or objects are anywhere near the ve-
hicle. During the rocking operation
the vehicle may suddenly move for-
ward or backward as it becomes un-
stuck, causing injury or damage to
nearby people or objects.
NOTICE
If you rock your vehicle, observe thefollowing precautions to prevent dam-age to the transmission and otherparts.

Do not depress the accelerator ped-al while shifting the selector leveror before the transmission is com-
pletely shifted to forward or reversegear.

Do not race the engine and avoid
spinning the wheels.

If your vehicle remains stuck afterrocking the vehicle several times,
consider other ways such as tow-ing.
(j) If you cannot shift the selector le-
ver out of Pº position
If you cannot shift the selector lever from
the Pº position even though the brake
pedal is depressed, use the shift lock
override button. For instructions, see If
you cannot shift automatic transmission
selector leverº in Section 4.
