TOYOTA AVALON 2000 Owners Manual

'00 AVALON U (L/O 9908)
210
Ventilation
For best results, set controls to:
ÐFor automatic operationPress in the AUTOº button .
TemperatureÐ Towards low temperature
Air intakeÐFRESH (outside air)
Air conditioningÐOFF
ÐFor manual operation
Fan speedÐ To the desired fan speed
TemperatureÐ Towards low temperature
Air intakeÐFRESH (outside air)
Air flowÐPANEL
Air conditioningÐOFF
Defogging and defrosting
ÐThe inside of the windshield
For best results, set controls to:
ÐFor automatic operation
TemperatureÐ To w a r d s high temperature
to heat; low temperature
to cool
Air intakeÐFRESH (outside air)
Air flowÐWINDSHIELD
ÐFor manual operation
Fan speedÐ To the desired fan speed
TemperatureÐ To w a r d s high temperature
to heat; low temperature
to cool
Air intakeÐFRESH (outside air)
Air flowÐWINDSHIELD
Pressing the windshield air flow button
turns on the defogging function with the
purpose of clearing the front view.
When pressing the windshield air flow but-
ton, the air intake selects FRESH auto-
matically. This is to clean up the front
view more quickly.
If you want to return the setting to RE-
CIRCULATE mode, press the air intake
selector button once again. Press the A/Cº button for dehumidified
heating or cooling. This setting clears the
front view more quickly.

On humid days, do not blow cold air
on the windshieldÐthe difference be-
tween the outside and inside tempera-
tures could make the fogging worse.
ÐThe outside of the windshield
For best results, set controls to:
ÐFor automatic operation
TemperatureÐ Towards high temperature
Air intakeÐFRESH (outside air)
Air flowÐWINDSHIELD
ÐFor manual operation
Fan speedÐ To the desired fan speed
TemperatureÐ Towards high temperature
Air intakeÐFRESH (outside air)
Air flowÐWINDSHIELD
Pressing the windshield air flow button
turns on the defrosting function with the
purpose of clearing the front view.
When pressing the windshield air flow but-
ton, the air intake selects FRESH auto-
matically. This is to clean up the front
view more quickly.
ProCarManuals.com

'00 AVALON U (L/O9908)
211
If you want to return the setting to RE-
CIRCULATE mode, press the air intake
selector button once again.
Press the A/Cº button for dehumidified
heating or cooling. This setting clears the
front view more quickly.

To heat the vehicle interior while de-
frosting the windshield, choose
floor/windshield air flow.
Side vents
If air flow control is not satisfactory, check
the side vents. The side vents may be
opened or closed as shown.
Air conditioning filter
Automatic air conditioning system
onlyÐThis air conditioning system has
a high efficient air refiner filter which
helps eliminate dust and pollen, thereby
increasing your driving confort.
The air conditioning filter is set behind the
glove box.
ProCarManuals.com

'00 AVALON U (L/O 9908)
212
The filter information label is placed on
the inside of the glove box as shown.CHECKING AND REPLACING AIR
CONDITIONING FILTER
The air conditioning filter may clog after
long use. The filter may need to be re-
placed if the air flow of the air conditioner
and heater experiences extreme reductions
in operating efficiency, or if the windows
become to fog up easily.
Perform filter replacement periodically.
Period of replacement (expected):Every 24000 km (15000 miles) or 12
months
Notes: This is the normal maintenance
period. This may change depending on
operating conditions.
If the symptoms of air conditioning
efficiency problems occur, contact your
Toyota dealer to have the filter checked
and replaced.
(Actual replacement time: Less than 10
minutes approximately)
NOTICE

Do not try to replace the air condi- tioning filter by yourself. Doing somay damage the vehicle.

Do not drive with the air filter re-
moved. Doing so may reduce airconditioning efficiency.
ProCarManuals.com

'00 AVALON U (L/O9908)
213
ProCarManuals.com

'00 AVALON U (L/O 9908)
214

OPERATION OF INSTRUMENTS AND
CONTROLS
Other equipment
Clock215
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . .
Outside temperature gauge 215
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cigarette lighter and ashtray 216
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power outlet 217
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Glove box 219
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Garage door opener 220
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . .
Auxiliary box 221
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Coin holder 223
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Front cup holder 224
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . .
Rear cup holder 225
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . .
Floor mat 227
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
SECTION 1- 9
ProCarManuals.com

'00 AVALON U (L/O9908)
215

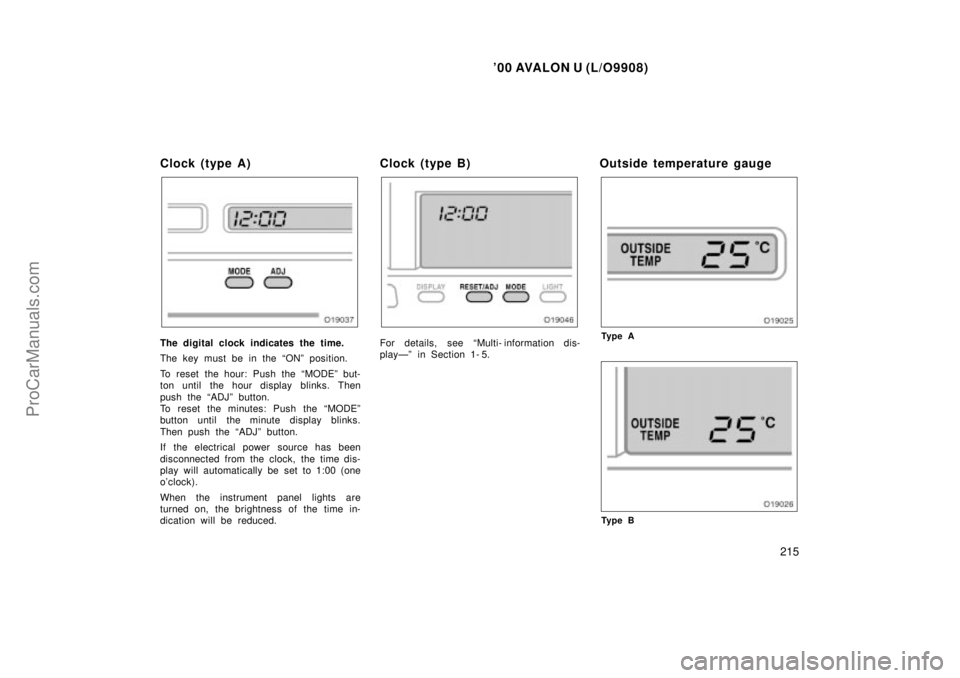

Clock (type A)
The digital clock indicates the time.
The key must be in the ONº position.
To reset the hour: Push the MODEº but-
ton until the hour display blinks. Then
push the ADJº button.
To reset the minutes: Push the MODEº
button until the minute display blinks.
Then push the ADJº button.
If the electrical power source has been
disconnected from the clock, the time dis-
play will automatically be set to 1:00 (one
o'clock).
When the instrument panel lights are
turned on, the brightness of the time in-
dication will be reduced.
Clock (type B)
For details, see Multi- information dis-
playк in Section 1- 5.
Outside temperature gauge
Ty p e A
Ty p e B
ProCarManuals.com

'00 AVALON U (L/O 9908)
216
The outside temperature gauge indi-
cates the outside air temperatures with
the ignition key at the ONº position.
When the instrument panel lights are
turned on, the brightness of the display
will be reduced.
Type AÐTo change the display between
 Cº to  Fº, push the MODEº button until
the display blinks. Then push the ADJº
button to select  Cº or  Fº.
Type BÐFor details, see Multi- information
displayк in Section 1- 5.

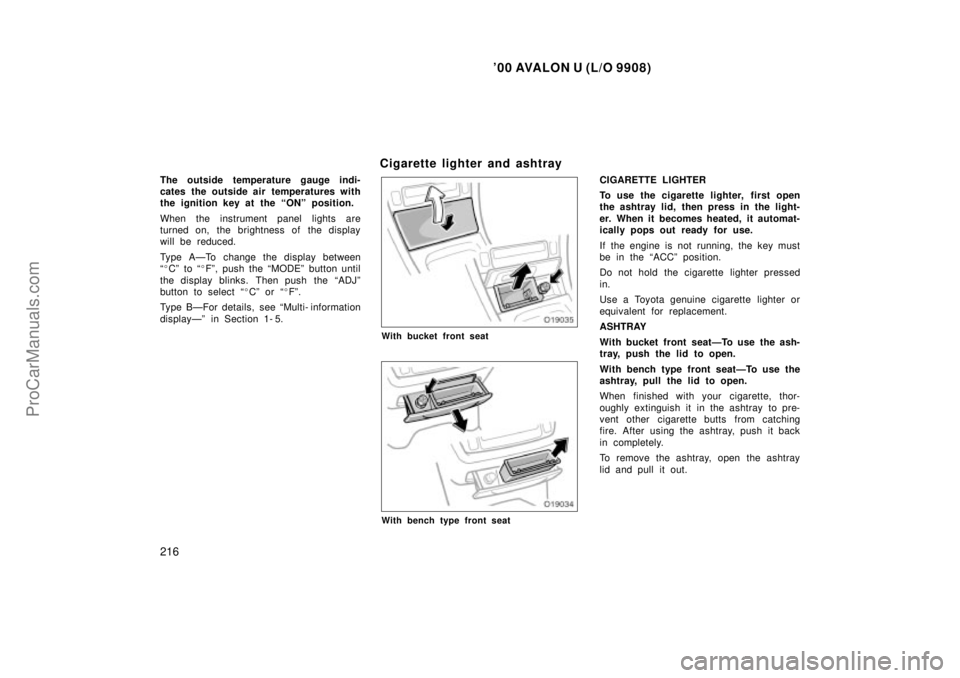

Cigarette lighter and ashtray
With bucket front seat
With bench type front seat
CIGARETTE LIGHTER
To use the cigarette lighter, first open
the ashtray lid, then press in the light-
er. When it becomes heated, it automat-
ically pops out ready for use.
If the engine is not running, the key must
be in the ACCº position.
Do not hold the cigarette lighter pressed
in.
Use a Toyota genuine cigarette lighter or
equivalent for replacement.
ASHTRAY
With bucket front seatÐTo use the ash-
tray, push the lid to open.
With bench type front seatÐTo use the
ashtray, pull the lid to open.
When finished with your cigarette, thor-
oughly extinguish it in the ashtray to pre-
vent other cigarette butts from catching
fire. After using the ashtray, push it back
in completely.
To remove the ashtray, open the ashtray
lid and pull it out.
ProCarManuals.com

'00 AVALON U (L/O9908)
217
CAUTION
To reduce the chance of injury in
case of an accident or sudden stop
while driving, always push the ash-
tray back in completely after using.
Power outlet (12 VDC)
With bucket front seat
With bench type front seat
The power outlet is designed for power
supply for car accessories.
The key must be in the ºACCº or ºONº
position for the power outlet to be used.
NOTICE

To prevent the fuse from beingblown, do not use the electricityover the total vehicle capacity of 12VDC/120W.

To prevent the battery from beingdischarged, do not use the poweroutlet longer than necessary when
the engine is not running.

Close the power outlet lid when thepower outlet is not in use. Insertinga foreign object other than the ap-propriate plug that fits the outlet,
or allowing any liquid into the out-let may cause electrical failure orshort circuits.
ProCarManuals.com

'00 AVALON U (L/O 9908)
218

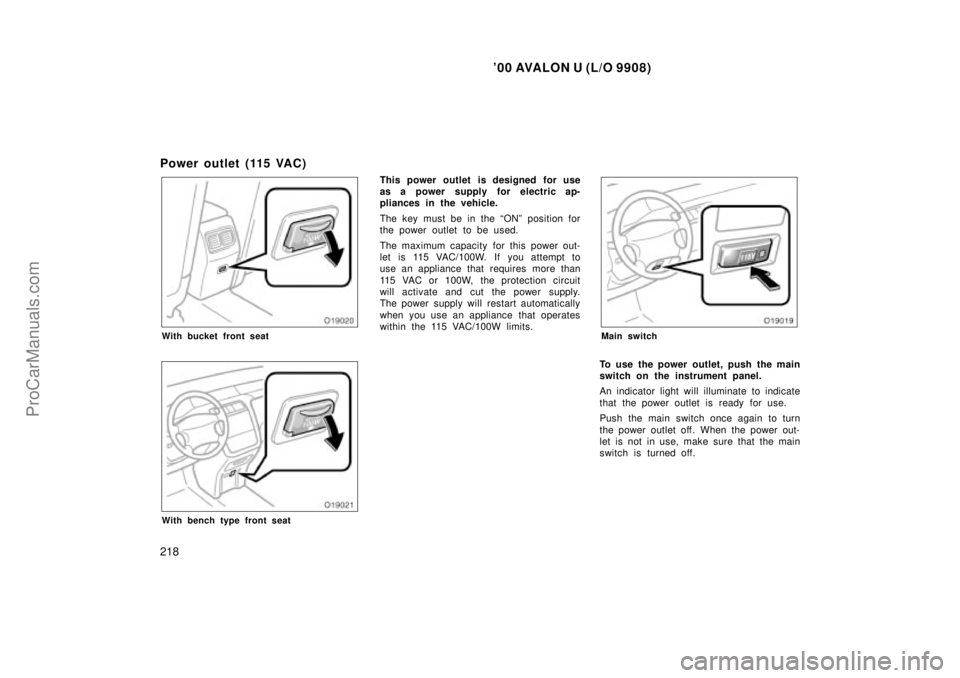

Power outlet (115 VAC)
With bucket front seat
With bench type front seat
This power outlet is designed for use
as a power supply for electric ap-
pliances in the vehicle.
The key must be in the ONº position for
the power outlet to be used.
The maximum capacity for this power out-
let is 115 VAC/100W. If you attempt to
use an appliance that requires more than
115 VAC or 100W, the protection circuit
will activate and cut the power supply.
The power supply will restart automatically
when you use an appliance that operates
within the 115 VAC/100W limits.
Main switch
To use the power outlet, push the main
switch on the instrument panel.
An indicator light will illuminate to indicate
that the power outlet is ready for use.
Push the main switch once again to turn
the power outlet off. When the power out-
let is not in use, make sure that the main
switch is turned off.
ProCarManuals.com

'00 AVALON U (L/O9908)
219
NOTICE

To prevent the battery from beingdischarged, do not use the poweroutlet longer than necessary whenthe engine is not running.

Close the power outlet lid when thepower outlet is not in use. Insertinga foreign object other than the ap-
propriate plug that fits the outletmay cause electrical failure or shortcircuits.
The power outlet is not designed for
the following electric appliances even
though their power consumption is un-
der 115 VAC/100W. These appliances
may not operate properly.

Appliances with high initial peak watt-
age: cathode- ray tube type televisions,
compressor- driven refrigerators, electric
pumps, electric tools, etc.

Measuring devices which process pre-
cise data: medical equipment, measur-
ing instruments, etc.

Other appliances requiring an extremely
stable power supply: microcomputer-
controlled electric blankets, touch sen-
sor lamps, etc.
Certain electrical appliances may cause
radio noise.
Glo ve bo x
To use the glove box, do this.
To open: Pull the lever.
With the instrument panel lights on, the
glove box light will come on when the
glove box is open.
To lock: Insert the master key and turn it
clockwise.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the glove box door
closed while driving.
