TOYOTA AVALON 2000 Owners Manual

'00 AVALON U (L/O 9908)
180
SEEK (Seeking)
Radio
In the seek mode, the radio finds and
plays the next station up or down the
station band.
To seek the next station, quickly push and
release the º or  º side of SEEKº.
Do this again to find the station after that.
If you push and hold the  º or  º side
of SEEKº, the radio will continue seeking
up or down for stations and will stop at
the next station that it finds after the but-
ton is released. on reception. Press the
button again to resume the search.
Cassette Player
By using this button, you can skip up or
down to a different track.
You can skip up to nine tracks at a time.
Push the up or down side of the button.
From SEEK +9º to SEEK -9º will appear
on the display.
Next, push either side of the track button
until the number on the display reaches
the number of tracks you want to skip. If
you push the button ten times, the skip
feature will be turned off. When counting the number of tracks you
want to rewind, remember to count the
current track as well. For example, if you
want to rewind to a song that is two be-
fore the song you are listening to, push
on the down side of the button until REW
3º appears on the display.
If you have pushed the track button more
than you wanted to, push the other side
of the button. The track number will be
reduced.
The track number you select is not valid
if it is higher than the number of tracks
remaining on the current cassette side.
After the beginning of the tape is
reached, the player will automatically
start playing the same side.
After the end of the tape is reached,
the player will automatically reverse
sides and start playing the other side.
There must be at least 3 seconds of blank
space between tracks for the track button
to work correctly. In addition, the feature
may not work well with some spoken
word, live, or classical recordings. ST (Stereo reception) display
Your radio automatically changes to stereo
reception when a stereo broadcast is re-
ceived. STº appears on the display. If the
signal becomes weak, the radio reduces
the amount of channel separation to prev-
ent the weak signal from creating noise.
If the signal becomes extremely weak, the
radio switches from stereo to mono recep-
tion.
TA P E
Push TAPEº to switch from radio or com-
pact disc operation to cassette operation.
If the audio system is off, you can turn
on the cassette player by pushing TAPEº.
In both cases, a cassette must already be
loaded in the player.
TRACK (Track up/down button):
Compact disc player
By using this button, you can skip up or
down to a different track.
Push either side of the track button until
the number of the track you want to listen
to appears on the display. If you want to
return to the beginning of the current
track, push the down side of the button
one time, quickly.
ProCarManuals.com

'00 AVALON U (L/O9908)
181
TUNE (Tuning)
Your Toyota has an electronic tuning radio
(ETR). Push and release the º or  º
side of TUNEº to step up or down the
station band. Do this again to find another
frequency.
If you push and hold the  º or  º side
of TUNEº, the radio will continue seeking
up or down for frequencies and will stop
at the next frequency that it finds after the
button is released. Press the button again
to resume the search.
ProCarManuals.com

'00 AVALON U (L/O 9908)
182

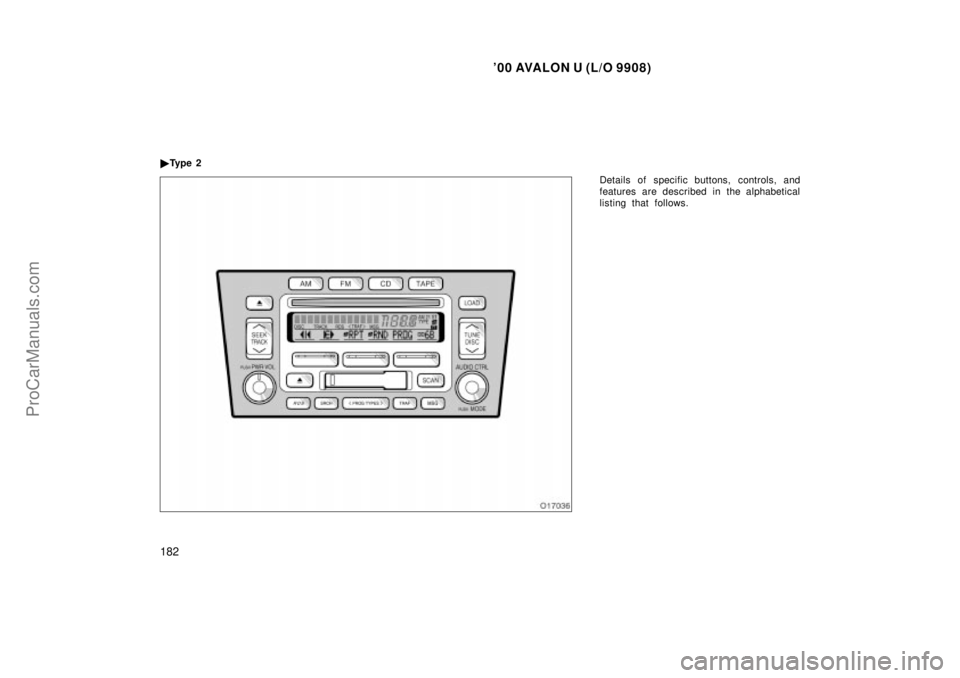

Details of specific buttons, controls, and
features are described in the alphabetical
listing that follows.


Ty p e 2
ProCarManuals.com

'00 AVALON U (L/O9908)
183
Preset buttons
These buttons are used to preset and
tune in radio stations.
To preset a station to a button: Tune in
the desired station (see TUNEº or SEEKº
button). Push and hold down the button
until you hear a beepÐthis will set the
station to the button. The button number
will appear on the display.
To tune in to a preset station: Push the
button for the station you want. The but-
ton number and station frequency will ap-
pear on the display.
These systems can store one AM and two
FM stations for each button (The display
will show AMº, FM1º or FM2º when you
push AMº FMº).
(Eject button)
Cassette tape
Push the cassette tape eject button to
eject a cassette.
After you turn the ignition to LOCKº, you
will be able to eject a cassette, but you
will not be able to reinsert it. Compact disc
To eject one compact disc only: Push and
release the compact disc eject button. If
you hold the button too long (if the audio
system is on at this time, you hear a
beep.), the mechanism will change to the
mode for ejecting all the discs loaded in
the changer. You can also eject any spe-
cific one of the discs loaded in the chang-
er as follows:
1. Push either side of the DISCº button until the number of the disc you want
to eject is displayed.
2. Push and release the compact disc eject button.
To eject all the discs loaded in the chang-
er: Push and hold the compact disc eject
button (until you hear a beep when the
audio system is on). The last compact
disc played before pushing the button will
be ejected first. If a disc is left in the slot
for a long time, the function to eject all
the discs will be automatically cancelled.
After you turn the ignition to LOCKº, you
will be able to eject one compact disc
only or all the discs loaded in the chang-
er, but you will not be able to reinsert it
or them. PROG (Program)
Push
º to select the other side of a
cassette tape. The display indicates which
side is currently selected (
º indicates top
side,  º indicates bottom side).
Auto- reverse feature: After the cassette
player reaches the end of a tape side, it
automatically reverses and begins to play
the other side. This is true whether the
cassette was playing or fast forwarding.
(Reverse/Fast forward button)
Cassette Player
Push the fast forward button to fast for-
ward a cassette tape.
º will appear
on the display. Push the reverse button to
rewind a tape.
º will appear on the
display.
To stop the tape while it is fast forward-
ing, push the fast forward button or
TAPEº; to stop the tape while it is re-
winding, push the reverse button or
TAPEº.
If a tape side rewinds completely, the cas-
sette player will stop and then play that
same side. If a tape fast forwards com-
pletely, the cassette player will play the
other side of the tape, using the auto- re-
verse feature.
ProCarManuals.com

'00 AVALON U (L/O 9908)
184
Compact Disc Player
If you want to fast forward or reverse
through a compact disc track, push and
hold in the fast forward or reverse button.
When you release the button, the compact
disc player will resume playing.
AM
Push AMº to turn on the radio and select
the AM band. AMº will appear on the
display.
If the audio system is off, you can turn
on the radio by pushing AMº. Also, push
AMº to switch from cassette or compact
disc operation to radio operation.
AUDIO CTRL / MODE (Audio control
and mode adjustment)
Manual tone adjustment functionÐ
This knob is used to adjust the tone
manually.
For low- pitch tone adjustment, push
AUDIO CTRL / MODEº repeatedly until
BASSº appears on the display. Then turn
the knob to suit your preference.
The display will show the range from
BASS -5º to BASS 5º.For middle- pitch tone adjustment, push
AUDIO CTRL / MODEº repeatedly until
MIDº appears on the display. Then turn
the knob to suit your preference.
The display will show the range from MID
- 5º to MID 5º.
For high- pitch tone adjustment, push
AUDIO CTRL / MODEº repeatedly until
TREBº appears on the display. Then turn
the knob to suit your preference.
The display will show the range from
TREB -5º to TREB 5º.
Sound balance adjustment functionÐ
This knob is also used to adjust the
sound balance between the front and rear,
and the right and left speakers.
For front/rear adjustment, push AUDIO
CTRL / MODEº repeatedly until FADEº
appears on the display. Then turn the
knob to adjust the front/rear balance.
The display will show the range from
FADE FRONT 7º to FADE REAR 7º.
For left/right adjustment, push AUDIO
CTRL / MODEº repeatedly until BALº ap-
pears on the display. Then turn the knob
to adjust the left/right balance.
The display will show the range from BAL
LEFT 7º to BAL RIGHT 7º.CD (Compact Disc)
Push CDº to switch from radio or cas-
sette operation to compact disc operation.
If the audio system is off, you can turn
on the compact disc player by pushing
CDº. In both cases, a disc must already
be loaded in the player.
When the audio is set into compact disc
operation, the display shows the track or,
track and disc number currently being
played.
If the player or another unit equipped with
the player malfunctions, your audio system
will display one of the six following error
messages.
If WAITº appears on the display,
it indi-
cates that the inside of the player unit
may be too hot due to the very high ambi-
ent temperature. Remove the disc or mag-
azine from the player and allow the player
to cool down.
If Err 1º appears on the display, it
indicates the disc is dirty, damaged, or it
was inserted up- side down. Clean the
disc or insert it correctly.
If Err 2º appears on the display, it
indicates no disc is loaded inside the
magazine. Insert a disc.
ProCarManuals.com

'00 AVALON U (L/O9908)
185
If Err 3º or Err 4º appears on the
display, it indicates there is a trouble in-
side the system. Eject the disc or maga-
zine. Set the disc or magazine again.
If OPEnº appears on the display, it
indicates the compact disc auto changer
lid is open. Close the compact disc auto
changer lid.
If the malfunction is not rectified, take
your vehicle to your Toyota dealer.
DISC
By using this button, you can select a
disc you wish to listen to.
Push either side of the button until the
number of the disc you want to listen to
appears on the display.
Dolby
B NR*
If you are listening to a tape that was
recorded with Dolby  B Noise Reduction,
push the button marked with the double- D
symbol. The double- D symbol will appear
on the display. Push the button again to
turn off Dolby  B NR.
The Dolby NR mode reduces tape noise
by about 10 dB. For best sound reproduc-
tion, play your tapes with this button on
or off according to the mode used for
recording the tape.
*: Dolby noise reduction manufactured under license from
Dolby Laboratories Licensing Corporation. DOLBYº and the
double D symbol
are trademarks of Dolby Laboratories
Licensing Corporation.
FM
Push FMº to turn on the radio and select
the FM band. FM1º or FM2º will appear
on the display. This system allows you to
set twelve FM stations, two for each but-
ton.
If the audio system is off, you can turn
on the radio by pushing FMº. Also, push
FMº to switch from cassette or compact
disc operation to radio operation.
LOAD
This button is used to load the compact
discs in the compact disc auto changer
which is integrated with the radio and cas-
sette player. This compact disc auto
changer can store up to 6 di scs.
The key must be in the ACCº or ONº
position. Loading one compact disc onlyÐ
To load one compact disc only, quickly
push and release the button. If you hold
the button too long (if the audio system
is on at this time, you hear a beep.), the
mechanism will change to the mode for
loading multiple compact di
scs. After
pushing the button, insert a compact disc.
After the disc is loaded, the shutter of the
slot will close.
If no compact disc is inserted, the shutter
will close after 15 seconds.
Loading multiple compact di scsÐ
To load multiple compact discs, push and
hold (until you hear a beep when the au-
dio system is on). After pushing the but-
ton, insert the first compact disc. After the
disc is loaded, the shutter of the slot will
close. After a few seconds, the shutter
will automatically open again so the next
disc can be inserted. The same process
can be applied for loading the rest of the
discs.
If no compact disc is inserted, the shutter
will close after 15 seconds.
ProCarManuals.com

'00 AVALON U (L/O 9908)
186
MSG (Message)
This button is used to display a radio text
message. It is also used to store and
recall radio text messages.
To receive radio text, turn RDS on (see
RDSº), and tune to an RDS station that
broadcasts radio text messages. When the
radio receives a radio test message,
MSGº will appear on the display. Push
this button at this time to display the radio
text message. The message display will
be canceled if you activate any function
that affects the display. After the entire
message has been displayed, the mes-
sage will disappear. To view the message
again, push this button a second time.
To store a radio text message, push and
hold this button for more than 1.7 seconds
while the message is being displayed. A
beep will sound, indicating that the mes-
sage has been stored. At this time MSG
STOREDº appears on the display. Up to
three 64- character messages can be
stored. If 3 messages are already in stor-
age, the oldest message will be removed
to make room for a new message.To recall a radio text message, push this
button for less than 1.7 seconds. The
most recently received stored message
will appear on the display, even if it has
already been displayed. Pushing this but-
ton for less than 1.7 seconds while the
most recent message is being displayed
will recall the newest stored message. If
2 or more messages have been stored,
the other stored messages will be toggled
through each time you push this button
(while a stored message is on display).
If no messages have been stored, or if
there are no more messages to be re-
called, NO MSG STOREDº will appear on
the display, and the message display will
be canceled. The display then returns to
show the program service name. The
message display will be canceled if you
activate any function that affects the dis-
play.
Message display can be canceled by
pressing any of the following buttons:
AMº, FMº, CDº, TAPEº, LOADº,
SEEKº, TUNEº, any preset, SCANº, any
audio control, RDSº, SRCHº, or  TYPES>º. If the current station is not a
traffic program and traffic announcements
is off, pushing TRAFº will cancel the dis-
play. The message will be canceled after
the entire message has been displayed. (Program Types)
This button is used for program type
(PTY) search of RDS stations. 32 program
types are available as listed here.
By pushing this button, RDS is turned on
if it was off (RDSº will display), and the
radio is switched to FM type mode. If
program type search has not previously
performed, the radio will start a program
type search (see SRCHº for details on
program type search).
If a program type search has previously
been performed in FM1 or FM2, the radio
will return to the last active program type.
If you are already in FM type mode and
a program type is not already being dis-
played, pushing this button will recall the
display for the current program type.
After a program type is being displayed,
subsequent pushes within 3 seconds will
toggle through the available program
types. Pushing the right or left arrows
repeatedly will increment or decrement the
display through the available program
types in alphabetical order.
If a type search was started, it can be
canceled as described in SRCH.º
ProCarManuals.com

'00 AVALON U (L/O9908)
187
Program Type List
The following program type names are
available. After a program type search,
the radio will display one of the following
program types for 3 seconds, then the
program type name for 3 seconds (if
available). After that, it will display the
program service name (subject to an
8- character limit) of the current station.
The following table lists each display and
its program type.Display
Program type (PTY)
None0
News1
Inform2
Sports3
Ta l k4
Rock5
Cls Rock6
Adlt Hit7
Soft Rck8
To p 4 09
Country10
Oldies11
Soft12
DisplayProgram type (PTY)
Nostalga13
Jazz14
Classicl15
R & B16
Soft R&B17
Language18
Rel Musc19
Rel Talk20
Persnlty21
Public22
College23
PTY- 2424
PTY- 2525
PTY- 2626
PTY- 2727
PTY- 2828
Weather29
Te s t30
Alert!31
PWR´VOL (Power and Volume)
Push PWR´VOLº to turn the audio system
on and off. Turn PWR´VOLº to adjust the
volume.
RDS (Radio Data System)
If the FM radio, cassette player or com-
pact disc player is on, pushing this button
will turn RDS on or off.
Turning RDS on will display RDSº and
other appropriate RDS displays including
º, TYPEº and MSGº. If the radio
is tuned to an RDS station, the program
service name, such as ROCK 107º, will
appear on the display.
When RDS is turned on, various types of
information are displayed. These include
the program type (PTY) currently being
broadcast, the program service name, traf-
fic announcements and emergency alert
message. There are five buttons that con-
trol RDS: RDSº, SRCHº,  TYPES>º, TRAFº and MSGº. (See each
button's description in this alphabetical
listing.) Emergency alert message is
broadcast when the audio is on even if
the RDS function is turned off (see Alert!
displayº). RDS is also turned on if the
audio system is on by pushing other RDS
buttons except MSGº.
ProCarManuals.com

'00 AVALON U (L/O 9908)
188
Alert!º display
The alert program type sends emergency
alert messages. The radio will receive
alert messages if it is on and tuned to an
RDS station, or if the previous station was
an RDS station. If the radio receives an
alert announcement, it will interrupt the
previous mode, display Alert!,º adjust the
volume to Traffic Announcement level, and
broadcast the alert. Then, it will return to
the previous mode and volume level.
An alert message in progress can be can-
celled by activating any function. However,
the PTY- 31 interrupt feature can only be
turned off by turning off the ignition.
RND (Random)
There are two random featuresÐyou can
either listen to the tracks on all the com-
pact discs in the magazine in random or-
der, or only listen to the tracks on a
specific compact disc in random order.
To randomly play the tracks on a disc:
Quickly push and release
º. º
will appear on the display. The disc you
are listening to will play in random order.
If you hear a beep, you held the button
too long, and the player will play all the
tracks in the magazine in random order.
To turn off the random feature, push this
button again. To randomly play all the tracks in the
magazine:
Push and hold
º until you hear a
beep.
º will appear on the display
and the player will perform all the tracks
on all the discs in the magazine in ran-
dom order. To turn off the random feature,
push this button again.
RPT (Repeat)
Cassette Player
Push
º while the track is playing.

º will appear on the display. When
the track ends, it will automatically be
rewound and replayed. This process will
be continued until you push the button
again to turn off the repeat feature.
There must be at least 3 seconds of blank
space between tracks in order for the re-
peat feature to work correctly. Compact Disc Player
There are two repeat featuresÐYou can
either replay a disc track or a whole com-
pact disc.
Repeating a track:
Quickly push and release
º while the
track is playing.
º will appear on the
display. If you hear a beep, you held the
button too long, and the player will repeat
the whole disc. When the track ends, it
will automatically be replayed. This pro-
cess will be continued until you push the
button again to turn off the repeat feature.
Repeating a disc:
Push and hold
º until you hear a
beep.
º will appear on the display.
The player will repeat all the tracks on the
disc you are listening to. When the disc
ends, the player will automatically go back
to the top track of the disc and replay.
This process will be continued until you
push the button again to turn off the re-
peat feature.
ProCarManuals.com

'00 AVALON U (L/O9908)
189
SCAN
Radio
You can either scan all the frequencies on
a band or scan only the preset stations
for that band.
To scan the preset stations:
Push and hold SCANº until you hear a
beep. The radio will tune in the next pres-
et station up the band, stay there for 5
seconds, and then move to the next pre-
set station. To select a station, push
SCANº again.
To scan all the frequencies:
Quickly push and release SCANº. If you
hear a beep, you held the button too long,
and the radio will scan the preset sta-
tions. The radio will find the next station
up the station band, stay there for 5 se-
conds, and then scan again. To select a
station, push SCANº again.Compact disc player
There are two scan featuresÐyou can ei-
ther scan the tracks on a specific disc or
scan the first tracks of all the discs in the
magazine.
Scanning the tracks on a disc:
Quickly push and release SCANº. SCANº
will appear on the display and the player
will scan all the tracks on the disc you
are listening to. If you hear a beep, you
held the button too long, and the player
will scan the first track of all the discs in
the magazine. To select a track, push
SCANº again. If the player scanned all
the tracks on the disc, it will stop scan-
ning.
Scanning the first track of all the discs in
the magazine:
Push SCANº until you hear a beep.
DSCANº will appear on the display and
the player will perform the first track of
the next disc. To select a disc, push the
SCANº again. If the player has scanned
all the discs, it will stop sc
anning.SEEK (Seeking)
Radio
In the seek mode, the radio finds and
plays the next station up or down the
station band.
To seek the next station, quickly push and
release the
º or  º side of SEEKº.
Do this again to find the station after that.
If you push and hold the  º or  º side
of SEEKº, the radio will continue seeking
up or down for stations and will stop at
the next station that it finds after the but-
ton is released. on reception. Press the
button again to resume the search.
Cassette Player
By using this button, you can skip up or
down to a different track.
You can skip up to nine tracks at a time.
Push the up or down side of the button.
From SEEK +9º to SEEK -9º will appear
on the display.
Next, push either side of the track button
until the number on the display reaches
the number of tracks you want to skip. If
you push the button ten times, the skip
feature will be turned off.
ProCarManuals.com
