TOYOTA AVALON 2000 Owners Manual

'00 AVALON U (L/O 9908)
170
SETTING AT A DESIRED SPEED
The transmission must be in Dº before
you set the cruise control speed.
Bring your vehicle to the desired speed,
push COAST SETº button and release it.
This sets the vehicle at that speed. If the
speed is not satisfactory, push RES ACCº
button for a faster speed, or push SET
COASTº button for a slower speed. Each
push changes the set speed by 1.6 km/h
(1.0 mph). You can now take your foot off
the accelerator pedal.If you need accelerationÐfor example,
when passingÐdepress the accelerator
pedal enough for the vehicle to exceed
the set speed. When you release it, the
vehicle will return to the speed set prior
to the acceleration.
CANCELLING THE PRESET SPEED
You can cancel the preset speed by any
of the following:
a. Depressing the brake pedal.
b. Push CANCELº button and releasing it.
c. Pushing ON/OFFº button.
If the vehicle speed falls below about 40
km/h (25 mph), the preset speed will be
automatically cancelled.
If the vehicle speed drops 16 km/h (10
mph) below the preset speed, the preset
speed will be also automatically cancelled.
If the preset speed automatically cancels
out for any other reasons, have your ve-
hicle checked by your Toyota dealer at the
earliest opportunity.
RESETTING TO A FASTER SPEED
Push ºRES ACCº button and hold it. Re-
lease the button the desired speed is at-
tained. While the button is pushed, the
vehicle will gradually gain speed.
When the difference between the actual
vehicle speed and the set speed is less
than 5 km/h (3 mph), the set speed can
be increased 1.6 km/h (1 mph) each time
by pushing RES ACCº button quickly
within 0.6 seconds.
However, a faster way to reset is to ac-
celerate the vehicle and then push
COAST SETº button.
RESETTING TO A SLOWER SPEED
Push COAST SETº button and hold it.
Release the button when the desired
speed is attained. While the button is
pushed, the vehicle speed will gradually
decrease.
When the difference is 5 km/h (3 mph) or
more, the vehicle will cruise with its actu-
al speed. When the difference between the
actual vehicle speed and the set speed is
less than 5 km/h (3 mph), the set speed
can be lowered 1.6 km/h (1 mph) each
time by pushing COAST SETº button
quickly within 0.6 seconds.
ProCarManuals.com

'00 AVALON U (L/O9908)
171
However, a faster way to reset is to de-
press the brake pedal and then push
ºCOAST SETº button.
Even if you turn off the overdrive switch
with the cruise control on, engine braking
will not be applied because the cruise
control is not cancelled. To decrease the
vehicle speed, reset to a slower speed
with the cruise control button or depress
the brake pedal. If you use the brake
pedal, cruise control is cancelled.
RESUMING THE PRESET SPEED
If the preset speed is cancelled by push-
ing CANCELº button or by depressing the
brake pedal, pushing ºRES ACCº button
will restore the speed set prior to can-
cellation. However, once the vehicle speed
falls below about 40 km/h (25 mph), the
preset speed will not be resumed.
CRUISE CONTROL FAILURE WARNING
If CRUISEº indicator light in the instru-
ment cluster flashes when using the
cruise control, push ON/OFFº button to
turn the system off and then push it again
to turn it on.
If any of the following conditions then oc-
curs, there is some trouble in the cruise
control system.The indicator light does not come on.
The indicator light flashes again.
The indicator light goes out after it
comes on.
If this is the case, contact your Toyota
dealer and have your vehicle inspected.
ProCarManuals.com

'00 AVALON U (L/O 9908)
172
OPERATION OF INSTRUMENTS AND
CONTROLS
Car audio system
Reference173
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . .
Using your audio system 173
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Car audio system operating hints 192
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 1- 7
ProCarManuals.com

'00 AVALON U (L/O9908)
173
Reference

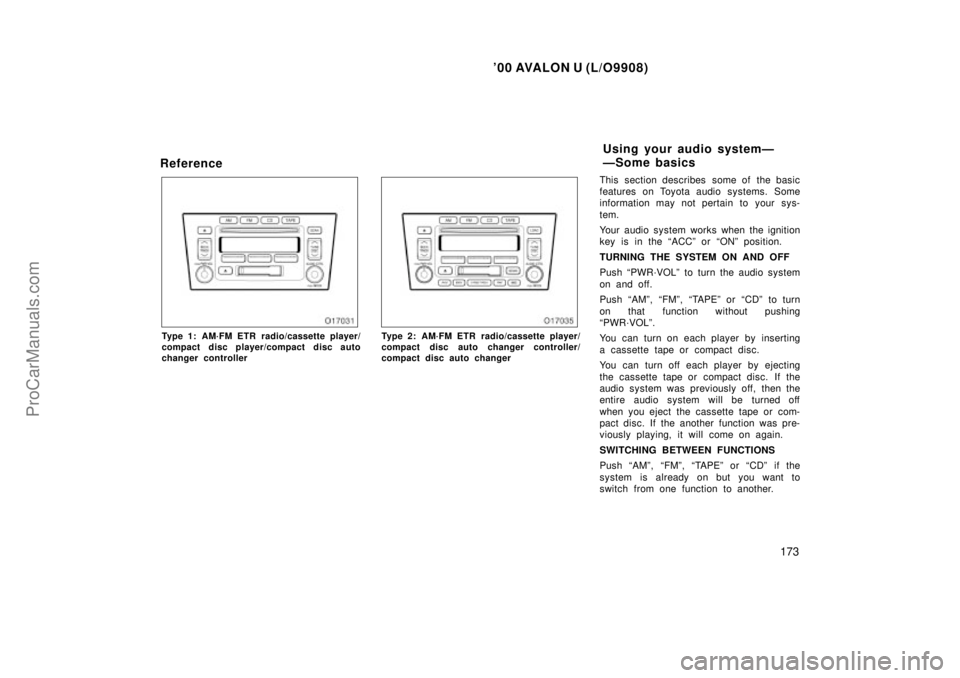

Type 1: AM´FM ETR radio/cassette player/
compact disc player/compact disc auto
changer controllerType 2: AM´FM ETR radio/cassette player/
compact disc auto changer controller/
compact disc auto changer
This section describes some of the basic
features on Toyota audio systems. Some
information may not pertain to your sys-
tem.
Your audio system works when the ignition
key is in the ACCº or ONº position.
TURNING THE SYSTEM ON AND OFF
Push PWR´VOLº to turn the audio system
on and off.
Push AMº, FMº, TAPEº or CDº to turn
on that function without pushing
PWR´VOLº.
You can turn on each player by inserting
a cassette tape or compact disc.
You can turn off each player by ejecting
the cassette tape or compact disc. If the
audio system was previously off, then the
entire audio system will be turned off
when you eject the cassette tape or com-
pact disc. If the another function was pre-
viously playing, it will come on again.
SWITCHING BETWEEN FUNCTIONS
Push AMº, FMº, TAPEº or CDº if the
system is already on but you want to
switch from one function to another.
Using your audio systemÐ
ÐSome basics
ProCarManuals.com

'00 AVALON U (L/O 9908)
174
TONE AND BALANCE
For details about your system's tone and
balance controls, see the description of
your own system.
Tone
How good an audio program sounds to
you is largely determined by the mix of
the treble, midrange, and bass levels. In
fact, different kinds of music and vocal
programs usually sound better with differ-
ent mixes of treble, mid- range and bass.
Balance
A good balance of the left and right stereo
channels and of the front and rear sound
levels is also important.
Keep in mind that if you are listening to
a stereo recording or broadcast, changing
the right/left balance will increase the vol-
ume of one group of sounds while de-
creasing the volume of another.YOUR RADIO ANTENNA
Your vehicle has an antenna printed on
the inside of the rear window.
NOTICE
Attaching the film (especially conduc-
tive or metallic type) on the rear win-dow will noticeably reduce the sensi-tivity of the radio.
YOUR CASSETTE PLAYER
When you insert a cassette, the exposed
tape should be to the right.
NOTICE
Do not oil any part of the player and
do not insert anything other than cas-sette tapes into the slot, or the tapeplayer may be damaged.
YOUR COMPACT DISC PLAYER
When you insert a disc, gently push it in
with the label side up. (The player will
automatically eject a disc if the label side
is down.) The compact disc player will
play from track 1 through the end of the
disc. Then it will play from track 1 again.
On models with the compact disc auto
changer, next disc will be played from
track 1.
NOTICE
Never try to disassemble or oil any
part of the compact disc player. Donot insert anything except a compactdisc into the slot.
The player is intended for use with 12 cm
(5 in.) discs only.
ProCarManuals.com

'00 AVALON U (L/O9908)
175

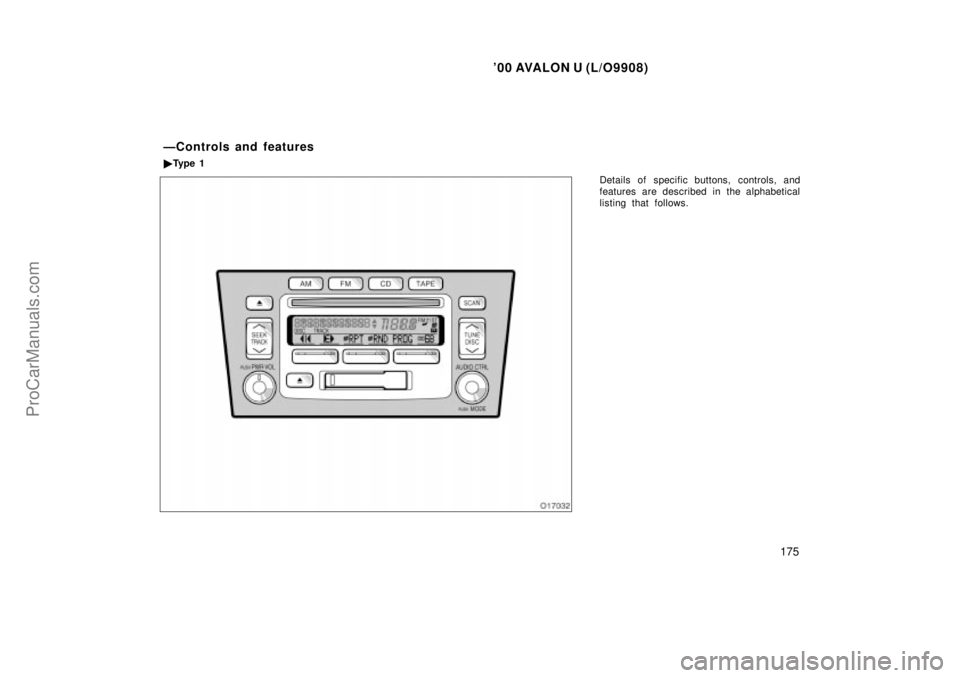

Details of specific buttons, controls, and
features are described in the alphabetical
listing that follows.
ÐControls and features

Ty p e 1
ProCarManuals.com

'00 AVALON U (L/O 9908)
176
Preset buttons
These buttons are used to preset and
tune in radio stations.
To preset a station to a button: Tune in
the desired station (see TUNEº or SEEKº
button). Push and hold down the button
until you hear a beepÐthis will set the
station to the button. The button number
will appear on the display.
To tune in to a preset station: Push the
button for the station you want. The but-
ton number and station frequency will ap-
pear on the display.
These systems can store one AM and two
FM stations for each button (The display
will show AMº, FM1º or FM2º when you
push AMº FMº).
(Eject button)
Push the cassette tape eject button to
eject a cassette. Push the compact disc
eject button to eject a compact disc.
After you turn the ignition to LOCKº, you
will be able to eject a cassette or disc,
but you will not be able to reinsert it. PROG (Program)
Push
º to select the other side of a
cassette tape. The display indicates which
side is currently selected (
º indicates
top side,
º indicates bottom side).
Auto- reverse feature: After the cassette
player reaches the end of a tape side, it
automatically reverses and begins to play
the other side. This is true whether the
cassette was playing or fast forwarding.
(Reverse/Fast forward button)
Cassette Player
Push the fast forward button to fast for-
ward a cassette tape.
º will appear
on the display. Push the reverse button to
rewind a tape.
º will appear on the
display.
To stop the tape while it is fast forward-
ing, push the fast forward button or
TAPEº; to stop the tape while it is re-
winding, push the reverse button or
TAPEº.
If a tape side rewinds completely, the cas-
sette player will stop and then play that
same side. If a tape fast forwards com-
pletely, the cassette player will play the
other side of the tape, using the auto- re-
verse feature. Compact Disc Player
If you want to fast forward or reverse
through a compact disc track, push and
hold in the fast forward or reverse button.
When you release the button, the compact
disc player will resume playing.
AM
Push AMº to turn on the radio and select
the AM band. AMº will appear on the
display.
If the audio system is off, you can turn
on the radio by pushing AMº. Also, push
AMº to switch from cassette or compact
disc operation to radio operation.
ProCarManuals.com

'00 AVALON U (L/O9908)
177
AUDIO CTRL / MODE (Audio control
and mode adjustment)
Manual tone adjustment functionÐ
This knob is used to adjust the tone
manually.
For low- pitch tone adjustment, push
AUDIO CTRL / MODEº repeatedly until
BASSº appears on the display. Then turn
the knob to suit your preference.
The display will show the range from
BASS -5º to BASS 5º.
For middle- pitch tone adjustment, push
AUDIO CTRL / MODEº repeatedly until
MIDº appears on the display. Then turn
the knob to suit your preference.
The display will show the range from MID
- 5º to MID 5º.
For high- pitch tone adjustment, push
AUDIO CTRL / MODEº repeatedly until
TREBº appears on the display. Then turn
the knob to suit your preference.
The display will show the range from
TREB -5º to TREB 5º.Sound balance adjustment functionÐ
This knob is also used to adjust the
sound balance between the front and rear,
and the right and left speakers.
For front/rear adjustment, push AUDIO
CTRL / MODEº repeatedly until FADEº
appears on the display. Then turn the
knob to adjust the front/rear balance.
The display will show the range from
FADE FRONT 7º to FADE REAR 7º.
For left/right adjustment, push AUDIO
CTRL / MODEº repeatedly until BALº ap-
pears on the display. Then turn the knob
to adjust the left/right balance.
The display will show the range from BAL
LEFT 7º to BAL RIGHT 7º.
CD (Compact Disc)
Push CDº to switch from radio or cas-
sette operation to compact disc operation.
If the audio system is off, you can turn
on the compact disc player by pushing
CDº. In both cases, a disc must already
be loaded in the player.
When the audio is set into compact disc
operation, the display shows the track or,
track and disc number currently being
played. Each time you push CDº, the
system c
hanges to the automatic changer. If the player malfunctions, your audio sys-
tem will display one of the six following
error messages.
If WAITº appears on the display,
it indi-
cates that the inside of the player unit
may be too hot due to the very high ambi-
ent temperature. Remove the disc or mag-
azine from the player and allow the player
to cool down.
If Err 1º appears on the display, it
indicates the disc is dirty, damaged, or it
was inserted up- side down. Clean the
disc or insert it correctly.
If Err 2º appears on the display, it
indicates no disc is loaded inside the
magazine. Insert a disc.
If Err 3º or Err 4º appears on the
display, it indicates there is a trouble in-
side the system. Eject the disc or maga-
zine. Set the disc or magazine again.
If OPEnº appears on the display, it
indicates the compact disc auto changer
lid is open. Close the compact disc auto
changer lid.
If the malfunction is not rectified, take
your vehicle to your Toyota dealer.
ProCarManuals.com

'00 AVALON U (L/O 9908)
178
DISC
Compact disc auto changer onlyÐ
By using this button, you can select a
disc you wish to listen to.
Push either side of the button until the
number of the disc you want to listen to
appears on the display.
Dolby
B NR*
If you are listening to a tape that was
recorded with Dolby  B Noise Reduction,
push the button marked with the double- D
symbol. The double- D symbol will appear
on the display. Push the button again to
turn off Dolby  B NR.
The Dolby NR mode reduces tape noise
by about 10 dB. For best sound reproduc-
tion, play your tapes with this button on
or off according to the mode used for
recording the tape.
*: Dolby noise reduction manufactured under license from
Dolby Laboratories Licensing Corporation. DOLBYº and the
double D symbol
are trademarks of Dolby Laboratories
Licensing Corporation.
FM
Push FMº to turn on the radio and select
the FM band. FM1º or FM2º will appear
on the display. This system allows you to
set twelve FM stations, two for each but-
ton.
If the audio system is off, you can turn
on the radio by pushing FMº. Also, push
FMº to switch from cassette or compact
disc operation to radio operation.
PWR´VOL (Power and Volume)
Push PWR´VOLº to turn the audio system
on and off. Turn PWR´VOLº to adjust the
volume.
RND (Random)
There are two random featuresÐyou can
either listen to the tracks on all the com-
pact discs in the magazine in random or-
der, or only listen to the tracks on a
specific compact disc in random order.
To randomly play the tracks on a disc:
Quickly push and release
º. º
will appear on the display. The disc you
are listening to will play in random order.
If you hear a beep, you held the button
too long, and the player will play all the
tracks in the magazine in random order.
To turn off the random feature, push this
button again. Compact disc auto changer onlyÐ
To randomly play all the tracks in the
magazine:
Push and hold
º until you hear a
beep.
º will appear on the display
and the player will perform all the tracks
on all the discs in the magazine in ran-
dom order. To turn off the random feature,
push this button again.
RPT (Repeat)
Cassette Player
Push
º while the track is playing.

º will appear on the display. When
the track ends, it will automatically be
rewound and replayed. This process will
be continued until you push the button
again to turn off the repeat feature.
There must be at least 3 seconds of blank
space between tracks in order for the re-
peat feature to work correctly.
ProCarManuals.com

'00 AVALON U (L/O9908)
179
Compact Disc Player
There are two repeat featuresÐYou can
either replay a disc track or a whole com-
pact disc.
Repeating a track:
Quickly push and release
º while the
track is playing.
º will appear on the
display. If you hear a beep, you held the
button too long, and the player will repeat
the whole disc. When the track ends, it
will automatically be replayed. This pro-
cess will be continued until you push the
button again to turn off the repeat feature.
Compact disc auto changer onlyÐ
Repeating a disc:
Push and hold
º until you hear a
beep.
º will appear on the display.
The player will repeat all the tracks on the
disc you are listening to. When the disc
ends, the player will automatically go back
to the top track of the disc and replay.
This process will be continued until you
push the button again to turn off the re-
peat feature. SCAN
Radio
You can either scan all the frequencies on
a band or scan only the preset stations
for that band.
To scan the preset stations:
Push and hold SCANº until you hear a
beep. The radio will tune in the next pres-
et station up the band, stay there for 5
seconds, and then move to the next pre-
set station. To select a station, push
SCANº again.
To scan all the frequencies:
Quickly push and release SCANº. If you
hear a beep, you held the button too long,
and the radio will scan the preset sta-
tions. The radio will find the next station
up the station band, stay there for 5 se-
conds, and then scan again. To select a
station, push SCANº again.
Compact disc player
There are two scan featuresÐyou can ei-
ther scan the tracks on a specific disc or
scan the first tracks of all the discs in the
magazine.
Scanning the tracks on a disc:
Quickly push and release SCANº. SCANº
will appear on the display and the player
will scan all the tracks on the disc you
are listening to. If you hear a beep, you
held the button too long, and the player
will scan the first track of all the discs in
the magazine. To select a track, push
SCANº again. If the player scanned all
the tracks on the disc, it will stop scan-
ning.
Compact disc auto changer onlyÐ
Scanning the first track of all the discs in
the magazine:
Push SCANº until you hear a beep.

´SCANº will appear on the display
and the player will perform the first track
of the next disc. To select a disc, push
the SCANº again. If the player has
scanned all the di scs, it will stop scan-
ning.
ProCarManuals.com
