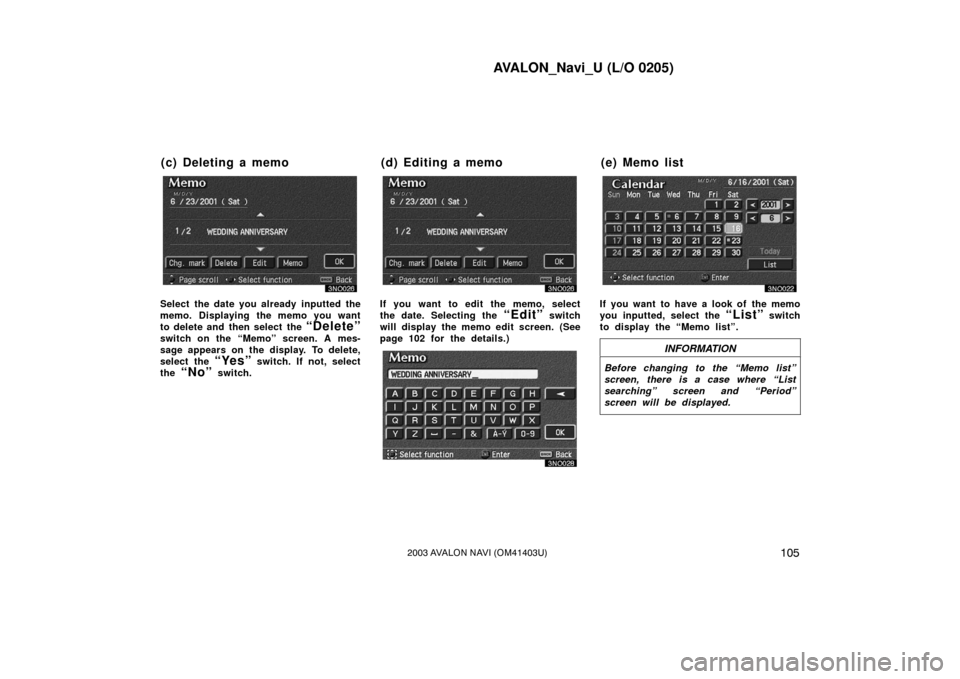

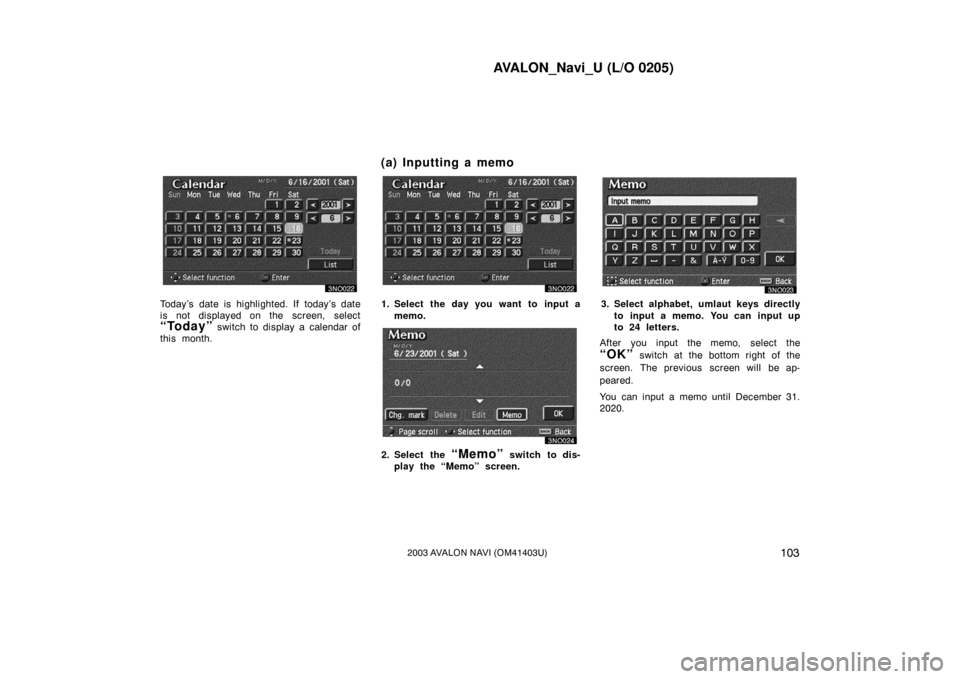

Today’s date is highlighted. If today’s date
is not displayed on the screen, select
“Today” switch to display a calendar of
this month.
1. Select the day you want to input a
memo.
2. Select the “Memo” switch to dis-
play the “Memo” screen.
3. Select alphabet, umlaut keys directly
to input a memo. You can input up
to 24 letters.
After you input the memo, select the
“OK” switch at the bottom right of the
screen. The previous screen will be ap-
peared.
You can input a memo until December 31.
2020.
(a) Inputting a memo

AVALON_Navi_U (L/O 0205)
1042003 AVALON NAVI (OM41403U)
3NO025

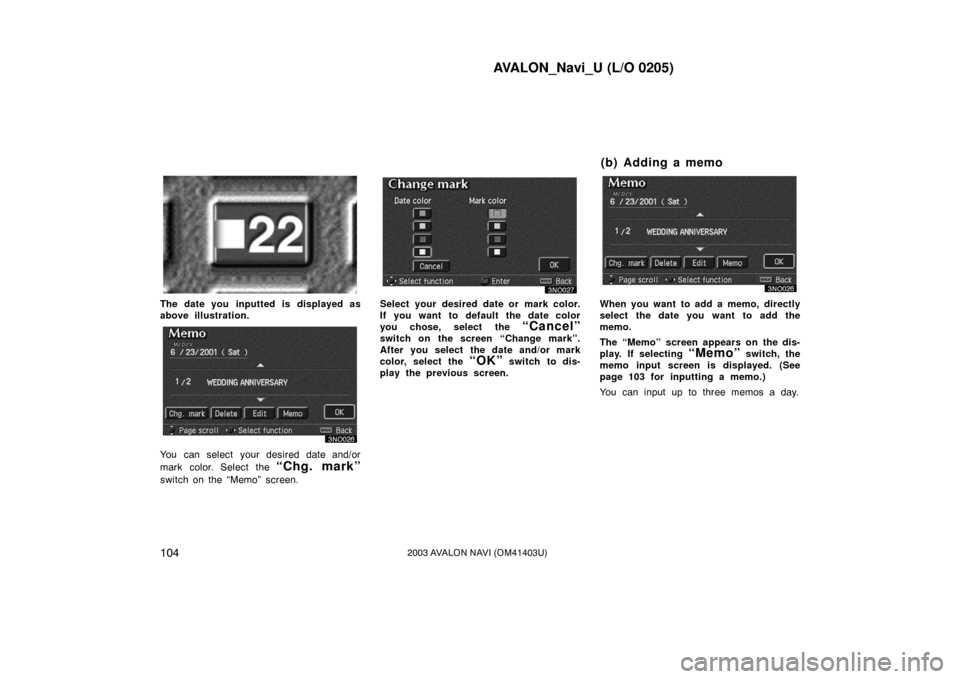

The date you inputted is displayed as
above illustration.
You can select your desired date and/or
mark color. Select the
“Chg. mark”
switch on the “Memo” screen.
Select your desired date or mark color.
If you want to default the date color
you chose, select the
“Cancel”
switch on the screen “Change mark”.
After you select the date and/or mark
color, select the
“OK” switch to dis-
play the previous screen.
When you want to add a memo, directly
select the date you want to add the
memo.
The “Memo” screen appears on the dis-
play. If selecting
“Memo” switch, the
memo input screen is displayed. (See
page 103 for inputting a memo.)
You can input up to three memos a day.
(b) Adding a memo

AVALON_Navi_U (L/O 0205)
1052003 AVALON NAVI (OM41403U)
Select the date you already inputted the
memo. Displaying the memo you want
to delete and then select the
“Delete”
switch on the “Memo” screen. A mes-
sage appears on the display. To delete,
select the
“Yes” switch. If not, select
the
“No” switch.
If you want to edit the memo, select
the date. Selecting the
“Edit” switch
will display the memo edit screen. (See
page 102 for the details.)
If you want to have a look of the memo
you inputted, select the
“List” switch
to display the “Memo list”.
INFORMATION
Before changing to the “Memo list”
screen, there is a case where “List
searching” screen and “Period”
screen will be displayed.
(c) Deleting a memo (d) Editing a memo(e) Memo list

AVALON_Navi_U (L/O 0205)
1062003 AVALON NAVI (OM41403U)

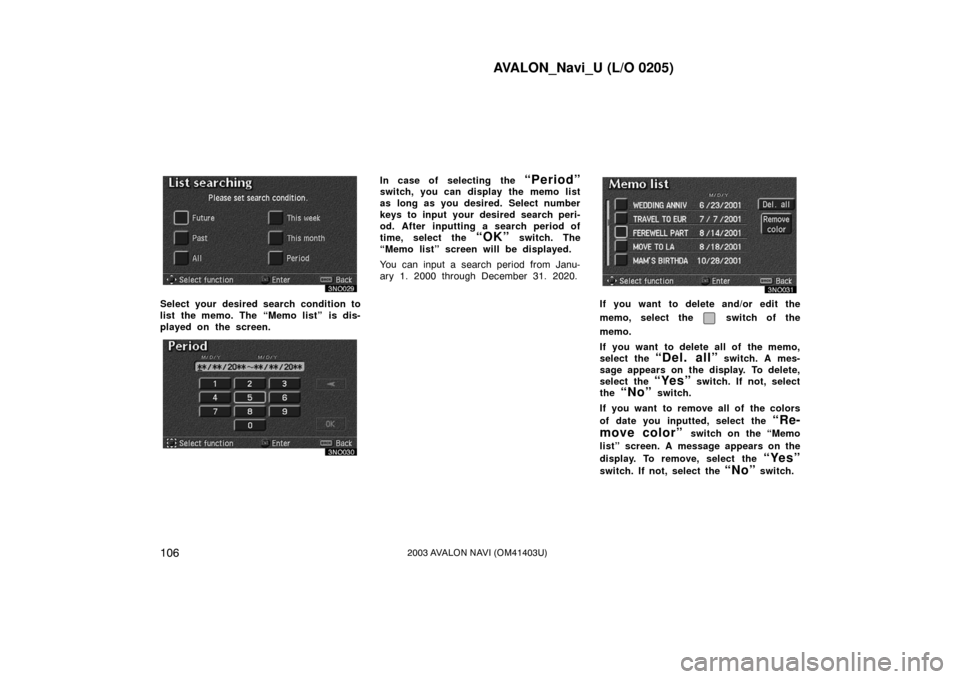

Select your desired search condition to
list the memo. The “Memo list” is dis-
played on the screen.
In case of selecting the “Period”switch, you can display the memo list
as long as you desired. Select number
keys to input your desired search peri-
od. After inputting a search period of
time, select the
“OK” switch. The
“Memo list” screen will be displayed.
You can input a search period from Janu-
ary 1. 2000 through December 31. 2020.
If you want to delete and/or edit the
memo, select the
switch of the
memo.
If you want to delete all of the memo,
select the
“Del. all” switch. A mes-
sage appears on the display. To delete,
select the
“Yes” switch. If not, select
the
“No” switch.
If you want to remove all of the colors
of date you inputted, select the
“Re-
move color”
switch on the “Memo
list” screen. A message appears on the
display. To remove, select the
“Yes”
switch. If not, select the “No” switch.

AVALON_Navi_U (L/O 0205)
1072003 AVALON NAVI (OM41403U)

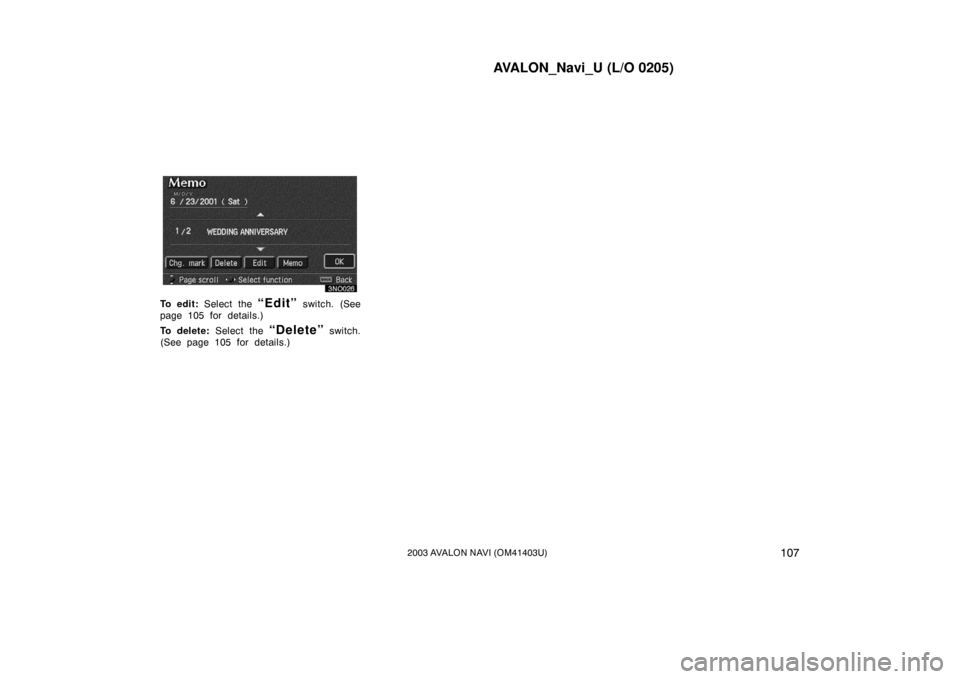

To e d i t : Select the “Edit” switch. (See
page 105 for details.)
To d e l e t e : Select the
“Delete” switch.
(See page 105 for details.)

AVALON_Navi_U (L/O 0205)
1082003 AVALON NAVI (OM41403U)

AVALON_Navi_U (L/O 0205)
1092003 AVALON NAVI (OM41403U)
OTHER FUNCTIONS
Clock adjustment11 0
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . .
Outside temperature display 111
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Trip information 111
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Screen adjustment 11 3
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . .
SECTION IV

AVALON_Navi_U (L/O 0205)
11 02003 AVALON NAVI (OM41403U)
4NO011

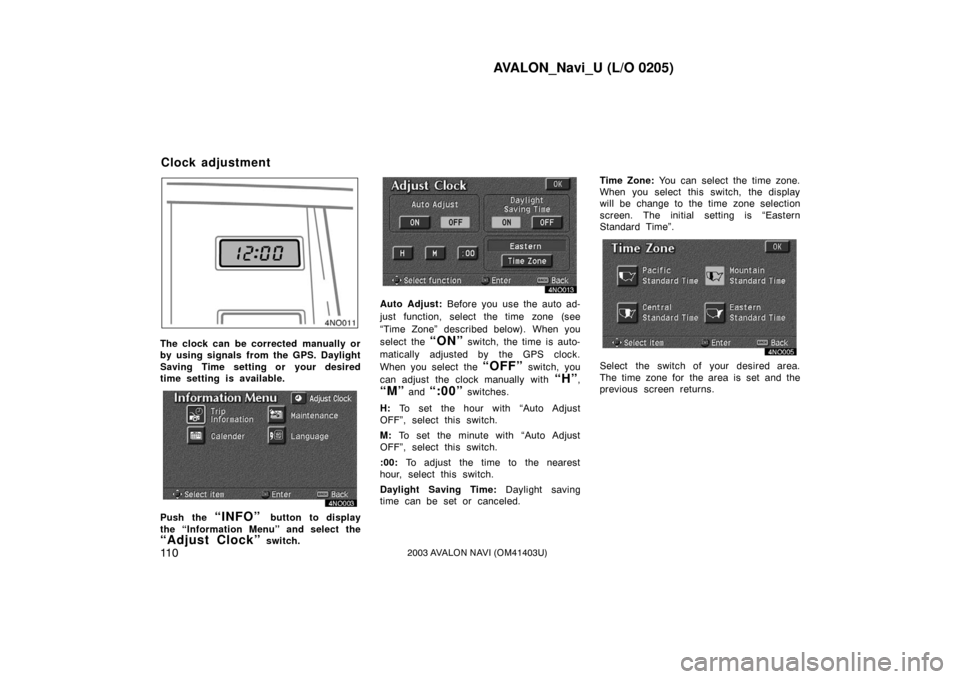

The clock can be corrected manually or
by using signals from the GPS. Daylight
Saving Time setting or your desired
time setting is available.
Push the “INFO” button to display
the “Information Menu” and select the
“Adjust Clock” switch.
Auto Adjust: Before you use the auto ad-
just function, select the time zone (see
“Time Zone” described below). When you
select the
“ON” switch, the time is auto-
matically adjusted by the GPS clock.
When you select the
“OFF” switch, you
can adjust the clock manually with
“H”,
“M” and “:00” switches.
H: To set the hour with “Auto Adjust
OFF”, select this switch.
M: To set the minute with “Auto Adjust
OFF”, select this switch.
:00: To adjust the time to the nearest
hour, select this switch.
Daylight Saving Time: Daylight saving
time can be set or canceled. Time Zone:
You can select the time zone.
When you select this switch, the display
will be change to the time zone selection
screen. The initial setting is “Eastern
Standard Time”.
Select the switch of your desired area.
The time zone for the area is set and the
previous screen returns.
Clock adjustment

AVALON_Navi_U (L/O 0205)
1112003 AVALON NAVI (OM41403U)
4NO012
The outside temperature display indi-
cates outside air temperatures when the
ignition switch is on.
The displayed temperature ranges from
−30 C ( −22 F) up to 50 C (122 F).
If there is some abnormality in the
connection of the outside air temperature
sensor, “ −−” will appear on the display. If
“ −−” appears on the display, contact your
Toyota dealer.
There may be a case that “−−” appears
momentarily when the ignition is quickly
turned to “ON”. It is normal if it goes out
soon.
Outside temperature is also displayed on
the “Trip information” screen. To display
the “Trip information” screen, see “Trip
information” described below. Trip information such as driving dis-
tance, average vehicle speed, fuel con-
sumption, etc. can be displayed on the
screen.
Push the “INFO” button to display
the “Information Menu” and select the
“Trip Information” switch.
Outside temperature display Trip information

AVALON_Navi_U (L/O 0205)
11 22003 AVALON NAVI (OM41403U)

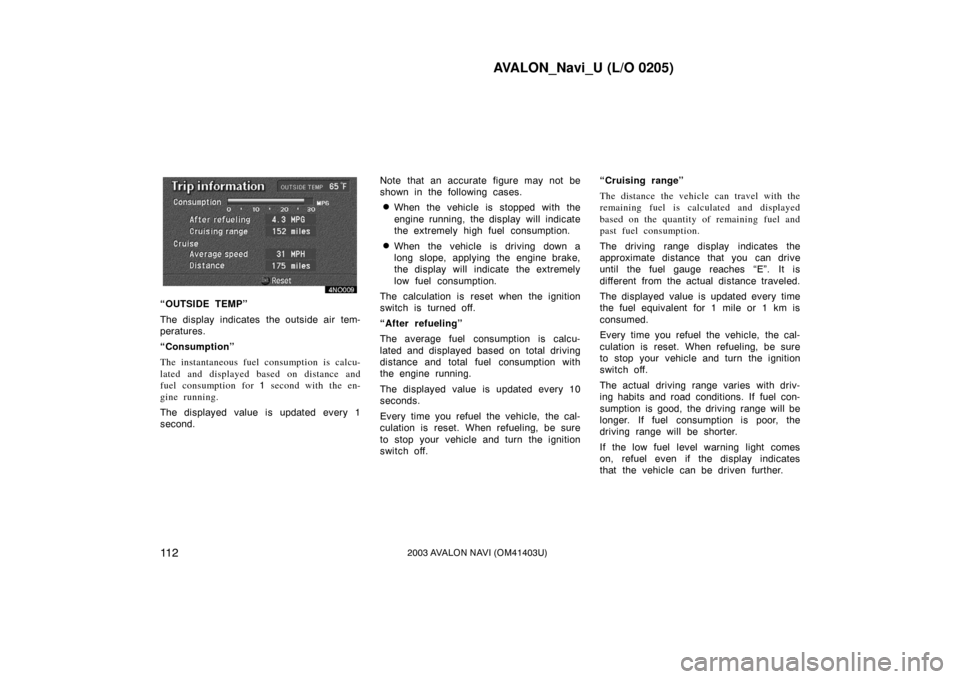

“OUTSIDE TEMP”
The display indicates the outside air tem-
peratures.
“Consumption”
The instantaneous fuel consumption is calcu-
lated and displayed based on distance and
fuel consumption for 1 second with the en-
gine running.
The displayed value is updated every 1
second. Note that an accurate figure may not be
shown in the following cases.
When the vehicle is stopped with the
engine running, the display will indicate
the extremely high fuel consumption.
When the vehicle is driving down a
long slope, applying the engine brake,
the display will indicate the extremely
low fuel consumption.
The calculation is reset when the ignition
switch is turned off.
“After refueling”
The average fuel consumption is calcu-
lated and displayed based on total driving
distance and total fuel consumption with
the engine running.
The displayed value is updated every 10
seconds.
Every time you refuel the vehicle, the cal-
culation is reset. When refueling, be sure
to stop your vehicle and turn the ignition
switch off. “Cruising range”
The distance the vehicle can travel with the
remaining fuel is calculated and displayed
based on the qu
antity of remaining fuel and
past fuel consumption.
The driving range display indicates the
approximate distance that you can drive
until the fuel gauge reaches “E”. It is
different from the actual distance traveled.
The displayed value is updated every time
the fuel equivalent for 1 mile or 1 km is
consumed.
Every time you refuel the vehicle, the cal-
culation is reset. When refueling, be sure
to stop your vehicle and turn the ignition
switch off.
The actual driving range varies with driv-
ing habits and road conditions. If fuel con-
sumption is good, the driving range will be
longer. If fuel consumption is poor, the
driving range will be shorter.
If the low fuel level warning light comes
on, refuel even if the display indicates
that the vehicle can be driven further.
