The cruise information display indicates
the following information.1. Instantaneous fuel consumption
2. Average fuel consumption after refuel- ing
3. Average vehicle speed
4. Driving range
5. Driving time
Every time you push the “DISPLAY” but-
ton, the display toggles through this infor-
mation.
The displayed values in the cruise infor-
mation display indicate general driving
conditions. Accuracy varies with driving
habits and road conditions.
If the electrical power source has been
disconnected, the display will automatically
be set to instantaneous fuel consumption.
To set the unit, push the “MODE” button
until the unit display appears and blinks.
Then push the “RESET/ADJ” button to se-
lect km/liter or mile/gallon. (At this time,
the outside temperature and air condition-
ing displays also change.)
After setting the unit, push the “MODE”
button until the display returns to normal
calendar mode. 1. Instantaneous fuel consumption
(“INST ECON”)
The instantaneous fuel consumption is
calculated and displayed based on driv-
ing distance and fuel consumption for
2 seconds with the engine running.
The displayed value is updated every 2
seconds.
Note that an accurate figure may not be
shown in the following cases.
When the vehicle is stopped with the
engine running, the display will indicate
the extremely high fuel consumption.
When the vehicle is driving down a
long slope, applying the engine brake,
the display will indicate the extremely
low fuel consumption.
The calculation is reset when the ignition
switch is turned off. 2. Average fuel consumption after re-
fueling
(“AVG ECON”)
Average fuel consumption after refuel-
ing is calculated and displayed based
on total driving distance and total fuel
consumption with the engine running.
The displayed value is updated every 10
seconds.
Every time you refuel the vehicle, the av-
erage fuel consumption after refueling
(“AVG ECON”) calculation is automatically
reset. 3. Average vehicle speed (“AVG SPEED”)
Average vehicle speed is calculated and
displayed based on total driving dis-
tance and total driving time with the
engine running.
The displayed value is updated every 10
seconds.
To reset the calculations, push the
“RESET/ADJ” button.
The calculation is reset when the ignition
switch is turned off.

’04 AVALON U (L/O 0408)
194
2004 AVALON from Aug. ’04 Prod. (OM41412U)
4. Driving range(“FUEL RANGE”)
The distance the vehicle can travel with
the remaining fuel is calculated and
displayed based on the quantity of re-
maining fuel and past fuel consumption.
The displayed value is updated every time
when the fuel equivalent for 1 km is con-
sumed.
Every time you refuel the vehicle, the
driving range calculation is automatically
reset.
The actual driving range varies with driv-
ing habits and road conditions. If fuel con-
sumption is good, the driving range will be
longer. If fuel consumption is poor, the
driving range will be shorter. 5. Driving time (“TRIP TIME”)
The elapsed time after the engine starts
is displayed.
When the engine is started, driving time
is counted from 0:00. Up to 99:59 (99
hours, 59 minutes) can be displayed.
When the driving time exceeds 99:59, the
counter returns to 0:00. To reset the calculations, push the
“RESET/ADJ” button.
The calculation is reset when the ignition
switch is turned off.
The compass indicates the direction
that the vehicle is heading. In the
above case, it shows that the vehicle is
heading south.
Displays
Directions
N
NE E
SE
S
SW W
NWNorth
Northeast East
Southeast
South
Southwest West
Northwest
—Compass

’04 AVALON U (L/O 0408)
195
2004 AVALON from Aug. ’04 Prod. (OM41412U)
The compass may not show the correct
direction in the following conditions:
The vehicle is stopped immediately af-
ter turning.
The compass does not adjust while the
vehicle is stopped.
The ignition switch is turned off imme-
diately after turning.
The vehicle is on an inclined surface.
The vehicle is in a place where the
earth’s magnetic field is subject to in-
terference by artificial magnetic fields
(underground parking, under a steel
tower, between buildings, roof parking,
near a crossing, near a large vehicle,
etc.).
The vehicle is magnetized. (There is a
magnet or a metal object on or near
the roof.)
The battery has been disconnected.
If the deviation is small, the compass
works to calibrate the direction automati-
cally while the vehicle is in motion.
For additional precision or for complete
calibrating, see “CALIBRATING THE
COMPASS” below.
Compass sensor
NOTICE
Do not put magnets or a metal object
on or near the roof of the vehicle.
Doing this may cause malfunction of
the compass sensor.
CALIBRATING THE COMPASS (deviation
calibration)
The direction display on the compass
deviates from the true direction deter-
mined by the earth’s magnetic field. The
angle of deviation varies according to the
geographic position of the vehicle.
To adjust for this deviation, stop the ve-
hicle and push the “MODE” button several
times until “ZONE XX” appears on the
calendar display. Then push the “RESET/
ADJ” button, referring to the following map
to select the number of the zone where
the vehicle is.

’04 AVALON U (L/O 0408)
196
2004 AVALON from Aug. ’04 Prod. (OM41412U)
Zone number
After calibration, push the “MODE” button
several times until the calendar display
returns to the normal mode.
CAUTION
Do not adjust the display while the
vehicle is moving. Be sure to adjust
the display only when the vehicle is
stopped.
Hawaii, Samoa: 5
Guam, Saipan: 8

’04 AVALON U (L/O 0408)
197
2004 AVALON from Aug. ’04 Prod. (OM41412U)
CALIBRATING THE COMPASS (circling
calibration)
Sometimes the direction display on the
compass may not change after a turn. To

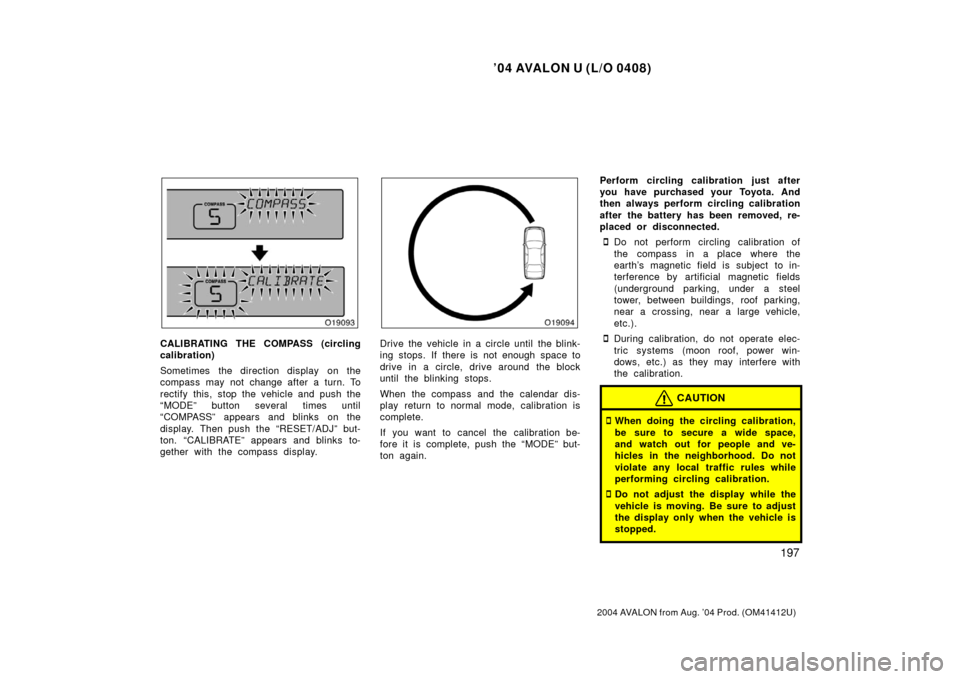

rectify this, stop the vehicle and push the
“MODE” button several times until
“COMPASS” appears and blinks on the
display. Then push the “RESET/ADJ” but-
ton. “CALIBRATE” appears and blinks to-
gether with the compass display.Drive the vehicle in a circle until the blink-
ing stops. If there is not enough space to
drive in a circle, drive around the block
until the blinking stops.
When the compass and the calendar dis-
play return to normal mode, calibration is
complete.
If you want to cancel the calibration be-
fore it is complete, push the “MODE” but-
ton again.Perform circling calibration just after
you have purchased your Toyota. And
then always perform circling calibration
after the battery has been removed, re-
placed or disconnected.
Do not perform circling calibration of
the compass in a place where the
earth’s magnetic field is subject to in-
terference by artificial magnetic fields
(underground parking, under a steel
tower, between buildings, roof parking,
near a crossing, near a large vehicle,
etc.).
During calibration, do not operate elec-
tric systems (moon roof, power win-
dows, etc.) as they may interfere with
the calibration.
CAUTION
When doing the circling calibration,
be sure to secure a wide space,
and watch out for people and ve-
hicles in the neighborhood. Do not
violate any local traffic rules while
performing circling calibration.
Do not adjust the display while the
vehicle is moving. Be sure to adjust
the display only when the vehicle is
stopped.

’04 AVALON U (L/O 0408)
198
2004 AVALON from Aug. ’04 Prod. (OM41412U)

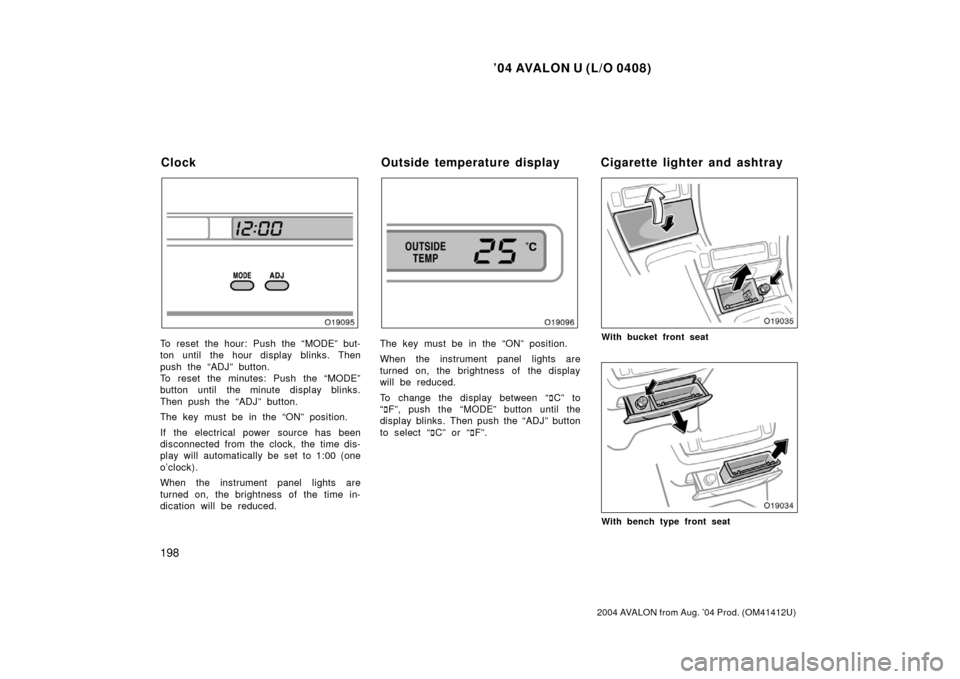

To reset the hour: Push the “MODE” but-
ton until the hour display blinks. Then
push the “ADJ” button.
To reset the minutes: Push the “MODE”
button until the minute display blinks.
Then push the “ADJ” button.
The key must be in the “ON” position.
If the electrical power source has been
disconnected from the clock, the time dis-
play will automatically be set to 1:00 (one
o’clock).
When the instrument panel lights are
turned on, the brightness of the time in-
dication will be reduced.The key must be in the “ON” position.
When the instrument panel lights are
turned on, the brightness of the display
will be reduced.
To change the display between “C” to
“  F”, push the “MODE” button until the
display blinks. Then push the “ADJ” button
to select “ C” or “ F”.With bucket front seat
With bench type front seat
Clock Outside temperature display Cigarette lighter and ashtray

’04 AVALON U (L/O 0408)
199
2004 AVALON from Aug. ’04 Prod. (OM41412U)
CIGARETTE LIGHTER

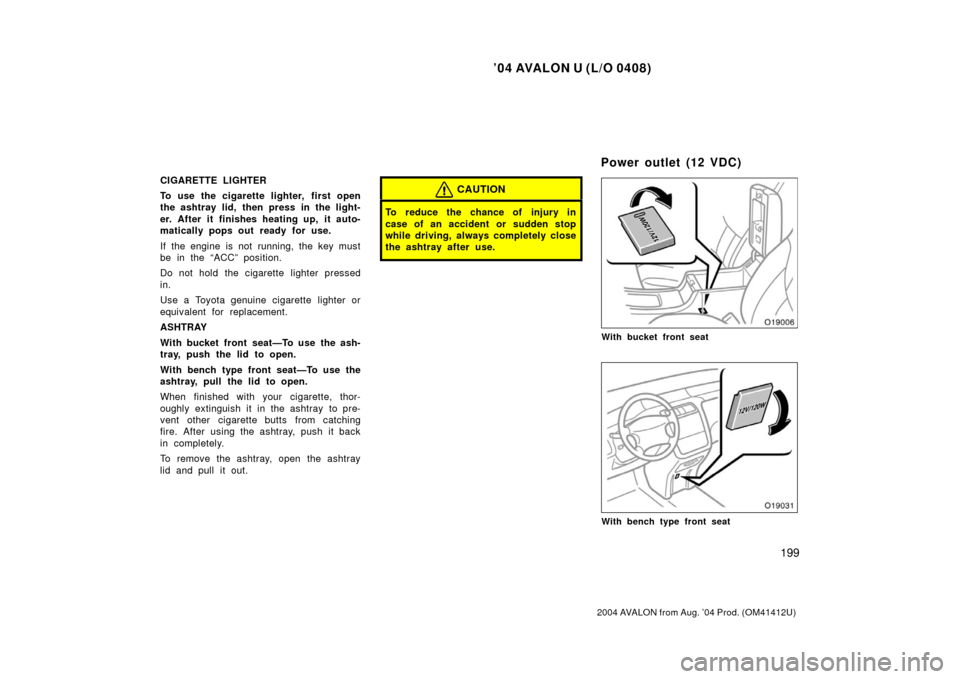

To use the cigarette lighter, first open
the ashtray lid, then press in the light-
er. After it finishes heating up, it auto-
matically pops out ready for use.
If the engine is not running, the key must
be in the “ACC” position.
Do not hold the cigarette lighter pressed
in.
Use a Toyota genuine cigarette lighter or
equivalent for replacement.
ASHTRAY
With bucket front seat—To use the ash-
tray, push the lid to open.
With bench type front seat—To use the
ashtray, pull the lid to open.
When finished with your cigarette, thor-
oughly extinguish it in the ashtray to pre-
vent other cigarette butts from catching
fire. After using the ashtray, push it back
in completely.
To remove the ashtray, open the ashtray
lid and pull it out.CAUTION
To reduce the chance of injury in
case of an accident or sudden stop
while driving, always completely close
the ashtray after use.
With bucket front seat
With bench type front seat
Power outlet (12 VDC)

’04 AVALON U (L/O 0408)
200
2004 AVALON from Aug. ’04 Prod. (OM41412U)
The power outlet is designed for power
supply for car accessories.
The key must be in the “ACC” or “ON”
position for the power outlet to be used.
NOTICE
To prevent the fuse from being
blown, do not use the electricity
over the total vehicle capacity of 12
VDC/120W.
 To prevent the battery from being
discharged, do not use the power
outlet longer than necessary when
the engine is not running.
 Close the power outlet lid when the
power outlet is not in use. Inserting
anything other than an appropriate
plug that fits the outlet, or allowing
any liquid to get into the outlet may
cause electrical failure or short cir-
cuits.
With bucket front seat
With bench type front seat

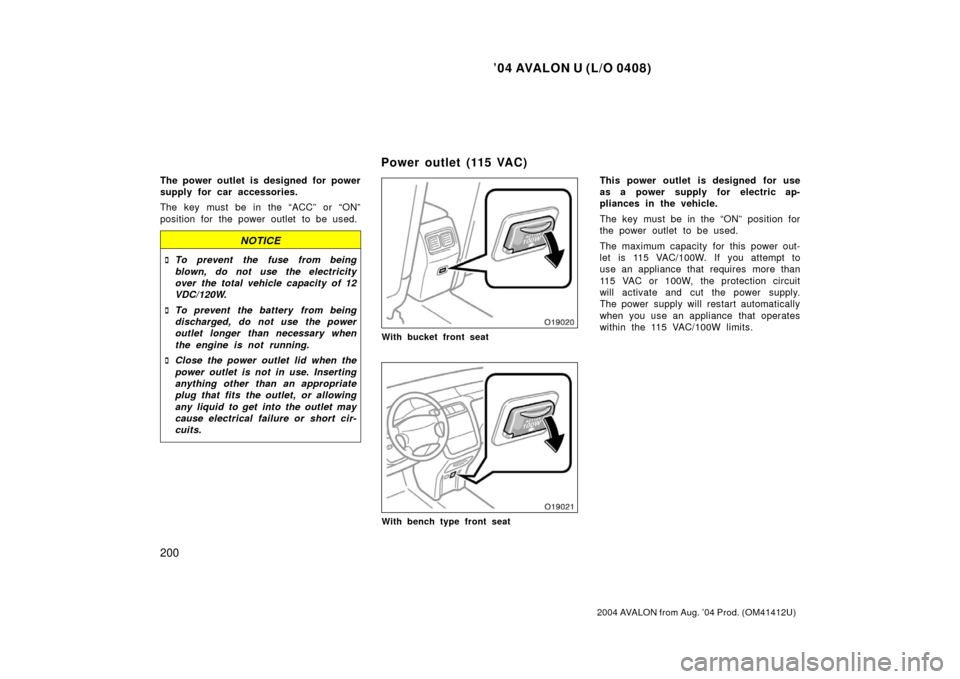

This power outlet is designed for use
as a power supply for electric ap-
pliances in the vehicle.
The key must be in the “ON” position for
the power outlet to be used.
The maximum capacity for this power out-
let is 115 VAC/100W. If you attempt to
use an appliance that requires more than
115 VAC or 100W, the protection circuit
will activate and cut the power supply.
The power supply will restart automatically
when you use an appliance that operates
within the 115 VAC/100W limits.
Power outlet (115 VAC)

’04 AVALON U (L/O 0408)
201
2004 AVALON from Aug. ’04 Prod. (OM41412U)

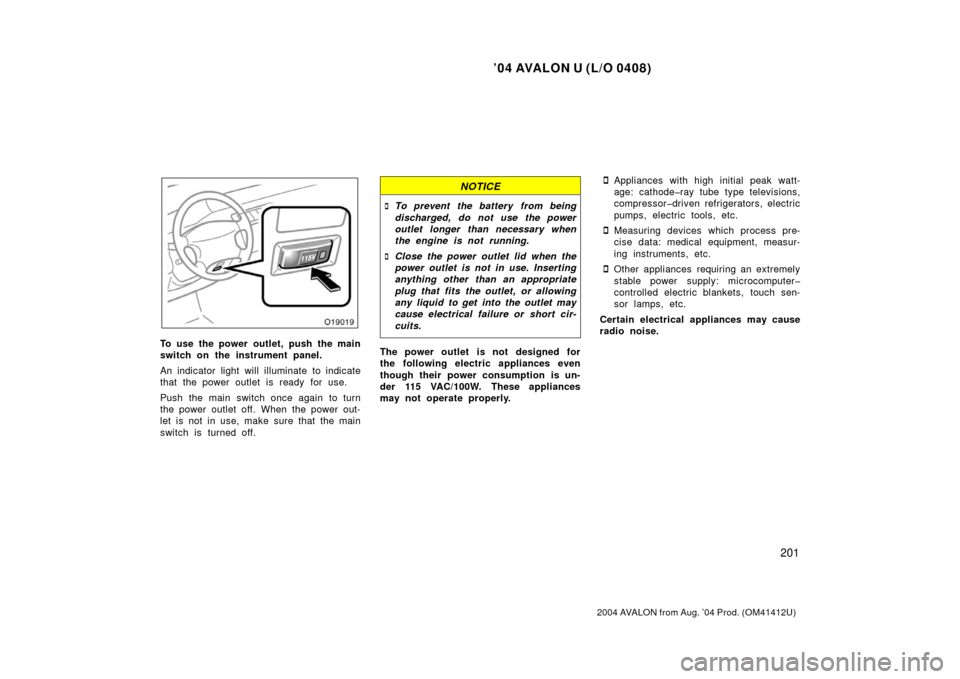

To use the power outlet, push the main
switch on the instrument panel.
An indicator light will illuminate to indicate
that the power outlet is ready for use.
Push the main switch once again to turn
the power outlet off. When the power out-
let is not in use, make sure that the main
switch is turned off.
NOTICE
To prevent the battery from being
discharged, do not use the power
outlet longer than necessary when
the engine is not running.
 Close the power outlet lid when the
power outlet is not in use. Inserting
anything other than an appropriate
plug that fits the outlet, or allowing
any liquid to get into the outlet may
cause electrical failure or short cir-
cuits.
The power outlet is not designed for
the following electric appliances even
though their power consumption is un-
der 115 VAC/100W. These appliances
may not operate properly.
Appliances with high initial peak watt-
age: cathoderay tube type televisions,
compressordriven refrigerators, electric
pumps, electric tools, etc.
Measuring devices which process pre-
cise data: medical equipment, measur-
ing instruments, etc.
Other appliances requiring an extremely
stable power supply: microcomputer
controlled electric blankets, touch sen-
sor lamps, etc.
Certain electrical appliances may cause
radio noise.

’04 AVALON U (L/O 0408)
202
2004 AVALON from Aug. ’04 Prod. (OM41412U)

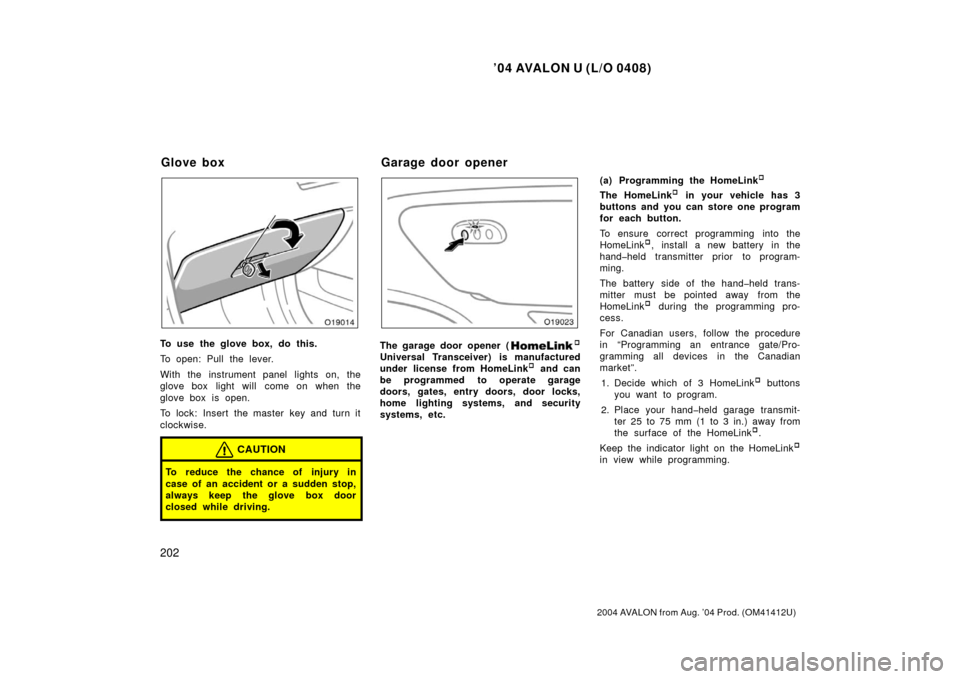

To use the glove box, do this.
To open: Pull the lever.
With the instrument panel lights on, the
glove box light will come on when the
glove box is open.
To lock: Insert the master key and turn it
clockwise.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the glove box door
closed while driving.
The garage door opener (
Universal Transceiver) is manufactured
under license from HomeLink and can
be programmed to operate garage
doors, gates, entry doors, door locks,
home lighting systems, and security
systems, etc. (a) Programming the HomeLink

The HomeLink in your vehicle has 3
buttons and you can store one program
for each button.
To ensure correct programming into the
HomeLink
, install a new battery in the
handheld transmitter prior to program-
ming.
The battery side of the handheld trans-
mitter must be pointed away from the
HomeLink
 during the programming pro-
cess.
For Canadian users, follow the procedure
in “Programming an entrance gate/Pro-
gramming all devices in the Canadian
market”.
1. Decide which of 3 HomeLink
 buttons
you want to program.
2. Place your handheld garage transmit- ter 25 to 75 mm (1 to 3 in.) away from
the surface of the HomeLink
.
Keep the indicator light on the HomeLink

in view while programming.
Glove box Garage door opener
